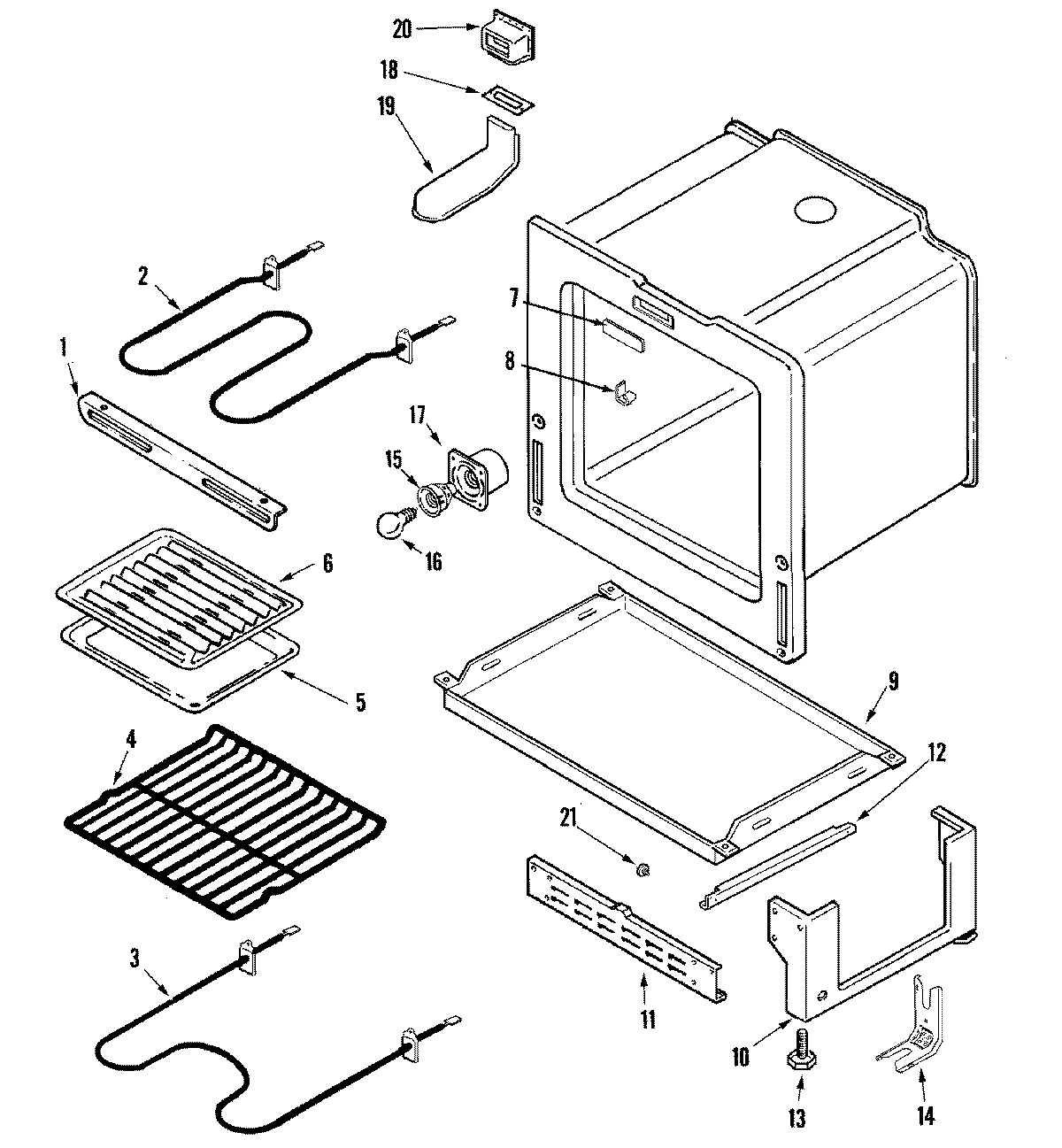

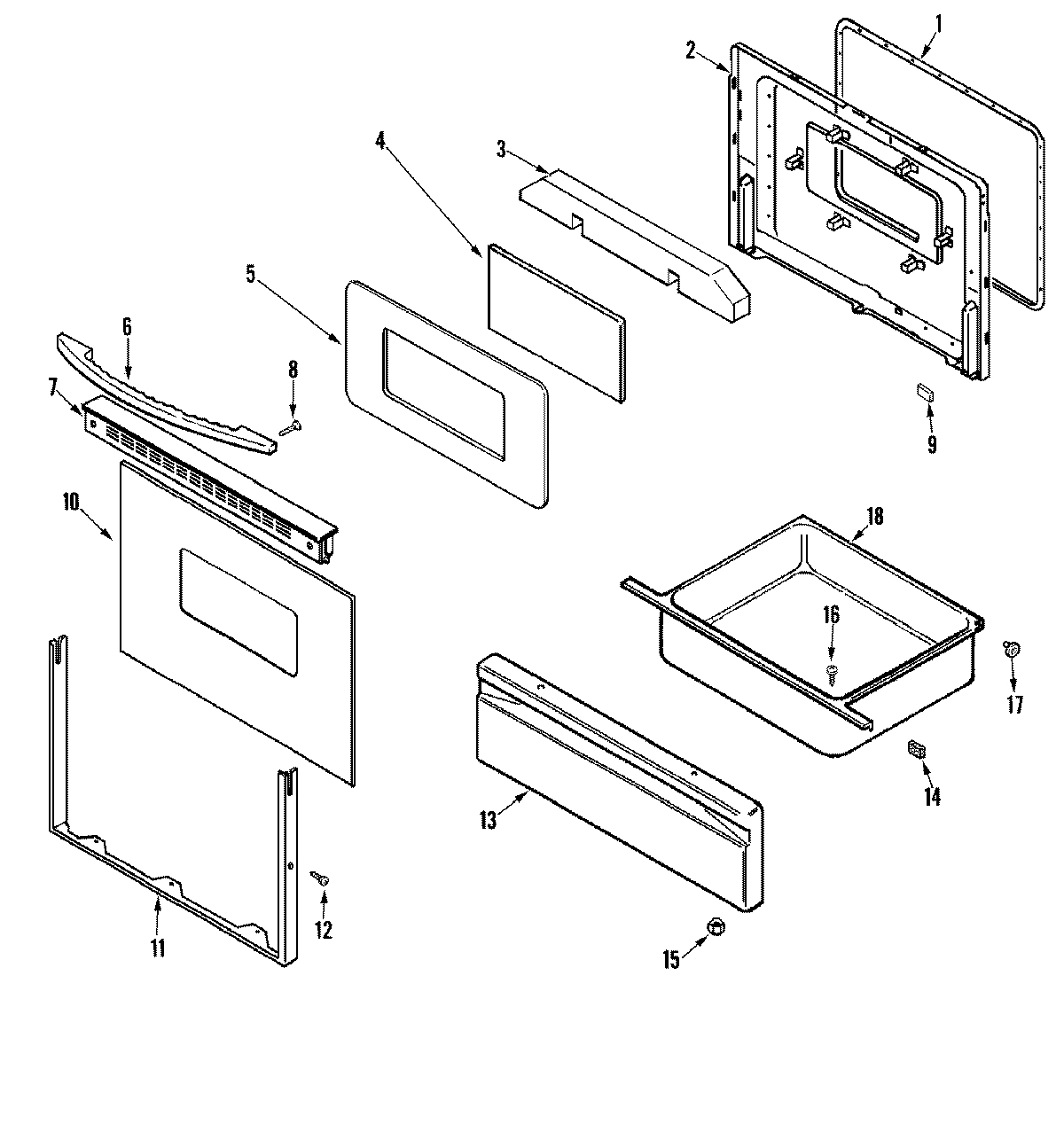

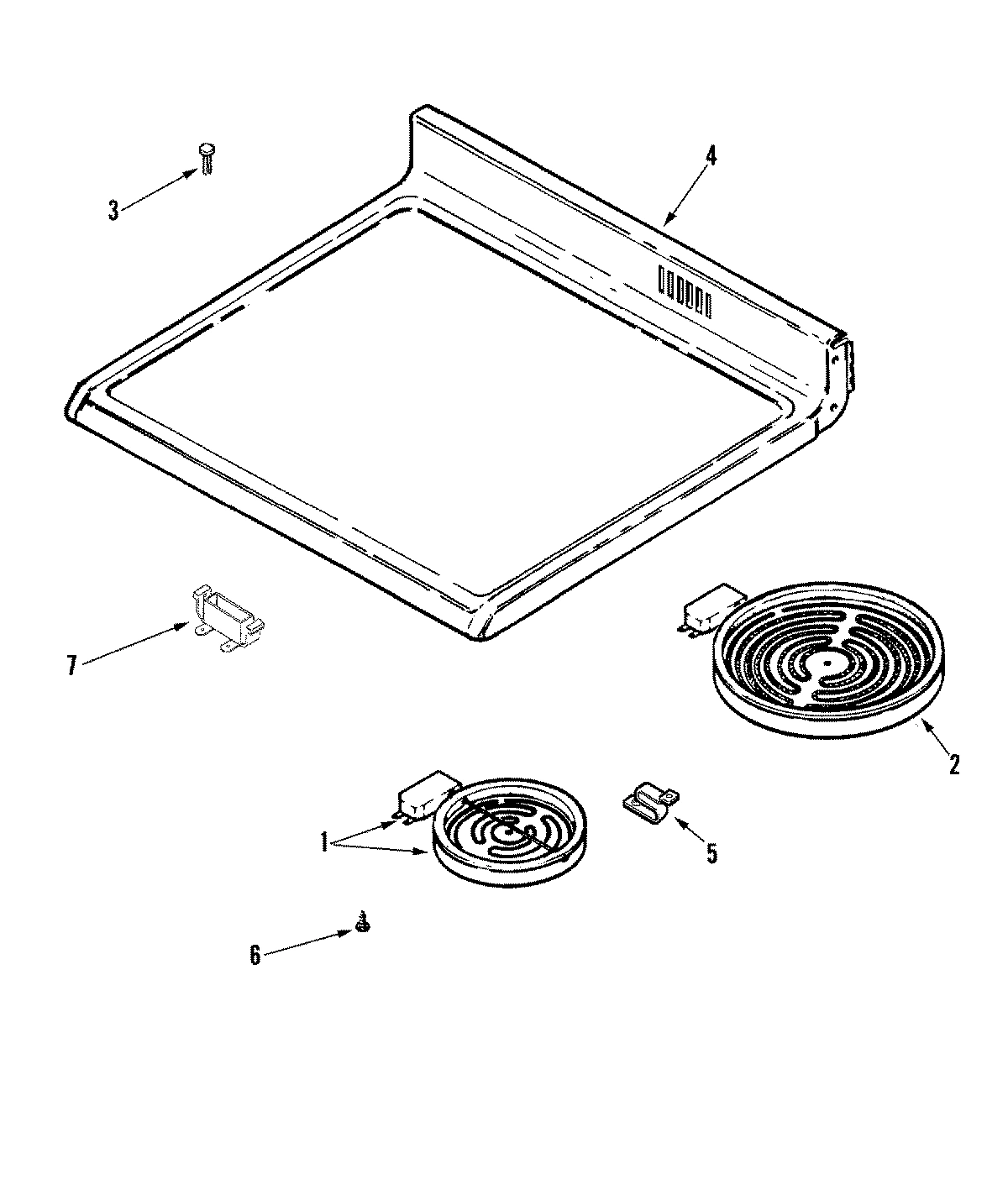

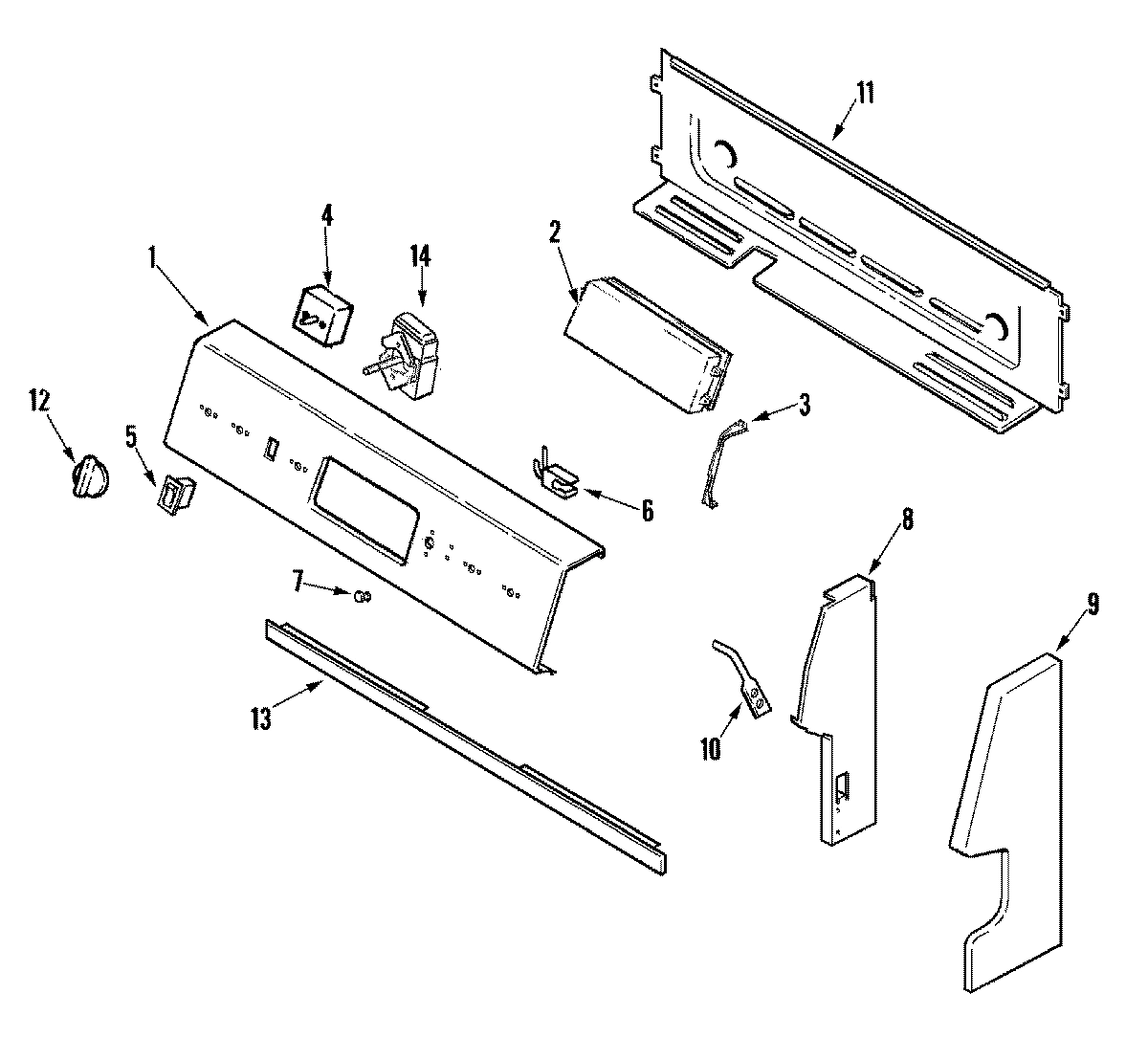

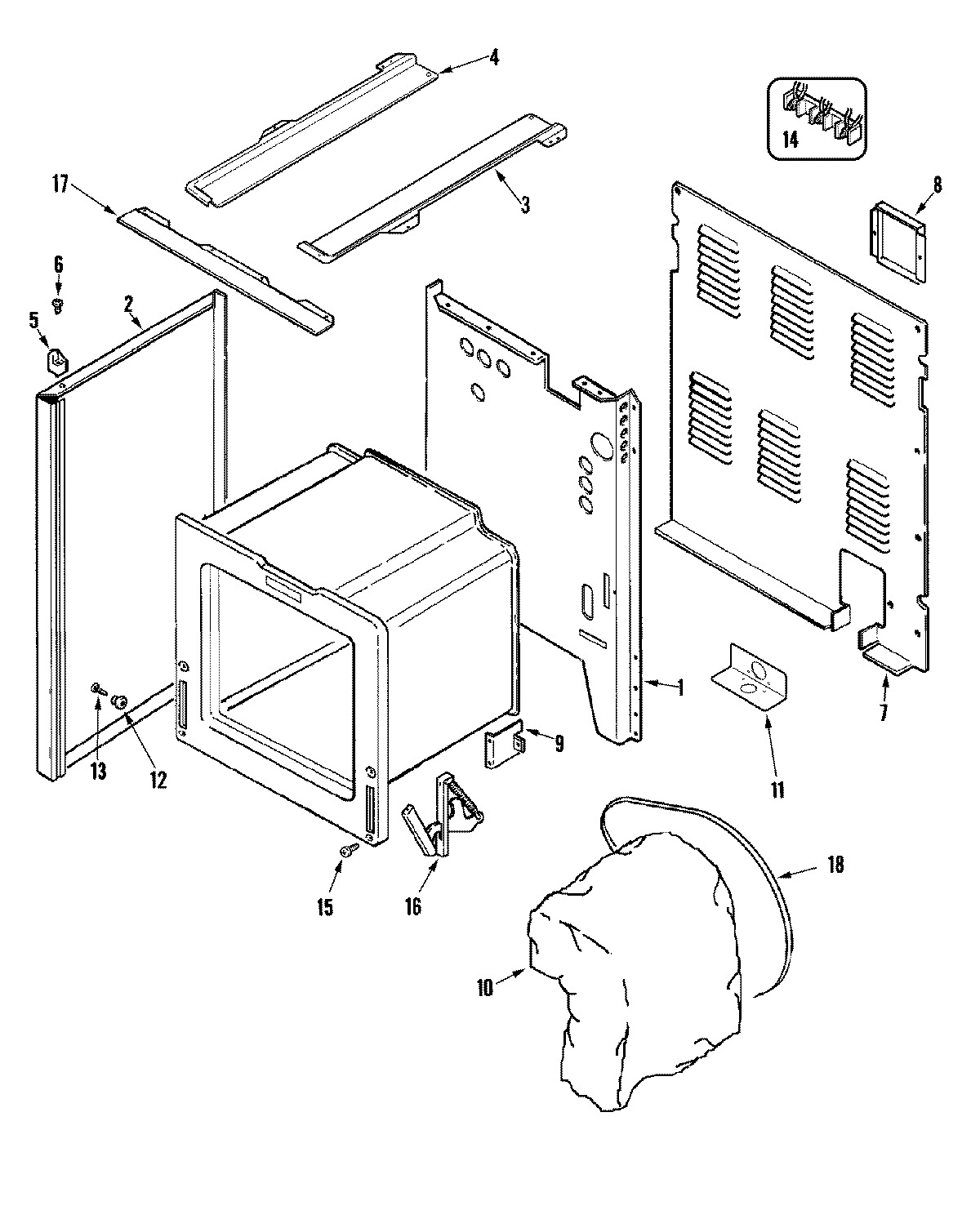

Model Whirlpool AER1450BAH ELECTRIC RANGE – Common Parts &amp; Diagrams

1

BACK, MAIN WPL 74001772 Contact Us For Availability

1

PANEL, CONTROL (BLK) WPL 74003979 Contact Us For Availability

1

SEAL, DOOR WPL 7212P04360 Contact Us For Availability

1

SUPPORT, BROIL ELEMENT WPL 74003386 Contact Us For Availability

2

W10799767 Whirlpool Clock Timer Backorder WPL W10799767 $343.12

2

W10823707 Whirlpool Range Radiant Surface Ele In Stock WPL W10823707 $144.85

2

WP74001574 Whirlpool Snap Nut Backorder WPL WP74001574 $6.85

2

WPW10310249 Whirlpool Broil Element In Stock WPL WPW10310249 $82.15

2

HARNESS, WIRE (BKGD) WPL 74007505 Contact Us For Availability

2

PANEL, SIDE (WHT) WPL 74003236 Contact Us For Availability

2

NUT, SNAP (ROUND-WHT) WPL 7103P03960 Contact Us For Availability

2

LINING, DOOR WPL 74005097 Contact Us For Availability

3

WP74010750 Whirlpool Oven Bake Element In Stock WPL WP74010750 $38.16

3

HARNESS, BACKGUARD TO TOP WPL 74007514 Contact Us For Availability

3

BOX, BURNER (RT) WPL 74003378 Contact Us For Availability

3

SCREW (8ABX3/8-BLK) WPL 7101P34760 Contact Us For Availability

3

BRACKET, CLOCK WPL 74003426 Contact Us For Availability

3

INSULATION, DOOR WPL 74002458 Contact Us For Availability

3

SPACER, MAIN TOP WPL 8010P04860 Contact Us For Availability

4

WPW10282492 Whirlpool Range Rack In Stock WPL WPW10282492 $50.75

4

HARNESS, ELEMENT WPL 74006863 Contact Us For Availability

4

BOX, BURNER (LT) WPL 74003379 Contact Us For Availability

4

SCREW WPL 7101P30960 Contact Us For Availability

4

SWITCH, INFINITE (SML ELEMENT) WPL 7403P23860 Contact Us For Availability

4

SWITCH, INFINITE (LRG ELEMENT) WPL 7403P23960 Contact Us For Availability

4

GLASS, DOOR (INNER) WPL 74002459 Contact Us For Availability

4

TOP, MAIN (WHT GLASS/WHT TRM) WPL 74003743 Contact Us For Availability

5

SPACER, MAIN TOP (LT) WPL 8010P08760 Contact Us For Availability

5

SPACER, MAIN TOP (RT) WPL 8010P08860 Contact Us For Availability

5

SWITCH, ROCKER (BLK) WPL 74003363 Contact Us For Availability

5

SCREW (BLK) WPL 7101P27660 Contact Us For Availability

5

BAFFLE, DOOR WPL 74002461 Contact Us For Availability

5

PAN, BROIL WPL Y3401F02019 Contact Us For Availability

6

WP7101P498-60 Whirlpool Screw Backorder WPL WP7101P498-60 $4.82

6

WP74004153 Whirlpool Indicator Light Backorder WPL WP74004153 $4.82

6

SCRAPER, RAZOR WPL 8312P00160 Contact Us For Availability

6

HANDLE, DOOR (BLK) WPL 74006286 Contact Us For Availability

6

INSERT, BROIL PAN WPL Y3413F01619 Contact Us For Availability

7

MANUAL, SRVC ELEC/GAS RANGE WPL 16010161 Contact Us For Availability

7

COVER, MAIN BACK WIRE WPL 74003241 Contact Us For Availability

7

LENS, INDICATOR LIGHT WPL 7730P01160 Contact Us For Availability

7

TRIM, DOOR TOP (BLK) WPL 74003889 Contact Us For Availability

7

PLUG, LOCK SLOT WPL 74003406 Contact Us For Availability

7

INDICATOR, LIGHT WPL 74006388 Contact Us For Availability

8

WP74006515 Whirlpool Washer Screw Backorder WPL WP74006515 $5.02

8

COVER, ACCESS WPL 4005F42751 Contact Us For Availability

8

SUPPORT, CONTROL PANEL (RT) WPL 74003365 Contact Us For Availability

8

SUPPORT, CONTROL PANEL (LT) WPL 74003366 Contact Us For Availability

8

CLIP, THERMOSTAT WPL 7112P00460 Contact Us For Availability

9

WP74005546 Whirlpool RU Spacer Backorder WPL WP74005546 $6.25

9

SUPPORT,OVEN REAR WPL 3807F40051 Contact Us For Availability

9

SCREW (1 3/16``-BLK) WPL 74002432 Contact Us For Availability

9

END CAP, CONTROL PNL (RT-BLK) WPL 74003367 Contact Us For Availability

9

END CAP, CONTROL PNL (LT-BLK) WPL 74003368 Contact Us For Availability

INSULATION, OVEN BACK WPL 4804F03960 Contact Us For Availability

INSULATION, WRAP WPL 74003112 Contact Us For Availability

HINGE, MAIN TOP (ROD) WPL 74003371 Contact Us For Availability

GLASS, OUTER DOOR (BLK) WPL 74006287 Contact Us For Availability

PEDESTAL, SIDE WPL 74003393 Contact Us For Availability

W10190166 Whirlpool Service Bracket Backorder WPL W10190166 $5.46

HOUSING, CONTROL PANEL WPL 74003372 Contact Us For Availability

FRAME, DOOR (BLK) WPL 7706P30960 Contact Us For Availability

PEDESTAL, FRONT/REAR WPL 4020F00180 Contact Us For Availability

SPACER, SIDE PANEL WPL 8004P02460 Contact Us For Availability

SCREW (1/2``) WPL 7101P04060 Contact Us For Availability

KNOB, SWITCH (BLK) WPL 74003713 Contact Us For Availability

RUNNER, DRAWER WPL 74003565 Contact Us For Availability

W11233072 Whirlpool Screw In Stock WPL W11233072 $11.38

W11665456 Whirlpool Range Level Foot In Stock WPL W11665456 $19.10

W11693756 Whirlpool Screw Assembly Backorder WPL W11693756 $8.89

SCREW (8ABX13/16-ZN) WPL 74001449 Contact Us For Availability

SHIELD, SIGHT WPL 74003374 Contact Us For Availability

PANEL, DRAWER (WHT) WPL 74003399 Contact Us For Availability

WP3801F656-51 Whirlpool Range Anti-Tip Bracke In Stock WPL WP3801F656-51 $5.19

WP74005019 Whirlpool Range Thermostat In Stock WPL WP74005019 $135.09

SCREW (10ABX1.0-ZN) WPL 7101P06060 Contact Us For Availability

NUT, TERMINAL BLOCK WPL 7103P02760 Contact Us For Availability

BLOCK, TERMINAL WPL 7401P03960 Contact Us For Availability

SCREW W/WASHER (BLK) WPL 7101P28060 Contact Us For Availability

SEAL, DOOR PANEL WPL 7208P00960 Contact Us For Availability

SCREW WPL 7101P34460 Contact Us For Availability

15

SCREW WPL 7101P11260 Contact Us For Availability

15

NUT, LOCK WPL 7103P13960 Contact Us For Availability

15

BULB-OVEN WPL 7407P10360 Contact Us For Availability

16

WP74011141 Whirlpool Oven Hinge Backorder WPL WP74011141 $138.74

16

RECEPTACLE, BULB WPL 74003387 Contact Us For Availability

WP74004078 Whirlpool Door Roller In Stock WPL WP74004078 $8.02

BRACKET, MAIN TOP WPL 74003384 Contact Us For Availability

SHAFT, STORAGE DRAWER ROLLER WPL 74005231 Contact Us For Availability

HOUSING, BULB WPL 74003388 Contact Us For Availability

18

STRAP, INSULATION WPL 74003385 Contact Us For Availability

18

DRAWER, STORAGE WPL 71003042 Contact Us For Availability

18

GASKET, VENT WPL 74003285 Contact Us For Availability

19

VENT BOX ASSEMBLY WPL 74003394 Contact Us For Availability

20

EXTENSION, VENT ASSEMBLY WPL 74004534 Contact Us For Availability

21

NUT WPL 7103P08260 Contact Us For Availability

21

ROLLER, DRAWER WPL 74003566 Contact Us For Availability

NI

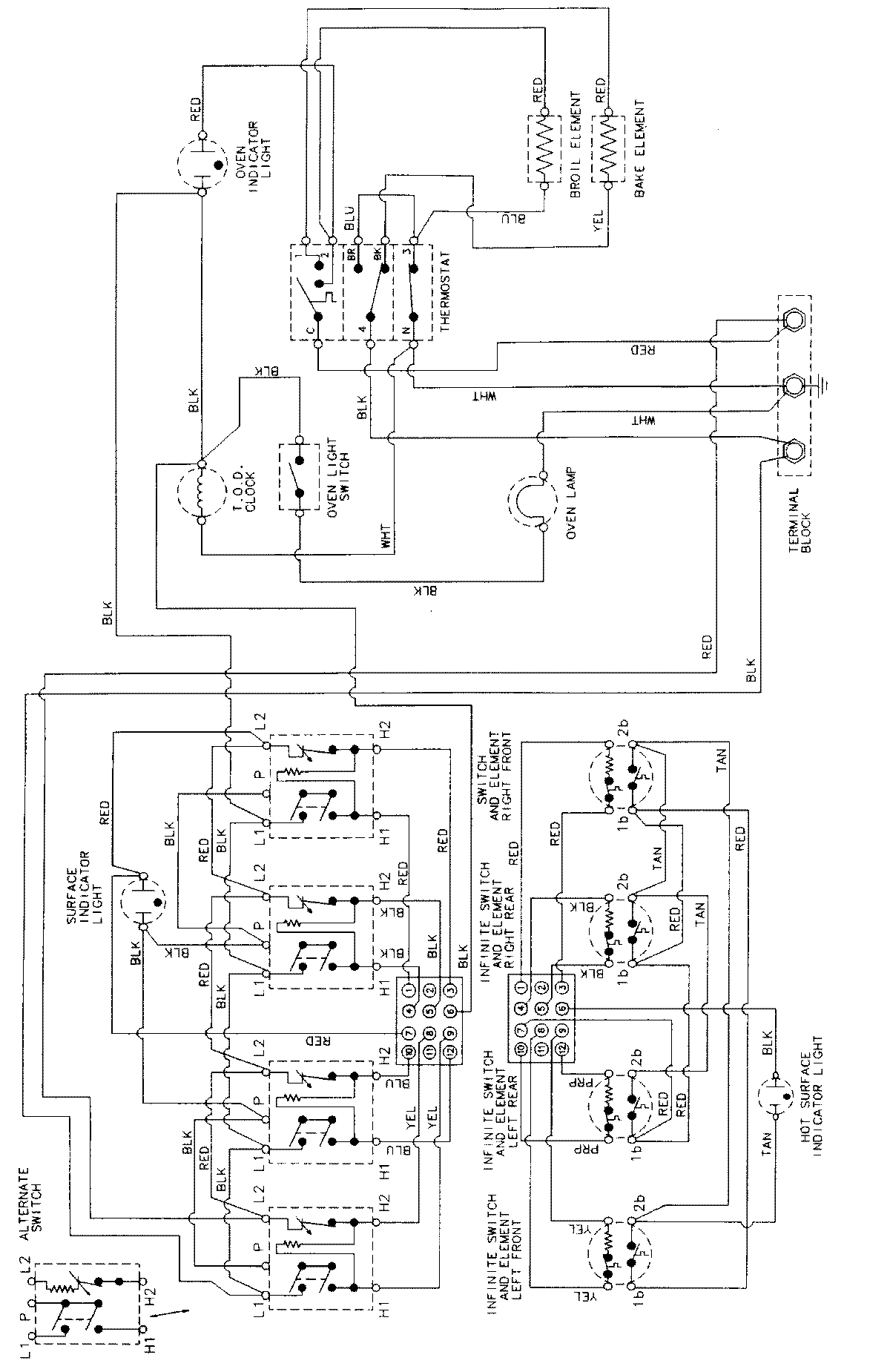

WIRING INFORMATION WPL 15002423 Contact Us For Availability
