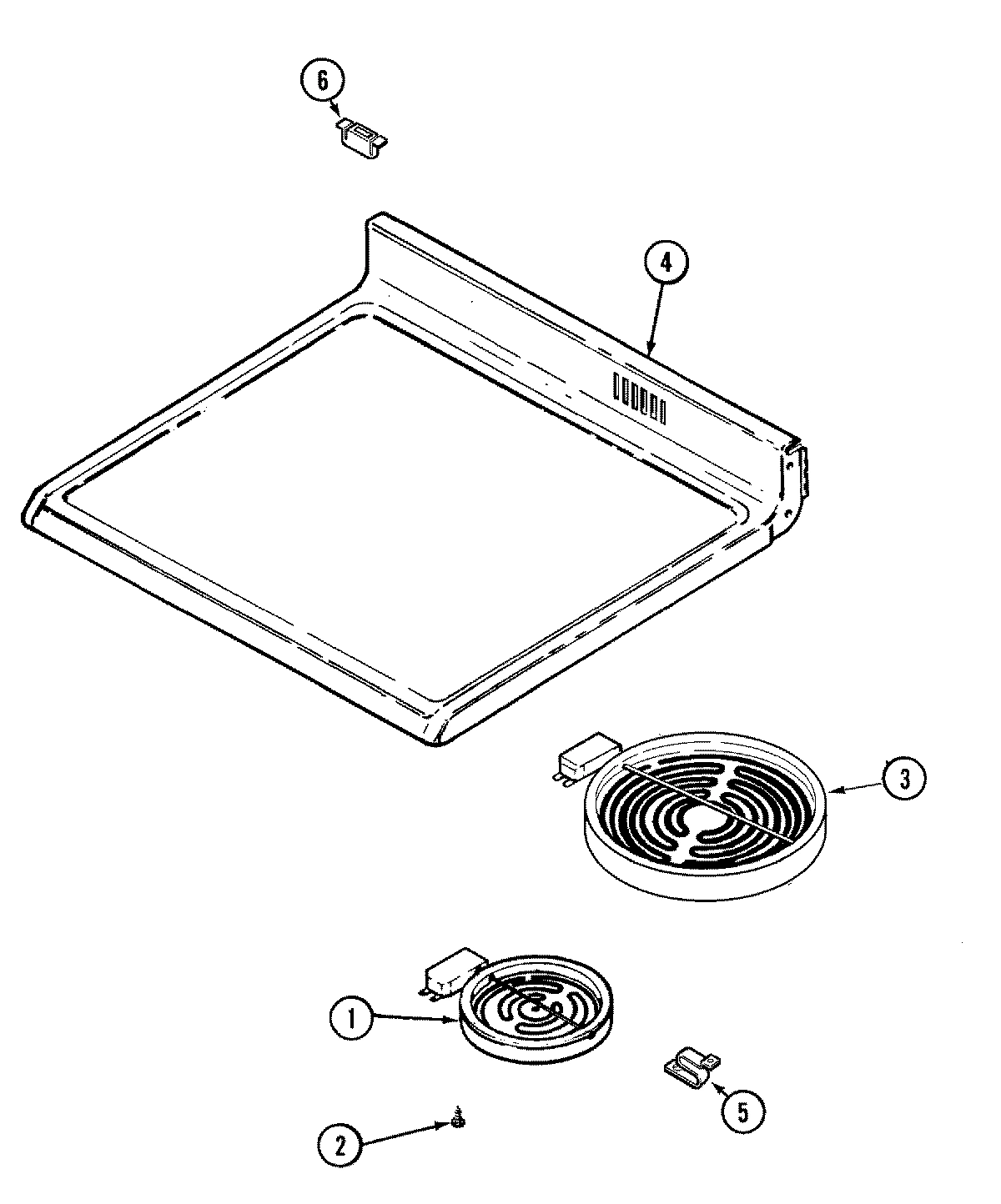

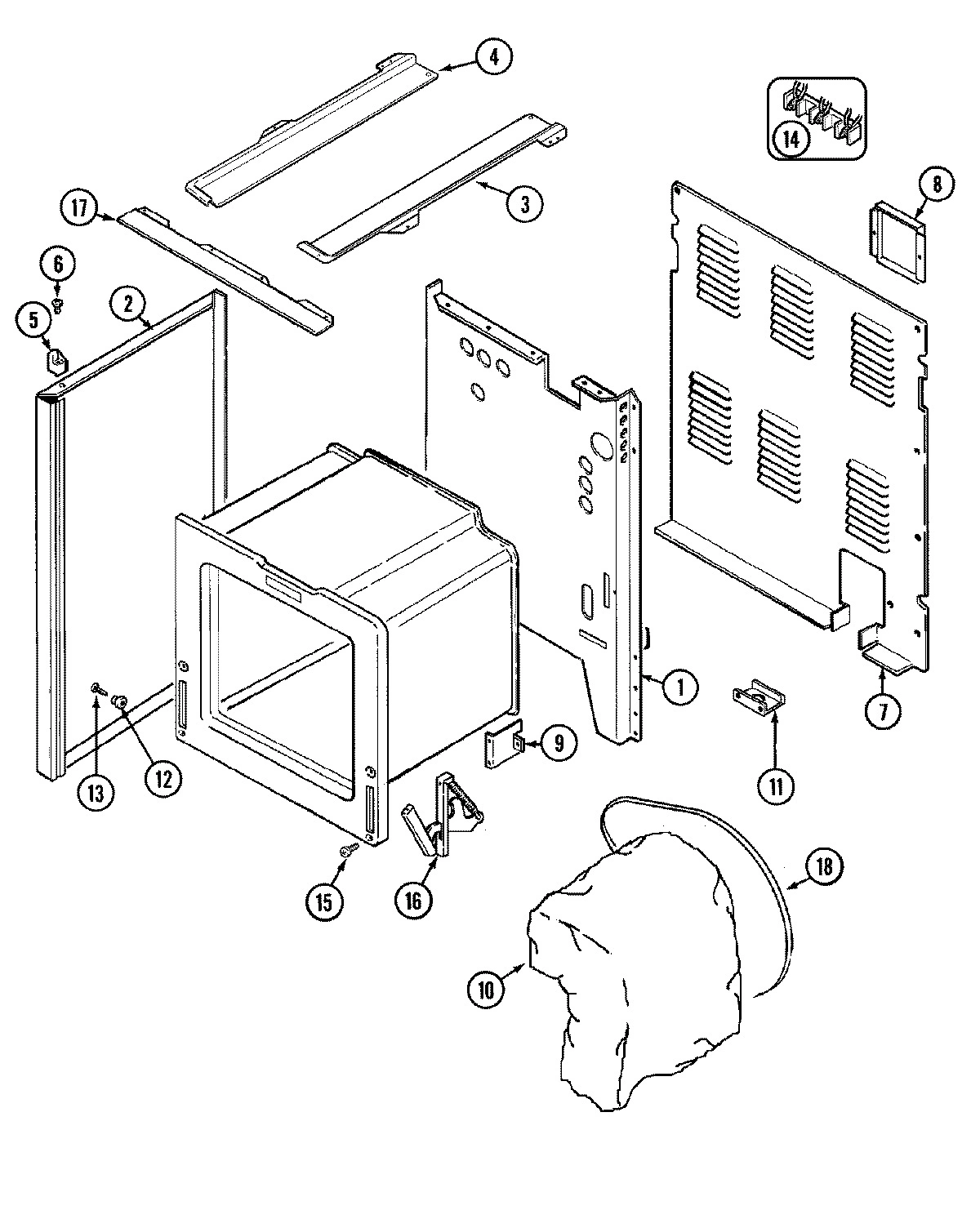

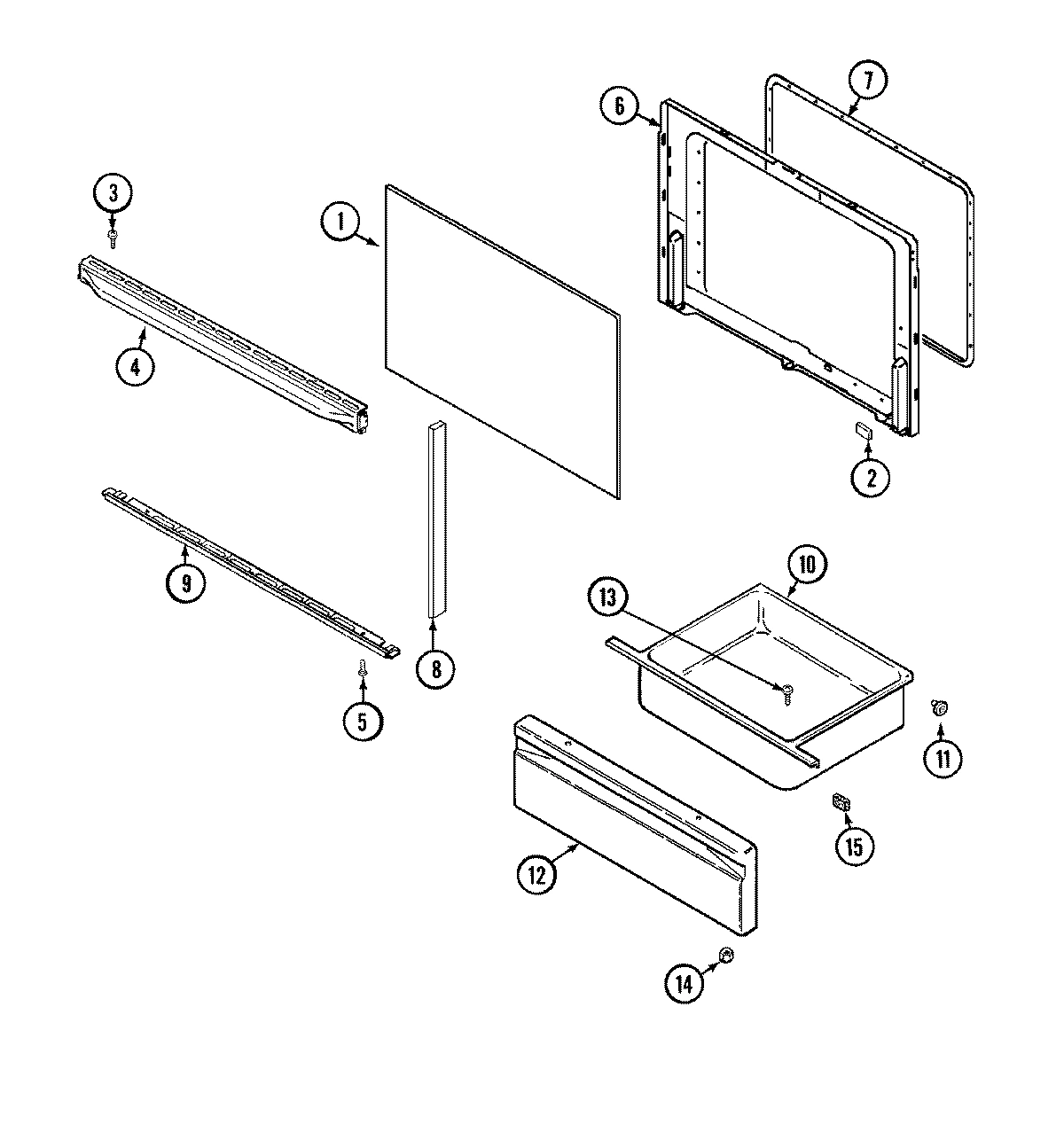

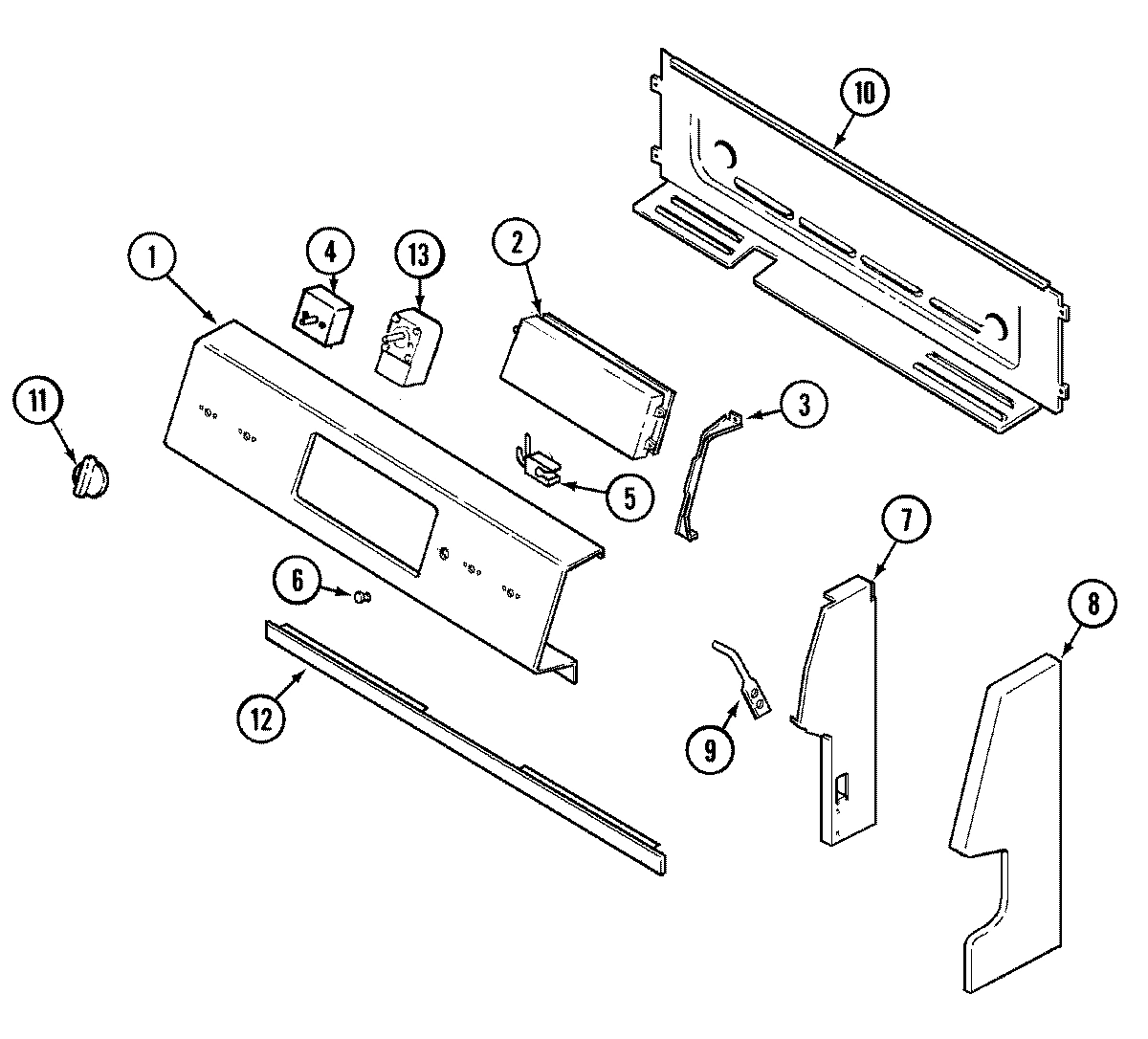

Model Whirlpool AER1450AAH ELECTRIC RANGE – Common Parts &amp; Diagrams

1

BACK, MAIN WPL 74001772 Contact Us For Availability

1

GLASS, DOOR (OUTER-BLK) WPL 7902P32560 Contact Us For Availability

1

PANEL, CONTROL (BLK) WPL 74003979 Contact Us For Availability

2

W10799767 Whirlpool Clock Timer Backorder WPL W10799767 $343.12

2

WP7101P498-60 Whirlpool Screw Backorder WPL WP7101P498-60 $4.82

2

WPW10310249 Whirlpool Broil Element In Stock WPL WPW10310249 $82.15

2

PANEL, SIDE (WHT) WPL 74003236 Contact Us For Availability

2

TAPE, FOIL (29 1/2``) WPL 8270P07860 Contact Us For Availability

2

CLOCK (BLK) WPL 74003425 Contact Us For Availability

3

W10823707 Whirlpool Range Radiant Surface Ele In Stock WPL W10823707 $144.85

3

WP74010750 Whirlpool Oven Bake Element In Stock WPL WP74010750 $38.16

3

BOX, BURNER (RT) WPL 74003378 Contact Us For Availability

3

LIMITER WPL 74004494 Contact Us For Availability

3

LIMITER (8``) WPL 74002652 Contact Us For Availability

3

SCREW (8ABX3/8-BLK) WPL 7101P34760 Contact Us For Availability

3

BRACKET, CLOCK WPL 74003426 Contact Us For Availability

4

WPW10282492 Whirlpool Range Rack In Stock WPL WPW10282492 $50.75

4

BOX, BURNER (LT) WPL 74003379 Contact Us For Availability

4

HANDLE, DOOR (BLK) WPL 74003429 Contact Us For Availability

4

TOP, MAIN (WHT GLASS/WHT TRM) WPL 74003377 Contact Us For Availability

4

TOP, MAIN (WHT GLASS/WHT TRM) WPL 74003743 Contact Us For Availability

4

SPACER, MAIN TOP WPL 8010P04860 Contact Us For Availability

4

CLEANER, ELCO WPL 8308P00260 Contact Us For Availability

4

SCRAPER, RAZOR WPL 8312P00160 Contact Us For Availability

4

SCREW WPL 7101P30960 Contact Us For Availability

4

SWITCH, INFINITE (SML ELEMENT) WPL 7403P23860 Contact Us For Availability

4

SWITCH, INFINITE (LRG ELEMENT) WPL 7403P23960 Contact Us For Availability

5

PAN, BROIL WPL Y3401F02019 Contact Us For Availability

5

SPACER, MAIN TOP (LT) WPL 8010P08760 Contact Us For Availability

5

SPACER, MAIN TOP (RT) WPL 8010P08860 Contact Us For Availability

5

LIGHT, INDICATOR WPL 7407P10160 Contact Us For Availability

6

INSERT, BROIL PAN WPL Y3413F01619 Contact Us For Availability

6

LINING, DOOR WPL 74003240 Contact Us For Availability

6

LIGHT, INDICATOR WPL 74003053 Contact Us For Availability

6

INDICATOR, LIGHT WPL 74006388 Contact Us For Availability

6

LENS, INDICATOR LIGHT WPL 7730P01160 Contact Us For Availability

7

PLUG, LOCK SLOT WPL 74003406 Contact Us For Availability

7

COVER, MAIN BACK WIRE WPL 74003241 Contact Us For Availability

7

SEAL, DOOR WPL 7212P04360 Contact Us For Availability

7

SUPPORT, CONTROL PANEL (RT) WPL 74003365 Contact Us For Availability

7

SUPPORT, CONTROL PANEL (LT) WPL 74003366 Contact Us For Availability

8

CLIP, THERMOSTAT WPL 7112P00460 Contact Us For Availability

8

COVER, ACCESS WPL 4005F42751 Contact Us For Availability

8

SCREW (1/2``) WPL 7101P04060 Contact Us For Availability

8

END CAP, DOOR (BLK) WPL 74003430 Contact Us For Availability

8

SCREW (1 3/16``-BLK) WPL 74002432 Contact Us For Availability

8

END CAP, CONTROL PNL (RT-BLK) WPL 74003367 Contact Us For Availability

8

END CAP, CONTROL PNL (LT-BLK) WPL 74003368 Contact Us For Availability

9

W11189172 Whirlpool Glide Drawer Backorder WPL W11189172 $11.24

9

RETAINER, BOTTOM INSULATION WPL 74003242 Contact Us For Availability

9

FOIL, INSULATION RETAINER WPL 8312P05860 Contact Us For Availability

9

SUPPORT,OVEN REAR WPL 3807F40051 Contact Us For Availability

9

TRIM, BOTTOM (BLK) WPL 74003432 Contact Us For Availability

9

HINGE, MAIN TOP (ROD) WPL 74003371 Contact Us For Availability

PEDESTAL, SIDE WPL 74003393 Contact Us For Availability

INSULATION, OVEN WRAP WPL 74003381 Contact Us For Availability

DRAWER, STORAGE WPL 74003618 Contact Us For Availability

HOUSING, CONTROL PANEL WPL 74003372 Contact Us For Availability

W10190166 Whirlpool Service Bracket Backorder WPL W10190166 $5.46

PEDESTAL, FRONT/REAR WPL 4020F00180 Contact Us For Availability

NUT WPL 7103P08260 Contact Us For Availability

ROLLER, DRAWER WPL 74003566 Contact Us For Availability

PLATE, CONDUIT TUBING WPL 3605F17451 Contact Us For Availability

KNOB, SWITCH (BLK) WPL 74003713 Contact Us For Availability

W11233072 Whirlpool Screw In Stock WPL W11233072 $11.38

RUNNER, DRAWER WPL 74003565 Contact Us For Availability

SPACER, SIDE PANEL WPL 8004P02460 Contact Us For Availability

PANEL, DRAWER (WHT) WPL 74003399 Contact Us For Availability

SHIELD, SIGHT WPL 74003374 Contact Us For Availability

W11665456 Whirlpool Range Level Foot In Stock WPL W11665456 $19.10

W11693756 Whirlpool Screw Assembly Backorder WPL W11693756 $8.89

WP74005019 Whirlpool Range Thermostat In Stock WPL WP74005019 $135.09

SCREW (8ABX13/16-ZN) WPL 74001449 Contact Us For Availability

SCREW WPL 7101P07260 Contact Us For Availability

SCREW W/WASHER (BLK) WPL 7101P28060 Contact Us For Availability

WP3801F656-51 Whirlpool Range Anti-Tip Bracke In Stock WPL WP3801F656-51 $5.19

SCREW WPL 7101P34460 Contact Us For Availability

SCREW (10ABX1.0-ZN) WPL 7101P06060 Contact Us For Availability

NUT, TERMINAL BLOCK WPL 7103P02760 Contact Us For Availability

BLOCK, TERMINAL WPL 7401P03960 Contact Us For Availability

NUT, LOCK WPL 7103P13960 Contact Us For Availability

15

GASKET, VENT WPL 74003285 Contact Us For Availability

15

SCREW WPL 7101P11260 Contact Us For Availability

15

SPACER, RUBBER WPL 8010P08560 Contact Us For Availability

16

WP74011141 Whirlpool Oven Hinge Backorder WPL WP74011141 $138.74

16

VENT BOX ASSEMBLY WPL 74003394 Contact Us For Availability

17

EXTENSION, VENT WPL 3826W01445 Contact Us For Availability

17

BRACKET, MAIN TOP WPL 74003384 Contact Us For Availability

18

STRAP, INSULATION WPL 74003385 Contact Us For Availability

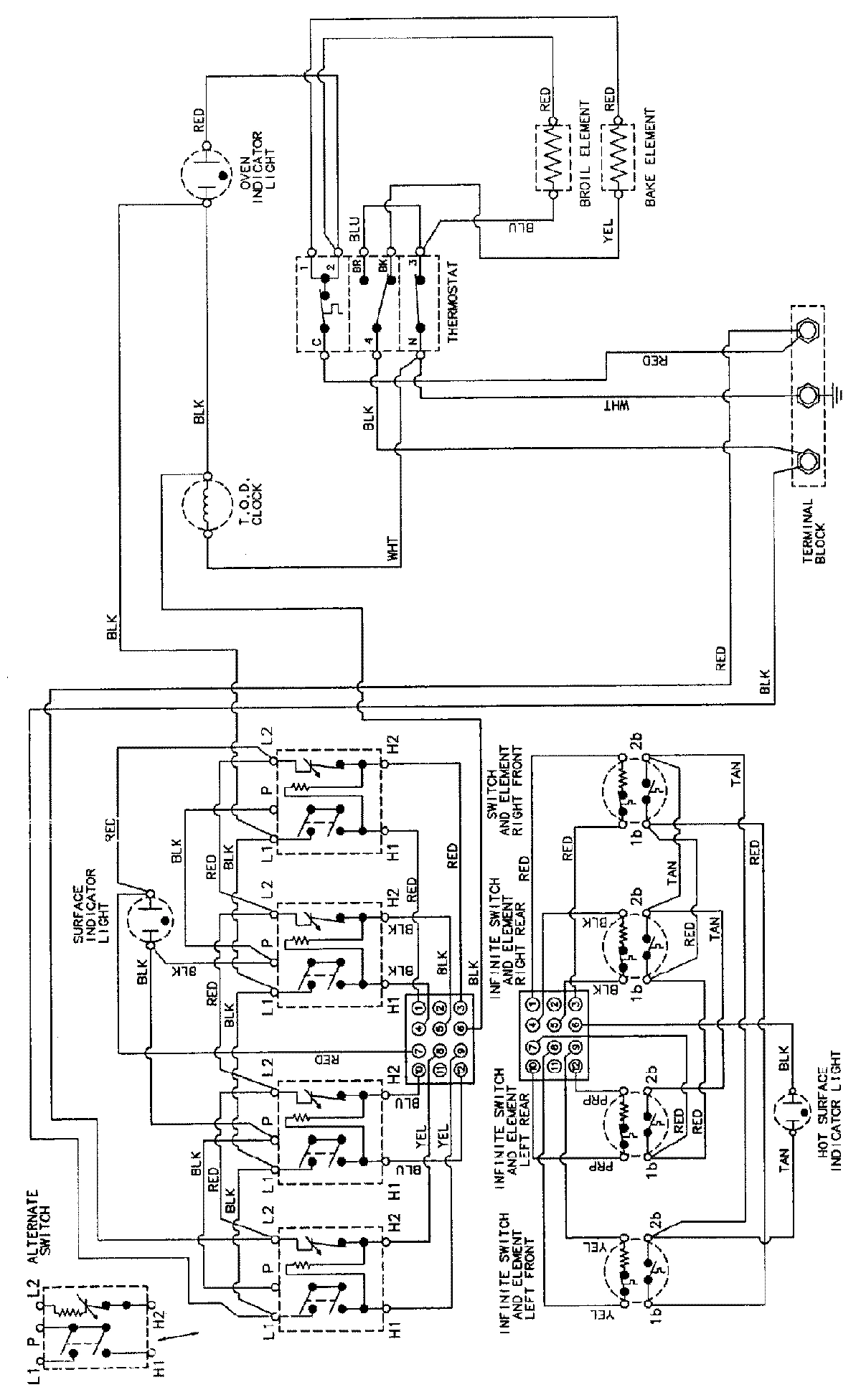

WIRING INFORMATION WPL 15002423 Contact Us For Availability

WIRE/TERMINAL KIT WPL 12001323 Contact Us For Availability

MANUAL, SRVC ELEC/GAS RANGE WPL 16010161 Contact Us For Availability

MANUAL, USE & CARE WPL 74003402 Contact Us For Availability
