Model Whirlpool ADG20K4A GAS DRYER – Common Parts & Diagrams
02 - CYLINDER & DRIVE (REV. A-B)

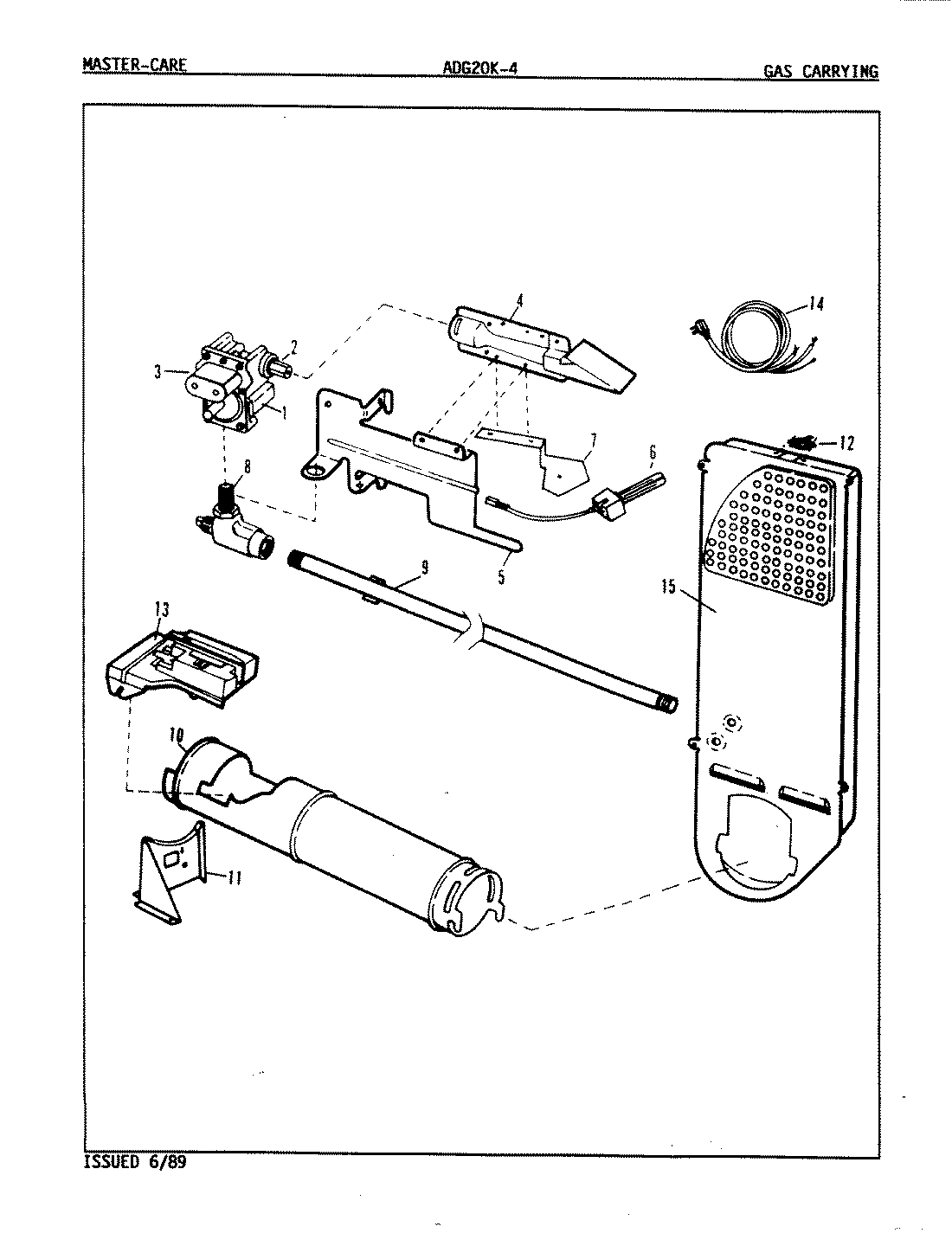

03 - GAS CARRYING (REV. A-B)
01 - CONTROL PANEL (REV. A-B)
Common parts from model Whirlpool ADG20K4A GAS DRYER
1
LEG, LEVELING WPL 635519 Contact Us For Availability
1
GAS CONTROL VALVE WPL 530194 Contact Us For Availability
1
SCREW WPL 257793 Contact Us For Availability
1
CONTROL PANEL WPL 531280 Contact Us For Availability
2
CLIP, FRONT PANEL WPL 530120 Contact Us For Availability
2
BURNER ORIFICE WPL 633570 Contact Us For Availability
2
LH ENDCAP WPL 530265 Contact Us For Availability
3
CLIP, WIRING WPL 257027 Contact Us For Availability
3
NOT REQUIRED PART OR SEE NOTE WPL W10124350 Contact Us For Availability
3
SECONDARY COIL WPL 636614 Contact Us For Availability
3
DUAL COIL WPL 636615 Contact Us For Availability
3
SCREW WPL 257760 Contact Us For Availability
3
RH ENDCAP WPL 530264 Contact Us For Availability
3
TRIM, END CAP (RT) WPL 530277 Contact Us For Availability
3
TRIM, END CAP (LT) WPL 530278 Contact Us For Availability
4
SHIELD, WIRING WPL 530153 Contact Us For Availability
4
BURNER ASM WPL 636682 Contact Us For Availability
4
CONTROL SHIELD WPL 530323 Contact Us For Availability
5
SCREW WPL 257733 Contact Us For Availability
5
BULKHEAD WPL Y02100001 Contact Us For Availability
5
MTG BRACKET WPL 530140 Contact Us For Availability
5
SCREW WPL 250088 Contact Us For Availability
5
TIMER WPL 531300 Contact Us For Availability
5
TIMER MOTOR WPL 635685 Contact Us For Availability
6
SEAL ASSY (GRAY) WPL 530282 Contact Us For Availability
6
IGNITER WPL 530689 Contact Us For Availability
6
SET SCREW WPL 256044 Contact Us For Availability
6
KNOB & SKIRT ASSY. WPL 531533 Contact Us For Availability
7
CYLINDER (W/BAFFLE) WPL 531250 Contact Us For Availability
7
CLIP, WIRING WPL 253034 Contact Us For Availability
7
SCREW WPL 257744 Contact Us For Availability
7
BRACKET WPL 530686 Contact Us For Availability
7
SWITCH WPL 531296 Contact Us For Availability
8
SCREW WPL 257759 Contact Us For Availability
8
BAFFLE (WHT) WPL Y02100002 Contact Us For Availability
8
SHUTOFF VALVE WPL 530101 Contact Us For Availability
8
PUSHBUTTON WPL 350385 Contact Us For Availability
9
CYLINDER BELT WPL 531080 Contact Us For Availability
9
MOTOR MTG. KIT (DRYER) WPL LA1004 Contact Us For Availability
9
GAS PIPE WPL 530173 Contact Us For Availability
9
SCREW WPL 257712 Contact Us For Availability
9
BRACKET, SWITCH WPL 336621 Contact Us For Availability
10
MOTOR/PULLY ASM WPL 530189 Contact Us For Availability
10
HEATER HOUSING WPL 530138 Contact Us For Availability
10
KNOB, SELECTOR (BLK) WPL 352185 Contact Us For Availability
11
MOTOR WPL 530936 Contact Us For Availability
11
HEATER SUPPORT WPL 530139 Contact Us For Availability
11
BUZZER WPL 636731 Contact Us For Availability
12
SCREW WPL 257811 Contact Us For Availability
12
MOTOR BRACKET WPL 530852 Contact Us For Availability
12
SCREW WPL 250168 Contact Us For Availability
12
HI LMT TSTAT WPL 530143 Contact Us For Availability
12
SPEEDCLIP, END CAP TO CTRL PNL WPL 257702 Contact Us For Availability
13
SCREW WPL 257741 Contact Us For Availability
13
CLAMP, MOTOR WPL 530214 Contact Us For Availability
13
SCREW WPL 252134 Contact Us For Availability
13
SENSOR WPL 635013 Contact Us For Availability
13
ROTARY SWITCH WPL 531263 Contact Us For Availability
14
IDLER ARM WPL 530199 Contact Us For Availability
14
SCREW, SEMS WPL 253457 Contact Us For Availability
14
SCREW WPL 253092 Contact Us For Availability
14
CORD, POWER WPL 636259 Contact Us For Availability
14
SCREW WPL 257435 Contact Us For Availability
14
SCREW WPL 257697 Contact Us For Availability
14
SPEEDCLIP, END CAP TO TOP WPL 257851 Contact Us For Availability
14
SPEEDCLIP, RR SHLD TO END CAP WPL 257852 Contact Us For Availability
14
PLATE, REINFORCEMENT WPL 349487 Contact Us For Availability
14
REAR SHIELD WPL 530268 Contact Us For Availability
15
IDLER SPRING WPL 530207 Contact Us For Availability
15
INLET AIR DUCT WPL 530169 Contact Us For Availability
15
CONVERSION KIT (NAT-LP) WPL 636766 Contact Us For Availability
15
FUSE KIT, THERMAL WPL LA1053 Contact Us For Availability
15
SWITCH PAD WPL 338541 Contact Us For Availability
16
DUCT, EXHAUST WPL 530134 Contact Us For Availability
17
BLOWER HOUSING WPL 530774 Contact Us For Availability
18
SEAL, BLOWER HOUSING WPL 530203 Contact Us For Availability
18
BLOWER HSG COVER & SEAL WPL 531103 Contact Us For Availability
19
BLOWER WHEEL WPL 530106 Contact Us For Availability
20
CLAMP WPL 257823 Contact Us For Availability
21
RETAINING RING WPL 257812 Contact Us For Availability
22
SCREW WPL 257807 Contact Us For Availability
22
BLOWER COVER WPL 531024 Contact Us For Availability
22
GUIDE, VANE INLET WPL 531026 Contact Us For Availability
23
THERMOSTAT, CONTROL (146/121) WPL 531107 Contact Us For Availability
24
THERMOSTAT, LO-LIMIT (120/110) WPL 530170 Contact Us For Availability
25
LAMP SOCKET WPL 530152 Contact Us For Availability
26
CYL LIGHT BULB WPL 530570 Contact Us For Availability
27
LENS, BULB WPL 530174 Contact Us For Availability
29
RH GLD CUSHION WPL 530182 Contact Us For Availability
30
RH CYL GLIDE WPL 530183 Contact Us For Availability
31
SUPPORT ASM WPL 530198 Contact Us For Availability
32
FRONT ROLLER WPL 530665 Contact Us For Availability
36
LH GLD CUSHION WPL 530184 Contact Us For Availability
37
LH CYL GLIDE WPL 530185 Contact Us For Availability
37
ROLLER WPL LA1008 Contact Us For Availability
38
SCREW WPL 257101 Contact Us For Availability
38
SUPPORT ASSY.-CYLINDER REAR WPL 530197 Contact Us For Availability
39
CYLINDER ROLLER WPL 530163 Contact Us For Availability
40
SPACER WPL 257813 Contact Us For Availability
41
WASHER WPL 257814 Contact Us For Availability
42
RETAINING RING WPL 257574 Contact Us For Availability
43
COUNTERWEIGHT WPL 530645 Contact Us For Availability
44
SCREW WPL 257732 Contact Us For Availability
44
BRACKET WPL 530644 Contact Us For Availability
× ![]()
