Model Whirlpool ADE20L4A ELECTRIC DRYER – Common Parts & Diagrams
01 - CONTROL PANEL (REV. A-D)
03 - HEATER (REV. A-D)

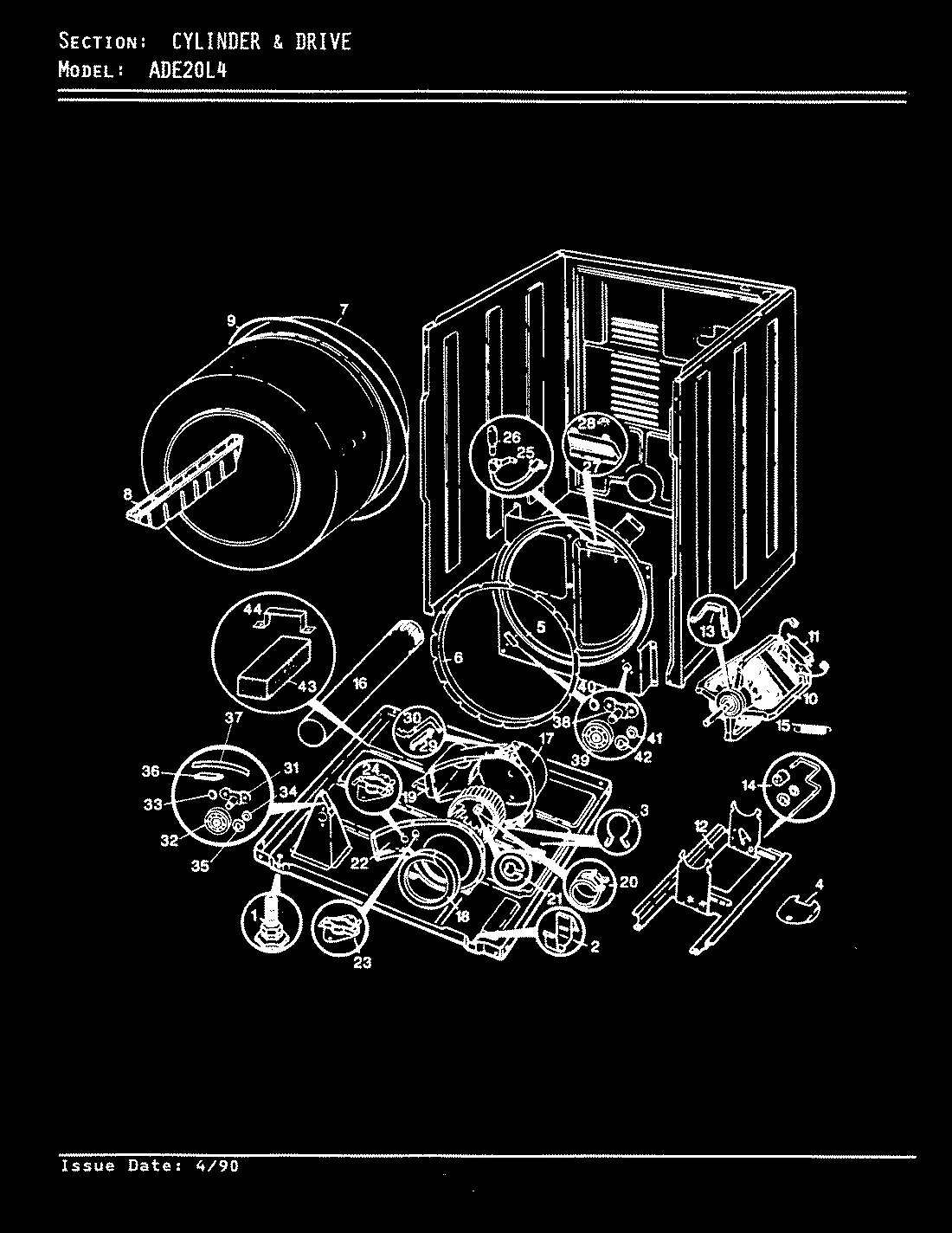

02 - CYLINDER & DRIVE (REV. A-D)
Common parts from model Whirlpool ADE20L4A ELECTRIC DRYER
1
SCREW WPL 257649 Contact Us For Availability
1
CONTROL PANEL WPL 531280 Contact Us For Availability
1
SCREW WPL 257863 Contact Us For Availability
1
HEATER ELEMENT WPL 530920 Contact Us For Availability
1
LEG, LEVELING WPL 635519 Contact Us For Availability
2
CAP, END (LT) WPL 352488 Contact Us For Availability
2
LH ENDCAP WPL 530265 Contact Us For Availability
2
SCREW No.8-18X1/2 PAN HD WPL 257819 Contact Us For Availability
2
HEATER HOUSING ASSEMBLY WPL 531232 Contact Us For Availability
2
CLIP, FRONT PANEL WPL 530120 Contact Us For Availability
3
SCREW WPL 257760 Contact Us For Availability
3
CAP, END (RT) WPL 352487 Contact Us For Availability
3
RH ENDCAP WPL 530264 Contact Us For Availability
3
TRIM, END CAP (RT) WPL 530277 Contact Us For Availability
3
TRIM, END CAP (LT) WPL 530278 Contact Us For Availability
3
THERMOSTAT, HI-LIMIT WPL 530771 Contact Us For Availability
3
CLIP, WIRING WPL 257027 Contact Us For Availability
4
CONTROL SHIELD WPL 530323 Contact Us For Availability
4
SCREW WPL 257741 Contact Us For Availability
4
BRACKET, THERMOSTAT WPL 530285 Contact Us For Availability
4
SHIELD, WIRING WPL 530153 Contact Us For Availability
5
SCREW WPL 257435 Contact Us For Availability
5
SCREW WPL 250088 Contact Us For Availability
5
TIMER WPL 531300 Contact Us For Availability
5
TIMER WPL 531816 Contact Us For Availability
5
TIMER MOTOR WPL 636752 Contact Us For Availability
5
NUT (No.10-32) WPL 250027 Contact Us For Availability
5
WASHER, FLAT WPL 253122 Contact Us For Availability
5
WASHER, CUP WPL 253123 Contact Us For Availability
5
NUT WPL 256124 Contact Us For Availability
5
SCREW WPL 257803 Contact Us For Availability
5
TERMINAL BLOCK WPL 530166 Contact Us For Availability
5
SCREW WPL 257733 Contact Us For Availability
5
DRYER BULKHEAD KIT WPL LA1054 Contact Us For Availability
6
SET SCREW WPL 256044 Contact Us For Availability
6
KNOB & SKIRT ASSY. WPL 531533 Contact Us For Availability
6
FUSE, THERMAL WPL 531182 Contact Us For Availability
6
SEAL ASSY (GRAY) WPL 530282 Contact Us For Availability
7
KNOB, SELECTOR (BLK) WPL 352185 Contact Us For Availability
7
BRACKET, THERMAL FUSE WPL 531181 Contact Us For Availability
7
CYLINDER (W/BAFFLE) WPL 531250 Contact Us For Availability
8
BUZZER WPL 636731 Contact Us For Availability
8
SCREW WPL 257759 Contact Us For Availability
8
BAFFLE, WHITE WPL 531249 Contact Us For Availability
9
SPEEDCLIP, END CAP TO CTRL PNL WPL 257702 Contact Us For Availability
9
BELT, DRIVE WPL 531512 Contact Us For Availability
9
BELT, CYLINDER WPL 531589 Contact Us For Availability
9
MOTOR MTG. KIT (DRYER) WPL LA1004 Contact Us For Availability
10
ROTARY SWITCH WPL 531263 Contact Us For Availability
10
MOTOR ASM WPL 531041 Contact Us For Availability
10
MOTOR & PULLEY ASSY (115V,60HZ WPL 532275 Contact Us For Availability
11
SCREW WPL 253092 Contact Us For Availability
11
SCREW WPL 257697 Contact Us For Availability
11
SPEEDCLIP, END CAP TO TOP WPL 257851 Contact Us For Availability
11
SPEEDCLIP, RR SHLD TO END CAP WPL 257852 Contact Us For Availability
11
PLATE, REINFORCEMENT WPL 349487 Contact Us For Availability
11
SHIELD, CONTROL PANEL (REAR) WPL 352688 Contact Us For Availability
11
REAR SHIELD WPL 530268 Contact Us For Availability
11
SWITCH, MOTOR WPL 530693 Contact Us For Availability
12
SCREW WPL 257712 Contact Us For Availability
12
BRACKET, SWITCH WPL 336621 Contact Us For Availability
12
SWITCH PAD WPL 338541 Contact Us For Availability
12
PUSHBUTTON - BLACK WPL 352588 Contact Us For Availability
12
SWITCH WPL 531296 Contact Us For Availability
12
RESISTOR ASSY. WPL 636743 Contact Us For Availability
12
SCREW WPL 257811 Contact Us For Availability
12
BRACKET WPL 530105 Contact Us For Availability
13
MANUAL, USE & CARE WPL 531448 Contact Us For Availability
13
CLAMP, MOTOR WPL 530214 Contact Us For Availability
14
WASHER WPL 257815 Contact Us For Availability
14
PUSHNUT WPL 257957 Contact Us For Availability
14
IDLER ARM WPL 530199 Contact Us For Availability
14
PULLEY, IDLER WPL 531628 Contact Us For Availability
14
ARM, IDLER WPL 532250 Contact Us For Availability
14
IDLER ASSY. WPL 532287 Contact Us For Availability
15
IDLER SPRING WPL 530207 Contact Us For Availability
15
IDLER SPRING WPL 531648 Contact Us For Availability
15
SPRING, IDLER WPL 532209 Contact Us For Availability
16
DUCT, EXHAUST WPL 530134 Contact Us For Availability
17
BLOWER HOUSING WPL 530774 Contact Us For Availability
17
HOUSING, BLOWER WPL 531801 Contact Us For Availability
18
SEAL, BLOWER HOUSING WPL 530203 Contact Us For Availability
19
BLOWER WHEEL WPL 530106 Contact Us For Availability
20
CLAMP WPL 257823 Contact Us For Availability
21
RETAINING RING WPL 257812 Contact Us For Availability
22
SCREW WPL 257807 Contact Us For Availability
22
BLOWER COVER WPL 531024 Contact Us For Availability
22
GUIDE, VANE INLET WPL 531026 Contact Us For Availability
22
COVER, BLOWER HOUSING WPL 531933 Contact Us For Availability
23
THERMOSTAT, CONTROL (146/121) WPL 531107 Contact Us For Availability
24
SCREW WPL 252134 Contact Us For Availability
24
THERMOSTAT, LO-LIMIT (120/110) WPL 530170 Contact Us For Availability
25
LAMP SOCKET WPL 530152 Contact Us For Availability
26
SCREW, SEMS WPL 253457 Contact Us For Availability
26
CYL LIGHT BULB WPL 530570 Contact Us For Availability
27
LENS, BULB WPL 530174 Contact Us For Availability
28
CLIP, PUSH-ON WPL 253562 Contact Us For Availability
29
RH GLD CUSHION WPL 530182 Contact Us For Availability
30
RH CYL GLIDE WPL 530183 Contact Us For Availability
31
SUPPORT ASM WPL 530198 Contact Us For Availability
32
FRONT ROLLER WPL 530665 Contact Us For Availability
36
LH GLD CUSHION WPL 530184 Contact Us For Availability
37
LH CYL GLIDE WPL 530185 Contact Us For Availability
37
ROLLER WPL LA1008 Contact Us For Availability
38
SCREW WPL 257101 Contact Us For Availability
38
SUPPORT ASSY.-CYLINDER REAR WPL 530197 Contact Us For Availability
39
CYLINDER ROLLER WPL 530163 Contact Us For Availability
40
SPACER WPL 257813 Contact Us For Availability
41
WASHER WPL 257814 Contact Us For Availability
42
RETAINING RING WPL 257574 Contact Us For Availability
44
NOT REQUIRED PART OR SEE NOTE WPL W10124350 Contact Us For Availability
× ![]()
