Model Whirlpool ACO27DEW1 ELECTRIC WALL OVEN – Common Parts & Diagrams
04 - CONTROL PANEL

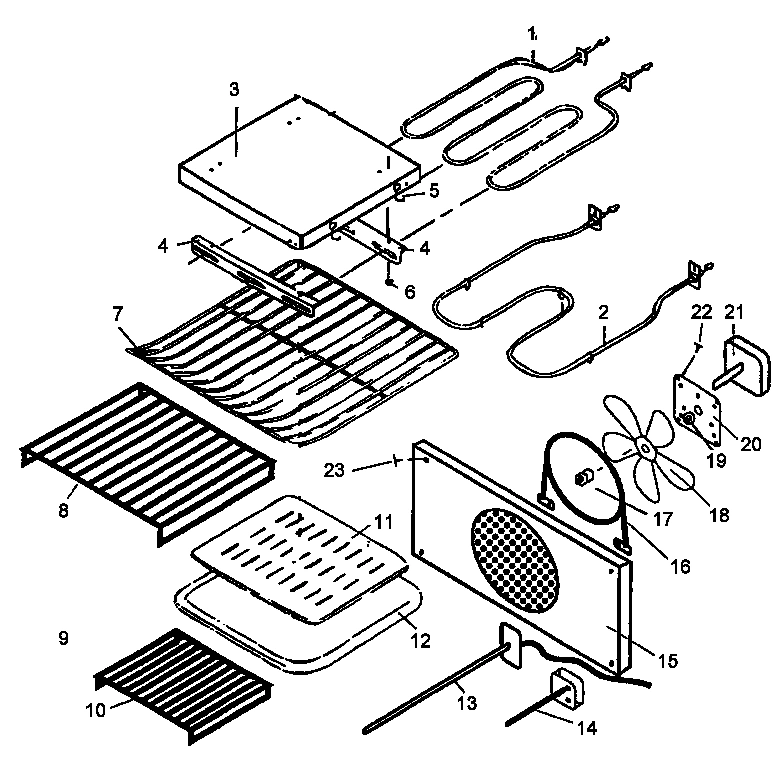

06 - OVEN ACCESSORIES

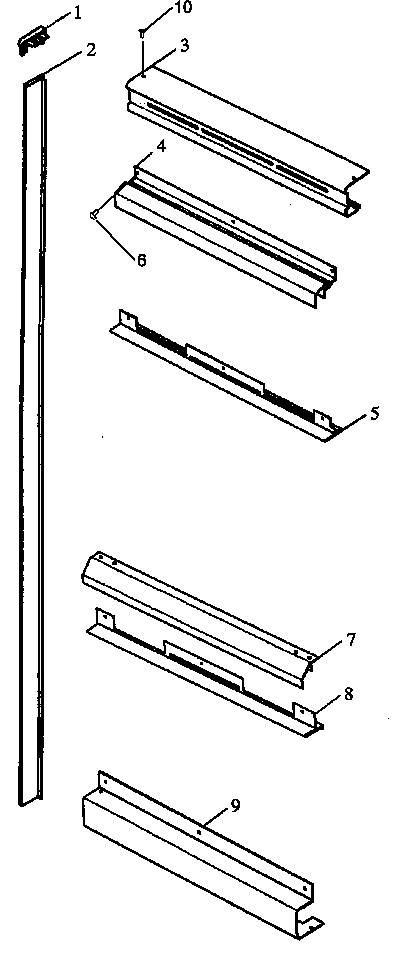

02 - CABINET TRIM

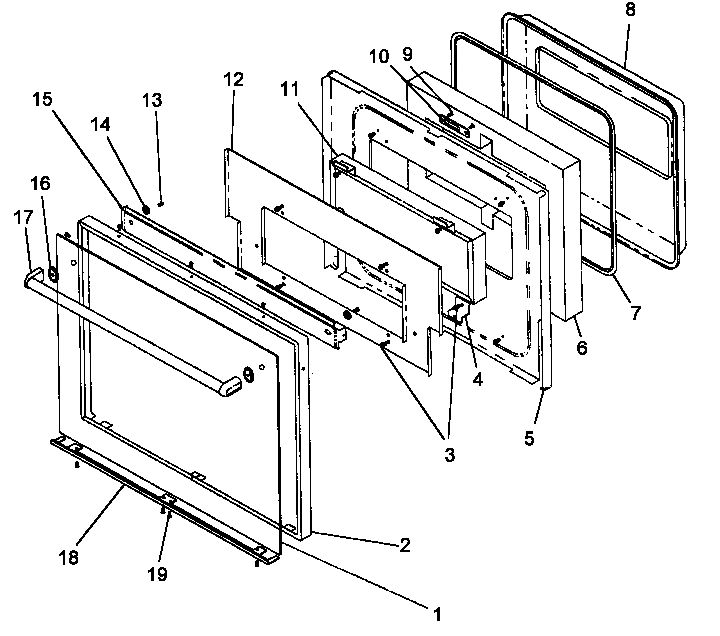

07 - OVEN DOOR, FRAMELESS

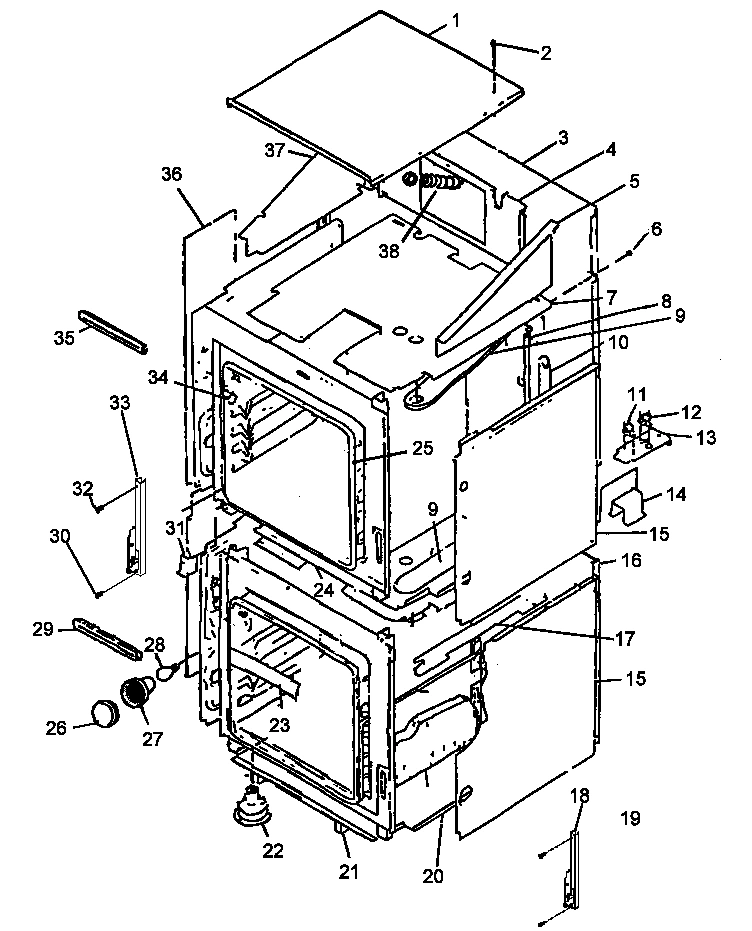

01 - CABINET

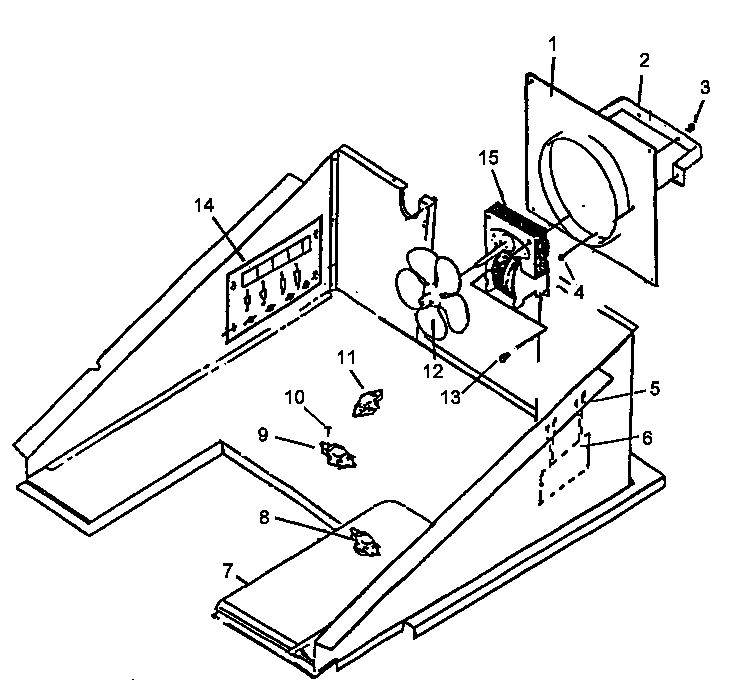

03 - CONTROL COMPARTMENT

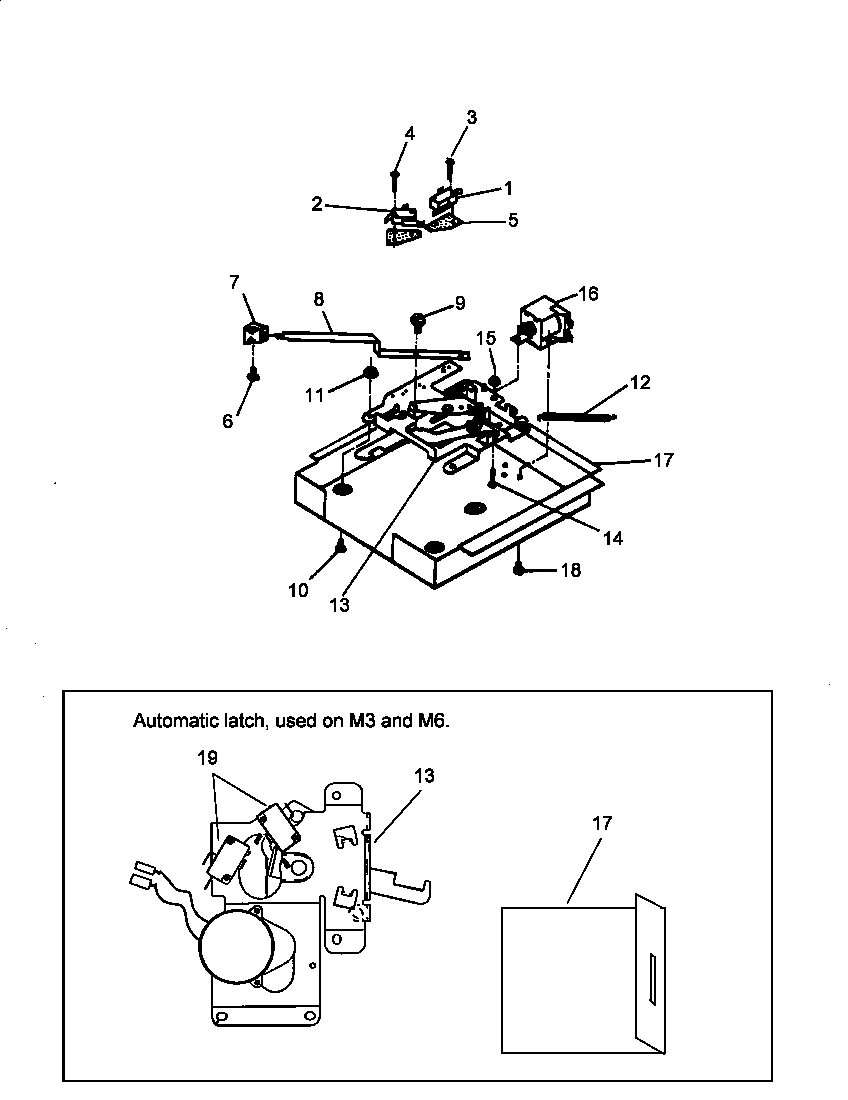

05 - DOOR LATCH
Common parts from model Whirlpool ACO27DEW1 ELECTRIC WALL OVEN
1
ELEMENT, BROIL (240V-2800W) WPL Y0042138 Contact Us For Availability
1
TRIM, CORNER-RT (WHT) WPL 307887W Contact Us For Availability
1
TRIM, CORNER-LT (WHT) WPL 307888W Contact Us For Availability
1
GLASS, DOOR (WHT) WPL 307885W Contact Us For Availability
1
CABINET TOP PYRO W.O. MM WPL Y0040286 Contact Us For Availability
1
SWITCH, CLEAN, PRIMARY INTERL WPL Y0042052 Contact Us For Availability
2
HARNESS, RIBBON WPL 0305452 Contact Us For Availability
2
TRIM, SIDE LT (WHT) WPL 308156W Contact Us For Availability
2
TRIM, SIDE RT (WHT) WPL 308157W Contact Us For Availability
2
FRAME, OVEN DOOR (WHT) WPL 307886W Contact Us For Availability
2
BRACKET-MOTOR MOUNT WPL Y0305242 Contact Us For Availability
2
SWITCH, MOMENTARY WPL 0314096 Contact Us For Availability
3
CIRCUIT BOARD, W/BUTTONS WPL 0306981 Contact Us For Availability
3
REFLECTOR, BROIL ELEMENT WPL Y0306503 Contact Us For Availability
3
TRIM, TOP (WHT) WPL 307719W Contact Us For Availability
3
BACK, UPPER CABINET WPL Y0305628 Contact Us For Availability
3
SCREW 4-40X15/16`` WPL Y0041821 Contact Us For Availability
4
CIRCUIT BOARD, W/BUTTONS WPL 0306980 Contact Us For Availability
4
BROIL ELEMENT SUPPORT PYRO WPL Y0040902 Contact Us For Availability
4
TRIM, CONTROL PANEL-TOP (WHT) WPL 308159W Contact Us For Availability
4
WINDOW MTG. BRKT. PK411 WPL Y0040955 Contact Us For Availability
4
RETAINER, DOOR GLASS WPL Y0052629 Contact Us For Availability
4
BACK, CONTROL COMPARTMENT WPL Y0315557 Contact Us For Availability
4
GROMMET-FAN WPL Y0305243 Contact Us For Availability
4
SCREW, TT 23 4-40 X 5/8 WPL Y0065664 Contact Us For Availability
5
GLASS CONTROL PANEL WPL 0306971 Contact Us For Availability
5
CLIP, THERMO CAPILLARY WPL Y0067053 Contact Us For Availability
5
TRIM, CONTROL PANEL-BOT (WHT) WPL 308160W Contact Us For Availability
5
LINER, DOOR (CG) WPL 314833CG Contact Us For Availability
5
COMPARTMENT, CONTROL RT WPL Y0314834 Contact Us For Availability
5
RESISTOR WPL Y0042064 Contact Us For Availability
5
INSULATION, ESM WPL Y0091523 Contact Us For Availability
6
BEZEL,5 BUTTON(VERY LIGHT GRAY WPL Y0306974 Contact Us For Availability
6
BEZEL, 4 BUTTON WPL Y0306975 Contact Us For Availability
6
SCREW No.8ABX1/4 PH HD WPL Y0041807 Contact Us For Availability
6
INSULATION 2X20X72 WPL Y0041975 Contact Us For Availability
6
RELAY MODULE No.2 WPL Y0305699 Contact Us For Availability
7
KNOB, CLOCK (WHT) WPL 308956W Contact Us For Availability
7
RACK, OVEN 19 3/16`` X 16 1/2`` WPL 314762J Contact Us For Availability
7
RACK, OVEN 19 3/16`` X 14 3/4`` WPL 314782J Contact Us For Availability
7
TRIM, CENTER UPPER (WHT) WPL 308154W Contact Us For Availability
7
TRIM, CENTER LOWER (WHT) WPL 308155W Contact Us For Availability
7
GASKET, OVEN DR 82`` WPL 31715901 Contact Us For Availability
7
TOP, LOWER OVEN WPL 0046325 Contact Us For Availability
7
UPPER OVEN TOP WPL Y0052848 Contact Us For Availability
7
BOX, UPPER OVEN FLUE WPL 306384B Contact Us For Availability
7
KNOB, LATCH HANDLE (WHT) WPL 306830W Contact Us For Availability
8
CIRCUIT BOARD W/BUTTONS WPL 0306978 Contact Us For Availability
8
RACK, OVEN 19 3/16`` X 14 3/4`` WPL 314781J Contact Us For Availability
8
BACKER, OVEN DOOR (CG) WPL 40223CG Contact Us For Availability
8
RETAINER, INSULATION-REAR WPL 0305420 Contact Us For Availability
8
LIMIT SWITCH-OPEN 90 WPL Y0042066 Contact Us For Availability
8
LATCH ARM WPL 303039W Contact Us For Availability
9
x CIRCUIT BOARD, W/BUTTONS WPL 0306979 Contact Us For Availability
9
SEE NOTE NOT USED WPL Y00000000 Contact Us For Availability
9
TRIM, BOTTOM (WHT) WPL 307720W Contact Us For Availability
9
LOWER OVEN FLUE BOX W/A PYRO WPL Y0040581 Contact Us For Availability
9
LIMIT CONTROL-UPPER OVEN-200 WPL Y0042045 Contact Us For Availability
9
SCREW LATCH ARM MOUNTING WPL Y0078780 Contact Us For Availability
10
CONTROL, ELECTRONIC (5800) WPL Y0307384 Contact Us For Availability
10
RACK, BROILER WPL Y0306531 Contact Us For Availability
10
SCREW, No.6-32 X .375 FLAT HD PH WPL 31750306 Contact Us For Availability
10
SCREW, No.6-32 X .375 FH (BLK) WPL 31750319 Contact Us For Availability
10
LATCH PLATE WPL Y052039F Contact Us For Availability
10
TUBE, LOWER OVEN VENT-PYRO W/O WPL Y0042406 Contact Us For Availability
11
WINDOW ASSY WPL 0041491 Contact Us For Availability
11
SWITCH FAN SPDT WPL Y0042056 Contact Us For Availability
12
BAFFLE, INNER DOOR WPL 308414B Contact Us For Availability
12
LIMIT CONTROL-LOWER OVEN-225 WPL Y0042046 Contact Us For Availability
12
BLADE, FAN WPL Y0314548 Contact Us For Availability
12
SPRING WPL 0044513 Contact Us For Availability
13
THERMOSTAT, HI LIMIT WPL Y0306502 Contact Us For Availability
13
SCREW, No.8-18 X 3/8 P HEX WSH T WPL Y0309016 Contact Us For Availability
13
SWITCH PLATE QDO-240 WPL Y0040783 Contact Us For Availability
13
DOOR LATCH ASSY WO WPL Y0041909 Contact Us For Availability
14
BUSHING, HANDLE WPL Y0307893 Contact Us For Availability
14
SUPPORT, REAR OVEN-PYRO W/O WPL 0041021 Contact Us For Availability
14
SCREW No.6-32 X 1.00 PLAIN WPL 31750301 Contact Us For Availability
14
TRANS. RELAY MODULE No.1 WPL Y0305698 Contact Us For Availability
15
COVER, FAN (ENAMELED) WPL 309774CG Contact Us For Availability
15
BRACKET, HANDLE MTG. WPL 0307891 Contact Us For Availability
15
RETAINER, INSULATION-SIDE WPL Y0316868 Contact Us For Availability
15
FAN MOTOR WPL Y0042226 Contact Us For Availability
16
ELEMENT, CONV OVEN(240V-2200W) WPL Y0305245 Contact Us For Availability
16
SPACER, HANDLE (WHT) WPL 309882W Contact Us For Availability
16
BACK CABINET WPL Y0059743 Contact Us For Availability
16
SOLENOID EATON PYRO TH WO WPL Y0042049 Contact Us For Availability
17
NUT, LT HAND THREAD WPL 0307037 Contact Us For Availability
17
HANDLE, OVEN DOOR (WHT) WPL 307884W Contact Us For Availability
17
AIR CHANNEL, LOWER OVEN-PYRO WPL 0040755 Contact Us For Availability
17
LATCH MTG. BRKT PYRO W/O WPL Y0040903 Contact Us For Availability
18
BLADE, FAN WPL Y0307036 Contact Us For Availability
18
ANGLE, GLASS SUPPORT (WHT) WPL 305586W Contact Us For Availability
18
ASSY, OVEN HINGE RT WPL Y0315425 Contact Us For Availability
18
SCREW 10-32 X.250 HEX WPL 0041774 Contact Us For Availability
19
WASHER (ZN) WPL 0307038 Contact Us For Availability
20
BRACKET, FAN MTG. WPL 0305627 Contact Us For Availability
20
OVEN BOTTOM-LOWER WPL Y0316867 Contact Us For Availability
21
FAN ASSY, CONVECTION (W/BLADE) WPL Y0307035 Contact Us For Availability
21
RUNNER, BASE-PYRO W/O WPL Y0041019 Contact Us For Availability
22
SCREW, No.10-32X1/2 (PH TAPTITE) WPL Y0091599 Contact Us For Availability
22
SMOKE ELIMINATOR WPL Y0058526 Contact Us For Availability
23
SCREW No.8X11/4 PH F H WPL Y0041804 Contact Us For Availability
23
SHIELD, REFLECTOR (CG) WPL 40850CG Contact Us For Availability
24
UPPER OVEN BOTTOM PYRO W/O WPL Y0040741 Contact Us For Availability
25
OVEN SHELL (WALL OVEN) WPL 314312CG Contact Us For Availability
25
WELD, OVEN SHELL WPL 314314CG Contact Us For Availability
27
BULB, LIGHT WPL Y0042175 Contact Us For Availability
31
SUPPORT, FRONT OVEN-PYRO W/O WPL 0041020 Contact Us For Availability
33
ASSY, OVEN HINGE LT WPL Y0315426 Contact Us For Availability
34
PROBE RECEPT. COVER STAINLESS WPL Y0040848 Contact Us For Availability
35
GUIDE, LATCH HANDLE WPL 0307826 Contact Us For Availability
36
PANEL, SIDE (DOUBLE) WPL Y0315144 Contact Us For Availability
37
COMPARTMENT, CONTROL LT WPL Y0314835 Contact Us For Availability
38
ASSY, CONDUIT WPL Y0052947 Contact Us For Availability
NI
CHANNEL, GLASS WPL 0302733 Contact Us For Availability
NI
HARNESS, RELAY MOD 2 WPL 0305924 Contact Us For Availability
NI
WIRE HARNESS-LOWER OVEN WPL Y0306864 Contact Us For Availability
NI
WIRE HARNESS-UPPER OVEN WPL Y0306865 Contact Us For Availability
NI
SCREW No.8 - 18 X .250 WPL Y0061164 Contact Us For Availability
NI
BRKT, TRIM CORNER WPL Y0307205 Contact Us For Availability
NI
LABEL,CLEANING INSTR. WPL 0300584 Contact Us For Availability
NI
WASHER, FLAT 1/4 X 5/8 O.D. WPL 31750005 Contact Us For Availability
× ![]()
