Model Maytag ABB222ZDEQ REFRIGERATOR – Common Parts & Diagrams
01 - CABINET BACK
02 - COMPRESSOR
03 - CONTROLS

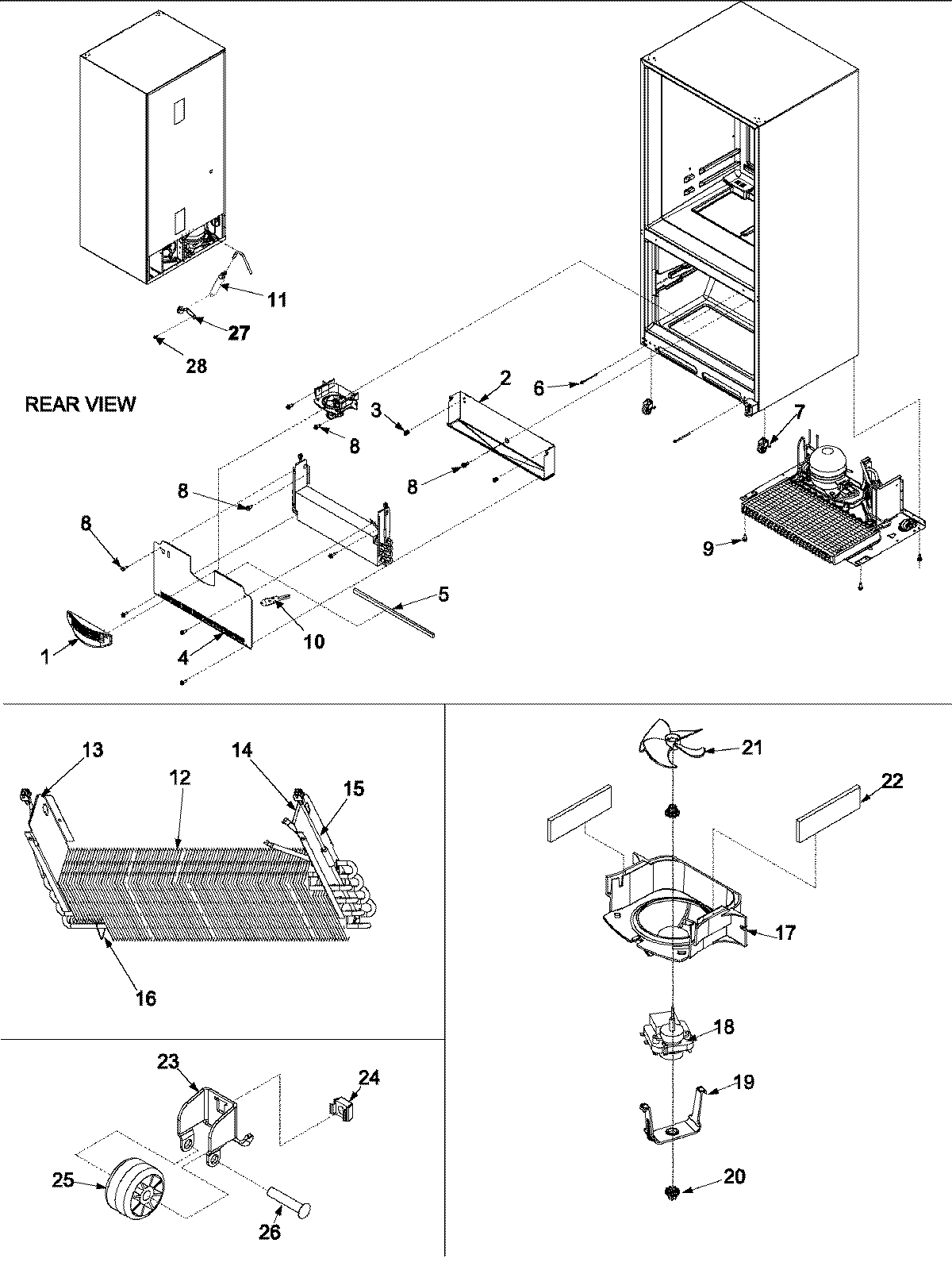

04 - EVAPORATOR AREA & ROLLERS

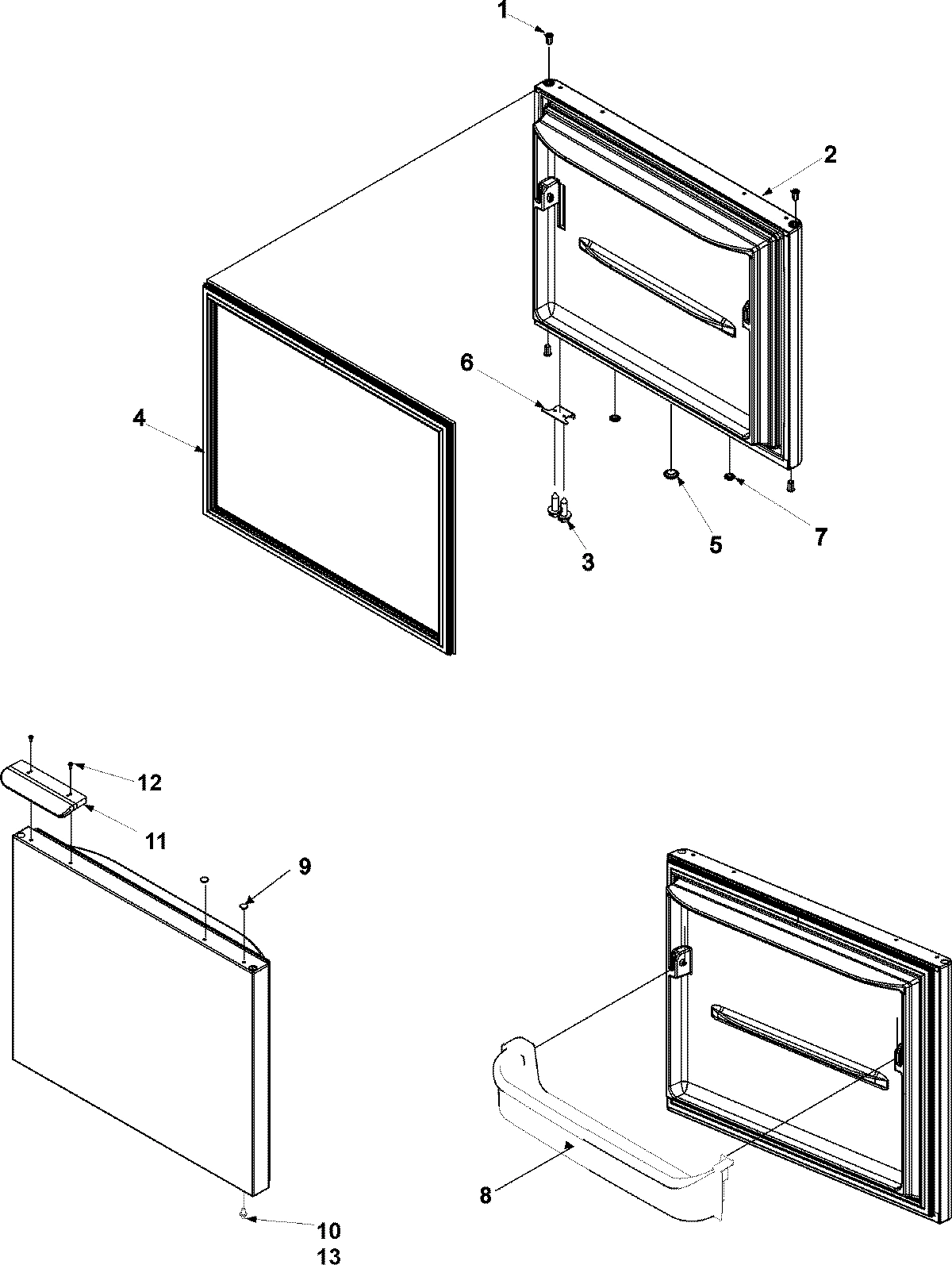

05 - FREEZER DOOR

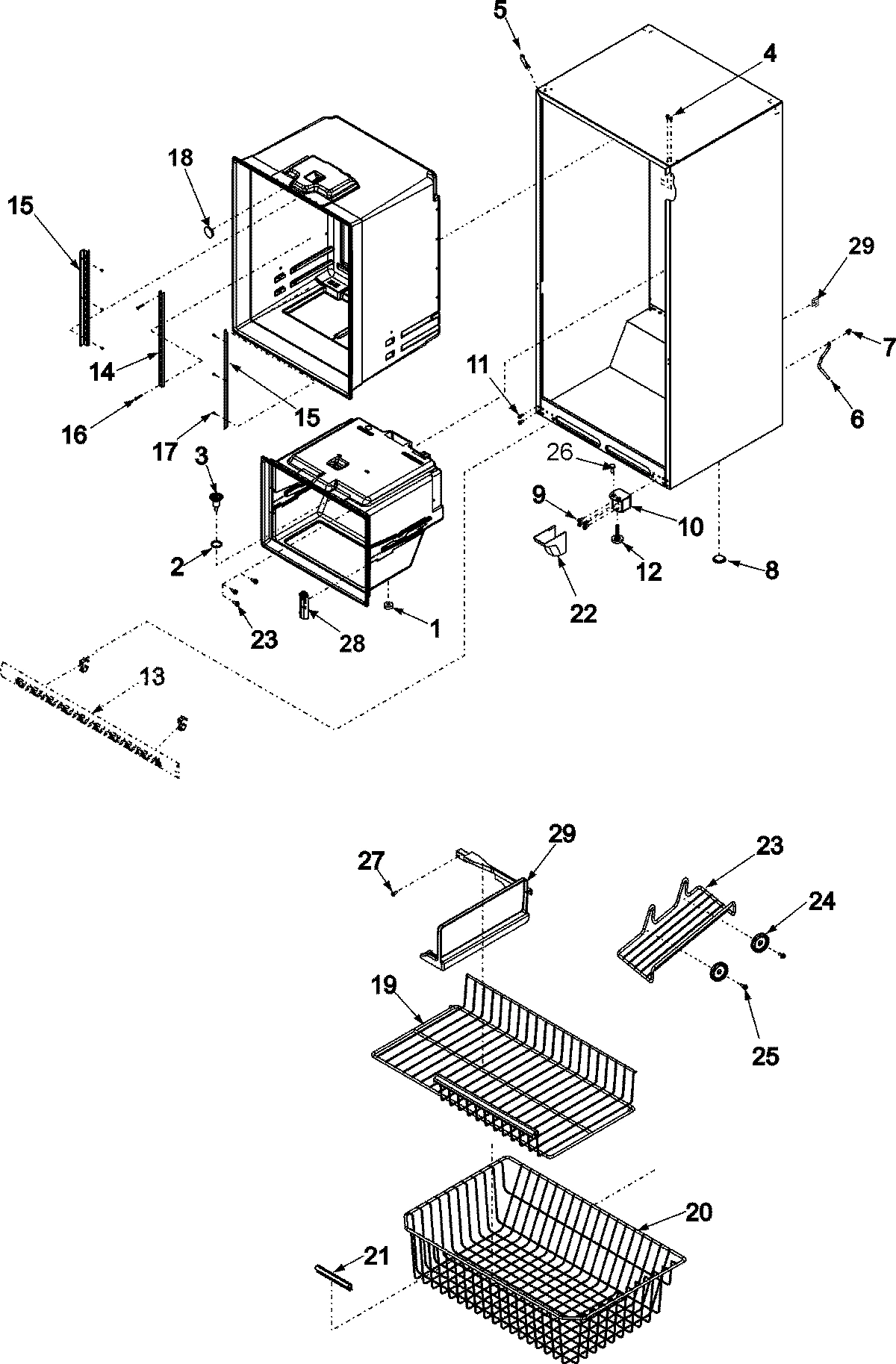

06 - INTERIOR CABINET & FREEZER SHELVING

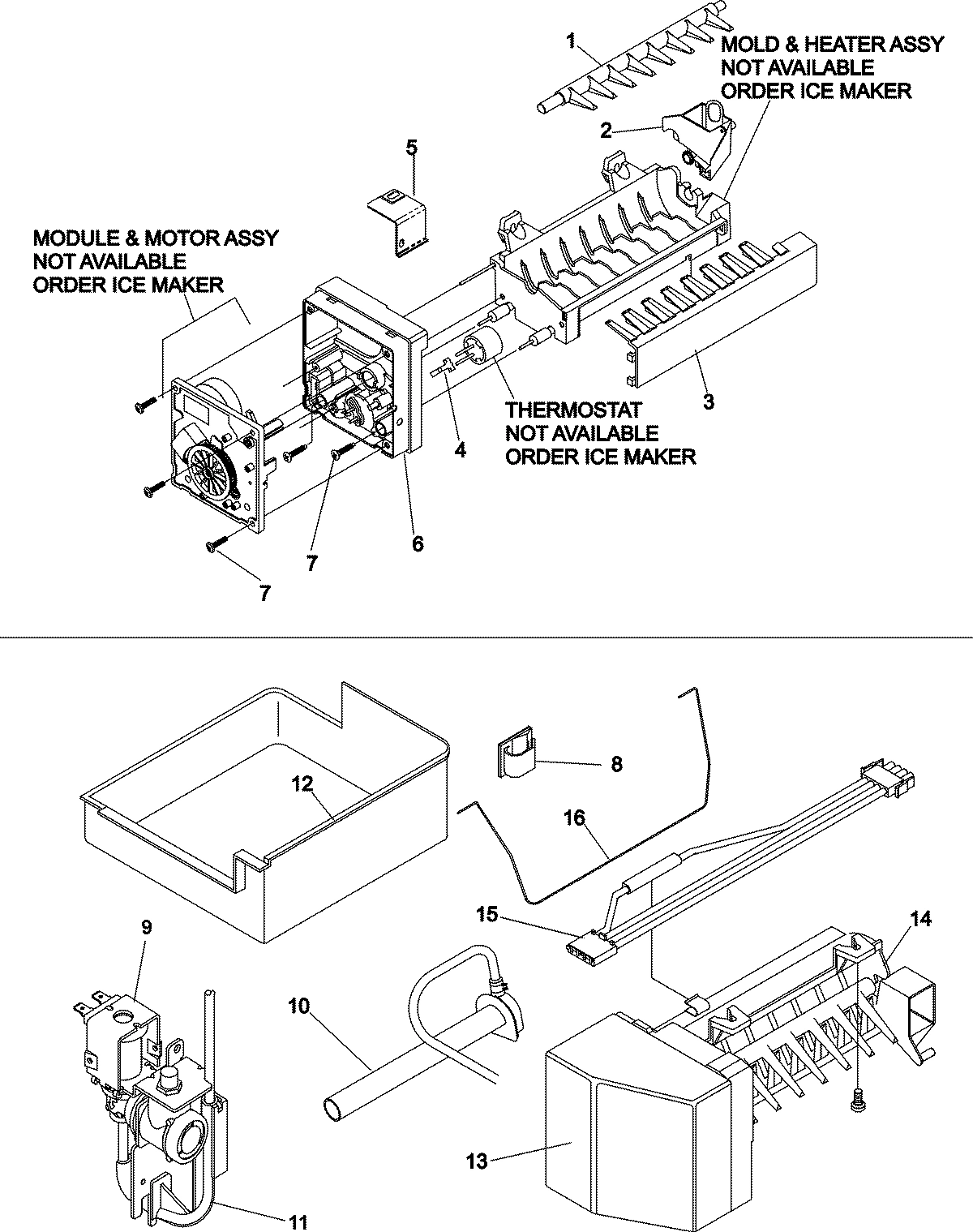

07 - OPTIONAL ICE MAKER KIT IC11B P1328003W

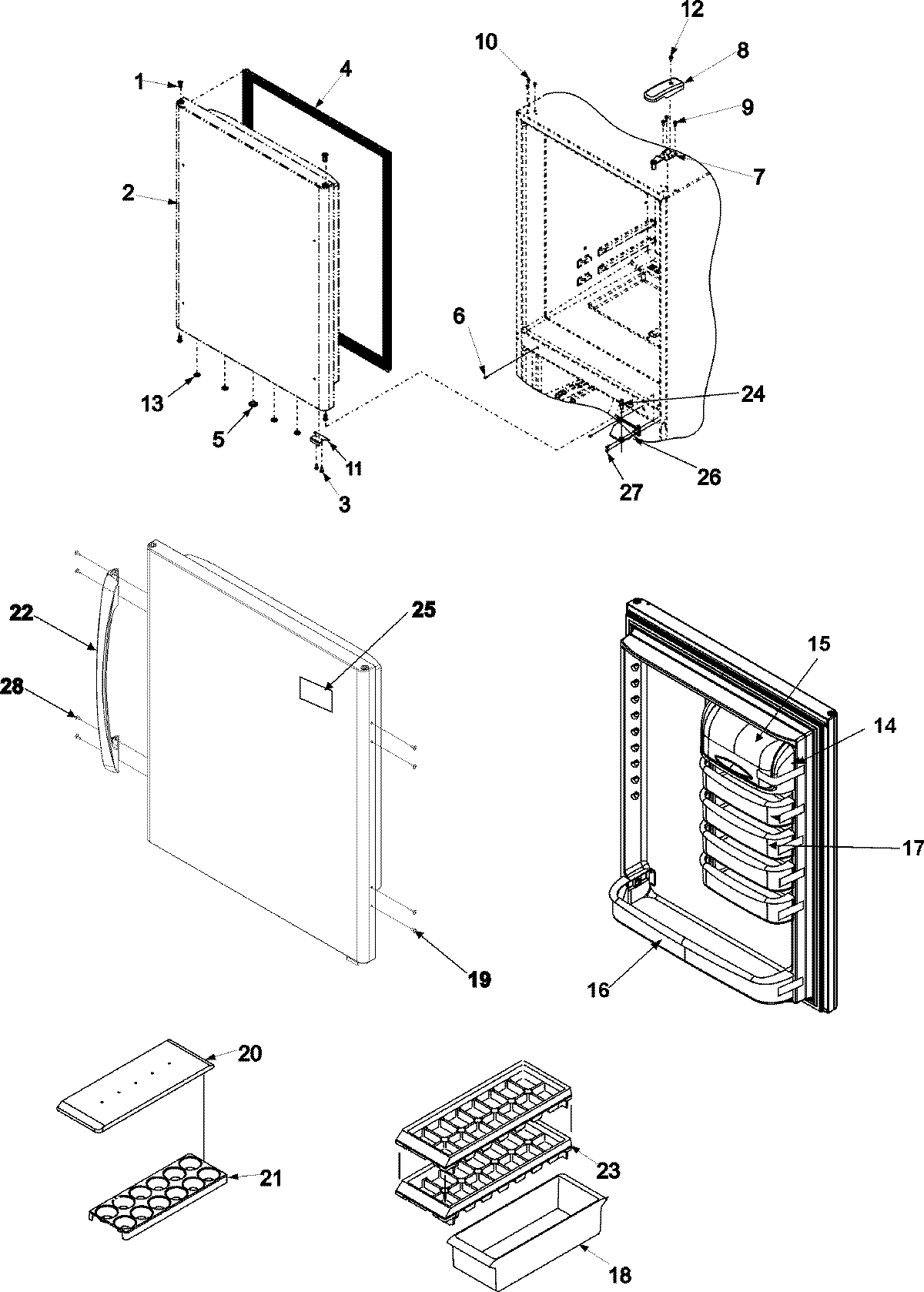

08 - REFRIGERATOR DOOR

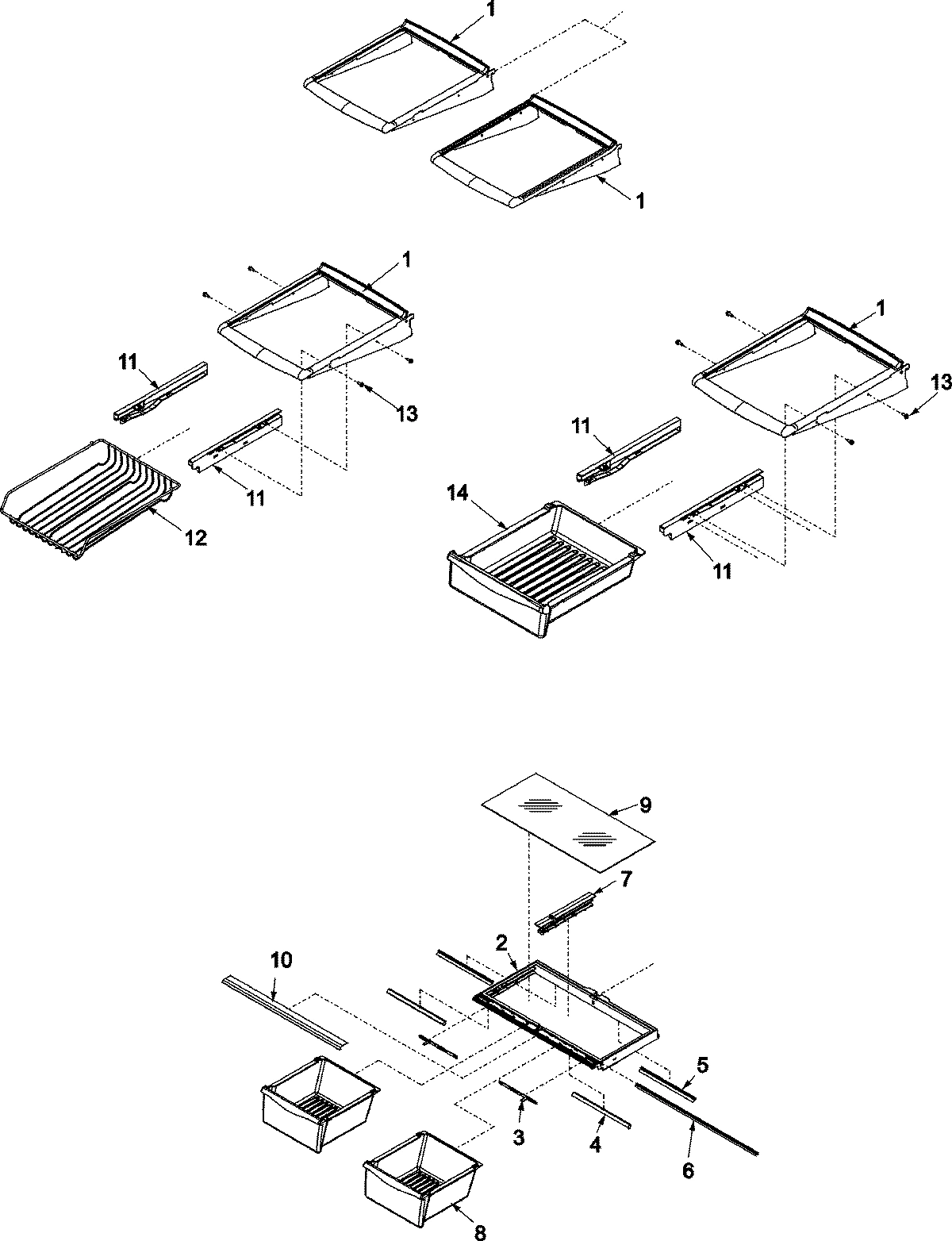

09 - REFRIGERATOR SHELVING
10 - SUPPLEMENTAL INFORMATION

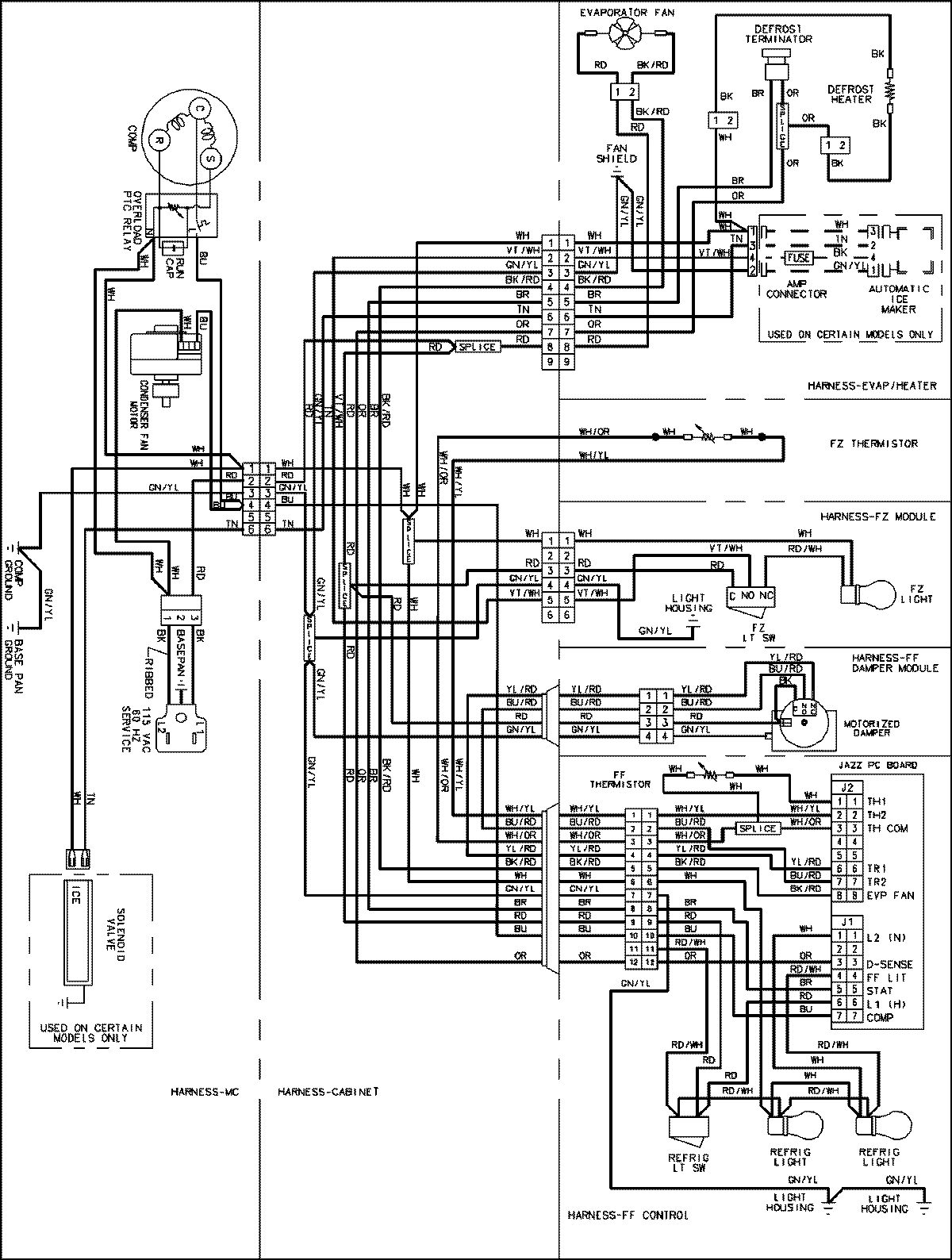

11 - WIRING INFORMATION
Common parts from model Maytag ABB222ZDEQ REFRIGERATOR
1
GASKET, DRAIN TUBE MAY B8381501 Contact Us For Availability
1
SHELF, STA 33 MAY 67003703 Contact Us For Availability
2
TRAY, DRIP E-CT MAY 67001080 Contact Us For Availability
2
MAY 67001961 MAY 67001961 Contact Us For Availability
2
SEAL, O RING MAY M0500703 Contact Us For Availability
2
MAY 67004361 MAY 67004361 Contact Us For Availability
2
MAY 16023096 MAY 16023096 Contact Us For Availability
2
SHEET, TECH DATA MAY 67004282 Contact Us For Availability
3
MAY 10623002 MAY 10623002 Contact Us For Availability
3
MAY M0211533 MAY M0211533 Contact Us For Availability
3
MAY D7753903 MAY D7753903 Contact Us For Availability
3
MAY 67003885 MAY 67003885 Contact Us For Availability
4
MAY 67003936 MAY 67003936 Contact Us For Availability
4
MAY A4539607 MAY A4539607 Contact Us For Availability
4
MAY 67001063 MAY 67001063 Contact Us For Availability
4
MAY 16022769 MAY 16022769 Contact Us For Availability
5
GROMMET, BRACKET MAY 61004743 Contact Us For Availability
5
MAY 67003731 MAY 67003731 Contact Us For Availability
5
MAY A3080002 MAY A3080002 Contact Us For Availability
5
COVER, CORNER (BSQ) MAY 67003486 Contact Us For Availability
5
BRACKET, MODULE & HEATER MAY 95107-1 Contact Us For Availability
5
MAY 67004538 MAY 67004538 Contact Us For Availability
6
MAY 67001066 MAY 67001066 Contact Us For Availability
7
ROLLER BRACKET ASSY MAY 67002227 Contact Us For Availability
7
SCREW MAY 95106-1 Contact Us For Availability
8
RETAINER, FZ DOOR MAY 67003934 Contact Us For Availability
8
MAY M0238616 MAY M0238616 Contact Us For Availability
8
COVER, TOP HINGE (BSQ) MAY 67001013 Contact Us For Availability
9
MAY M0260242 MAY M0260242 Contact Us For Availability
9
MAY 67003858 MAY 67003858 Contact Us For Availability
9
MAY M0238731 MAY M0238731 Contact Us For Availability
10
ELBOW, FILL TUBE MAY 10463201 Contact Us For Availability
10
PLUG, TOP HINGE BUTTON (BSQ) MAY M0310738 Contact Us For Availability
10
MAY 67004420 MAY 67004420 Contact Us For Availability
11
DRIER MAY B2150504 Contact Us For Availability
11
MAY M0233847 MAY M0233847 Contact Us For Availability
11
MAY B5705323 MAY B5705323 Contact Us For Availability
12
MAY 12576801 MAY 12576801 Contact Us For Availability
12
MAY 67004279 MAY 67004279 Contact Us For Availability
12
MAY 10354001 MAY 10354001 Contact Us For Availability
12
MAY 67001289 MAY 67001289 Contact Us For Availability
13
MAY 67002390 MAY 67002390 Contact Us For Availability
13
DAM, LEFT RETURN MAY 67001083 Contact Us For Availability
13
MAY M0214931 MAY M0214931 Contact Us For Availability
14
INSULATION, DAMPER CONTROL MAY 67003904 Contact Us For Availability
14
DAM, RIGHT RETURN MAY 67001084 Contact Us For Availability
14
MAY D7824706 MAY D7824706 Contact Us For Availability
15
LADDER, SIDES MAY 67001317 Contact Us For Availability
16
MAY M0231425 MAY M0231425 Contact Us For Availability
17
MAY 67001035 MAY 67001035 Contact Us For Availability
17
SCREW, SM MAY M0238642 Contact Us For Availability
18
MAY Y12570701 MAY Y12570701 Contact Us For Availability
18
PLUG, BUTTON (WHT) MAY M0310343 Contact Us For Availability
18
MAY 10423131 MAY 10423131 Contact Us For Availability
19
MAY 12246604 MAY 12246604 Contact Us For Availability
19
MAY 67003469 MAY 67003469 Contact Us For Availability
20
MAY 12466101 MAY 12466101 Contact Us For Availability
20
MAY 67003330 MAY 67003330 Contact Us For Availability
20
MAY 10436404 MAY 10436404 Contact Us For Availability
21
MAY M0226528 MAY M0226528 Contact Us For Availability
21
MAY 12217201 MAY 12217201 Contact Us For Availability
21
HANDLE, BASKET/SHELF MAY 10508506 Contact Us For Availability
21
MAY 10436506 MAY 10436506 Contact Us For Availability
22
MAY 12561901C MAY 12561901C Contact Us For Availability
22
MAY 67003962 MAY 67003962 Contact Us For Availability
23
MAY 12646501 MAY 12646501 Contact Us For Availability
23
MAY 67001205 MAY 67001205 Contact Us For Availability
24
MAY M0286708 MAY M0286708 Contact Us For Availability
24
MAY 10972101 MAY 10972101 Contact Us For Availability
24
MAY 10351001 MAY 10351001 Contact Us For Availability
25
MAY 10450602 MAY 10450602 Contact Us For Availability
25
MAY M0230919 MAY M0230919 Contact Us For Availability
26
MAY M1205302 MAY M1205302 Contact Us For Availability
26
MAY 10200801 MAY 10200801 Contact Us For Availability
26
SHIM, NON METAL (BLK) MAY M0274062 Contact Us For Availability
26
SHIM, NON METAL (WHT) MAY M0274057 Contact Us For Availability
27
MAY 10547002 MAY 10547002 Contact Us For Availability
27
MAY 67001310 MAY 67001310 Contact Us For Availability
27
MAY M0226233 MAY M0226233 Contact Us For Availability
28
MAY 67002525 MAY 67002525 Contact Us For Availability
29
DIVIDER, BASKET (UPPER) MAY 67004127 Contact Us For Availability
NI
MAY 67003908 MAY 67003908 Contact Us For Availability
NI
MAY 67003931 MAY 67003931 Contact Us For Availability
NI
MAY 10244904 MAY 10244904 Contact Us For Availability
NI
MAY 67001258 MAY 67001258 Contact Us For Availability
NI
MAY 95108-1 MAY 95108-1 Contact Us For Availability
NI
INSERT, PLASTIC TUBE MAY A3223101 Contact Us For Availability
NI
MAY M0114003 MAY M0114003 Contact Us For Availability
NI
MAY 15003510 MAY 15003510 Contact Us For Availability
× ![]()
