Model Maytag ABB1921BRW00 REFRIGERATOR, BOTTOM MOUNT – Common Parts & Diagrams

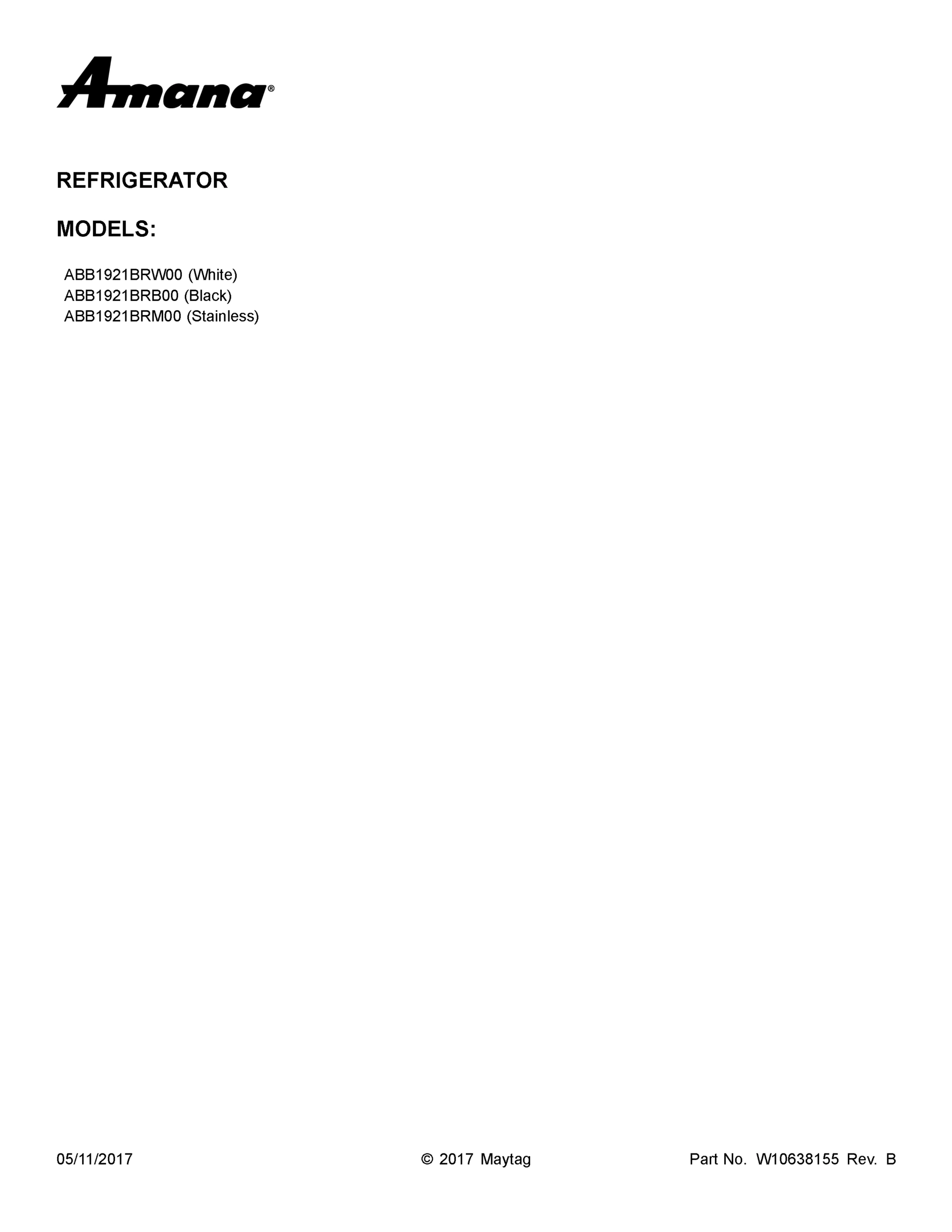

01 - COVER SHEET

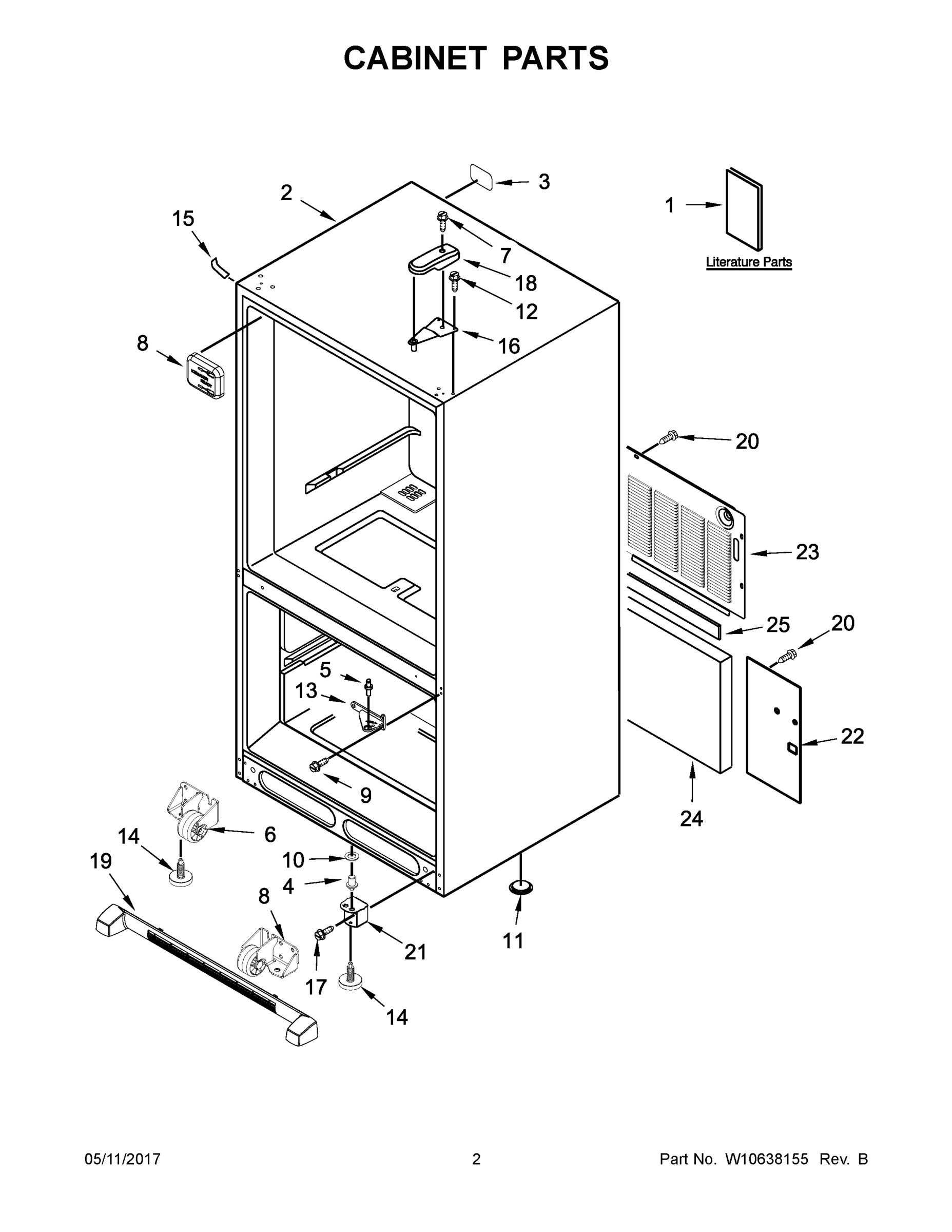

02 - CABINET PARTS

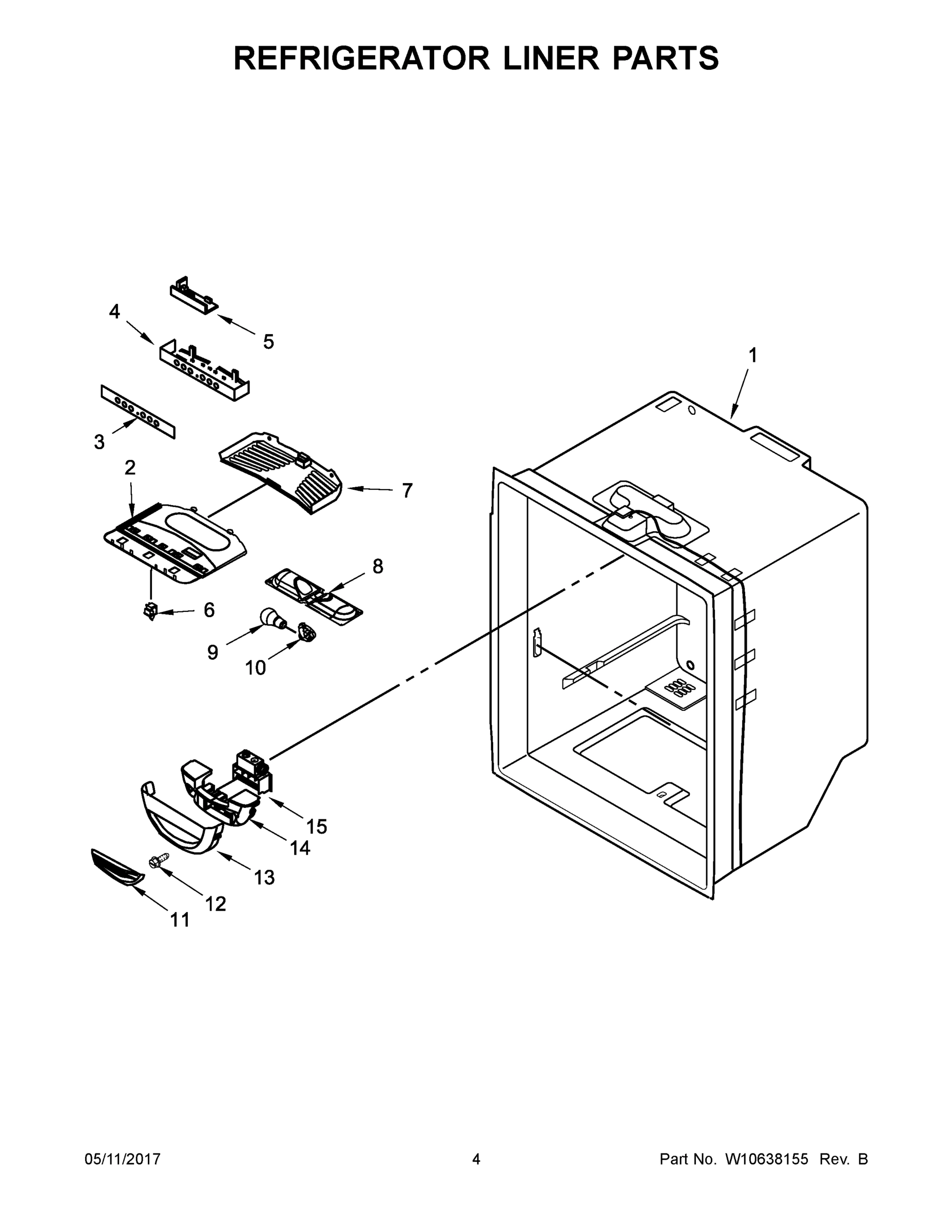

03 - REFRIGERATOR LINER PARTS

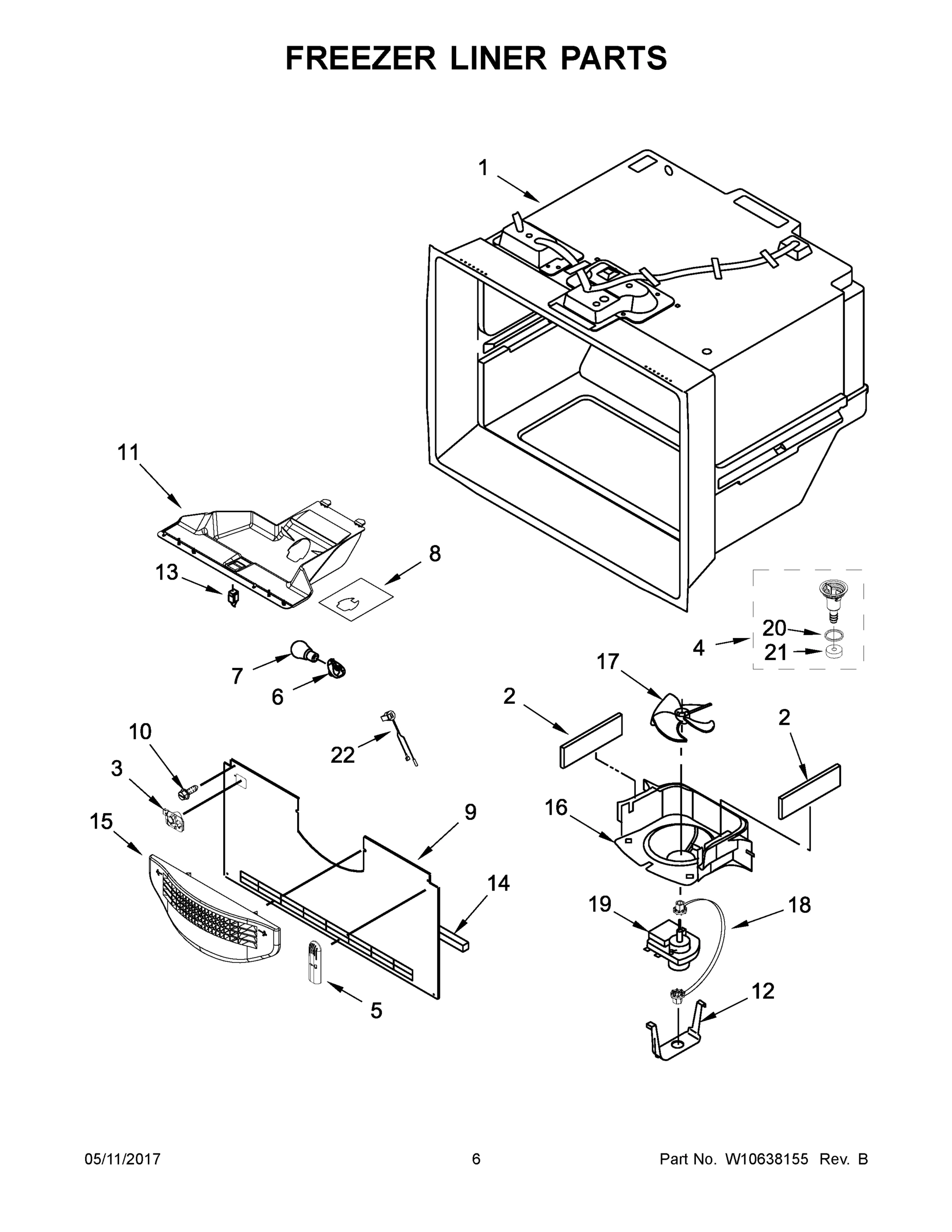

04 - FREEZER LINER PARTS

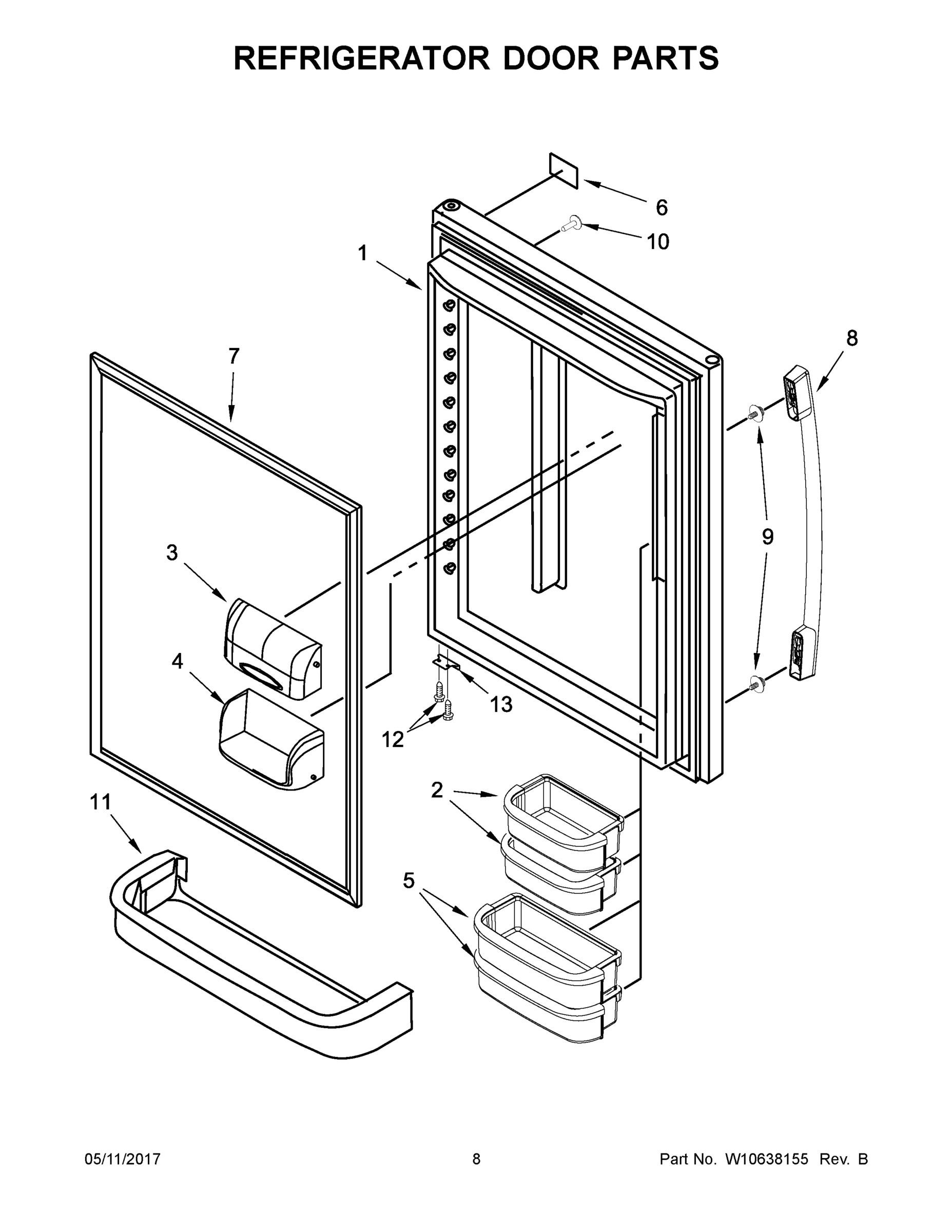

05 - REFRIGERATOR DOOR PARTS

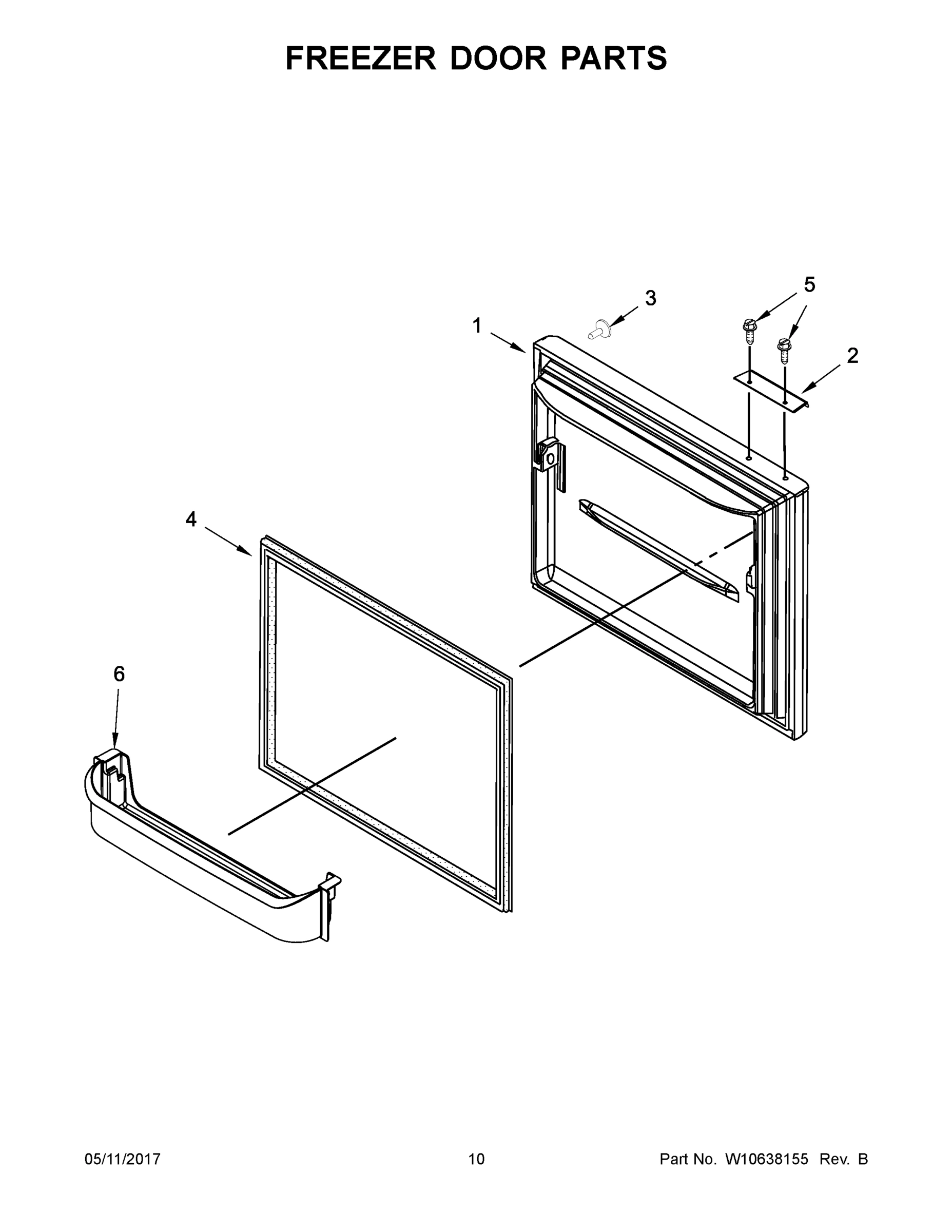

06 - FREEZER DOOR PARTS

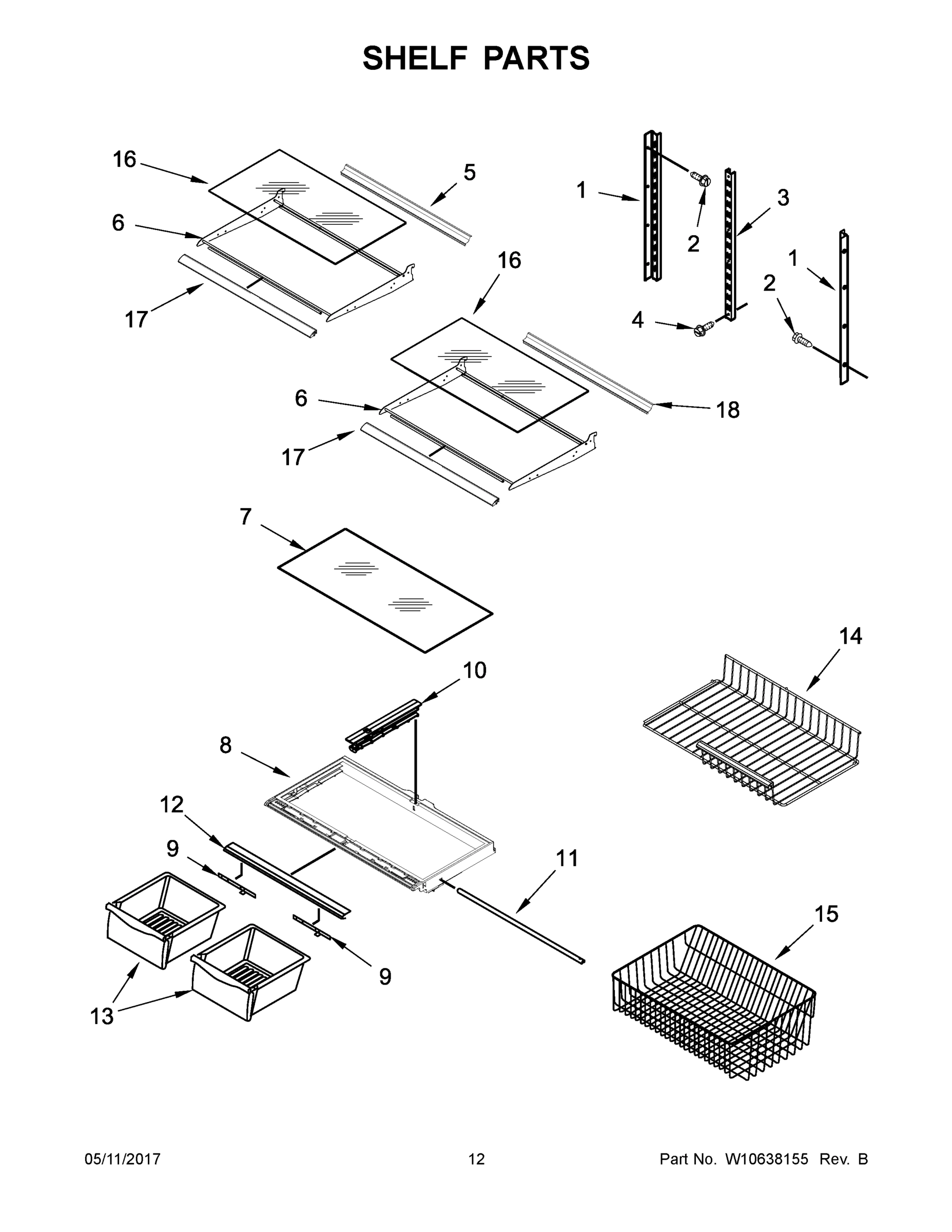

07 - SHELF PARTS

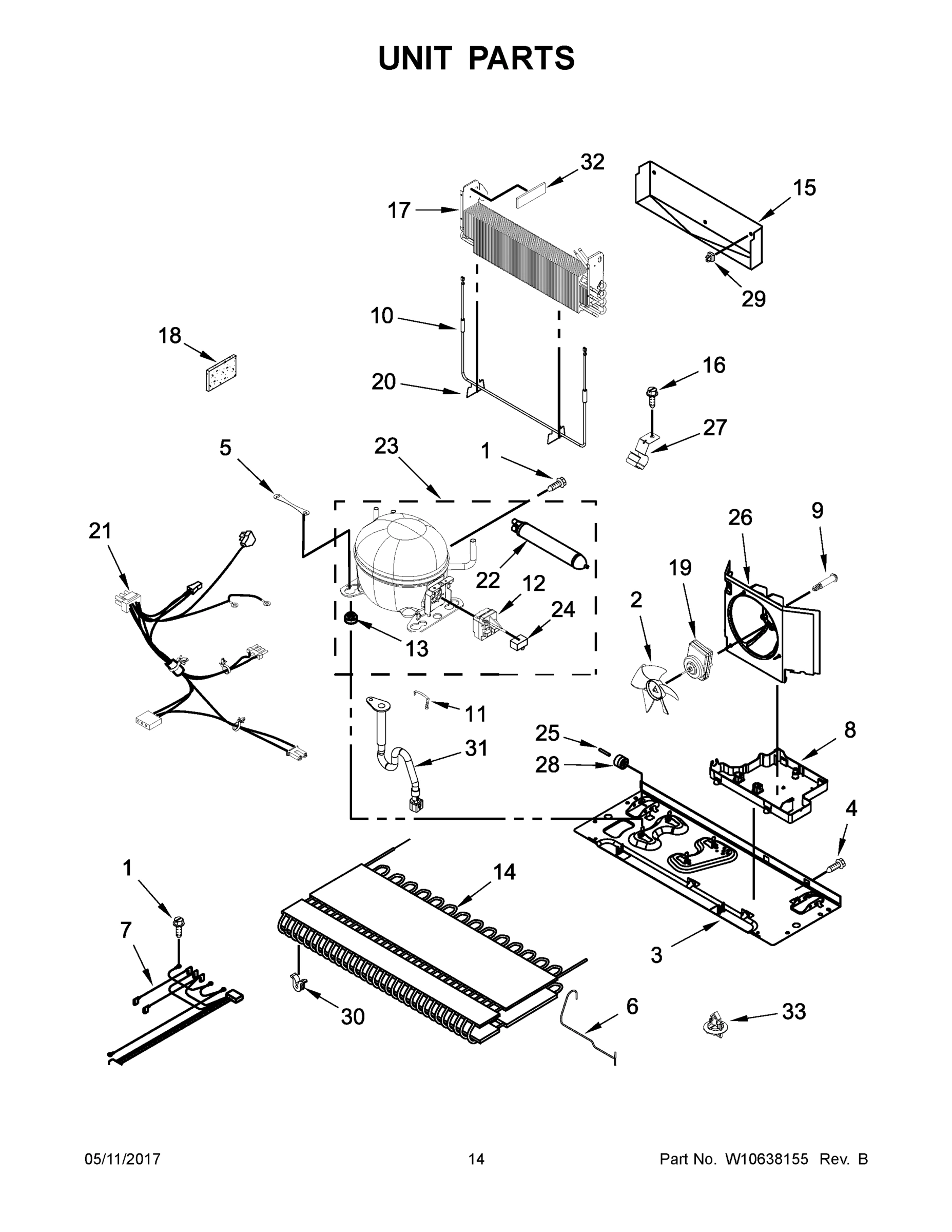

08 - UNIT PARTS
09 - OPTIONAL PARTS
Common parts from model Maytag ABB1921BRW00 REFRIGERATOR, BOTTOM MOUNT
1
REFRIGERATOR DOOR (W/INSULATION) (WHITE) MAY 13109402W Contact Us For Availability
1
FREEZER DOOR (W/ INSULATION) (WHITE) MAY 13024238W Contact Us For Availability
1
LADDER, SIDE MAY W10251970 Contact Us For Availability
1
SCREW MAY 12992301 Contact Us For Availability
1A
REFRIGERATOR DOOR (W/INSULATION) (BLACK) MAY 13109402B Contact Us For Availability
1A
FREEZER DOOR (W/ INSULATION) (BLACK) MAY 13024238B Contact Us For Availability
1B
MAY W10885883 MAY W10885883 Contact Us For Availability
1B
REFRIGERATOR DOOR (W/INSULATION) (STAINLESS) MAY 13107553S Contact Us For Availability
1B
FREEZER DOOR (W/ INSULATION) (STAINLESS) MAY 13024245S Contact Us For Availability
2
MODULE, LIGHT MAY W10464757 Contact Us For Availability
2
GASKET, FOAM MAY A3189392 Contact Us For Availability
2
BUCKET, SMALL MAY 12557202 Contact Us For Availability
2
HANDLE, DOOR (WHITE) MAY 12660007W Contact Us For Availability
2
SCREW MAY 12990513 Contact Us For Availability
2
BLADE, FAN MAY 12825803 Contact Us For Availability
2A
HANDLE, DOOR (BLACK) MAY 12660007B Contact Us For Availability
2B
HANDLE, DOOR (STAINLESS) MAY 12660007S Contact Us For Availability
3
LABEL, FILL TUBE MAY 12249902 Contact Us For Availability
3
OVERLAY MAY W10593588 Contact Us For Availability
3
GUIDE, FILL TUBE MAY 12932103 Contact Us For Availability
3
DOOR, DAIRY MAY 12804701SP Contact Us For Availability
3
PLUG, BUTTON (WHITE) MAY 12246607 Contact Us For Availability
3
LADDER, CENTER MAY W10273463 Contact Us For Availability
3
BASEPAN MAY W10480107 Contact Us For Availability
3A
PLUG, BUTTON (BLACK) MAY 12246608 Contact Us For Availability
3B
PLUG, BUTTON (GREY) MAY 12246610 Contact Us For Availability
4
PIN, BOTTOM HINGE MAY 10200802 Contact Us For Availability
4
SCREW MAY 12990511 Contact Us For Availability
4
MODULE, CONTROL MAY W10464769 Contact Us For Availability
4
ASSEMBLY, DRAIN FUNNEL MAY W10662407 Contact Us For Availability
4
TRAY, DAIRY MAY 12369502SP Contact Us For Availability
4
GASKET, DOOR (WHITE) MAY W10443311 Contact Us For Availability
4
SCREW MAY W10215666 Contact Us For Availability
4A
GASKET, DOOR (GREY) MAY W10443312 Contact Us For Availability
5
PIN, CENTER HINGE MAY 10351005 Contact Us For Availability
5
CONTROL, ELECTRONIC MAY W10503278 Contact Us For Availability
5
COVER, THERMISTOR MAY 12815301 Contact Us For Availability
5
BUCKET, MEDIUM MAY 12557204 Contact Us For Availability
5
SCREW (WHITE) MAY 12990901 Contact Us For Availability
5
STRAP, COMPRESSOR MAY W10236396 Contact Us For Availability
5A
SCREW (BLACK) MAY 12990902 Contact Us For Availability
5B
SCREW (STAINLESS) MAY 12991701 Contact Us For Availability
6
ASSEMBLY, ROLLER (LEFT HAND) MAY W10515763 Contact Us For Availability
6
SWITCH, LIGHT MAY C3680310V Contact Us For Availability
6
NAMEPLATE (STAINLESS) MAY 12528501 Contact Us For Availability
6
RETAINER, DOOR MAY 12737501 Contact Us For Availability
6
TUBE, DISCHARGE MAY W10294014 Contact Us For Availability
6A
ASSEMBLY, ROLLER (RIGHT HAND) MAY W10515762 Contact Us For Availability
7
SCREW MAY 12992602 Contact Us For Availability
7
COVER, LIGHT MAY 12806501 Contact Us For Availability
7
BULB, LIGHT MAY 2311792 Contact Us For Availability
7
GASKET, DOOR MAGNETIC (WHITE) MAY W10443309 Contact Us For Availability
7
GLASS, CRISPER COVER MAY 12204823N Contact Us For Availability
7
HARNESS, EVAPORATOR (INCLUDES HEATER) MAY W10292244 Contact Us For Availability
7A
GASKET, DOOR MAGNETIC (GREY) MAY W10443310 Contact Us For Availability
8
COVER, FILL TUBE MAY 12477501 Contact Us For Availability
8
HOUSING, LIGHT MAY W10443023 Contact Us For Availability
8
FOIL, HOUSING MAY W10277466 Contact Us For Availability
8
HANDLE, DOOR (WHITE) MAY W10222984 Contact Us For Availability
8
FRAME, CRISPER MAY W10671240 Contact Us For Availability
8
PAN, DRAIN MAY W10655367 Contact Us For Availability
8A
HANDLE, DOOR (BLACK) MAY W10222985 Contact Us For Availability
8B
HANDLE, DOOR (STAINLESS) MAY W10223019 Contact Us For Availability
9
SCREW (STAINLESS) MAY W10673840 Contact Us For Availability
9
COVER, EVAPORATOR MAY W10308414 Contact Us For Availability
9
SCREW MAY W10288153 Contact Us For Availability
9
SLIDE, HUMIDITY CONTROL MAY 12530805SP Contact Us For Availability
9
SCREW MAY W10622701 Contact Us For Availability
10
SHIM (WHITE) MAY M0274057 Contact Us For Availability
10
SOCKET, LIGHT MAY 12570701V Contact Us For Availability
10
SCREW MAY 12990101 Contact Us For Availability
10
RAIL, CENTER CRISPER MAY W10671238 Contact Us For Availability
10
HEATER, EVAPORATOR MAY 12729127 Contact Us For Availability
11
INSERT, DAMPER COVER MAY 12806801 Contact Us For Availability
11
MODULE, LIGHT MAY W10277025 Contact Us For Availability
11
RETAINER, DOOR MAY 12557904 Contact Us For Availability
11
BRACE, CRISPER COVER MAY 12227302WD Contact Us For Availability
11
STRAP, BALE MAY W10216075 Contact Us For Availability
12
SCREW MAY 12992403 Contact Us For Availability
12
SCREW MAY 12990604 Contact Us For Availability
12
CLIP, EVAPORATOR MOTOR MAY 13058002 Contact Us For Availability
12
SCREW MAY 12990504 Contact Us For Availability
12
TRIM, CRISPER MAY W10231481 Contact Us For Availability
12
DEVICE, START MAY W10330834 Contact Us For Availability
13
HINGE, CENTER (WHITE) MAY 12607103WD Contact Us For Availability
13
COVER, DAMPER MAY 12806701 Contact Us For Availability
13
SWITCH, LIGHT MAY 12466105 Contact Us For Availability
13
STOP, DOOR (WHITE) MAY 10447111 Contact Us For Availability
13
PAN, CRISPER MAY 12531305 Contact Us For Availability
13
GROMMET MAY 10835903 Contact Us For Availability
13A
HINGE, CENTER (BLACK) MAY 12607104ED Contact Us For Availability
13A
STOP, DOOR (BLACK) MAY 10447112 Contact Us For Availability
13B
HINGE, CENTER (GREY) MAY 12607103AP Contact Us For Availability
13B
STOP, DOOR (GREY) MAY 10447114 Contact Us For Availability
14
BRAKE, ROLLER MAY W10141622 Contact Us For Availability
14
INSULATION, DAMPER MAY 13012402 Contact Us For Availability
14
GASKET, BOTTOM MAY A3189394 Contact Us For Availability
14
SHELF, STATIONARY MAY 12476801 Contact Us For Availability
14
CONDENSER MAY W10346423 Contact Us For Availability
15
COVER, CORNER (WHITE) MAY 12587703W Contact Us For Availability
15
DAMPER, CONTROL MAY W10594330 Contact Us For Availability
15
GRILLE, FREEZER AIR MAY 13024803 Contact Us For Availability
15
TRAY, DRIP MAY W10292801 Contact Us For Availability
15A
COVER, CORNER (BLACK) MAY 12587703B Contact Us For Availability
15B
COVER, CORNER (GREY) MAY 12587703AP Contact Us For Availability
16
HINGE, TOP MAY 12566606ED Contact Us For Availability
16
SHROUD, EVAPORATOR FAN MAY 13057901 Contact Us For Availability
16
SCREW MAY 12990701 Contact Us For Availability
17
SCREW MAY W10709365 Contact Us For Availability
17
BLADE, FAN MAY 2169142 Contact Us For Availability
17
TRIM, FRONT SHELF MAY W10231329 Contact Us For Availability
17
EVAPORATOR MAY W10662565 Contact Us For Availability
18
COVER, HINGE (WHITE) MAY 12477601W Contact Us For Availability
18
GROMMET MAY W10121318 Contact Us For Availability
18
SEALER, INSULATION MAY 2169104 Contact Us For Availability
18A
COVER, HINGE (BLACK) MAY 12477601B Contact Us For Availability
18B
COVER, HINGE (GREY) MAY 12477601AP Contact Us For Availability
19
GRILLE ASSEMBLY (INCLUDES CLIPS) (WHITE) MAY W10534166 Contact Us For Availability
19
MOTOR, EVAPORATOR MAY W10128551 Contact Us For Availability
19
MOTOR, FAN MAY W10239053 Contact Us For Availability
19A
GRILLE ASSEMBLY (INCLUDES CLIPS) (BLACK) MAY W10534167 Contact Us For Availability
19B
GRILLE ASSEMBLY (INCLUDES CLIPS) (GREY) MAY W10534165 Contact Us For Availability
20
SEAL MAY M0500703 Contact Us For Availability
21
HINGE, BOTTOM (WHITE) MAY W10490811 Contact Us For Availability
21
GASKET, DRAIN MAY B8381501 Contact Us For Availability
21
HARNESS, UNIT (INCLUDES POWER CORD) MAY W10679216 Contact Us For Availability
21A
HINGE, BOTTOM (BLACK) MAY W10490812 Contact Us For Availability
21B
HINGE, BOTTOM (GREY) MAY W10617441 Contact Us For Availability
22
COVER, WATER VALVE MAY W10217701 Contact Us For Availability
22
THERMISTOR MAY 12791409SP Contact Us For Availability
22
DRIER MAY W10177049 Contact Us For Availability
23
COVER, UNIT MAY W10210978 Contact Us For Availability
23
COMPRESSOR MAY W10445422 Contact Us For Availability
24
INSULATION MAY 12820505 Contact Us For Availability
24
CAPACITOR MAY W10350564 Contact Us For Availability
25
GASKET MAY B5759655 Contact Us For Availability
25
AXLE, ROLLER MAY 12477202 Contact Us For Availability
26
SHROUD, CONDENSER FAN MAY W10189184 Contact Us For Availability
27
CLIP, DRIER MAY W10281329 Contact Us For Availability
28
ROLLER MAY 12477102 Contact Us For Availability
29
CLIP, EVAPORATOR MAY 10623002 Contact Us For Availability
30
GROMMET, CONDENSER MAY W10137529 Contact Us For Availability
31
EXTENSION, DRAIN MAY W10622098 Contact Us For Availability
32
GASKET, FOAM MAY A3189397 Contact Us For Availability
33
CLIP, CONDENSER MAY W10815863 Contact Us For Availability
NI
FOLLOWING PARTS NOT ILLUSTRATED MAY N/P Contact Us For Availability
NI
HARNESS, REFRIGERATOR CONTROL (INCLUDES THERM MAY W10422363 Contact Us For Availability
NI
VALVE, ACCESS MAY 876764 Contact Us For Availability
NI
VALVE, ACCESS MAY 978025 Contact Us For Availability
NI
VALVE, ACCESS MAY 978026 Contact Us For Availability
NI
VALVE, ACCESS MAY 978027 Contact Us For Availability
NI
VALVE, ACCESS MAY 978028 Contact Us For Availability
NI
VALVE, ACCESS MAY 978029 Contact Us For Availability
NI
VALVE, ACCESS MAY 978030 Contact Us For Availability
NI
TORX SCREW WRENCH, TORX KEY MAY 1117510 Contact Us For Availability
NI
MISCELLANEOUS, CLEANER, STAINLESS STEEL MAY 20000008 Contact Us For Availability
NI
MISCELLANEOUS, SEALER, GUM (4 FEET) MAY 212643 Contact Us For Availability
NI
PAINT, PRESSURIZED SPRAY (12 OZ. BLACK) MAY 285006 Contact Us For Availability
NI
PAINT, PRESSURIZED SPRAY (12 OZ. WHITE) MAY 350930 Contact Us For Availability
NI
PAINT, PRESSURIZED SPRAY (12 OZ. ENAMEL, BLAC MAY 350939 Contact Us For Availability
NI
PAINT, PRESSURIZED SPRAY (12 OZ. WHITE PRIMER MAY 350942 Contact Us For Availability
NI
PAINT, TOUCH-UP (1/2OZ. BISCUIT/BISQUE) MAY 4392899 Contact Us For Availability
NI
PAINT, PRESSURIZED SPRAY (12 OZ. BISCUIT/BISQ MAY 4392901 Contact Us For Availability
NI
MISCELLANEOUS, TAPE, VINYL (3/4 X 108") MAY 479502 Contact Us For Availability
NI
MISCELLANEOUS, CORK, SEALER MAY 503695 Contact Us For Availability
NI
MISCELLANEOUS, SEALER, MASTIC (1 QT) MAY 505587 Contact Us For Availability
NI
PAINT, TOUCH-UP (1/2OZ. WHITE PORCELAIN (2 OZ MAY 511873 Contact Us For Availability
NI
MISCELLANEOUS, GREASE, SILICONE (1/2 OZ.) MAY 542638 Contact Us For Availability
NI
MISCELLANEOUS, CEMENT, ALUMILASTIC (1 1/4 OZ. MAY 542639 Contact Us For Availability
NI
PAINT, TOUCH-UP (1/2OZ. WHITE) MAY 72017 Contact Us For Availability
NI
PAINT, TOUCH-UP (1/2OZ. BLACK) MAY 72032 Contact Us For Availability
NI
PAINT, BULK (1 QT. WHITE (UNCUT)) MAY 799344 Contact Us For Availability
NI
MISCELLANEOUS, KIT, WATER INLET MAY 8003RP Contact Us For Availability
NI
MISCELLANEOUS, KIT, TERMINAL CONNECTOR MAY 833938 Contact Us For Availability
NI
MISCELLANEOUS, KIT, FOAM SLAB (30" X 32 1/2" MAY 876029 Contact Us For Availability
NI
MISCELLANEOUS, INSULATION KIT (14 PIECES, 3" MAY 876305 Contact Us For Availability
NI
MISCELLANEOUS, INSULATION (2 PIECES, 3" X 24" MAY 876370 Contact Us For Availability
NI
MISCELLANEOUS, INSULATION, FIBERGLASS (63 1/2 MAY 978941 Contact Us For Availability
NI
MISCELLANEOUS MAY F2WC9I1 Contact Us For Availability
× ![]()
