Model Maytag ABB1921BRB01 REFRIGERATOR, BOTTOM MOUNT – Common Parts & Diagrams

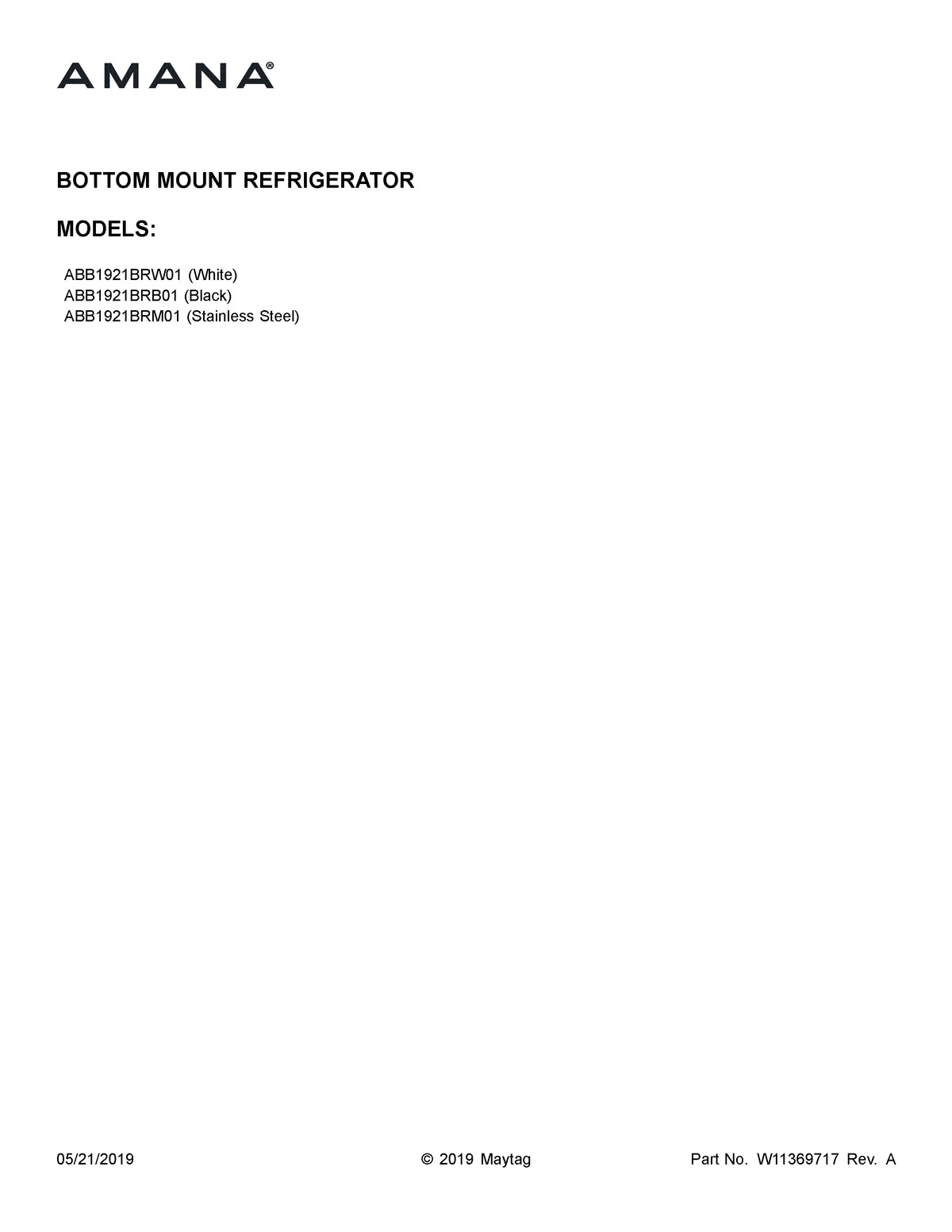

01 - COVER SHEET
02 - CABINET PARTS

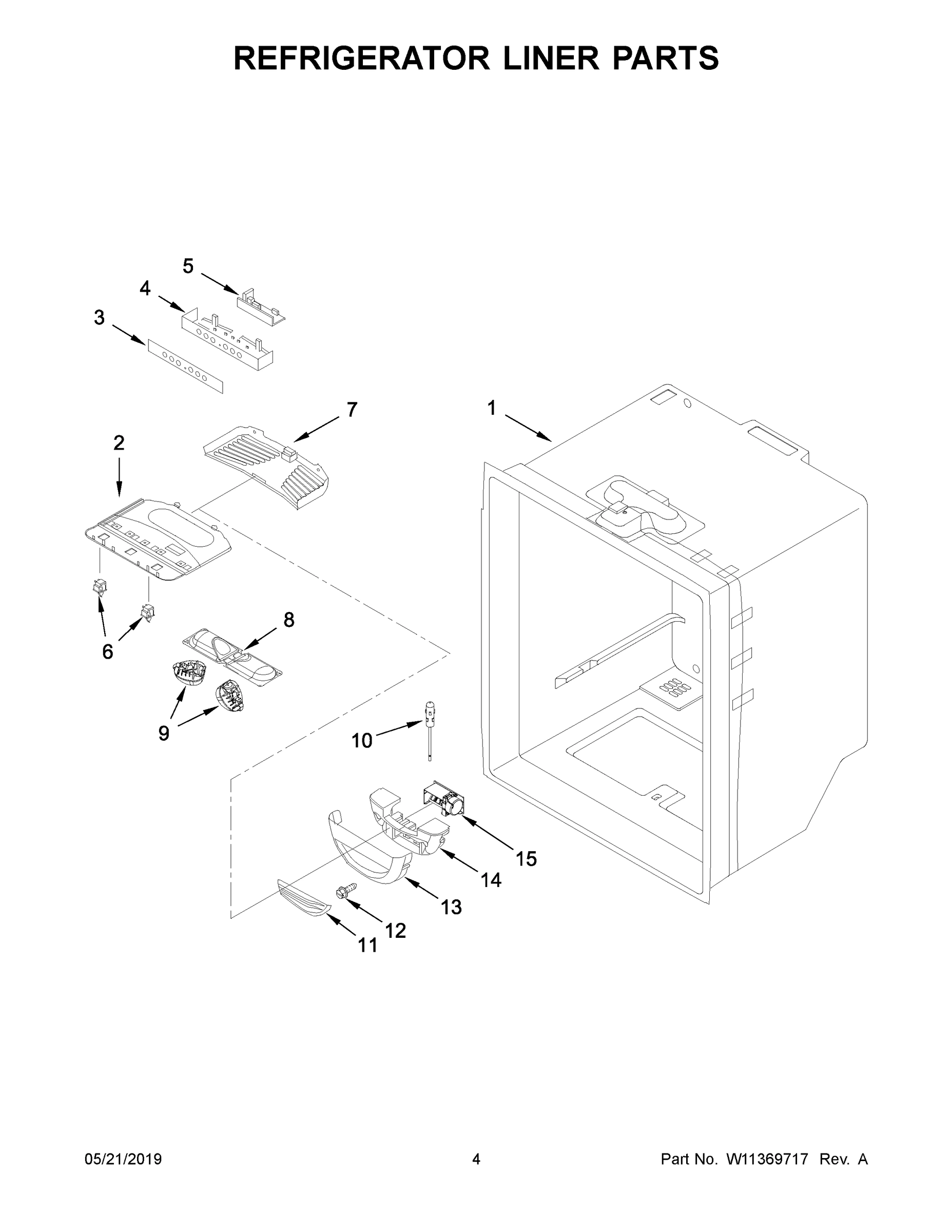

03 - REFRIGERATOR LINER PARTS

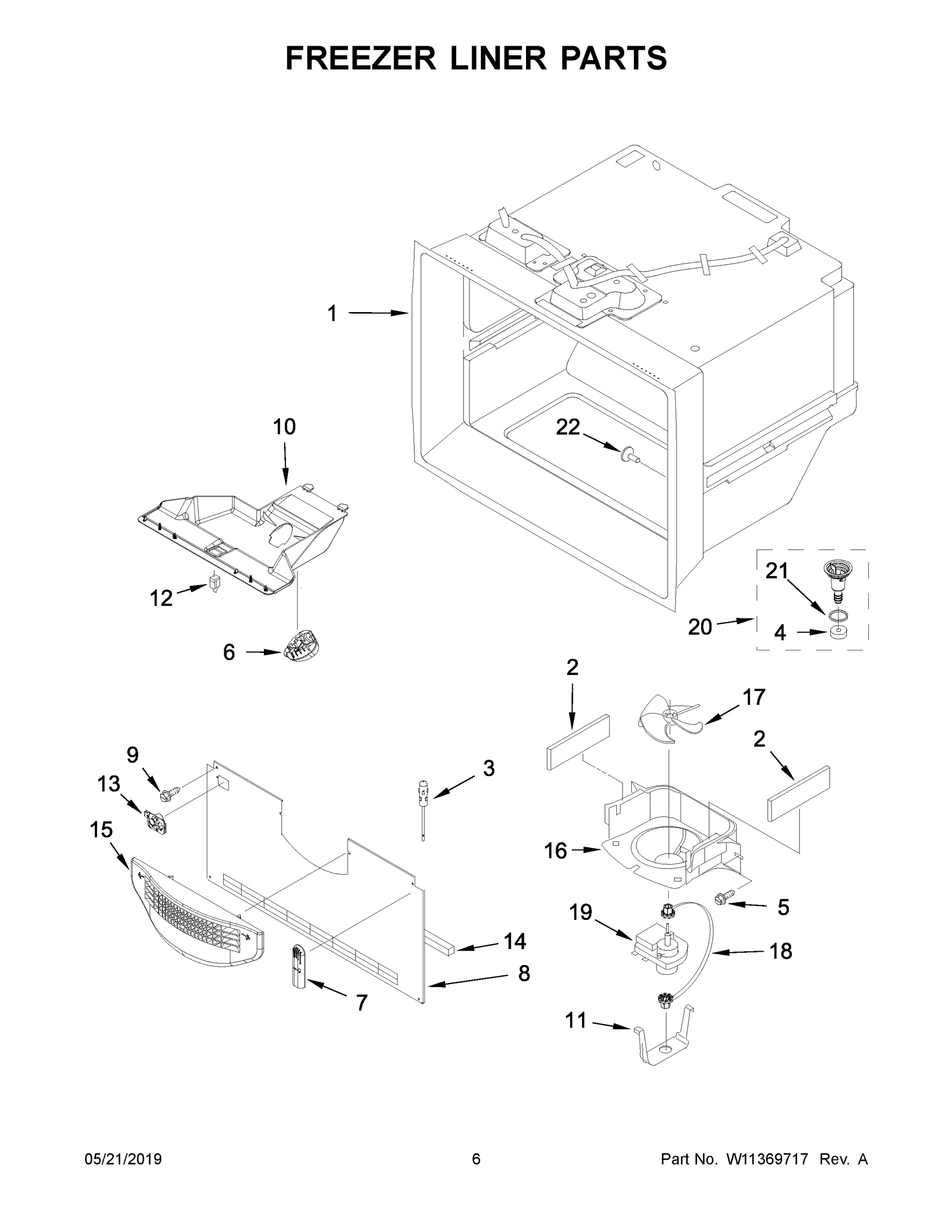

04 - FREEZER LINER PARTS

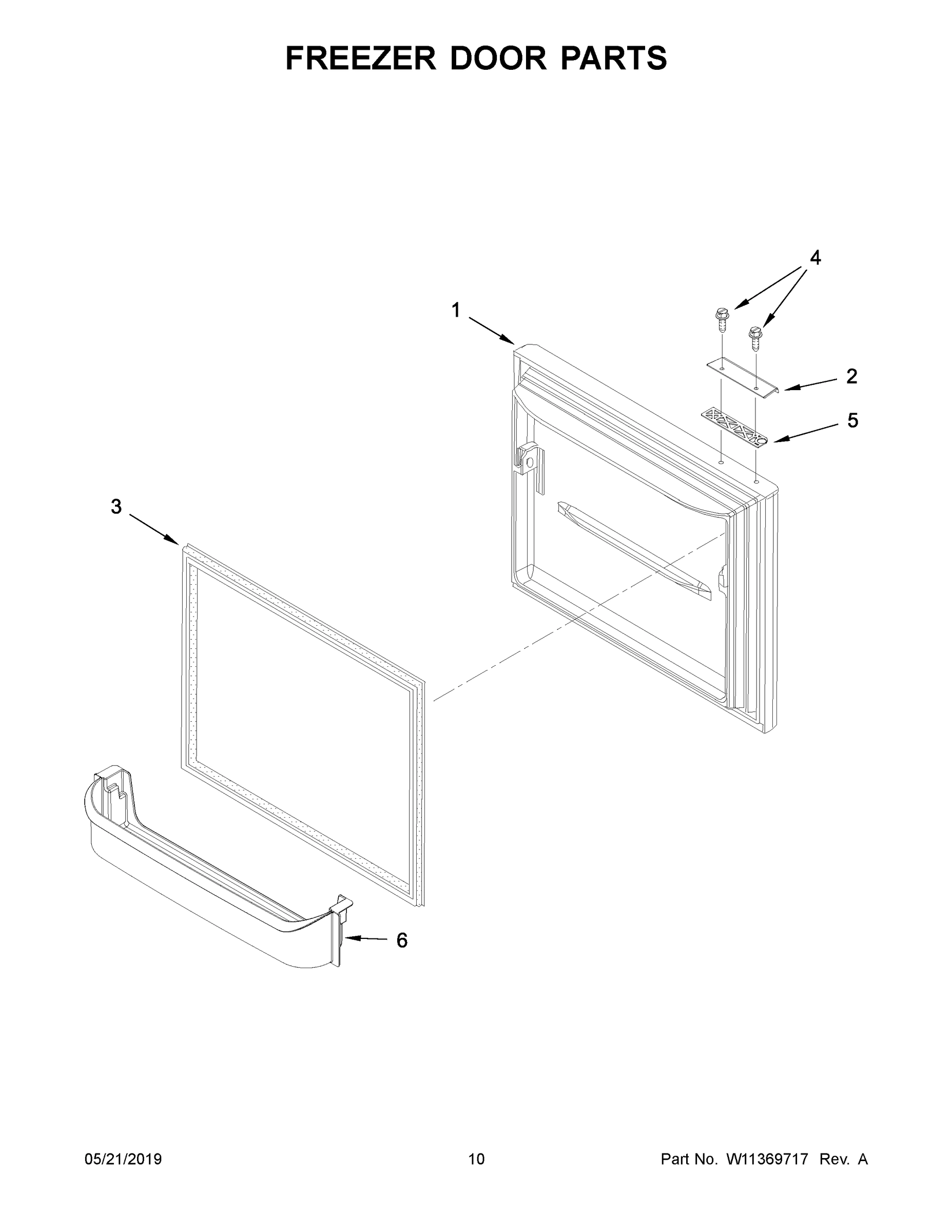

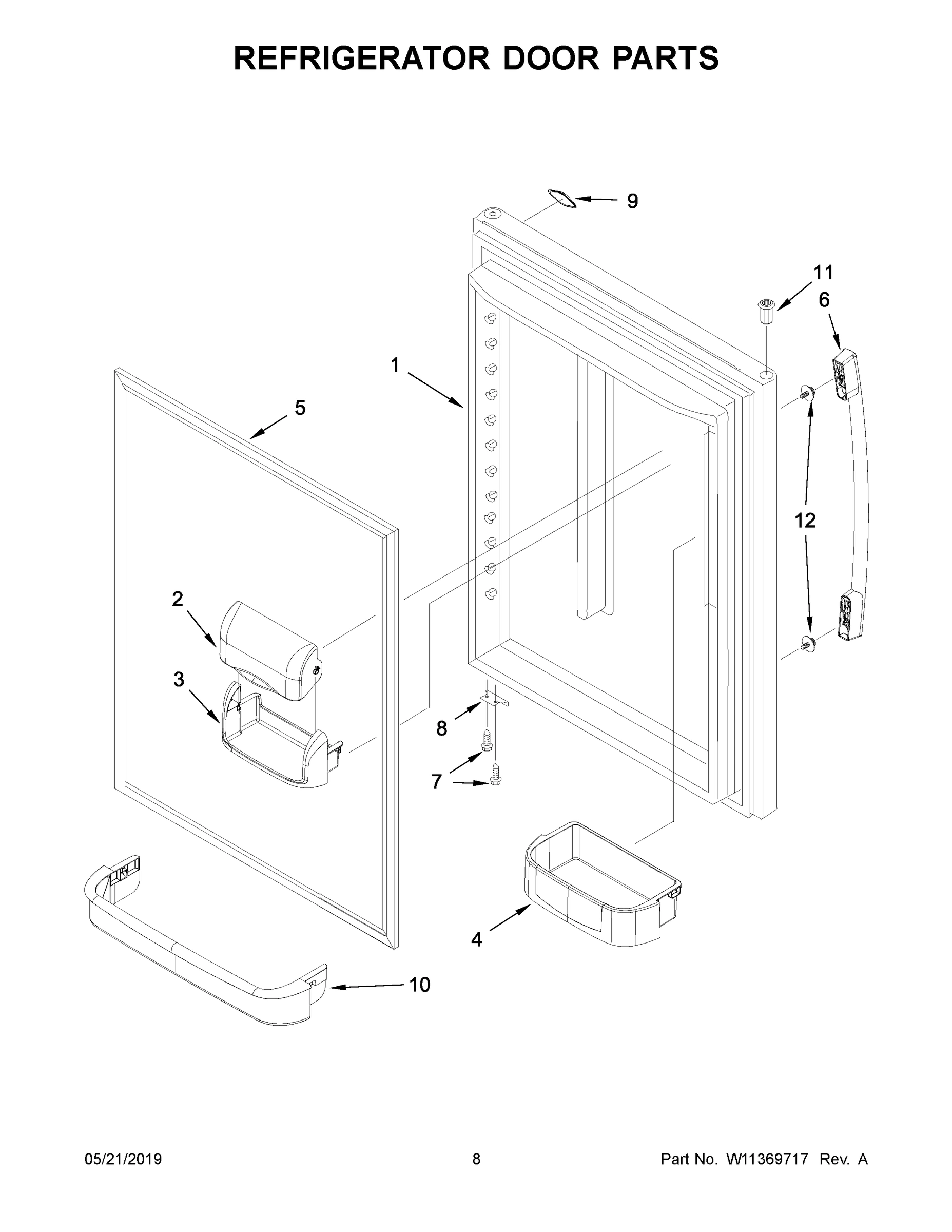

05 - REFRIGERATOR DOOR PARTS
06 - FREEZER DOOR PARTS

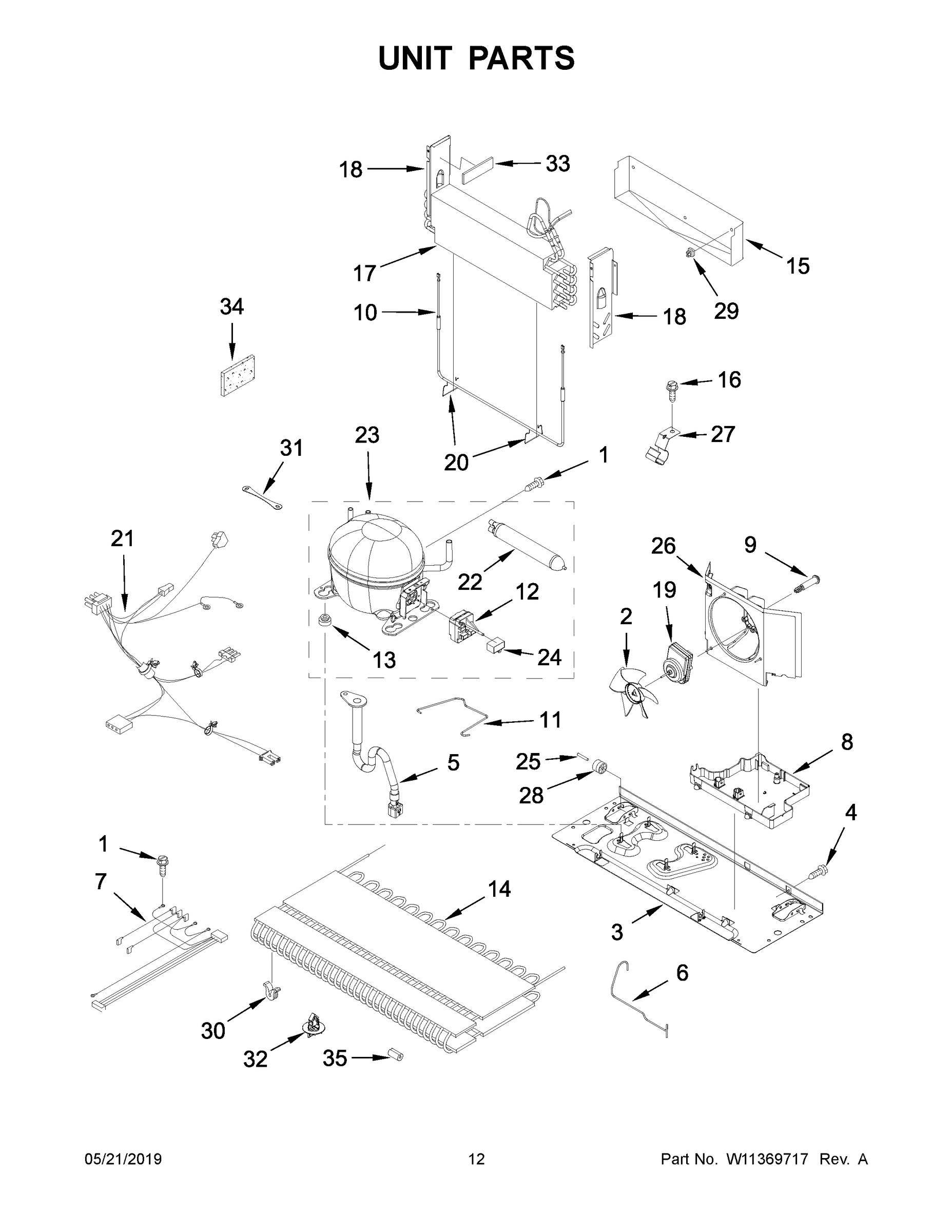

07 - UNIT PARTS

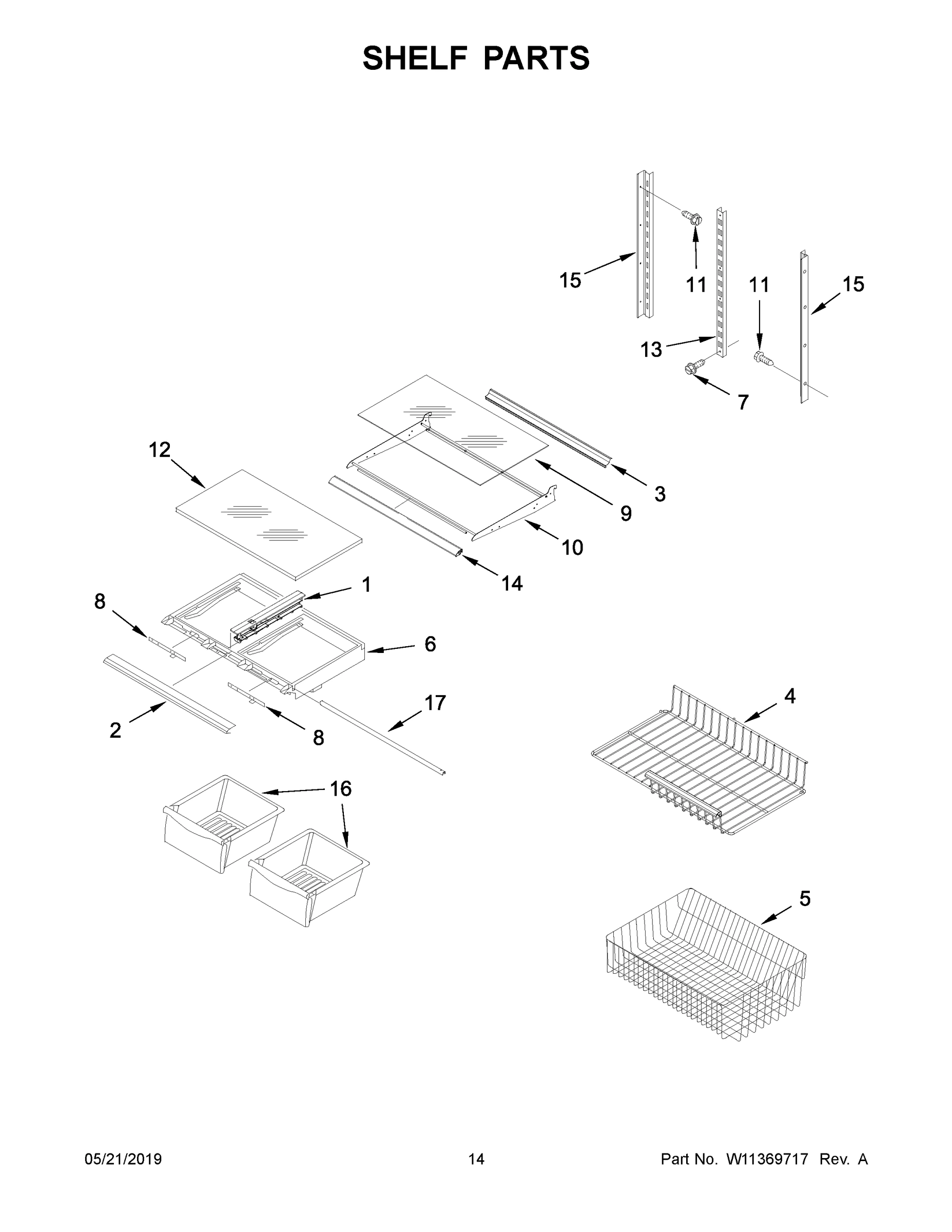

08 - SHELF PARTS
09 - OPTIONAL PARTS
Common parts from model Maytag ABB1921BRB01 REFRIGERATOR, BOTTOM MOUNT
1
DOOR, REFRIGERATOR (WHITE) MAY 13109402W Contact Us For Availability
1
DOOR, FREEZER (WHITE) MAY 13024238W Contact Us For Availability
1
SCREW MAY 12992301 Contact Us For Availability
1
RAIL, CENTER CRISPER MAY W10671238 Contact Us For Availability
1A
MAY W11306934 MAY W11306934 Contact Us For Availability
1A
DOOR, REFRIGERATOR (BLACK) MAY 13109402B Contact Us For Availability
1A
DOOR, FREEZER (BLACK) MAY 13024238B Contact Us For Availability
1B
MAY W11297589 MAY W11297589 Contact Us For Availability
1B
DOOR, REFRIGERATOR (STAINLESS) MAY 13107553S Contact Us For Availability
1B
DOOR, FREEZER (STAINLESS) MAY 13024245S Contact Us For Availability
2
MODULE, LIGHT MAY W10464757 Contact Us For Availability
2
GASKET, FOAM MAY A3189392 Contact Us For Availability
2
DOOR, DAIRY MAY 12804701SP Contact Us For Availability
2
HANDLE, DOOR (WHITE) MAY 12660007W Contact Us For Availability
2
BLADE, FAN MAY 12825803 Contact Us For Availability
2
TRIM, CRISPER MAY W10231481 Contact Us For Availability
2A
HANDLE, DOOR (BLACK) MAY 12660007B Contact Us For Availability
2B
HANDLE, DOOR (STAINLESS) MAY 12660007S Contact Us For Availability
3
ASSEMBLY, ROLLER (LEFT HAND) MAY W10515763 Contact Us For Availability
3
OVERLAY MAY W10593588 Contact Us For Availability
3
THERMISTOR MAY 12791409SP Contact Us For Availability
3
TRAY, DAIRY MAY 12369502SP Contact Us For Availability
3
GASKET, DOOR (WHITE) MAY W10443311 Contact Us For Availability
3
BASEPAN MAY W10480107 Contact Us For Availability
3A
ASSEMBLY, ROLLER (RIGHT HAND) MAY W10515762 Contact Us For Availability
3A
GASKET, DOOR (BLACK) MAY W10436247 Contact Us For Availability
3B
GASKET, DOOR (GREY) MAY W10443312 Contact Us For Availability
4
COVER, FILL TUBE MAY W11182229 Contact Us For Availability
4
SCREW MAY 12990511 Contact Us For Availability
4
MODULE, CONTROL MAY W10464769 Contact Us For Availability
4
GASKET, DRAIN MAY B8381501 Contact Us For Availability
4
BUCKET, MEDIUM MAY 12557204 Contact Us For Availability
4
SCREW (WHITE) MAY 12990901 Contact Us For Availability
4
SHELF, STATIONARY MAY 12476801 Contact Us For Availability
4A
BUCKET, SMALL MAY 12557202 Contact Us For Availability
4A
SCREW (BLACK) MAY 12990902 Contact Us For Availability
4B
SCREW (STAINLESS) MAY 12991701 Contact Us For Availability
5
COVER, WATER VALVE MAY W10217701 Contact Us For Availability
5
CONTROL, ELECTRONIC MAY W10503278 Contact Us For Availability
5
SCREW MAY 12990504 Contact Us For Availability
5
GASKET, DOOR (WHITE) MAY W10443309 Contact Us For Availability
5
SPACER, HANDLE (WHITE) MAY 12647901W Contact Us For Availability
5
EXTENSION, DRAIN MAY W10622098 Contact Us For Availability
5A
GASKET, DOOR (BLACK) MAY W10436245 Contact Us For Availability
5A
SPACER, HANDLE (BLACK) MAY 12647901B Contact Us For Availability
5B
GASKET, DOOR (GREY) MAY W10443310 Contact Us For Availability
5B
SPACER, HANDLE (STAINLESS) MAY 12647901S Contact Us For Availability
6
BRAKE, ROLLER MAY W10141622 Contact Us For Availability
6
SWITCH, LIGHT MAY W10847853 Contact Us For Availability
6
MAY W11251749 MAY W11251749 Contact Us For Availability
6
MAY W11188495 MAY W11188495 Contact Us For Availability
6
RETAINER, DOOR MAY 12737501 Contact Us For Availability
6
TUBE, DISCHARGE MAY W10294014 Contact Us For Availability
6
FRAME, CRISPER MAY W10671240 Contact Us For Availability
6A
HANDLE, DOOR (BLACK) MAY W10222985 Contact Us For Availability
6B
HANDLE, DOOR (STAINLESS) MAY W10223019 Contact Us For Availability
7
PIN, CENTER HINGE MAY 10351005 Contact Us For Availability
7
COVER, LIGHT MAY W11132917 Contact Us For Availability
7
COVER, THERMISTOR MAY 12815301 Contact Us For Availability
7
SCREW MAY 12990519 Contact Us For Availability
7
HARNESS, EVAPORATOR (INCLUDES HEATER) MAY W11050969 Contact Us For Availability
7
SCREW MAY W10215666 Contact Us For Availability
8
LABEL, FILL TUBE MAY 12249902 Contact Us For Availability
8
HOUSING, LIGHT MAY W10443023 Contact Us For Availability
8
COVER, EVAPORATOR MAY W10308414 Contact Us For Availability
8
STOP, DOOR (WHITE) MAY 10447111 Contact Us For Availability
8
PAN, DRAIN MAY W10655367 Contact Us For Availability
8
SLIDE, HUMIDITY CONTROL MAY 12530805SP Contact Us For Availability
8A
STOP, DOOR (BLACK) MAY 10447112 Contact Us For Availability
8B
STOP, DOOR (GREY) MAY 10447114 Contact Us For Availability
9
SCREW MAY 12992602 Contact Us For Availability
9
SCREW MAY 12990101 Contact Us For Availability
9
NAMEPLATE (STAINLESS) MAY 12528501 Contact Us For Availability
9
SCREW MAY W10622701 Contact Us For Availability
10
COVER, HINGE (WHITE) MAY 12477601W Contact Us For Availability
10
THERMISTOR MAY 12791403 Contact Us For Availability
10
MODULE, LIGHT MAY W10277025 Contact Us For Availability
10
RETAINER, DOOR MAY 12557904 Contact Us For Availability
10
HEATER, EVAPORATOR MAY 12729127 Contact Us For Availability
10A
COVER, HINGE (BLACK) MAY 12477601B Contact Us For Availability
10B
COVER, HINGE (GREY) MAY 12477601AP Contact Us For Availability
11
SCREW (STAINLESS) MAY W10673840 Contact Us For Availability
11
INSERT, DAMPER COVER MAY 12806801 Contact Us For Availability
11
CLIP, EVAPORATOR MOTOR MAY 13058002 Contact Us For Availability
11
BUSHING (WHITE) MAY 10961006W Contact Us For Availability
11
STRAP, BALE MAY W10216075 Contact Us For Availability
11
SCREW MAY 12990513 Contact Us For Availability
11A
BUSHING (BLACK) MAY 10961006B Contact Us For Availability
11B
BUSHING (GREY) MAY 10961006AP Contact Us For Availability
12
SCREW MAY 12991604 Contact Us For Availability
12
SCREW MAY 12990604 Contact Us For Availability
12
SWITCH, LIGHT MAY W10847849 Contact Us For Availability
12
SCREW MAY W10288153 Contact Us For Availability
12
DEVICE, START MAY W10796752 Contact Us For Availability
12
GLASS, CRISPER COVER MAY 12204823N Contact Us For Availability
13
COVER, DAMPER MAY 12806701 Contact Us For Availability
13
MAY W11261524 MAY W11261524 Contact Us For Availability
13
GROMMET MAY 10835903 Contact Us For Availability
13
LADDER, CENTER MAY W10273463 Contact Us For Availability
14
SCREW MAY 12992403 Contact Us For Availability
14
INSULATION, DAMPER MAY 13012402 Contact Us For Availability
14
GASKET, BOTTOM MAY A3189394 Contact Us For Availability
14
CONDENSER MAY W10346423 Contact Us For Availability
14
MAY W11186684 MAY W11186684 Contact Us For Availability
15
HINGE, CENTER (WHITE) MAY 12607103WD Contact Us For Availability
15
DAMPER, CONTROL MAY W10594330 Contact Us For Availability
15
GRILLE, FREEZER AIR MAY 13024803 Contact Us For Availability
15
TRAY, DRIP MAY W10292801 Contact Us For Availability
15
LADDER, SIDE MAY W10251970 Contact Us For Availability
15A
HINGE, CENTER (BLACK) MAY 12607104ED Contact Us For Availability
15B
HINGE, CENTER (GREY) MAY 12607103AP Contact Us For Availability
16
HINGE, TOP MAY 12566606ED Contact Us For Availability
16
SHROUD, EVAPORATOR FAN MAY 13057901 Contact Us For Availability
16
SCREW MAY 12992101 Contact Us For Availability
16
PAN, CRISPER MAY 12531305 Contact Us For Availability
17
COVER, CORNER (WHITE) MAY 12587703W Contact Us For Availability
17
BLADE, FAN MAY 2169142 Contact Us For Availability
17
EVAPORATOR MAY W10662565 Contact Us For Availability
17
BRACE, CRISPER COVER MAY 12227302WD Contact Us For Availability
17A
COVER, CORNER (BLACK) MAY 12587703B Contact Us For Availability
17B
COVER, CORNER (GREY) MAY 12587703AP Contact Us For Availability
18
SCREW MAY W10709365 Contact Us For Availability
18
GROMMET MAY W10121318 Contact Us For Availability
18
DAM (LEFT HAND) MAY 12225602 Contact Us For Availability
18A
DAM (RIGHT HAND) MAY 12225702 Contact Us For Availability
19
COVER, UNIT MAY W10210978 Contact Us For Availability
19
MOTOR, EVAPORATOR MAY W10128551 Contact Us For Availability
19
MOTOR, CONDENSER FAN MAY W10909377 Contact Us For Availability
20
GRILLE, TOE (WHITE) MAY W10534166 Contact Us For Availability
20
ASSEMBLY, DRAIN FUNNEL MAY W10662407 Contact Us For Availability
20A
GRILLE, TOE (BLACK) MAY W10534167 Contact Us For Availability
20B
GRILLE, TOE (GREY) MAY W10534165 Contact Us For Availability
21
HINGE, BOTTOM (WHITE) MAY W10490811 Contact Us For Availability
21
SEAL MAY M0500703 Contact Us For Availability
21
MAY W11218258 MAY W11218258 Contact Us For Availability
21A
HINGE, BOTTOM (BLACK) MAY W10490812 Contact Us For Availability
21B
HINGE, BOTTOM (GREY) MAY W10617441 Contact Us For Availability
22
PIN, BOTTOM HINGE MAY 10200802 Contact Us For Availability
22
PLUG, BUTTON (WHITE) MAY 12246607 Contact Us For Availability
22
DRIER MAY W10177049 Contact Us For Availability
23
SHIM, NON-METAL (WHITE) MAY M0274057 Contact Us For Availability
23
MAY W10743447 MAY W10743447 Contact Us For Availability
23A
SHIM, NON-METAL (BLACK) MAY M0274062 Contact Us For Availability
24
MAY W10642075 MAY W10642075 Contact Us For Availability
25
AXLE, ROLLER MAY 12477202 Contact Us For Availability
26
SHROUD, CONDENSER FAN MAY W10189184 Contact Us For Availability
27
CLIP, DRIER MAY W10281329 Contact Us For Availability
28
ROLLER MAY 12477102 Contact Us For Availability
29
CLIP, EVAPORATOR MAY 10623002 Contact Us For Availability
30
GROMMET, CONDENSER MAY W10137529 Contact Us For Availability
31
STRAP, COMPRESSOR MAY W10236396 Contact Us For Availability
32
CLIP, CONDENSER MAY W10815863 Contact Us For Availability
33
GASKET, FOAM MAY A3189397 Contact Us For Availability
34
INSULATION, SOUND DEADENING MAY 2169104 Contact Us For Availability
35
GROMMET, CONDENSER MAY 2319835 Contact Us For Availability
NI
FOLLOWING PARTS NOT ILLUSTRATED MAY N/P Contact Us For Availability
NI
HARNESS, REFRIGERATOR CONTROL (INCLUDES THERM MAY W10422363 Contact Us For Availability
NI
VALVE, ACCESS (3/16") MAY 876764 Contact Us For Availability
NI
VALVE, ACCESS (1/4") MAY 978025 Contact Us For Availability
NI
VALVE, ACCESS (5/16") MAY 978026 Contact Us For Availability
NI
VALVE, ACCESS (3/8") MAY 978027 Contact Us For Availability
NI
VALVE, ACCESS (5/8") MAY 978029 Contact Us For Availability
NI
VALVE, ACCESS (3/4") MAY 978030 Contact Us For Availability
NI
TORX SCREW WRENCH, TORX KEY MAY 1117510 Contact Us For Availability
NI
MISCELLANEOUS, CLEANER, STAINLESS STEEL MAY 20000008 Contact Us For Availability
NI
MISCELLANEOUS, SEALER, GUM (4 FEET) MAY 212643 Contact Us For Availability
NI
PAINT, PRESSURIZED SPRAY (12OZ. BLACK) MAY 285006 Contact Us For Availability
NI
PAINT, PRESSURIZED SPRAY (12OZ. WHITE) MAY 350930 Contact Us For Availability
NI
PAINT, PRESSURIZED SPRAY (12OZ. ENAMEL, BLACK MAY 350939 Contact Us For Availability
NI
PAINT, PRESSURIZED SPRAY (12OZ. WHITE PRIMER) MAY 350942 Contact Us For Availability
NI
PAINT, TOUCH-UP (1/2OZ. BISCUIT/BISQUE) MAY 4392899 Contact Us For Availability
NI
PAINT, PRESSURIZED SPRAY (12OZ. BISCUIT/BISQU MAY 4392901 Contact Us For Availability
NI
MISCELLANEOUS, TAPE, VINYL (3/4 X 108") MAY 479502 Contact Us For Availability
NI
MISCELLANEOUS, CORK, SEALER MAY 503695 Contact Us For Availability
NI
MISCELLANEOUS, SEALER, MASTIC (1 QT) MAY 505587 Contact Us For Availability
NI
PAINT, TOUCH-UP (1/2OZ. WHITE PORCELAIN (2 OZ MAY 511873 Contact Us For Availability
NI
MISCELLANEOUS, GREASE, SILICONE (1/2 OZ.) MAY 542638 Contact Us For Availability
NI
MISCELLANEOUS, CEMENT, ALUMILASTIC (1 1/4 OZ. MAY 542639 Contact Us For Availability
NI
PAINT, TOUCH-UP (1/2OZ. WHITE) MAY 72017 Contact Us For Availability
NI
PAINT, TOUCH-UP (1/2OZ. BLACK) MAY 72032 Contact Us For Availability
NI
PAINT, BULK (1 QT. WHITE (UNCUT)) MAY 799344 Contact Us For Availability
NI
MISCELLANEOUS, KIT, WATER INLET MAY 8003RP Contact Us For Availability
NI
MISCELLANEOUS, KIT, TERMINAL CONNECTOR MAY 833938 Contact Us For Availability
NI
MISCELLANEOUS, KIT, FOAM SLAB (30" X 32 1/2" MAY 876029 Contact Us For Availability
NI
MISCELLANEOUS, INSULATION KIT (14 PIECES, 3" MAY 876305 Contact Us For Availability
NI
MISCELLANEOUS, INSULATION (2 PIECES, 3" X 24" MAY 876370 Contact Us For Availability
NI
MISCELLANEOUS, INSULATION, FIBERGLASS (63 1/2 MAY 978941 Contact Us For Availability
NI
MISCELLANEOUS, ICE MAY IC13B Contact Us For Availability
NI
MAY W10917540 MAY W10917540 Contact Us For Availability
× ![]()
