Model Whirlpool AA4210 WASHER – Common Parts & Diagrams
05 - CAB TOP/LOADING DR & CTRL HOOD REAR PAN

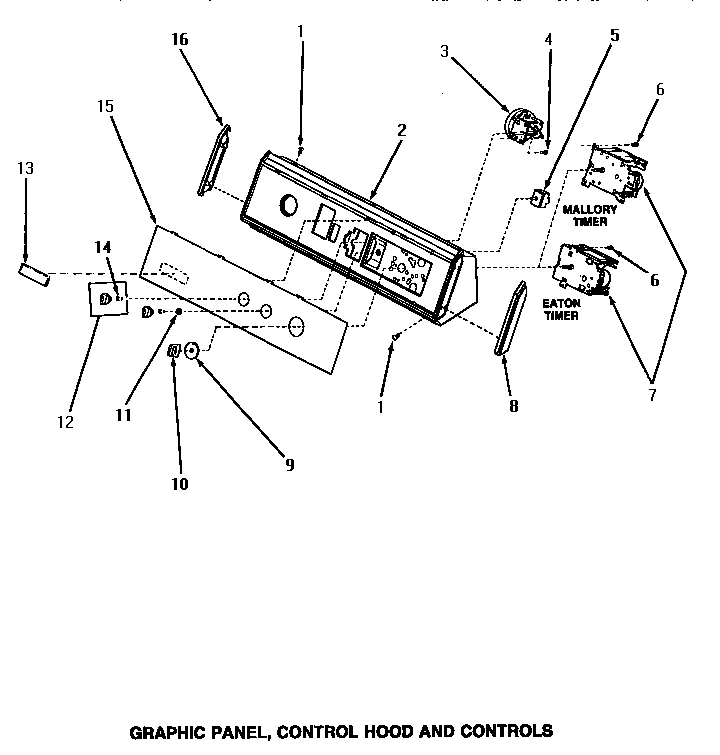

07 - GRAPHIC PANEL, CONTROL HOOD & CONTROLS

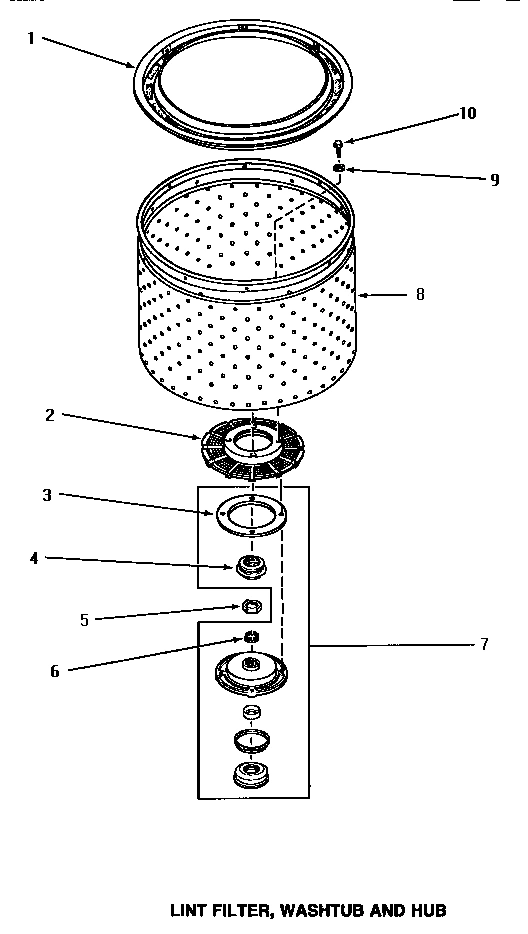

09 - LINT FILTER, WASHTUB & HUB

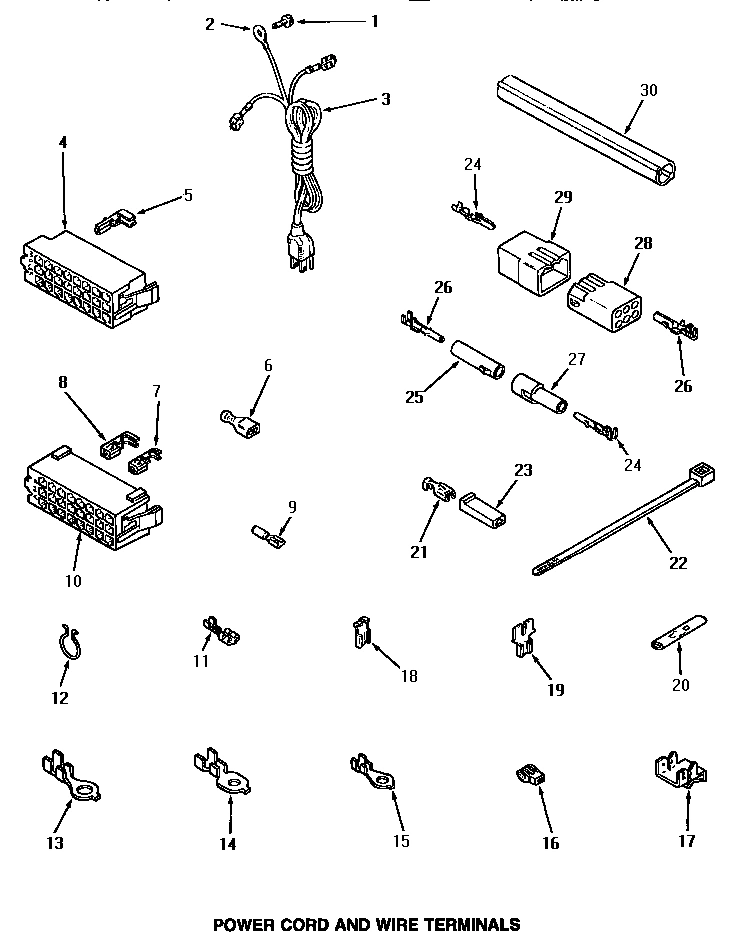

15 - POWER CORD & WIRE TERMINALS

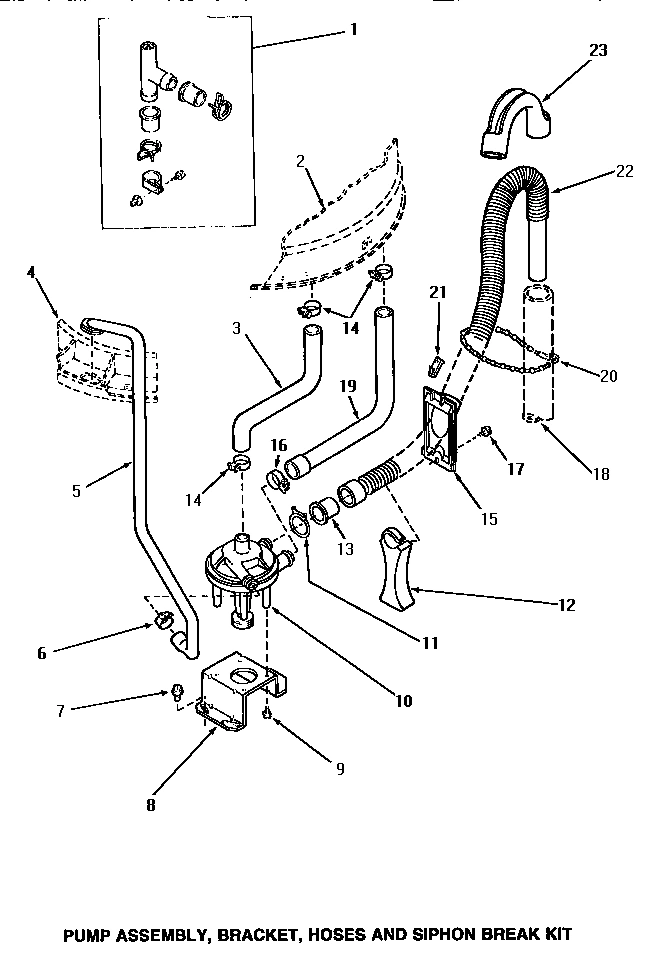

16 - PUMP ASSY/BRKT/HOSES & SIPHON BREAK KIT

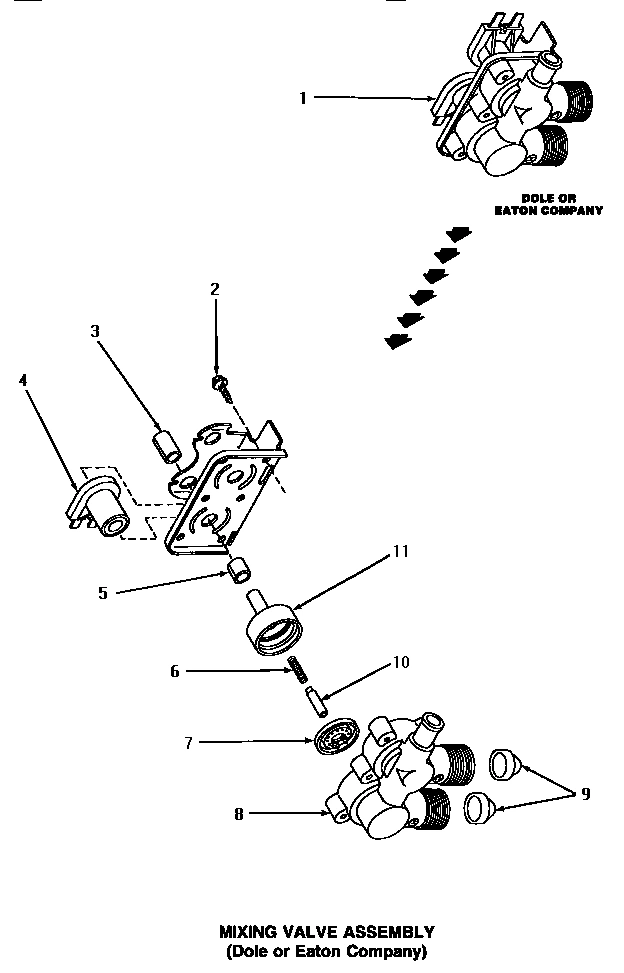

11 - MIXING VALVE ASSY

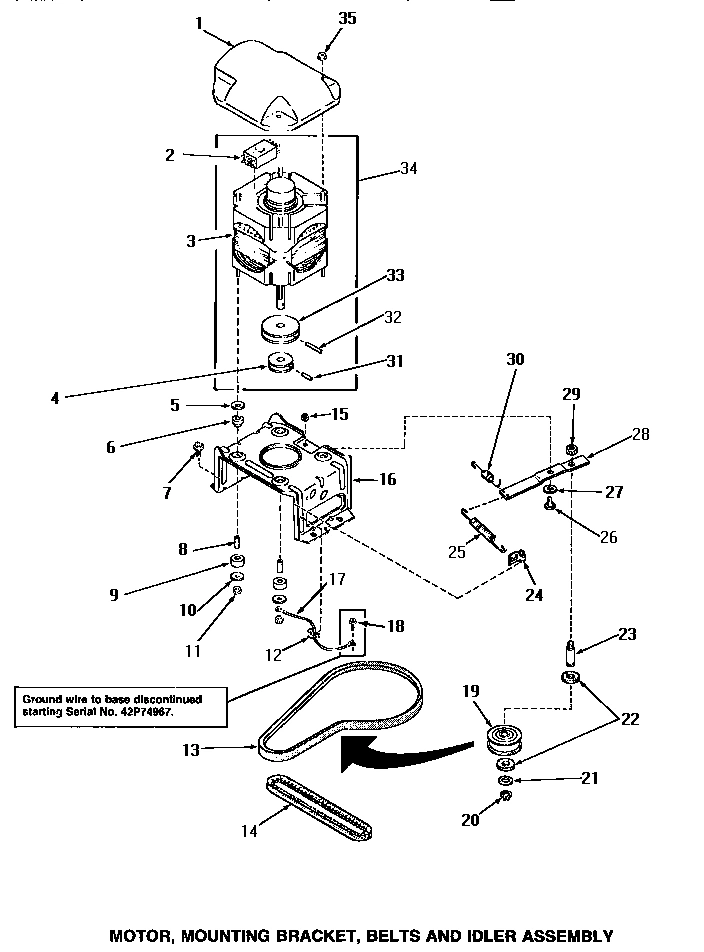

13 - MOTOR, MTG BRACKET, BELTS & IDLER ASSY

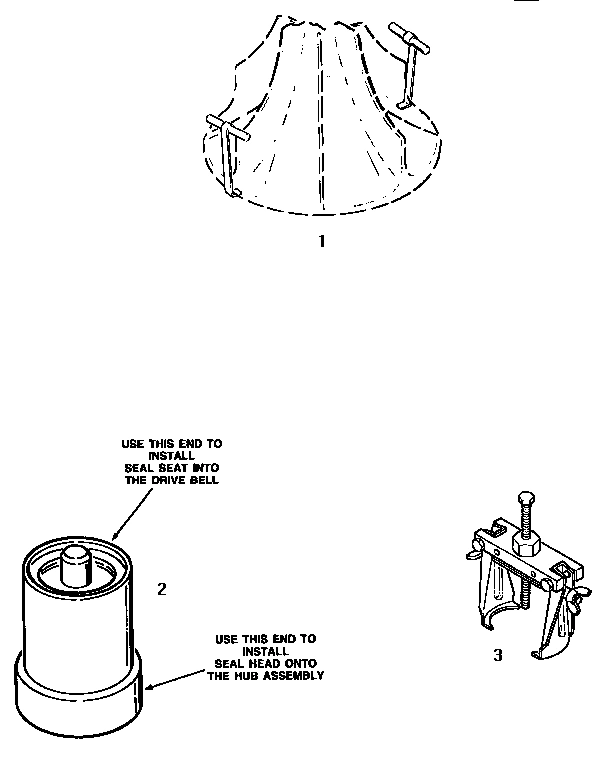

18 - SPECIAL TOOLS

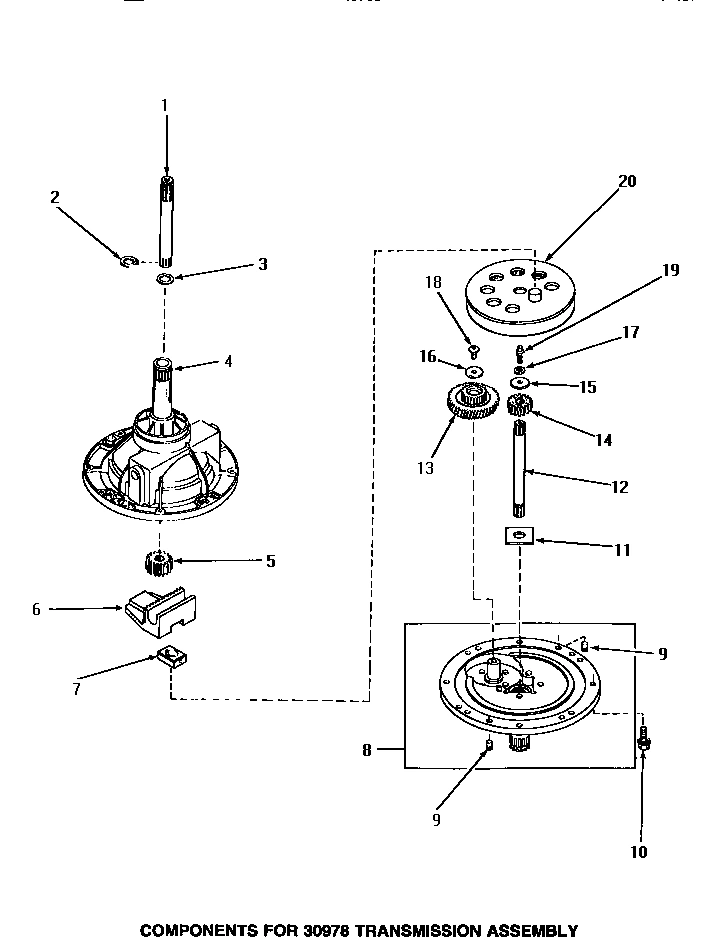

01 - 30978 TRANSMISSION ASSY COMPONENTS

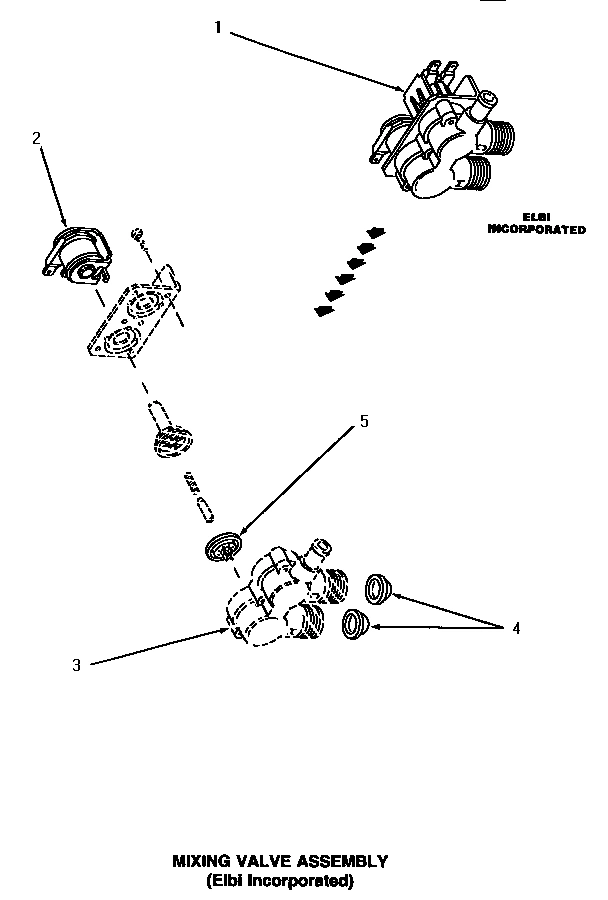

12 - MIXING VALVE ASSY

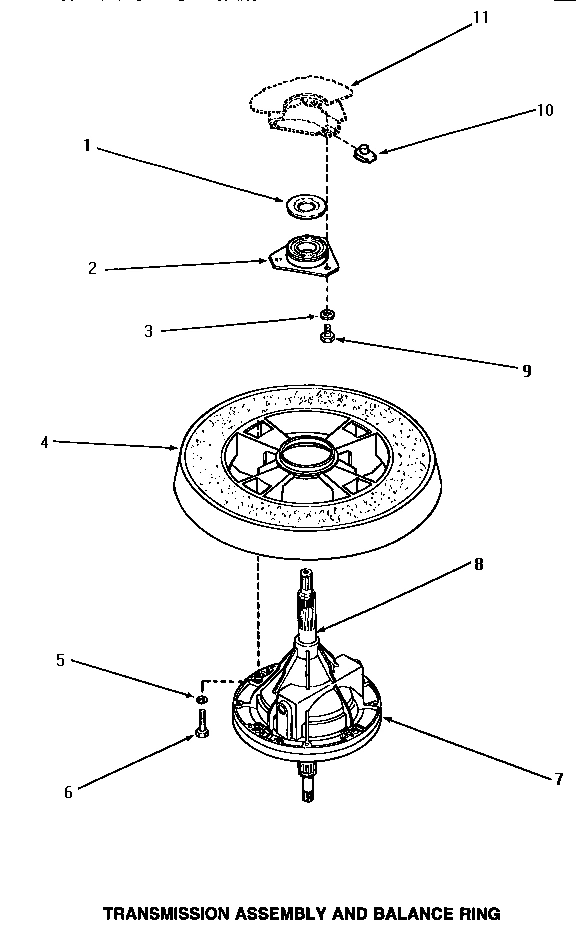

19 - TRANSMISSION ASSY & BALANCE RING

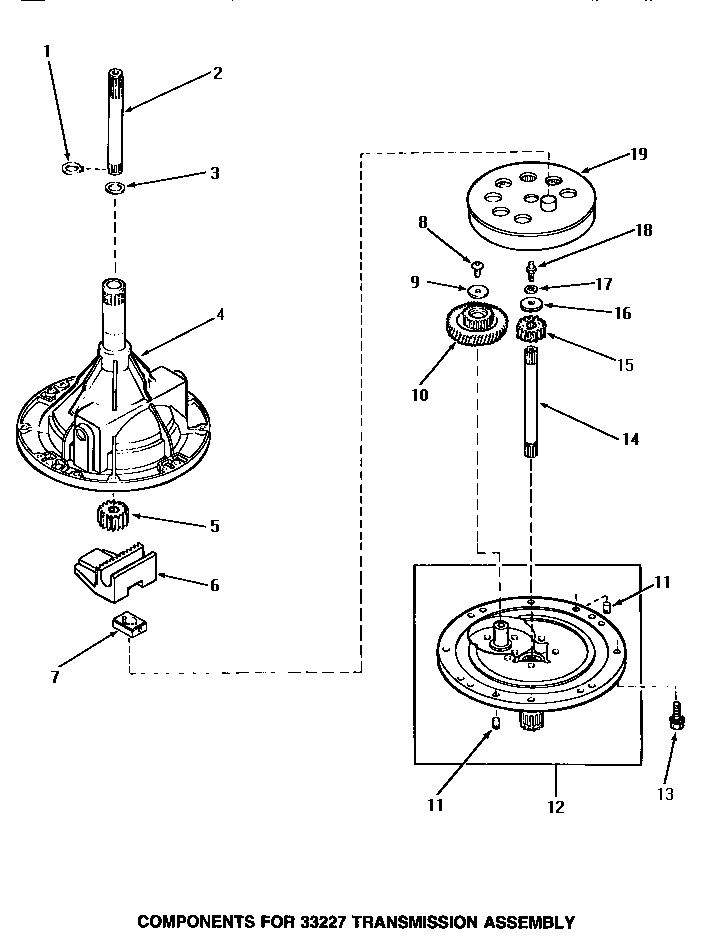

02 - 33227 TRANSMISSION ASSY COMPONENTS

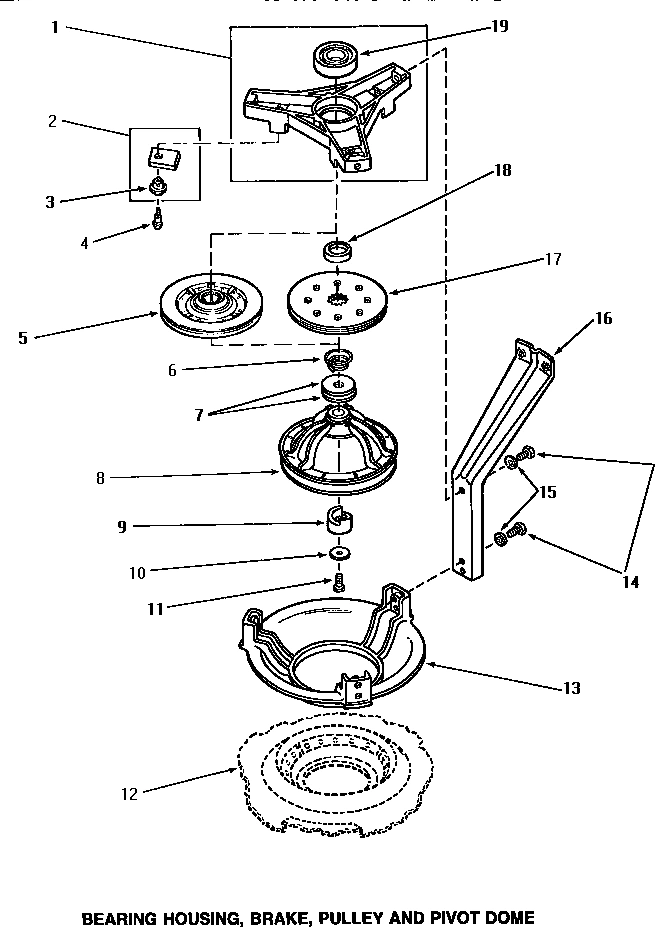

04 - BRG HSG/BRAKE/PULLEY & PIVOT DOME

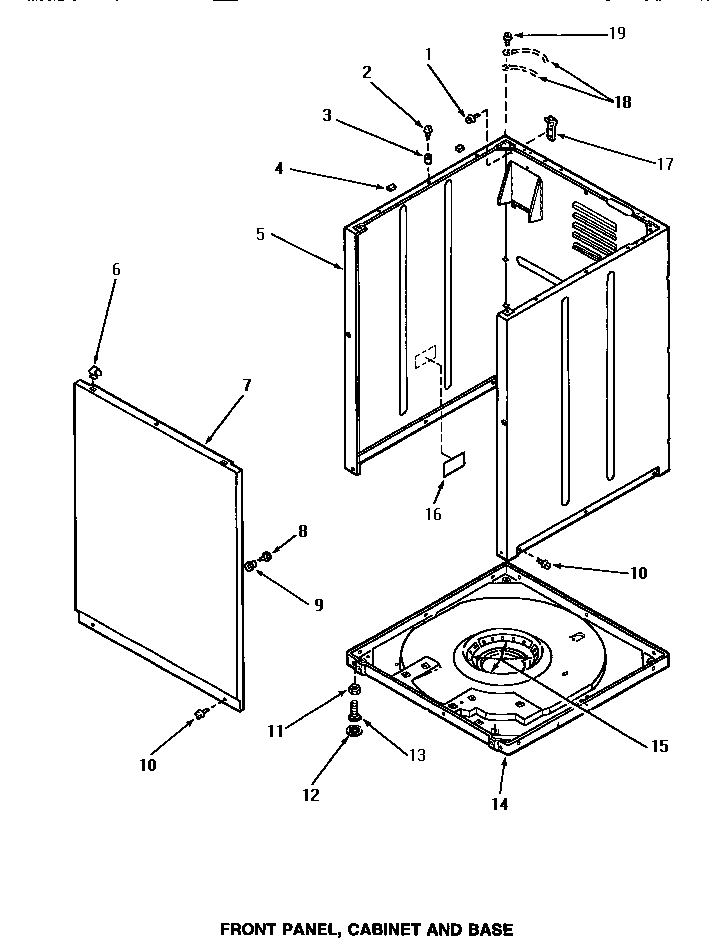

06 - FRONT PANEL, CABINET & BASE

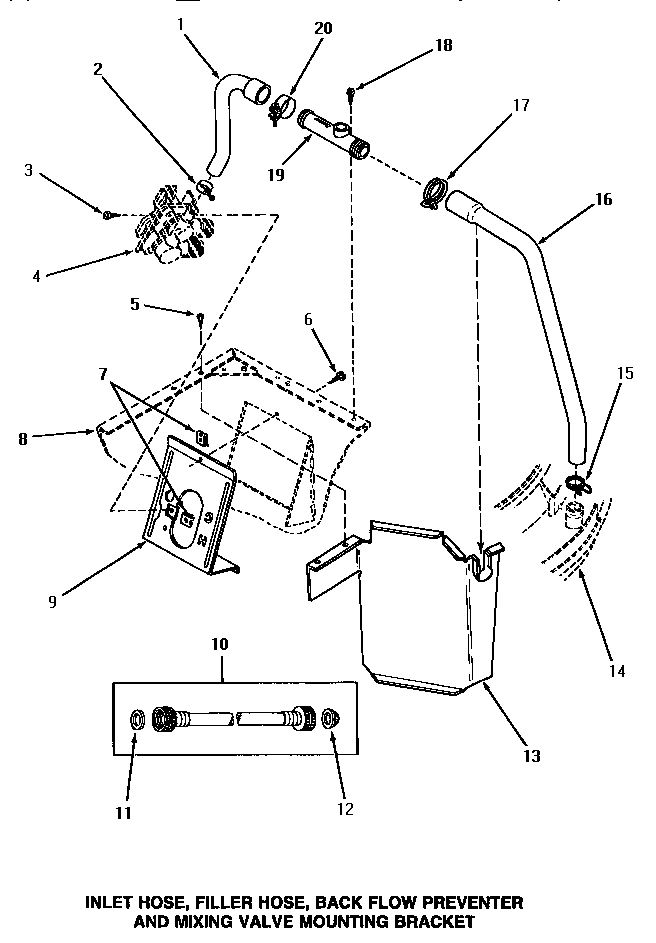

08 - HOSES/BACK FL PREVENTER & VLV BRKT

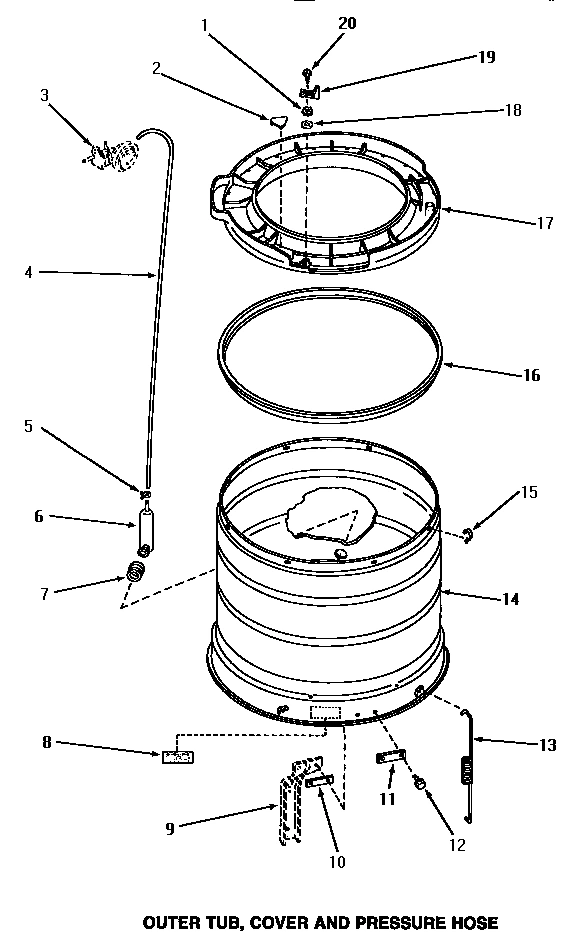

14 - OUTER TUB, COVER & PRESSURE HOSE
17 - SPECIAL TOOLS

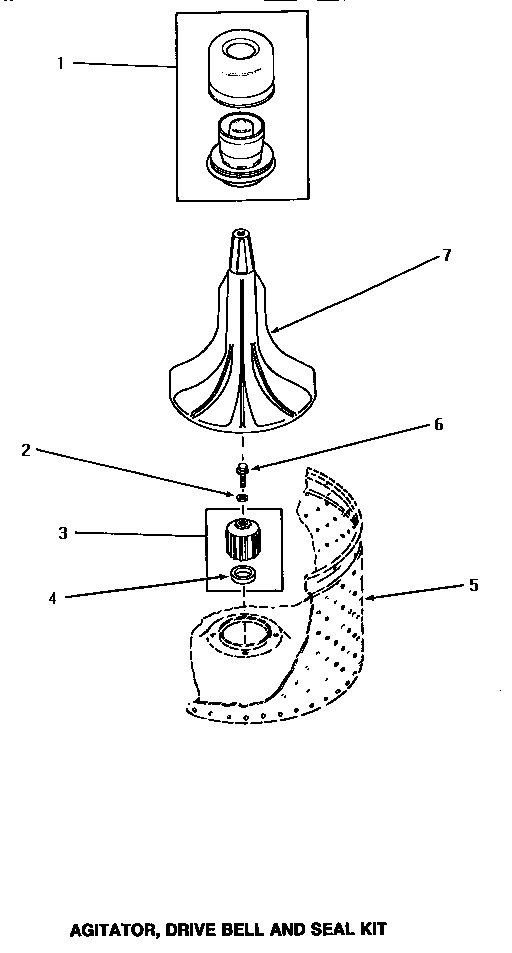

03 - AGITATOR, DRIVE BELL & SEAL KIT

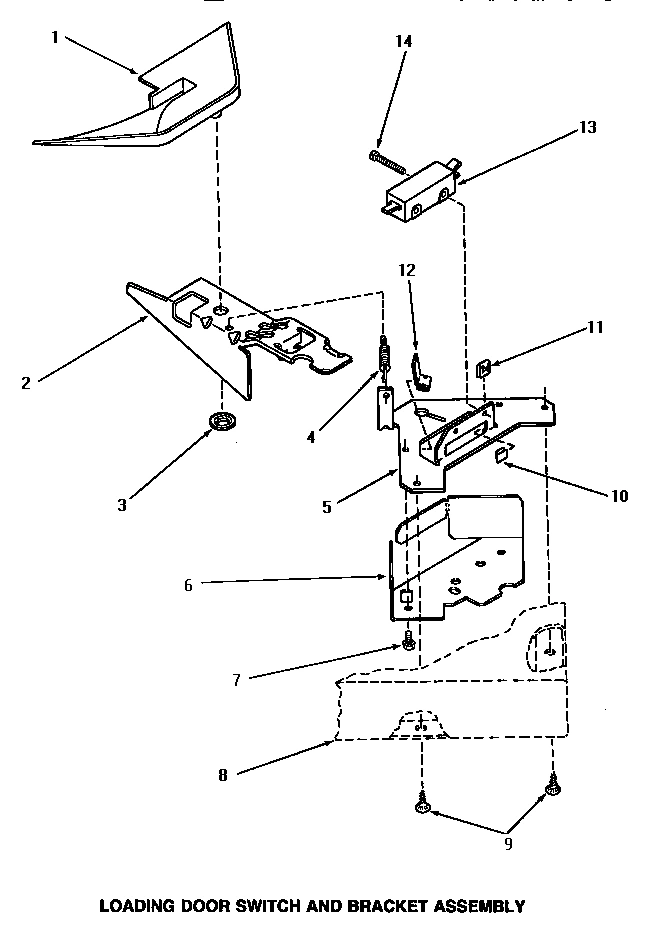

10 - LOADING DOOR SWITCH & BRACKET ASSY
Common parts from model Whirlpool AA4210 WASHER
SIPHON BREAK KIT MUST BE INSTALLED IN DRAIN H WPL NOTE Contact Us For Availability
1
BUMPER WPL 32507 Contact Us For Availability
1
SCREW,10B-16 X 1/2 HEX WPL 52909 Contact Us For Availability
1
SCREW,No.8ABX3/4 POZIDRI WPL 31752 Contact Us For Availability
1
LINT FILTER WPL 30944 Contact Us For Availability
1
MIXING VALVE ASSEMBLY WPL 27156 Contact Us For Availability
1
SHIELD,MOTOR WPL 27136 Contact Us For Availability
1
AGITATOR HOOKS WPL 254P4P Contact Us For Availability
1
RING,RETAINING WPL 27197 Contact Us For Availability
1
FLINGER WPL 27187 Contact Us For Availability
1
BEARING HOUSING ASSEMBLY WPL 28913 Contact Us For Availability
1
HOSE,MIXING VALVE WPL 27183 Contact Us For Availability
1
LOCKWASHER,No.10 EXT SHK WPL 03815 Contact Us For Availability
1
HOOK SPRING WPL 229P4 Contact Us For Availability
1
FABRIC SOFTENER DISPENSER WPL 30857 Contact Us For Availability
1
SHIELD,LID SWITCH WPL 29042 Contact Us For Availability
2
ASSY,SCREW & WASHER WPL 27203 Contact Us For Availability
2
ASSY, CONTROL HOOD WPL 31735 Contact Us For Availability
2
LINT FILTER WPL 32998 Contact Us For Availability
2
SCREW WPL 25817C Contact Us For Availability
2
SWITCH,MOTOR WPL 24140 Contact Us For Availability
2
MOTOR SWITCH, GENERAL ELECTRIC WPL 30897A Contact Us For Availability
2
TOOL,SEAL INSTALLING WPL 255P4 Contact Us For Availability
2
OUTPUT SHAFT WPL 29134 Contact Us For Availability
2
SOLENOID,MIXING VALVE WPL 33084 Contact Us For Availability
2
BRAKE PAD KIT WPL 348P3 Contact Us For Availability
2
PLUG,SNAP-IN-OUTER TUB WPL 29901 Contact Us For Availability
2
INSTALLER,SPRING WPL 242P4 Contact Us For Availability
2
SEAL WPL 30853 Contact Us For Availability
2
LEVER,OUT-OF-BAL SWITC WPL 27602 Contact Us For Availability
3
CATCH,LID SWITCH WPL 27149 Contact Us For Availability
3
SWITCH,PRESSURE-ROTARY WPL 31266 Contact Us For Availability
3
GASKET WPL 27125 Contact Us For Availability
3
POWER CORD AND PLUG WPL 22660 Contact Us For Availability
3
HOSE,TUB TO PUMP WPL 27159 Contact Us For Availability
3
SLEEVE,LONG WPL 24128 Contact Us For Availability
3
INSTRUCTIONS WPL 30897 Contact Us For Availability
3
BELL TOOL WPL 253P4 Contact Us For Availability
3
WASHER,.626IDX1.00ODX. WPL 20212 Contact Us For Availability
3
SLEEVE,ANTI-ROTATION WPL 29993 Contact Us For Availability
3
LOCATER, PANEL WPL 56079 Contact Us For Availability
3
HEX WRENCH WPL 237P4 Contact Us For Availability
3
DRIVE BELL AND SEAL ASSEMBLY WPL 30071P Contact Us For Availability
3
NUT,PUSH WPL 29043 Contact Us For Availability
4
HINGE,HIDDEN WPL 27626 Contact Us For Availability
4
SCREW, No.8 X 3/8 IND H WPL 31260 Contact Us For Availability
4
HOUSING,R.H.-24 POSITI WPL 32746 Contact Us For Availability
4
HOUSING,LH -24 POSITION WPL 34123 Contact Us For Availability
4
SOLENOID WPL 24126 Contact Us For Availability
4
PULLEY,MOTOR WPL Y27104 Contact Us For Availability
4
ASSY,TRANSMISSION CASExREPLACE WPL 30037 Contact Us For Availability
4
ASSY,BALANCE RING-COMPL WPL Y29117 Contact Us For Availability
4
ASSY,TRANSMISSION CASE WPL 33223 Contact Us For Availability
4
SCREW,10-24 SHOULDER WPL 26547 Contact Us For Availability
4
PAD, BUMPER WPL Y56128 Contact Us For Availability
4
PRESSURE HOSE WPL 29213 Contact Us For Availability
4
SPRING,SWITCH LEVER WPL 27603 Contact Us For Availability
5
NUT,8-32 HEX BRILOCK WPL 21752 Contact Us For Availability
5
SWITCH,TEMPERATURE WPL 21300 Contact Us For Availability
5
LOCKNUT WPL Y29220 Contact Us For Availability
5
TERMINAL,FEMALE-MOLEX- WPL Y00188 Contact Us For Availability
5
HOSE WPL 27232 Contact Us For Availability
5
SLEEVE,SHORT WPL 24129 Contact Us For Availability
5
PINION,AGITATOR WPL 27003 Contact Us For Availability
5
DIAPHRAM,MIXING VALVE- WPL 33079 Contact Us For Availability
5
LOCKWASHER,1/4 EXT SHK WPL 02431 Contact Us For Availability
5
BRAKE WPL 31961P Contact Us For Availability
5
REPL BY 34475HP WPL 31669HP Contact Us For Availability
5
CABINET, ALMOND WPL 31669LP Contact Us For Availability
5
CABINET, WHITE WPL 31669WP Contact Us For Availability
5
BRACKET,OUT-OF-BAL SWI WPL 27250 Contact Us For Availability
6
SPLINED INSERT WPL WP40008301 No Longer Available
6
LOADING DOOR, HARVEST GOLD WPL 31315H Contact Us For Availability
6
LOADING DOOR, ALMOND WPL 31315L Contact Us For Availability
6
LOADING DOOR, WHITE WPL 31315W Contact Us For Availability
6
SPRING WPL 24131 Contact Us For Availability
6
MOUNTING,RUBBER WPL 01952A Contact Us For Availability
6
RACK WPL Y31526 Contact Us For Availability
6
CAP SCREW WPL 27200 Contact Us For Availability
6
SPRING,CONICAL WPL 33435 Contact Us For Availability
6
SCREW,8-18 X 3/8 TAPPI WPL 56392 Contact Us For Availability
6
ACCUMULATOR,PRESSURE xREPLACE WPL 30243 Contact Us For Availability
6
SCREW,No.8-1/4 X 20 X 3/ WPL 30852 Contact Us For Availability
6
ENCLOSURE,LID SWITCH WPL 33086 Contact Us For Availability
7
CONTROL HOOD REAR PANEL WPL 31230 Contact Us For Availability
7
TIMER,3 CYCLE WPL 31239 Contact Us For Availability
7
HUB & SEAL KIT WPL 495P3 Contact Us For Availability
7
TERMINAL,FEMALE WPL 00180 Contact Us For Availability
7
DIAPHRAGM WPL 24134 Contact Us For Availability
7
SLIDE WPL 26493 Contact Us For Availability
7
TRANSMISSION ASSEMBLY WPL 33227 Contact Us For Availability
7
WASHER WPL 32651 Contact Us For Availability
7
PANEL,FRONT WPL 32708H Contact Us For Availability
7
FRONT PANEL, ALMOND WPL 32708L Contact Us For Availability
7
FRONT PANEL, WHITE WPL 32708W Contact Us For Availability
7
NUT,SPEED U-TYPE WPL 54038 Contact Us For Availability
7
GROMMET WPL 29175 Contact Us For Availability
7
REPL BY 33514 WPL 30855 Contact Us For Availability
8
BUSHING WPL 27625 Contact Us For Availability
8
SEE NOTE CABINET TOP WPL Y00000000 Contact Us For Availability
8
INSERT,CONTROL HOOD-R. WPL 32342 Contact Us For Availability
8
WASHTUB, STAINLESS STEEL WPL 28138 Contact Us For Availability
8
WASHTUB, PORCELAIN WPL 29074 Contact Us For Availability
8
WASHTUB, STAINLESS STEEL WPL 33245 Contact Us For Availability
8
WASHTUB, PORCELAIN WPL 33295 Contact Us For Availability
8
TERMINAL,FEMALE 2-WIRE WPL 00183 Contact Us For Availability
8
BRACKET,PUMP MOUNTING WPL 27105 Contact Us For Availability
8
BODY,VALVE WPL Y24159 Contact Us For Availability
8
SPACER,MOTOR WPL 27181 Contact Us For Availability
8
ASSY,TRANSMISSION COVExREPLACE WPL 30945 Contact Us For Availability
8
SCREW,1/4-20 X 3/8 WPL 29273 Contact Us For Availability
8
NEVER-SEEZE 1 OZ TUBE WPL 27604P Contact Us For Availability
8
PULLEY ASSEMBLY WPL 30260 Contact Us For Availability
8
STICKER WPL Y27195 Contact Us For Availability
9
BLEACH DISPENSER WPL 32786 Contact Us For Availability
9
ASSY,TIMER SKIRT & RING WPL 31279 Contact Us For Availability
9
GASKET WPL 28094 Contact Us For Availability
9
TERMINAL,1/4 SPADE PRE WPL Y00214 Contact Us For Availability
9
TERMINAL,1/4 SPADE PRE WPL Y00215 Contact Us For Availability
9
SCREW,10-10 5/8 UNSLOT WPL 31098 Contact Us For Availability
9
WASHER,LOWER MOTOR MOU WPL 01953 Contact Us For Availability
9
WASHER WPL 29260 Contact Us For Availability
9
SCREW WPL 01355 Contact Us For Availability
9
HELIX WPL 27018 Contact Us For Availability
9
LOCATOR,PANEL WPL 28102 Contact Us For Availability
9
BRACKET,MIXING VALVE M WPL 32837 Contact Us For Availability
9
SCREW,8-1/2 TAPPING W/ WPL 28193 Contact Us For Availability
10
ASSY,KNOB-TIMER-BLACK WPL 31281 Contact Us For Availability
10
HOUSING,24 POSITION WPL 28856 Contact Us For Availability
10
ASSY, PUMP NA WPL 31968 Contact Us For Availability
10
ASSY, PUMP NA WPL 31969 Contact Us For Availability
10
ARMATURE WPL 24132 Contact Us For Availability
10
WASHER WPL 03888 Contact Us For Availability
10
SCREW,1/4-20X1 HX SER/ WPL 31709 Contact Us For Availability
10
GEAR,REDUCTION WPL 29161 Contact Us For Availability
10
WASHER WPL 26509 Contact Us For Availability
10
NUT,RETAINER 5/16-18 WPL 27222 Contact Us For Availability
10
PLATE,LEG .032 WPL 27927 Contact Us For Availability
10
CLIP,U WPL 27610 Contact Us For Availability
11
NUT WPL 57584 Contact Us For Availability
11
SPADE TERMINAL(18 GAUGE) WPL Y00119 Contact Us For Availability
11
SPADE TERMINAL(12 GAUGE) WPL Y00121 Contact Us For Availability
11
CLAMP,HOSE WPL 29172 Contact Us For Availability
11
GUIDE,ARMATURE WPL 24130 Contact Us For Availability
11
NUT,HEX 10-32 LOCK WPL 23604 Contact Us For Availability
11
PIN,DOWEL WPL 27172 Contact Us For Availability
11
WASHER WPL 27016 Contact Us For Availability
11
SCREW WPL 27220 Contact Us For Availability
11
LOCKNUT WPL 28199 Contact Us For Availability
11
WASHER, 19/32 IDX1.031 WPL 20290 Contact Us For Availability
11
PLATE,LEG .063 WPL 27926 Contact Us For Availability
11
NUT,SPEED U-TYPE WPL 27248 Contact Us For Availability
12
BARREL,SUPPORT WPL 56534 Contact Us For Availability
12
ASSY,KNOB-ROTARY-BLK/O WPL 31286 Contact Us For Availability
12
CLIP,WIRE WPL 51291 Contact Us For Availability
12
GROUND CLIP WPL Y00161 Contact Us For Availability
12
STAND,HOSE WPL 29284 Contact Us For Availability
12
TRANSMISSION COVER ASSEMBLY WPL 33214 Contact Us For Availability
12
RUBBER PAD WPL 21749 Contact Us For Availability
12
SCREW AND LOCKWASHER WPL 27205 Contact Us For Availability
12
CLIP,SPEED-``U`` TYPE WPL Y27837 Contact Us For Availability
13
CABINET TOP, HARVEST GOLD WPL 32808H Contact Us For Availability
13
CABINET TOP, ALMOND WPL 32808L Contact Us For Availability
13
CABINET TOP, WHITE WPL 32808W Contact Us For Availability
13
TERMINAL,RING-1/4 STUD WPL Y00113 Contact Us For Availability
13
HOSE,ADAPTER WPL 29143 Contact Us For Availability
13
SCREW,1/4-20X7/8 SERRA WPL 32814 Contact Us For Availability
13
DOME,PIVOT WPL 27124 Contact Us For Availability
13
ENCLOSURE,MIXING VALVE WPL 33098 Contact Us For Availability
13
SPRING,LEG WPL 27239 Contact Us For Availability
13
SWITCH WPL 27249 Contact Us For Availability
14
STICKER,DISCONNECT POW WPL 24903 Contact Us For Availability
14
RETAINER WPL 10519 Contact Us For Availability
14
TERMINAL,RING-10 STUD WPL Y00111 Contact Us For Availability
14
(CLAMP HOSE) WPL 32616 Contact Us For Availability
14
BELT,PUMP WPL 27155 Contact Us For Availability
14
SHAFT,INPUT WPL 27081 Contact Us For Availability
14
SCREW WPL 30016 Contact Us For Availability
14
ASSY,BASE-COMPLETE-G90 WPL 31653P Contact Us For Availability
14
TUB,OUTER WPL 30508 Contact Us For Availability
14
OUTER TUB WPL 30509 Contact Us For Availability
14
SCREW,6-32 X 1 ROUND H WPL Q6516 Contact Us For Availability
15
PANEL,GRAPHIC WPL 32398 Contact Us For Availability
15
TERMINAL,RING-10 STUD WPL 00110 Contact Us For Availability
15
RETAINER,DIRECTIONAL WPL 29131 Contact Us For Availability
15
PINION,DRIVE WPL Y29160 Contact Us For Availability
15
LOCKWASHER,5/16INTSHKP WPL 04366 Contact Us For Availability
15
KIT,SNUBBER PAD WPL 434P3 Contact Us For Availability
15
HOSE CLAMP WPL 29210 Contact Us For Availability
15
CLIP,SPRING WPL Y27017 Contact Us For Availability
16
INSERT,CONTROL HOOD-L. WPL 32343 Contact Us For Availability
16
INSULATOR,BLUE WPL 70210 Contact Us For Availability
16
BRACKET,MOTOR MOUNT WPL 28791 Contact Us For Availability
16
LEG,SUPPORT WPL 27090 Contact Us For Availability
16
TAPE,1 INCH SQUARE,DBL WPL 33285 Contact Us For Availability
16
HOSE,WATER INLET WPL 31140 Contact Us For Availability
16
GASKET,TUB COVER WPL 27184 Contact Us For Availability
17
STRAIN RELIEF WPL 21903 Contact Us For Availability
17
LOCKWASHER,1/4 INTSHKP WPL 21456 Contact Us For Availability
17
BRAKE ASSEMBLY WPL 26556P Contact Us For Availability
17
HINGE,HOLD-DOWN LUG WPL Y27103 Contact Us For Availability
17
COVER,OUTER TUB xREPLACE WPL 31141 Contact Us For Availability
18
TERMINAL,FLAG-1/4 FEMA WPL Y00120 Contact Us For Availability
18
HEX HEAD SCREW WPL 26592 Contact Us For Availability
18
SCREW,1/4-20 SPECIAL WPL 27030 Contact Us For Availability
18
SPACER WPL 27176 Contact Us For Availability
18
WASHER,7/32IDX7/16ODX. WPL 23425 Contact Us For Availability
19
DOUBLE CONNECTOR WPL 29673 Contact Us For Availability
19
HOSE,TUB TO PUMP-DRAIN WPL 27160 Contact Us For Availability
19
WHEEL,IDLER WPL 28800 Contact Us For Availability
19
ASSY,GEAR & STUD WPL 26577 Contact Us For Availability
19
BACK FLOW PREVENTER WPL 27118 Contact Us For Availability
19
TRIGGER,OUT-OF-BAL SWI WPL 27247 Contact Us For Availability
20
CONNECTOR TWO 1/4 INCH MALE WPL 21091 Contact Us For Availability
20
STRAP, STANDPIPE BEAD WPL 33489 Contact Us For Availability
20
CLAMP HOSE WPL 27152 Contact Us For Availability
20
SCREW WPL 27523 Contact Us For Availability
21
TERMINAL,SPADE-1/4 FEM WPL Y00115 Contact Us For Availability
21
HOSE RETAINER CLIP WPL 29936 Contact Us For Availability
22
WIRE TIE WPL 55881 Contact Us For Availability
22
HOSE DRAIN WPL 29142 Contact Us For Availability
22
WASHER,FELT WPL Y29443 Contact Us For Availability
23
CONNECTOR WPL 90789 Contact Us For Availability
23
DRAIN HOSE SLEEVE WPL 29144 Contact Us For Availability
23
SHAFT,IDLER WPL 28802 Contact Us For Availability
24
TERMINAL,PIN-MALE WPL Y00116 Contact Us For Availability
24
CLIP,SPRING WPL 28849 Contact Us For Availability
25
RECEPTACLE,MOLEX WPL 26301 Contact Us For Availability
26
FEMALE SOCKET TERMINAL WPL Y00117 Contact Us For Availability
26
SHOULDER BOLT WPL 27229 Contact Us For Availability
27
PLUG,1 CIRCUIT WPL 26302 Contact Us For Availability
27
WASHER WPL 81392 Contact Us For Availability
28
RECEPTACLE,6 CIRCUIT WPL 26708 Contact Us For Availability
28
IDLER LEVER WPL 31054 Contact Us For Availability
29
PLUG,6 CIRCUIT WPL 23041 Contact Us For Availability
30
ENCLOSURE,WIRE HARNESS WPL 33087 Contact Us For Availability
30
SPRING,IDLER LEVER HEL WPL 30620 Contact Us For Availability
31
PIN,ROLL WPL 10416 Contact Us For Availability
32
PIN,ROLL WPL 23750 Contact Us For Availability
33
PULLEY,MOTOR WPL 27171 Contact Us For Availability
34
MOTOR ASSEMBLY, ONE SPEED WPL 27658 Contact Us For Availability
35
LOCKNUT WPL 27201 Contact Us For Availability
NI
DRAIN HOSE EXTENSION KIT WPL 406P3 Contact Us For Availability
NI
LUBE,HI TEMPERATURE-56 WPL 20605 Contact Us For Availability
NI
KIT,CAPACITOR WPL 258P3 Contact Us For Availability
NI
OIL,CW TRANSMISSION F- WPL 27243P Contact Us For Availability
NI
LOCTITE WPL 28434P Contact Us For Availability
NI
DRIVE BELL SEAL KIT WPL 442P3 Contact Us For Availability
× ![]()
Login and Registration Form
