Model Whirlpool A5651XRS ELECTRIC RANGE – Common Parts & Diagrams

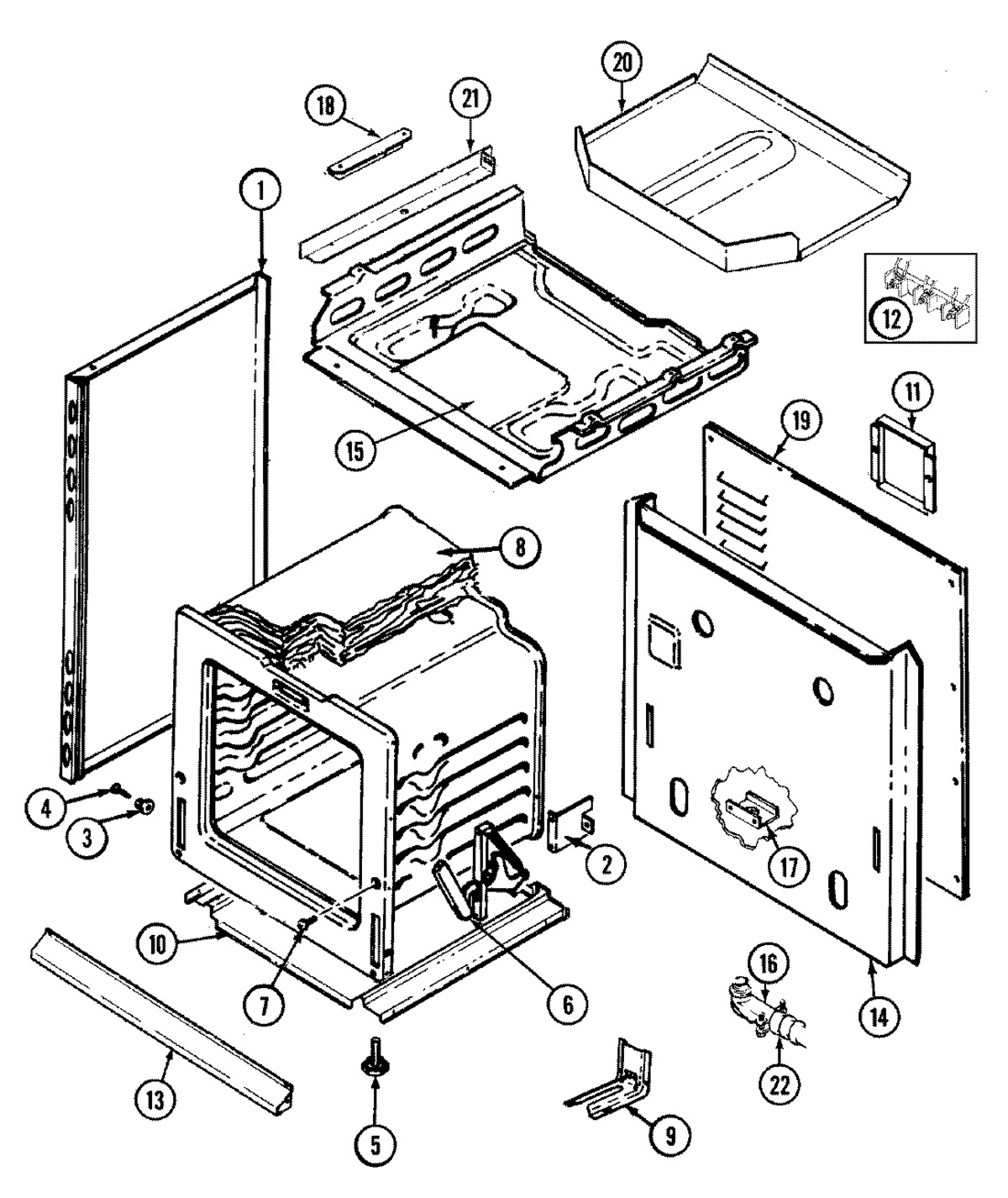

01 - BODY

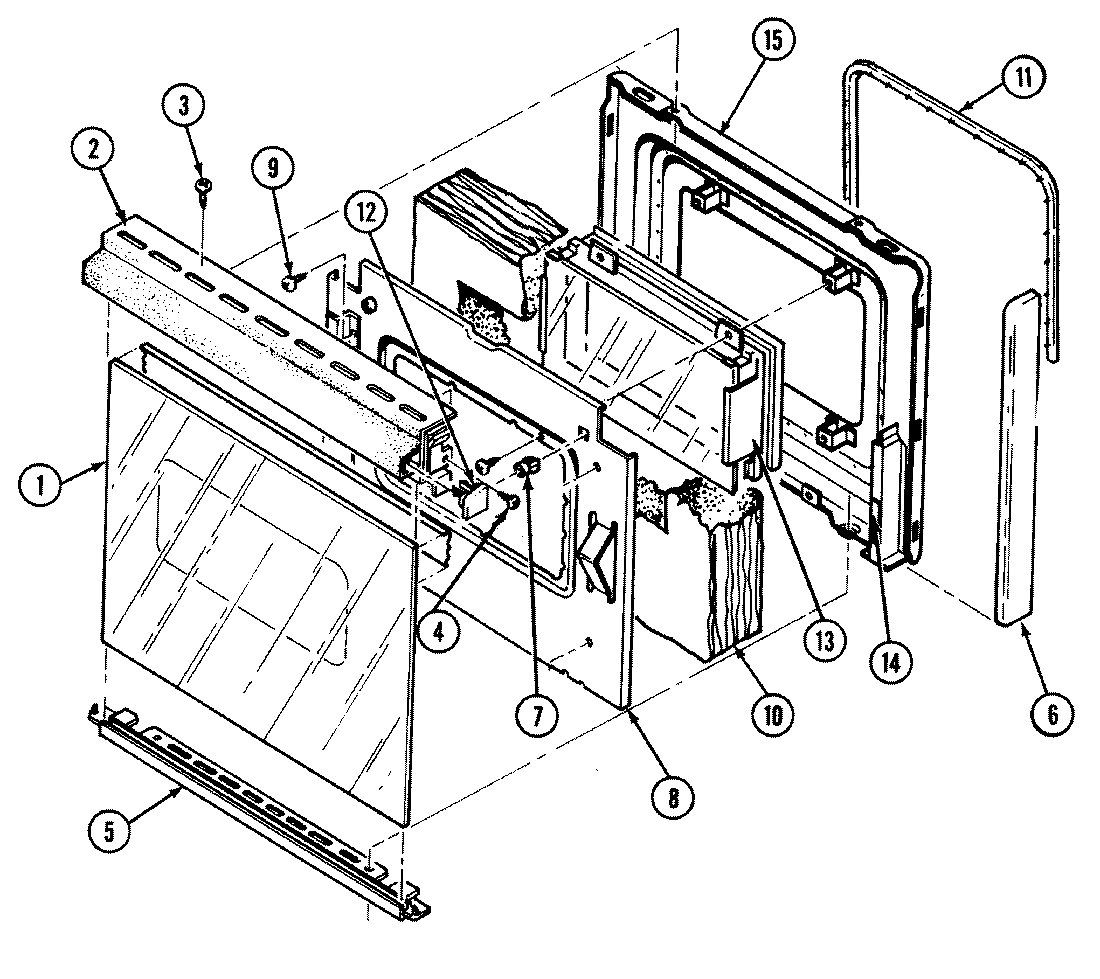

02 - DOOR/DRAWER

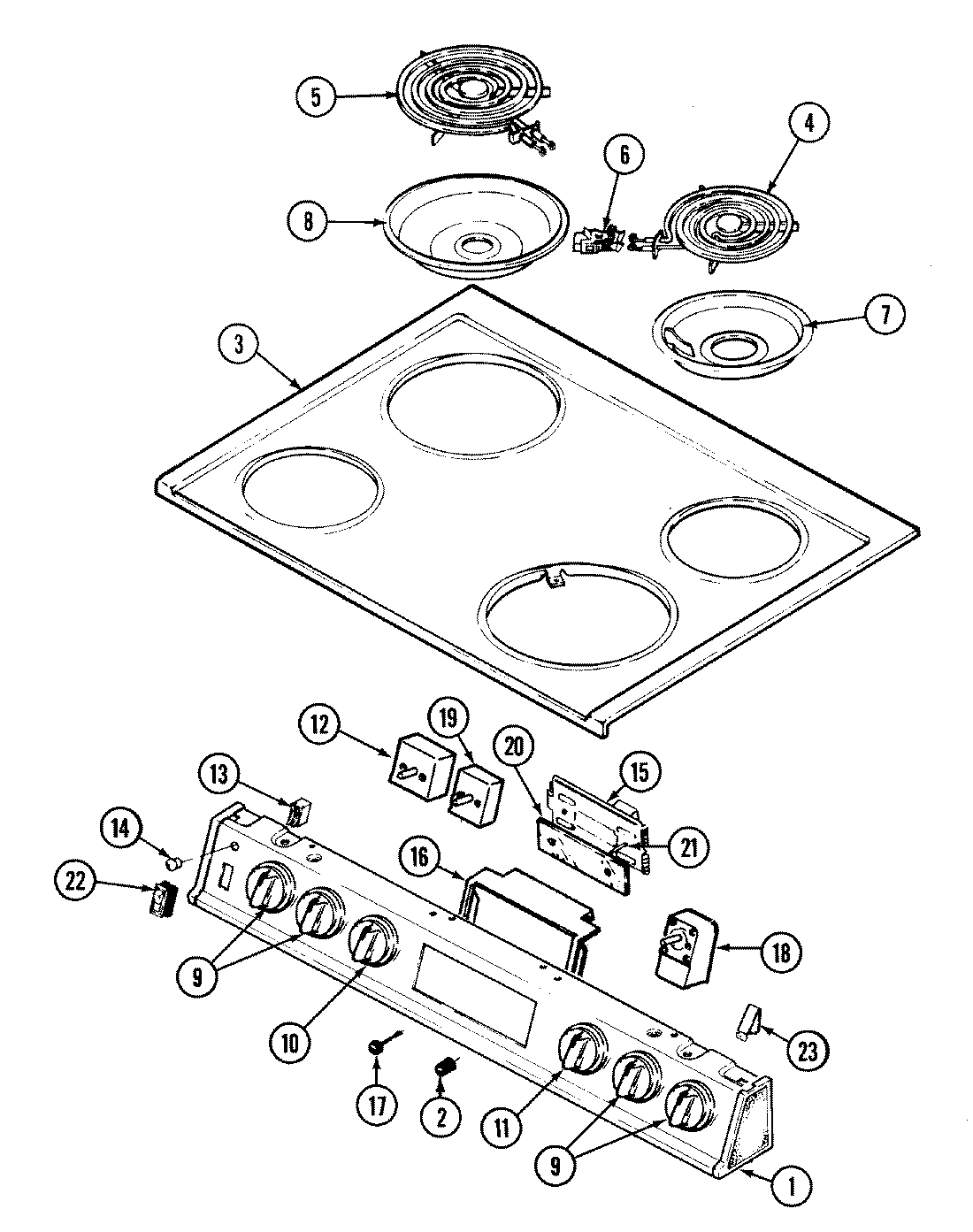

04 - TOP ASSY.\CONTROL PANEL

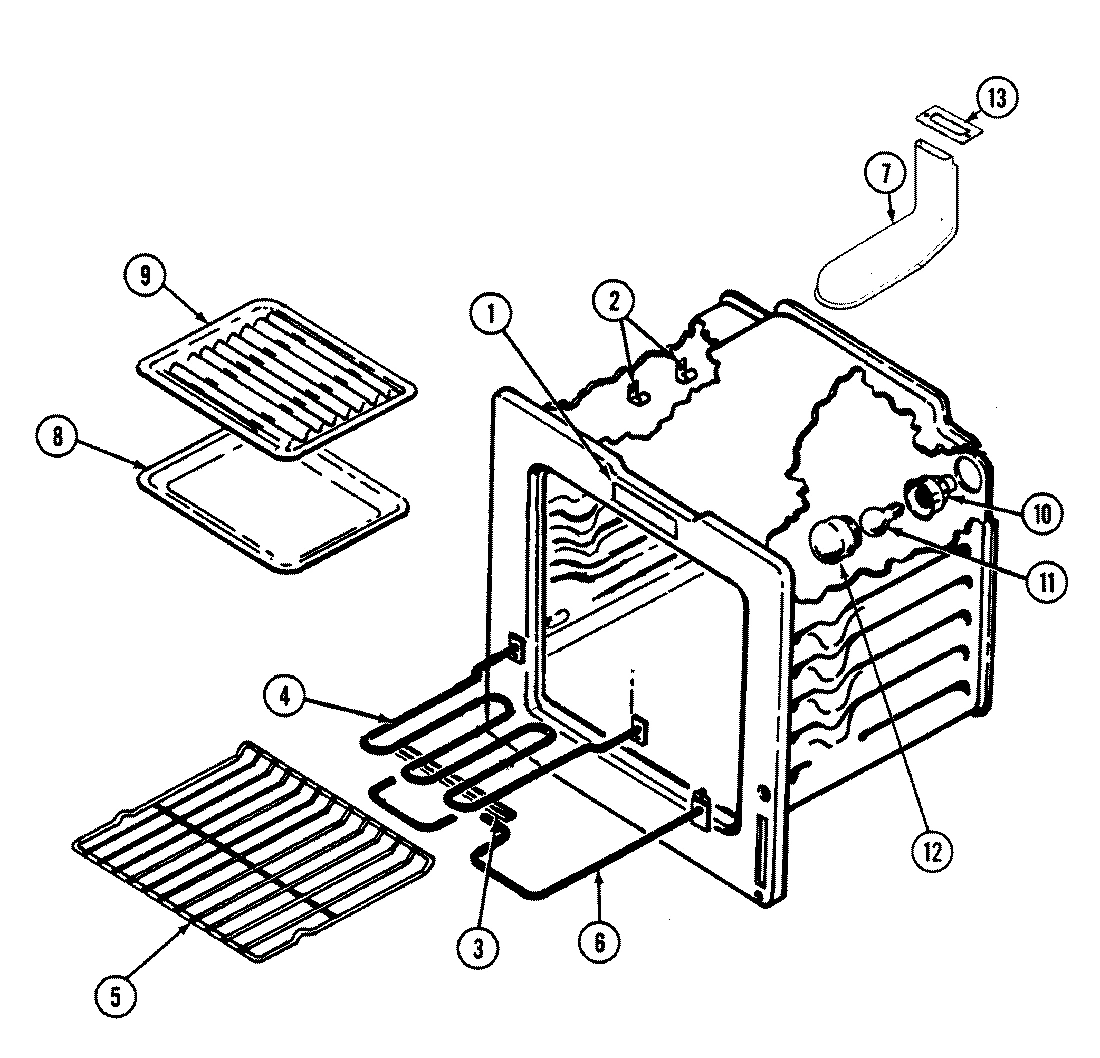

03 - OVEN
Common parts from model Whirlpool A5651XRS ELECTRIC RANGE
1
PANEL, SIDE WPL 2618F08070 Contact Us For Availability
1
PANEL, SIDE WPL 2618F08170 Contact Us For Availability
1
PANEL, SIDE (RT-BLK) WPL 2618F09770 Contact Us For Availability
1
SIDE, PANEL - RIGHT (BLACK) WPL 2618F09870 Contact Us For Availability
1
GLASS, DOOR (BLK) WPL 7902P32160 Contact Us For Availability
1
PANEL, CONTROL WPL 7722P11560 Contact Us For Availability
1
COVER LOCK SLOT WPL 8114P33660 Contact Us For Availability
2
SUPPORT,OVEN REAR WPL 3807F40051 Contact Us For Availability
2
HANDLE, DOOR (BLK) WPL 7701P10360 Contact Us For Availability
2
KNOB, CLOCK (BLK) WPL 7711P17260 Contact Us For Availability
2
CLIP, THERMOSTAT WPL 7112P00460 Contact Us For Availability
3
SPACER, SIDE PANEL WPL 8004P02460 Contact Us For Availability
3
SCREW WPL 7101P33460 Contact Us For Availability
3
SCREW (1/2``) WPL 7101P04060 Contact Us For Availability
3
TOP, MAIN (STAIN) WPL 2002W08430 Contact Us For Availability
3
SUPPORT, ELEMENT WPL 3807F38945 Contact Us For Availability
4
SCREW WPL 7101P29160 Contact Us For Availability
4
ELEMENT, BROIL WPL Y04000057 Contact Us For Availability
5
LEG, LEVELING WPL 7101P30660 Contact Us For Availability
5
TRIM, BOTTOM (BLK)----NA WPL 7744P10560 Contact Us For Availability
5
RACK----NA WPL 7801P03960 Contact Us For Availability
6
HINGE, DOOR WPL 7106P03260 Contact Us For Availability
6
SCREW WPL 7101P29060 Contact Us For Availability
6
END CAP, OVEN DOOR (BLK) WPL 7744P05560 Contact Us For Availability
6
SCREW WPL 7118P01360 Contact Us For Availability
7
SCREW, HINGE WPL 7101P01760 Contact Us For Availability
7
SPACER WPL 8010P07560 Contact Us For Availability
7
BOWL, DRIP (6``) WPL 7725P00860 Contact Us For Availability
7
BOX, VENT WPL 4006W11245 Contact Us For Availability
8
INSULATION, OVEN BACK WPL 4804F03160 Contact Us For Availability
8
INSULATION, OVEN WRAPPER WPL 4804F03260 Contact Us For Availability
8
BAFFLE, DOOR WPL 3601F21945 Contact Us For Availability
8
BOWL, DRIP (8``) WPL 7725P00960 Contact Us For Availability
8
PAN, BROIL WPL Y3401F02019 Contact Us For Availability
9
BRACKET, ANTI-TIP WPL 3801F21851 Contact Us For Availability
9
SCREW, BRACKET WPL 7101P28960 Contact Us For Availability
9
KNOB, INF. SWITCH WPL 7737P03360 Contact Us For Availability
9
INSERT, BROIL PAN WPL Y3413F01619 Contact Us For Availability
10
BOTTOM, MAIN WPL 4011F17651 Contact Us For Availability
10
INSULATION WPL 4804F03560 Contact Us For Availability
10
KNOB, SELECTOR WPL 7739P04160 Contact Us For Availability
10
RECEPTACLE, BULB WPL 7407P08860 Contact Us For Availability
11
COVER, ACCESS WPL 4005F41351 Contact Us For Availability
11
SEAL, DOOR WPL 7212P04260 Contact Us For Availability
11
KNOB, T-STAT WPL 7735P03660 Contact Us For Availability
11
BULB, OVEN WPL 7407P09560 Contact Us For Availability
12
BLOCK, TERMINAL WPL 7401P03860 Contact Us For Availability
12
END CAP (RT) WPL 7744P07560 Contact Us For Availability
12
END CAP (LT) WPL 7744P07660 Contact Us For Availability
12
SWITCH, INFINITE (SML ELEMENT) WPL 7403P23860 Contact Us For Availability
12
SWITCH, INFINITE (LRG ELEMENT) WPL 7403P23960 Contact Us For Availability
12
COVER, BULB WPL 7724P04760 Contact Us For Availability
13
SHIELD, LOWER VENT (BLK) WPL 3604W15570 Contact Us For Availability
13
WINDOW ASY. WPL 7907P01660 Contact Us For Availability
13
LIGHT, INDICATOR WPL 7407P10260 Contact Us For Availability
13
LIGHT, INDICATOR WPL W10127320 Contact Us For Availability
13
GASKET, VENT WPL 7201P06060 Contact Us For Availability
14
BACK, MAIN WPL 4002F19280 Contact Us For Availability
14
SEAL, RUBBER WPL 7208P01160 Contact Us For Availability
14
LENS, INDICATOR LIGHT WPL 7730P00860 Contact Us For Availability
14
LENS, INDICATOR LIGHT WPL 7730P01260 Contact Us For Availability
15
BOX, BURNER WPL 4011F22480 Contact Us For Availability
15
LINING, DOOR WPL 2402W20419 Contact Us For Availability
15
SPACER, RUBBER WPL 8010P08560 Contact Us For Availability
15
CLOCK WPL 7602P10560 Contact Us For Availability
16
CONNECTOR, CONDUIT WPL 7417P00560 Contact Us For Availability
16
GROMMET WPL 8008P01760 Contact Us For Availability
16
BRACKET, CLOCK WPL 3801F22345 Contact Us For Availability
16
SCREW (6ABX38-ZN) WPL 7101P07760 Contact Us For Availability
17
PLATE, CONDUIT TUBING WPL 3605F17451 Contact Us For Availability
17
KNOB, CLOCK WPL 7711P42260 Contact Us For Availability
18
BRACKET, PANEL WPL 3801F25651 Contact Us For Availability
18
SCREW WPL 7101P30960 Contact Us For Availability
18
THERMOSTAT WPL 7404P07260 Contact Us For Availability
19
COVER, WIRE WPL 4005F41151 Contact Us For Availability
19
BOX, WIRE COVER WPL 4006F13351 Contact Us For Availability
19
SWITCH, SELECTOR WPL 7403P25560 Contact Us For Availability
20
SHIELD, WIRE WPL 3604F19951 Contact Us For Availability
20
GLASS, CLOCK WPL 7902P37460 Contact Us For Availability
21
SHIELD, HEAT (LT) WPL 3604F17351 Contact Us For Availability
21
SHIELD, HEAT (RT) WPL 3604F17451 Contact Us For Availability
21
SHAFT, BIT GENERATOR WPL 8312P01560 Contact Us For Availability
22
TUBING, CONDUIT WPL 3414F06651 Contact Us For Availability
22
WIRES CONDUIT WPL 5140A02660 Contact Us For Availability
22
SWITCH, OVEN LIGHT WPL 7403P06750 Contact Us For Availability
23
HARNESS, TO COOKTOP WPL 5175D06460 Contact Us For Availability
23
HARNESS WPL 5195D09660 Contact Us For Availability
23
CLIP, TOP LOCKING WPL 7112P08760 Contact Us For Availability
23
MANUAL, USE & CARE WPL 8113P02360 Contact Us For Availability
× ![]()
