Model Maytag A3888XRB ELECTRIC RANGE – Common Parts & Diagrams
01 - BODY
02 - CONTROL PANEL

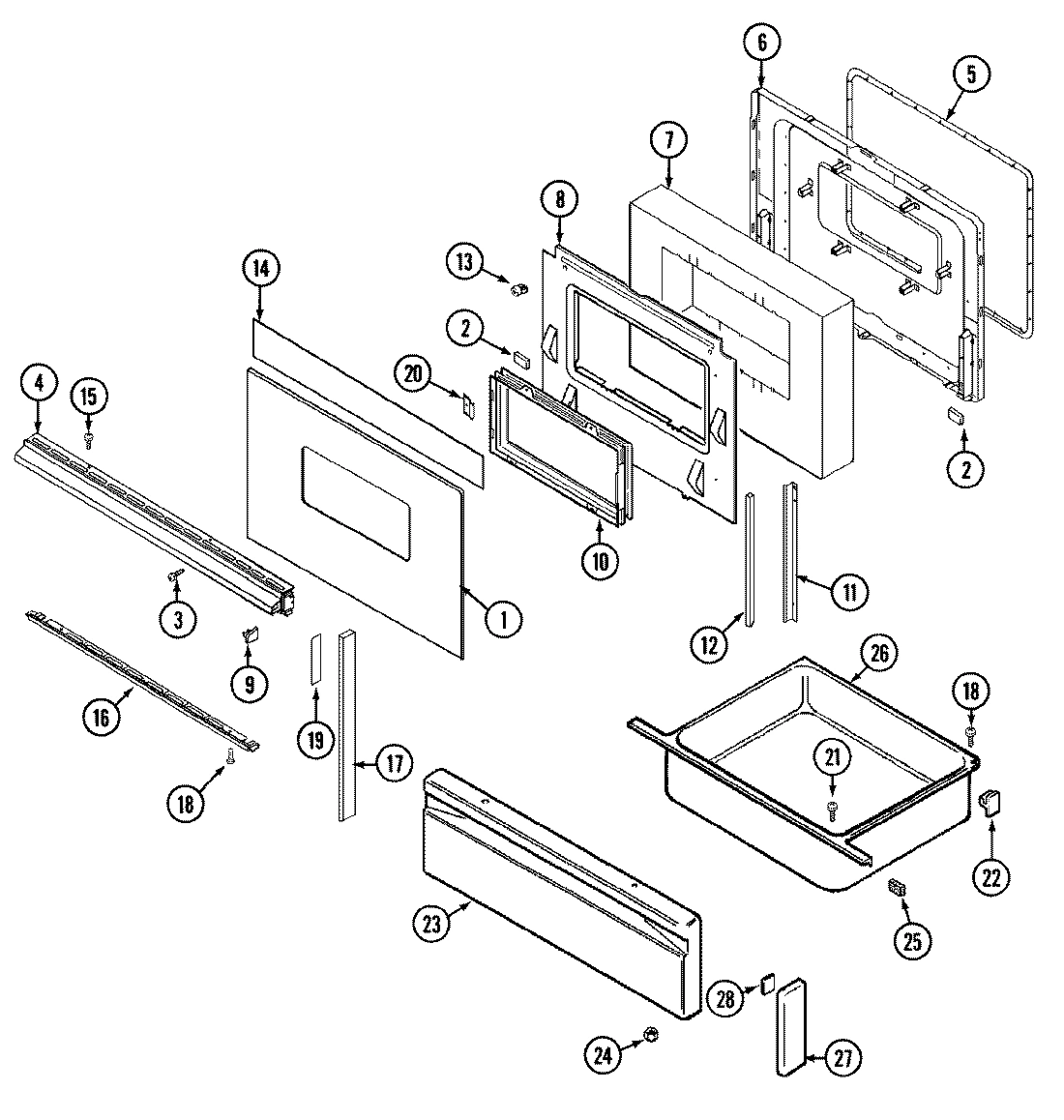

03 - DOOR/DRAWER

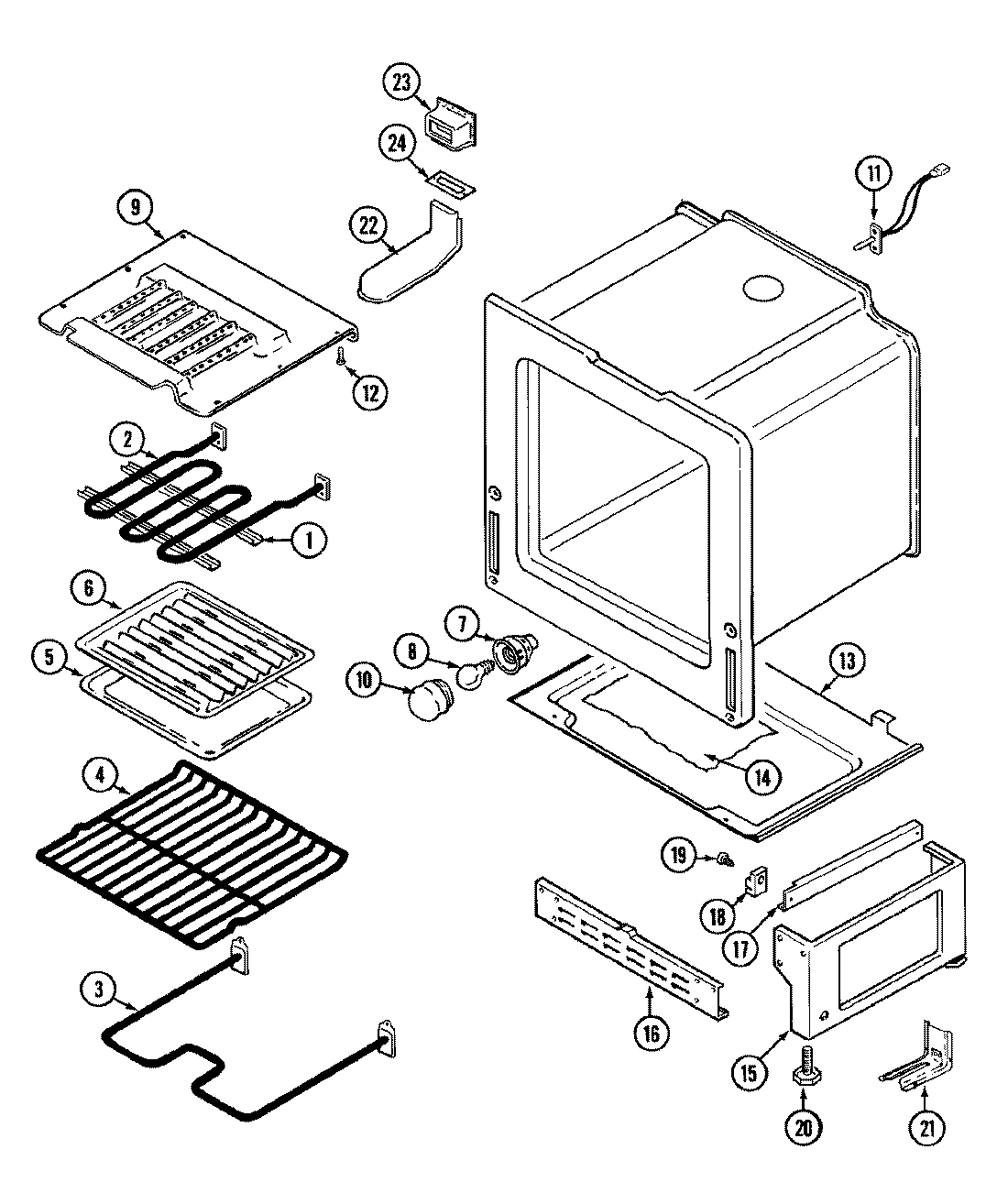

04 - OVEN/BASE

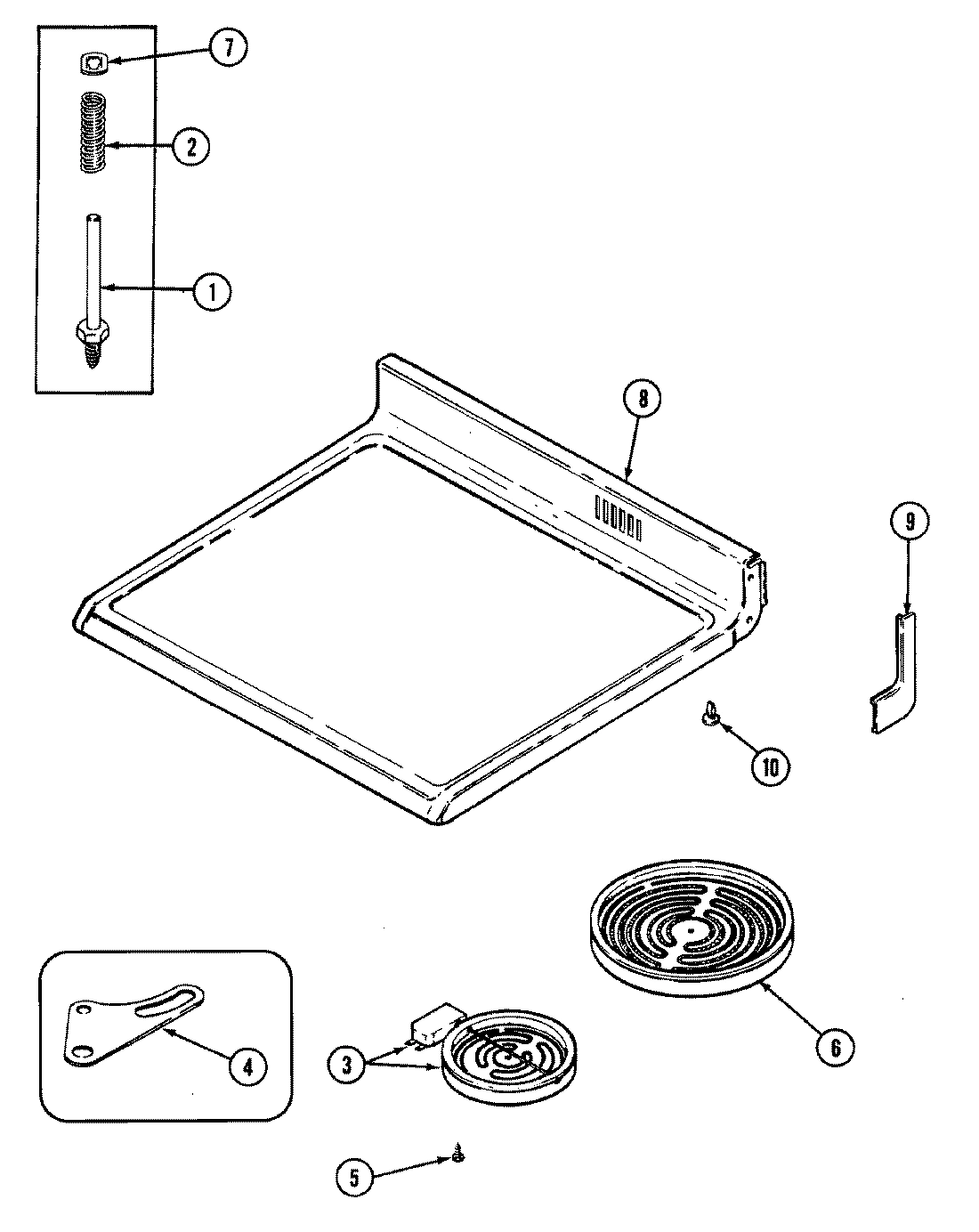

05 - TOP ASSEMBLY

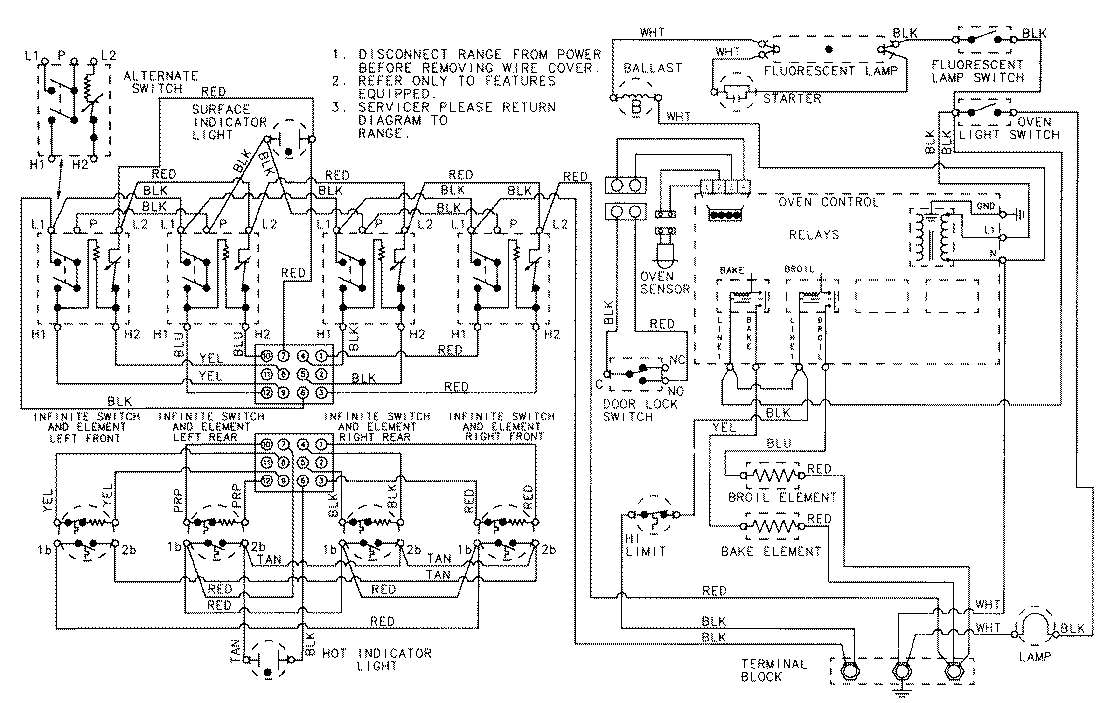

06 - WIRING INFORMATION
Common parts from model Maytag A3888XRB ELECTRIC RANGE
1
MAY 4001F094-51 MAY 4001F094-51 Contact Us For Availability
1
MAY 7902P321-60 MAY 7902P321-60 Contact Us For Availability
1
MAY 3807F387-45 MAY 3807F387-45 Contact Us For Availability
1
MAY 7113P013-60 MAY 7113P013-60 Contact Us For Availability
2
MAY 8010P083-60 MAY 8010P083-60 Contact Us For Availability
2
MAY 8010P085-60 MAY 8010P085-60 Contact Us For Availability
2
MAY 7803P066-60 MAY 7803P066-60 Contact Us For Availability
3
MAY 3807F423-51 MAY 3807F423-51 Contact Us For Availability
3
MAY 3807F424-51 MAY 3807F424-51 Contact Us For Availability
3
MAY Y04000058 MAY Y04000058 Contact Us For Availability
3
MAY 7406P074-60 MAY 7406P074-60 Contact Us For Availability
3
MAY Y04000064 MAY Y04000064 Contact Us For Availability
4
MAY 7701P103-60 MAY 7701P103-60 Contact Us For Availability
4
MAY 7801P047-60 MAY 7801P047-60 Contact Us For Availability
4
MAY 3819F013-45 MAY 3819F013-45 Contact Us For Availability
5
MAY Y3401F02019 MAY Y3401F02019 Contact Us For Availability
5
MAY 7101P076-60 MAY 7101P076-60 Contact Us For Availability
6
MAY 7101P313-60 MAY 7101P313-60 Contact Us For Availability
6
MAY 7703P454-60 MAY 7703P454-60 Contact Us For Availability
6
MAY 2402W209-19 MAY 2402W209-19 Contact Us For Availability
6
MAY Y3413F01619 MAY Y3413F01619 Contact Us For Availability
6
MAY 7406P073-60 MAY 7406P073-60 Contact Us For Availability
6
MAY Y04000063 MAY Y04000063 Contact Us For Availability
7
MAY 4005F455-51 MAY 4005F455-51 Contact Us For Availability
7
MAY 7403P109-60 MAY 7403P109-60 Contact Us For Availability
7
MAY 7002P155-60 MAY 7002P155-60 Contact Us For Availability
7
MAY 7112P092-60 MAY 7112P092-60 Contact Us For Availability
8
MAY 4005F427-51 MAY 4005F427-51 Contact Us For Availability
8
MAY 3601F236-47 MAY 3601F236-47 Contact Us For Availability
8
MAY 5706S076-09 MAY 5706S076-09 Contact Us For Availability
9
MAY 7403P160-60 MAY 7403P160-60 Contact Us For Availability
9
MAY 7601P209-60 MAY 7601P209-60 Contact Us For Availability
9
MAY 7744P075-60 MAY 7744P075-60 Contact Us For Availability
9
MAY 7744P076-60 MAY 7744P076-60 Contact Us For Availability
9
MAY 3601F237-47 MAY 3601F237-47 Contact Us For Availability
9
MAY 7746P030-60 MAY 7746P030-60 Contact Us For Availability
9
MAY 7746P031-60 MAY 7746P031-60 Contact Us For Availability
9
MAY 8114P348-60 MAY 8114P348-60 Contact Us For Availability
10
MAY 7214P007-60 MAY 7214P007-60 Contact Us For Availability
10
MAY 74001719 MAY 74001719 Contact Us For Availability
10
MAY 7907P021-60 MAY 7907P021-60 Contact Us For Availability
10
MAY 74001428 MAY 74001428 Contact Us For Availability
11
MAY 7101P280-60 MAY 7101P280-60 Contact Us For Availability
11
MAY 4804F028-60 MAY 4804F028-60 Contact Us For Availability
11
MAY 8002P025-60 MAY 8002P025-60 Contact Us For Availability
11
MAY 7726P047-60 MAY 7726P047-60 Contact Us For Availability
11
MAY 7726P048-60 MAY 7726P048-60 Contact Us For Availability
11
MAY 3818F052-80 MAY 3818F052-80 Contact Us For Availability
11
MAY 7430P010-60 MAY 7430P010-60 Contact Us For Availability
12
MAY 4804F036-60 MAY 4804F036-60 Contact Us For Availability
12
MAY 74001800 MAY 74001800 Contact Us For Availability
12
MAY 3604F201-80 MAY 3604F201-80 Contact Us For Availability
12
MAY 7208P002-60 MAY 7208P002-60 Contact Us For Availability
12
MAY 7101P290-60 MAY 7101P290-60 Contact Us For Availability
13
MAY 3605F174-51 MAY 3605F174-51 Contact Us For Availability
13
MAY 3807F406-71 MAY 3807F406-71 Contact Us For Availability
13
MAY 7103P045-60 MAY 7103P045-60 Contact Us For Availability
13
MAY 3804F112-51 MAY 3804F112-51 Contact Us For Availability
14
MAY 8004P024-60 MAY 8004P024-60 Contact Us For Availability
14
MAY 7724P054-60 MAY 7724P054-60 Contact Us For Availability
14
MAY 8270P078-60 MAY 8270P078-60 Contact Us For Availability
14
MAY 8312P058-60 MAY 8312P058-60 Contact Us For Availability
15
MAY 7407P090-60 MAY 7407P090-60 Contact Us For Availability
15
MAY 4020W017-80 MAY 4020W017-80 Contact Us For Availability
16
MAY 7720P155-60 MAY 7720P155-60 Contact Us For Availability
16
MAY 7744P105-60 MAY 7744P105-60 Contact Us For Availability
16
MAY 4020F001-80 MAY 4020F001-80 Contact Us For Availability
17
MAY 7731P082-60 MAY 7731P082-60 Contact Us For Availability
17
MAY 74001725 MAY 74001725 Contact Us For Availability
17
MAY 7744P055-60 MAY 7744P055-60 Contact Us For Availability
17
MAY 3406F028-51 MAY 3406F028-51 Contact Us For Availability
18
SCREW, LEVER MAY 7101P230-60 Contact Us For Availability
18
MAY 8004P033-60 MAY 8004P033-60 Contact Us For Availability
19
MAY 3804F103-51 MAY 3804F103-51 Contact Us For Availability
19
MAY 7408P029-60 MAY 7408P029-60 Contact Us For Availability
19
MAY 7408P030-60 MAY 7408P030-60 Contact Us For Availability
19
MAY 8270P048-60 MAY 8270P048-60 Contact Us For Availability
19
MAY 7101P334-60 MAY 7101P334-60 Contact Us For Availability
20
MAY 74001311 MAY 74001311 Contact Us For Availability
20
MAY 7106P056-60 MAY 7106P056-60 Contact Us For Availability
20
MAY 7412P007-60 MAY 7412P007-60 Contact Us For Availability
20
MAY 3805F002-34 MAY 3805F002-34 Contact Us For Availability
20
MAY 74001449 MAY 74001449 Contact Us For Availability
21
SCREW (10-24X5/16-NI) MAY 7101P282-60 Contact Us For Availability
21
MAY 7415P001-60 MAY 7415P001-60 Contact Us For Availability
21
MAY 3801F218-51 MAY 3801F218-51 Contact Us For Availability
21
MAY 7101P289-60 MAY 7101P289-60 Contact Us For Availability
22
MAY 74001708 MAY 74001708 Contact Us For Availability
22
MAY 7407P004-60 MAY 7407P004-60 Contact Us For Availability
22
MAY 4006W107-45 MAY 4006W107-45 Contact Us For Availability
23
MAY 7112P112-60 MAY 7112P112-60 Contact Us For Availability
23
MAY 4876S025-59 MAY 4876S025-59 Contact Us For Availability
23
MAY 2416F039-65 MAY 2416F039-65 Contact Us For Availability
23
MAY 3826W014-45 MAY 3826W014-45 Contact Us For Availability
24
MAY 7101P130-60 MAY 7101P130-60 Contact Us For Availability
24
MAY 7740P018-60 MAY 7740P018-60 Contact Us For Availability
24
MAY 7201P054-60 MAY 7201P054-60 Contact Us For Availability
25
MAY 3801F305-80 MAY 3801F305-80 Contact Us For Availability
25
MAY 7208P011-60 MAY 7208P011-60 Contact Us For Availability
26
MAY 7407P089-60 MAY 7407P089-60 Contact Us For Availability
26
MAY 7407P097-60 MAY 7407P097-60 Contact Us For Availability
26
MAY 3405F019-80 MAY 3405F019-80 Contact Us For Availability
27
MAY 3801F312-45 MAY 3801F312-45 Contact Us For Availability
27
MAY Y7744P07060 MAY Y7744P07060 Contact Us For Availability
28
TAPE MAY 8270P098-60 Contact Us For Availability
NI
MAY 16002079 MAY 16002079 Contact Us For Availability
NI
MAY 5170D165-60 MAY 5170D165-60 Contact Us For Availability
NI
MAY 5170P162-60 MAY 5170P162-60 Contact Us For Availability
NI
MAY 5175D063-60 MAY 5175D063-60 Contact Us For Availability
NI
MAY 8113P008-60 MAY 8113P008-60 Contact Us For Availability
NI
MAY 15001706 MAY 15001706 Contact Us For Availability
× ![]()
