Model Whirlpool A3888VRV ELECTRIC RANGE – Common Parts & Diagrams

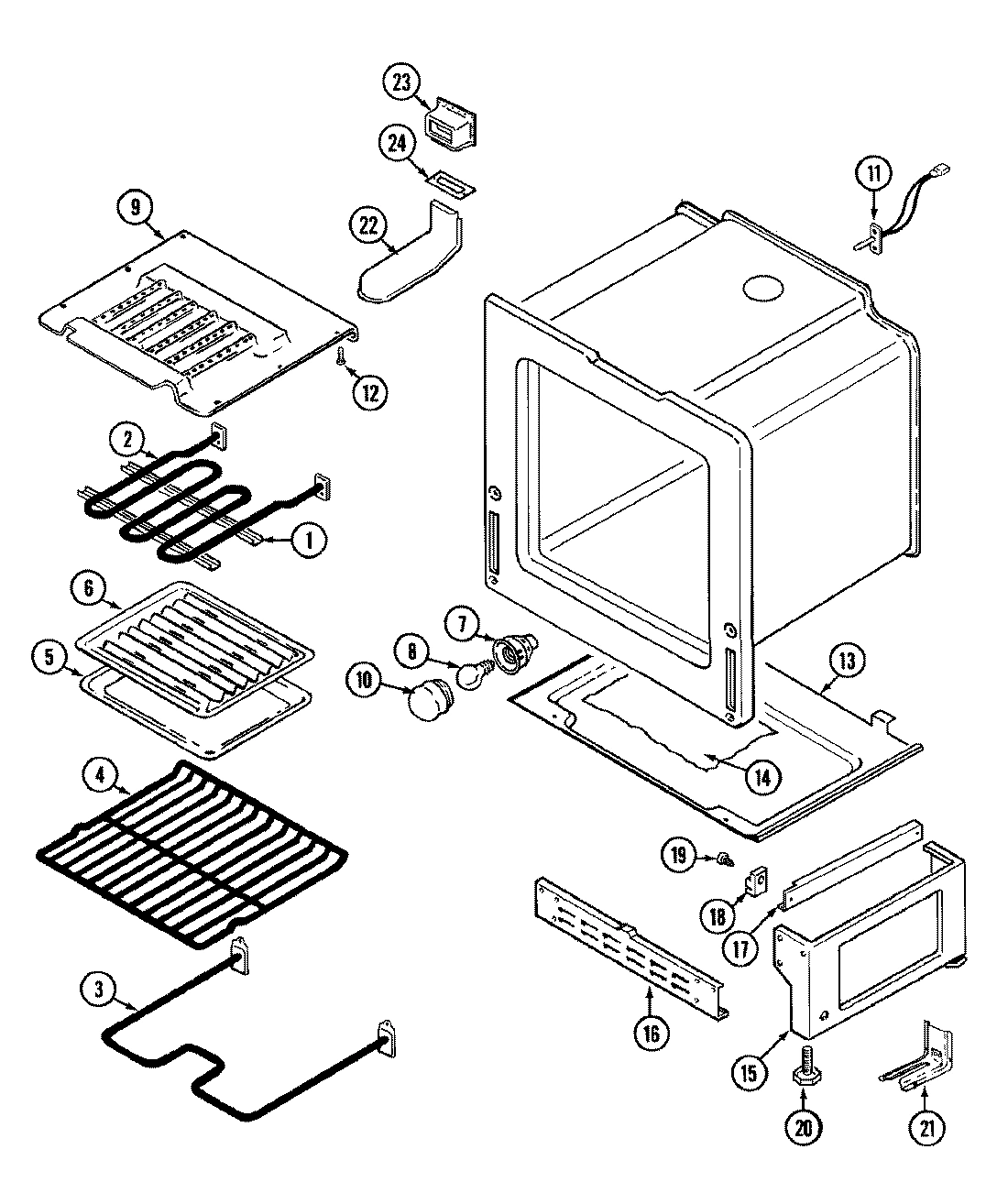

03 - OVEN/BASE

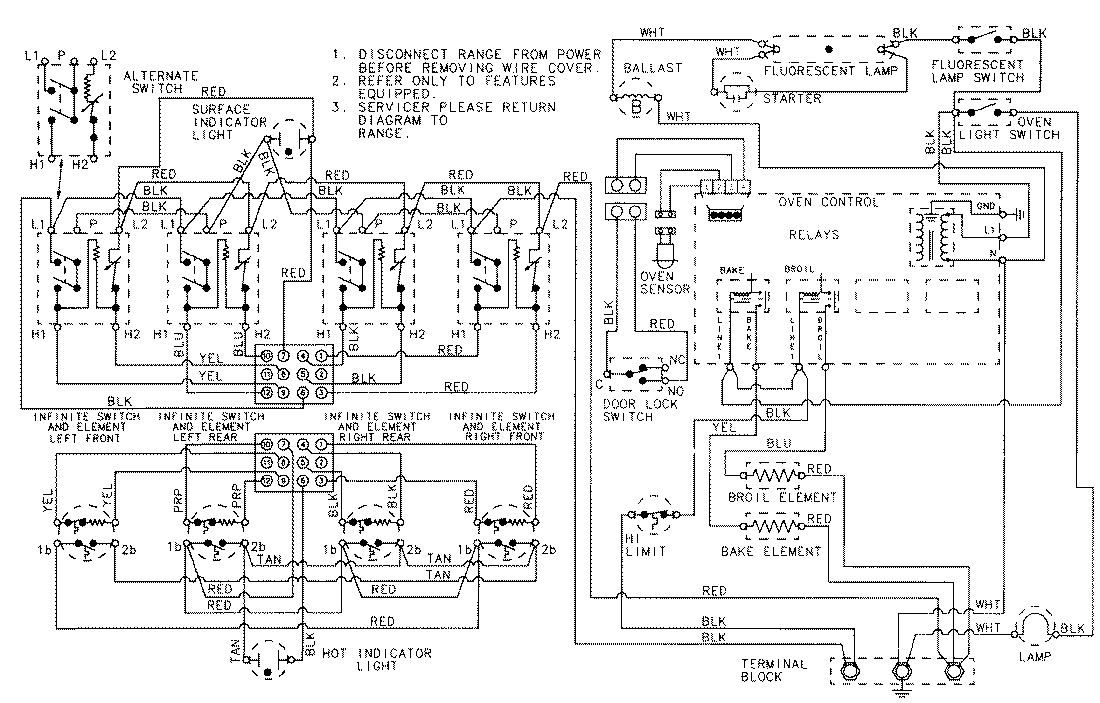

05 - WIRING INFORMATION

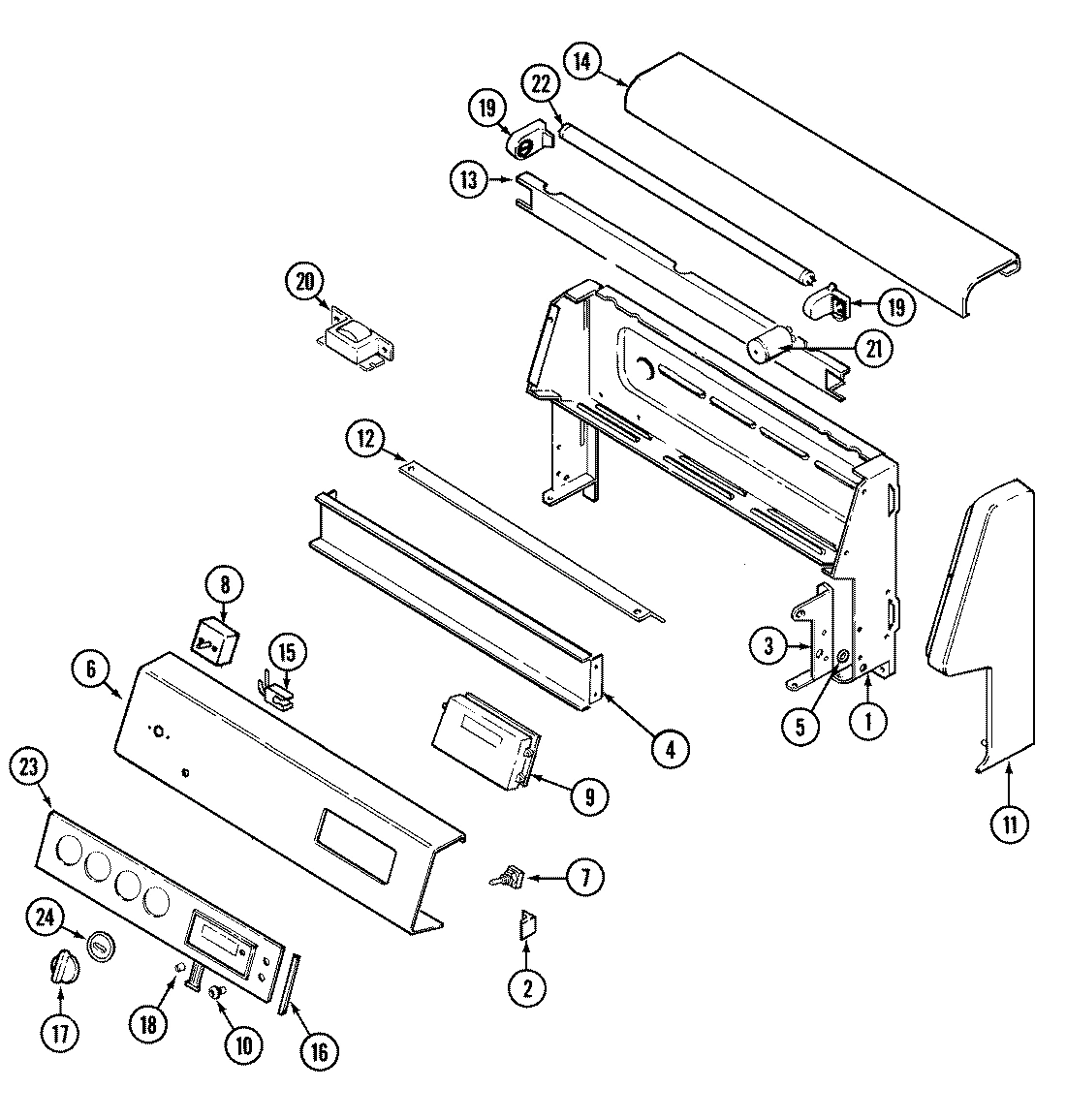

02 - CONTROL PANEL

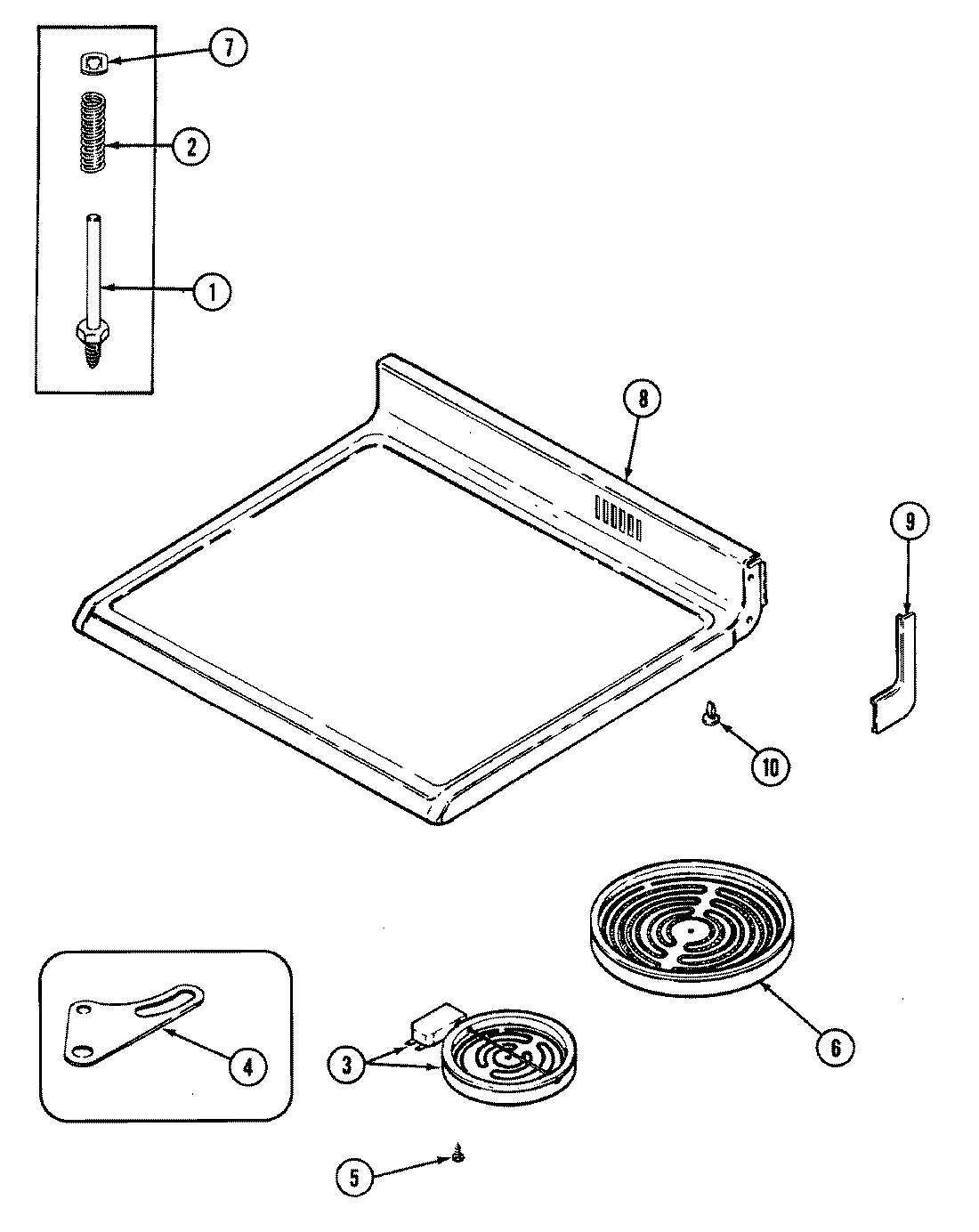

04 - TOP ASSEMBLY

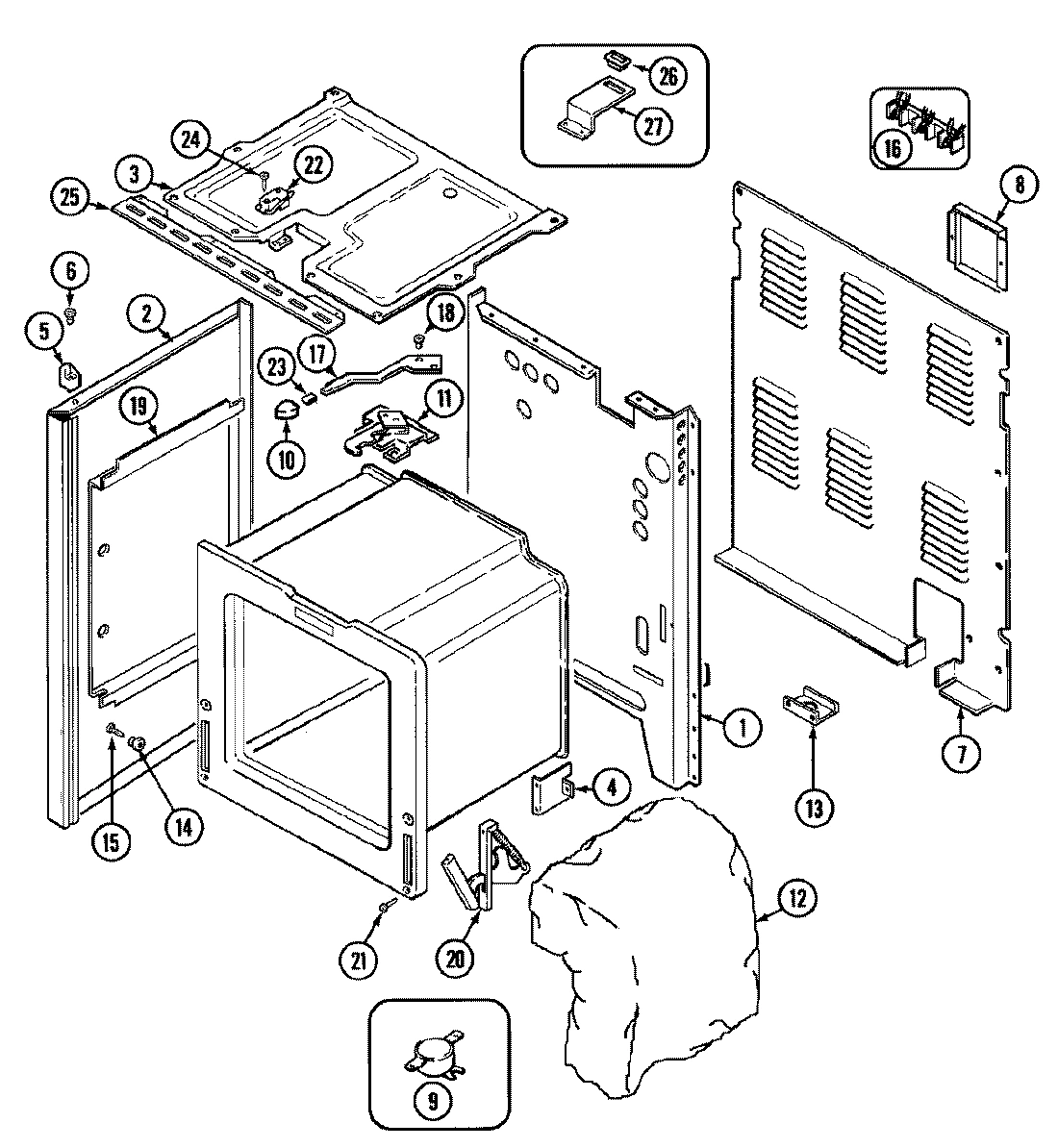

01 - BODY
Common parts from model Whirlpool A3888VRV ELECTRIC RANGE
1
SUPPORT, BROIL ELEMENT WPL 3807F38745 Contact Us For Availability
1
HOUSING, CONTROL PANEL WPL 4001F09451 Contact Us For Availability
1
PIN, ELEMENT WPL 7113P01360 Contact Us For Availability
1
BACK, MAIN WPL 74001772 Contact Us For Availability
2
SPACER WPL 8010P08360 Contact Us For Availability
2
SPRING, ELEMENT SUPPORT WPL 7803P06660 Contact Us For Availability
2
PANEL, SIDE (WHT) WPL 2618F08571 Contact Us For Availability
2
PANEL, SIDE (WHT) WPL 2618F11071 Contact Us For Availability
2
INSULATOR, DAMPER SOUND WPL 7003P06760 Contact Us For Availability
2
TAPE, FOIL (29 1/2``) WPL 8270P07860 Contact Us For Availability
3
SUPPORT, HOUSING (RT) WPL 3807F42351 Contact Us For Availability
3
SUPPORT, HOUSING (LT) WPL 3807F42451 Contact Us For Availability
3
ELEMENT W/RECEPTACLE (6``) WPL 7406P07460 Contact Us For Availability
3
LIMITER (6`` ELEMENT) WPL Y04000064 Contact Us For Availability
3
BOX, BURNER WPL 4011F20719 Contact Us For Availability
3
BOX, BURNER WPL 74001707 Contact Us For Availability
4
RACK, OVEN WPL 7801P04760 Contact Us For Availability
4
BRACE, CONTROL PANEL WPL 3802F08851 Contact Us For Availability
4
CLIP, ELEMENT WPL 3819F01345 Contact Us For Availability
4
SUPPORT,OVEN REAR WPL 3807F40051 Contact Us For Availability
5
PAN, BROIL WPL Y3401F02019 Contact Us For Availability
5
NUT, SPEED WPL 7103P04460 Contact Us For Availability
5
SCREW WPL 7101P07660 Contact Us For Availability
5
SPACER, MAIN TOP (LT) WPL 8010P08760 Contact Us For Availability
5
SPACER, MAIN TOP (RT) WPL 8010P08860 Contact Us For Availability
6
INSERT, BROIL PAN WPL Y3413F01619 Contact Us For Availability
6
PANEL, CONTROL (WHT) WPL 7703P45560 Contact Us For Availability
6
ELEMENT W/RECEPTACLE (8``) WPL 7406P07360 Contact Us For Availability
6
LIMITER (8`` ELEMENT) WPL Y04000063 Contact Us For Availability
6
SCREW (8ABX3/8-ZN) WPL 7101P31360 Contact Us For Availability
7
RECEPTACLE, BULB WPL 7407P08860 Contact Us For Availability
7
SWITCH, PUSH (WHT) WPL 7403P20460 Contact Us For Availability
7
CLIP, SPRING GRIP WPL 7112P09260 Contact Us For Availability
7
COVER, WIRE WPL 4005F45551 Contact Us For Availability
8
BULB-OVEN WPL 7407P10360 Contact Us For Availability
8
SCREW WPL 7101P30960 Contact Us For Availability
8
SWITCH, INFINITE (SML ELEMENT) WPL 7403P23860 Contact Us For Availability
8
SWITCH, INFINITE (LRG ELEMENT) WPL 7403P23960 Contact Us For Availability
8
TOP ASSY. (WHT GLASS/WHT FRM) WPL 5706S07981 Contact Us For Availability
8
COVER, ACCESS WPL 4005F42751 Contact Us For Availability
9
BAFFLE, BROIL WPL 3601F23747 Contact Us For Availability
9
CLOCK WPL 7601P20960 Contact Us For Availability
9
END CAP, TOP (RT-WHT) WPL 7746P03260 Contact Us For Availability
9
END CAP, TOP (LT-WHT) WPL 7746P03360 Contact Us For Availability
9
COVER, HINGE SUPPORT WPL 8114P34860 Contact Us For Availability
9
SWITCH, HI-LIMIT WPL 7403P16060 Contact Us For Availability
10
COVER, BULB WPL 7724P04760 Contact Us For Availability
10
SLEEVE, SWITCH (WHT) WPL 7214P02360 Contact Us For Availability
10
HANDLE, DOOR LATCH (WHT) WPL 7701P15360 Contact Us For Availability
11
SENSOR, OVEN WPL 7430P01060 Contact Us For Availability
11
END CAP (RT-WHT) WPL 7726P07360 Contact Us For Availability
11
END CAP (LT-WHT) WPL 7726P07460 Contact Us For Availability
11
INSULATION, LATCH ASSY. WPL 4804F02860 Contact Us For Availability
11
SCREW W/WASHER (BLK) WPL 7101P28060 Contact Us For Availability
11
LATCH ASSY. WPL 8002P02560 Contact Us For Availability
12
SCREW WPL 7101P29060 Contact Us For Availability
12
SHIELD, SIGHT WPL 3604F20180 Contact Us For Availability
12
INSULATION, WRAP WPL 4804F03660 Contact Us For Availability
12
INSULATION, BACK WPL 74001800 Contact Us For Availability
13
RETAINER, INSULATION WPL 3804F11251 Contact Us For Availability
13
HOLDER, LAMP (WHT) WPL 3807F40671 Contact Us For Availability
13
PLATE, CONDUIT TUBING WPL 3605F17451 Contact Us For Availability
14
FOIL, INSULATION RETAINER WPL 8312P05860 Contact Us For Availability
14
COVER, LIGHT (WHT)----NA WPL 7724P05960 Contact Us For Availability
14
SPACER, SIDE PANEL WPL 8004P02460 Contact Us For Availability
15
SCREW WPL 7101P34560 Contact Us For Availability
15
PEDESTAL, SIDES WPL 4020W01780 Contact Us For Availability
15
LAMP SIGNAL WPL 7407P09060 Contact Us For Availability
16
PEDESTAL, FRONT/REAR WPL 4020F00180 Contact Us For Availability
16
TRIM, GLASS RETAINER (WHT) WPL 7720P16060 Contact Us For Availability
16
BLOCK, TERMINAL WPL 7401P03960 Contact Us For Availability
17
RUNNER, DRAWER WPL 3406F02851 Contact Us For Availability
17
KNOB, SWITCH (WHT) WPL 7731P08160 Contact Us For Availability
17
LEVER, DOOR LATCH WPL 74001725 Contact Us For Availability
18
SUPPORT, DRAWER WPL 8004P03360 Contact Us For Availability
18
SCREW, LEVER WPL 7101P23060 Contact Us For Availability
19
SCREW WPL 7101P33460 Contact Us For Availability
19
RECEPTACLE, LIGHT (RT) WPL 7408P02960 Contact Us For Availability
19
RECEPTACLE, SNAP-IN (LT) WPL 7408P03060 Contact Us For Availability
19
RETAINER, INSULATION (SIDE) WPL 3804F10351 Contact Us For Availability
20
LEG, LEVELING WPL 74001311 Contact Us For Availability
20
BALLAST WPL 7412P00760 Contact Us For Availability
20
HINGE WPL 7106P05660 Contact Us For Availability
21
BRACKET, ANTI-TIP WPL 3801F21851 Contact Us For Availability
21
SCREW, BRACKET WPL 7101P28960 Contact Us For Availability
21
STARTER WPL 7415P00160 Contact Us For Availability
21
SCREW (10-24X5/16-NI) WPL 7101P28260 Contact Us For Availability
22
VENT BOX ASSY. WPL 4006W10745 Contact Us For Availability
22
LIGHT, CONTROL PANEL WPL 7407P00460 Contact Us For Availability
22
SWITCH, DOOR LATCH WPL 74001708 Contact Us For Availability
23
EXTENSION, VENT WPL 3826W01445 Contact Us For Availability
23
PANEL, CONTROL ASSY WPL 4876S02659 Contact Us For Availability
23
CLIP, LATCH LEVER WPL 7112P11260 Contact Us For Availability
24
GASKET, VENT WPL 7201P05460 Contact Us For Availability
24
BEZEL, KNOB (WHT) WPL 7740P02660 Contact Us For Availability
24
SCREW, LATCH SWITCH WPL 7101P13060 Contact Us For Availability
25
BRACKET, MAIN TOP WPL 3801F30580 Contact Us For Availability
26
LIGHT, INDICATOR WPL 7407P08960 Contact Us For Availability
26
LIGHT, INDICATOR (HOT SURFACE) WPL 7407P09760 Contact Us For Availability
27
BRACKET, INDICATOR LIGHT WPL 3801F31245 Contact Us For Availability
NI
WIRING INFORMATION WPL 15001706 Contact Us For Availability
NI
GUIDE, QUICK REF - ADMIRAL WPL 16002079 Contact Us For Availability
NI
HARNESS WPL 5170D16560 Contact Us For Availability
NI
HARNESS, SENSOR & LOCK WPL 5170P16260 Contact Us For Availability
NI
HARNESS, PANEL TO TOP WPL 5175D06360 Contact Us For Availability
NI
MANUAL, USE & CARE WPL 8113P00860 Contact Us For Availability
× ![]()
