Model Whirlpool A3878XRB ELECTRIC RANGE – Common Parts & Diagrams
02 - BODY (A3878XRB)

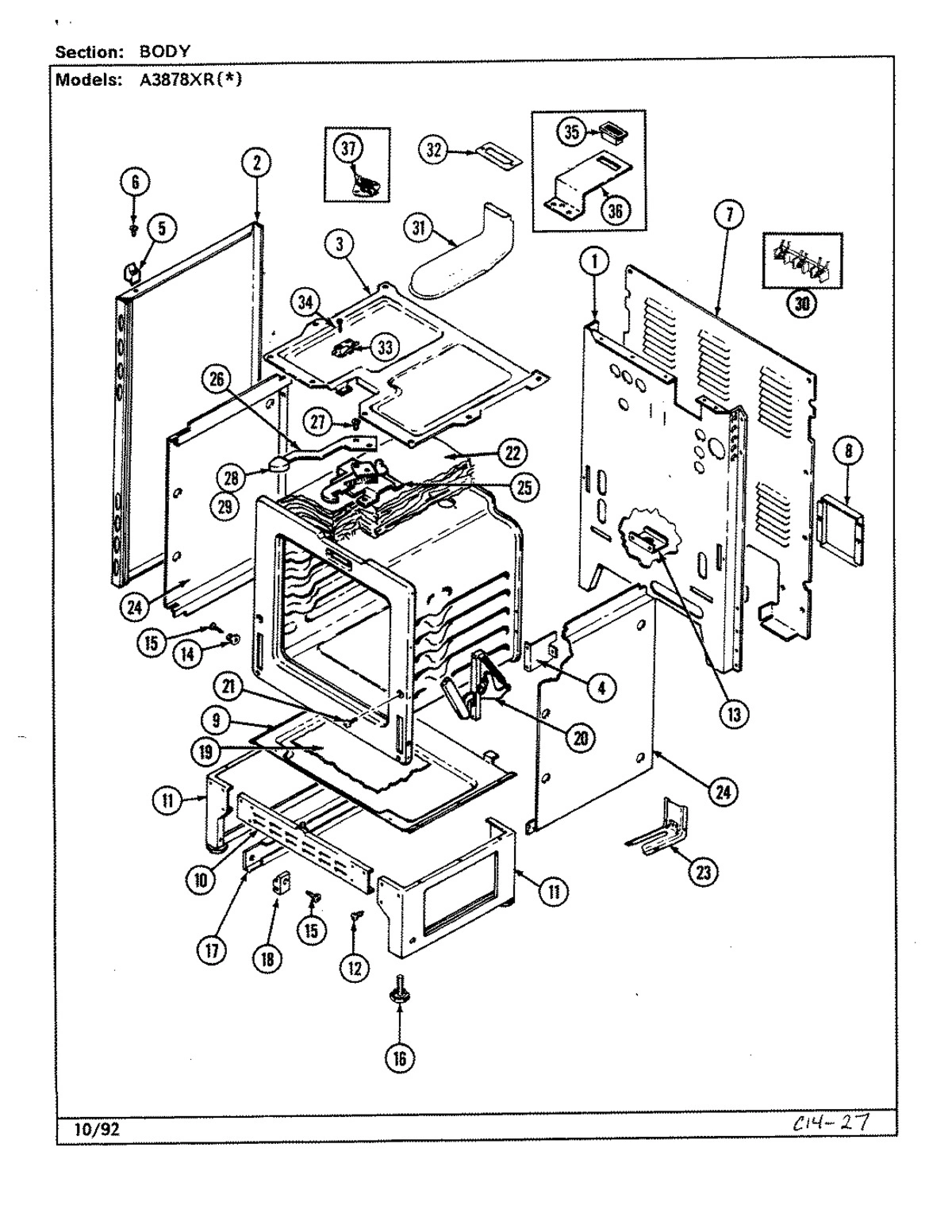

01 - BODY

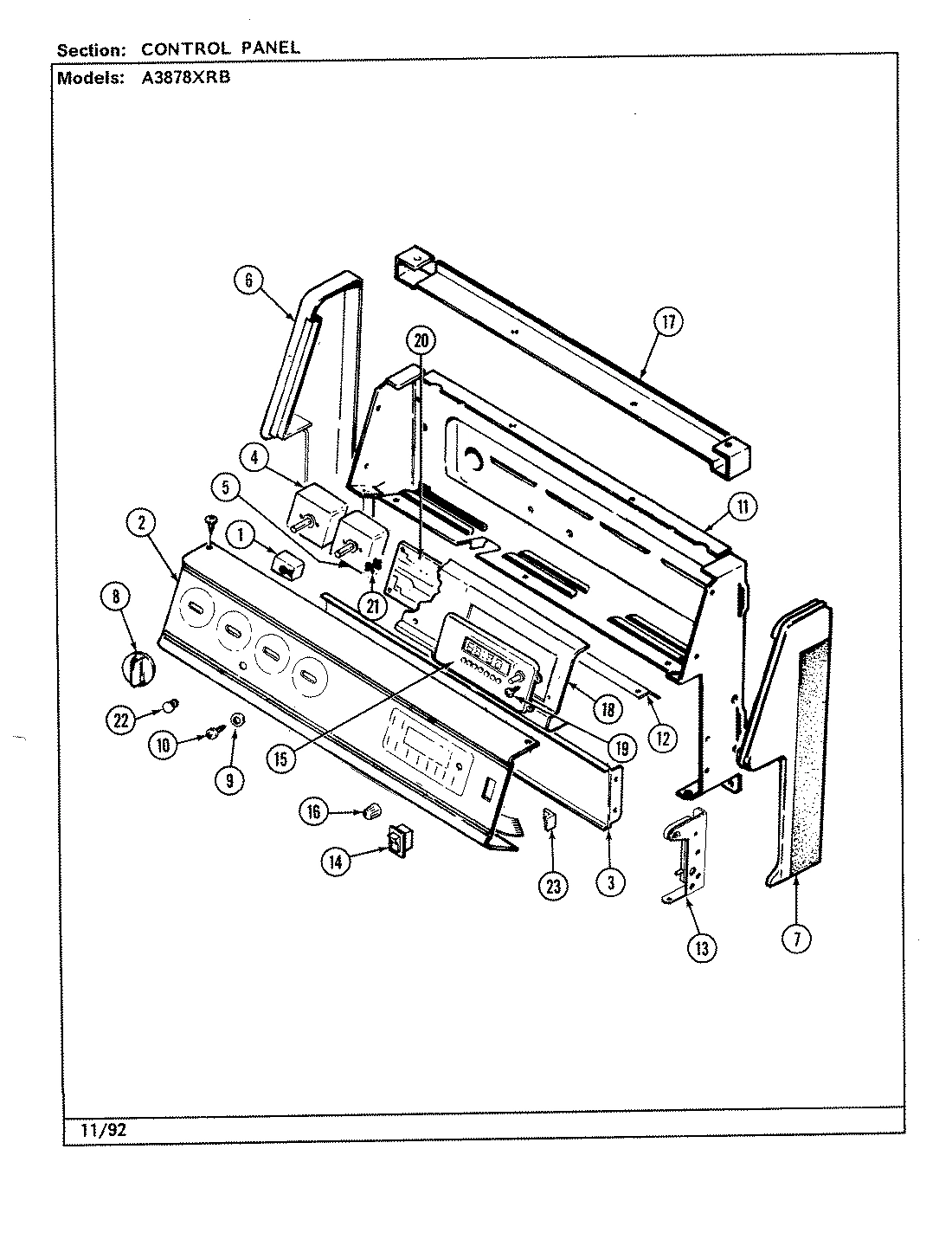

03 - CONTROL PANEL (A3878XRB)

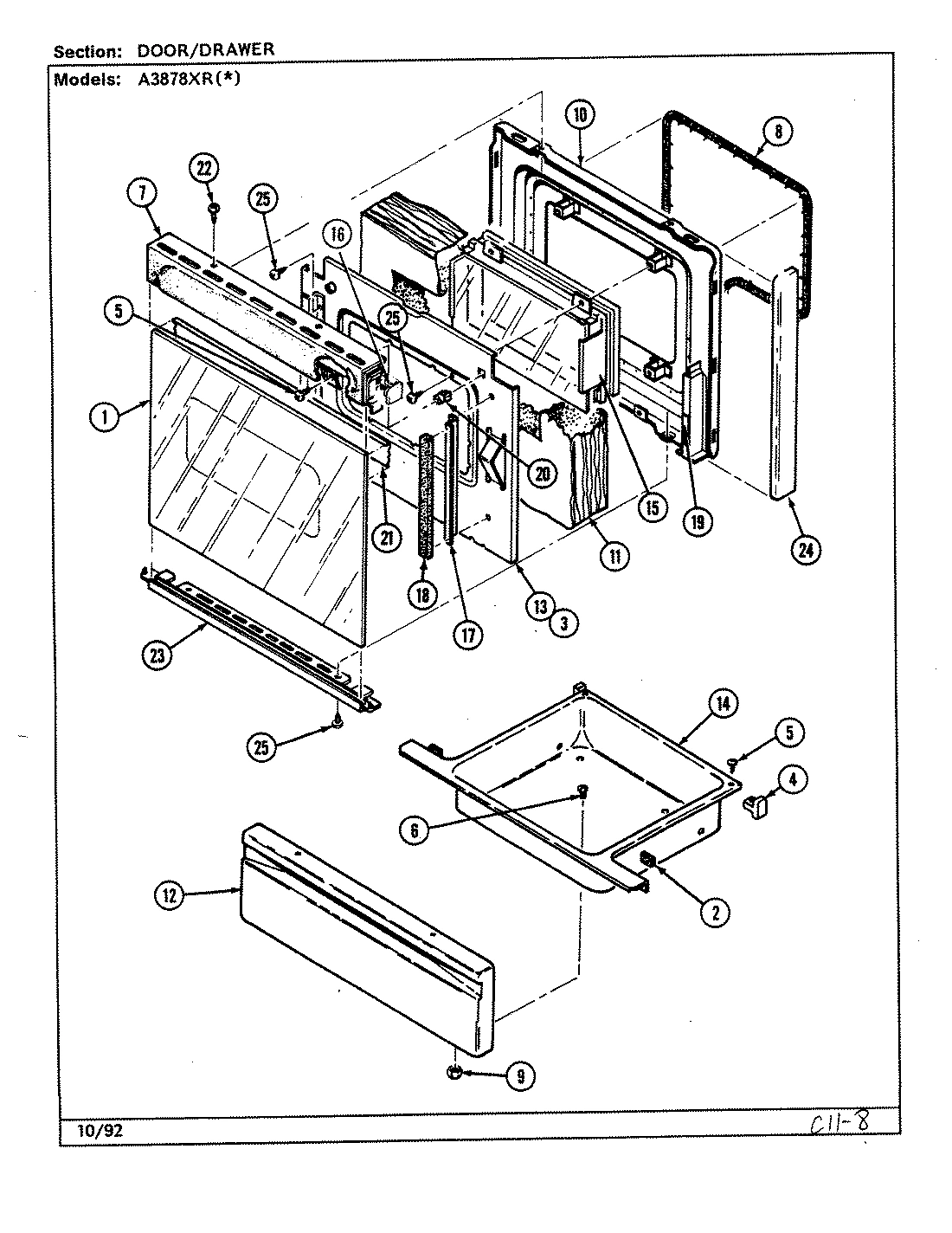

04 - DOOR/DRAWER

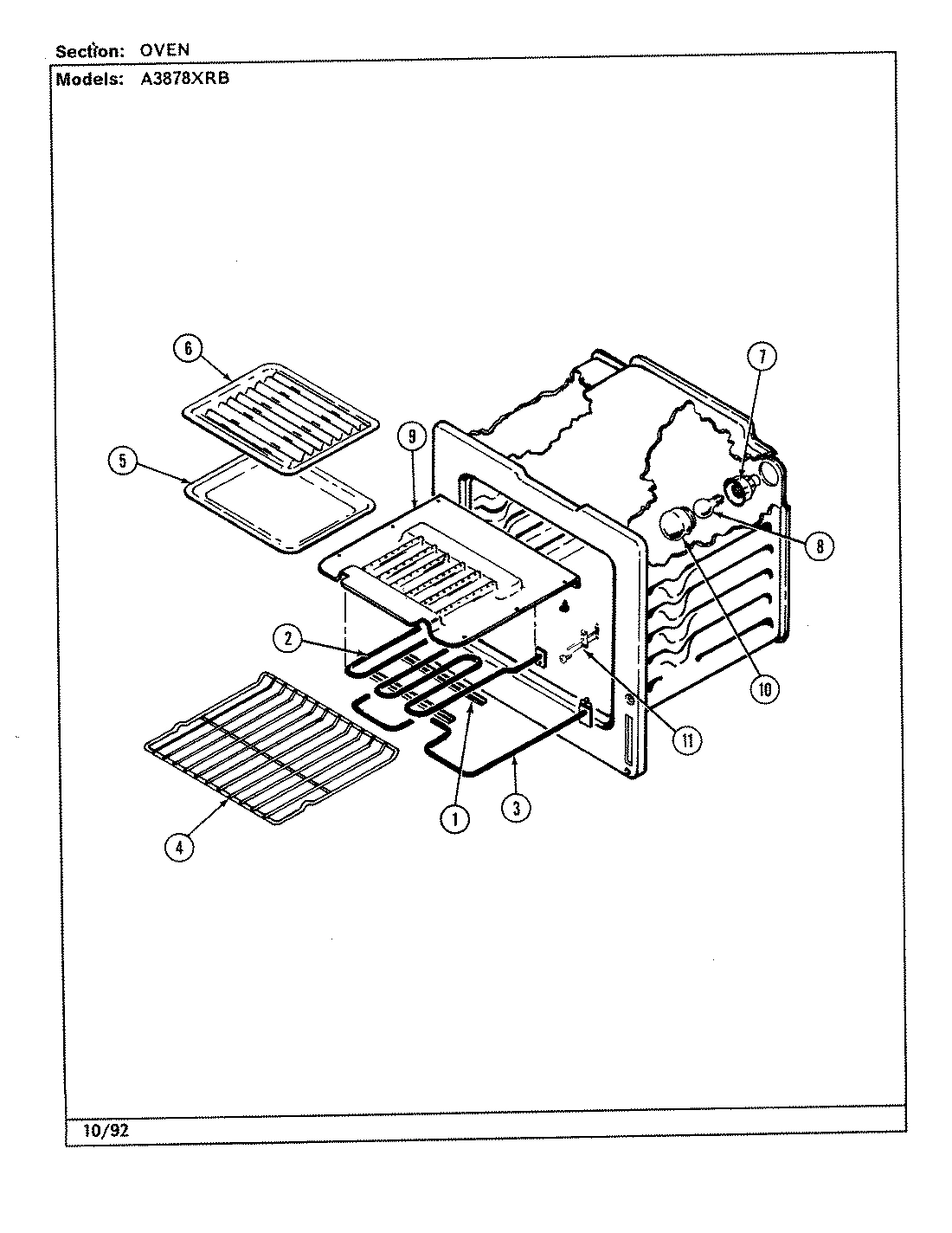

06 - OVEN (A3878XRB)

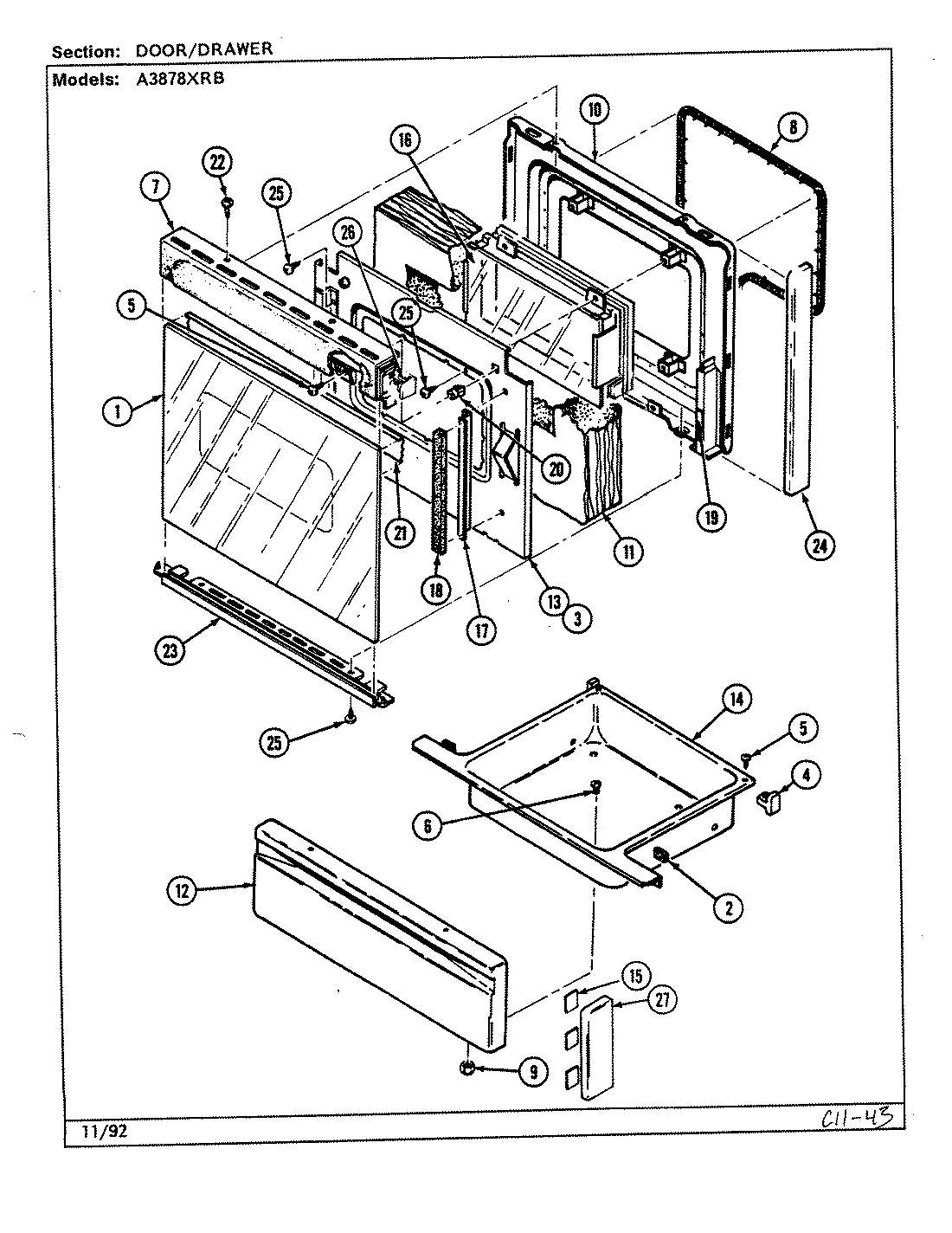

05 - DOOR/DRAWER (A3878XRB)

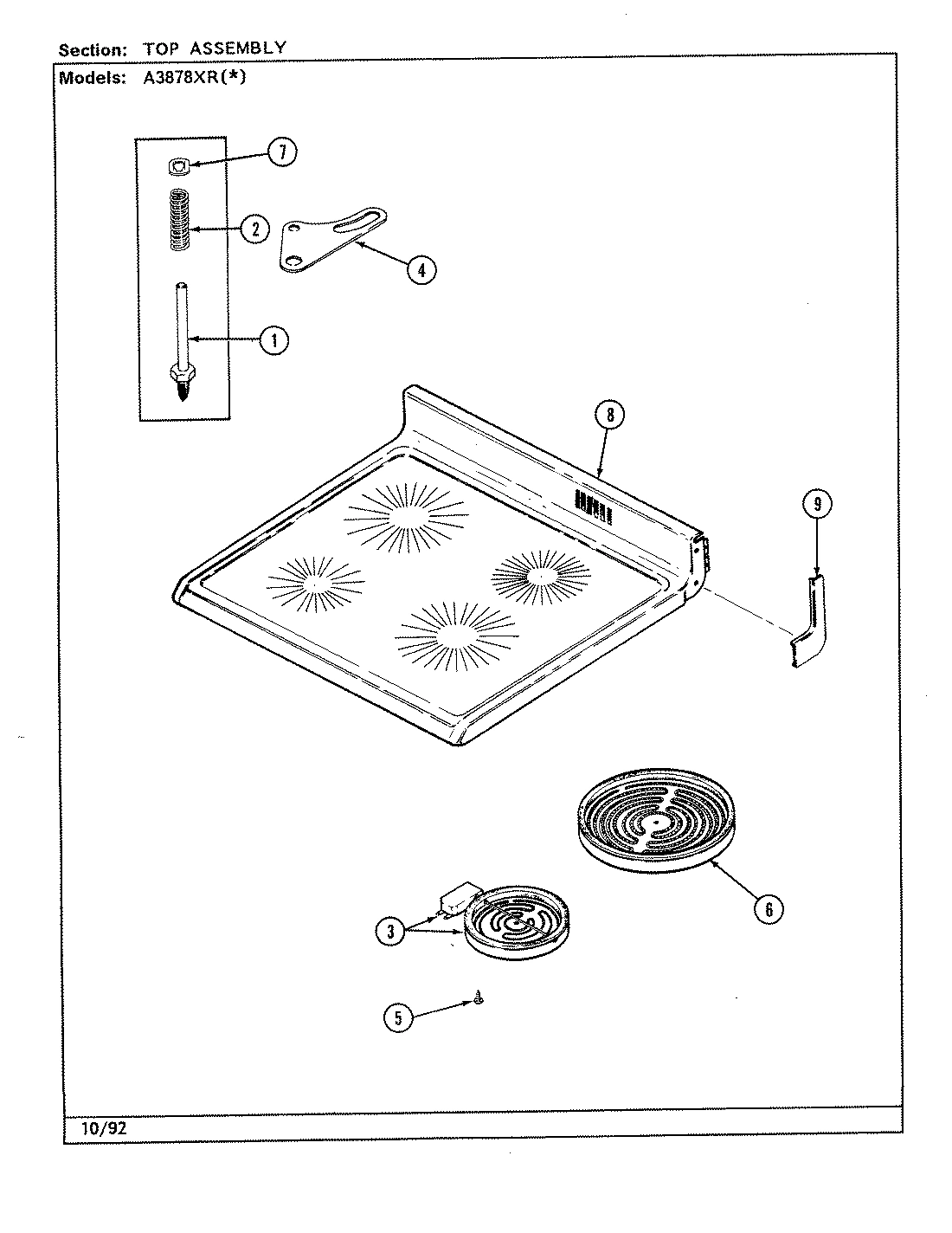

07 - TOP ASSEMBLY

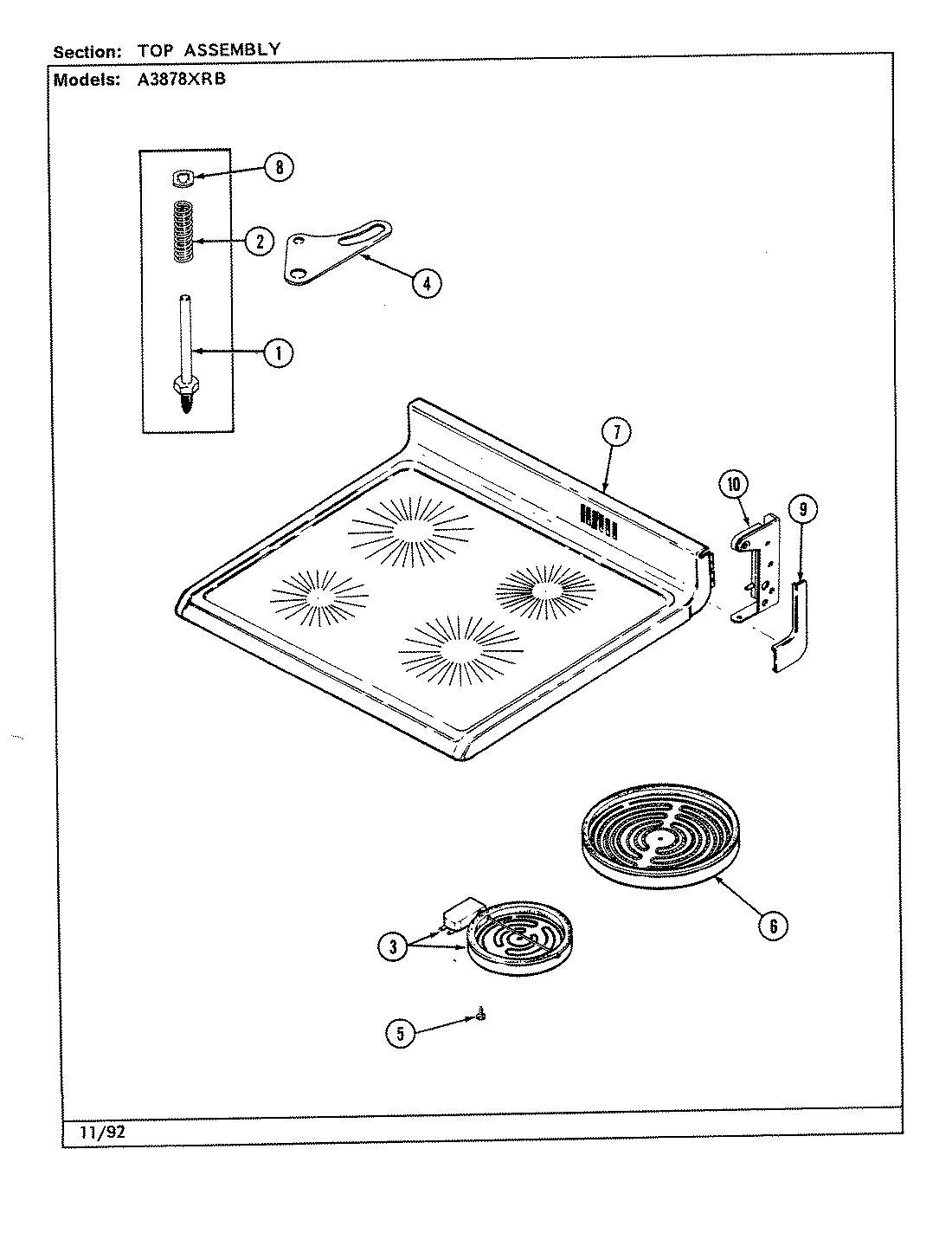

08 - TOP ASSY. (A3878XRB)
Common parts from model Whirlpool A3878XRB ELECTRIC RANGE
1
BACK, MAIN WPL 4002F18480 Contact Us For Availability
1
SCREW WPL 7101P30060 Contact Us For Availability
1
THERMOSTAT WPL 7404P08160 Contact Us For Availability
1
LIGHT, INDICATOR WPL 7407P10260 Contact Us For Availability
1
GLASS, DOOR (BLK) WPL 7902P32160 Contact Us For Availability
1
SUPPORT, BROIL ELEMENT WPL 3807F38745 Contact Us For Availability
1
PIN, ELEMENT WPL 7113P01360 Contact Us For Availability
2
PANEL, SIDE (BLK) WPL 2618F08570 Contact Us For Availability
2
PANEL, SIDE (BLK) WPL 2618F09970 Contact Us For Availability
2
PANEL, CONTROL ASSY WPL 4876S00459 Contact Us For Availability
2
PANEL, CONTROL ASSY WPL 4876S01259 Contact Us For Availability
2
SPACER, RUBBER WPL 8010P08660 Contact Us For Availability
2
SPRING, ELEMENT SUPPORT WPL 7803P06660 Contact Us For Availability
3
BOX, BURNER WPL 4011F20719 Contact Us For Availability
3
BRACE, LWR BKGD WPL 3802F08751 Contact Us For Availability
3
SPACER, RUBBER WPL 8010P08560 Contact Us For Availability
3
ELEMENT W/RECEPTACLE (6``) WPL 7406P07460 Contact Us For Availability
3
LIMITER (6`` ELEMENT) WPL Y04000064 Contact Us For Availability
4
SUPPORT,OVEN REAR WPL 3807F40051 Contact Us For Availability
4
SWITCH, INFINITE (SML ELEMENT) WPL 7403P23860 Contact Us For Availability
4
SUPPORT, DRAWER (REAR) WPL 8004P02660 Contact Us For Availability
4
RACK, OVEN WPL 7801P03660 Contact Us For Availability
4
CLIP, ELEMENT WPL 3819F01345 Contact Us For Availability
5
SPACER, MAIN TOP (LT) WPL 8010P08760 Contact Us For Availability
5
SPACER, MAIN TOP (RT) WPL 8010P08860 Contact Us For Availability
5
SWITCH, INFINITE (LRG ELEMENT) WPL 7403P23960 Contact Us For Availability
5
SCREW WPL 7101P29160 Contact Us For Availability
5
PAN, BROIL WPL Y3401F02019 Contact Us For Availability
5
SCREW WPL 7101P07660 Contact Us For Availability
6
SCREW WPL 7118P01360 Contact Us For Availability
6
END CAP (LT-BLK) WPL 7726P05960 Contact Us For Availability
6
END CAP (RT-BLK) WPL 7726P06060 Contact Us For Availability
6
SCREW WPL 7101P11560 Contact Us For Availability
6
INSERT, BROIL PAN WPL Y3413F01619 Contact Us For Availability
6
ELEMENT W/RECEPTACLE (8``) WPL 7406P07360 Contact Us For Availability
6
LIMITER (8`` ELEMENT) WPL Y04000063 Contact Us For Availability
7
COVER, MAIN BACK WIRE WPL 4005F34851 Contact Us For Availability
7
KNOB, THERM/BURNER (BLK) WPL 7731P08260 Contact Us For Availability
7
HANDLE, DOOR (BLK) WPL 7701P10360 Contact Us For Availability
7
THERMOSTAT WPL 7404P08860 Contact Us For Availability
7
TOP ASSY (BLK GLASS/BLK FRAME) WPL 5706S01790 Contact Us For Availability
8
COVER, TERMINAL BLOCK ACCES WPL 4005F37651 Contact Us For Availability
8
GASKET, DOOR WPL 7201P04660 Contact Us For Availability
8
LAMP, OVEN WPL 7407P09160 Contact Us For Availability
8
CLIP, RETAINER WPL 7112P09160 Contact Us For Availability
8
GLIDE WPL 8016P01360 Contact Us For Availability
9
RETAINER, BOTTOM INSULATION WPL 3804F10951 Contact Us For Availability
9
NUT, SPEED WPL 7103P12960 Contact Us For Availability
9
NUT, LOCK WPL 7103P08560 Contact Us For Availability
9
BAFFLE. BROIL WPL 3601F20245 Contact Us For Availability
9
END CAP (RT-BLK) WPL 7746P03060 Contact Us For Availability
9
END CAP (LT-BLK) WPL 7746P03160 Contact Us For Availability
9
COVER, HINGE SUPPORT WPL 8114P34860 Contact Us For Availability
9
TAPE, DOUBLE SIDED WPL 8270P09560 Contact Us For Availability
10
PEDESTAL, FRONT/REAR WPL 4020F00180 Contact Us For Availability
10
SCREW WPL 7101P30960 Contact Us For Availability
10
SUPPORT, HOUSING (RT) WPL 3807F42351 Contact Us For Availability
10
SUPPORT, HOUSING (LT) WPL 3807F42451 Contact Us For Availability
10
LINING, OVEN DOOR WPL 2402W19419 Contact Us For Availability
10
COVER, BULB WPL 7724P04760 Contact Us For Availability
11
PEDESTAL, SIDE WPL 4020W00780 Contact Us For Availability
11
HOUSING, CONTROL PANEL WPL 4001F09451 Contact Us For Availability
11
SCREW, HOUSING WPL 7118P01560 Contact Us For Availability
11
INSULATION DOOR WPL 4804F01260 Contact Us For Availability
11
SENSOR, OVEN WPL 7430P01060 Contact Us For Availability
12
SHIELD, SIGHT WPL 3604F20180 Contact Us For Availability
12
PANEL, DRAWER (BLK) WPL 2416F03965 Contact Us For Availability
13
PLATE, CONDUIT TUBING WPL 3605F17451 Contact Us For Availability
13
BAFFLE, DOOR WPL 3601F21945 Contact Us For Availability
14
SPACER, SIDE PANEL WPL 8004P02460 Contact Us For Availability
14
SWITCH, ROCKER (BLK) WPL 7403P06760 Contact Us For Availability
14
DRAWER, STORAGE WPL 3405F01580 Contact Us For Availability
15
CLOCK WPL 7601P20960 Contact Us For Availability
15
CLOCK, ``T`` ELEC. WPL 7601P21260 Contact Us For Availability
15
TAPE, DOUBLE-SIDED WPL 8270P09460 Contact Us For Availability
16
LEG, LEVELING WPL 7101P30660 Contact Us For Availability
16
KNOB, CLOCK (BLK) WPL 7711P43160 Contact Us For Availability
16
WINDOW ASY. WPL 7907P02160 Contact Us For Availability
17
RUNNER, DRAWER WPL 3406F02851 Contact Us For Availability
17
EXTENSION, CONTROL PANEL WPL 4001F06451 Contact Us For Availability
17
CHANNEL, AIR WPL 3818F05251 Contact Us For Availability
18
SUPPORT, DRAWER WPL 8004P02560 Contact Us For Availability
18
BRACKET, CLOCK WPL 3801F31045 Contact Us For Availability
18
SEAL WPL 7208P00260 Contact Us For Availability
19
FOIL, INSULATION RETAINER WPL 8312P05860 Contact Us For Availability
19
SCREW, SWITCH WPL 7101P14860 Contact Us For Availability
19
SEAL, RUBBER WPL 7208P01160 Contact Us For Availability
20
HINGE, DOOR WPL 7106P03360 Contact Us For Availability
20
RELAY BOARD WPL 7428P01360 Contact Us For Availability
20
SPACER WPL 8010P07560 Contact Us For Availability
21
SCREW, HINGE WPL 7101P01760 Contact Us For Availability
21
SUPPORT, RELAY BOARD WPL 8004P02060 Contact Us For Availability
21
TAPE, FOIL (3`` WIDE) WPL 8270P09060 Contact Us For Availability
22
INSULATION, BACK WPL 4804F01560 Contact Us For Availability
22
INSULATION, WRAP WPL 4804F01660 Contact Us For Availability
22
LENS, INDICATOR LIGHT WPL 7730P00860 Contact Us For Availability
22
LENS, INDICATOR LIGHT WPL 7730P01260 Contact Us For Availability
22
SCREW (1/2``) WPL 7101P04060 Contact Us For Availability
23
BRACKET, ANTI-TIP WPL 3801F21851 Contact Us For Availability
23
SCREW, BRACKET WPL 7101P28960 Contact Us For Availability
23
SPACER WPL 8010P08360 Contact Us For Availability
23
TRIM, DOOR (BTM-BLK) WPL 7744P07860 Contact Us For Availability
24
RETAINER, INSULATION (SIDE) WPL 3804F10351 Contact Us For Availability
24
END CAP, OVEN DOOR (BLK) WPL 7744P05560 Contact Us For Availability
25
SCREW WPL 7101P29060 Contact Us For Availability
25
SCREW W/WASHER (BLK) WPL 7101P28060 Contact Us For Availability
25
LATCH ASSY. WPL 8002P02560 Contact Us For Availability
26
LEVER, LOCK WPL 8009P01660 Contact Us For Availability
26
END CAP (RT) WPL 7744P07560 Contact Us For Availability
26
END CAP (LT) WPL 7744P07660 Contact Us For Availability
27
SCREW, LEVER WPL 7101P23060 Contact Us For Availability
27
WASHER WPL 7109P01560 Contact Us For Availability
27
END CAP (BLK) WPL Y7744P07060 Contact Us For Availability
28
CLIP, LATCH HANDLE WPL 7112P00360 Contact Us For Availability
29
HANDLE, LATCH (BLK) WPL 7701P08860 Contact Us For Availability
30
BOARD, TERMINAL WPL 7401P04160 Contact Us For Availability
31
VENT BOX ASSY. WPL 4006W10745 Contact Us For Availability
32
EXTENSION, VENT WPL 3826W01445 Contact Us For Availability
32
GASKET, VENT WPL 7201P05460 Contact Us For Availability
33
SWITCH, DOOR LATCH WPL 7403P22260 Contact Us For Availability
33
SWITCH, DOOR LATCH WPL 7403P22860 Contact Us For Availability
34
SCREW WPL 7101P10360 Contact Us For Availability
35
LIGHT, INDICATOR WPL 7407P08960 Contact Us For Availability
35
LIGHT, INDICATOR (HOT SURFACE) WPL 7407P09760 Contact Us For Availability
36
BRACKET, IND. WPL 3801F30245 Contact Us For Availability
37
SWITCH, HI-LIMIT WPL 7403P16060 Contact Us For Availability
NI
HARNESS LOOSE WIRE WPL 5125A32360 Contact Us For Availability
NI
WIRES, LOOSE WPL 5125A35260 Contact Us For Availability
NI
HARNESS BKGD WPL 5170D12260 Contact Us For Availability
NI
HARNESS WPL 5170D16560 Contact Us For Availability
NI
HARNESS SENSOR WPL 5170P12360 Contact Us For Availability
NI
HARNESS CTRL TO RELAY WPL 5170P12460 Contact Us For Availability
NI
HARNESS, SENSOR & LOCK WPL 5170P16260 Contact Us For Availability
NI
MANUAL, USE & CARE-INSERT WPL 8112P10560 Contact Us For Availability
NI
MANUAL, USE & CARE WPL 8113P00860 Contact Us For Availability
NI
INSERT, INSTR SHEET (CLOCK) WPL 8113P02660 Contact Us For Availability
× ![]()
