Model Whirlpool A3500PPA ELECTRIC RANGE – Common Parts & Diagrams
02 - CONTROL PNL/TOP ASSM (A3510)
03 - DOOR\DRAWER

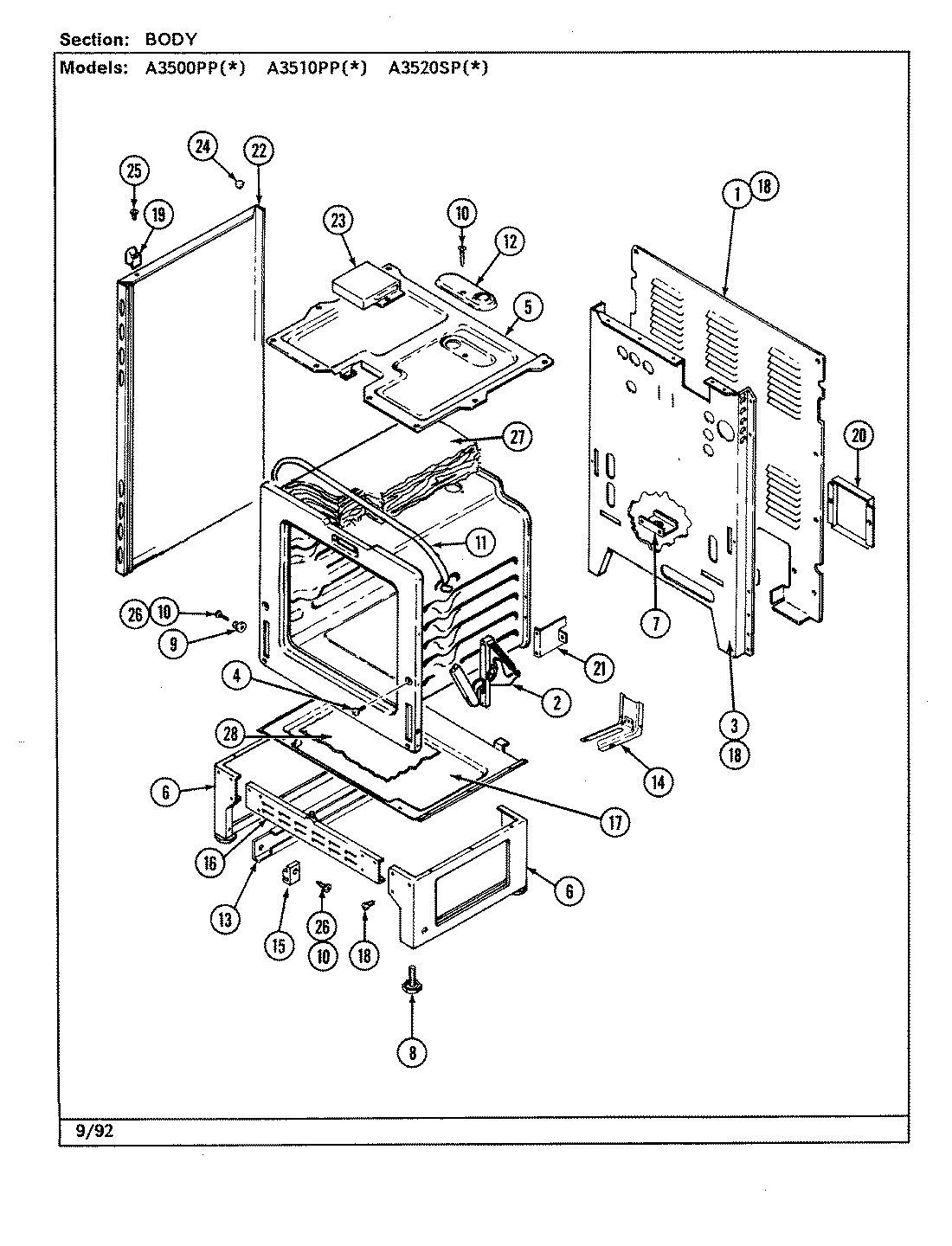

05 - TOP ASSY/FRONT PANEL (A3500)

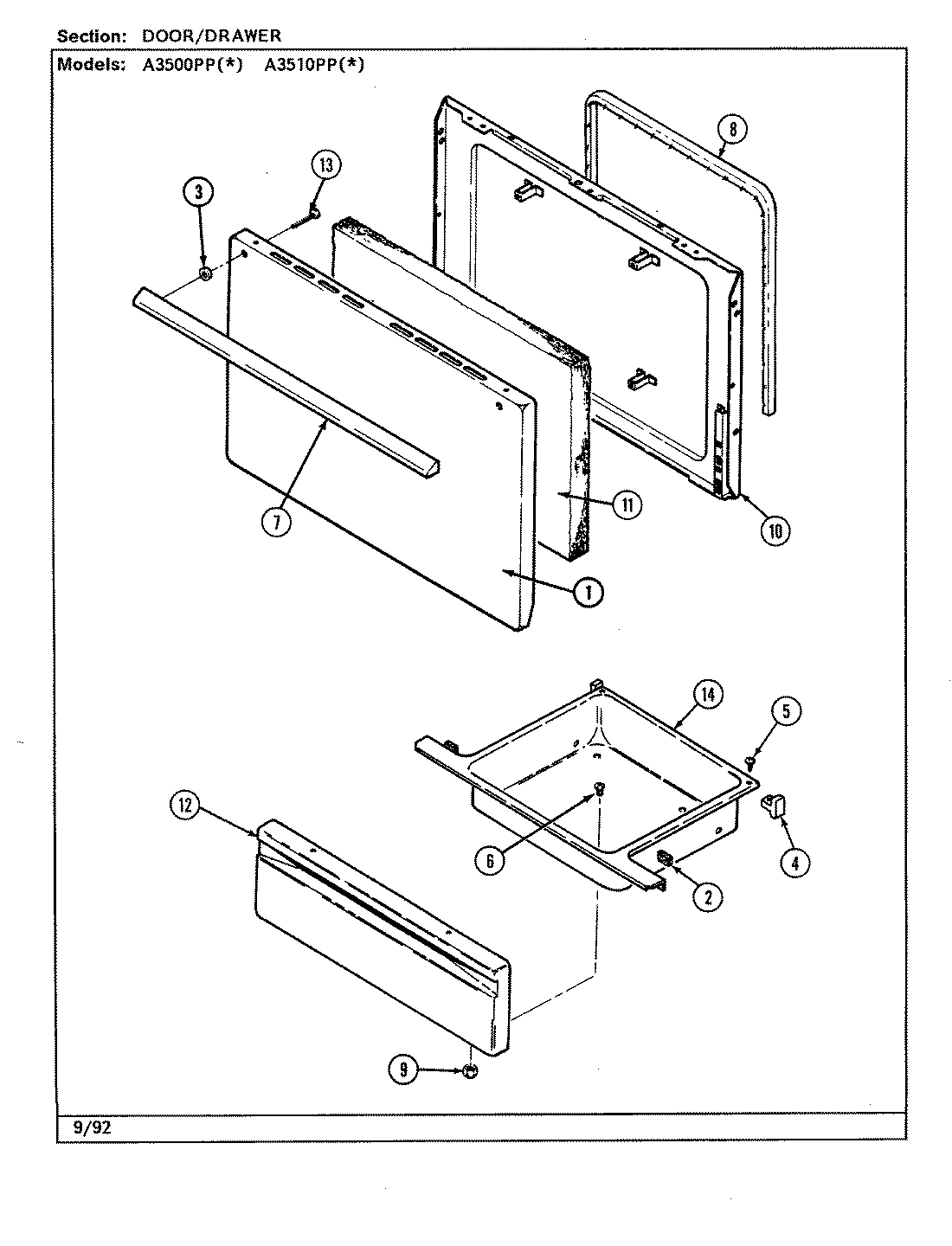

01 - BODY

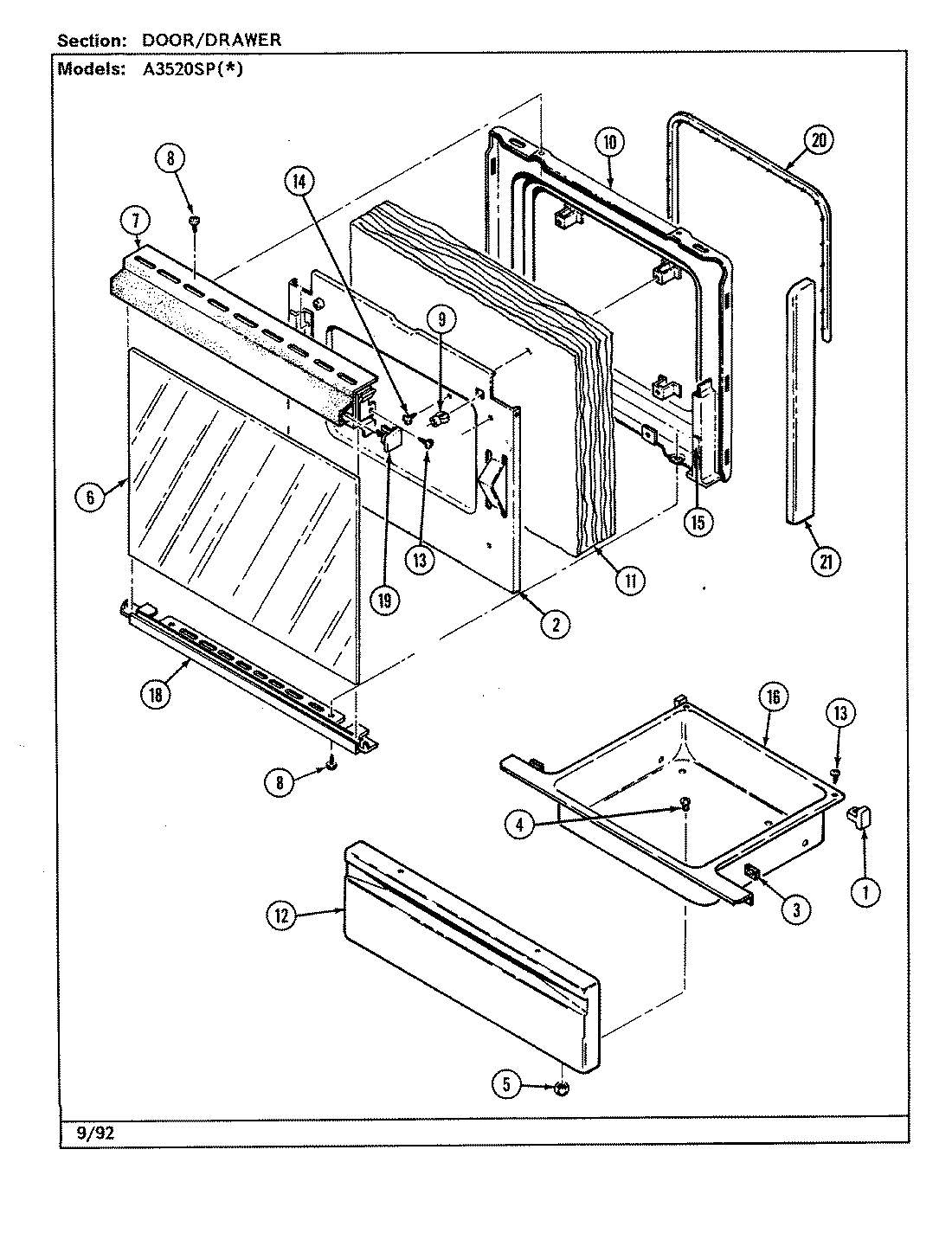

04 - OVEN
Common parts from model Whirlpool A3500PPA ELECTRIC RANGE
1
KNOB, THERMOSTAT WPL 7735P03160 Contact Us For Availability
1
KNOB SELECTOR WPL 7739P03760 Contact Us For Availability
1
BOWL, DRIP (8``) WPL 7725P00960 Contact Us For Availability
1
PANEL, DOOR (ALM) WPL 2401F09674 Contact Us For Availability
1
COVER, MAIN WIRE WPL 4005F38751 Contact Us For Availability
1
COVER, LOCK SLOT WPL 8114P33560 Contact Us For Availability
2
LIGHT, INDICATOR WPL 7407P08160 Contact Us For Availability
2
BOWL, DRIP (6``) WPL 7725P00860 Contact Us For Availability
2
SPACER, RUBBER WPL 8010P08660 Contact Us For Availability
2
BOWL, DRIP (W/HOLE) WPL 7725P00760 Contact Us For Availability
2
HINGE, DOOR WPL 7106P03260 Contact Us For Availability
2
CLIP, THERMOSTAT WPL 7112P00460 Contact Us For Availability
3
PANEL, CONTROL WPL 2601F39370 Contact Us For Availability
3
BRACKET, BACKGUARD WPL 3801F29651 Contact Us For Availability
3
SPACER, HANDLE (BLK) WPL 8010P08460 Contact Us For Availability
3
BACK, MAIN WPL 4002F17780 Contact Us For Availability
3
SCREW WPL 7101P30060 Contact Us For Availability
3
SUPPORT, ELEMENT WPL 3807F38945 Contact Us For Availability
4
SUPPORT, DRAWER (REAR) WPL 8004P02660 Contact Us For Availability
4
SCREW, HINGE WPL 7101P01760 Contact Us For Availability
5
SUPPORT, CONTROL PNL (RT) WPL 3807F43545 Contact Us For Availability
5
SUPPORT, CONTROL PNL (LT) WPL 3807F43645 Contact Us For Availability
5
SCREW WPL 7101P29160 Contact Us For Availability
5
BOX, BURNER WPL 4011F20719 Contact Us For Availability
5
RACK, OVEN WPL 7801P03660 Contact Us For Availability
6
SWITCH, SELECTOR WPL 7403P25560 Contact Us For Availability
6
SCREW WPL 7101P11560 Contact Us For Availability
6
SIDE PEDESTAL WPL 4020F00380 Contact Us For Availability
7
SCREW, HOUSING WPL 7118P01560 Contact Us For Availability
7
BRACE WPL 3802F08580 Contact Us For Availability
7
HANDLE, DOOR (CHR) WPL 7701P03060 Contact Us For Availability
7
TOP, MAIN (ALM) WPL 2002W07484 Contact Us For Availability
7
PLATE, CONDUIT TUBING WPL 3605F17451 Contact Us For Availability
7
TUBE, VENT WPL 8026P02060 Contact Us For Availability
8
SCREW WPL 7101P30960 Contact Us For Availability
8
THERMOSTAT WPL 7404P08160 Contact Us For Availability
8
SEAL, SILICONE WPL 7212P03460 Contact Us For Availability
8
PANEL, BACKGUARD (ALM) WPL 2601F36074 Contact Us For Availability
8
BRACKET, CONTROL PANEL (RT) WPL 3801F24251 Contact Us For Availability
8
BRACKET, CONTROL PANEL (LT) WPL 3801F24351 Contact Us For Availability
8
PLATE, NAME WPL 7719P00860 Contact Us For Availability
8
LEG, LEVELING WPL 7101P30660 Contact Us For Availability
8
PAN, BROIL WPL Y3401F02019 Contact Us For Availability
9
SPACER, HINGE (MAIN TOP) WPL 8010P06960 Contact Us For Availability
9
SCREW WPL 7101P03260 Contact Us For Availability
9
END CAP (RT-BLK) WPL 7726P06960 Contact Us For Availability
9
TRIM, END CAP WPL 7726P07060 Contact Us For Availability
9
NUT, LOCK WPL 7103P08560 Contact Us For Availability
9
SPACER, SIDE PANEL WPL 8004P02460 Contact Us For Availability
9
INSERT, BROIL PAN WPL Y3413F01619 Contact Us For Availability
10
HOUSING WPL 4001F08551 Contact Us For Availability
10
LINING, DOOR WPL 2402W20119 Contact Us For Availability
10
PANEL, CNTL. WPL 2614F03009 Contact Us For Availability
10
BRACKET, CNTL. PANEL WPL 3801F25151 Contact Us For Availability
10
SUPPORT UPPER FRONT PANEL WPL 3807F41980 Contact Us For Availability
10
SCREW WPL 7101P10360 Contact Us For Availability
11
LENS, INDICATOR LIGHT WPL 7730P00860 Contact Us For Availability
11
INSULATION, DOOR WPL 4804F01160 Contact Us For Availability
11
SCREW W/WASHER (BLK) WPL 7101P28060 Contact Us For Availability
11
THERMOSTAT WPL 7404P08560 Contact Us For Availability
11
STRAP, RETAINER WPL 4820F00159 Contact Us For Availability
12
SWITCH, INFINITE (SML ELEMENT) WPL 7403P23860 Contact Us For Availability
12
SWITCH, INFINITE (LRG ELEMENT) WPL 7403P23960 Contact Us For Availability
12
SHIELD, SIGHT WPL 3604F20180 Contact Us For Availability
12
PANEL, DRAWER (ALM) WPL 2416F03864 Contact Us For Availability
12
COVER VENT WPL 4005F35045 Contact Us For Availability
13
SCREW, CLAMP WPL 7101P08060 Contact Us For Availability
13
KNOB, THERMOSTAT WPL 7735P03360 Contact Us For Availability
13
RUNNER, DRAWER WPL 3406F02851 Contact Us For Availability
14
KNOB, SWITCH WPL 7737P03060 Contact Us For Availability
14
DRAWER, STORAGE WPL 3405F01480 Contact Us For Availability
14
BRACKET, ANTI-TIP WPL 3801F21851 Contact Us For Availability
14
SCREW, BRACKET WPL 7101P28960 Contact Us For Availability
15
BOWL, DRIP (6``)(W/HOLE-CHR) WPL 7725P01560 Contact Us For Availability
15
LIGHT, INDICATOR WPL 7407P01560 Contact Us For Availability
15
SUPPORT, DRAWER WPL 8004P02560 Contact Us For Availability
16
CLIP, TOP LOCKING WPL 7112P08760 Contact Us For Availability
16
PEDESTAL, FRONT/REAR WPL 4020F00180 Contact Us For Availability
17
HARNESS, CONTROL PANEL WPL 5170D13060 Contact Us For Availability
17
HARNESS, COOKTOP WPL 5175D05360 Contact Us For Availability
17
RETAINER, BOTTOM INSULATION WPL 3804F10951 Contact Us For Availability
18
MANUAL, USE & CARE WPL 8113P02360 Contact Us For Availability
19
SPACER, MAIN TOP (LT) WPL 8010P08760 Contact Us For Availability
19
SPACER, MAIN TOP (RT) WPL 8010P08860 Contact Us For Availability
20
COVER, TERMINAL BLOCK ACCES WPL 4005F37651 Contact Us For Availability
21
SUPPORT,OVEN REAR WPL 3807F40051 Contact Us For Availability
22
SCREW WPL 7101P29060 Contact Us For Availability
22
PANEL, SIDE (ALM) WPL 2618F08574 Contact Us For Availability
22
PANEL, SIDE (ALM) WPL 2618F09974 Contact Us For Availability
23
COVER WPL 4005F39751 Contact Us For Availability
24
SPACER, MAIN TOP WPL 8010P04860 Contact Us For Availability
25
SCREW WPL 7118P01360 Contact Us For Availability
27
INSULATION, BACK WPL 4804F01760 Contact Us For Availability
27
INSULATION, WRAP WPL 4804F01860 Contact Us For Availability
28
FOIL, INSULATION RETAINER WPL 8312P05860 Contact Us For Availability
NI
HARNESS, PANEL TO TOP WPL 5175D04960 Contact Us For Availability
× ![]()
