Model GE 911.95575790 30" Radiant Freestanding Range (Kenmore 91195575790) – Common Parts & Diagrams
BACKGUARD

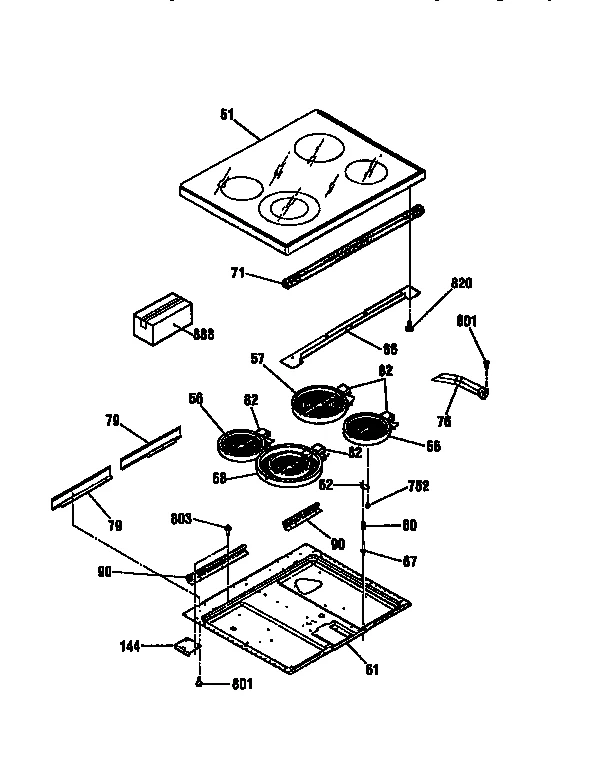

MAINTOP

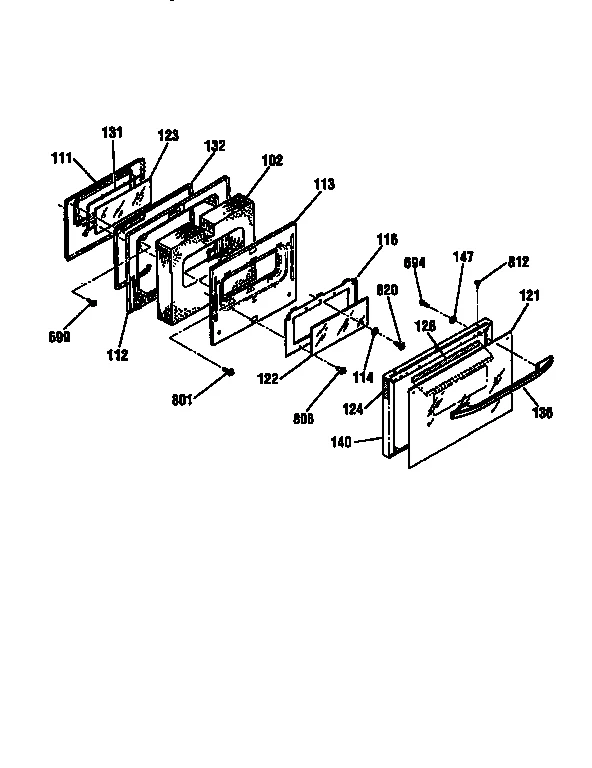

DOOR
All Parts

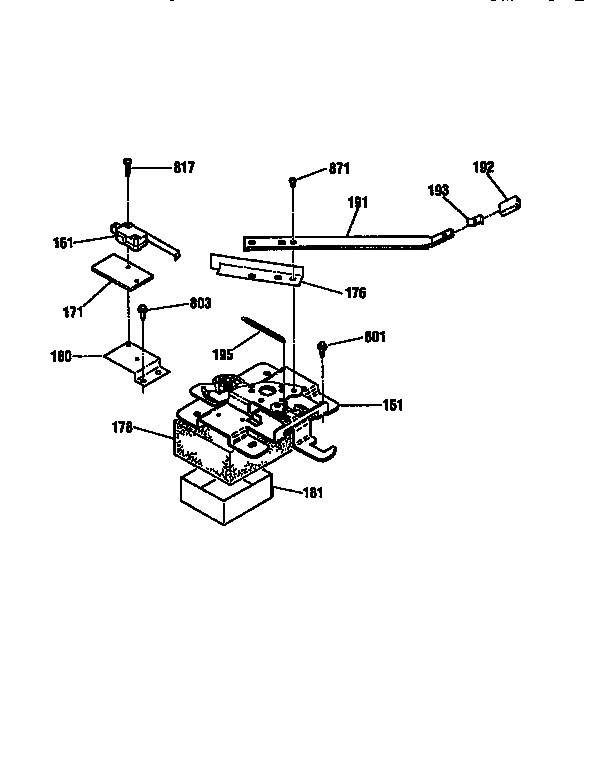

DOOR LOCK

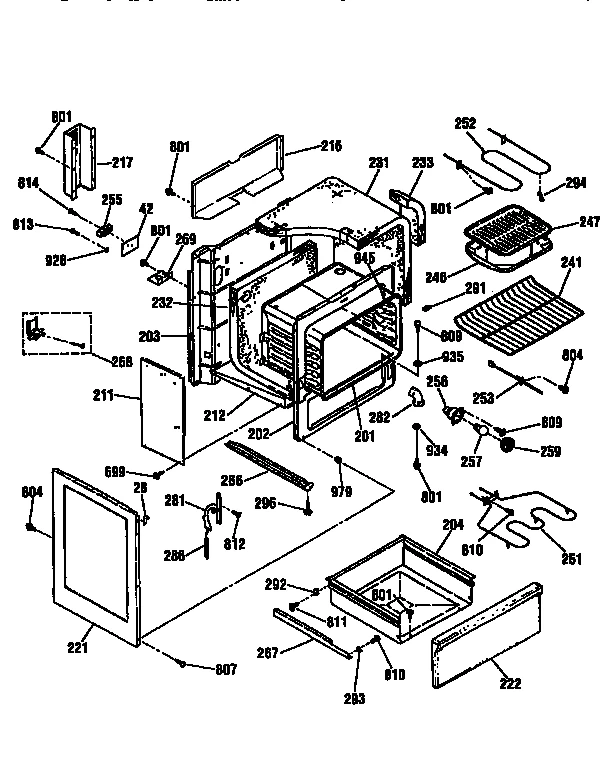

BODY

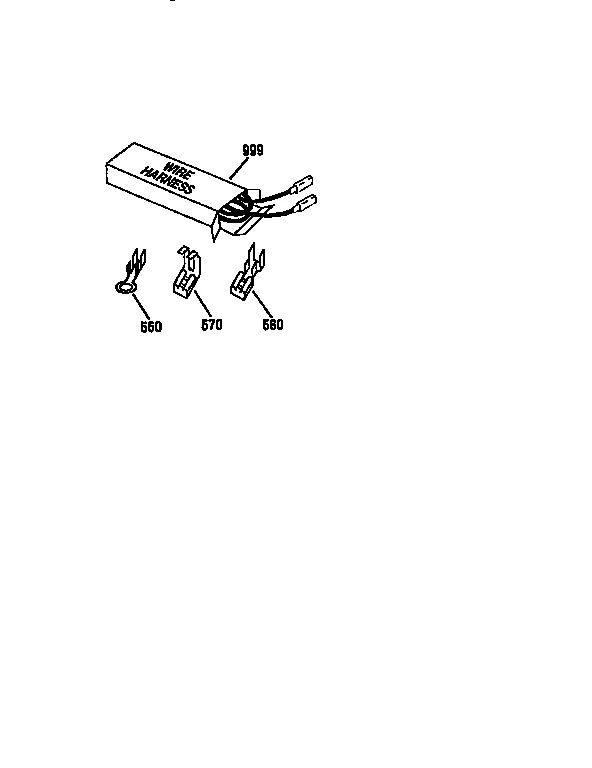

WIRE HARNESS AND COMPONENTS
Common parts from model GE 911.95575790 30" Radiant Freestanding Range (Kenmore 91195575790)
2A
Oven End Cap GEN WB36K5383 Contact Us For Availability
2D
Oven End Cap GEN WB36K5385 Contact Us For Availability
18
Clock Plate GEN WB27T10018 Contact Us For Availability
18A
Clock Plate GEN WB27T10017 Contact Us For Availability
18B
Clock Plate GEN WB27T10019 Contact Us For Availability
19A
Ele Ctl 2000 GEN WB23M0023 Contact Us For Availability
19B
Range Surface Element Control Switch GEN WB23K5041 Contact Us For Availability
21
Hi/lo Bur Sw GEN WB24K5068 Contact Us For Availability
21A
Range Rocker Switch GEN WB24K5036 Contact Us For Availability
21B
Rocker Switch GEN WB24K5146 Contact Us For Availability
21C
Rocker Switch GEN WB24K5088 Contact Us For Availability
21D
Range Surface Element Rocker Switch GEN WB24K5107 Contact Us For Availability
21E
Range Rocker Switch GEN WB24K5147 Contact Us For Availability
21F
Range Dual Surface Element Selector Switch GEN WB24K5067 Contact Us For Availability
21H
Rocker Switch GEN WB24K5145 Contact Us For Availability
22
Simmer Contl GEN WB23T10001 Contact Us For Availability
28
Main Top Bracket GEN WB02K5268 Contact Us For Availability
29
Range Surface Element Knob GEN WB03T10002 Contact Us For Availability
29A
Range Surface Burner Knob GEN WB03T10006 Contact Us For Availability
29B
Infinte Knob GEN WB03T10004 Contact Us For Availability
33A
Surface Light GEN WB25T10001 Contact Us For Availability
42
Disconnect Shield GEN WB34K5092 Contact Us For Availability
48
Vent Box GEN WB38K5049 Contact Us For Availability
51
Glass Main Top GEN WB57T10014 Contact Us For Availability
51A
Glass Main Top GEN WB57T10015 Contact Us For Availability
51B
Glass Main Top GEN WB57T10016 Contact Us For Availability
58
Range Dual Radiant Surface Element GEN WB30T10008 Contact Us For Availability
60
Radiant Spring GEN WB09K5014 Contact Us For Availability
61
Burner Box GEN WB64K5068 Contact Us For Availability
62
RADIANT HEATER BRACKET GEN WB02K5318 Contact Us For Availability
66
Cover Plate GEN WB34K5199 Contact Us For Availability
71
Vent Duct Insert GEN WB35K5052 Contact Us For Availability
71
Insulation Maintop Frame GEN WB35K5111 Contact Us For Availability
76
Vent Tube Ex GEN WB38K5050 Contact Us For Availability
79
Burner Box Baffle GEN WB34M0046 Contact Us For Availability
79A
Burner Box Baffle GEN WB34M0045 Contact Us For Availability
80
Duct Insert Cover GEN WB38K5033 Contact Us For Availability
82
Thermal Switch GEN WB24K5114 Contact Us For Availability
82A
Therm Sw1900 GEN WB24K5103 Contact Us For Availability
82B
Ther Sw 2400 GEN WB24K5089 Contact Us For Availability
88
Range Thermostat Knob GEN WB03T10003 Contact Us For Availability
88A
Range Thermostat Knob GEN WB03T10007 Contact Us For Availability
88B
Thermostat Knob GEN WB03T10005 Contact Us For Availability
90
Support GEN WB02X9877 Contact Us For Availability
90A
Support GEN WB02X9876 Contact Us For Availability
102
Oven Drive Insulation GEN WB35K5026 Contact Us For Availability
111
Door Plug GEN WB55T10005 Contact Us For Availability
112
Door Lining GEN WB55T10003 Contact Us For Availability
113
Retainer GEN WB56X1910 Contact Us For Availability
114
Glass Retainer GEN WB02M0001 Contact Us For Availability
116
Plate GEN WB02X9178 Contact Us For Availability
121
Panel GEN WB57T10009 Contact Us For Availability
121A
Glass W/barr GEN WB57T10007 Contact Us For Availability
121B
Glass Blk GEN WB57T10011 Contact Us For Availability
122
Range Oven Door Middle Glass GEN WB57K5141 Contact Us For Availability
123
Range Oven Door Middle Glass GEN WB56X1907 Contact Us For Availability
124
Drive Frame Insulation (White) GEN WB35K5104 Contact Us For Availability
124A
Drive Frame Insert GEN WB35K5109 Contact Us For Availability
124B
Drive Frame Insulation GEN WB35K5103 Contact Us For Availability
128
Moisture Bar GEN WB34T10002 Contact Us For Availability
136
Oven Handle GEN WB15K5113 Contact Us For Availability
136A
Oven Door Handle GEN WB15K5115 Contact Us For Availability
136B
Door Handle GEN WB15K5114 Contact Us For Availability
140
Oven Door Frame GEN WB55K5053 Contact Us For Availability
140A
Frm Ovn Dr W GEN WB55T10031 Contact Us For Availability
140B
Oven Door Frame GEN WB55K5054 Contact Us For Availability
144
Reinforcement Plate GEN WB02K5316 Contact Us For Availability
147
Door Handle Spacer, Black GEN WB02K5312 Contact Us For Availability
151
Latch GEN WB14K5011 Contact Us For Availability
160
Bracket GEN WB02X9882 Contact Us For Availability
161
Range Oven Door Lock Switch GEN WB24K5092 Contact Us For Availability
171
Insulator GEN WB02X9880 Contact Us For Availability
176
Lever Switch GEN WB02X9881 Contact Us For Availability
178
Lock Box Insert GEN WB35K5027 Contact Us For Availability
181
Drive Insert Retainer GEN WB02K5097 Contact Us For Availability
191
Latch Handle GEN WB02X9434 Contact Us For Availability
192
Lock Knob Wh GEN WB03K5152 Contact Us For Availability
192A
Lock Knob Ad GEN WB03K5191 Contact Us For Availability
192B
Lock Knob Bl GEN WB03K5154 Contact Us For Availability
193
Knob Clip GEN WB02X9404 Contact Us For Availability
195
Spring GEN WB09X0251 Contact Us For Availability
201
Oven Body GEN WB63T10002 Contact Us For Availability
202
Frame GEN WB63T10003 Contact Us For Availability
203
Main GEN WB63K5187 Contact Us For Availability
204
Drawer GEN WB58X0065 Contact Us For Availability
211
Insulation Retainer GEN WB02M0038 Contact Us For Availability
212
Insulation Retainer GEN WB02K5093 Contact Us For Availability
216
Wire Cover GEN WB34M0020 Contact Us For Availability
217
Wire Cover GEN WB34K5093 Contact Us For Availability
221
Body GEN WB63K5188 Contact Us For Availability
221A
Body GEN WB63K5193 Contact Us For Availability
221B
Body GEN WB63K5189 Contact Us For Availability
222
Front Panel GEN WB56K5059 Contact Us For Availability
222A
Frt Pnl Ad GEN WB56K5063 Contact Us For Availability
222B
Fr Panel GEN WB56K5060 Contact Us For Availability
231
Top&sd Insul GEN WB35M0022 Contact Us For Availability
232
Oven Insulation GEN WB35K5113 Contact Us For Availability
233
Insulation GEN WB02X9718 Contact Us For Availability
241
Oven Rack GEN WB48X0208 Contact Us For Availability
256
Ovlamp Hldr GEN WB08K5042 Contact Us For Availability
259
Oven Lamp Lens GEN WB25M0010 Contact Us For Availability
266
Base GEN WB02K5271 Contact Us For Availability
267
Drawer Support GEN WB56M0003 Contact Us For Availability
269
Mounting Plate GEN WB02X9427 Contact Us For Availability
282
Vent Tube GEN WB38T10001 Contact Us For Availability
286
Door Spring GEN WB09X0273 Contact Us For Availability
291
COVER GEN WB02X9152 Contact Us For Availability
292
Rear Block GEN WB02X9146 Contact Us For Availability
293
FRONT SLIDE BLOCK-LT./RT. GEN WBO2X9148 Contact Us For Availability
296
Leveling Leg GEN WB02X9025 Contact Us For Availability
560
Eyelet Terminal GEN WB18M0001 Contact Us For Availability
570
250 Flag GEN STD374251 Contact Us For Availability
580
187 Push On GEN STD374180 Contact Us For Availability
580A
250 Push On GEN STD374250 Contact Us For Availability
674
Screw GEN WB01T10001 Contact Us For Availability
691A
Trim Screw GEN WB01K5176 Contact Us For Availability
802
Drive Seal Retainer GEN WB02K5123 Contact Us For Availability
811
Screw GEN WB01X1172 Contact Us For Availability
812A
Screw-almond GEN WB01K5158 Contact Us For Availability
812B
Screw Black GEN WB01K5160 Contact Us For Availability
817
Screw GEN WB01X1346 Contact Us For Availability
871
Screw GEN WB01M0013 Contact Us For Availability
926
GROUND WASHER GEN WB01X1260 Contact Us For Availability
934
Washer GEN WB01K5054 Contact Us For Availability
951
Clip Backsplash GEN WB02X9443 Contact Us For Availability
965
Cleat GEN WB02X9000 Contact Us For Availability
976
Pal Nut GEN WB01X1251 Contact Us For Availability
979
Spacer GEN WB01X1177 Contact Us For Availability
999
Main Top Harness GEN WB18T10012 Contact Us For Availability
999A
Main Harness GEN WB18T10011 Contact Us For Availability
999B
Lock Switch Harness GEN WB18K5492 Contact Us For Availability
999C
Range Sensor Wire Harness GEN WB18K5598 Contact Us For Availability
999D
Simmer Harns GEN WB18K5662 Contact Us For Availability
NI
MINI MANUAL W/WIRE DIAGRAM GEN 31-13463 Contact Us For Availability
NI
Parts List GEN 31-13504 Contact Us For Availability
NI
Installation Instructions GEN SR10207 Contact Us For Availability
NI
Owner's Manual GEN SR10326 Contact Us For Availability
× ![]()
