GE 911.47456590 27" Electric Built-In Oven (Kenmore 91147456590) Parts List

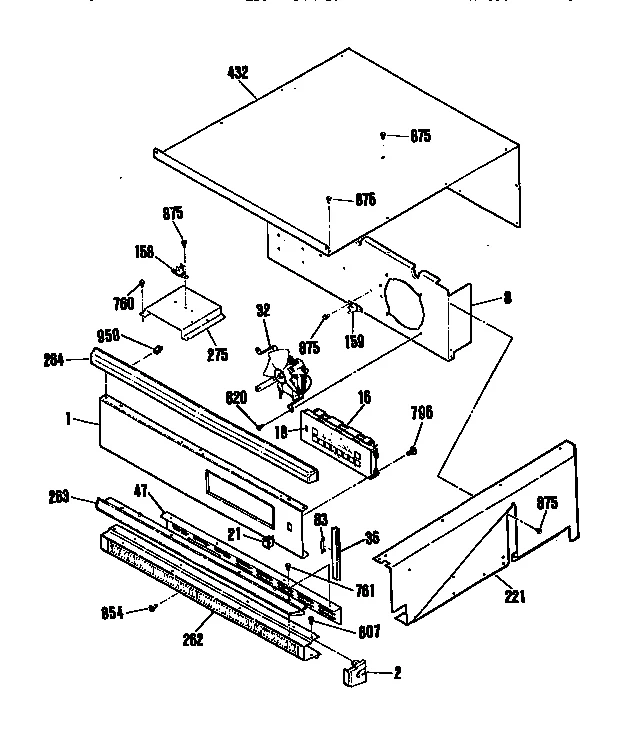

1

Control Panel GEN WB36K5574 Contact Us For Availability

View on Model

2

Trim End Cap GEN WB36K5339 Contact Us For Availability

View on Model

2A

Trim End Cap GEN WB36K5340 Contact Us For Availability

View on Model

8

Fan Support GEN WB02K5257 Contact Us For Availability

View on Model

16

Oven Control GEN WB27K5140 Contact Us For Availability

View on Model

18

Clock Plate GEN WB27K5225 Contact Us For Availability

View on Model

21

Rocker Switch GEN WB24K5088 Contact Us For Availability

View on Model

32

Wall Oven Cooling Fan Assembly GEN WB26K5045 Contact Us For Availability

View on Model

36

End Trim Panel GEN WB07K5243 Contact Us For Availability

View on Model

36A

End Trim Panel GEN WB07K5242 Contact Us For Availability

View on Model

47

WB38K5029 GE Oven Vent Barrier Backorder GEN WB38K5029 $34.78

View on Model

79

WB34K5077 GE Oven Door Baffle Backorder GEN WB34K5077 $21.80

View on Model

83

E Trim Sprg GEN WB09K5008 Contact Us For Availability

View on Model

101

WB35K5054 GE Oven Door Insulation Backorder GEN WB35K5054 $30.43

View on Model

102

Insert Drive Plug GEN WB35K5050 Contact Us For Availability

View on Model

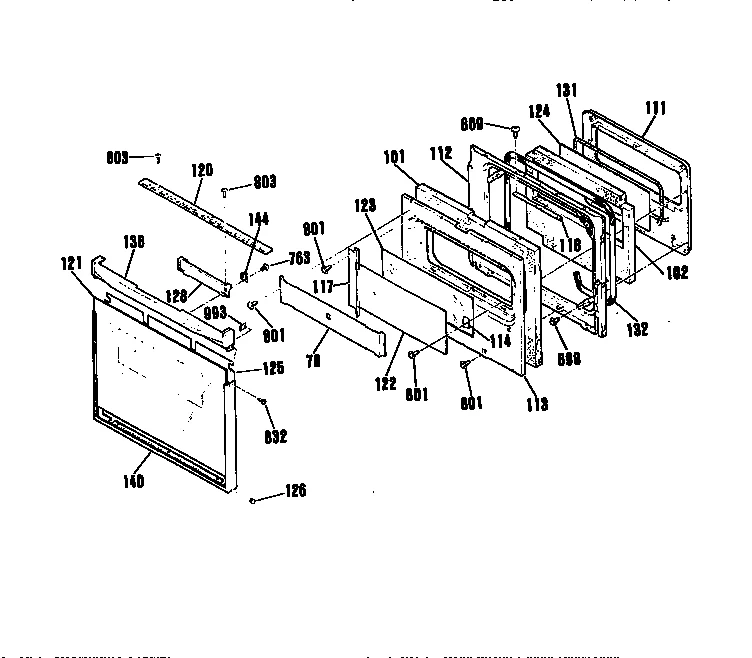

111

Oven Door Line GEN WB55K5018 Contact Us For Availability

View on Model

112

Oven Door Line GEN WB55K5017 Contact Us For Availability

View on Model

113

Oven Door Insulation Retainer GEN WB02K5127 Contact Us For Availability

View on Model

114

Glass Retainer GEN WB02M0001 Contact Us For Availability

View on Model

117

Oven Door Glass Retainer GEN WB02K5131 Contact Us For Availability

View on Model

118

Odr Lin Stif GEN WB02K5132 Contact Us For Availability

View on Model

120

Ovdr Top Fil GEN WB07K5144 Contact Us For Availability

View on Model

121

Oven Door Outer Glass GEN WB57K5283 Contact Us For Availability

View on Model

122

Range Oven Door Middle Glass GEN WB57K5102 Contact Us For Availability

View on Model

123

Ov Dr In Gl GEN WB57K5038 Contact Us For Availability

View on Model

124

Ovdr In Glas GEN WB57K5063 Contact Us For Availability

View on Model

125

Heat Reflector GEN WB34K5091 Contact Us For Availability

View on Model

126

Button Plug GEN WB03K5077 Contact Us For Availability

View on Model

128

Oven Door Handle GEN WB15K5103 Contact Us For Availability

View on Model

131

WB2X9168 GE Oven Seal Backorder GEN WB2X9168 $15.66

View on Model

132

WB32K5038 GE Oven Door Gasket Backorder GEN WB32K5038 $184.39

View on Model

136

Ovdr Hndl Ad GEN WB15K5102 Contact Us For Availability

View on Model

140

Oven Door Frame GEN WB56K5149 Contact Us For Availability

View on Model

144

Handle Insert Bracket GEN WB02K5253 Contact Us For Availability

View on Model

158

WB24K5033 GE Oven Limit Switch Backorder GEN WB24K5033 $70.36

View on Model

159

WB24K5085 GE Oven Limit Switch Backorder GEN WB24K5085 $64.36

View on Model

185

WB15K5016 GE Oven Lock Lever Assembly Backorder GEN WB15K5016 $42.08

View on Model

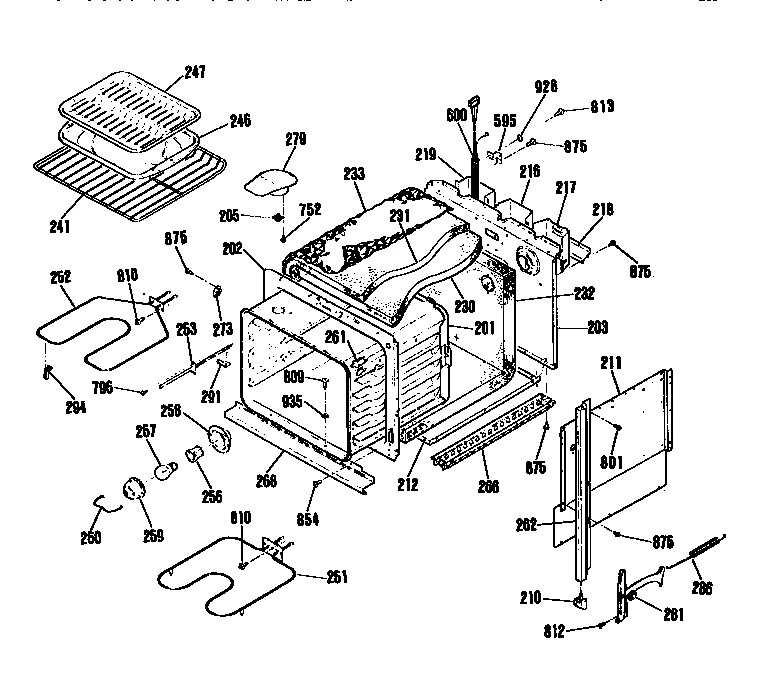

211

WB63T10043 GE Cabinet Side Backorder GEN WB63T10043 $51.51

View on Model

212

Cabinet GEN WB63K5080 Contact Us For Availability

View on Model

216

COVER WIRE ELEMENT GEN WB34K5069 Contact Us For Availability

View on Model

217

Cover Wire Light GEN WB34K5070 Contact Us For Availability

View on Model

218

Wire Cover GEN WB34K5067 Contact Us For Availability

View on Model

219

WB34K5082 GE Oven Wire Cover Conduit Backorder GEN WB34K5082 $10.89

View on Model

221

Side Ext Rt GEN WB63K5082 Contact Us For Availability

View on Model

221A

Side Ext Lt GEN WB63K5083 Contact Us For Availability

View on Model

230

WB35K5048 GE Inner Wrapper Insulation Backorder GEN WB35K5048 $144.43

View on Model

231

WB35K5068 GE Insulation Wrapper Backorder GEN WB35K5068 $73.57

View on Model

232

Insulation GEN WB35K5089 Contact Us For Availability

View on Model

233

Heat Reflector GEN WB34K5080 Contact Us For Availability

View on Model

241

WB48T10093 GE Oven Range Rack In Stock GEN WB48T10093 $87.06

View on Model

247

WB48X10056 GE Broil Pan Set, Large Porcelain In Stock GEN WB48X10056 $26.94

View on Model

251

WB44K5013 GE Oven Bake Element Range In Stock GEN WB44K5013 $70.35

View on Model

252

WB44K5009 GE Oven Broil Element In Stock GEN WB44K5009 $73.09

View on Model

253

WB21X5301 GE Range Oven Temperature Sensor Pr In Stock GEN WB21X5301 $121.76

View on Model

256

WB8K5029 GE Oven Lamp Holder Backorder GEN WB8K5029 $29.63

View on Model

257

8009 Whirlpool 40W 120V Light Bulb In Stock WPL 8009 $16.02

View on Model

258

Housing GEN WB02X7693 Contact Us For Availability

View on Model

259

WB36X192 GE Oven Light Cover In Stock GEN WB36X192 $15.45

View on Model

260

Bail GEN WB02X7694 Contact Us For Availability

View on Model

261

Jam Switch GEN WB24K5061 Contact Us For Availability

View on Model

262

Vert Sd Trim GEN WB07K5390 Contact Us For Availability

View on Model

262

Vent Trim Ad GEN WB07K5392 Contact Us For Availability

View on Model

262A

Vert Sd Trim GEN WB07K5391 Contact Us For Availability

View on Model

263

Ibrow Trm Ad GEN WB07K5231 Contact Us For Availability

View on Model

264

Trim Control Panel GEN WB07K5395 Contact Us For Availability

View on Model

266

WB63K5079 GE Rail Base Backorder GEN WB63K5079 $44.07

View on Model

268

Frame Trim GEN WB07K5253 Contact Us For Availability

View on Model

273

COVER GEN WB02K5365 Contact Us For Availability

View on Model

275

WB34K5078 GE Oven Vent Box Cover Backorder GEN WB34K5078 $6.64

View on Model

279

Insulation GEN WB35K5051 Contact Us For Availability

View on Model

281

Oven Drive Hinge GEN WB14K5006 Contact Us For Availability

View on Model

281A

Wall Oven Door Hinge, Left GEN WB14K5007 Contact Us For Availability

View on Model

286

Oven Door Spring GEN WB09K5022 Contact Us For Availability

View on Model

291

COVER GEN WB02X9152 Contact Us For Availability

View on Model

294

WB2X9719 GE Oven Support Bracket Clip In Stock GEN WB2X9719 $9.98

View on Model

432

Cover GEN WB63K5081 Contact Us For Availability

View on Model

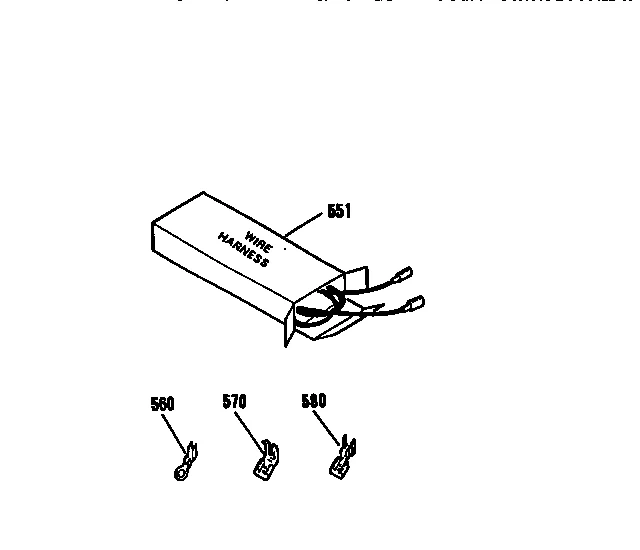

551

Lk Mtr Harn GEN WB18K5210 Contact Us For Availability

View on Model

551

Main Harness GEN WB18K5450 Contact Us For Availability

View on Model

560

Eyelet Terminal GEN WB18M0001 Contact Us For Availability

View on Model

570

250 Flag GEN STD374251 Contact Us For Availability

View on Model

580

187 Push On GEN STD374180 Contact Us For Availability

View on Model

580

250 Push On GEN STD374250 Contact Us For Availability

View on Model

595

WB2K5126 GE Oven Condenser Clamp Backorder GEN WB2K5126 $9.56

View on Model

600

Control Wire GEN WB18K5364 Contact Us For Availability

View on Model

699

WB1M1 GE Oven Screw Backorder GEN WB1M1 $7.75

View on Model

752

Screw GEN WB00X6542 Contact Us For Availability

View on Model

760

WB1X536 GE Oven Screw Backorder GEN WB1X536 $9.85

View on Model

761

WB1K5062 GE Oven Screw Backorder GEN WB1K5062 $8.07

View on Model

763

Screw Dbl Ld GEN WB01K0015 Contact Us For Availability

View on Model

796

WB1K5116 GE Oven Screw Backorder GEN WB1K5116 $8.07

View on Model

803

WB1X1149 GE Oven Screw Backorder GEN WB1X1149 $8.07

View on Model

807

WB1K5177 GE Range Trim Screw Backorder GEN WB1K5177 $7.17

View on Model

809

WB1X1137 GE Oven Screw Backorder GEN WB1X1137 $8.88

View on Model

810

WB1X1130 GE Oven Screw 10-32 Backorder GEN WB1X1130 $8.07

View on Model

812

WB1K5191 GE Oven Zinc FL Screw Backorder GEN WB1K5191 $8.07

View on Model

813

WB1X1261 GE Oven Screw Backorder GEN WB1X1261 $8.07

View on Model

820

WB1X1424D GE Oven Screw Package Backorder GEN WB1X1424D $6.90

View on Model

832

WB1X1118 GE Oven Screw 6-32T Backorder GEN WB1X1118 $8.07

View on Model

854

Screw (Black) GEN WB01X1328 Contact Us For Availability

View on Model

875

WH2X930 GE Screw Backorder GEN WH2X930 $8.07

View on Model

926

GROUND WASHER GEN WB01X1260 Contact Us For Availability

View on Model

935

WB1K5174 GE Oven Washer Backorder GEN WB1K5174 $8.07

View on Model

950

Cable Clip GEN WB01K5135 Contact Us For Availability

View on Model

993

Speed Nut Fl GEN WB01K5141 Contact Us For Availability

View on Model

NI

Installation GEN SR10171 Contact Us For Availability

View on Model

NI

Kenmore User's Manual GEN SR10266 Contact Us For Availability

View on Model

NI

Wiring Diagram GEN SR13509 Contact Us For Availability

View on Model

NI

Repair Parts List GEN SR13553 Contact Us For Availability

View on Model
