Model GE 911.46759590 30" Radiant Slide-In Range (Kenmore 91146759590) – Common Parts & Diagrams
MAIN TOP SECTION
All Parts

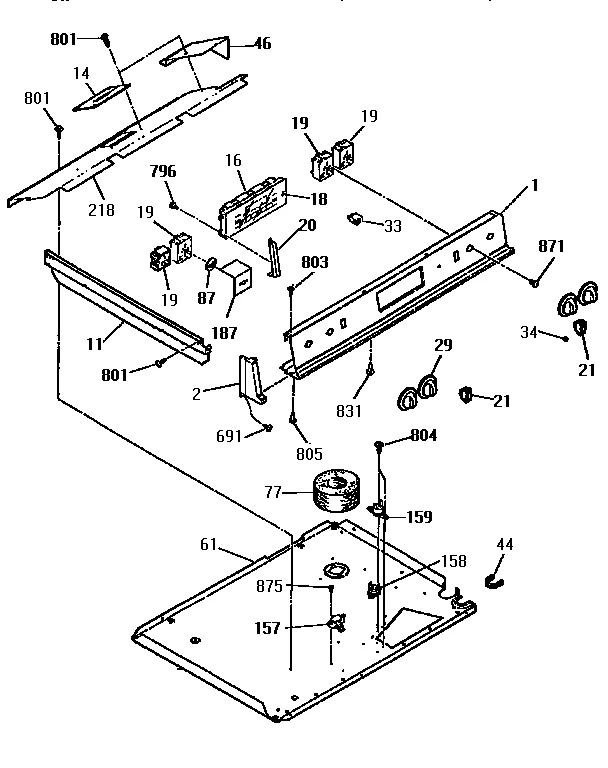

CONTROL PANEL SECTION

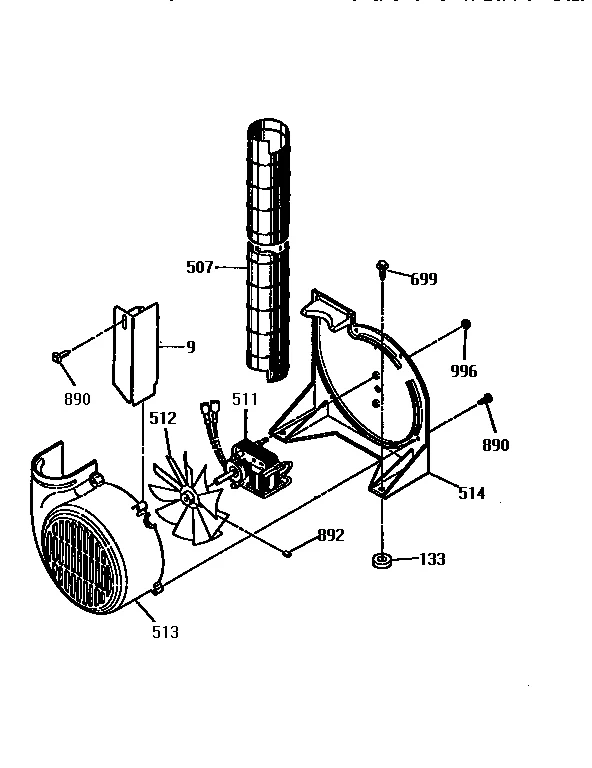

BLOWER SECTION

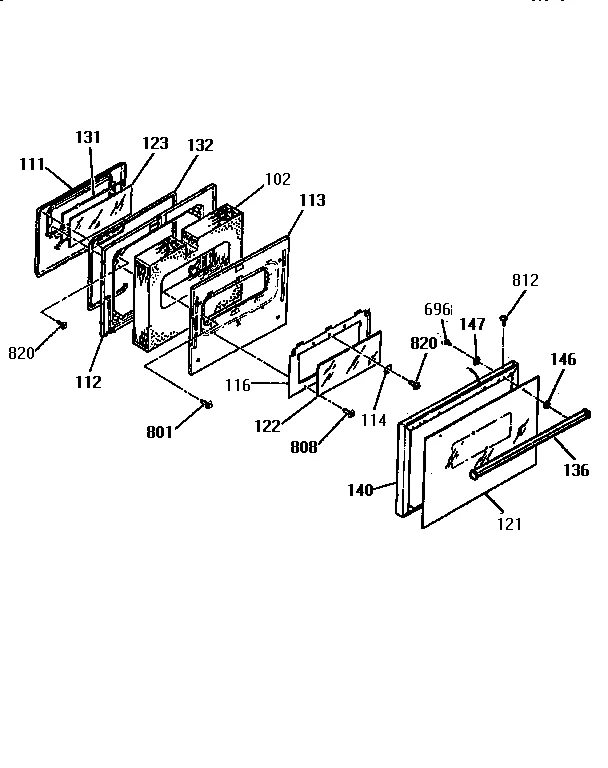

DOOR SECTION

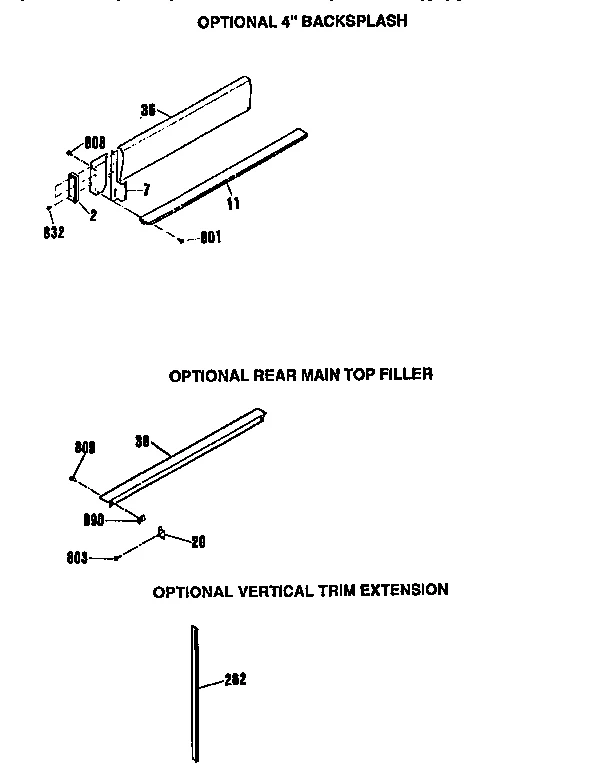

OPTIONAL KITS

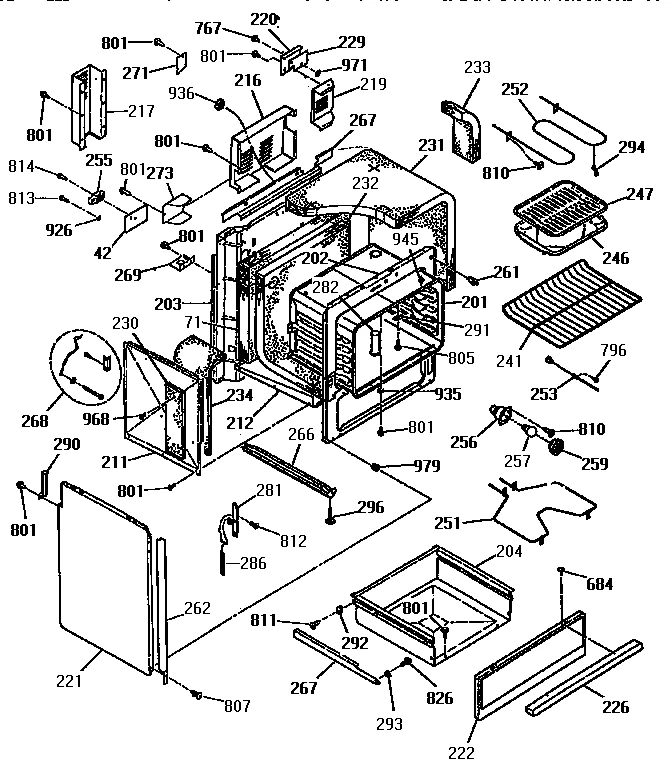

BODY SECTION

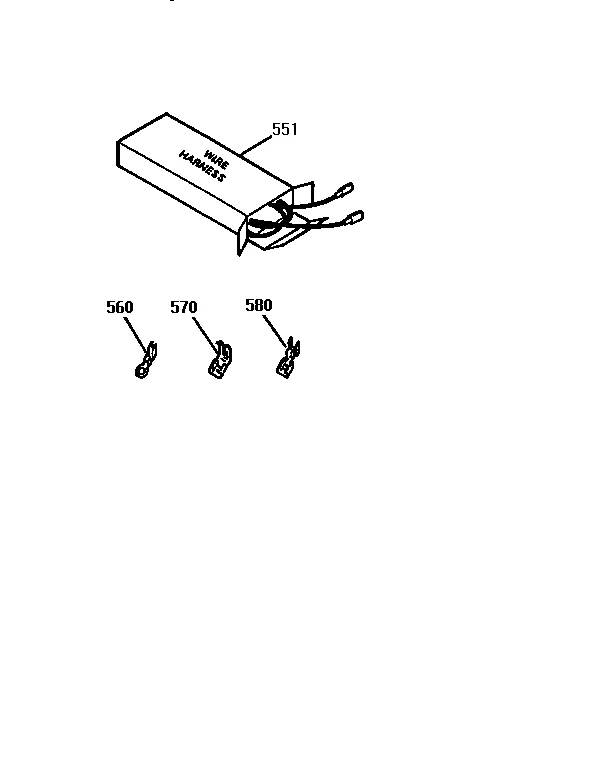

WIRE HARNESS

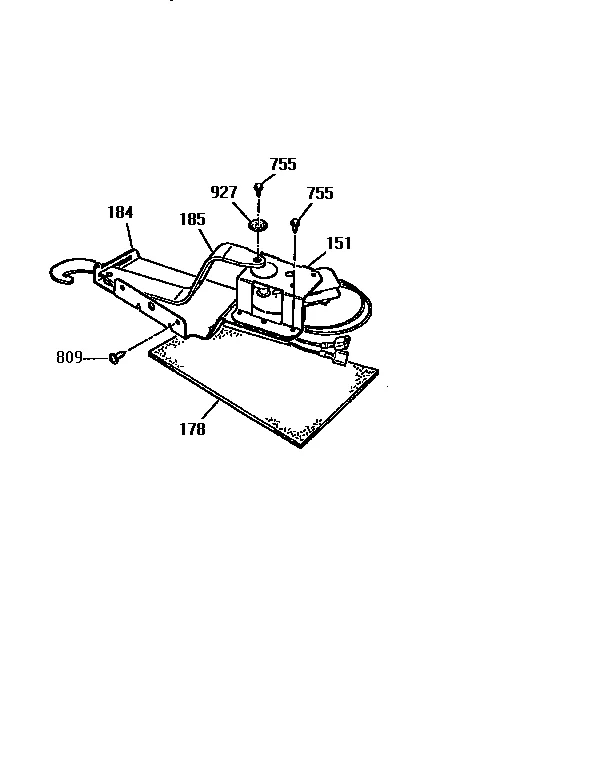

DOOR LOCK SECTION
Common parts from model GE 911.46759590 30" Radiant Slide-In Range (Kenmore 91146759590)
1
Ctrl Pnl-ad GEN WB36K5587 Contact Us For Availability
1A
Control Panel GEN WB36K5413 Contact Us For Availability
1B
Control Panel (Black) GEN WB36K5414 Contact Us For Availability
2
End Cap GEN WB36K5440 Contact Us For Availability
2
End Cap GEN WB36K5497 Contact Us For Availability
2A
End Cap GEN WB36K5498 Contact Us For Availability
2A
End Cap GEN WB36K5439 Contact Us For Availability
2B
End Cap GEN WB36K5378 Contact Us For Availability
2C
Range Control Panel End Cap, Right GEN WB36K5379 Contact Us For Availability
2D
End Cap GEN WB54K5411 Contact Us For Availability
2E
End Cap GEN WB54K5410 Contact Us For Availability
7
Backguard Support GEN WB02K5153 Contact Us For Availability
7A
Backguard Support GEN WB02K5152 Contact Us For Availability
9
Raceway GEN WB34K5056 Contact Us For Availability
11
Wire Cover GEN WB64K5038 Contact Us For Availability
11
Range Top Trim Kit GEN WB36K5047 Contact Us For Availability
14
Wire Cvr Plt GEN WB34K5120 Contact Us For Availability
16
Oven Control GEN WB27K5140 Contact Us For Availability
18
Clock Plate GEN WB27K5225 Contact Us For Availability
18A
Range Oven Control Faceplate GEN WB27K5166 Contact Us For Availability
18B
Clock Plate GEN WB27K5167 Contact Us For Availability
19
Control Element GEN WB24M0025 Contact Us For Availability
19B
Ele Ctl 2000 GEN WB23M0023 Contact Us For Availability
20
Bracket Clock GEN WB02M0075 Contact Us For Availability
20
Trim Bracket GEN WB02M0077 Contact Us For Availability
21
Rocker Switch GEN WB24K5081 Contact Us For Availability
21A
Rocker Switch GEN WB24K5082 Contact Us For Availability
21B
Light Switch (Black) GEN WB24X0415 Contact Us For Availability
21C
Dual Ele Swi GEN WB24M0012 Contact Us For Availability
21E
Surface Rocker Switch GEN WB24K5064 Contact Us For Availability
29
Inf Knob-ad GEN WB03K5262 Contact Us For Availability
29A
Inf Knob Blk GEN WB03K5197 Contact Us For Availability
29B
Inf Knob Wht GEN WB03K5199 Contact Us For Availability
36
Backsplash (White) GEN WB36K5045 Contact Us For Availability
38
Filter Trim Maintop GEN WB07K5032 Contact Us For Availability
38A
Filter Trim Maintop GEN WB07K5033 Contact Us For Availability
38B
FILLER MAIN TOP REAR 2" GEN WB07K1586 Contact Us For Availability
42
Disc Shield GEN WB34K5128 Contact Us For Availability
44
Gromet Strp GEN WB02X9725 Contact Us For Availability
44A
Grommet GEN WB02K5096 Contact Us For Availability
46
Extension Wire Cover GEN WB34K5111 Contact Us For Availability
58
Range Dual Radiant Surface Element GEN WB23K5045 Contact Us For Availability
61
Burner Box GEN WB64K5045 Contact Us For Availability
71
Insul Bk/bot GEN WB35K5075 Contact Us For Availability
77
Vent Seal GEN WB32M0016 Contact Us For Availability
82
Ther Sw 2400 GEN WB24K5089 Contact Us For Availability
82A
Range Surface Element Temperature Limiter GEN WB24K5071 Contact Us For Availability
82B
Range Surface Element Temperature Limiter GEN WB24K5070 Contact Us For Availability
95
Indicator Light Bracket GEN WB02K5324 Contact Us For Availability
102
Oven Drive Insulation GEN WB35K5026 Contact Us For Availability
111
Oven Drive Plug GEN WB55K5037 Contact Us For Availability
112
Ovdr Lining GEN WB55K5038 Contact Us For Availability
113
Retainer GEN WB56X1910 Contact Us For Availability
114
Glass Retainer GEN WB02M0001 Contact Us For Availability
116
Plate GEN WB02X9178 Contact Us For Availability
121
Door Glass Outer Oven GEN WB57K5216 Contact Us For Availability
121A
Ov Dr Gls Ad GEN WB57K5287 Contact Us For Availability
121B
Oven Door Glass GEN WB57K5215 Contact Us For Availability
122
Range Oven Door Middle Glass GEN WB57K5141 Contact Us For Availability
123
Range Oven Door Middle Glass GEN WB56X1907 Contact Us For Availability
133
Felt Washer GEN WB01X1159 Contact Us For Availability
136
Dr Hndl Wht GEN WB15K5073 Contact Us For Availability
136A
Oven Door Handle GEN WB15K5104 Contact Us For Availability
136B
Dr Hndl Blk GEN WB15K5074 Contact Us For Availability
140
Oven Door Frame GEN WB56K5132 Contact Us For Availability
140A
Oven Drive Frame GEN WB56K5138 Contact Us For Availability
140B
Oven Door Frame GEN WB56K5144 Contact Us For Availability
146
Spacer GEN WB02X9640 Contact Us For Availability
146A
Oven Door Spacer GEN WB02K5302 Contact Us For Availability
146B
Spacer Handle (Black) GEN WB02X9037 Contact Us For Availability
147
Door Handle Spacer, Black GEN WB02K5312 Contact Us For Availability
157
Limit Switch GEN WB24K5029 Contact Us For Availability
159
Fan Limit Switch GEN WB24M0015 Contact Us For Availability
178
Flue/sup Ins GEN WB35M0015 Contact Us For Availability
178
Lock Motor Insert GEN WB35M0023 Contact Us For Availability
187
In Moist Bar GEN WB34M0036 Contact Us For Availability
201
Oven Body GEN WB63K5109 Contact Us For Availability
202
Frame GEN WB63M0057 Contact Us For Availability
203
Main GEN WB63M0056 Contact Us For Availability
204
Drawer GEN WB58X0065 Contact Us For Availability
211
Insulation Retainer GEN WB02M0004 Contact Us For Availability
212
Insulation Retainer GEN WB02K5093 Contact Us For Availability
216
Wire Shield GEN WB34M0041 Contact Us For Availability
217
Wire Cover GEN WB34K5093 Contact Us For Availability
218
Wire Cover GEN WB34K5133 Contact Us For Availability
219
Wire Shield GEN WB34K5221 Contact Us For Availability
220
Flue Shield GEN WB34K5175 Contact Us For Availability
221
Body GEN WB63M0024 Contact Us For Availability
221A
Body GEN WB63M0058 Contact Us For Availability
221B
Body GEN WB63K5195 Contact Us For Availability
221C
Body GEN WB63K5192 Contact Us For Availability
222
L Ft Pnl Wh GEN WB56K5017 Contact Us For Availability
222A
L Ft Pnl Ad GEN WB56K5018 Contact Us For Availability
222B
Lwr Frt Pnl GEN WB56K5022 Contact Us For Availability
226
Drwr Hndl Ad GEN WB15K5083 Contact Us For Availability
229
Flue Shd Ins GEN WB35K5085 Contact Us For Availability
230
Bdy Side Ins GEN WB35M0014 Contact Us For Availability
231
Insulation GEN WB02X9676 Contact Us For Availability
232
Insert GEN WB35K5029 Contact Us For Availability
233
Insulation GEN WB35M0024 Contact Us For Availability
234
Ov Sd Ft Ins GEN WB35M0017 Contact Us For Availability
241
Oven Rack GEN WB48X0208 Contact Us For Availability
256
Ovlamp Hldr GEN WB08K5042 Contact Us For Availability
259
Oven Lamp Lens GEN WB25M0010 Contact Us For Availability
262
Vent Trim GEN WB07M0018 Contact Us For Availability
262
Ver Trim Ext GEN WB07K5024 Contact Us For Availability
262
Vert Sd Trim GEN WB07K5333 Contact Us For Availability
262A
Vert Sd Tr L GEN WB07K5064 Contact Us For Availability
262A
Vert Sd Trim GEN WB07K5334 Contact Us For Availability
262B
Vert Sd Trim GEN WB07K5301 Contact Us For Availability
262C
Vert Sd Trim GEN WB07K5302 Contact Us For Availability
262D
Sd Trim Lt GEN WB07K5297 Contact Us For Availability
262E
Sd Trim Rt GEN WB07K5298 Contact Us For Availability
266
Base GEN WB02K5334 Contact Us For Availability
267
Main Top Support GEN WB02M0080 Contact Us For Availability
267A
Drawer Support GEN WB56M0003 Contact Us For Availability
269
Mounting Plate GEN WB02X9427 Contact Us For Availability
271
Cover Plate GEN WB02X9749 Contact Us For Availability
273
Wire Lit Cvr GEN WB34M0027 Contact Us For Availability
282
Vent Tube GEN WB38M0014 Contact Us For Availability
286
Oven Drive Spring GEN WB09X0244 Contact Us For Availability
290
Body Sd Fill GEN WB63M0021 Contact Us For Availability
291
COVER GEN WB02X9152 Contact Us For Availability
292
Rear Block GEN WB02X9146 Contact Us For Availability
293
Block GEN WB02X9148 Contact Us For Availability
296
Range Level Screw GEN WB01M0018 Contact Us For Availability
337
Heater Support GEN WB02K5374 Contact Us For Availability
507
Flex Hose GEN WB26M0017 Contact Us For Availability
511
Blower Motor GEN WB26K5044 Contact Us For Availability
512
Fan Blade GEN WB26M0013 Contact Us For Availability
513
Range Blower Housing GEN WB26K5056 Contact Us For Availability
514
Blower Plate GEN WB26K5043 Contact Us For Availability
551
Mtop W Harn GEN WB18K5496 Contact Us For Availability
551A
Main Wiring Harness GEN WB18K5438 Contact Us For Availability
551B
Inf W Harn R GEN WB18K5318 Contact Us For Availability
551C
Inf W Harn L GEN WB18K5319 Contact Us For Availability
551D
Lck Mtr Harn GEN WB18K5363 Contact Us For Availability
560
Eyelet Terminal GEN WB18M0001 Contact Us For Availability
570
250 Flag GEN STD374251 Contact Us For Availability
580
187 Push On GEN STD374180 Contact Us For Availability
580A
250 Push On GEN STD374250 Contact Us For Availability
588
Indicator Light GEN WB25K5019 Contact Us For Availability
684
Screw-almond GEN WB01K5184 Contact Us For Availability
684A
Screw-black GEN WB01K5190 Contact Us For Availability
684B
Screw (White) GEN WB01K5179 Contact Us For Availability
691B
Trim Screw GEN WB01K5176 Contact Us For Availability
752
Screw GEN WB00X6542 Contact Us For Availability
767
Screw GEN WB01K5136 Contact Us For Availability
805
Screw GEN WB01X1113 Contact Us For Availability
807A
Screw-almond GEN WB01K5168 Contact Us For Availability
811
Screw GEN WB01X1172 Contact Us For Availability
812A
Screw-almond GEN WB01K5158 Contact Us For Availability
812B
Screw Black GEN WB01K5160 Contact Us For Availability
826
Screw GEN WB01X1167 Contact Us For Availability
831
Screw-6-32 GEN WB01X1132 Contact Us For Availability
871
Screw GEN WB01K5122 Contact Us For Availability
892
Set Screw GEN WB01K5056 Contact Us For Availability
920
Pop Rivet GEN WB01K5147 Contact Us For Availability
926
GROUND WASHER GEN WB01X1260 Contact Us For Availability
936
Snap Bushing GEN WB02M0021 Contact Us For Availability
962
Clip GEN WB17M0004 Contact Us For Availability
968
Dart Button GEN WB02X9393 Contact Us For Availability
971
Speed Nut GEN WB01M0025 Contact Us For Availability
979
Spacer GEN WB01X1177 Contact Us For Availability
990
Speed Nut GEN WB01X1432 Contact Us For Availability
996
Hex Nut GEN WB01M0041 Contact Us For Availability
NI
Installation Instructions GEN SR10011 Contact Us For Availability
NI
Installation Filler GEN SR10054 Contact Us For Availability
NI
Installation GEN SR10056 Contact Us For Availability
NI
Backguard Kit GEN SR10099 Contact Us For Availability
NI
Range User's Manual GEN SR10222 Contact Us For Availability
NI
Wiring Diagram GEN SR13490 Contact Us For Availability
NI
Repair Parts List GEN SR13559 Contact Us For Availability
× ![]()
