Model GE 911.30465690 Gas Self-Cleaning Wall Oven with Extended Delayed Ignition (Kenmore 91130465690) – Common Parts & Diagrams
CONTROL SECTION

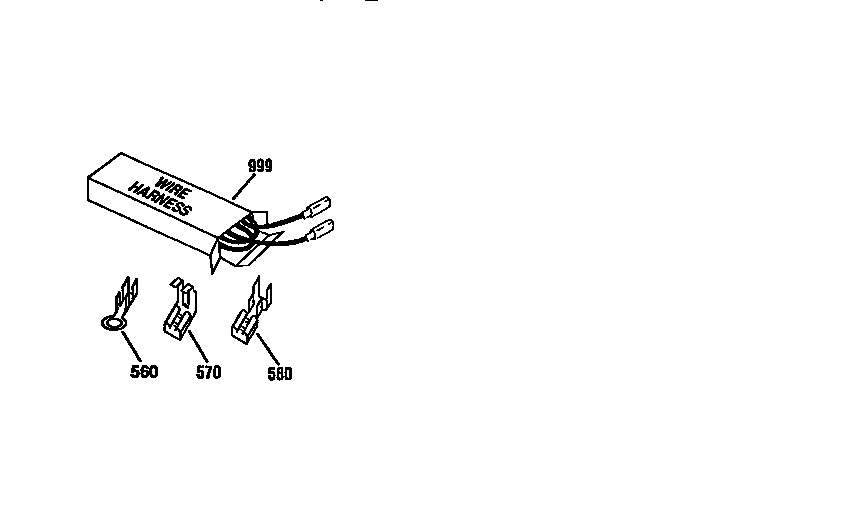

WIRE HARNESS AND COMPONENTS

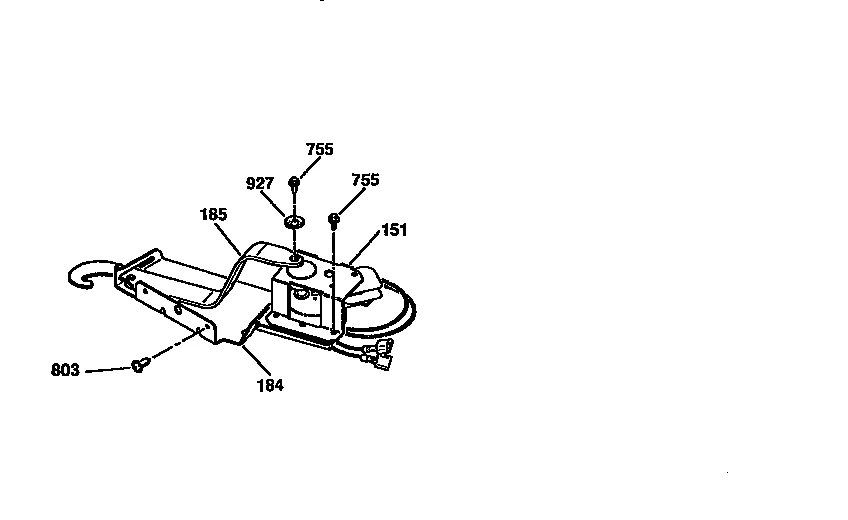

DOOR LOCK

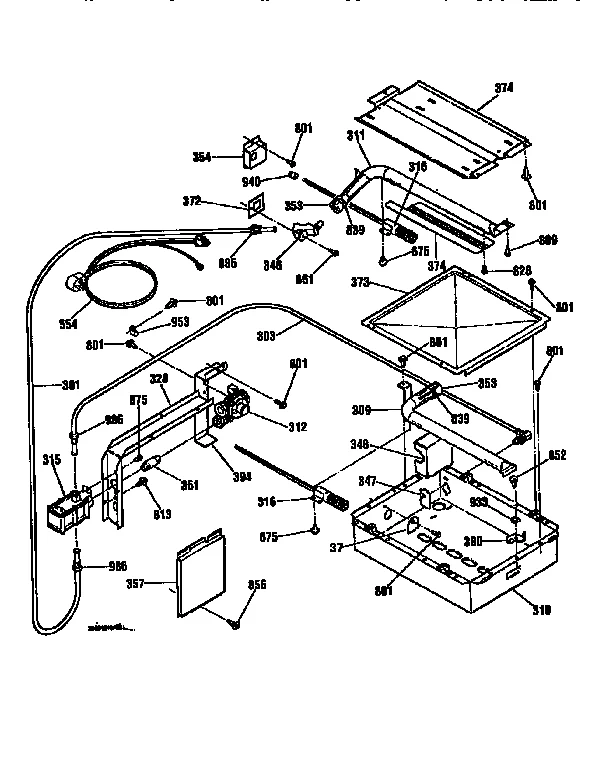

BURNER SECTION

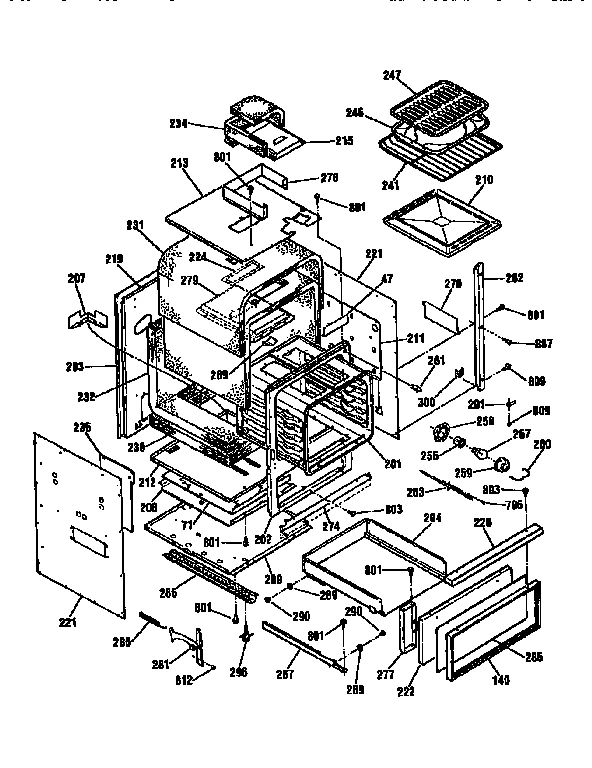

BODY SECTION

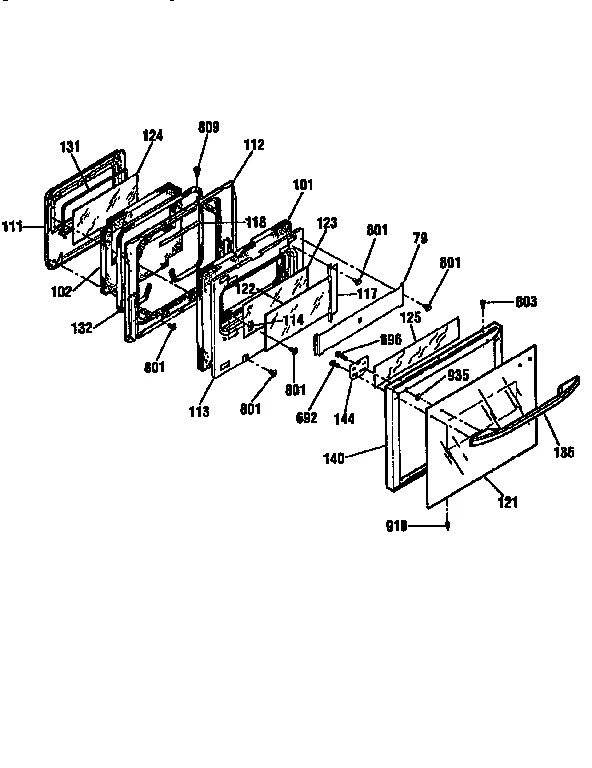

DOOR SECTION
Common parts from model GE 911.30465690 Gas Self-Cleaning Wall Oven with Extended Delayed Ignition (Kenmore 91130465690)
47
Barrier GEN WB38K5036 Contact Us For Availability
71
Insulation GEN WB35K5128 Contact Us For Availability
102
Oven Door Plug Insert GEN WB35K5055 Contact Us For Availability
111
Ov Dr L Plug GEN WB55K5014 Contact Us For Availability
112
Oven Door Line GEN WB55K5023 Contact Us For Availability
114
Glass Retainer GEN WB02M0001 Contact Us For Availability
117
Oven Door Glass Retainer GEN WB02K5131 Contact Us For Availability
118
Odr Lin Stif GEN WB02K5132 Contact Us For Availability
121
Wall Oven Door Outer Panel (White) GEN WB57K5326 Contact Us For Availability
121A
Wall Oven Door Outer Panel (Black) GEN WB57K5327 Contact Us For Availability
122
Ovdr In Glas GEN WB57K5093 Contact Us For Availability
124
Oven Door Glass GEN WB57M0022 Contact Us For Availability
132
Wall Oven Door Seal GEN WB32K5037 Contact Us For Availability
136
Door Hdl-wht GEN WB15K5126 Contact Us For Availability
136A
Door Hndl-bl GEN WB15K5125 Contact Us For Availability
140
LOWER FRONT PANEL TRIM, WHITE GEN WGB56K5043 Contact Us For Availability
140
Oven Door Frame GEN WB55K5078 Contact Us For Availability
140A
Oven Door Frame GEN WB55K5075 Contact Us For Availability
140A
Foot Panel Frame GEN WB56K5118 Contact Us For Availability
157
Limit Switch GEN WB24K5045 Contact Us For Availability
178
Oven Body Insert GEN WB35K5059 Contact Us For Availability
201
Oven Body GEN WB63K5199 Contact Us For Availability
202
Frame GEN WB63K5164 Contact Us For Availability
204
Oven Broiler Drawer GEN WB58K5003 Contact Us For Availability
210
Oven GEN WB63K5097 Contact Us For Availability
211
Ov Sd Insul GEN WB02K5266 Contact Us For Availability
213
Insert Retainer GEN WB02K5265 Contact Us For Availability
215
Deflector Fl GEN WB38K5063 Contact Us For Availability
219
Insul Ret R GEN WB02K5167 Contact Us For Availability
221
Body GEN WB63K5099 Contact Us For Availability
230
Oven Bottom Insulation GEN WB35K5056 Contact Us For Availability
234
Insulation GEN WB35K5125 Contact Us For Availability
235
Ins Body Sd GEN WB35K5064 Contact Us For Availability
258
Housing GEN WB02X7693 Contact Us For Availability
260
Bail GEN WB02X7694 Contact Us For Availability
261
Jam Switch GEN WB24K5061 Contact Us For Availability
262
Trim (White) GEN WB07K5021 Contact Us For Availability
262A
Vent Trim-bl GEN WB07K5477 Contact Us For Availability
263
I-brow Trm-w GEN WB07K5494 Contact Us For Availability
263A
I-brow Trm-b GEN WB07K5478 Contact Us For Availability
266
Channel GEN WB02X9634 Contact Us For Availability
267A
Drwr Gd Asm GEN WB39M0004 Contact Us For Availability
270
Cover Plate GEN WB02X9642 Contact Us For Availability
274
Trim Foot Frame GEN WB07K5113 Contact Us For Availability
274A
Trim Foot Frame GEN WB07K5114 Contact Us For Availability
274B
Lo Ft F Trim GEN WB07K5019 Contact Us For Availability
274C
Lwr Frt Trim GEN WB07M0003 Contact Us For Availability
277
Lo Pnl Liner GEN WB55K5024 Contact Us For Availability
278
Heat Shield GEN WB34K5100 Contact Us For Availability
279
Vent Box GEN WB38K5064 Contact Us For Availability
281
Wall Oven Door Hinge, Left GEN WB14K5007 Contact Us For Availability
281A
Oven Drive Hinge GEN WB14K5006 Contact Us For Availability
285
Lo Pnl Ovrly GEN WB56K5042 Contact Us For Availability
286
Oven Drive Spring GEN WB09K5017 Contact Us For Availability
289
Roller Kit GEN WB02X9638 Contact Us For Availability
290
Roller Kit GEN WB01X1331 Contact Us For Availability
291
COVER GEN WB02X9152 Contact Us For Availability
296
Leveling Leg GEN WB02X9635 Contact Us For Availability
300
Frt Trim Spc GEN WB02M0013 Contact Us For Availability
300A
Spacer (Black) GEN WB02X9641 Contact Us For Availability
301
Tube GEN WB28K5021 Contact Us For Availability
309
Oven Burner GEN WB16K5012 Contact Us For Availability
310
Oven Burner Box GEN WB65K5098 Contact Us For Availability
346
Orifice Fitting GEN WB02X9646 Contact Us For Availability
348
Shield GEN WB02X9159 Contact Us For Availability
353
Air Shutter GEN WB02X9014 Contact Us For Availability
357
Valve Cover GEN WB34K5096 Contact Us For Availability
560
Eyelet Terminal GEN WB18M0001 Contact Us For Availability
570
250 Flag GEN STD374251 Contact Us For Availability
580
187 Push On GEN STD374180 Contact Us For Availability
580A
250 Push On GEN STD374250 Contact Us For Availability
692
Screw GEN WZ04X0416 Contact Us For Availability
803
Screw GEN WB01K5163 Contact Us For Availability
839
Adjustment Screw GEN WB01X1124 Contact Us For Availability
852
Screw GEN WB01X1179 Contact Us For Availability
861
Screw GEN WB01X1307 Contact Us For Availability
933
Washer GEN WB01X1256 Contact Us For Availability
935
Washer GEN WB01M0021 Contact Us For Availability
953
Clip GEN WB02X9106 Contact Us For Availability
986
Inverted Nut GEN WB01X1117 Contact Us For Availability
999
Range Wire Harness GEN WB18K5642 Contact Us For Availability
999
Installation GEN SR10253 Contact Us For Availability
999A
User's Manual GEN SR10292 Contact Us For Availability
999A
Oven Wire Harness GEN WB18K5600 Contact Us For Availability
999B
MINI MANUAL W/WIRE DIAG. GEN 31-13332 Contact Us For Availability
999C
Repair Parts List GEN 31-13423 Contact Us For Availability
999C
Door Switch Wire Harness GEN 2B18K5490 Contact Us For Availability
× ![]()
