Model LG 89942490 – Common Parts & Diagrams

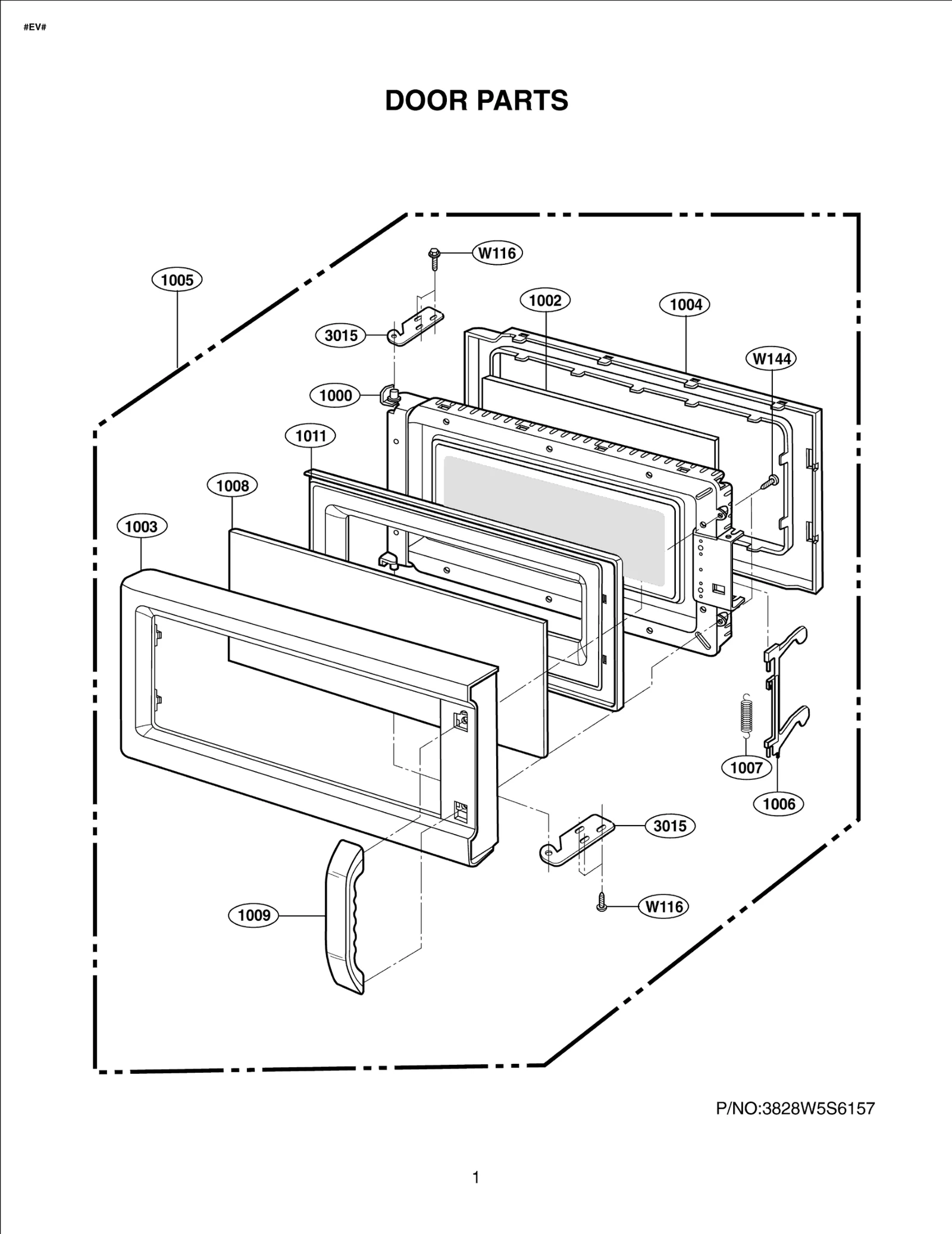

Diagram 0
Diagram 1
Diagram 2
Diagram 3
Diagram 4
Diagram 5
Diagram 6
Diagram 7
Common parts from model LG 89942490
*01
OM LGE 3874W500784 Contact Us For Availability
*03
LGE 3878W500095 LGE 3878W500095 Contact Us For Availability
*07
CARD,TECHNICAL LGE 3858W3T006D Contact Us For Availability
*10
BOX LGE 3890W2ZA83G Contact Us For Availability
2000
KEY MEMBRANE MV-1140T SEARS LGE 6638W1YB11C Contact Us For Availability
2002
CONTROL PANEL MICOM MV-1140T,S LGE 3572W1A051C Contact Us For Availability
2004
LGE 4781W1M033C LGE 4781W1M033C Contact Us For Availability
2006
LGE 5247W2YS62A LGE 5247W2YS62A Contact Us For Availability
2008
BRACKET CONTROL MV-1140T,SEARS LGE 4810W1G058A Contact Us For Availability
3001
OUTCASE ALMOND MV-1130SC 1120M LGE 3112W1U004G Contact Us For Availability
3009
MOTOR-STIRRER LGE 6549WRS001F Contact Us For Availability
3011
GLASS COOK TOP LAMP MV-1120 LGE 4890W4A001A Contact Us For Availability
3014
HARNS-WIRE MH6110XBBO W/POOL LGE 6877W2S003A Contact Us For Availability
3015
Bracket,Hinge LGE 4774W4P003A Contact Us For Availability
3016
BRACKET-SUPPORT MH6110XBBO W/P LGE 4810W4G036A Contact Us For Availability
3018
LGE 1B71143C LGE 1B71143C Contact Us For Availability
3024
GRILLE,VENT LGE 3530W2A005J Contact Us For Availability
3027
MOTOR VENTILATION 120V/60HZ,OH LGE 6549W1V001B Contact Us For Availability
3029
BRACKET MOUNT LGE 4810W3G062A Contact Us For Availability
3031
COVER PLATE MH6110XBBO W/POOL LGE 3550W4A025A Contact Us For Availability
3036
SHELF HOLDER LGE 3B71271E Contact Us For Availability
3039
Cover,Inner LGE 3550W3A020A Contact Us For Availability
4000
BOARD,LATCH LGE 3500W1A030A Contact Us For Availability
4001
Holder Assembly,Locker LGE 3501W2A002R Contact Us For Availability
4004
LEVER-SWITCH MH6110XBBO W/POOL LGE 4510W4A005A Contact Us For Availability
4009
Switch,Micro LGE 3B73360C Contact Us For Availability
4010
MICRO SWITCH SZM-V01-FA-33 11 LGE 3B73362A Contact Us For Availability
5000
CAPACITOR[HIGH VOLTAGE] LGE 0CZZW1H002F Contact Us For Availability
5001
Fuse,Non Time Delay LGE 3B74133F Contact Us For Availability
5003
SUCTION-GUIDE (WPOOL MH7110XBB LGE 4974W0S008A Contact Us For Availability
5006
LGE 5262W0A007A LGE 5262W0A007A Contact Us For Availability
5009
MAGNETRON 2M214-19F MV-1130SC LGE 2B71165E Contact Us For Availability
5012
MOTOR-FAN LGE 6549W2F005A Contact Us For Availability
5014
LEAD WIRE ASSY-A MV-1120M 1120 LGE 6877W1S001A Contact Us For Availability
5015
OVEN LAMP 125V 30W E17, ER-71 LGE 3B70067A Contact Us For Availability
5016
THERMOSTAT (110/0 PW-2N VERT) LGE 6930WRT003C Contact Us For Availability
5017
FUSE HOLDER 65FB(SAMJOO) MV-10 LGE 4930W3B005A Contact Us For Availability
5018
H.V.DIODE-CABLE ASM HVR-1X SER LGE 3B73348S Contact Us For Availability
5019
HARNESS-WIRE (WPOOL MH6110XBB0 LGE 6877W2S004A Contact Us For Availability
5020
BASE THERMOSTAT LGE 3B70068V Contact Us For Availability
5023
THERMOSTAT 160 V PW MA-1554M LGE 6930WRT003A Contact Us For Availability
5035
COVER-BOTTOM (MH6110XBB0) LGE 3300W1G018A Contact Us For Availability
5037
CHARCOAL FILTER ASSY 10.0*4.84 LGE 2B72706C Contact Us For Availability
5038
SOCKET-LMP MH6110XBBO W/POOL LGE 3B71048D Contact Us For Availability
5040
LGE 4930W3B007A LGE 4930W3B007A Contact Us For Availability
5048
H.V.CABLE ASM-A UL 3249 AWG18, LGE 3B73347J Contact Us For Availability
5049
GUIDE-AIR (WPOOL MH7110XBB0) LGE 4974W2G011A Contact Us For Availability
5058
DISK-STIRRER (WPOOL MH6110XBB0 LGE 5892W3A001A Contact Us For Availability
5068
LGE 3551W3A002A LGE 3551W3A002A Contact Us For Availability
5114
COVER-CONN MH6110XBBO W/POOL LGE 3550W3A019A Contact Us For Availability
5337
CERAMIC PLATE ASM ER-832PV BK LGE 2B71919A Contact Us For Availability
5412
Capacitor,Film,Box LGE 3B72440A Contact Us For Availability
6000
LGE 3302W0A005F LGE 3302W0A005F Contact Us For Availability
6001
BASE PLATE ASSY MV-1120 W/POOL LGE 3303W1A005F Contact Us For Availability
6008
PLATE,MOUNTING LGE 3300W0G039D Contact Us For Availability
6009
MOUNTING KIT (OTR) LGE 2B72771A Contact Us For Availability
6011
EXHAUST DAMPER ER-841PV CBESE LGE 3B71432A Contact Us For Availability
6013
LGE 3550W3A014C LGE 3550W3A014C Contact Us For Availability
BZ1
LGE 6908W3YA01A LGE 6908W3YA01A Contact Us For Availability
C04
CAPACITOR,FIXED ELECTROLYTIC LGE 0CE2276H638 Contact Us For Availability
C05
CAPACITOR ELECTROLYTIC KCN21C2 LGE 0CE4776H618 Contact Us For Availability
C06
LGE 0CE1076H638 LGE 0CE1076H638 Contact Us For Availability
C09
CAPACITOR ELECTROLYTIC CE,47MF LGE 0CE4766K638 Contact Us For Availability
C10
CAPACITOR,FIXED CERAMIC(High d LGE 0CK1040K948 Contact Us For Availability
C63
CAPACITOR,FIXED CERAMIC(High d LGE 0CK2230K948 Contact Us For Availability
D05
DIODE 1N4148M (ROHM KOREA) MA- LGE 0DD414809AB Contact Us For Availability
D20
DIODE 1N4004TA(06220071)MV-100 LGE 0DD400409AA Contact Us For Availability
D23
DIODE IN4002,MA-1354P,1554M *N LGE 0DD400209AA Contact Us For Availability
DP1
DIGITRON 6-BT-199GN(NEW DEMO) LGE 6302W5YA02A Contact Us For Availability
PT1
POWER TRANS 120V/60HZ UL,NON F LGE 6010W2P004A Contact Us For Availability
Q30
TRANSISTOR KTA1266-TP-Y(KTA101 LGE 0TR126609AA Contact Us For Availability
R05
Resistor,Carbon Film LGE 0RD2701F608 Contact Us For Availability
R07
Resistor,Carbon Film LGE 0RD1000F608 Contact Us For Availability
R08
RESISTOR FIXED CARBON FILM 100 LGE 0RD1003F608 Contact Us For Availability
R09
FIXED CARBON FILM 1M-J *NSP LGE 0RD1004F608 Contact Us For Availability
R10
Resistor,Carbon Film LGE 0RD1002F608 Contact Us For Availability
R20
RESISTOR FIXED CARBON FILM 47K LGE 0RD4702F608 Contact Us For Availability
R24
Resistor,Carbon Film LGE 0RD2202F608 Contact Us For Availability
R27
RESISTOR FIXED CARBON FILM 10 LGE 0RD0102F608 Contact Us For Availability
R29
LGE 0RN1003F408 LGE 0RN1003F408 Contact Us For Availability
R30
LGE 0RN1002F408 LGE 0RN1002F408 Contact Us For Availability
R32
Resistor,Carbon Film LGE 0RD5601F608 Contact Us For Availability
R41
LGE 0RD0202F608 LGE 0RD0202F608 Contact Us For Availability
R91
RESISTOR FIXED CARBON FILM 39 LGE 0RD3900F608 Contact Us For Availability
RY2
RELAY G5J-1-TP-M-DT1 DC12V (MV LGE 6920WRD001A Contact Us For Availability
RY3
RELAY MA-885M SGESEA MA-1190M LGE 6920WRD005B Contact Us For Availability
RY4
LGE 6920WRD007A LGE 6920WRD007A Contact Us For Availability
U03
LGE 0ITO200400A LGE 0ITO200400A Contact Us For Availability
VR1
VARISTOR LGE 6102W5V006A Contact Us For Availability
W121
TRUSS HEAD TP SCREW+2 CUT MV- LGE 1TTL0402422 Contact Us For Availability
W156
Electronic Part,Unclassified LGE 4B70181A Contact Us For Availability
W166
WASHER PLAIN Z-A1000-903, MVH LGE 4B70182A Contact Us For Availability
W180
SPECIAL SCREW MV-1000M,1000T LGE 4B75675A Contact Us For Availability
W208
PUSH NUT MV-1000T/1000M MVH11 LGE 4B74694B Contact Us For Availability
ZD1
LGE 0DZ510009AA LGE 0DZ510009AA Contact Us For Availability
ZD2
DIODE ZENER MA-885M SGESEA LGE 0DZ560009AB Contact Us For Availability
× ![]()
