Model Whirlpool 8361RV GAS COOK-TOP – Common Parts & Diagrams
02 - TOP ASSEMBLY

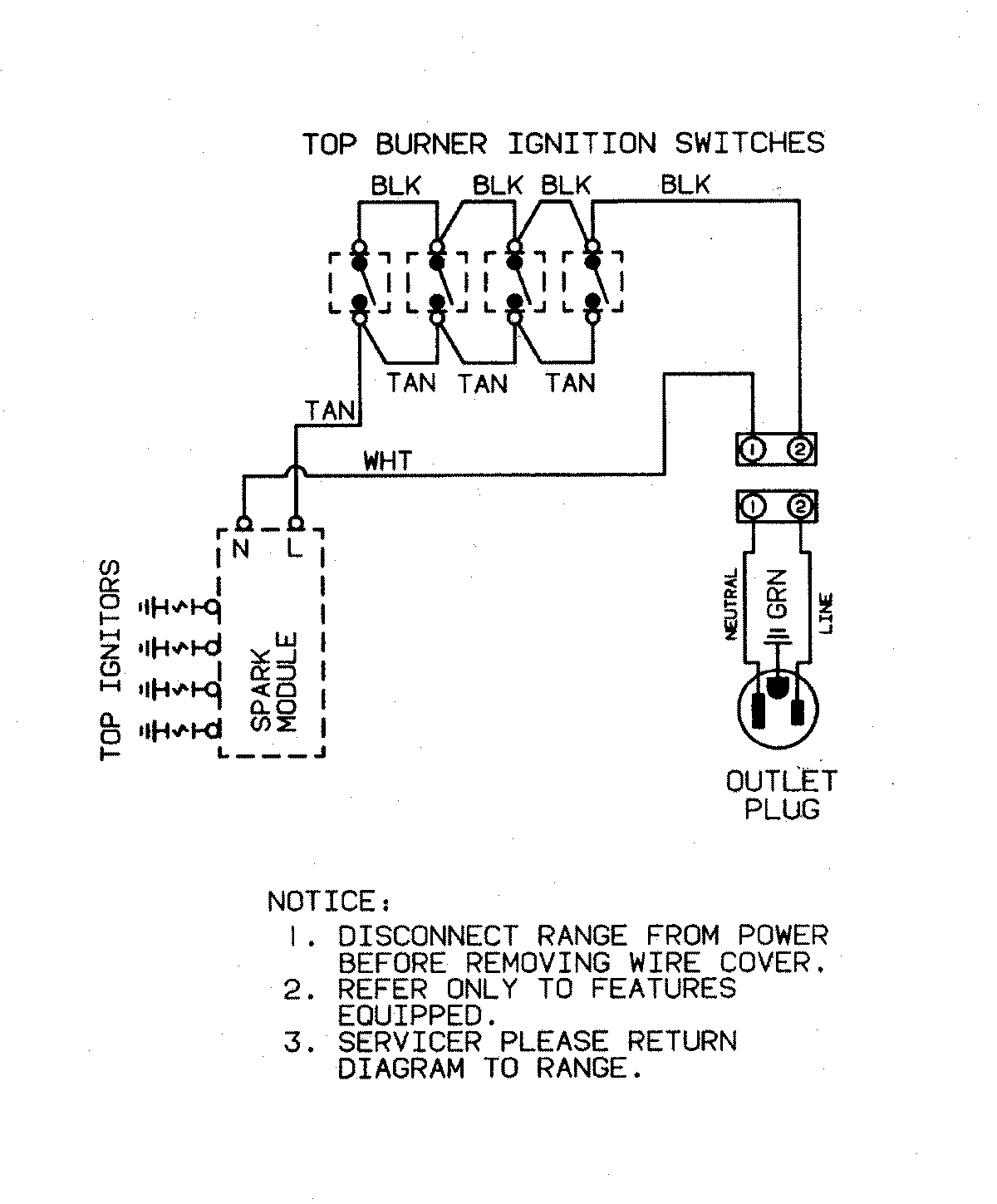

03 - WIRING INFORMATION

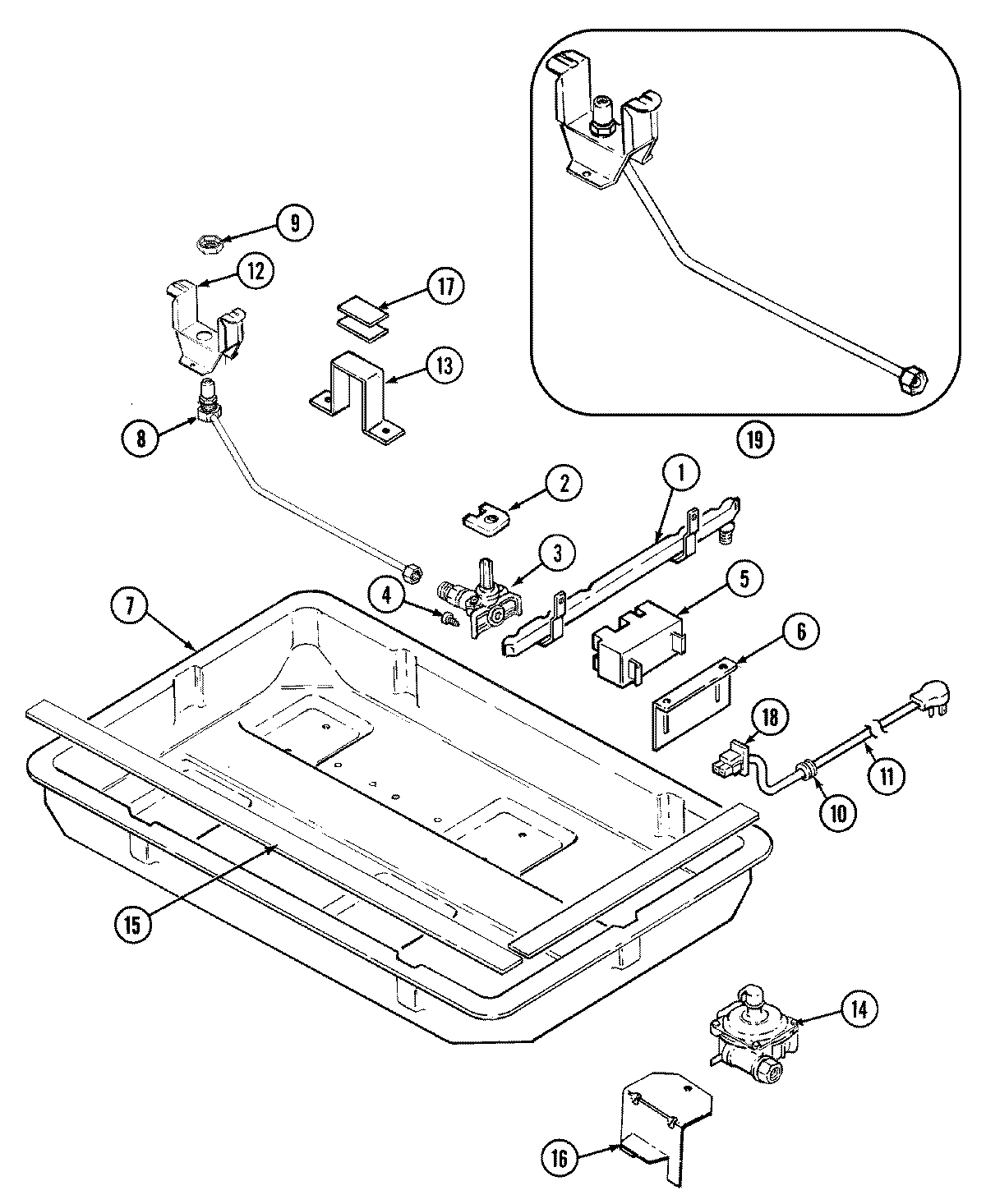

01 - BODY
Common parts from model Whirlpool 8361RV GAS COOK-TOP
1
GLASS, MAIN TOP (WHITE) WPL 7918P02660 Contact Us For Availability
1
SEAL, MANIFOLD PIPE WPL 7208P01960 Contact Us For Availability
1
PIPE, MANIFOLD WPL 74001348 Contact Us For Availability
1
PIPE, MANIFOLD WPL 7513P09860 Contact Us For Availability
2
BOWL, DRIP (WHT) WPL 3424F00285 Contact Us For Availability
2
SCREW WPL 7101P31460 Contact Us For Availability
2
BOWL, DRIP (WHT) WPL 74003153 Contact Us For Availability
2
SWITCH, BURNER WPL 7403P19060 Contact Us For Availability
2
SWITCH, BURNER WPL 7403P36760 Contact Us For Availability
3
KNOB, TOP BURNER (WHT) WPL 74001385 Contact Us For Availability
3
KNOB, BURNER (WHT) WPL 7733P04360 Contact Us For Availability
3
BUSHING (WHT) WPL 8007P02260 Contact Us For Availability
3
VALVE, BURNER WPL 74001384 Contact Us For Availability
3
VALVE, TOP BURNER WPL 7502P10660 Contact Us For Availability
3
VALVE, BURNER WPL 7502P25460 Contact Us For Availability
4
GRATE, DARK GRAY WPL 2003F02226 Contact Us For Availability
4
GRATE, RD (GRAY) WPL 7518P02460 Contact Us For Availability
4
SCREW, CONTROL VALVE WPL 7101P04360 Contact Us For Availability
5
BURNER, SEALED WPL 3412D01726 Contact Us For Availability
5
SCREW, BURNER MTG WPL 7101P28660 Contact Us For Availability
5
MODULE, SPARK WPL 7431P02460 Contact Us For Availability
5
MODULE, SPARK WPL 7431P02760 Contact Us For Availability
6
SEAL, TAPE WPL 12400041 Contact Us For Availability
6
BRACKET, SPARK MODULE WPL 3801F30445 Contact Us For Availability
6
BRACKET, SPARK MODULE WPL 3801F35745 Contact Us For Availability
6
SCREW WPL 7101P05960 Contact Us For Availability
7
GASKET, BURNER WPL 7201P05060 Contact Us For Availability
7
BOTTOM, BURNER BOX WPL 4011F21180 Contact Us For Availability
7
BOX, BURNER WPL 74001365 Contact Us For Availability
7
BOX, BURNER WPL 74003164 Contact Us For Availability
8
MANUAL, USE & CARE WPL 8113P03760 Contact Us For Availability
8
FITTING, ORIFICE WPL 7507P09960 Contact Us For Availability
8
FITTING, ORIFICE WPL 7507P10360 Contact Us For Availability
9
NOT REQUIRED PART OR SEE NOTE NOT REQUIRED WPL W10124350 Contact Us For Availability
9
GUIDE, QUICK REF. - MAGIC CHEF WPL 16000329 Contact Us For Availability
9
PALNUT WPL 7103P11960 Contact Us For Availability
10
SCREW, GROUND (GRN) WPL 7101P02760 Contact Us For Availability
10
BUSHING, SNAP WPL 8007P00360 Contact Us For Availability
11
CORD, POWER WPL 7402P01460 Contact Us For Availability
12
SUPPORT, ORIFICE WPL 3807F44251 Contact Us For Availability
12
SCREW WPL 7118P01860 Contact Us For Availability
13
BRACKET, MAIN TOP WPL 3801F30845 Contact Us For Availability
14
REGULATOR, PRESSURE WPL 7510P00260 Contact Us For Availability
16
BRACKET, TIE DOWN WPL 3801F19245 Contact Us For Availability
17
TAPE BURNER BOX SEAL 107`` WPL 12400021 Contact Us For Availability
18
BLOCK, DISCONNECT (PIN) WPL 7401P01760 Contact Us For Availability
18
BLOCK WPL 7401P01860 Contact Us For Availability
19
ORIFICE ASSY. WPL 74001377 Contact Us For Availability
19
ORIFICE ASSY. (RT) WPL 74001378 Contact Us For Availability
19
ORIFICE ASSY. WPL 74002003 Contact Us For Availability
19
ORIFICE ASSY. WPL 74002005 Contact Us For Availability
20
WIRES, COOKTOP WPL 5111A52460 Contact Us For Availability
20
WIRE, IGNITER - R WPL 5111A61060 Contact Us For Availability
NI
WIRING INFORMATION WPL 15001312 Contact Us For Availability
× ![]()
