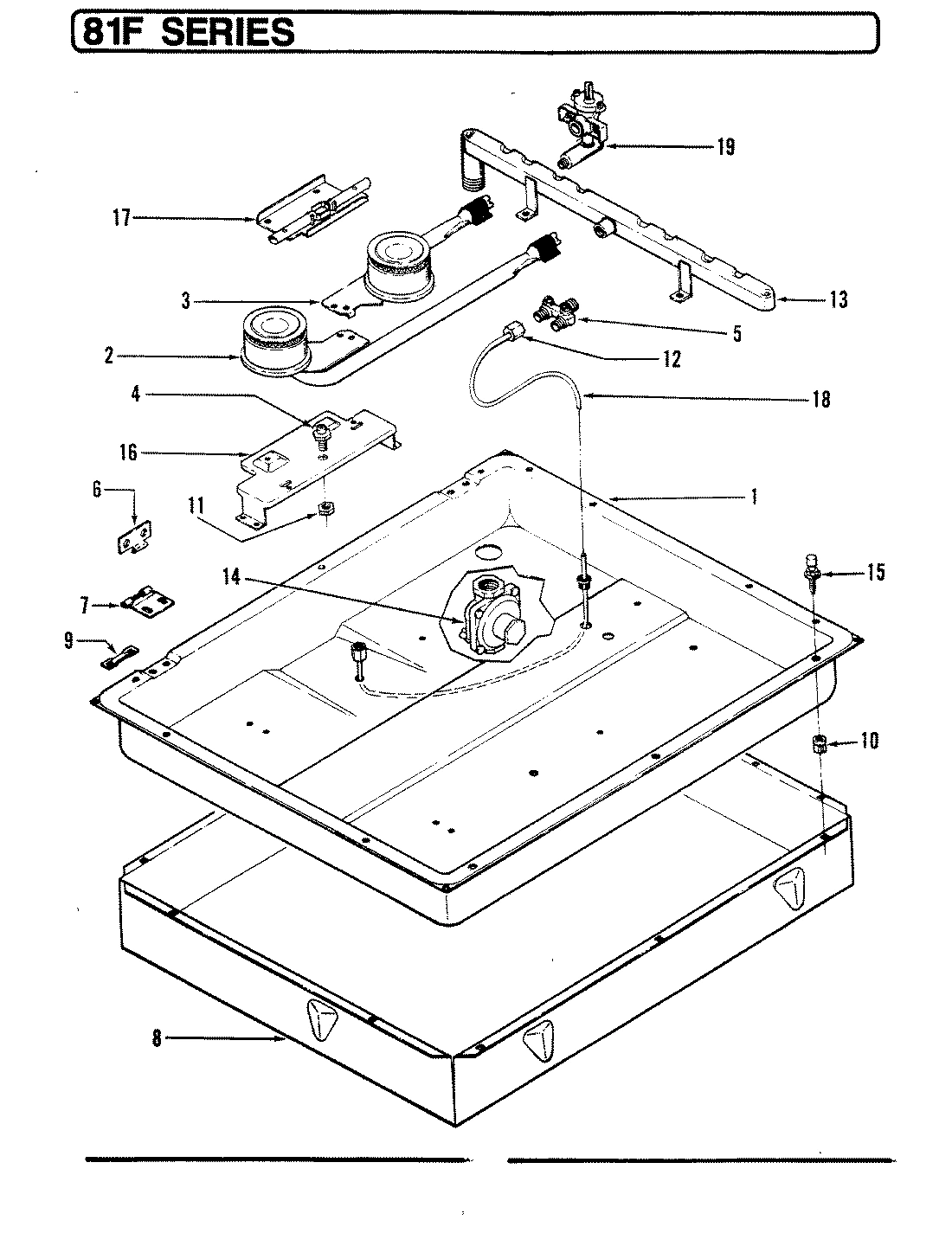

Model Whirlpool 81FN-12 GAS COOK-TOP – Common Parts & Diagrams

1
GRATE (BLK)
GRATE (BLK) WPL 2003W02600 Contact Us For Availability
View on Model
1
GRATE, BURNER
GRATE, BURNER WPL Y0G00300912 Contact Us For Availability
View on Model
1
BOTTOM, BURNER BOX
BOTTOM, BURNER BOX WPL 4G10104545 Contact Us For Availability
View on Model
2
FRAME, NAMEPLATE
FRAME, NAMEPLATE WPL 7706P04460 Contact Us For Availability
View on Model
2
PLATE, NAME M.C.
PLATE, NAME M.C. WPL 7719P03760 Contact Us For Availability
View on Model
2
BURNER, ASY TOL L
BURNER, ASY TOL L WPL 7505P05560 Contact Us For Availability
View on Model
3
TOP, MAIN WHITE
TOP, MAIN WHITE WPL 4G080089MW Contact Us For Availability
View on Model
3
BURNER, TOP RT
BURNER, TOP RT WPL 7505P05660 Contact Us For Availability
View on Model
4
TRIM, CONTROL PANEL
TRIM, CONTROL PANEL WPL 0T00500716 Contact Us For Availability
View on Model
4
TRIM, IDENTI INSERT
TRIM, IDENTI INSERT WPL 0T09904216 Contact Us For Availability
View on Model
4
BURNER, PILOT
BURNER, PILOT WPL Y0B03700316 Contact Us For Availability
View on Model
5
FILTER, PILOT GAS
FILTER, PILOT GAS WPL Y0F00105099 Contact Us For Availability
View on Model
6
HINGE, TOP
HINGE, TOP WPL Y0H01400311 Contact Us For Availability
View on Model
7
HINGE, TOP W/PIN
HINGE, TOP W/PIN WPL Y0H01400411 Contact Us For Availability
View on Model
8
HOUSING, UNIT
HOUSING, UNIT WPL 4G23000441 Contact Us For Availability
View on Model
9
NUT, TWIN SPEED
NUT, TWIN SPEED WPL 0N10001499 Contact Us For Availability
View on Model
10
NUT, SNAP 1/4X1/4
NUT, SNAP 1/4X1/4 WPL 0N10001199 Contact Us For Availability
View on Model
11
NUT, PILOT BURNER
NUT, PILOT BURNER WPL 0N10001399 Contact Us For Availability
View on Model
11
NUT, PAL
NUT, PAL WPL 7103P11060 Contact Us For Availability
View on Model
12
NUT , 1/8``
NUT , 1/8`` WPL 1555225 Contact Us For Availability
View on Model
13
PIPE, MANIFOLD
PIPE, MANIFOLD WPL 0P07502699 Contact Us For Availability
View on Model
14
REGULATOR, PRESS LP
REGULATOR, PRESS LP WPL Y0R00302599 Contact Us For Availability
View on Model
15
SPACER, TOP
SPACER, TOP WPL 0S03501722 Contact Us For Availability
View on Model
16
SUPPORT, BURNER
SUPPORT, BURNER WPL 3807F33335 Contact Us For Availability
View on Model
16
SUPPORT, BURNER
SUPPORT, BURNER WPL 4G55406226 Contact Us For Availability
View on Model
17
TUBE, ASY FLASH
TUBE, ASY FLASH WPL 0T02200516 Contact Us For Availability
View on Model
18
BURNER, PILOT 15-1/4
BURNER, PILOT 15-1/4 WPL 7505P15860 Contact Us For Availability
View on Model
18
TUBING 1/8 X 15
TUBING 1/8 X 15 WPL 4E42204916 Contact Us For Availability
View on Model
19
VALVE, TOP BURNER
VALVE, TOP BURNER WPL 7502P00860 Contact Us For Availability
View on Model
19
VALVE, STD BNR H-M-L
VALVE, STD BNR H-M-L WPL 7502P02060 Contact Us For Availability
View on Model
