Model Whirlpool 800264 ELECTRIC WALL OVEN – Common Parts & Diagrams
01 - BODY

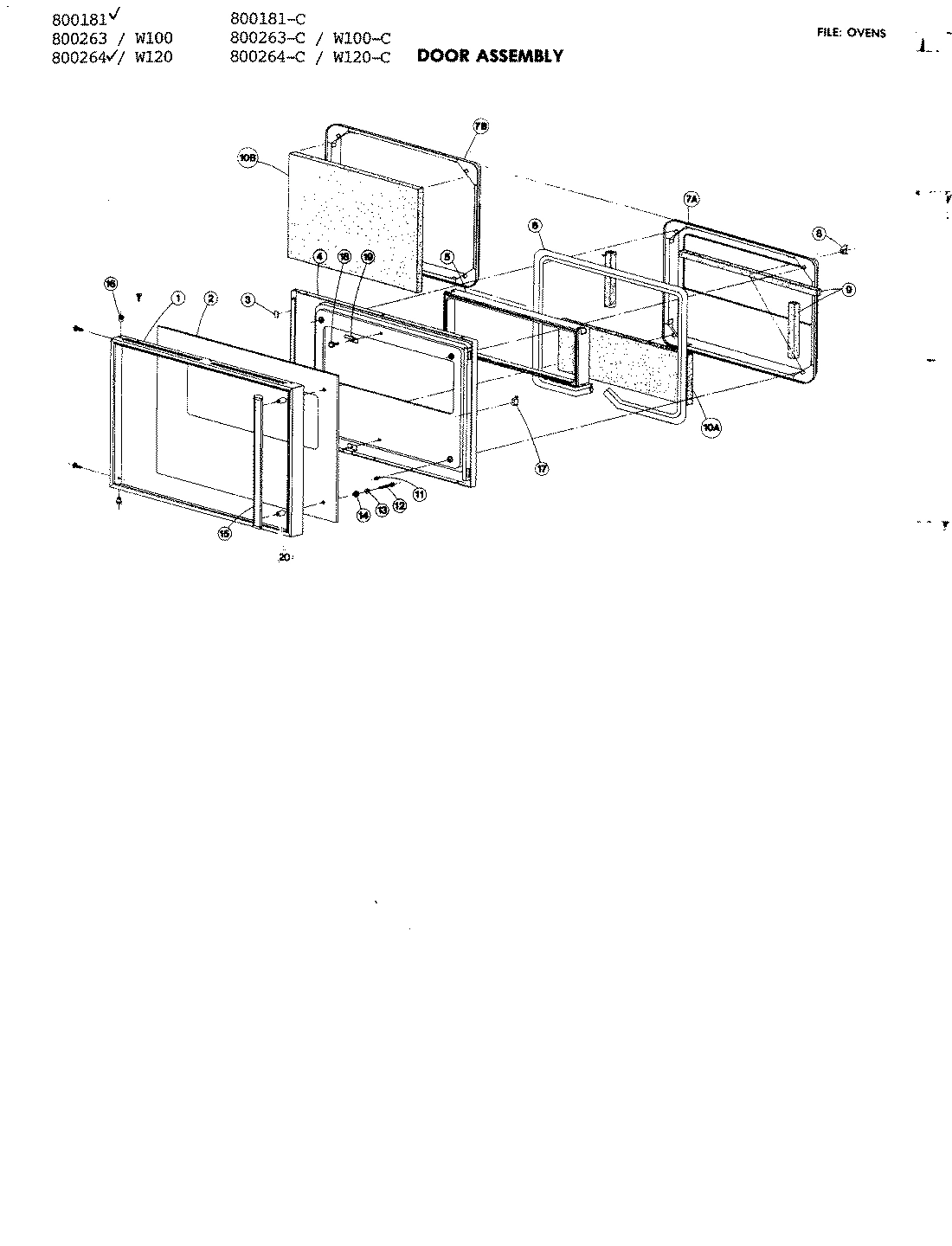

03 - DOOR ASSEMBLY

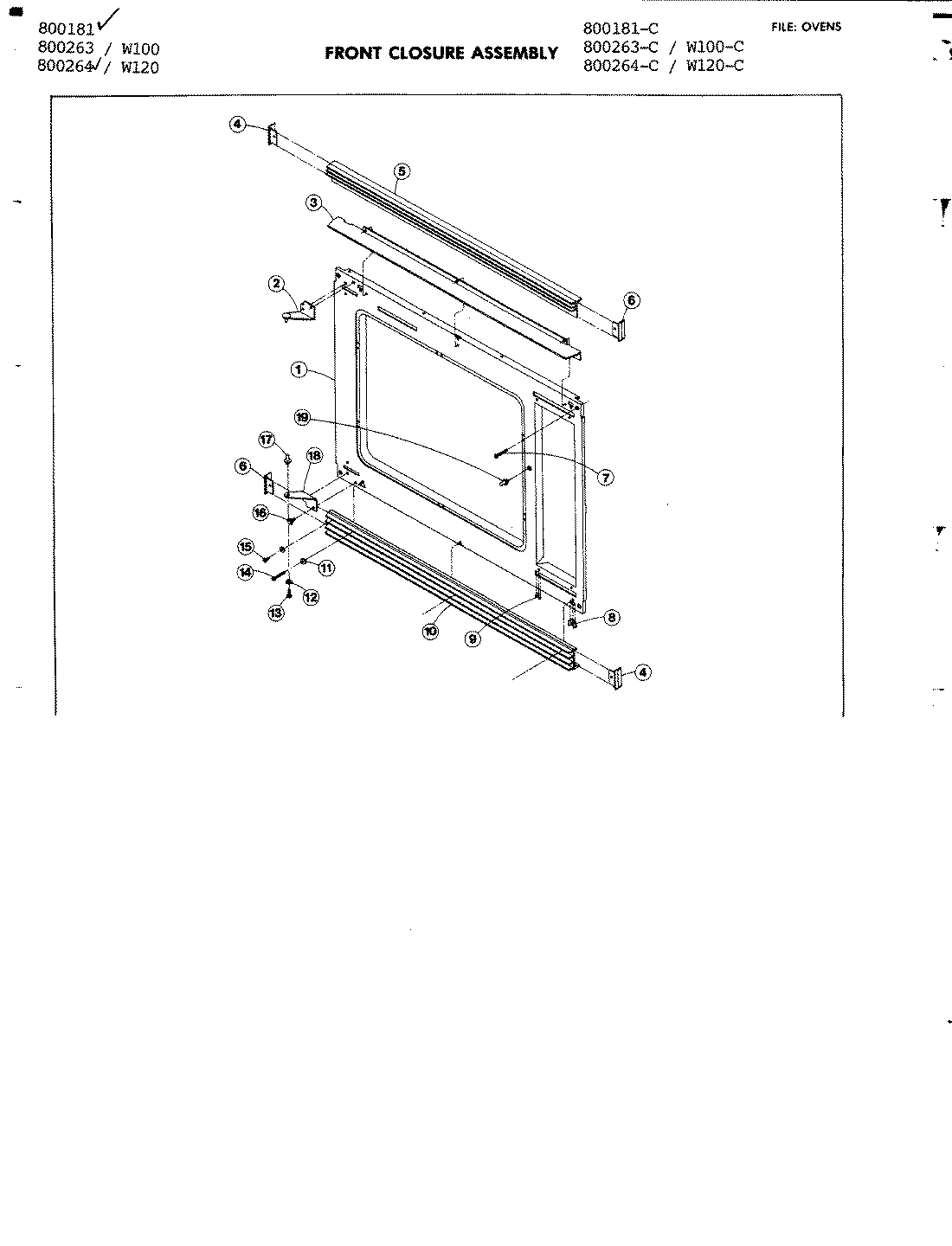

04 - FRONT CLOSURE ASSEMBLY

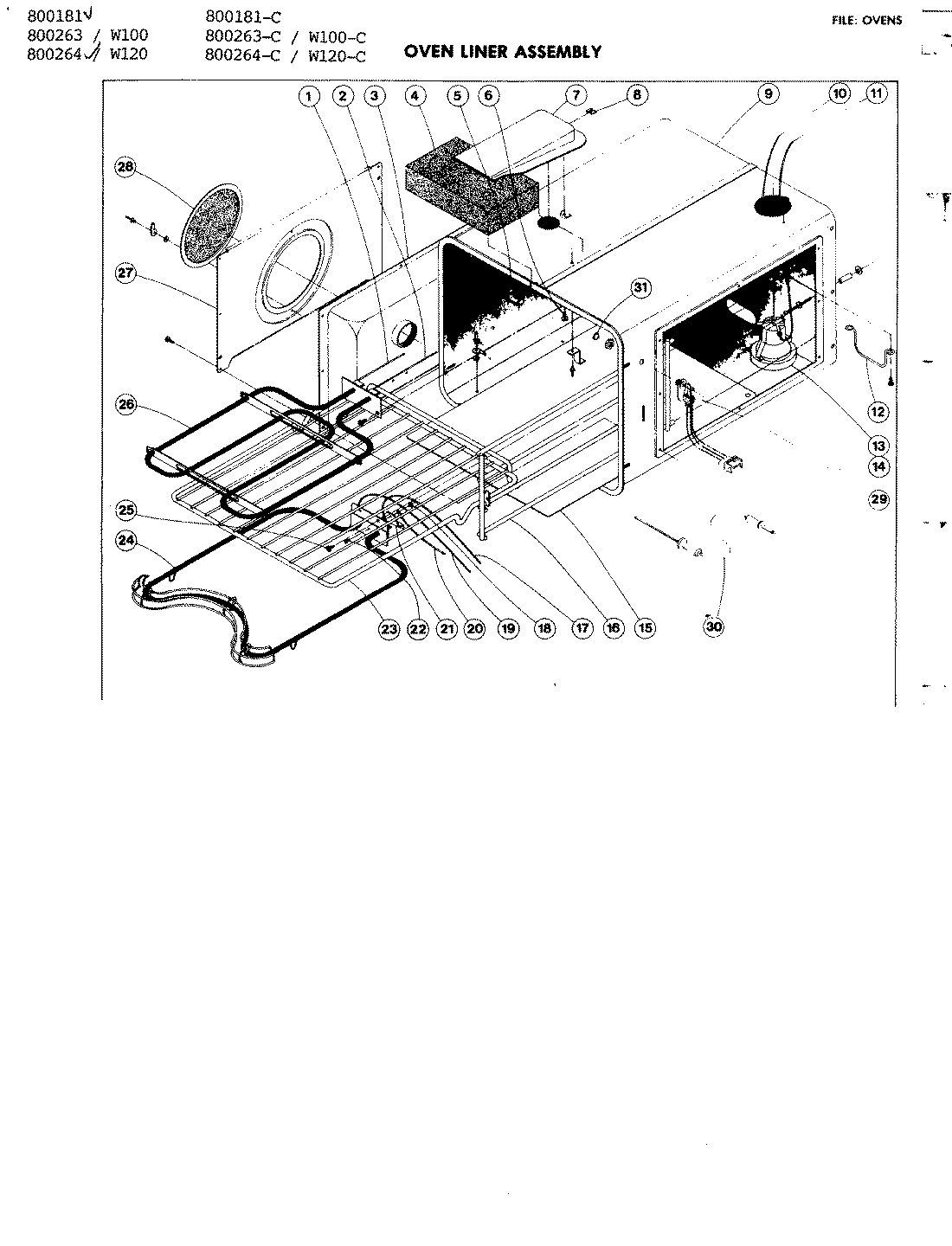

06 - OVEN

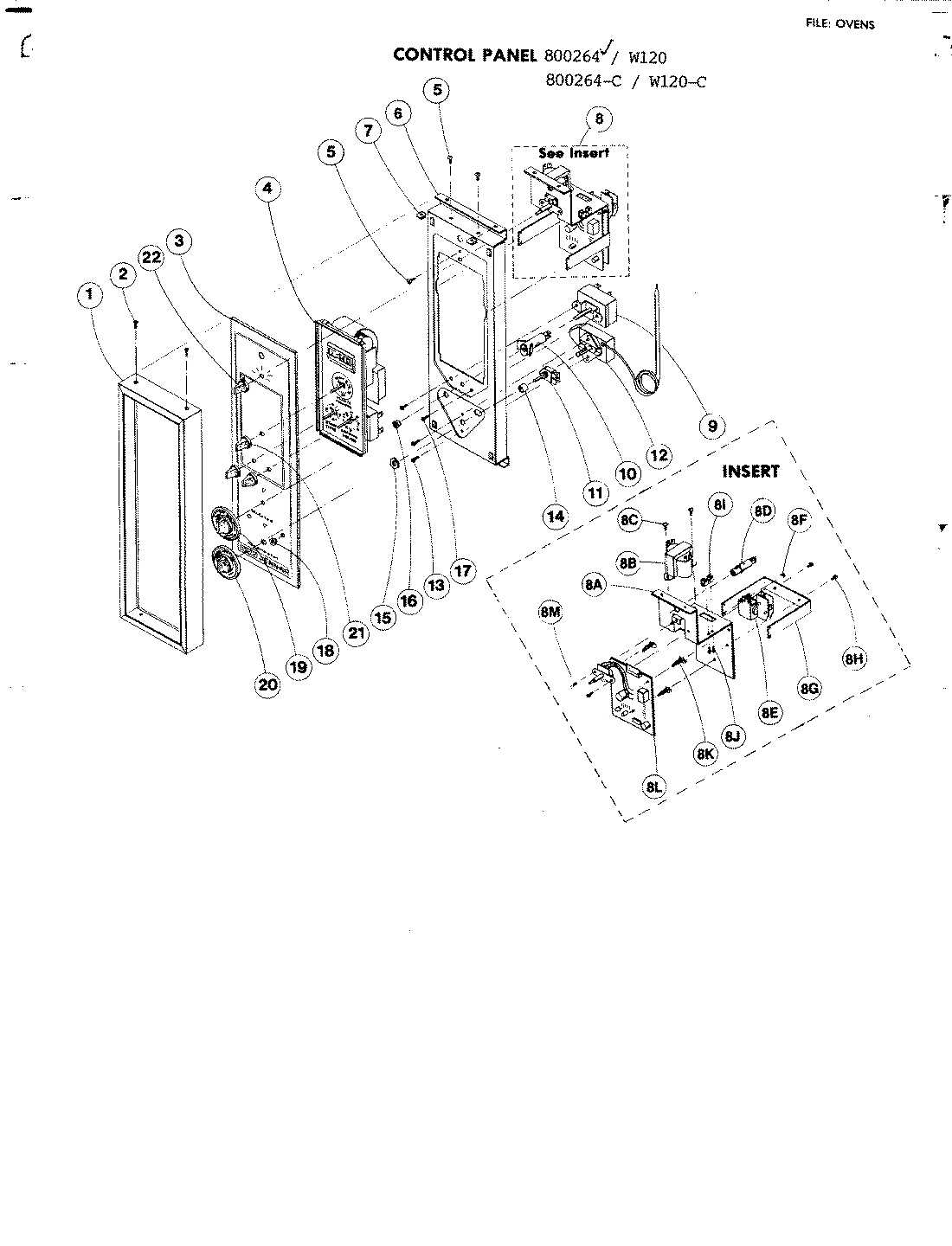

02 - CONTROL PANEL

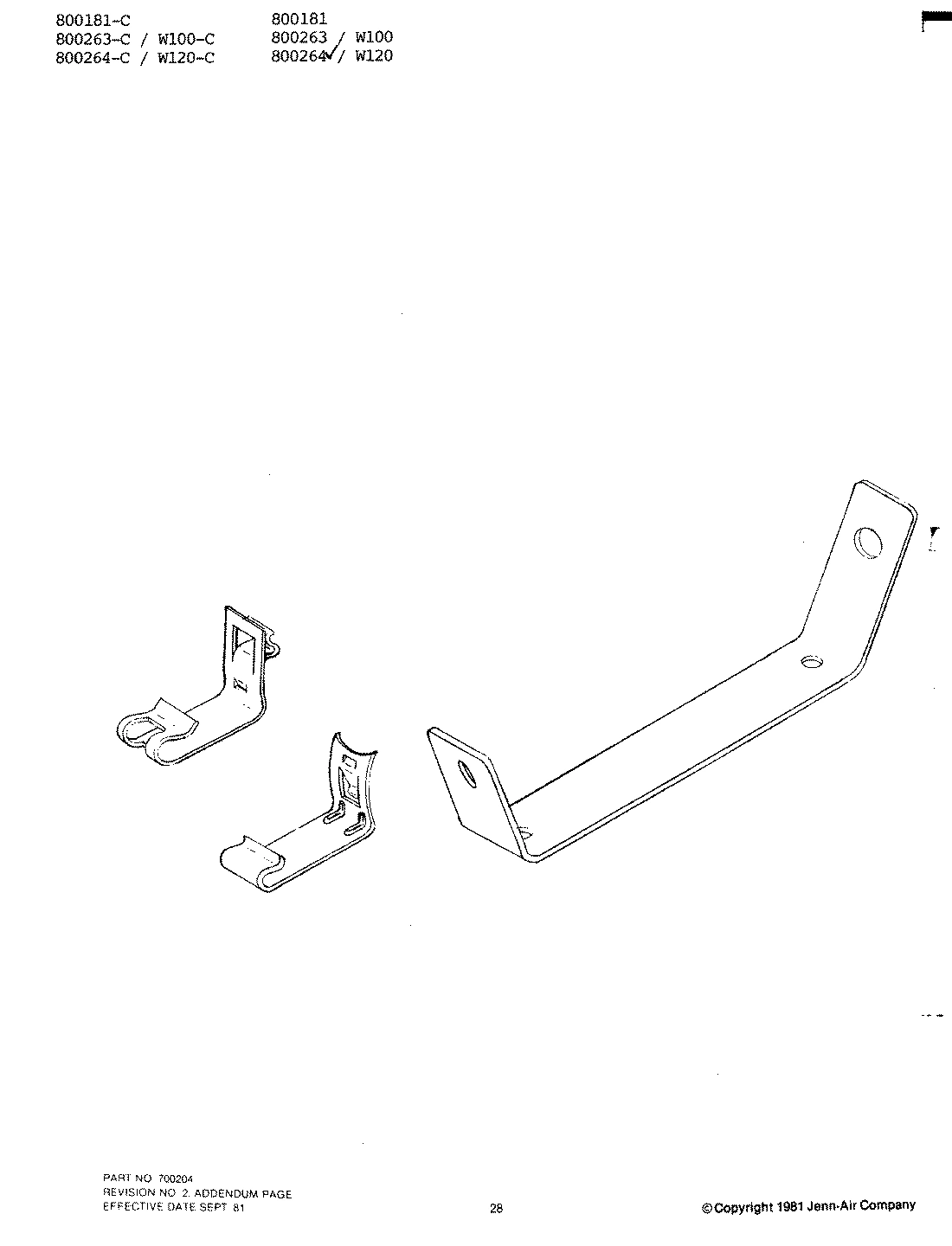

07 - THERMAL BULB CLIP

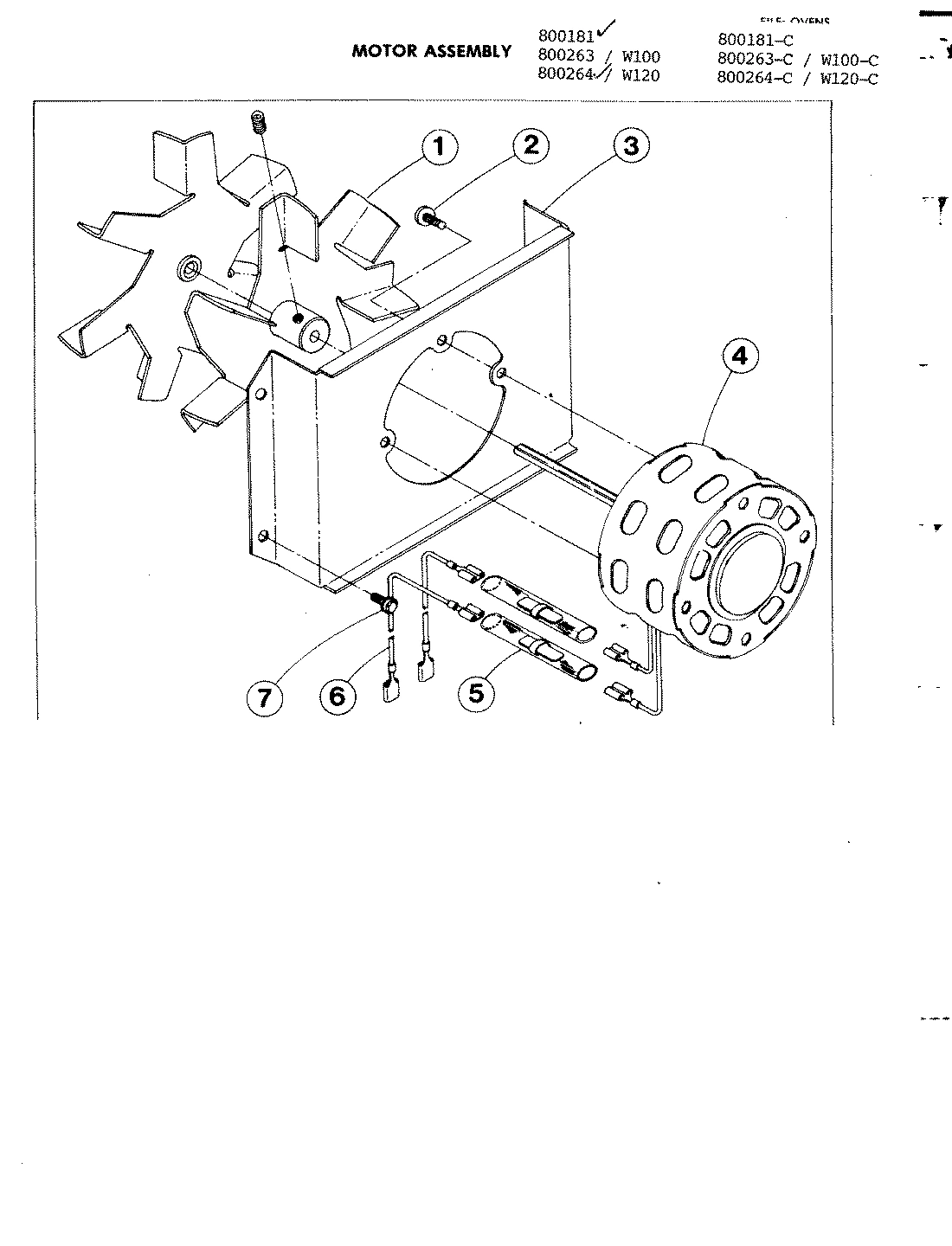

05 - MOTOR ASSEMBLY
Common parts from model Whirlpool 800264 ELECTRIC WALL OVEN
1
TOP BOTTOM PANEL WPL 700589 Contact Us For Availability
1
OVEN DOOR FRAME WPL 700566 Contact Us For Availability
1
FRONT CLOSURE WPL 700574 Contact Us For Availability
1
WIRE WPL 700604 Contact Us For Availability
1
CONTROL PANEL FRAME WPL 700565 Contact Us For Availability
1
CONVECTED WHEEL ASSEMBLY WPL Y700600 Contact Us For Availability
2
TINNERMAN WPL 715846 Contact Us For Availability
2
GLASS, DOOR WPL 701746 Contact Us For Availability
2
TOP HINGE ASSEMBLY WPL 700575 Contact Us For Availability
2
WASHER, LOCK WPL 715910 Contact Us For Availability
2
WIRE WPL 700605 Contact Us For Availability
3
BUSHING WPL 708939 Contact Us For Availability
3
PAD, SPACER WPL 715938 Contact Us For Availability
3
EXTRUSION WPL 700576 Contact Us For Availability
3
BLOWER HOUSING ASSEMBLY WPL 700137 Contact Us For Availability
3
SPLITTER WPL 715614 Contact Us For Availability
3
GLASS PANEL WPL 700886 Contact Us For Availability
3
PLATE, MOTOR MOUNT WPL Y700601 Contact Us For Availability
4
REAR PANEL WPL 700590 Contact Us For Availability
4
DOOR LINER ASSEMBLY WPL 700568 Contact Us For Availability
4
END CAP WPL 700577 Contact Us For Availability
4
VENT INSULATION WPL 700606 Contact Us For Availability
4
CLOCK TIMER WPL 700555 Contact Us For Availability
4
MOTOR WPL Y700602 Contact Us For Availability
5
BACK-UP PLATE WPL 700591 Contact Us For Availability
5
INNER WINDOW PACKAGE WPL 700569 Contact Us For Availability
5
TOP TRIM WPL 700578 Contact Us For Availability
5
CONNECTOR, 1/4`` IN-LINE WPL Y715563 Contact Us For Availability
6
WIRE CABLE WPL 700706 Contact Us For Availability
6
OVEN DOOR SEAL WPL 715368 Contact Us For Availability
6
END CAP WPL 700579 Contact Us For Availability
6
CONTROL PANEL WPL 700887 Contact Us For Availability
6
WIRE WPL 700603 Contact Us For Availability
7
CLIP, J WPL Y700556 Contact Us For Availability
7
VENT ASSEMBLY WPL 700607 Contact Us For Availability
8
SIDE PANEL RIGHT WPL 700593 Contact Us For Availability
8
CLIP, RETAINER WPL Y700503 Contact Us For Availability
8
TINNERMAN WPL 700580 Contact Us For Availability
8
TINNERMAN WPL 700608 Contact Us For Availability
8
MOUNTING BRACKET WPL 700888 Contact Us For Availability
8
TRANSFORMER WPL 700889 Contact Us For Availability
8
LED WPL 700890 Contact Us For Availability
8
RELAY WPL 700891 Contact Us For Availability
8
SUPPORT BRKT WPL 700892 Contact Us For Availability
8
SUPPORT, P.C. BOARD WPL 700893 Contact Us For Availability
8
TERMINAL, GROUND WPL 700894 Contact Us For Availability
8
TEMP CTL MOD WPL 700895 Contact Us For Availability
9
MOTOR COVER ASSEMBLY WPL 700594 Contact Us For Availability
9
INSULATION WPL 715622 Contact Us For Availability
9
OVEN LINER ASSEMBLY WPL 700609 Contact Us For Availability
9
OVEN BOLT WPL 715293 Contact Us For Availability
9
NUT, TEE WPL 715294 Contact Us For Availability
9
WASHER WPL 715295 Contact Us For Availability
9
SPACER WPL 715777 Contact Us For Availability
9
SELECTOR SWITCH WPL 715398 Contact Us For Availability
10
MOTOR ACCESS ASSEMBLY WPL 700595 Contact Us For Availability
10
DOOR INSULATION KIT WPL 715315 Contact Us For Availability
10
BOTTOM TRIM WPL 700581 Contact Us For Availability
10
WIRE,(BLACK) WPL 700610 Contact Us For Availability
10
LIGHT, INDICATOR WPL Y700557 Contact Us For Availability
11
ACCESS-MOTOR COVER WELD ASSY. WPL 700881 Contact Us For Availability
11
WASHER (BLK) WPL 715610 Contact Us For Availability
11
WIRE,(WHITE) WPL 700611 Contact Us For Availability
11
SWITCH, PUSH (BLK) WPL 704797 Contact Us For Availability
11
EXTENSION, SWITCH (BLK) WPL 704798 Contact Us For Availability
12
RAIL, BOTTOM WPL 700596 Contact Us For Availability
12
SCREW WPL Y700570 Contact Us For Availability
12
LIGHT GUARD WPL 700612 Contact Us For Availability
12
THERMOSTAT ASSEMBLY WPL Y700559 Contact Us For Availability
13
DIVIDE RAIL WPL 700597 Contact Us For Availability
13
O-RING WPL Y700466 Contact Us For Availability
13
LIGHT RECEPTACLE WPL 700613 Contact Us For Availability
14
BUSHING WPL 715939 Contact Us For Availability
14
SCREW WPL 700583 Contact Us For Availability
14
SWITCH, PUSH WPL 700656 Contact Us For Availability
15
HANDLE WPL 700571 Contact Us For Availability
15
SCREW WPL Y700584 Contact Us For Availability
15
OVEN BOTTOM WPL 715279 Contact Us For Availability
15
NUT-HEX WPL 700879 Contact Us For Availability
16
SUPPORT ANGLE WPL 700598 Contact Us For Availability
16
BUSHING WPL 700572 Contact Us For Availability
16
SCREW WPL 700585 Contact Us For Availability
16
RACK SUPPORT WPL 715424 Contact Us For Availability
16
LENS, INDICATOR LIGHTS WPL Y700630 Contact Us For Availability
17
SIDE PANEL WPL 700599 Contact Us For Availability
17
DOOR CATCH WPL 700573 Contact Us For Availability
17
HINGE PIN WPL 700586 Contact Us For Availability
17
WIRE WPL 700614 Contact Us For Availability
17
SCREW WPL 715867 Contact Us For Availability
18
HINGE BRACKET WPL 700587 Contact Us For Availability
18
SWITCH BEZEL WPL 700563 Contact Us For Availability
19
BRACKET WPL 715838 Contact Us For Availability
19
BALL STUD WPL Y700588 Contact Us For Availability
19
WIRE WPL 700615 Contact Us For Availability
19
SELECT KNOB WPL 700562 Contact Us For Availability
20
POST, MOUNTING WPL 701832 Contact Us For Availability
20
HANDLE ASSEMBLY WPL 701883 Contact Us For Availability
20
WIRE WPL 700616 Contact Us For Availability
20
THERMOSTAT KNOB WPL 700561 Contact Us For Availability
21
RETAINING BRACKET WPL 700617 Contact Us For Availability
21
KNOB, CLOCK WPL 700564 Contact Us For Availability
22
SCREW WPL Y707150 Contact Us For Availability
22
TEMP SEL KNB WPL 700896 Contact Us For Availability
23
OVEN RACK WPL 715276 Contact Us For Availability
24
BAKE ELEMENT ASSEMBLY WPL Y700618 Contact Us For Availability
26
ELEMENT, BROIL WPL Y700619 Contact Us For Availability
27
FILTER RETAINER CLIP WPL 715488 Contact Us For Availability
27
WASHER (TEFLON) WPL 715617 Contact Us For Availability
27
CONTROL PANEL ASSEMBLY WPL 770456 Contact Us For Availability
28
INSULATION BOTTOM WPL 700620 Contact Us For Availability
28
INSULATION, STAPLE WPL 700621 Contact Us For Availability
28
CONVECTIVE FILTER WPL 715526 Contact Us For Availability
28
INSULATION WRAP WPL 715532 Contact Us For Availability
28
INSULATION BACK WPL 715533 Contact Us For Availability
29
JACK, PROBE WPL Y700883 Contact Us For Availability
31
TEST PLUG WPL 700876 Contact Us For Availability
31
BUTTON, PLUG WPL 700885 Contact Us For Availability
× ![]()
