LG 795.75319900 Refrigerator (Kenmore 79575319900) Parts List

103E

5218JJ3001A LG Refrigerator Slide Rail Backorder LGE 5218JJ3001A $7.08

View on Model

105A

5251JA3003B LG Drain Tube Assembly Backorder LGE 5251JA3003B $20.63

View on Model

128A

4975JJ2002A LG Refrigerator Right Side Drawer Backorder LGE 4975JJ2002A $26.61

View on Model

128B

4975JJ2002B LG Refrigerator Left Side Drawer Backorder LGE 4975JJ2002B $26.61

View on Model

145A

Refrigerator Holder LGE 4930JJ2003A Contact Us For Availability

View on Model

145B

Refrigerator Holder LGE 4930JJ2004A Contact Us For Availability

View on Model

149F

MHL58275201 LG Freezer Shelf Backorder LGE MHL58275201 $145.59

View on Model

151A

3391JJ1020B LG Vegetable Tray Assembly Backorder LGE 3391JJ1020B $189.56

View on Model

155B

4980JJ1010A LG Cover Support Backorder LGE 4980JJ1010A $43.36

View on Model

158A

Refrigerator Lamp Cover LGE 3550JJ2027A Contact Us For Availability

View on Model

158E

Refrigerator Light Cover LGE 3550JJ2017C Contact Us For Availability

View on Model

167B

4890JL1002V LG Glass Shelf Backorder LGE 4890JL1002V $516.10

View on Model

170A

3391JJ2004H LG Meat Tray Assembly Backorder LGE 3391JJ2004H $120.72

View on Model

205D

Refrigerator Door Bin LGE 5004JJ1024A Contact Us For Availability

View on Model

210A

4620JJ2009A LG Refrigerator Door Stopper In Stock LGE 4620JJ2009A $7.78

View on Model

210B

4974JA3031B LG Guide Stopper In Stock LGE 4974JA3031B $11.24

View on Model

241D

5004JJ1025A LG Door Basket Backorder LGE 5004JJ1025A $102.25

View on Model

262A

4930JA3093A LG Bracket Holder Backorder LGE 4930JA3093A $7.08

View on Model

262D

4004JA3002A LG Refrigerator Ice Maker Water S Backorder LGE 4004JA3002A $16.85

View on Model

276D

Refrigerator Cover, Front LGE MCK62049601 Contact Us For Availability

View on Model

279A

MBN60007701 LG Refrigerator Display Case Backorder LGE MBN60007701 $65.22

View on Model

281A

3550JJ2013C LG Hinge Cover Backorder LGE 3550JJ2013C $34.08

View on Model

281B

Refrigerator Door Hinge LGE 4775JJ2003B Contact Us For Availability

View on Model

282B

Refrigerator Door Hinge LGE 4775JJ2002A Contact Us For Availability

View on Model

282E

Refrigerator Top Door Hinge Hole Cover LGE 5006JJ2001F Contact Us For Availability

View on Model

282H

Refrigerator Center Hinge Hole Plug LGE 5006JJ3004E Contact Us For Availability

View on Model

283B

Refrigerator Lower Hinge LGE AEH72914701 Contact Us For Availability

View on Model

283F

4620JJ2007A LG Door Stopper Backorder LGE 4620JJ2007A $11.24

View on Model

301A

Refrigerator Evaporator Assembly LGE 5421JJ0002A Contact Us For Availability

View on Model

304A

3551JJ2008B LG Refrigerator Cover Assembly Backorder LGE 3551JJ2008B $146.31

View on Model

305B

4580JJ3001A LG Refrigerator Tray Roller Backorder LGE 4580JJ3001A $20.63

View on Model

305C

4J04238A LG Common Pin Backorder LGE 4J04238A $7.08

View on Model

307A

TCA35931726 LG Compressor Set Assembly In Stock LGE TCA35931726 $279.05

View on Model

308A

6749C-0014E LG Refrigerator Compressor Start In Stock LGE 6749C-0014E $29.27

View on Model

309A

6750C-0005P LG Refrigerator Compressor Overlo In Stock LGE 6750C-0005P $26.61

View on Model

310A

3550JA2042C LG Refrigerator PTC Cover Backorder LGE 3550JA2042C $11.24

View on Model

312A

5040JA3031A LG Refrigerator Compressor Damper Backorder LGE 5040JA3031A $7.08

View on Model

314A

Complete Stopper LGE 4620JA3009B Contact Us For Availability

View on Model

315A

Compressor Base Assembly LGE 3103JJ1001N Contact Us For Availability

View on Model

317A

5851JJ2002F LG Dryer Assembly Backorder LGE 5851JJ2002F $39.98

View on Model

318A

4930JA3034A LG Dryer Holder Backorder LGE 4930JA3034A $7.08

View on Model

319A

3390JJ0004A LG Drip Tray Backorder LGE 3390JJ0004A $74.64

View on Model

319C

MEA41997401 LG Fan Guide Backorder LGE MEA41997401 $26.61

View on Model

323B

Refrigerator Wire Condenser Assembly LGE 5403JJ1008A Contact Us For Availability

View on Model

327A

5006JA3034A LG Refrigerator Drain Tube Cap Backorder LGE 5006JA3034A $6.14

View on Model

328A

4J03020A LG Refrigerator Damper Pipe Backorder LGE 4J03020A $7.08

View on Model

329A

5901JJ1003A LG Fan Assembly Backorder LGE 5901JJ1003A $26.61

View on Model

329C

ADP36665702 LG Fan Assembly Backorder LGE ADP36665702 $26.61

View on Model

330B

MHN58555001 LG Freezer Shroud Backorder LGE MHN58555001 $167.37

View on Model

401A

Refrigerator Defrost Sensor Assembly LGE 4781JK2001A Contact Us For Availability

View on Model

402C

6600JB3001C LG Refrigerator Micro Switch In Stock LGE 6600JB3001C $15.75

View on Model

404A

4681JB1029H LG Refrigerator Fan Motor Assembl In Stock LGE 4681JB1029H $92.65

View on Model

404Z

6877JB1223F LG Refrigerator Drawing Assembly Backorder LGE 6877JB1223F $84.03

View on Model

405B

5040JJ2001A LG Damper Support Motor Backorder LGE 5040JJ2001A $7.08

View on Model

405C

5040JA2009B LG Refrigerator Damper Support Mo Backorder LGE 5040JA2009B $7.08

View on Model

405F

5040JA2004B LG Refrigerator Motor Rubber Grom Backorder LGE 5040JA2004B $7.08

View on Model

406B

Refrigerator Light Switch (Black) LGE 6600JB2004B Contact Us For Availability

View on Model

409B

Refrigerator Light Bulb LGE 6912JK2002E Contact Us For Availability

View on Model

409D

Refrigerator Lamp Reflector LGE MGW61842601 Contact Us For Availability

View on Model

410A

EAD60664701 LG Harness Assembly Backorder LGE EAD60664701 $208.32

View on Model

410G

0CZZJB2014L LG Refrigerator Electric Capacito In Stock LGE 0CZZJB2014L $41.86

View on Model

411A

EAD61445204 LG Refrigerator Power Cord Assemb Backorder LGE EAD61445204 $74.64

View on Model

412A

Refrigerator Wire Harness LGE EAD59672202 Contact Us For Availability

View on Model

412B

Refrigerator Harness Assembly LGE EAD59741301 Contact Us For Availability

View on Model

412D

6877JK2011D LG Harness Assembly Backorder LGE 6877JK2011D $64.95

View on Model

418A

Lg Electronics Alabama, Inc. 5300Jk1003J Evap Backorder LGE 5300JK1003J $127.31

View on Model

420A

EAU61644105 LG Refrigerator DC Motor Backorder LGE EAU61644105 $167.37

View on Model

501A

EBR41531308 LG Main PCB Assembly Backorder LGE EBR41531308 $345.55

View on Model

501B

Refrigerator Display Control Board LGE EBR59400501 Contact Us For Availability

View on Model

501F

Refrigerator Electronic Control Board Housing LGE 3551JJ1020A Contact Us For Availability

View on Model

503G

Refrigerator Decorative Control LGE MCR61620401 Contact Us For Availability

View on Model

600A

Refrigerator Ice Maker Assembly LGE 5989JA0002P Contact Us For Availability

View on Model

600C

MEA32865501 LG Tube Guide Backorder LGE MEA32865501 $16.85

View on Model

611E

Refrigerator Water Filter Head LGE 5231JA2005E Contact Us For Availability

View on Model

615A

MJM61842001 LG Water Tank Backorder LGE MJM61842001 $97.22

View on Model

616B

5210JA3030W LG Plastic Tube Backorder LGE 5210JA3030W $36.40

View on Model

616C

5210JA3030Y LG Plastic Tube Backorder LGE 5210JA3030Y $26.67

View on Model

616D

Refrigerator Injection Tube LGE AJR72929601 Contact Us For Availability

View on Model

616E

5211JA2003C LG Refrigerator Injector Tube Ass Backorder LGE 5211JA2003C $65.22

View on Model

618A

5210JJ3006B LG Refrigerator Inject Tube Backorder LGE 5210JJ3006B $20.63

View on Model

619B

3550JJ2024A LG Valve Cover Backorder LGE 3550JJ2024A $74.64

View on Model

619D

Refrigerator Valve Cover LGE MCK61866101 Contact Us For Availability

View on Model

621B

Connect Tube LGE 4932JA3002F Contact Us For Availability

View on Model

622B

MJH61841901 LG Refrigerator Tube Guide Suppor Backorder LGE MJH61841901 $16.85

View on Model

623C

4770JA3001A LG Refrigerator Band Backorder LGE 4770JA3001A $7.08

View on Model

627B

4930JA3091A LG Refrigerator Water Line Connec Backorder LGE 4930JA3091A $7.08

View on Model

628C

5220JB2001A LG Refrigerator Water Inlet Fill Backorder LGE 5220JB2001A $93.59

View on Model

903D

6500JB2001B LG Refrigerator Humidity Sensor T In Stock LGE 6500JB2001B $29.27

View on Model

B01

J351-00004L LG Customized Screw Backorder LGE J351-00004L $7.08

View on Model

B03

Refrigerator Screw LGE J351-00004P Contact Us For Availability

View on Model

S14

3J05696W LG Customized Screw Backorder LGE 3J05696W $7.08

View on Model

S24

1SZZJA3011B LG Refrigerator Customized Drawin In Stock LGE 1SZZJA3011B $7.54

View on Model

S29

4J00415D LG Refrigerator Customized Screw Backorder LGE 4J00415D $7.08

View on Model

S31

4000W4A003A LG Refrigerator Customized Screw Backorder LGE 4000W4A003A $6.53

View on Model

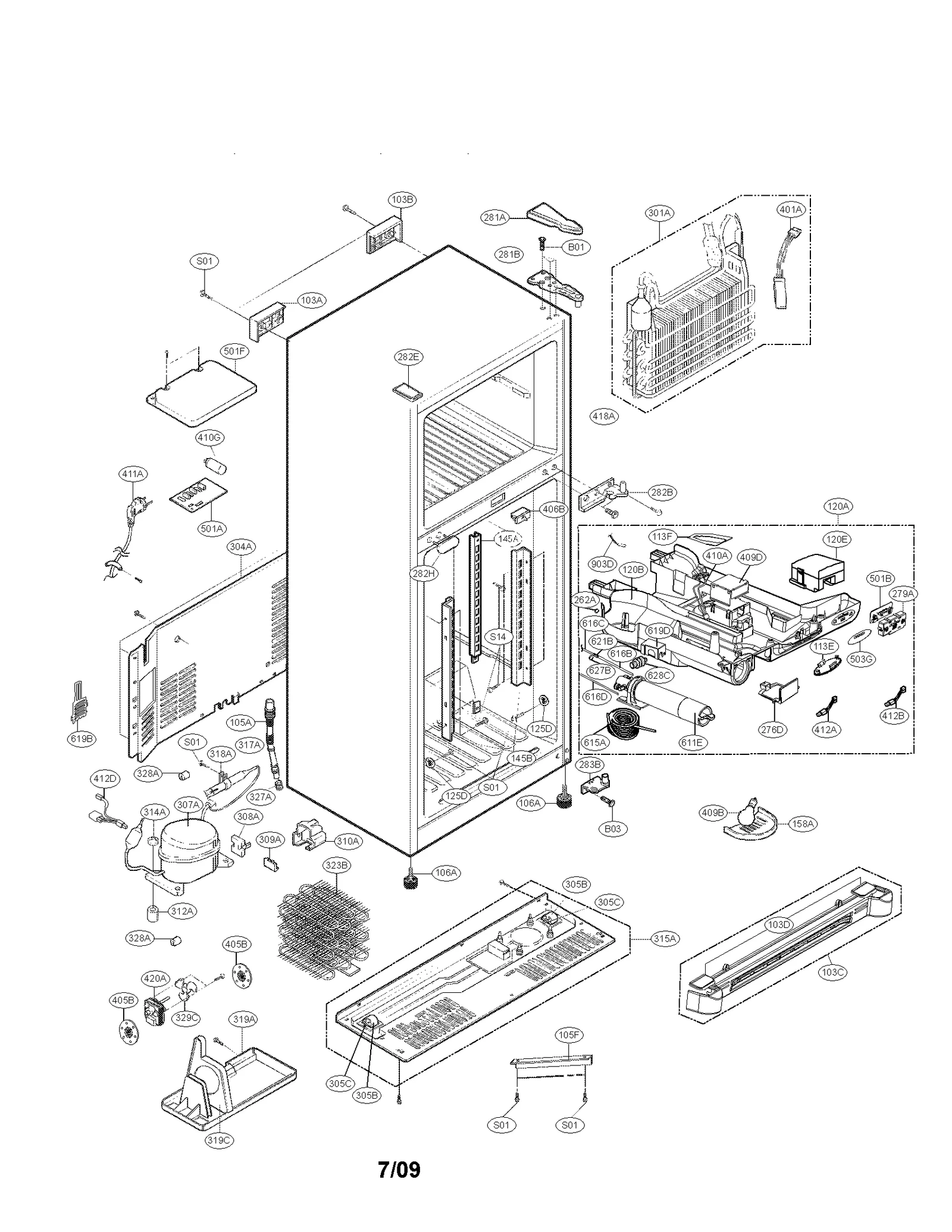

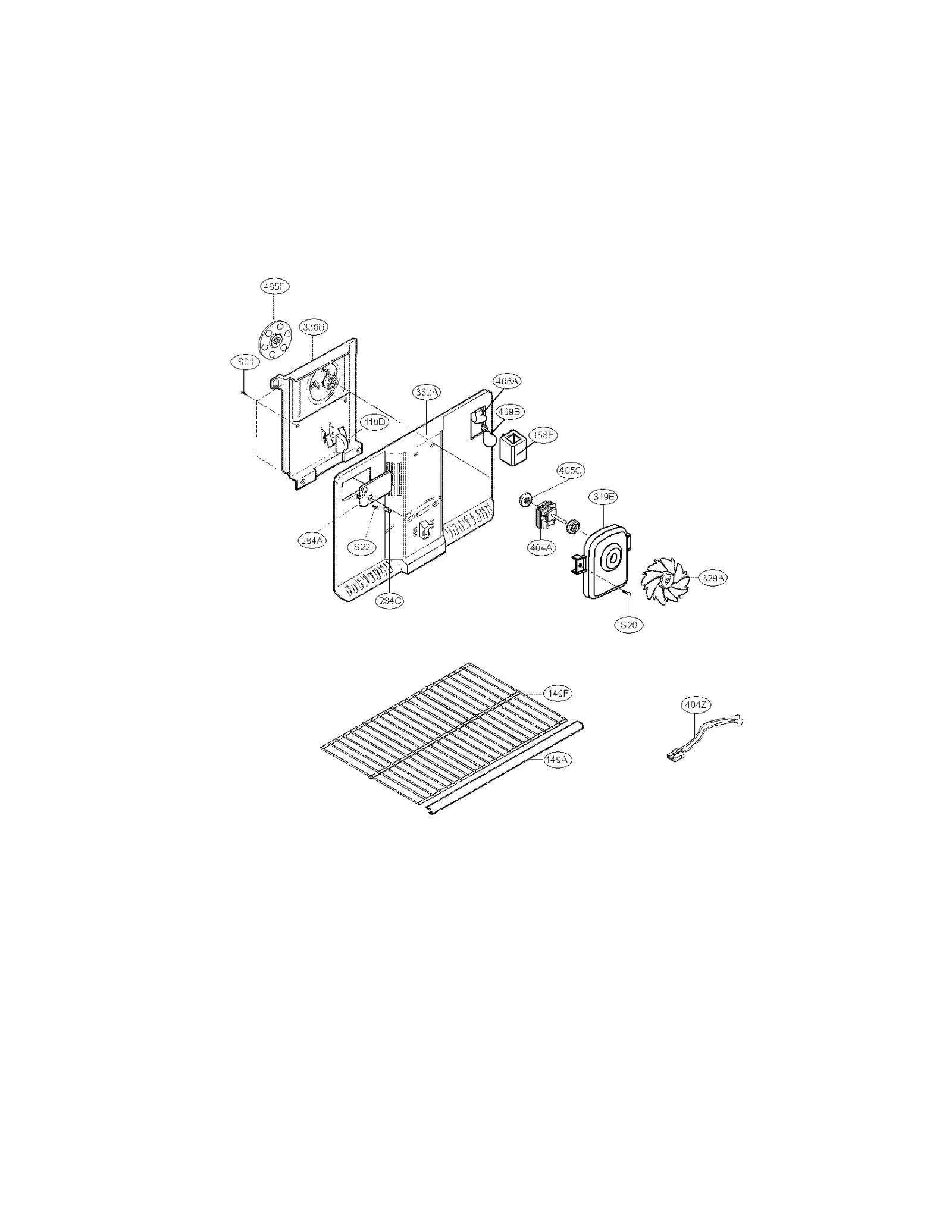

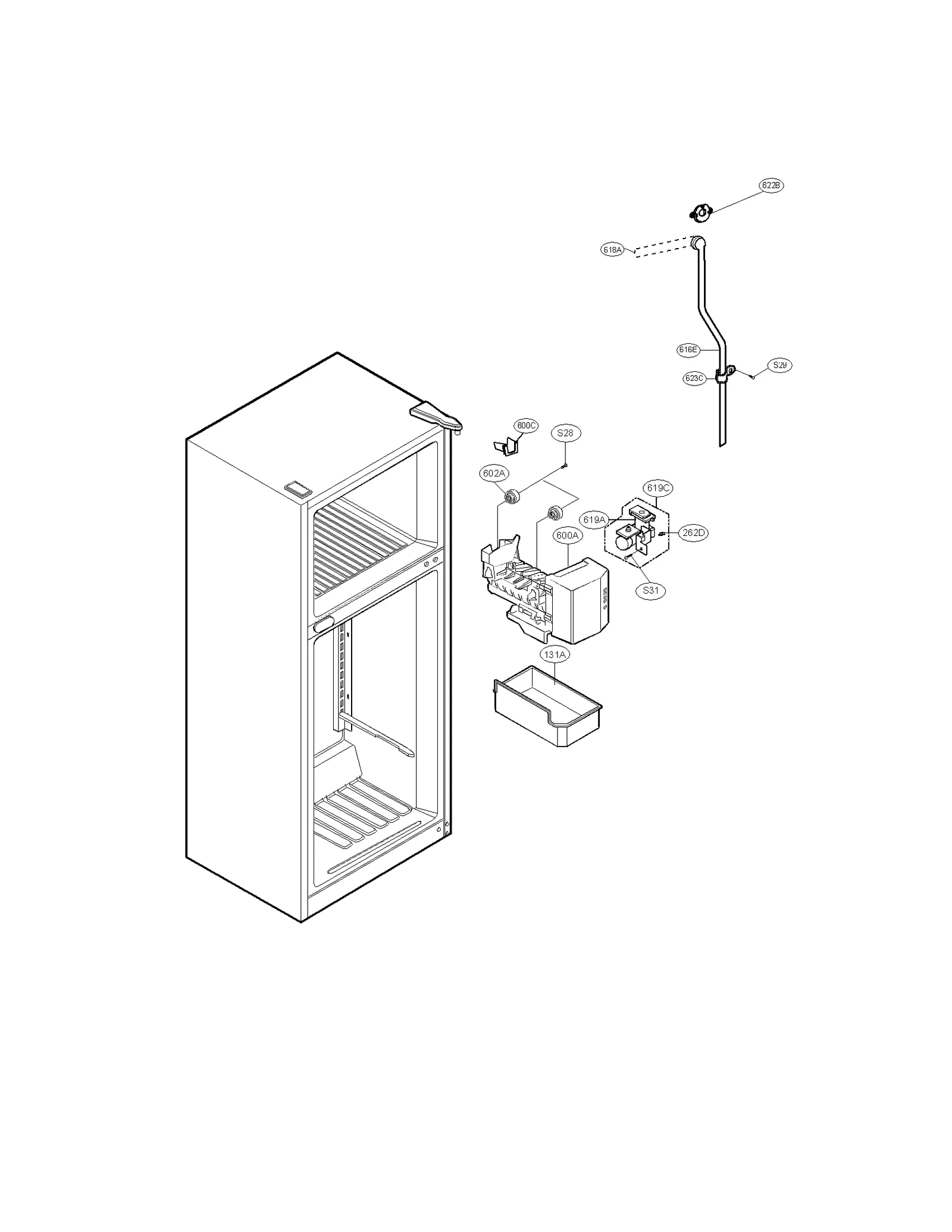

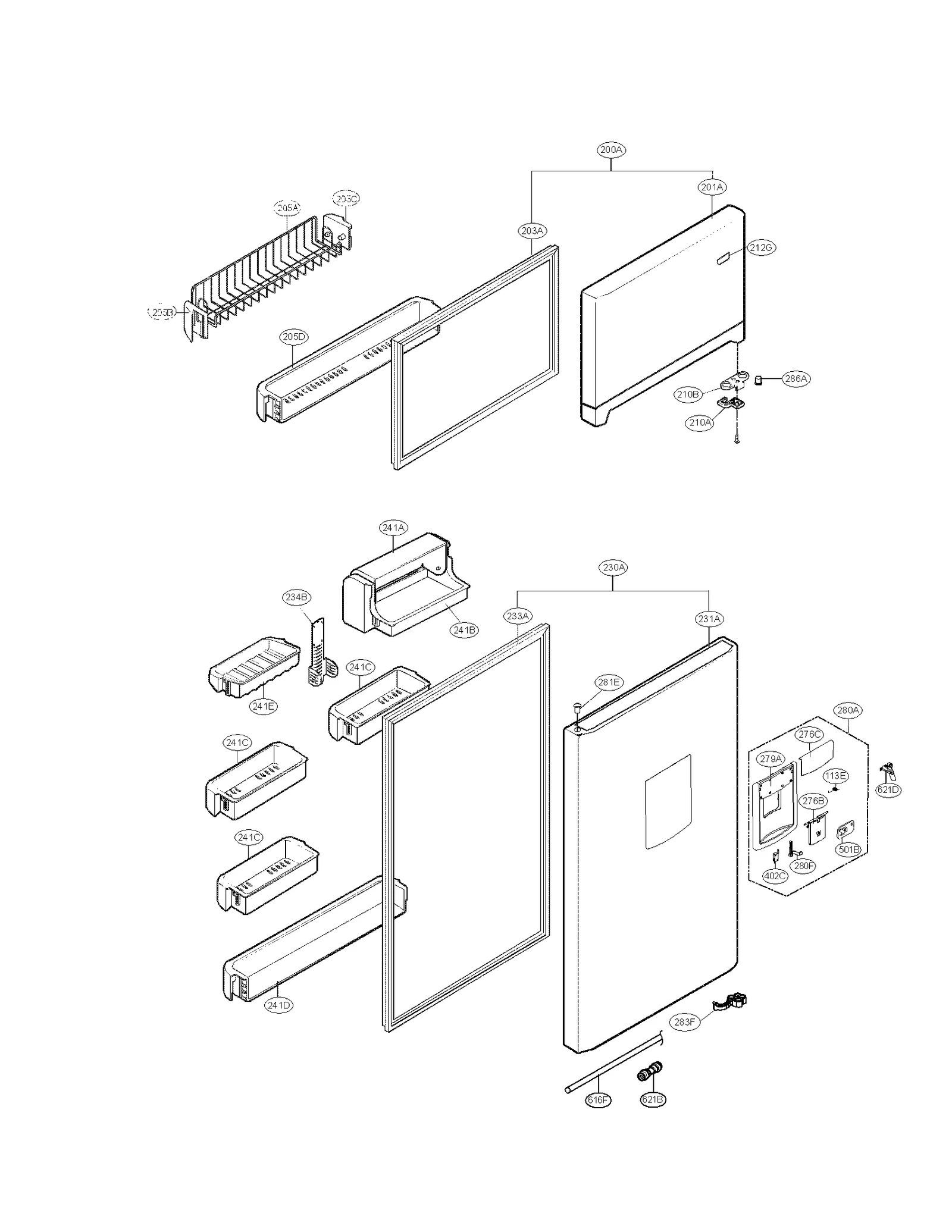

Model LG 795.75319900 Refrigerator (Kenmore 79575319900) – Common Parts & Diagrams

Common parts from model LG 795.75319900 Refrigerator (Kenmore 79575319900)
