LG 795.71304010 Refrigerator (Kenmore 79571304010) Parts List

103C

3550JJ0006B LG Lower Cover Backorder LGE 3550JJ0006B $54.35

View on Model

104E

Refrigerator Door Gasket Retainer LGE 4931JJ3002A Contact Us For Availability

View on Model

105A

5251JA3003D LG Drain Tube Assembly In Stock LGE 5251JA3003D $10.63

View on Model

120B

Duct Mullion Assembly LGE ADJ72910602 Contact Us For Availability

View on Model

128A

AEC72913201 LG Refrigerator Guide Rail Assemb Backorder LGE AEC72913201 $93.59

View on Model

128B

AEC72913202 LG Refrigerator Rail Guide Assemb Backorder LGE AEC72913202 $93.59

View on Model

128E

MEG54557902 LG Refrigerator Rail Holder Backorder LGE MEG54557902 $93.59

View on Model

128F

Refrigerator Drawer Track LGE MEG54557901 Contact Us For Availability

View on Model

131A

MKK61842201 LG Refrigerator Ice Bucket Backorder LGE MKK61842201 $120.72

View on Model

136A

Refrigerator Freezer Drawer LGE AJP73194902 Contact Us For Availability

View on Model

145C

LG Refrigerator Drawer Slide Rail LGE 4975JJ2028C Contact Us For Availability

View on Model

145F

LG Refrigerator Drawer Track LGE 4975JJ2028D Contact Us For Availability

View on Model

158A

3550JJ1040A LG Refrigerator Lamp Lens Cover Backorder LGE 3550JJ1040A $41.86

View on Model

158E

Refrigerator Light Cover LGE MCK62661401 Contact Us For Availability

View on Model

167B

4890JL1002R LG Glass Shelf Backorder LGE 4890JL1002R $146.31

View on Model

170A

AJP72914002 LG Fresh Room Tray Assembly Backorder LGE AJP72914002 $239.88

View on Model

212J

MJB63190001 LG Refrigerator Handle Stopper Sc In Stock LGE MJB63190001 $7.78

View on Model

233C

ACQ67902601 LG Cover Assembly Front Backorder LGE ACQ67902601 $65.22

View on Model

233D

ACQ67902602 LG Front Cover Assembly Backorder LGE ACQ67902602 $26.61

View on Model

233E

Refrigerator Door Gasket Retainer LGE 4930JJ2028B Contact Us For Availability

View on Model

233F

Refrigerator Door Gasket Retainer LGE 4930JJ2028A Contact Us For Availability

View on Model

233G

4430JJ2005B LG Refrigerator Left Side Door Cl Backorder LGE 4430JJ2005B $16.85

View on Model

233H

4430JJ2005A LG Refrigerator Left Side Door Cl Backorder LGE 4430JJ2005A $16.85

View on Model

241A

MCK53467601 LG Bucket Cover Backorder LGE MCK53467601 $26.61

View on Model

241D

AAP72910301 LG Refrigerator Door Basket Assem Backorder LGE AAP72910301 $64.93

View on Model

243B

MJB63029901 LG Refrigerator Door Hinge Stoppe In Stock LGE MJB63029901 $7.08

View on Model

249A

MCD36888904 LG Rail Connector Backorder LGE MCD36888904 $125.59

View on Model

249B

5098JJ1002E LG Connector Assembly Backorder LGE 5098JJ1002E $276.16

View on Model

249E

5218JA1010E LG Refrigerator Right Side Drawer In Stock LGE 5218JA1010E $138.03

View on Model

249F

5218JA1010F LG Refrigerator Left Side Drawer In Stock LGE 5218JA1010F $178.30

View on Model

249J

Refrigerator Freezer Drawer Slide Rail Cover, LGE 3550JJ1111A Contact Us For Availability

View on Model

249K

Refrigerator Freezer Drawer Slide Rail Cover, LGE 3550JJ1111B Contact Us For Availability

View on Model

250A

4270JJ3001A LG Refrigerator Bar Backorder LGE 4270JJ3001A $26.61

View on Model

250B

4403JJ3001A LG Refrigerator Drawer Glide Gear Backorder LGE 4403JJ3001A $20.63

View on Model

262D

4004JA3002A LG Refrigerator Ice Maker Water S Backorder LGE 4004JA3002A $16.85

View on Model

262E

4350JA3005B LG Refrigerator Snap Retaining Ri In Stock LGE 4350JA3005B $7.78

View on Model

286A

4984JJ3003A LG Refrigerator Door Hinge Bushin In Stock LGE 4984JJ3003A $7.78

View on Model

301A

5421JJ1001B LG Refrigerator Evaporator Assemb Backorder LGE 5421JJ1001B $444.54

View on Model

304A

3551JJ2008B LG Refrigerator Cover Assembly Backorder LGE 3551JJ2008B $146.31

View on Model

305B

4580JJ3001A LG Refrigerator Tray Roller Backorder LGE 4580JJ3001A $20.63

View on Model

305C

4J04238A LG Common Pin Backorder LGE 4J04238A $7.08

View on Model

308A

6749C-0014E LG Refrigerator Compressor Start In Stock LGE 6749C-0014E $29.27

View on Model

309A

6750C-0005P LG Refrigerator Compressor Overlo In Stock LGE 6750C-0005P $26.61

View on Model

310A

3550JA2042C LG Refrigerator PTC Cover Backorder LGE 3550JA2042C $11.24

View on Model

317A

ADH73150210 LG Dryer Assembly In Stock LGE ADH73150210 $80.39

View on Model

319D

AEC72997401 LG Fan Assembly Guide Backorder LGE AEC72997401 $93.59

View on Model

327A

5006JA3049A LG Drain Tube Cap Backorder LGE 5006JA3049A $7.08

View on Model

328A

4J03020A LG Refrigerator Damper Pipe Backorder LGE 4J03020A $7.08

View on Model

329A

5901JJ1005A LG Fan Assembly Backorder LGE 5901JJ1005A $20.63

View on Model

329C

ADP36665702 LG Fan Assembly Backorder LGE ADP36665702 $26.61

View on Model

401A

6615JB2005C LG Refrigerator Defrost Control A Backorder LGE 6615JB2005C $46.04

View on Model

402A

Refrigerator Door Switch LGE 6600JB3007A Contact Us For Availability

View on Model

404A

4681JB1027N LG Refrigerator Evaporator Fan Mo In Stock LGE 4681JB1027N $185.95

View on Model

405C

5040JA2009B LG Refrigerator Damper Support Mo Backorder LGE 5040JA2009B $7.08

View on Model

405F

5040JA2004B LG Refrigerator Motor Rubber Grom Backorder LGE 5040JA2004B $7.08

View on Model

405G

Refrigerator Evaporator Fan Motor and Bracket LGE 4811JJ2002K Contact Us For Availability

View on Model

406B

6600JB1010A LG Refrigerator Push Button Door In Stock LGE 6600JB1010A $10.75

View on Model

409B

Refrigerator Light Bulb LGE 6912JB2004K Contact Us For Availability

View on Model

409D

3034JJ1002B LG Refrigerator Reflector Backorder LGE 3034JJ1002B $65.53

View on Model

410A

Refrigerator Light Socket LGE 6621JK2003B Contact Us For Availability

View on Model

418A

5300JB1100J LG Refrigerator Defrost Heater El Backorder LGE 5300JB1100J $111.87

View on Model

420A

EAU61644105 LG Refrigerator DC Motor Backorder LGE EAU61644105 $167.37

View on Model

503C

6871JB2046B LG Display Power Control Board As Backorder LGE 6871JB2046B $277.16

View on Model

503F

Refrigerator Display Board and Control Box As LGE ABQ33905317 Contact Us For Availability

View on Model

600A

AEQ72909603 LG Refrigerator Ice Maker In Stock LGE AEQ72909603 $213.30

View on Model

610A

Refrigerator Temperature Sensor Cover LGE 3550JJ2020A Contact Us For Availability

View on Model

619A

5220JA2009D LG Refrigerator Water Inlet Fill Backorder LGE 5220JA2009D $93.59

View on Model

621C

MCD36888903 LG Refrigerator Door Rail Connect Backorder LGE MCD36888903 $84.03

View on Model

622B

5006JJ2009A LG Cap Cover Backorder LGE 5006JJ2009A $7.08

View on Model

627A

4930JA3054A LG Pipe Holder Backorder LGE 4930JA3054A $7.08

View on Model

B01

1STZJA3004F LG Customized Screw In Stock LGE 1STZJA3004F $7.54

View on Model

S27

4J01424C LG Screw Customized Backorder LGE 4J01424C $7.08

View on Model

S31

4000W4A003A LG Refrigerator Customized Screw Backorder LGE 4000W4A003A $6.53

View on Model

S38

4J00415D LG Refrigerator Customized Screw Backorder LGE 4J00415D $7.08

View on Model

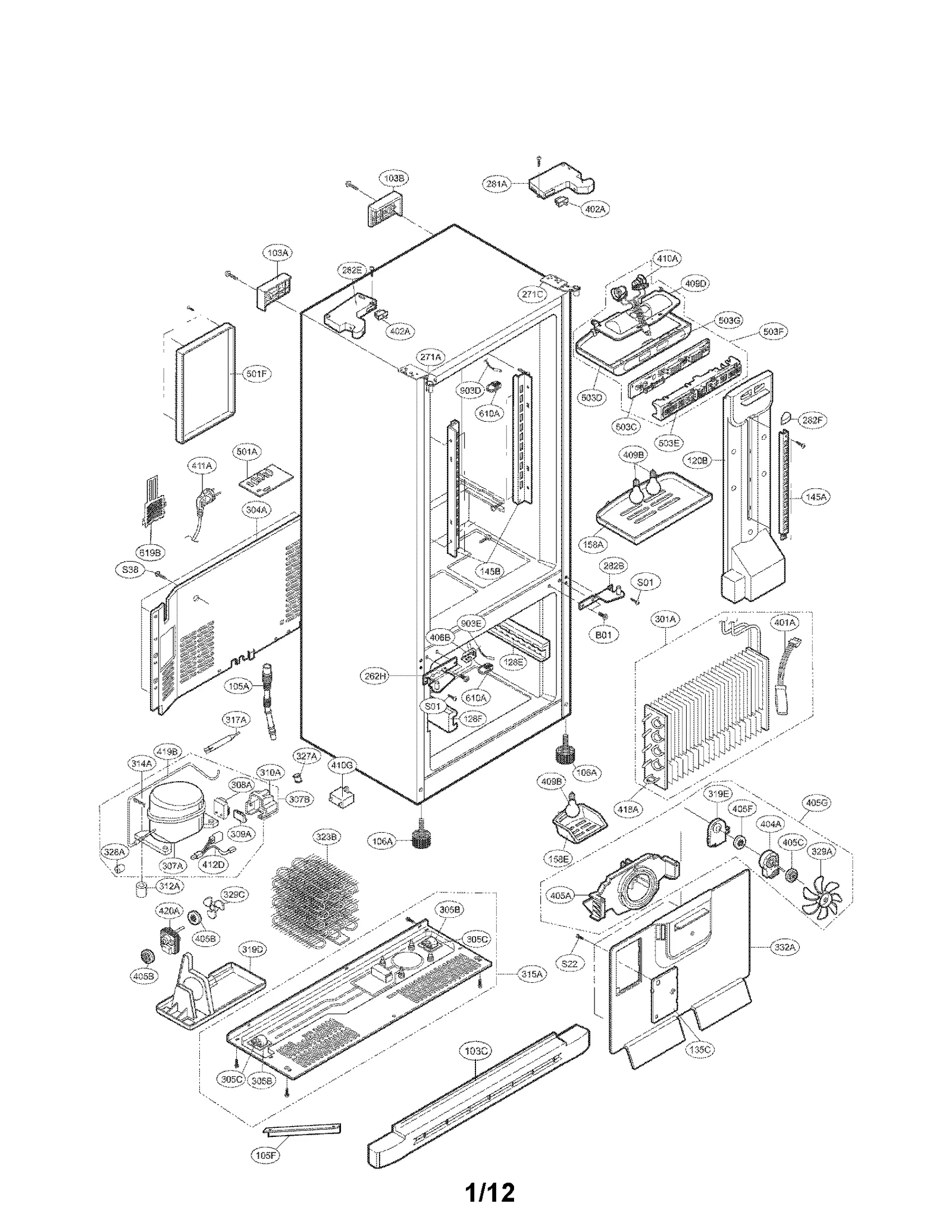

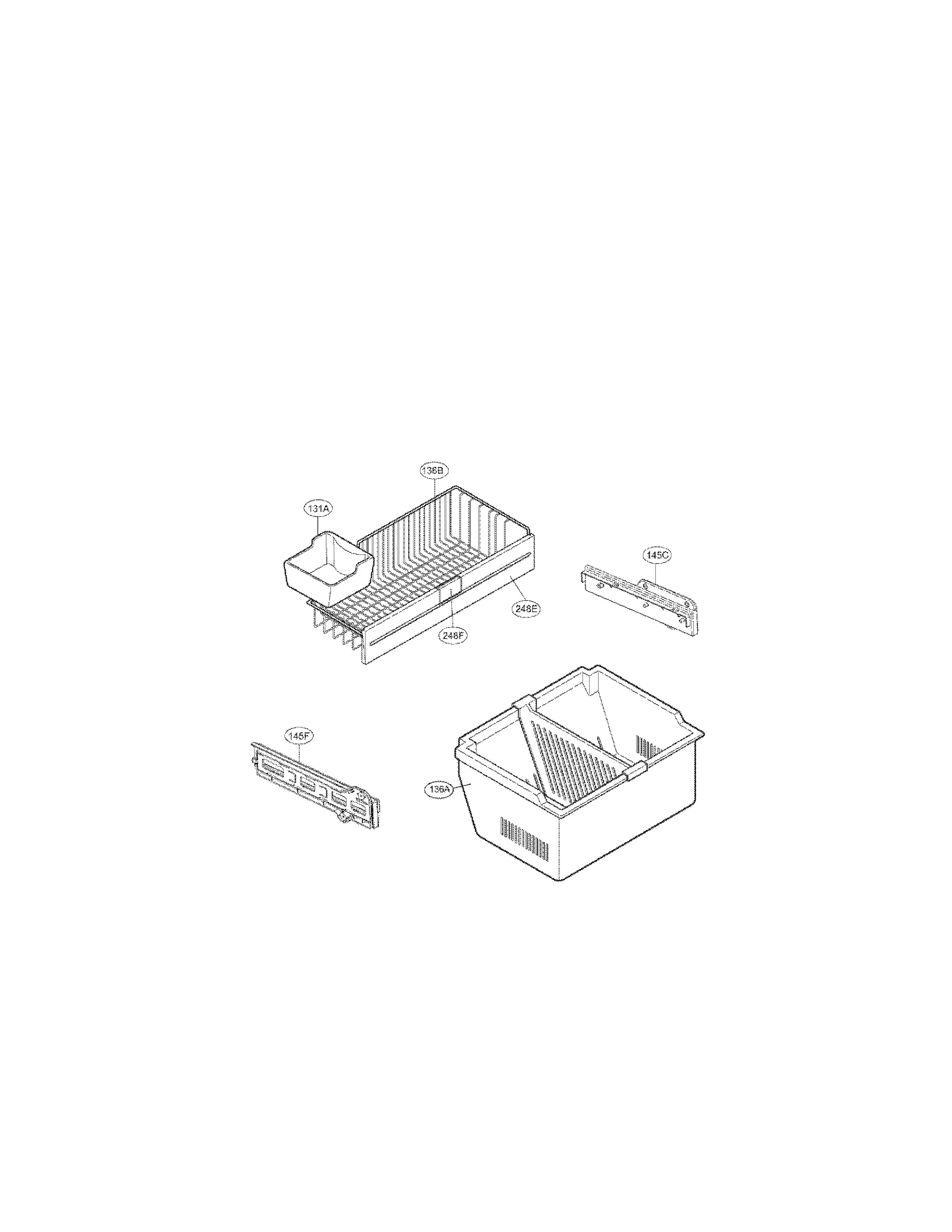

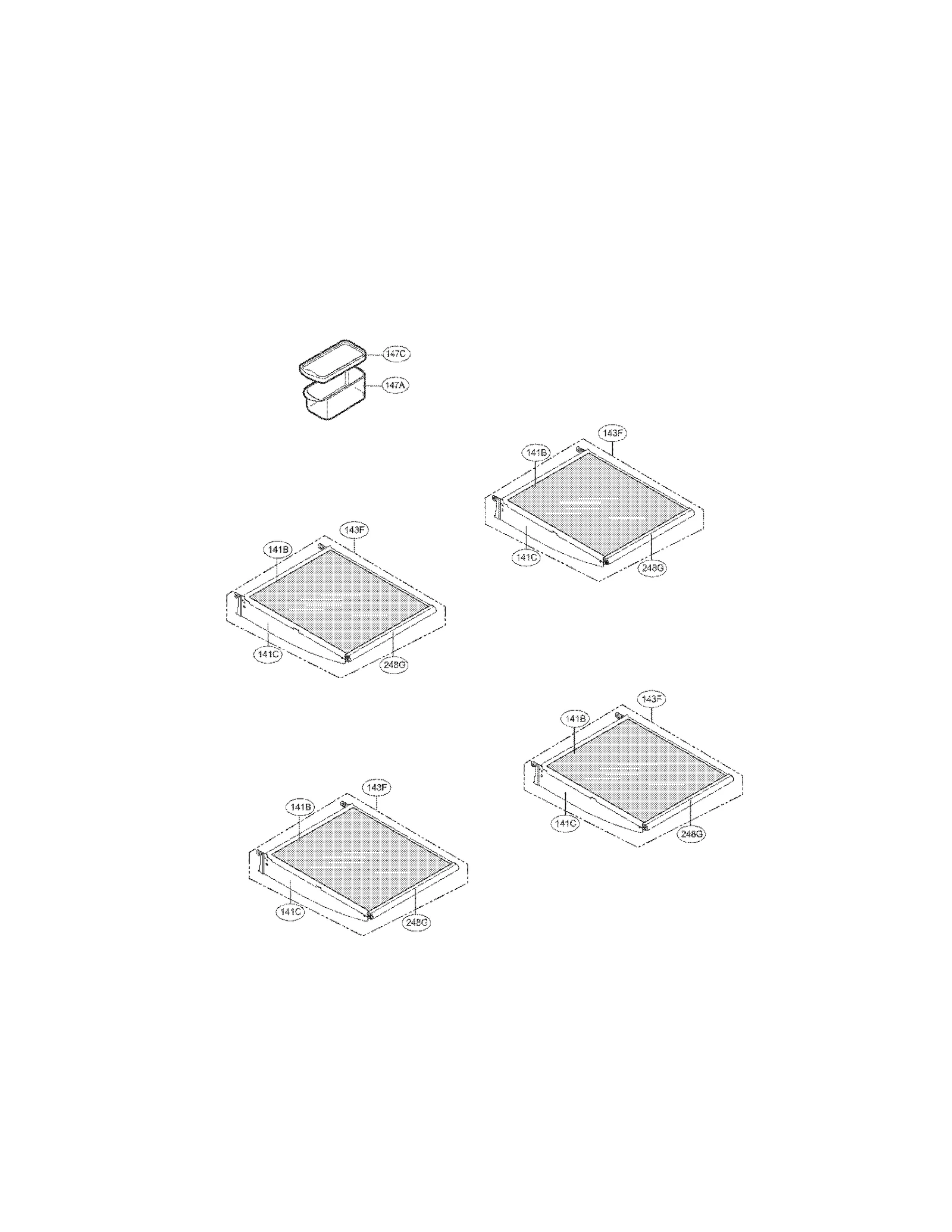

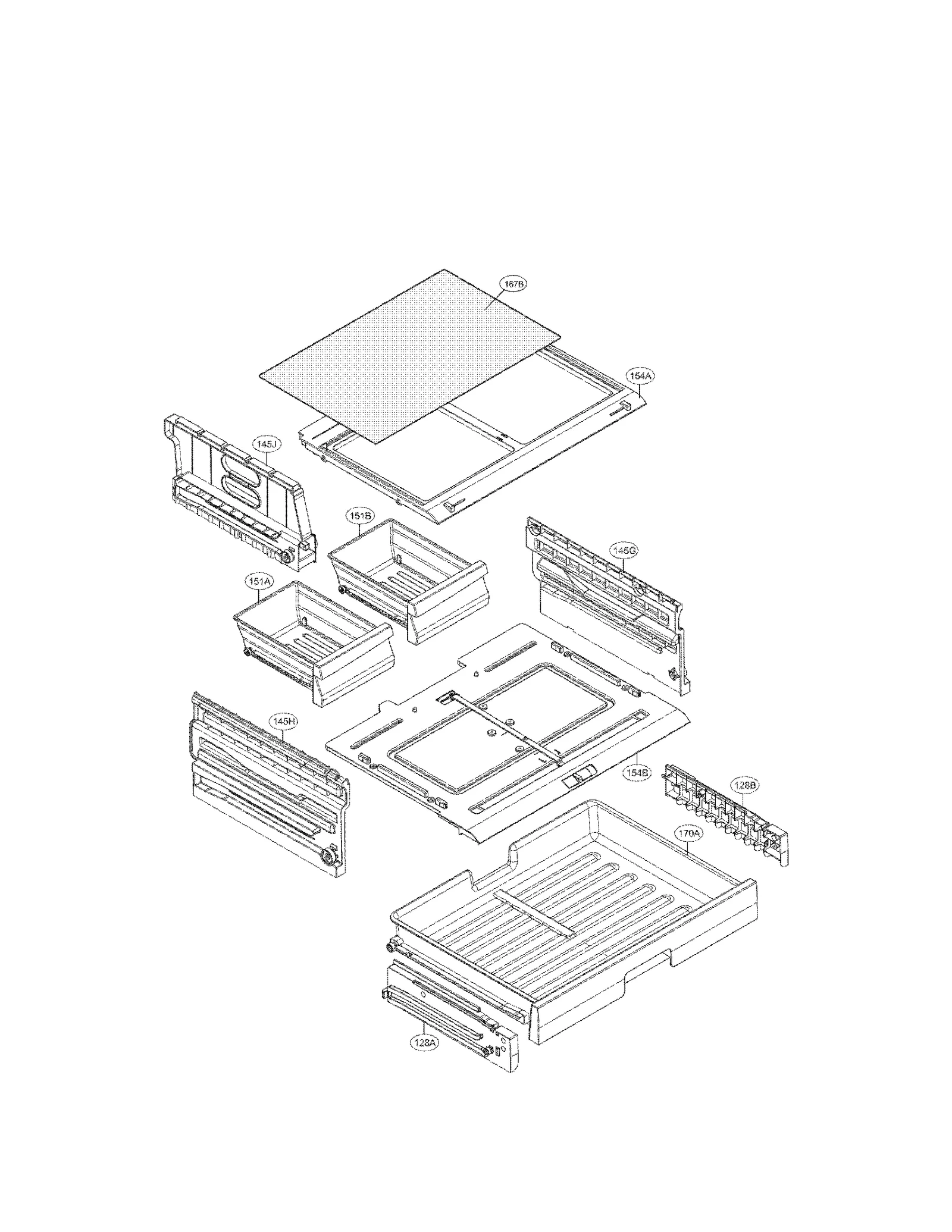

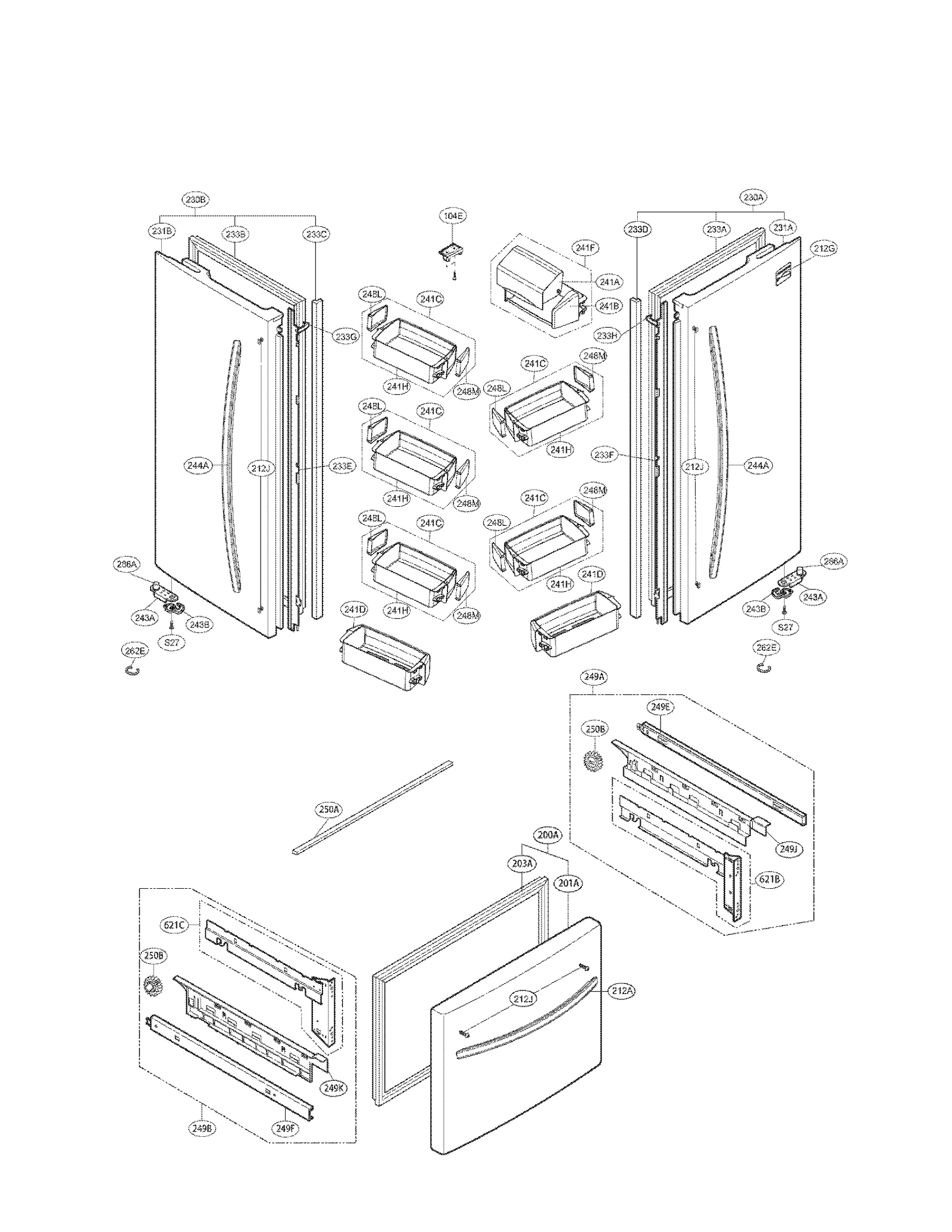

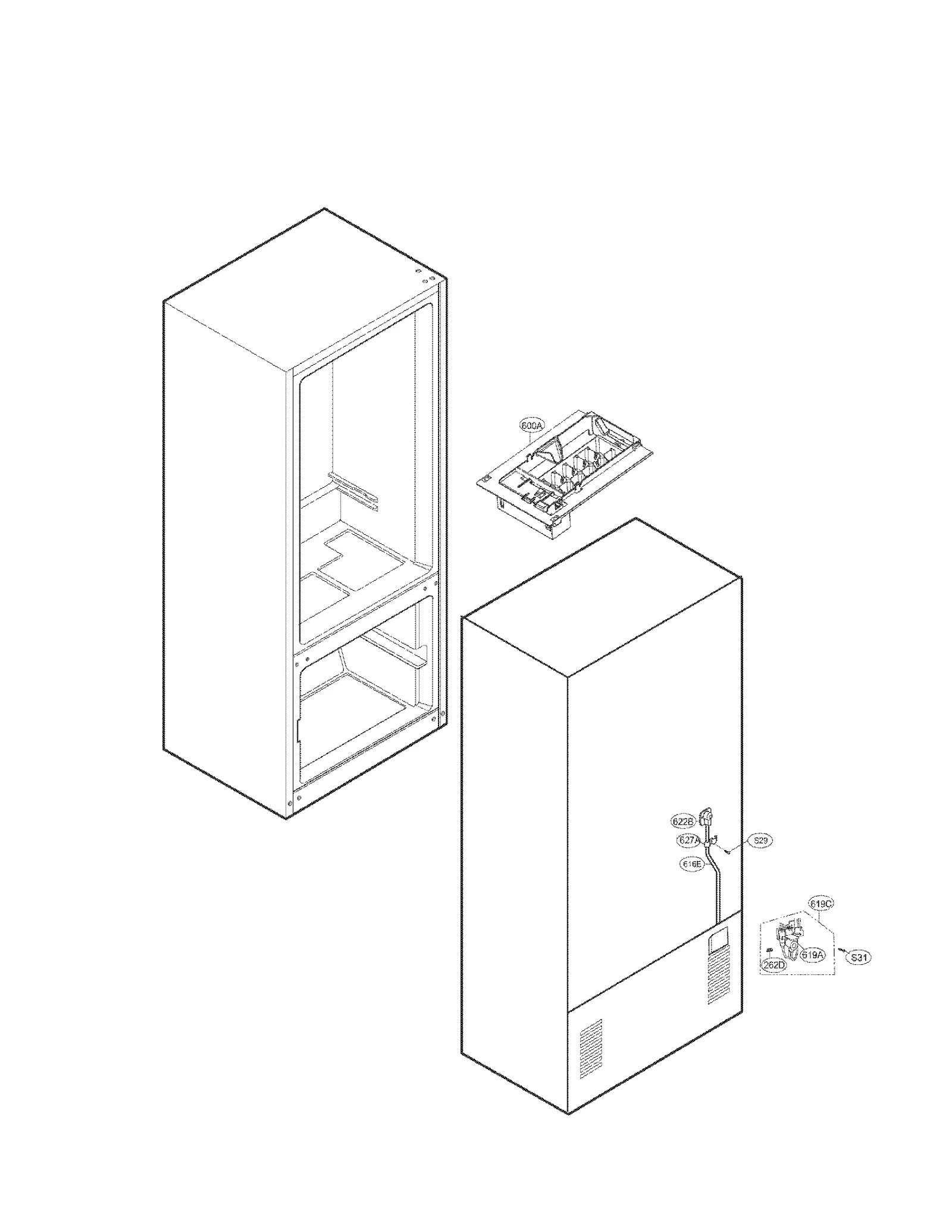

Model LG 795.71304010 Refrigerator (Kenmore 79571304010) – Common Parts & Diagrams

Common parts from model LG 795.71304010 Refrigerator (Kenmore 79571304010)
