Model Electrolux 790.95411100 Electric Range (Kenmore 79095411100) – Common Parts & Diagrams
BACKGUARD
All Parts
DOOR

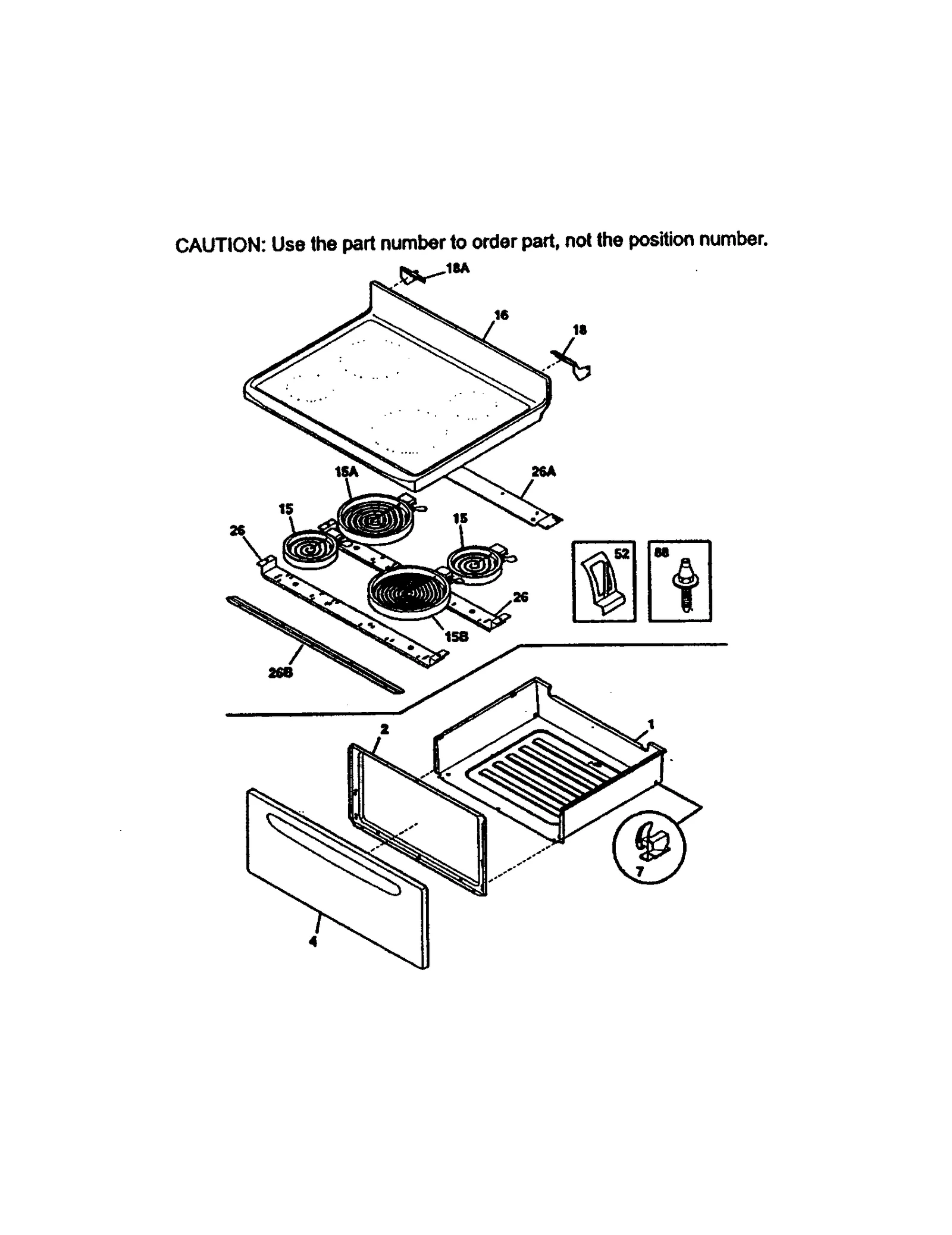

TOP/DRAWER

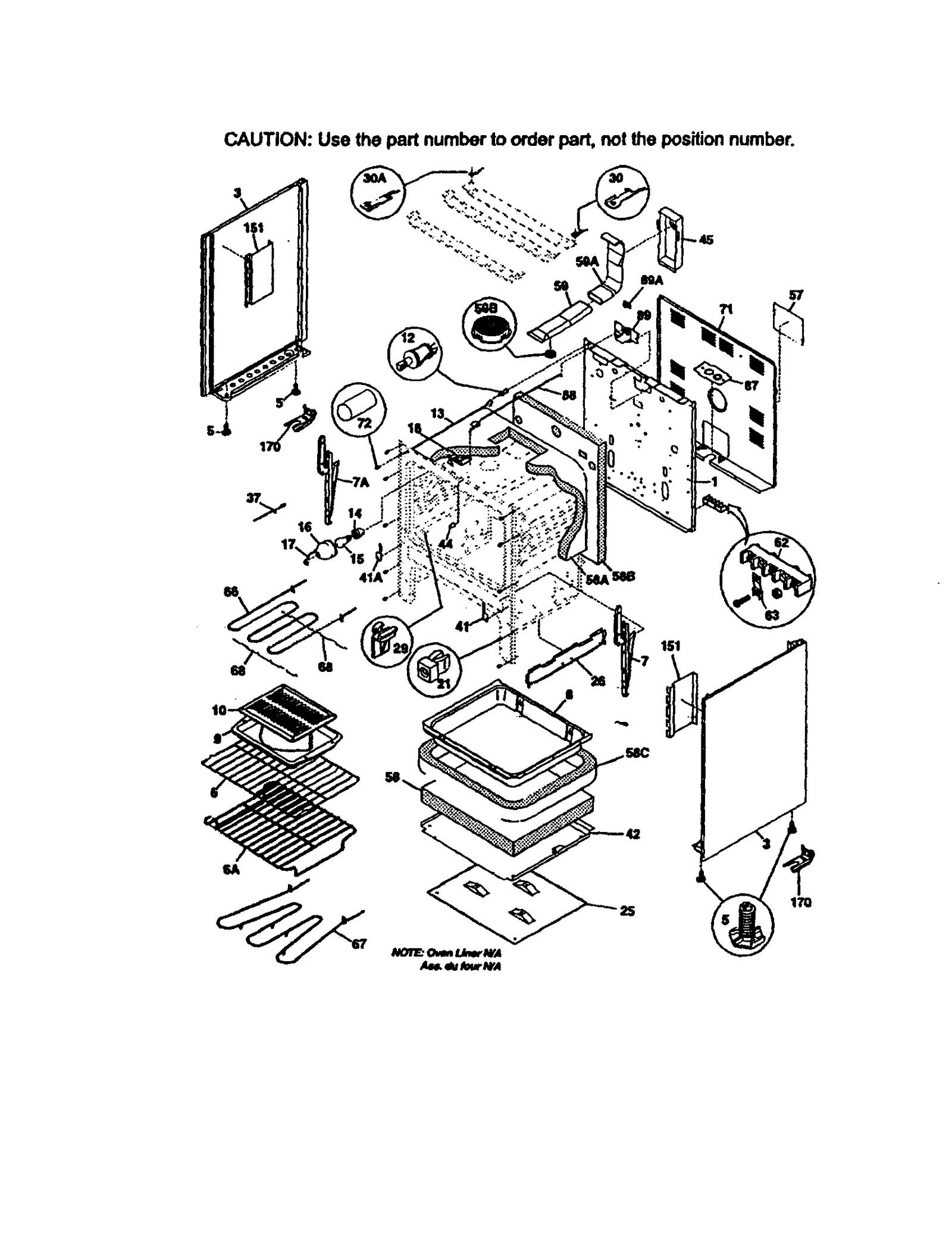

BODY
Common parts from model Electrolux 790.95411100 Electric Range (Kenmore 79095411100)
1
Range Storage Drawer Assembly WCI 316011503 Contact Us For Availability
1
Main Back WCI 316201300 Contact Us For Availability
1A
Kenmore Elite Spacer WCI 316248900 Contact Us For Availability
2
Range Storage Drawer Front Panel Liner WCI 316231500 Contact Us For Availability
3
Range Oven Door Trim Kit WCI 5303935191 Contact Us For Availability
3
Body Panel WCI 316230102 Contact Us For Availability
3A
Range Oven Door Trim Kit (White) WCI 5303935192 Contact Us For Availability
3A
Body Panel WCI 316230103 Contact Us For Availability
3B
Body Panel WCI 316230108 Contact Us For Availability
3C
Body Panel WCI 316230109 Contact Us For Availability
3D
Body Panel WCI 316230104 Contact Us For Availability
3E
Body Panel WCI 316230105 Contact Us For Availability
4
Range Storage Drawer Front Panel (Black) WCI 316231306 Contact Us For Availability
4A
Range Storage Drawer Front Panel WCI 316231305 Contact Us For Availability
4A
Range Oven Door Outer Panel and Foil Tape (Wh WCI 5303935201 Contact Us For Availability
4B
Oven Door Glass WCI 5303935202 Contact Us For Availability
5
Range Leveling Leg WCI 316129200 Contact Us For Availability
6A
Oven Rack WCI 316214401 Contact Us For Availability
7
Range Oven Door Insulation WCI 316236700 Contact Us For Availability
7A
Oven Hinge WCI 316205001 Contact Us For Availability
8
Range Oven Bottom Panel WCI 316201501 Contact Us For Availability
9
Range Broil Pan WCI 316081900 Contact Us For Availability
10
Range Broil Pan Insert WCI 316082000 Contact Us For Availability
12
Range Oven Door Seal WCI 316230900 Contact Us For Availability
12
Oven Switch WCI 316027701 Contact Us For Availability
13
Light Rod WCI 316238800 Contact Us For Availability
17
Glass Spacer WCI 316117701 Contact Us For Availability
18
Range Oven Door Latch WCI 316213900 Contact Us For Availability
21
Range Screw Anchor WCI 3014099 Contact Us For Availability
25
Shield WCI 3200848 Contact Us For Availability
26
Main Shield WCI 316211800 Contact Us For Availability
26A
BRACKET, CHASSIS SUPPORT, REAR WCI 316099200 Contact Us For Availability
26B
Bracket Support WCI 316214200 Contact Us For Availability
30
Range Main Top Right Hinge Pin WCI 316217700 Contact Us For Availability
30A
Range High Bracket WCI 316217701 Contact Us For Availability
31A
Range Surface Burner Knob (White) WCI 316240800 Contact Us For Availability
31B
Range Surface Burner Knob WCI 316240803 Contact Us For Availability
41
Range Oven Door Hinge Cover, Right WCI 316233400 Contact Us For Availability
41A
Range Oven Door Hinge Cover, Left WCI 316233500 Contact Us For Availability
42
Wool Cover Shield WCI 316206200 Contact Us For Availability
44
Door Spacer WCI 316246500 Contact Us For Availability
52
Range Surface Element Mounting Spring WCI 316099400 Contact Us For Availability
57
Access Cover WCI 316081100 Contact Us For Availability
58
Insulation WCI 316240300 Contact Us For Availability
58A
Range Oven Insulation WCI 316047708 Contact Us For Availability
58C
Insulation WCI 316240400 Contact Us For Availability
62A
Range Terminal Block Insulator WCI 316085600 Contact Us For Availability
63
Strap WCI 5301145190 Contact Us For Availability
71
Rear Shield WCI 316015810 Contact Us For Availability
72
Range Oven Light Switch Rod End Cap WCI 316234500 Contact Us For Availability
89
Latch Motor WCI 316135202 Contact Us For Availability
89A
Latch Bracket WCI 316245800 Contact Us For Availability
151
Shield Body WCI 316239300 Contact Us For Availability
NI07
Range Screw WCI 316021108 Contact Us For Availability
NI12
Range Screw WCI 5303280311 Contact Us For Availability
× ![]()
