Model Electrolux 790.95214201 Electric Range (Kenmore 79095214201) – Common Parts & Diagrams

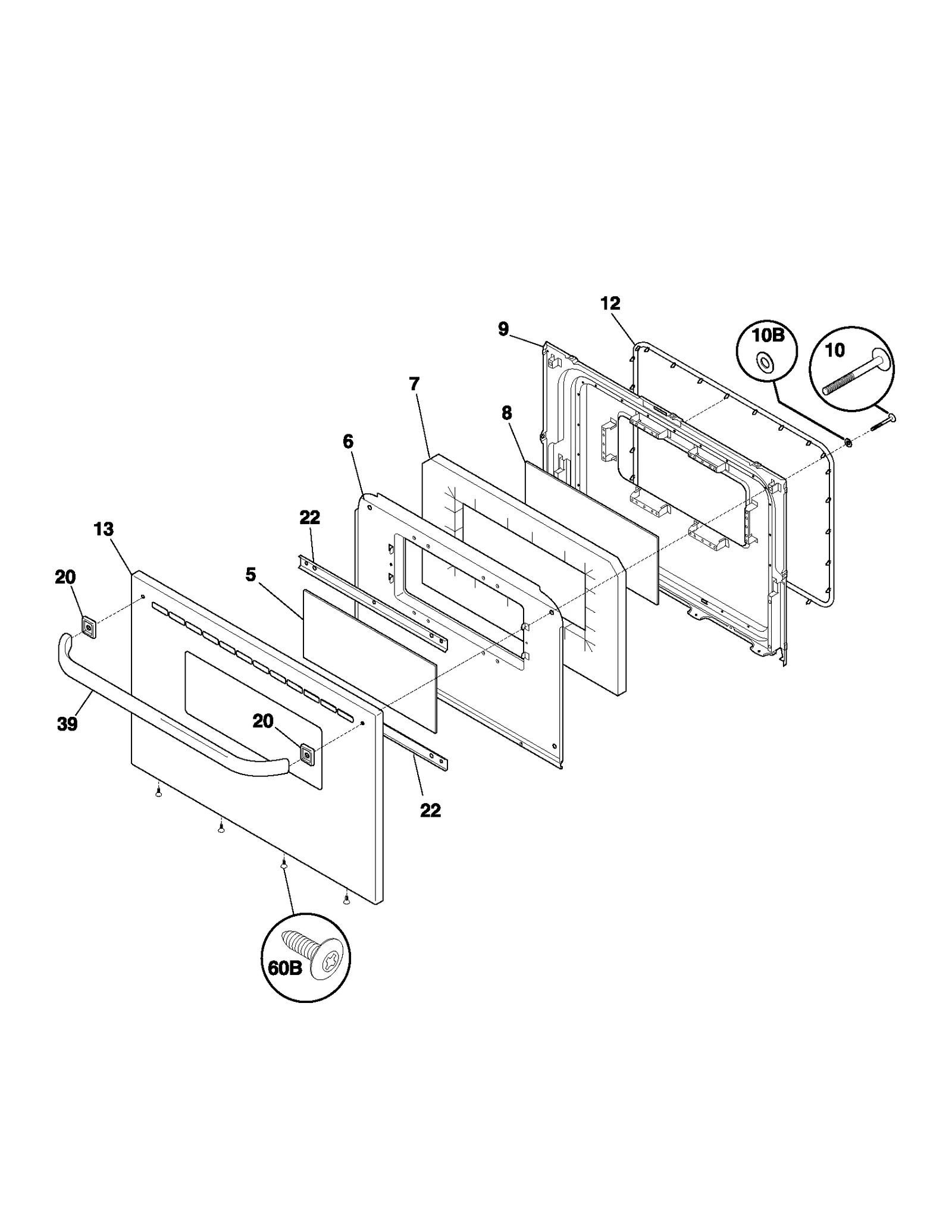

DOOR

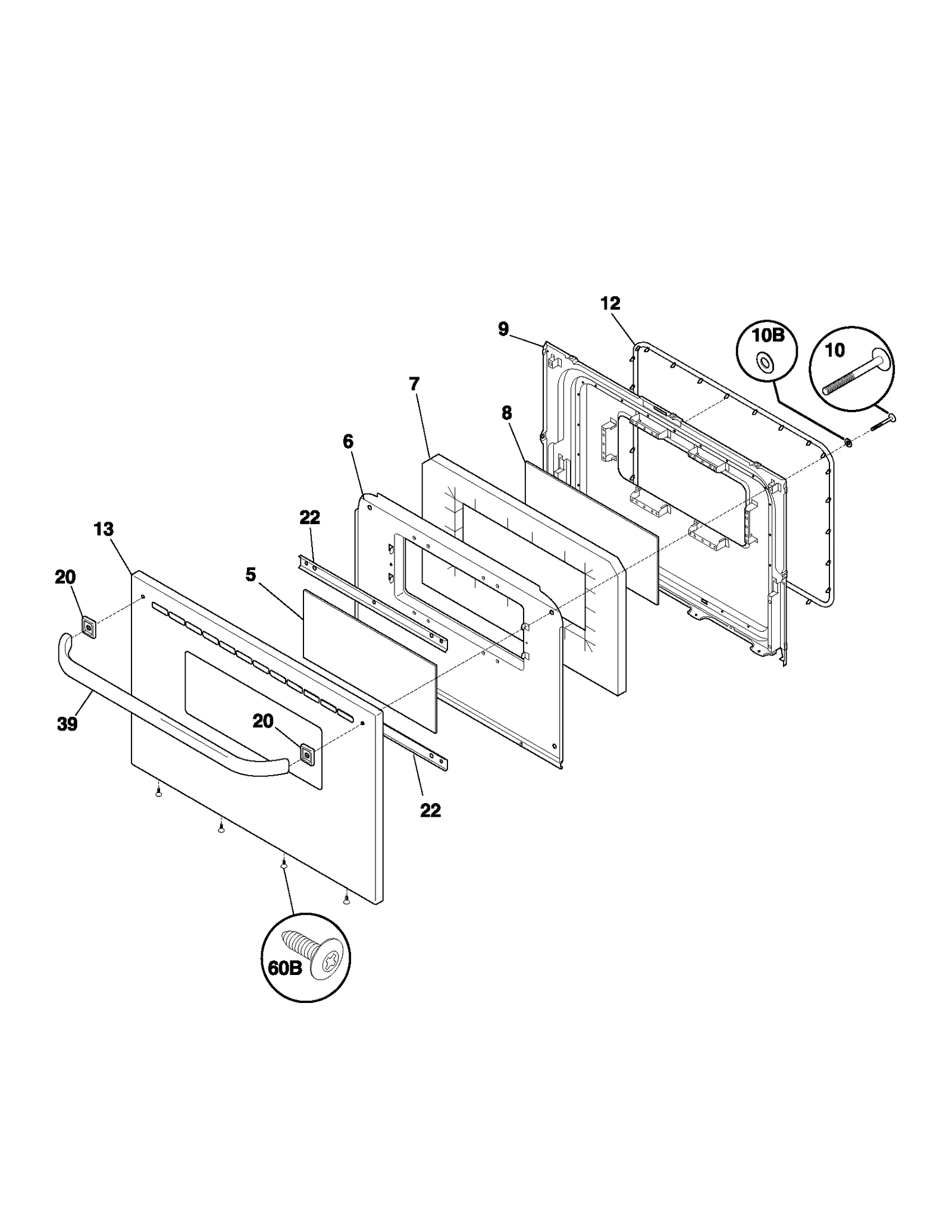

DOOR
BACKGUARD
BACKGUARD
BODY
TOP/DRAWER
Common parts from model Electrolux 790.95214201 Electric Range (Kenmore 79095214201)
1
Range Storage Drawer Assembly WCI 316011503 Contact Us For Availability
2
Range Storage Drawer Front Panel Liner WCI 316231500 Contact Us For Availability
4
Range Storage Drawer Front Panel WCI 316231305 Contact Us For Availability
4
Drawer Panel WCI 316231309 Contact Us For Availability
5
Range Leveling Leg WCI 316129200 Contact Us For Availability
5
Range Oven Door Outer Glass (White) WCI 316050307 Contact Us For Availability
7
Range Oven Door Insulation WCI 316236801 Contact Us For Availability
8
Range Oven Door Inner Glass WCI 316088600 Contact Us For Availability
9
Range Broil Pan WCI 316081900 Contact Us For Availability
10
Range Broil Pan Insert WCI 316082000 Contact Us For Availability
13
Oven Panel WCI 316202704 Contact Us For Availability
15
Support WCI 316220214 Contact Us For Availability
16
Range Main Top WCI 316251925 Contact Us For Availability
16
Range Main Top WCI 316251926 Contact Us For Availability
18
Range Control Panel End Cap, Right (White) WCI 316240900 Contact Us For Availability
18
Hinge Main WCI 316235900 Contact Us For Availability
18A
Oven End Cap WCI 316240901 Contact Us For Availability
18A
Hinge Main WCI 316235901 Contact Us For Availability
20
Range Oven Door Handle Spacer (White) WCI 316248401 Contact Us For Availability
21
Range Screw Anchor WCI 3014099 Contact Us For Availability
22
Range Oven Door Glass Retainer WCI 5303272476 Contact Us For Availability
23
Range Control Panel Support WCI 316245900 Contact Us For Availability
26A
BRACKET, CHASSIS SUPPORT, REAR WCI 316099200 Contact Us For Availability
26B
Bracket Support WCI 316214200 Contact Us For Availability
30
Range Main Top Right Hinge Pin WCI 316217700 Contact Us For Availability
31
Range Surface Burner Knob (White) WCI 316240800 Contact Us For Availability
31
Range Surface Burner Knob WCI 316240803 Contact Us For Availability
41
Range Oven Door Hinge Cover, Right WCI 316233400 Contact Us For Availability
52
Range Surface Element Mounting Spring WCI 316099400 Contact Us For Availability
60
Oven Cover WCI 316239100 Contact Us For Availability
63
Plate WCI 316208500 Contact Us For Availability
71
Rear Shield WCI 316015810 Contact Us For Availability
NI
Bisq Paint WCI 5304414035 Contact Us For Availability
NI
Range Screw WCI 316021108 Contact Us For Availability
NI
Range Oven Door Air Gap Seal WCI 316245600 Contact Us For Availability
NI
Range Screw WCI 5303280311 Contact Us For Availability
NI
Screw WCI 316021131 Contact Us For Availability
NI
Screw WCI 316021133 Contact Us For Availability
NI
Plate Weight WCI 316073400 Contact Us For Availability
NI
Kenmore Elite Spacer WCI 316248900 Contact Us For Availability
NI
Wiring Harness WCI 316253121 Contact Us For Availability
NI
Cleaner-cook WCI 316112100 Contact Us For Availability
NI
Range Cooktop Wire Harness WCI 316253518 Contact Us For Availability
× ![]()
