Model Electrolux 790.95200100 Electric Range (Kenmore 79095200100) – Common Parts & Diagrams
All Parts

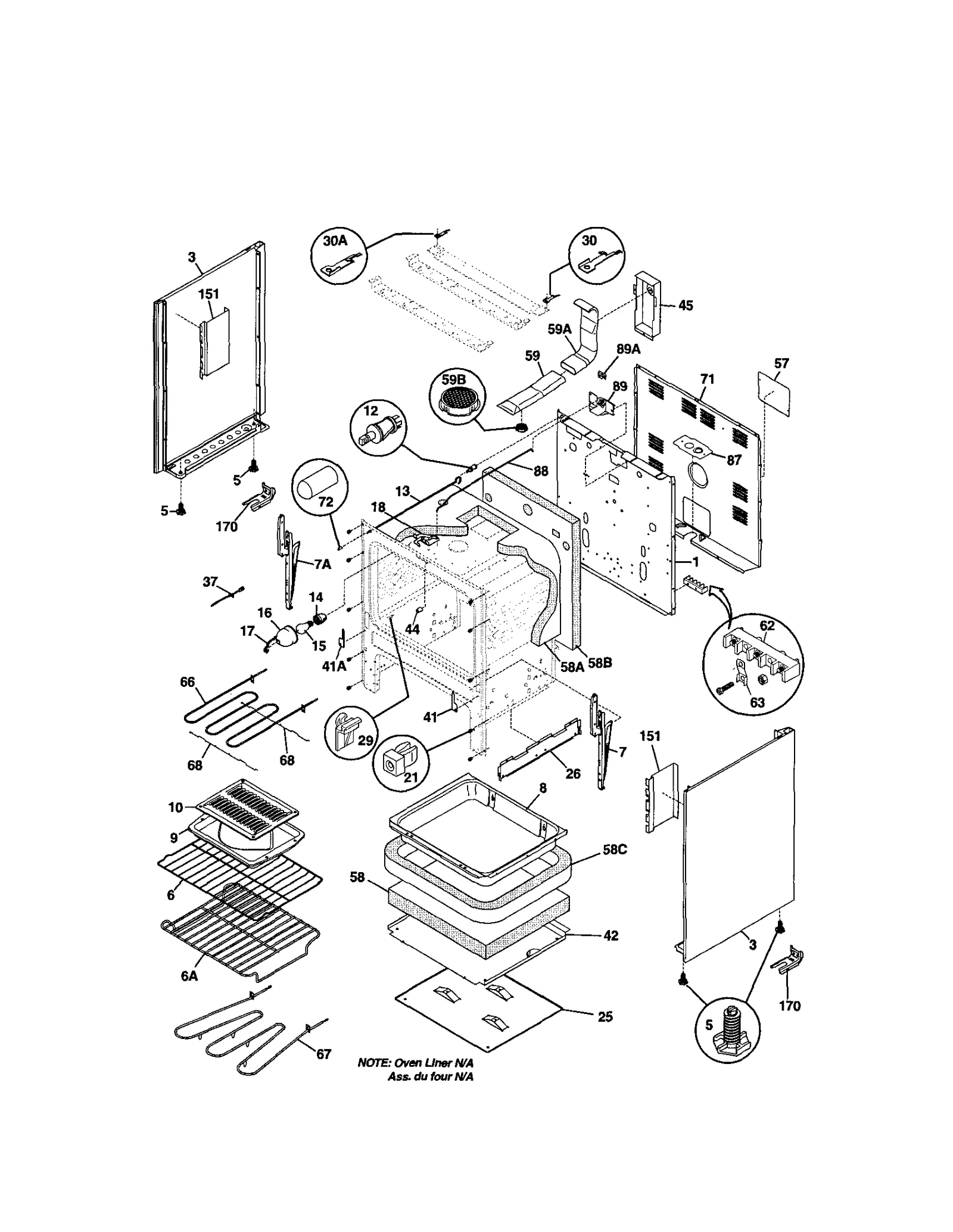

BODY

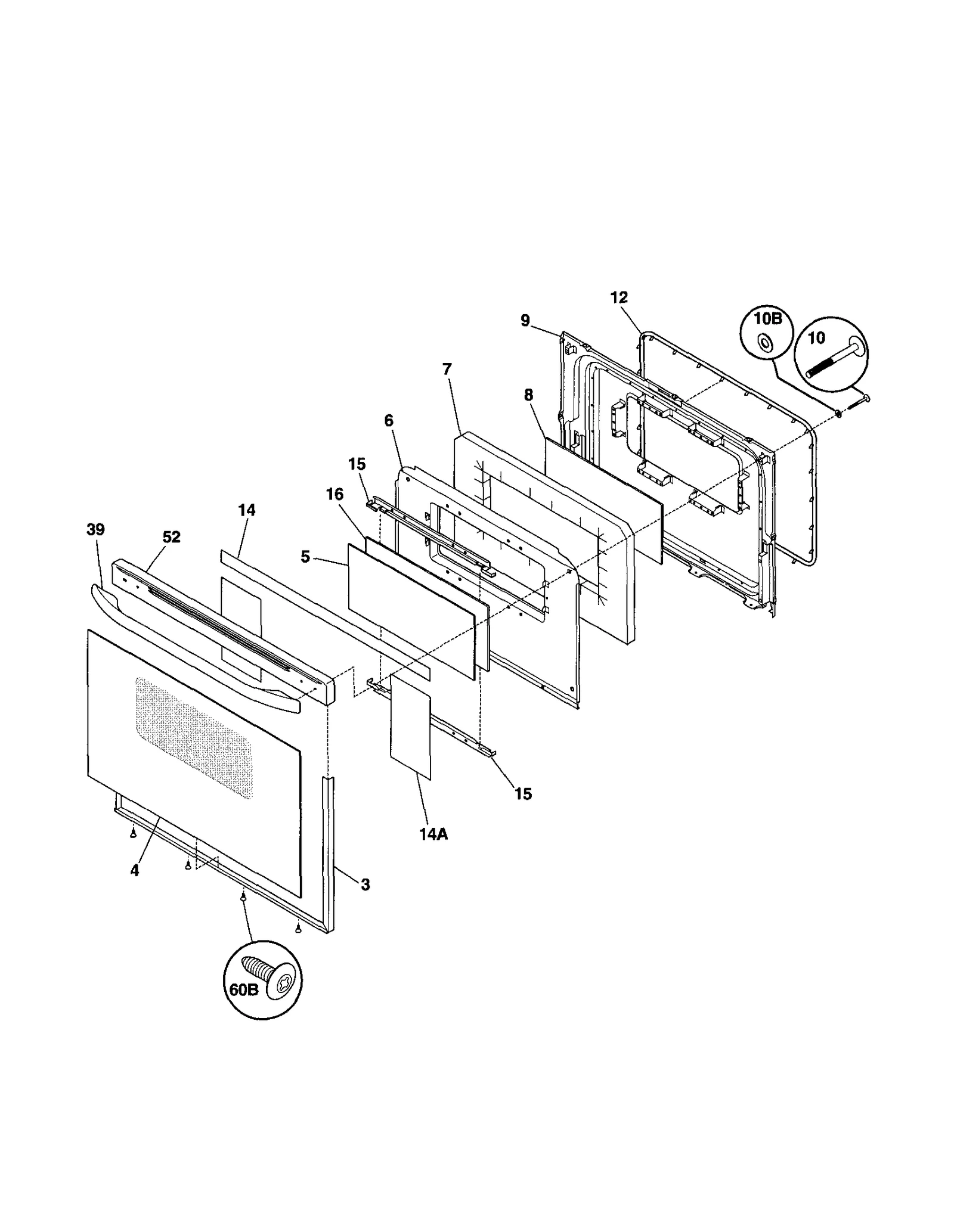

DOOR
BACKGUARD

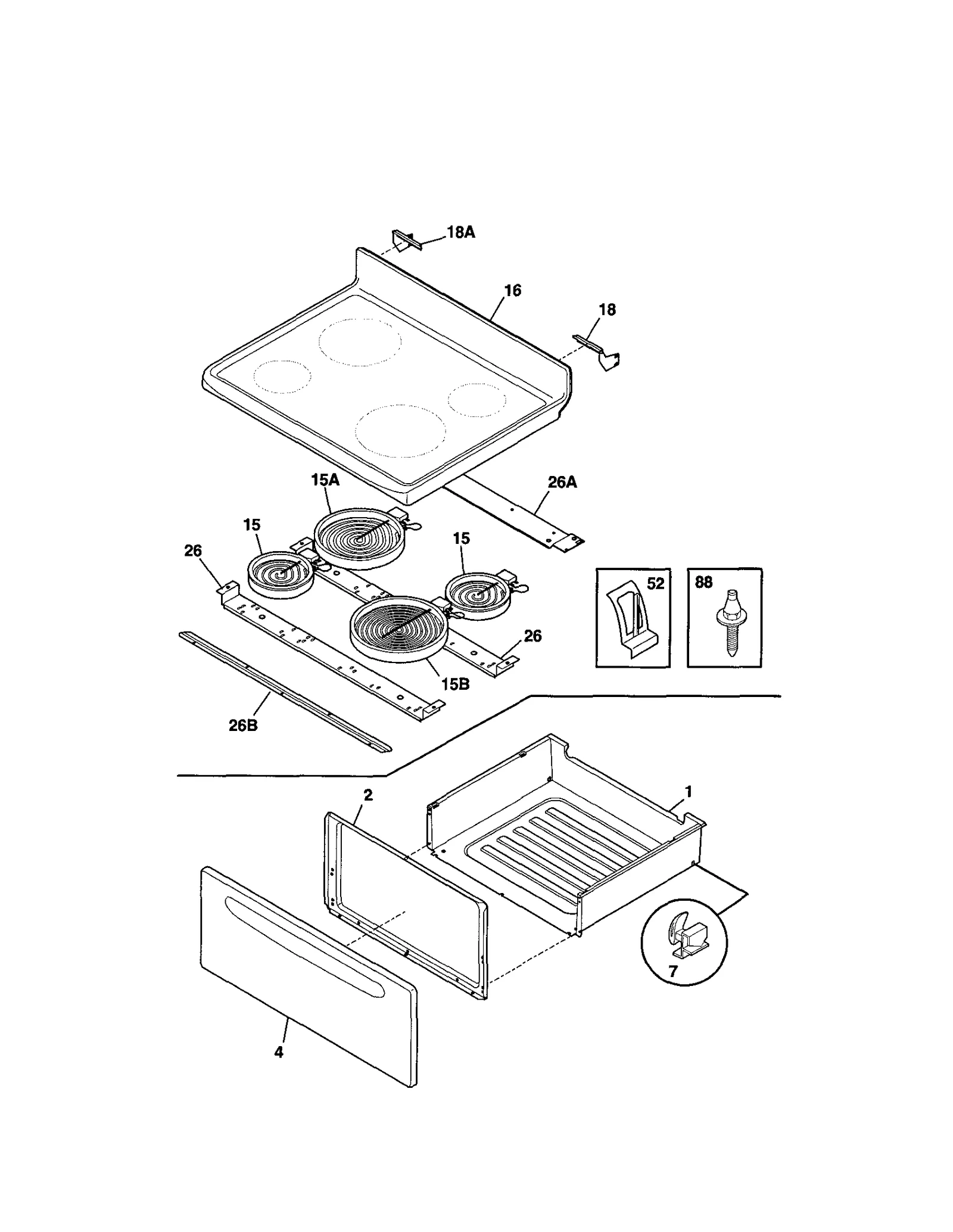

TOP/DRAWER
Common parts from model Electrolux 790.95200100 Electric Range (Kenmore 79095200100)
1
Range Storage Drawer Assembly WCI 316011503 Contact Us For Availability
1
Range Control Panel Back Shield WCI 316239900 Contact Us For Availability
2
Liner WCI 316231501 Contact Us For Availability
3
Range Oven Door Trim Kit WCI 5303935191 Contact Us For Availability
3A
Range Oven Door Trim Kit (White) WCI 5303935192 Contact Us For Availability
4
Range Storage Drawer Front Panel (Black) WCI 316231306 Contact Us For Availability
4A
Range Storage Drawer Front Panel WCI 316231305 Contact Us For Availability
4B
Drawer Panel WCI 316231309 Contact Us For Availability
5
Range Leveling Leg WCI 316129200 Contact Us For Availability
5
Range Oven Door Inner Glass WCI 316088700 Contact Us For Availability
8
Range Oven Door Inner Glass WCI 316088600 Contact Us For Availability
8
Range Oven Bottom Panel WCI 316201501 Contact Us For Availability
9
Range Broil Pan WCI 316081900 Contact Us For Availability
10
Range Broil Pan Insert WCI 316082000 Contact Us For Availability
12
Range Oven Door Seal WCI 316230900 Contact Us For Availability
15
Glass Bracket WCI 316081403 Contact Us For Availability
15
Support-ba WCI 316220204 Contact Us For Availability
15A
Support-ba WCI 316220205 Contact Us For Availability
15AA
Support-ba WCI 316220203 Contact Us For Availability
15AB
Support-ba WCI 316220209 Contact Us For Availability
15B
Support-ba WCI 316220202 Contact Us For Availability
15C
Support-ba WCI 316220208 Contact Us For Availability
16
Range Oven Door Middle Glass WCI 316085701 Contact Us For Availability
16
Range Main Top WCI 316251923 Contact Us For Availability
16A
Range Main Top WCI 316251925 Contact Us For Availability
16B
Range Main Top WCI 316251926 Contact Us For Availability
16C
Range Main Top WCI 316251924 Contact Us For Availability
18
Range Oven Door Latch WCI 316213900 Contact Us For Availability
18
Hinge Main WCI 316235900 Contact Us For Availability
18A
Hinge Main WCI 316235901 Contact Us For Availability
19
Panel WCI 316246261 Contact Us For Availability
19A
Panel WCI 316246260 Contact Us For Availability
19B
Range Panel WCI 316246262 Contact Us For Availability
20
Clock and Timer WCI 316222902 Contact Us For Availability
20AB
Clock Overlay WCI 316220819 Contact Us For Availability
21
Range Screw Anchor WCI 3014099 Contact Us For Availability
24B
Range Oven Light Rocker Switch (Bisque) WCI 316246002 Contact Us For Availability
26A
BRACKET, CHASSIS SUPPORT, REAR WCI 316099200 Contact Us For Availability
26B
Bracket Support WCI 316214200 Contact Us For Availability
30
Range Main Top Right Hinge Pin WCI 316217700 Contact Us For Availability
31A
Range Surface Burner Knob (White) WCI 316240800 Contact Us For Availability
31B
Range Surface Burner Knob WCI 316240803 Contact Us For Availability
39
Door Handle WCI 316235500 Contact Us For Availability
39B
Range Oven Door Handle (Bisque) WCI 316235503 Contact Us For Availability
41
Range Oven Door Hinge Cover, Right WCI 316233400 Contact Us For Availability
44
Door Spacer WCI 316246500 Contact Us For Availability
52
Range Surface Element Mounting Spring WCI 316099400 Contact Us For Availability
52
Cap-door T WCI 316201005 Contact Us For Availability
52A
Cap-door T WCI 316201003 Contact Us For Availability
52B
Cap-door T WCI 316201009 Contact Us For Availability
56A
Shield-bac WCI 316234001 Contact Us For Availability
56B
Shield-bac WCI 316234004 Contact Us For Availability
58A
Range Oven Insulation WCI 316047708 Contact Us For Availability
NI
Range Screw WCI 316021108 Contact Us For Availability
NI
Range Screw WCI 5303280311 Contact Us For Availability
× ![]()
