Model Electrolux 790.94313300 Electric Range (Kenmore 79094313300) – Common Parts & Diagrams

1

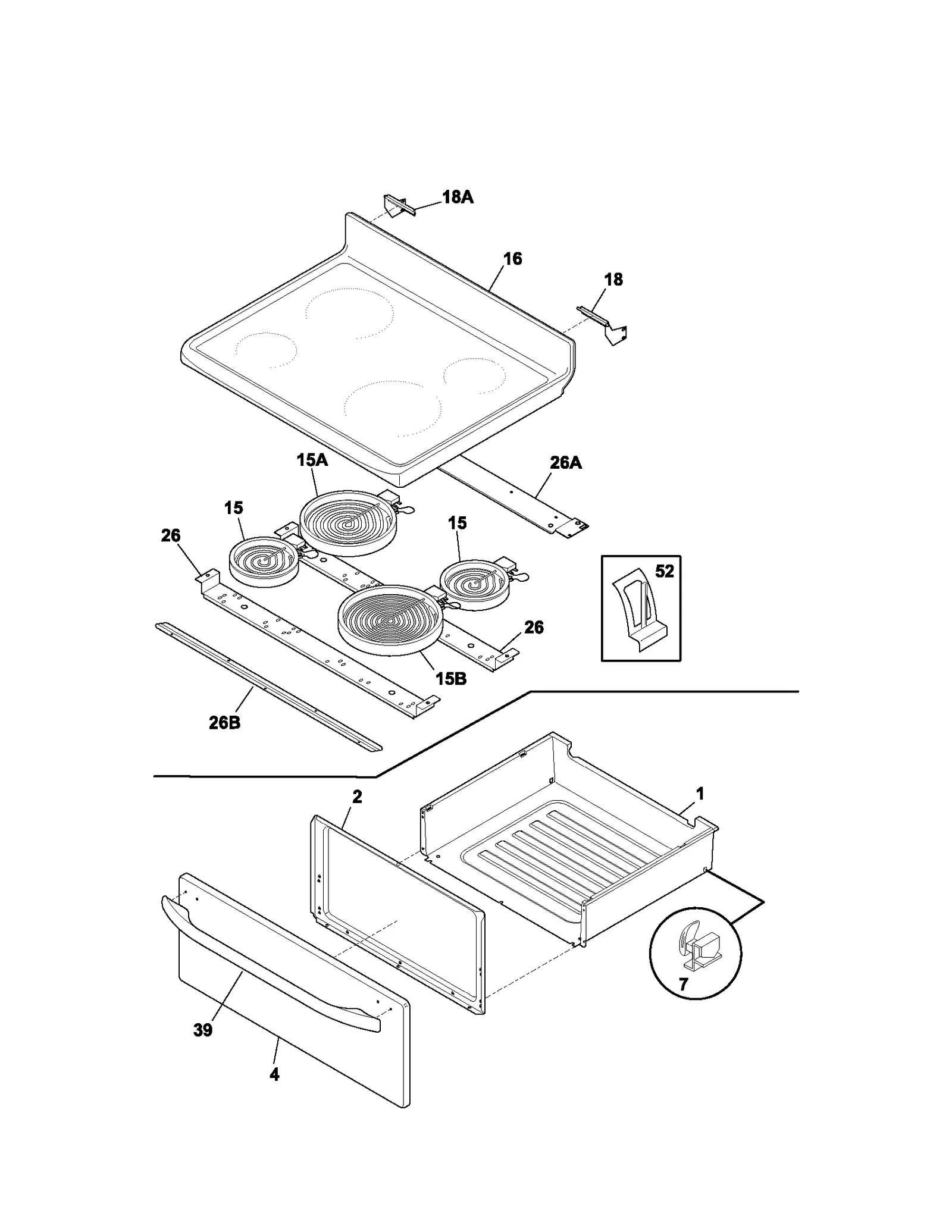

Range Storage Drawer Assembly
Range Storage Drawer Assembly WCI 316011503 Contact Us For Availability
View on Model
2
Range Storage Drawer Front Panel Liner
Range Storage Drawer Front Panel Liner WCI 316231500 Contact Us For Availability
View on Model
4

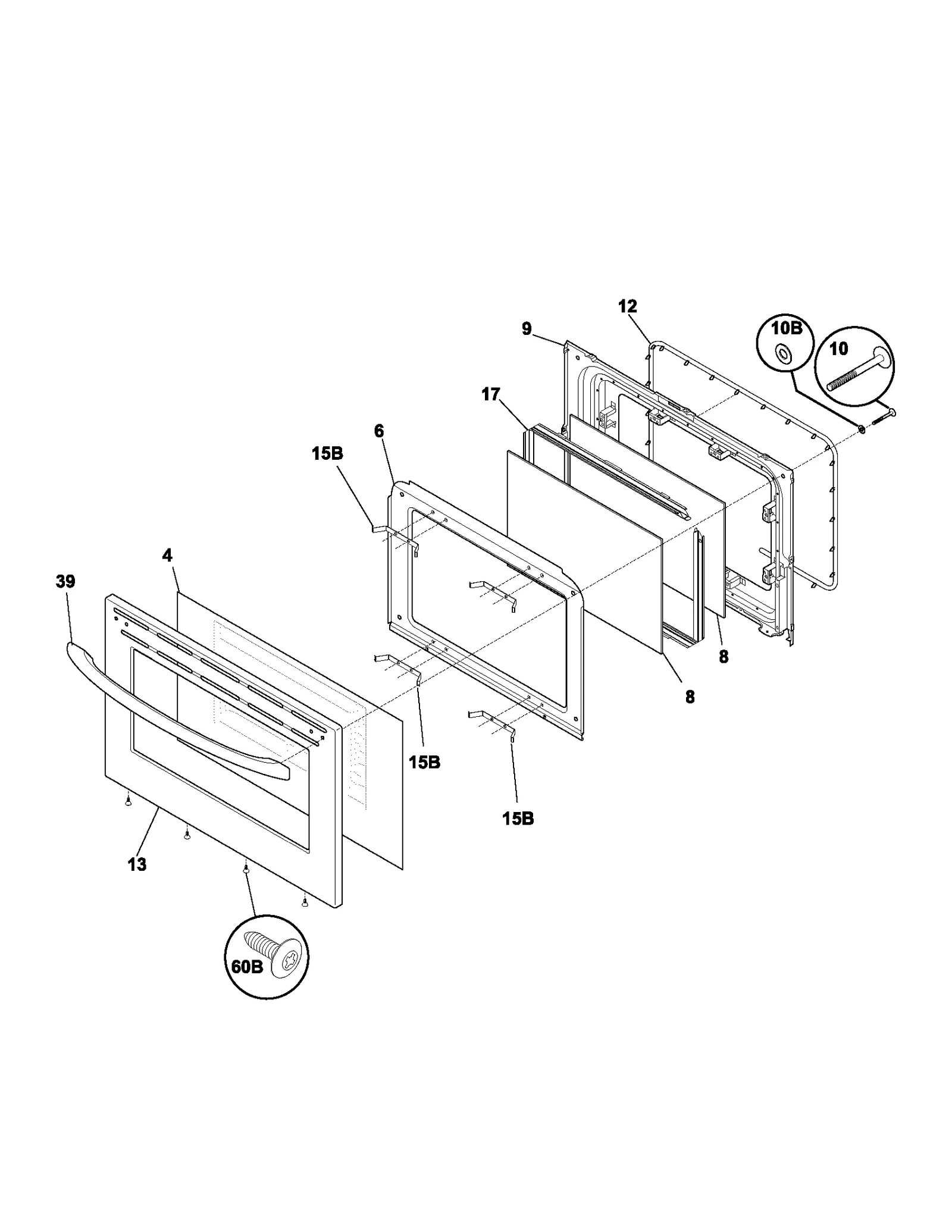

Range Oven Door Outer Panel
Range Oven Door Outer Panel WCI 316240000 Contact Us For Availability
View on Model
4
Drawer Panel
Drawer Panel WCI 316248802 Contact Us For Availability
View on Model
5
Range Leveling Leg
Range Leveling Leg WCI 316129200 Contact Us For Availability
View on Model
8

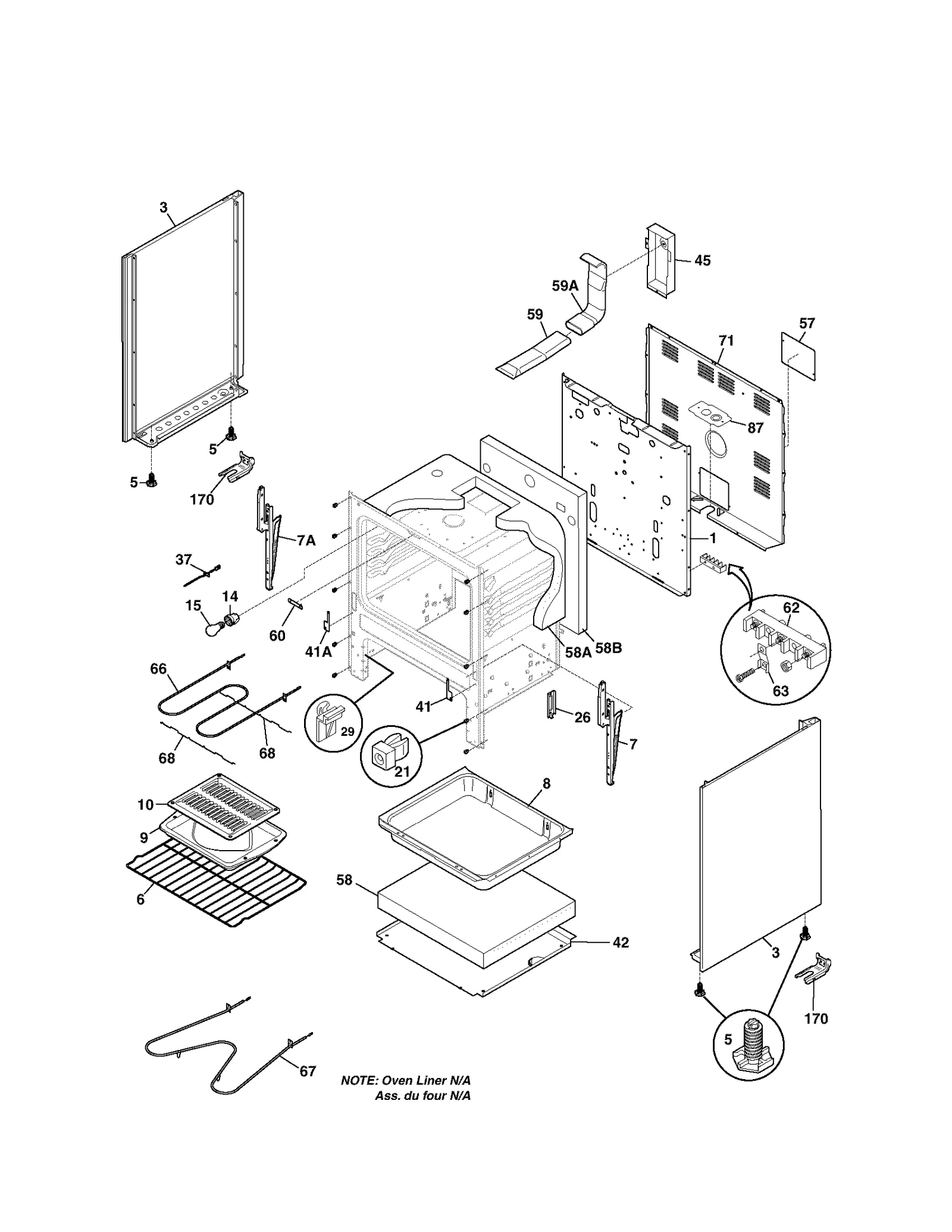

Range Oven Bottom Panel
Range Oven Bottom Panel WCI 316201501 Contact Us For Availability
View on Model
9
Range Broil Pan
Range Broil Pan WCI 316081900 Contact Us For Availability
View on Model
10
Range Broil Pan Insert
Range Broil Pan Insert WCI 316082000 Contact Us For Availability
View on Model
10
Range Screw
Range Screw WCI 316001015 Contact Us For Availability
View on Model
16
Range Main Top
Range Main Top WCI 316251935 Contact Us For Availability
View on Model
17
Glass Spacer
Glass Spacer WCI 316117701 Contact Us For Availability
View on Model
18
Oven End Cap
Oven End Cap WCI 316240904 Contact Us For Availability
View on Model
18
Hinge Main
Hinge Main WCI 316235900 Contact Us For Availability
View on Model
18A

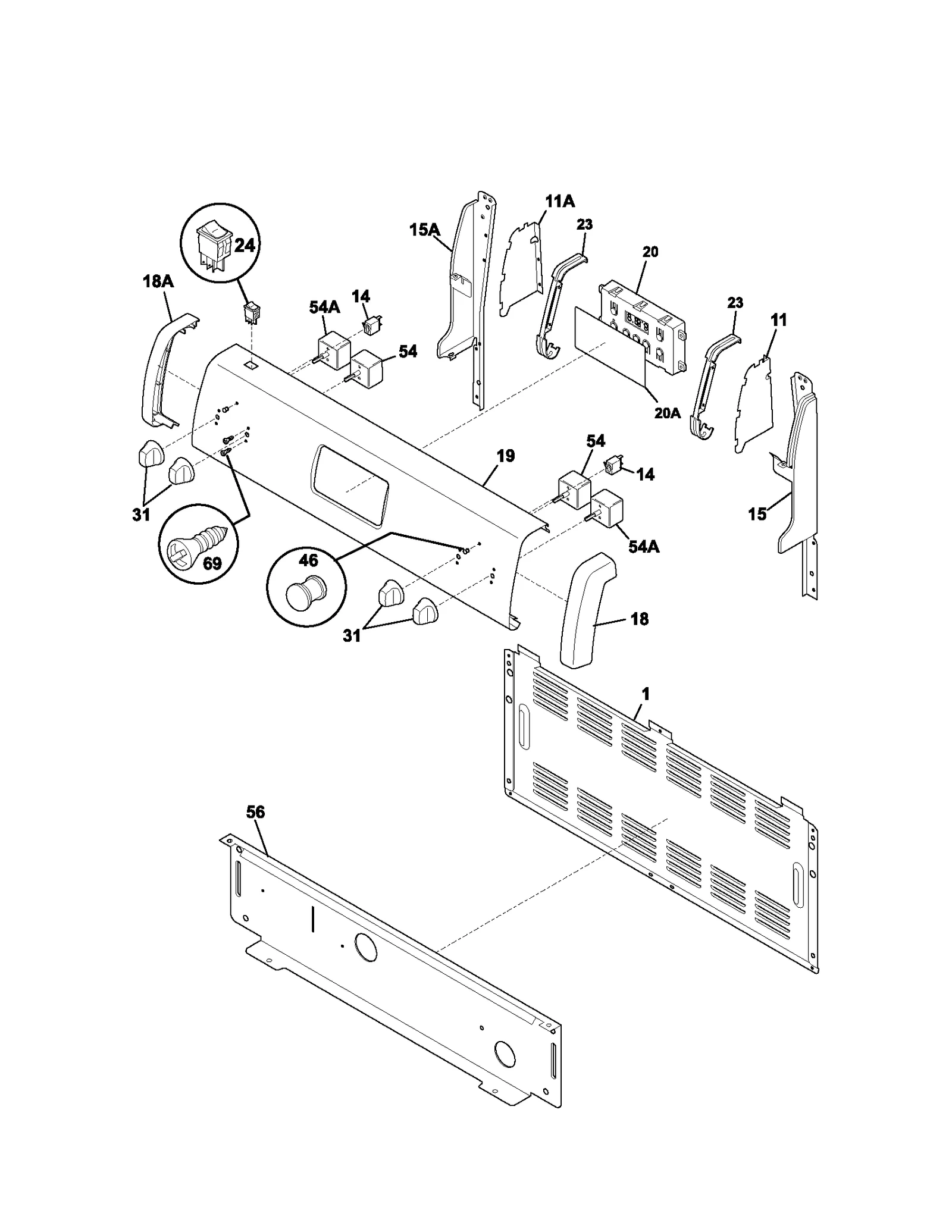

Range Control Panel End Cap, Left
Range Control Panel End Cap, Left WCI 316240905 Contact Us For Availability
View on Model
18A
Hinge Main
Hinge Main WCI 316235901 Contact Us For Availability
View on Model
21
Range Screw Anchor
Range Screw Anchor WCI 3014099 Contact Us For Availability
View on Model
23
Range Control Panel Support
Range Control Panel Support WCI 316245900 Contact Us For Availability
View on Model
26A
Bracket
Bracket WCI 316099202 Contact Us For Availability
View on Model
26B
Bracket Support
Bracket Support WCI 316214200 Contact Us For Availability
View on Model
39
Door Handle
Door Handle WCI 316235500 Contact Us For Availability
View on Model
41
Range Oven Door Hinge Cover, Right
Range Oven Door Hinge Cover, Right WCI 316233400 Contact Us For Availability
View on Model
52
Range Surface Element Mounting Spring
Range Surface Element Mounting Spring WCI 316099400 Contact Us For Availability
View on Model
NI
Range Screw
Range Screw WCI 316021108 Contact Us For Availability
View on Model
NI
Range Screw
Range Screw WCI 5303280311 Contact Us For Availability
View on Model
NI
Kenmore Elite Spacer
Kenmore Elite Spacer WCI 316248900 Contact Us For Availability
View on Model
NI
Range Wire Harness
Range Wire Harness WCI 316253145 Contact Us For Availability
View on Model
NI
Cleaner-cook
Cleaner-cook WCI 316112100 Contact Us For Availability
View on Model
NI
Range Cooktop Wire Harness
Range Cooktop Wire Harness WCI 316253518 Contact Us For Availability
View on Model
