Model Electrolux 790.92320300 Electric Range (Kenmore 79092320300) – Common Parts & Diagrams

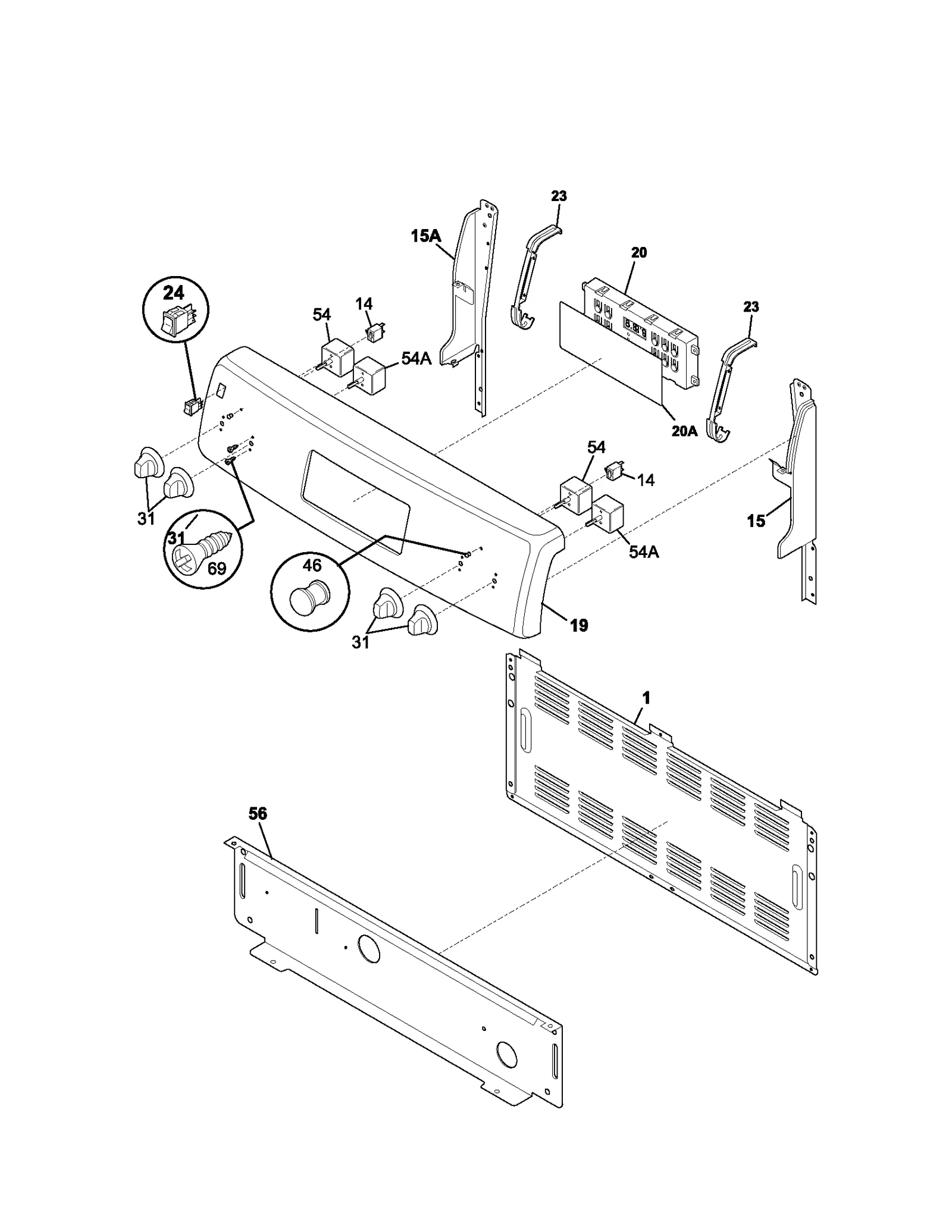

BACKGUARD
BACKGUARD

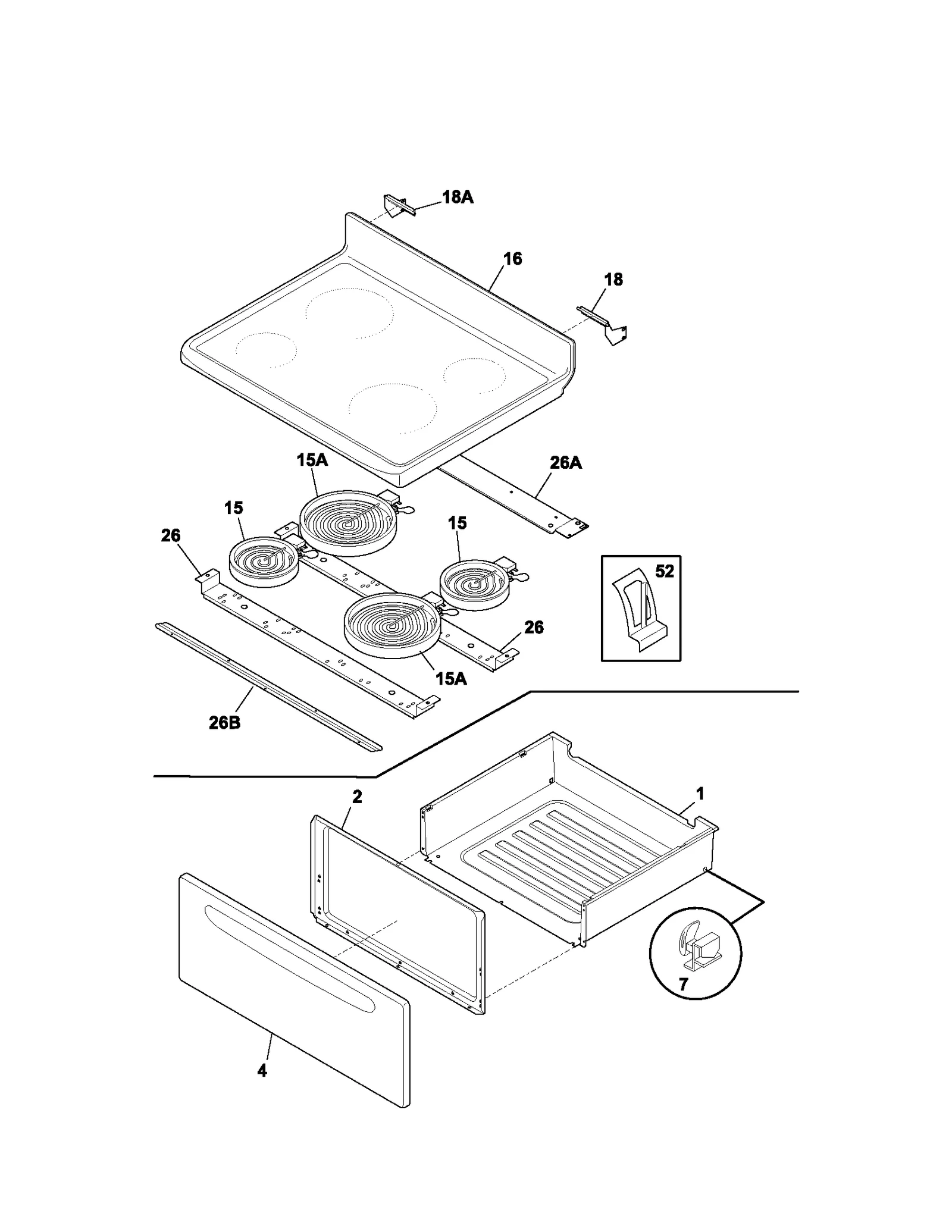

TOP/DRAWER

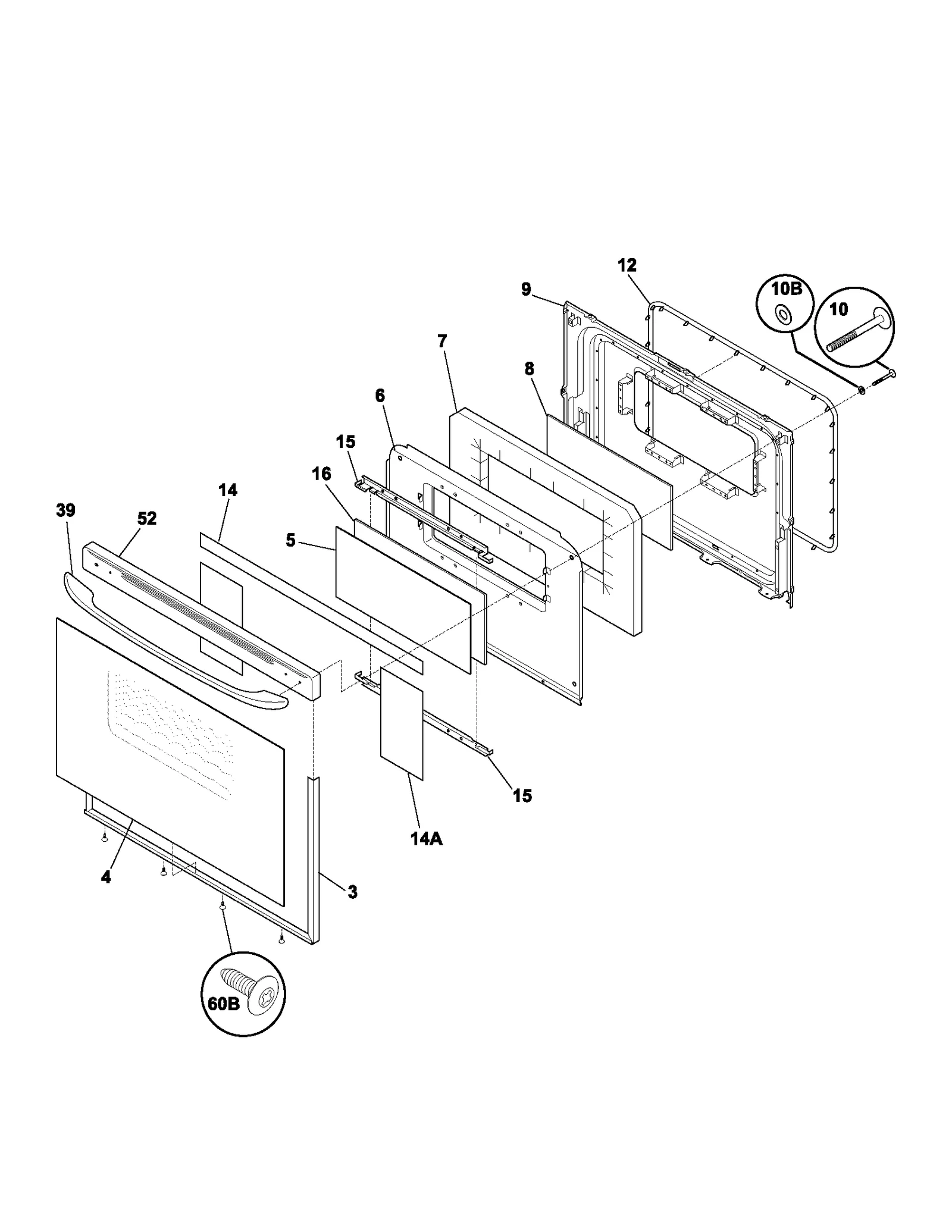

DOOR

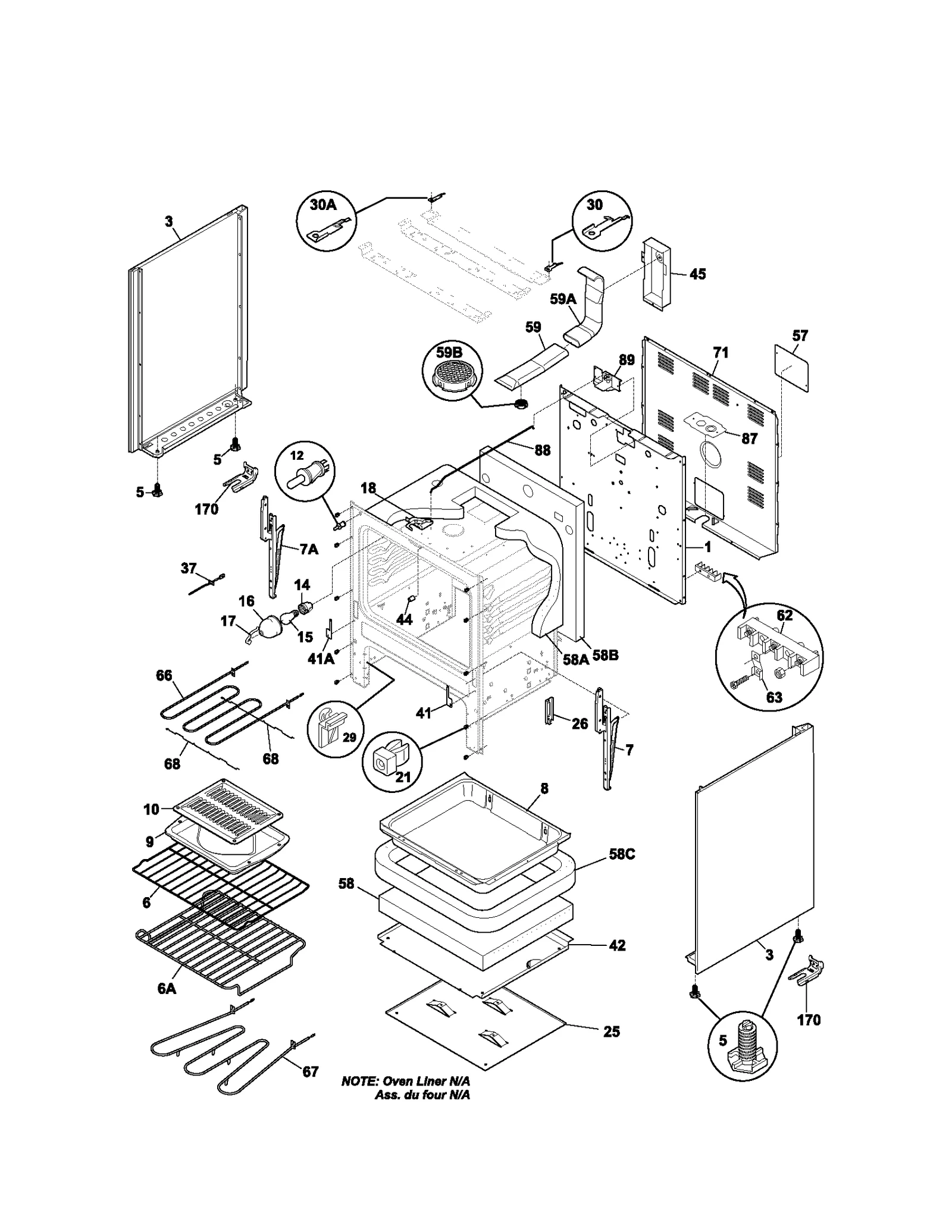

BODY
Common parts from model Electrolux 790.92320300 Electric Range (Kenmore 79092320300)
1
Range Storage Drawer Assembly WCI 316011503 Contact Us For Availability
1
Main Back WCI 316201300 Contact Us For Availability
2
Range Storage Drawer Front Panel Liner WCI 316231500 Contact Us For Availability
3
Range Oven Door Trim Kit WCI 5303935191 Contact Us For Availability
3
Range Oven Door Trim Kit (White) WCI 5303935192 Contact Us For Availability
3
Body Panel WCI 316216402 Contact Us For Availability
3
Left Side Panel WCI 316216403 Contact Us For Availability
3
Body Panel WCI 316216406 Contact Us For Availability
3
Body Panel WCI 316216407 Contact Us For Availability
4
Range Storage Drawer Front Panel (Black) WCI 316231306 Contact Us For Availability
4
Range Storage Drawer Front Panel WCI 316231305 Contact Us For Availability
5
Range Leveling Leg WCI 316129200 Contact Us For Availability
5
Range Oven Door Inner Glass WCI 316088700 Contact Us For Availability
6
Wool Cover Shield WCI 316222706 Contact Us For Availability
6A
Range Oven Rack WCI 316262900 Contact Us For Availability
7
Insulation WCI 316236800 Contact Us For Availability
8
Range Oven Door Inner Glass WCI 316088600 Contact Us For Availability
8
Range Oven Bottom Panel WCI 316201501 Contact Us For Availability
9
Range Broil Pan WCI 316081900 Contact Us For Availability
9
Door Liner WCI 316230604 Contact Us For Availability
10
Range Broil Pan Insert WCI 316082000 Contact Us For Availability
12
Range Oven Door Switch WCI 316209901 Contact Us For Availability
15
Support WCI 316220214 Contact Us For Availability
15
Glass Bracket WCI 316081403 Contact Us For Availability
16
Range Oven Door Middle Glass WCI 316085701 Contact Us For Availability
18
Range Oven Door Latch WCI 316213900 Contact Us For Availability
21
Range Screw Anchor WCI 3014099 Contact Us For Availability
25
Shield WCI 3200848 Contact Us For Availability
30
Range Main Top Right Hinge Pin WCI 316217700 Contact Us For Availability
30A
Range High Bracket WCI 316217701 Contact Us For Availability
31
Range Surface Burner Knob WCI 316208100 Contact Us For Availability
31
Range Surface Burner Knob WCI 316208102 Contact Us For Availability
39
Oven Handle WCI 316209701 Contact Us For Availability
39
Oven Door Handle WCI 316209702 Contact Us For Availability
41
Range Oven Door Hinge Cover, Right WCI 316233400 Contact Us For Availability
41A
Range Oven Door Hinge Cover, Left WCI 316233500 Contact Us For Availability
42
Wool Cover Shield WCI 316206200 Contact Us For Availability
44
Door Spacer WCI 316246500 Contact Us For Availability
52
Range Surface Element Mounting Spring WCI 316099400 Contact Us For Availability
52
Cap-door T WCI 316201003 Contact Us For Availability
52
Cap-door T WCI 316201005 Contact Us For Availability
52
Cap-door T WCI 316201009 Contact Us For Availability
57
Access Cover WCI 316081100 Contact Us For Availability
58
Insulation WCI 316240300 Contact Us For Availability
58A
Range Oven Insulation WCI 316047708 Contact Us For Availability
58C
Insulation WCI 316240400 Contact Us For Availability
63
Plate WCI 316208500 Contact Us For Availability
71
Rear Shield WCI 316015810 Contact Us For Availability
NI
Bisq Paint WCI 5304414035 Contact Us For Availability
NI
Range Screw WCI 316021108 Contact Us For Availability
NI
Range Screw WCI 5303280311 Contact Us For Availability
NI
Screw WCI 316021131 Contact Us For Availability
NI
Screw WCI 316021133 Contact Us For Availability
NI
Range Terminal Block Insulator WCI 316085600 Contact Us For Availability
NI
Range Wire Harness WCI 316253252 Contact Us For Availability
× ![]()
