Model Electrolux 790.91102001 Electric Range (Kenmore 79091102001) – Common Parts & Diagrams

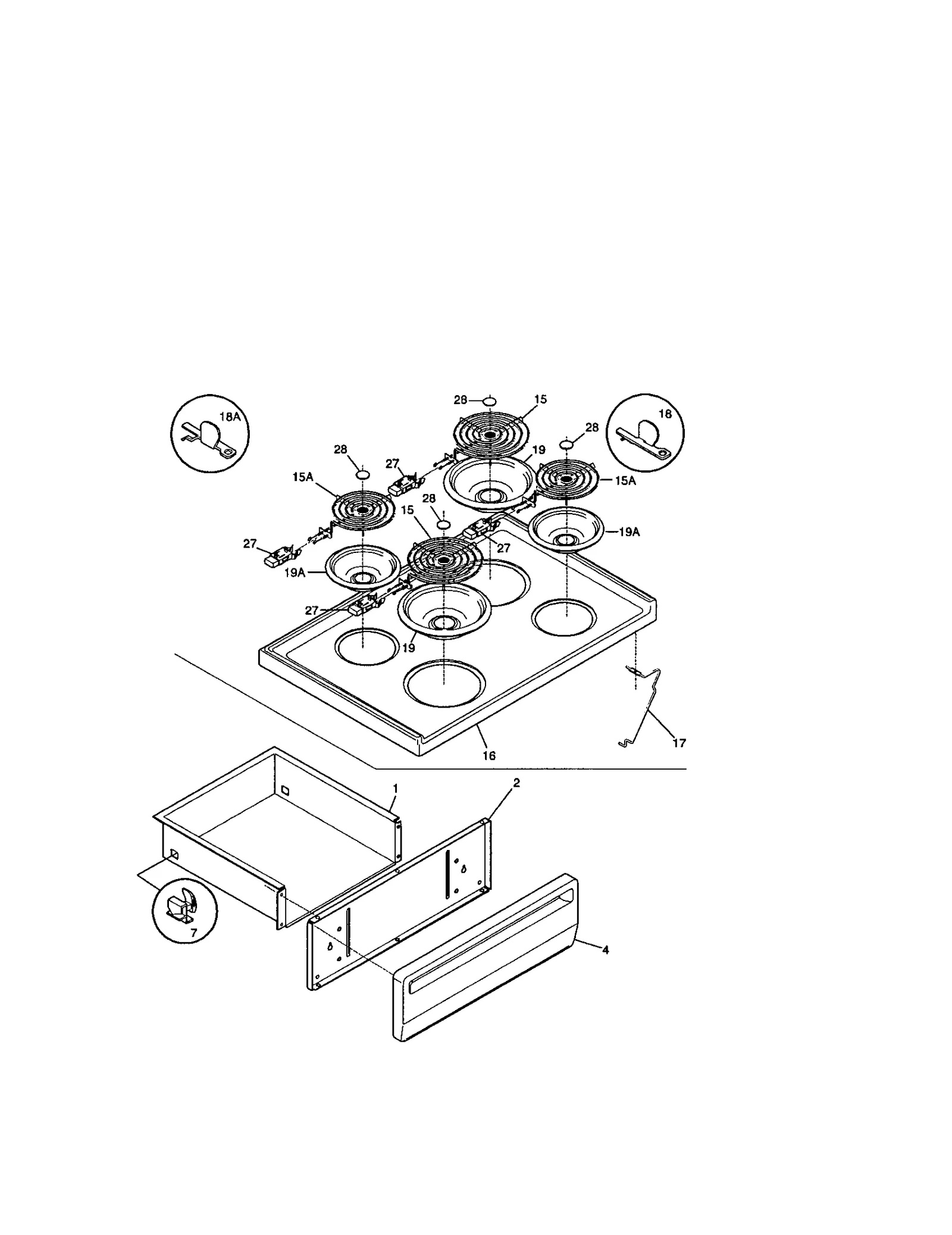

TOP/DRAWER
BACKGUARD
DOOR
BODY
All Parts
Common parts from model Electrolux 790.91102001 Electric Range (Kenmore 79091102001)
1
Shield WCI 5303289640 Contact Us For Availability
1
Main Panel WCI 316080805 Contact Us For Availability
3
Rh Wh Panel WCI 316081034 Contact Us For Availability
3A
Panel WCI 316081035 Contact Us For Availability
3B
Panel WCI 316081036 Contact Us For Availability
3C
Panel WCI 316081037 Contact Us For Availability
4
Burner Box WCI 5303271756 Contact Us For Availability
5
Range Leveling Leg WCI 316129200 Contact Us For Availability
7
Insulation WCI 316076401 Contact Us For Availability
7
Oven Hinge WCI 316007003 Contact Us For Availability
8
Range Oven Door Inner Glass WCI 316088600 Contact Us For Availability
8
Oven WCI 3203540 Contact Us For Availability
9
Range Broil Pan WCI 316081900 Contact Us For Availability
9
Oven Door Inner Liner WCI 316066610 Contact Us For Availability
10
Range Broil Pan Insert WCI 316082000 Contact Us For Availability
10
Range Oven Door Handle Screw, #10-24 WCI 5303281378 Contact Us For Availability
13
Panel WCI 3017081 Contact Us For Availability
13A
Panel WCI 3017096 Contact Us For Availability
17
Range Main Top Support WCI 316066900 Contact Us For Availability
18A
Range Main Top Hinge WCI 08067746 Contact Us For Availability
20AA
Range Control Panel Overlay WCI 316115312 Contact Us For Availability
21
Range Screw Anchor WCI 3014099 Contact Us For Availability
22
Range Oven Door Glass Retainer WCI 5303272476 Contact Us For Availability
24A
Oven Light Switch WCI 316118102 Contact Us For Availability
36
Range Surface Element Knob (White) WCI 316108917 Contact Us For Availability
36A
Range Surface Burner Knob WCI 316108918 Contact Us For Availability
39A
Door Handle WCI 316020205 Contact Us For Availability
41
Range Oven Door Hinge Cut-Out Cover WCI 3131570 Contact Us For Availability
49
End Cap WCI 316020101 Contact Us For Availability
49A
End Rh Al WCI 316020103 Contact Us For Availability
57
Access Cover WCI 316081100 Contact Us For Availability
59
Oven Ve Tube WCI 316073601 Contact Us For Availability
63
Strap WCI 5301145190 Contact Us For Availability
71
Rear Shield WCI 316015804 Contact Us For Availability
82
Shield Insert WCI 5303289913 Contact Us For Availability
NI
Range Screw WCI 316021108 Contact Us For Availability
NI
Range Screw WCI 5303280311 Contact Us For Availability
NI
Wire Clip WCI 3051367 Contact Us For Availability
NI
Owner's Manual WCI 316000963 Contact Us For Availability
NI
Main Harness WCI 316001556 Contact Us For Availability
NI
Owner's Manual WCI 316002675 Contact Us For Availability
NI
Range Installation WCI 316003025 Contact Us For Availability
NI
Label Anti-t WCI 316071606 Contact Us For Availability
NI
Handle Spacer WCI 316089600 Contact Us For Availability
NI
Spacer-spong WCI 316132100 Contact Us For Availability
NI
Cover WCI 5303015372 Contact Us For Availability
NI
Clip Backguard WCI 5303272555 Contact Us For Availability
NI
Parts List WCI 5995350344 Contact Us For Availability
× ![]()
