Model Electrolux 790.91010200 Electric Range (Kenmore 79091010200) – Common Parts & Diagrams
BODY

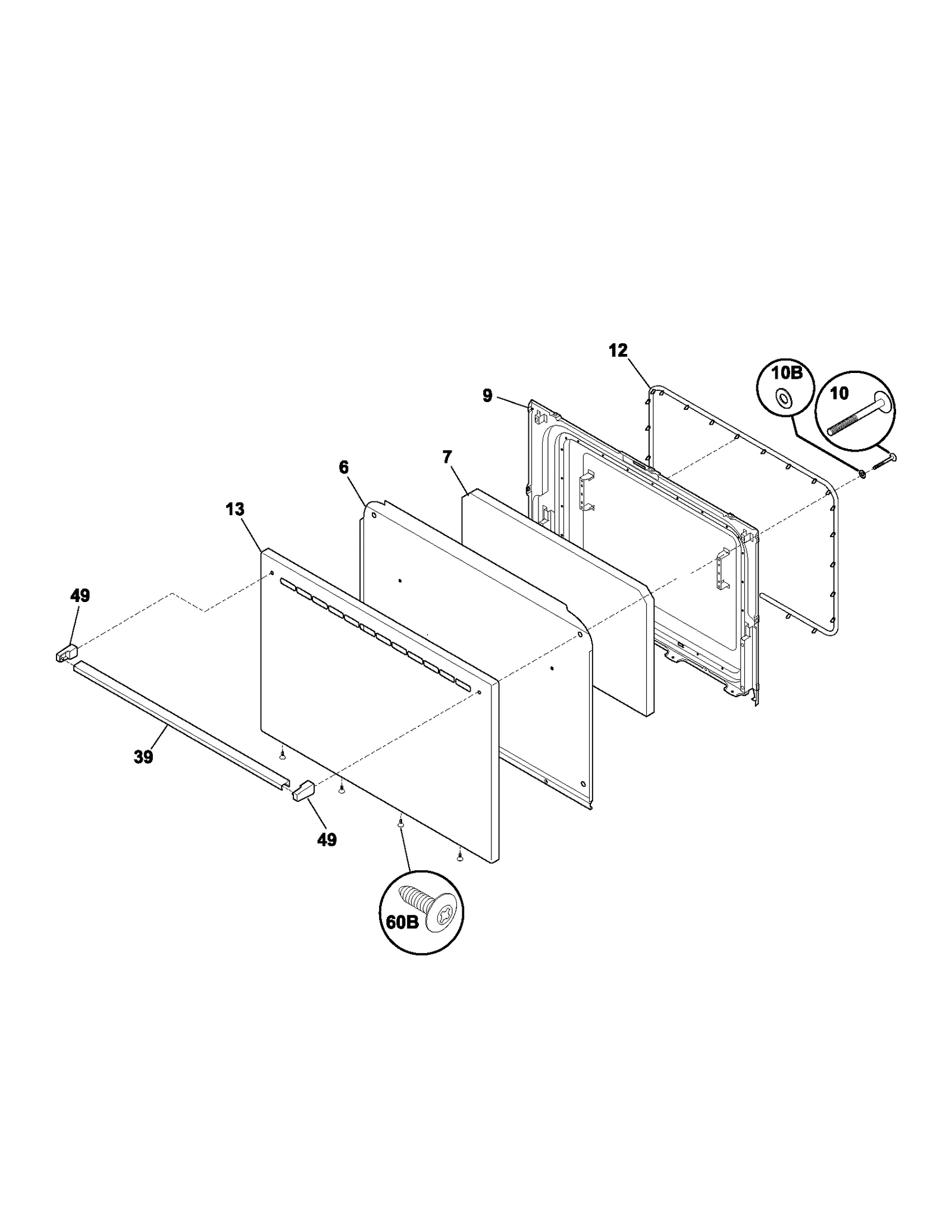

DOOR

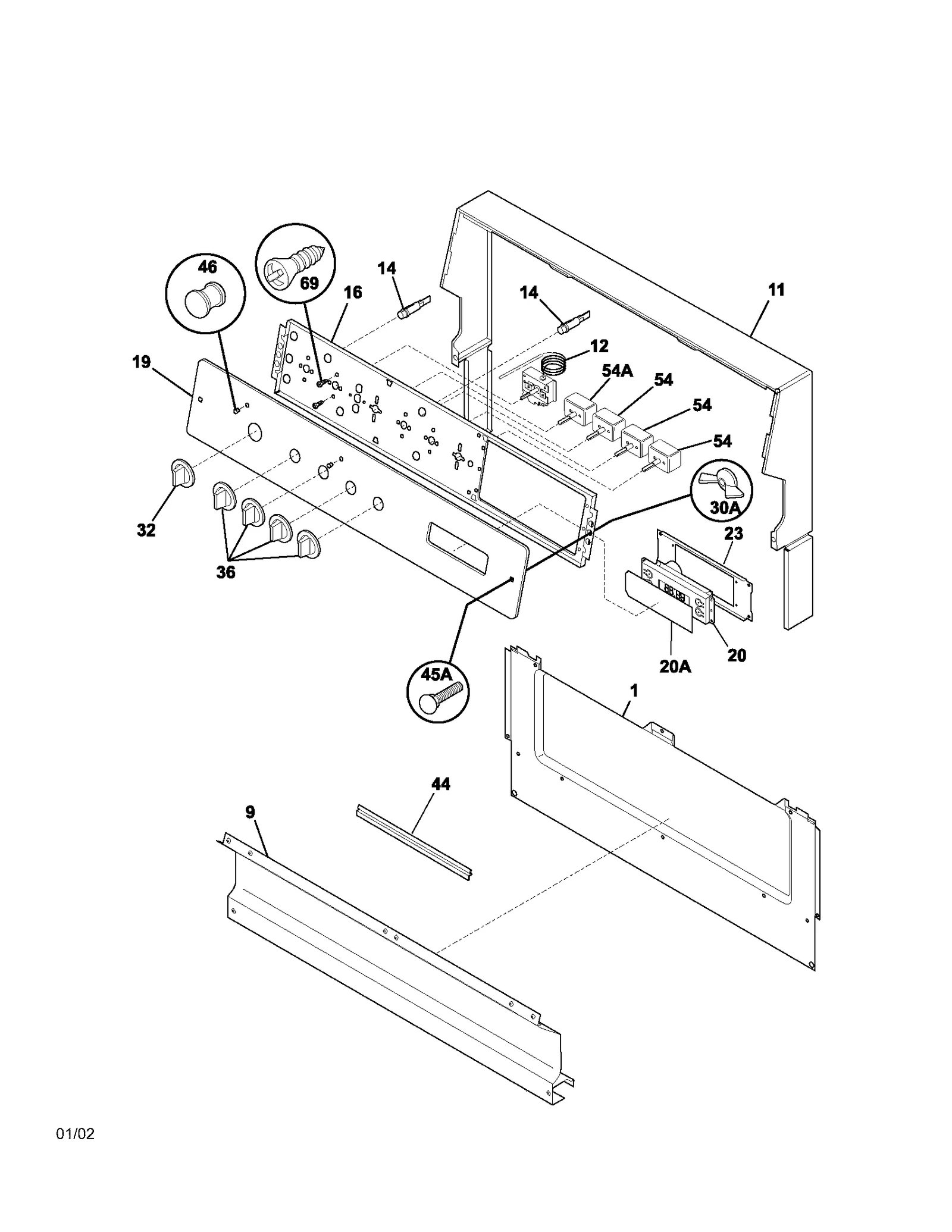

BACKGUARD

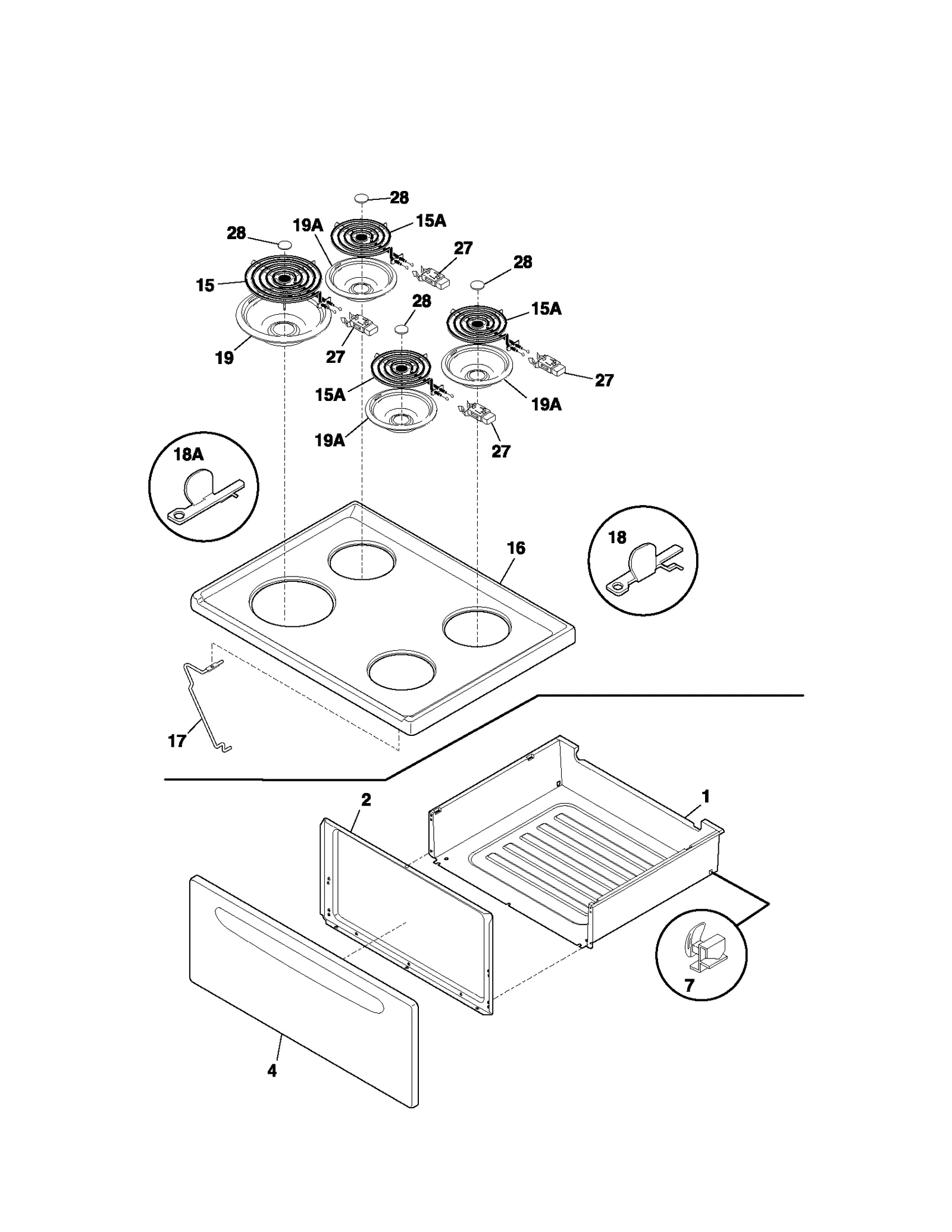

TOP/DRAWER
Common parts from model Electrolux 790.91010200 Electric Range (Kenmore 79091010200)
1
Range Storage Drawer Assembly WCI 316011503 Contact Us For Availability
1
Shield WCI 5303289640 Contact Us For Availability
2
Range Storage Drawer Front Panel Liner WCI 316231500 Contact Us For Availability
4
Range Storage Drawer Front Panel WCI 316231305 Contact Us For Availability
4
Drawer Panel WCI 316231309 Contact Us For Availability
5
Range Leveling Leg WCI 316129200 Contact Us For Availability
7
Range Oven Door Insulation WCI 316236801 Contact Us For Availability
9
Range Broil Pan WCI 316081900 Contact Us For Availability
10
Range Broil Pan Insert WCI 316082000 Contact Us For Availability
16
Main WCI 316245409 Contact Us For Availability
16
Range Main Top (White) WCI 316245406 Contact Us For Availability
17
Range Main Top Support WCI 316066900 Contact Us For Availability
18
Bracket WCI 08067747 Contact Us For Availability
18A
Range Main Top Hinge WCI 08067746 Contact Us For Availability
19
Pan Element WCI 318067055 Contact Us For Availability
21
Range Screw Anchor WCI 3014099 Contact Us For Availability
32
Range Oven Temperature Knob (Black) WCI 316123307 Contact Us For Availability
36
Range Surface Burner Knob WCI 316123303 Contact Us For Availability
39
Range Oven Door Handle (Black) WCI 316020204 Contact Us For Availability
41
Range Oven Door Hinge Cover, Right WCI 316233400 Contact Us For Availability
NI
Bisq Paint WCI 5304414035 Contact Us For Availability
NI
Range Screw WCI 316021108 Contact Us For Availability
NI
Range Oven Meat Probe Hole Plug WCI 316246400 Contact Us For Availability
NI
Range Screw WCI 5303280311 Contact Us For Availability
NI
Parts List WCI 5995363990 Contact Us For Availability
× ![]()
