Model Electrolux 790.45662102 Electric Range (Kenmore 79045662102) – Common Parts & Diagrams
BODY

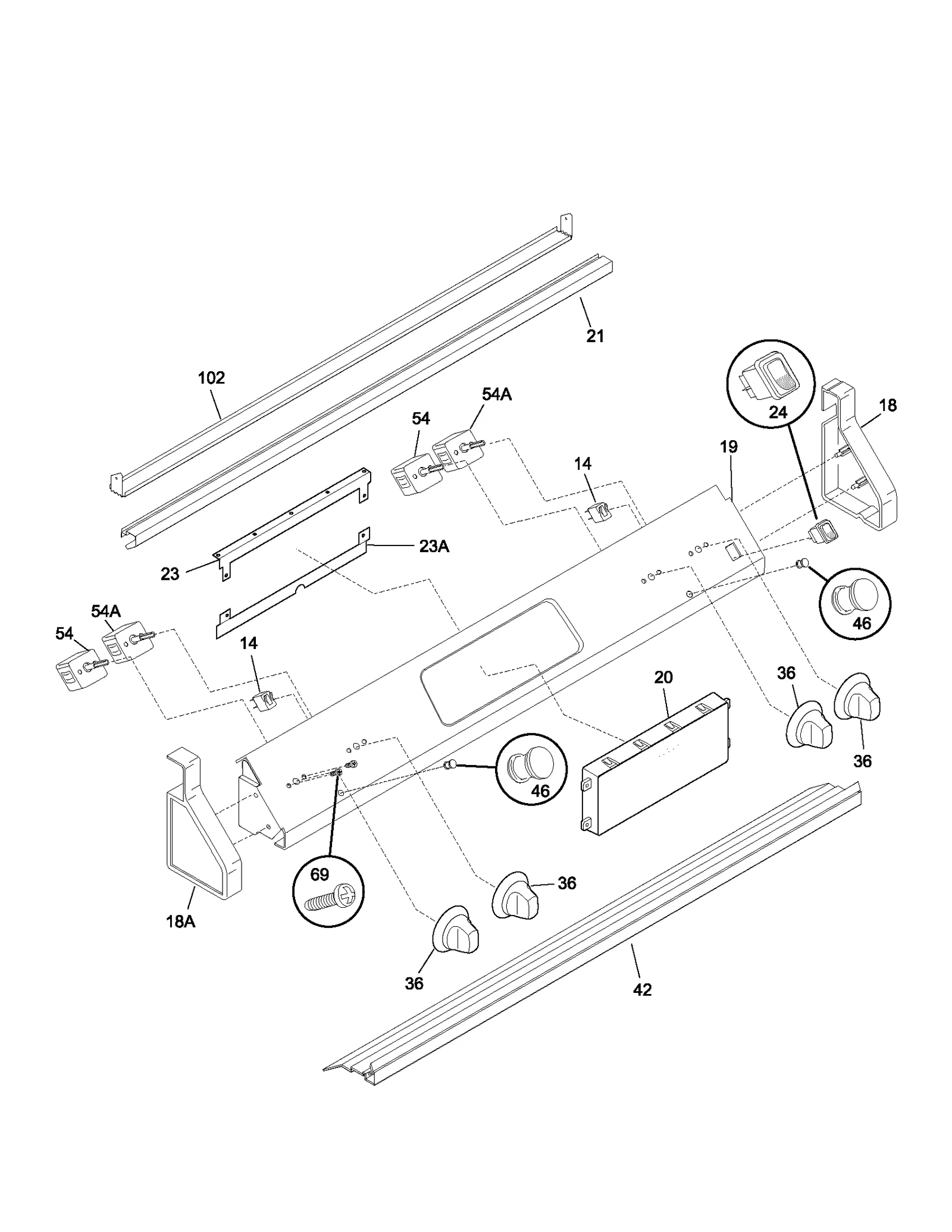

BACKGUARD

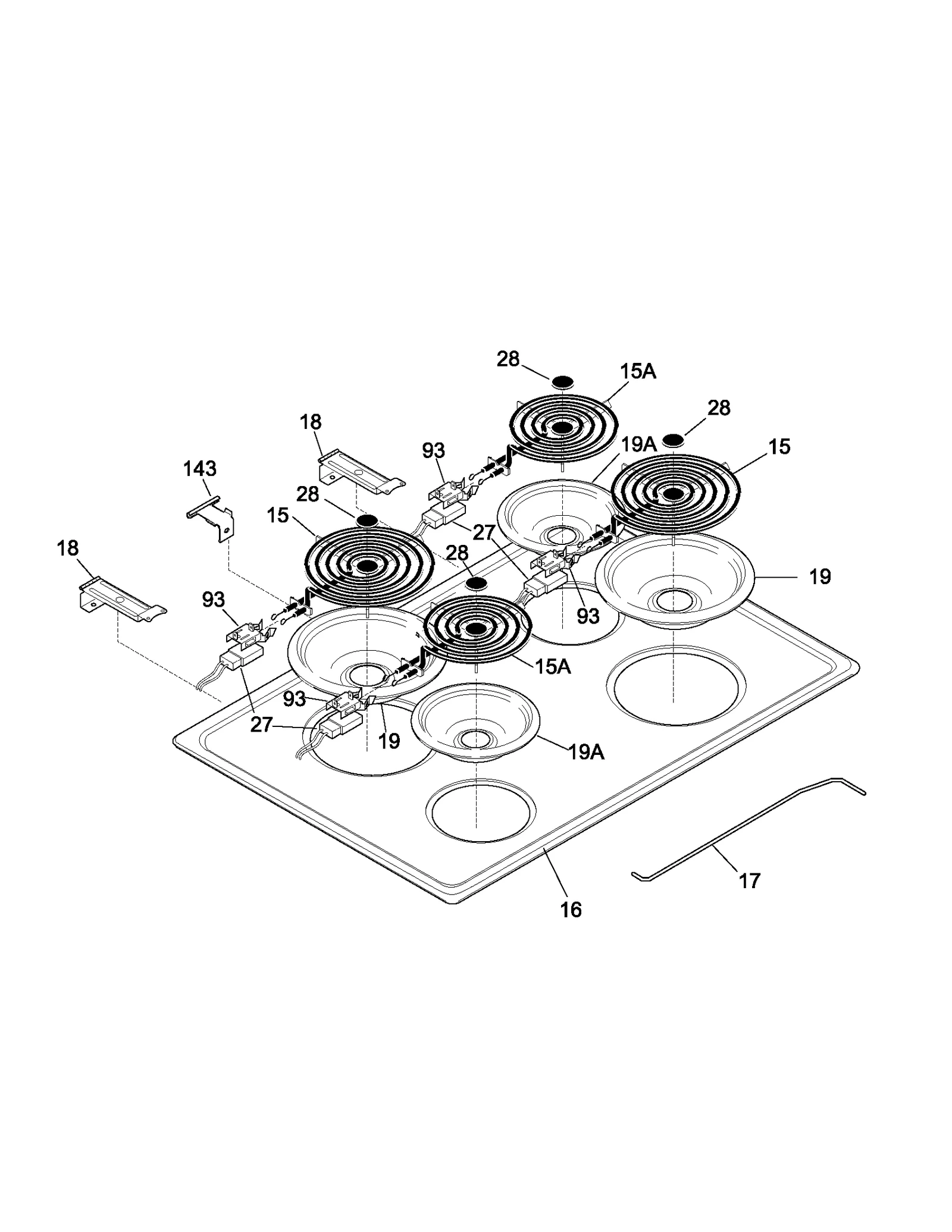

MAINTOP

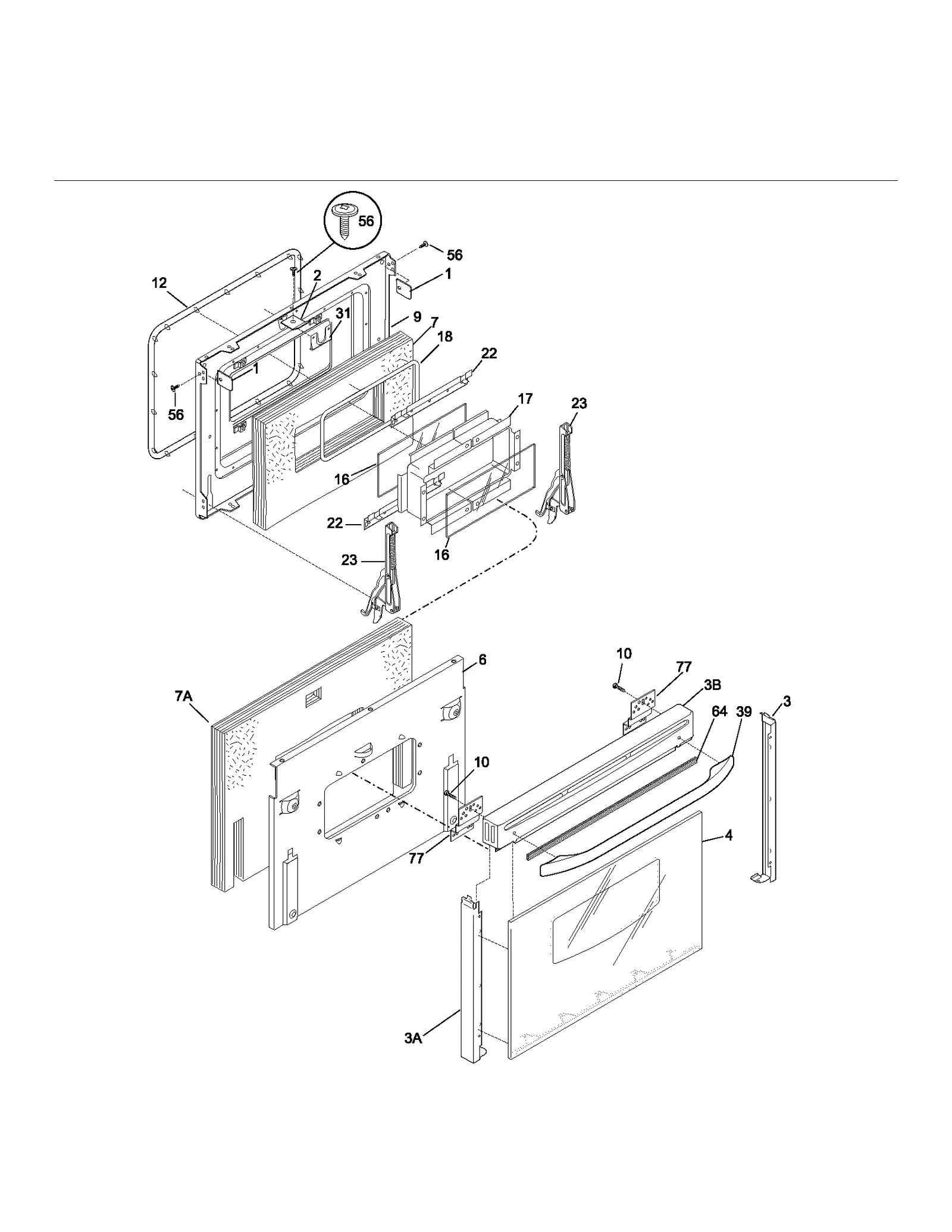

DOOR
Common parts from model Electrolux 790.45662102 Electric Range (Kenmore 79045662102)
1
Range Oven Door Handle Mounting Bracket WCI 318043100 Contact Us For Availability
2
Bracket WCI 318180312 Contact Us For Availability
3
Trim WCI 318178322 Contact Us For Availability
3
Trim WCI 318178324 Contact Us For Availability
3A
Trim WCI 318178323 Contact Us For Availability
3A
Trim WCI 318178325 Contact Us For Availability
3B
Door Trim To WCI 318176646 Contact Us For Availability
3B
Trim WCI 318176647 Contact Us For Availability
4
Trim WCI 318187717 Contact Us For Availability
4
Oven Trim WCI 318187718 Contact Us For Availability
6
Shield WCI 318057031 Contact Us For Availability
7
Insulation WCI 318133706 Contact Us For Availability
7A
Insulation WCI 318133707 Contact Us For Availability
9
In Dr Liner WCI 318157013 Contact Us For Availability
14
Light Lamp WCI 318076700 Contact Us For Availability
16
Range Oven Door Inner Glass WCI 5303310533 Contact Us For Availability
16
Main Top-whi WCI 5303300166 Contact Us For Availability
16
Range Main Top (Black) WCI 5303307287 Contact Us For Availability
17
Wall Oven Light Lens Retainer WCI 5304400195 Contact Us For Availability
17
Rod WCI 3051554 Contact Us For Availability
17
Glass Spacer WCI 318139000 Contact Us For Availability
18
Range Control Panel End Cap Set WCI 318254698 Contact Us For Availability
18
Range Control Panel End Cap Set WCI 318254699 Contact Us For Availability
18
Hinge WCI 5303305530 Contact Us For Availability
18
Seal-rope WCI 5303310531 Contact Us For Availability
19
Control Panel WCI 318182906 Contact Us For Availability
19
Control Panel WCI 318182907 Contact Us For Availability
20
Clock Timer WCI 318185410 Contact Us For Availability
20
Clock Timer WCI 318185411 Contact Us For Availability
21
Trim Backguard WCI 318027803 Contact Us For Availability
21
Trim Backguard WCI 318027804 Contact Us For Availability
22
Range Oven Door Glass Retainer WCI 5303310511 Contact Us For Availability
23
BRACKET,CLOC WCI 318015042 Contact Us For Availability
23
Hinge Assembly WCI 318024700 Contact Us For Availability
23A
BRACKET,CLOC WCI 318015043 Contact Us For Availability
27
Range Surface Element Terminal Block WCI 5303323704 Contact Us For Availability
28
Gibson Cooktop Element Center Medallion WCI 5303301461 Contact Us For Availability
31
Range Oven Door Latch WCI 5303310536 Contact Us For Availability
36
Control Knob WCI 318196300 Contact Us For Availability
36
Control Knob WCI 318196302 Contact Us For Availability
39
Door Handle WCI 316235500 Contact Us For Availability
41
Range Oven Door Hinge Cut-Out Trim WCI 5303310526 Contact Us For Availability
42
Trim-vent Bl WCI 318106927 Contact Us For Availability
42
Trim-vent Wh WCI 318106924 Contact Us For Availability
58B
Insulation WCI 318133769 Contact Us For Availability
59
Tube WCI 318072524 Contact Us For Availability
64
Tape WCI 5304417120 Contact Us For Availability
70
Shield WCI 318194400 Contact Us For Availability
70A
Deflector WCI 318199801 Contact Us For Availability
71
Wiring Cover WCI 5303310515 Contact Us For Availability
76
Oven WCI 318124100 Contact Us For Availability
81
Wall Oven Rear Shield Spring Clip WCI 318192400 Contact Us For Availability
83
Oven Liner WCI 318089613 Contact Us For Availability
86
Hinge Channel WCI 5303310524 Contact Us For Availability
87
Mounting Plate WCI 318111800 Contact Us For Availability
88
Latch Rod WCI 318118904 Contact Us For Availability
93
Support WCI 318122500 Contact Us For Availability
102
Mounting Bracket WCI 318055601 Contact Us For Availability
103
Trim (White) WCI 5303300213 Contact Us For Availability
103
Trim WCI 5303300217 Contact Us For Availability
108
Oven Blower WCI 318073012 Contact Us For Availability
114
Filler Plate WCI 318175100 Contact Us For Availability
128
Bushing WCI 5303311163 Contact Us For Availability
134
**SHIELD WIRE LOUVERHTOPWARMER WCI 318077610 Contact Us For Availability
141
Thermostat Switch WCI 5303284446 Contact Us For Availability
142
Air Deflector WCI 318123901 Contact Us For Availability
143
Hinge Bracket WCI 5303300148 Contact Us For Availability
217
Warming Plate WCI 318112101 Contact Us For Availability
219
Thermostat Oven Griddle WCI 318005000 Contact Us For Availability
220
Bracket WCI 5304401475 Contact Us For Availability
221
Bracket WCI 5304401476 Contact Us For Availability
NI
Range Oven Door Lock Switch WCI 318120711 Contact Us For Availability
NI
Box Wire WCI 318078515 Contact Us For Availability
NI
Screw WCI 08016432 Contact Us For Availability
NI
Wiring Diagram WCI 318045062 Contact Us For Availability
NI
Service Data Sheet WCI 318127005 Contact Us For Availability
NI
Installation Instructions WCI 318201602 Contact Us For Availability
NI
Parts List WCI 5995369740 Contact Us For Availability
NI
Bracket WCI 318180310 Contact Us For Availability
× ![]()
