Model Electrolux 77-4950-23-03 RANGE – Common Parts & Diagrams
02 - COOKTOP PARTS
03 - LOWER OVEN DOOR PARTS

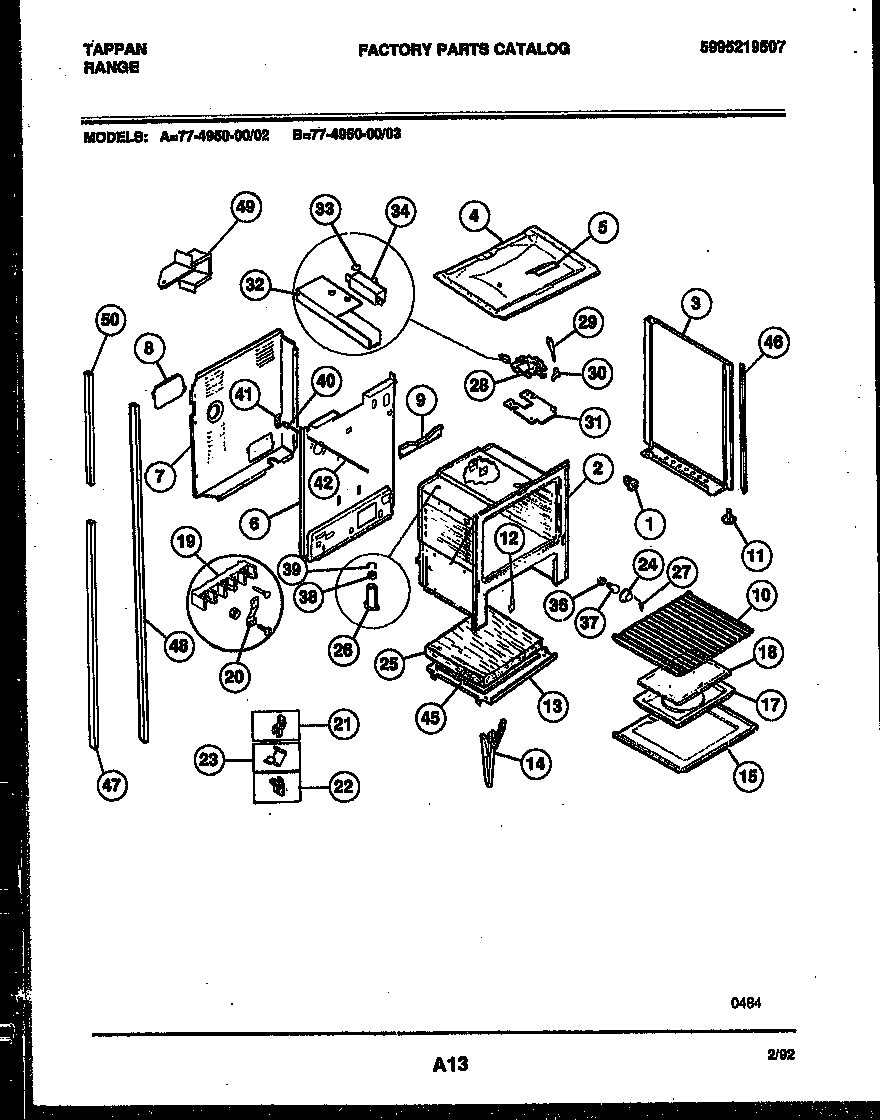

04 - LOWER BODY PARTS

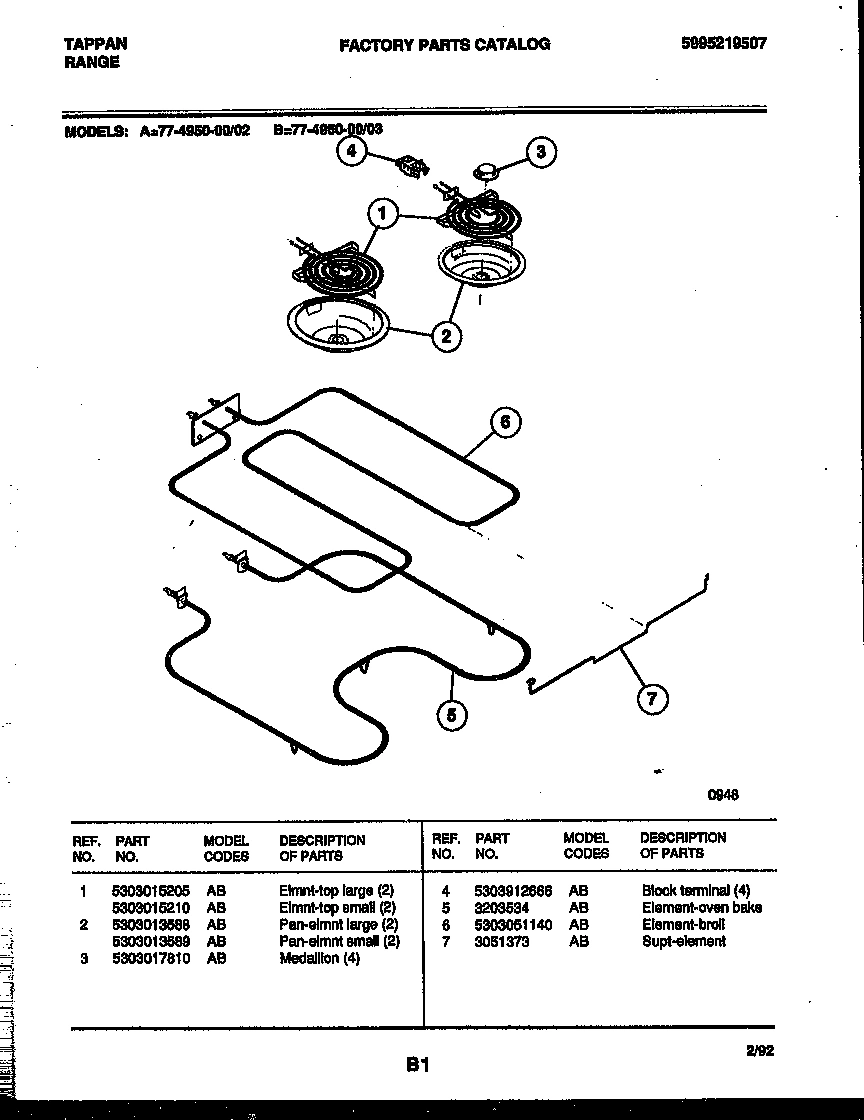

05 - BROILER PARTS

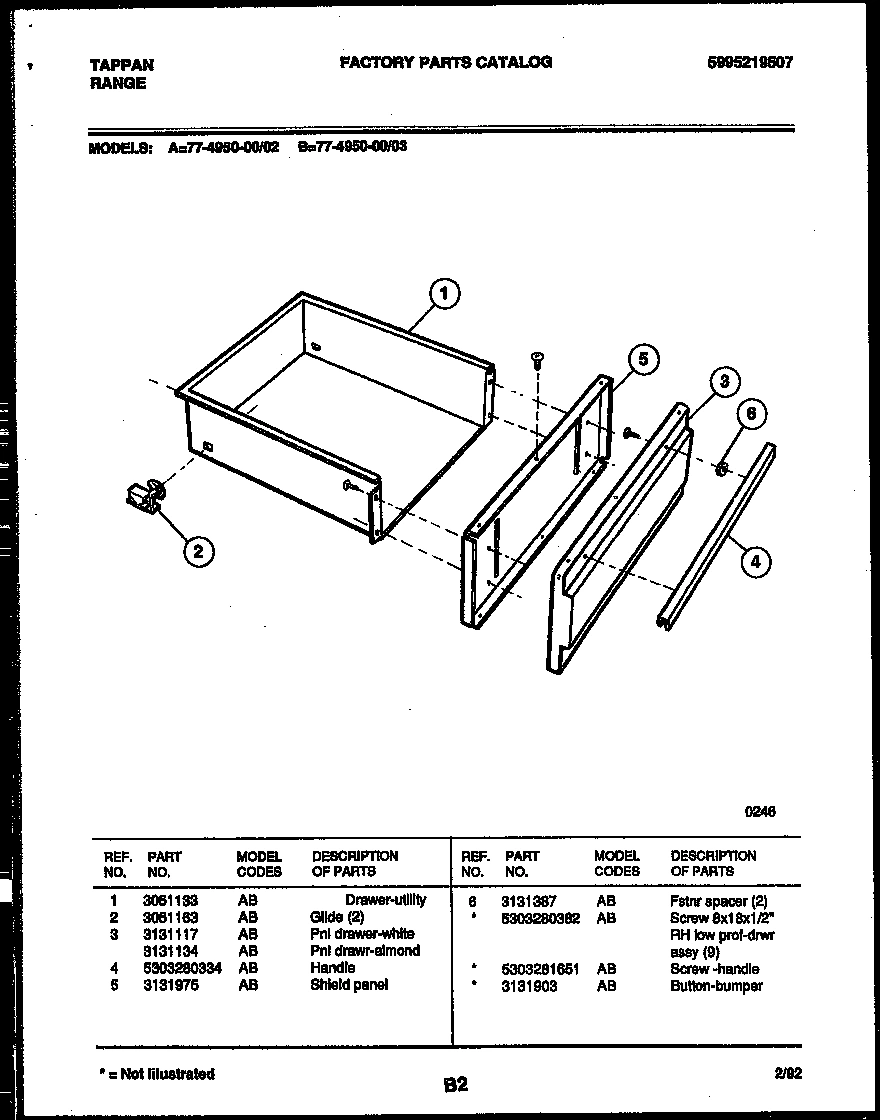

06 - DRAWER PARTS
07 - SPLASHER CONTROL

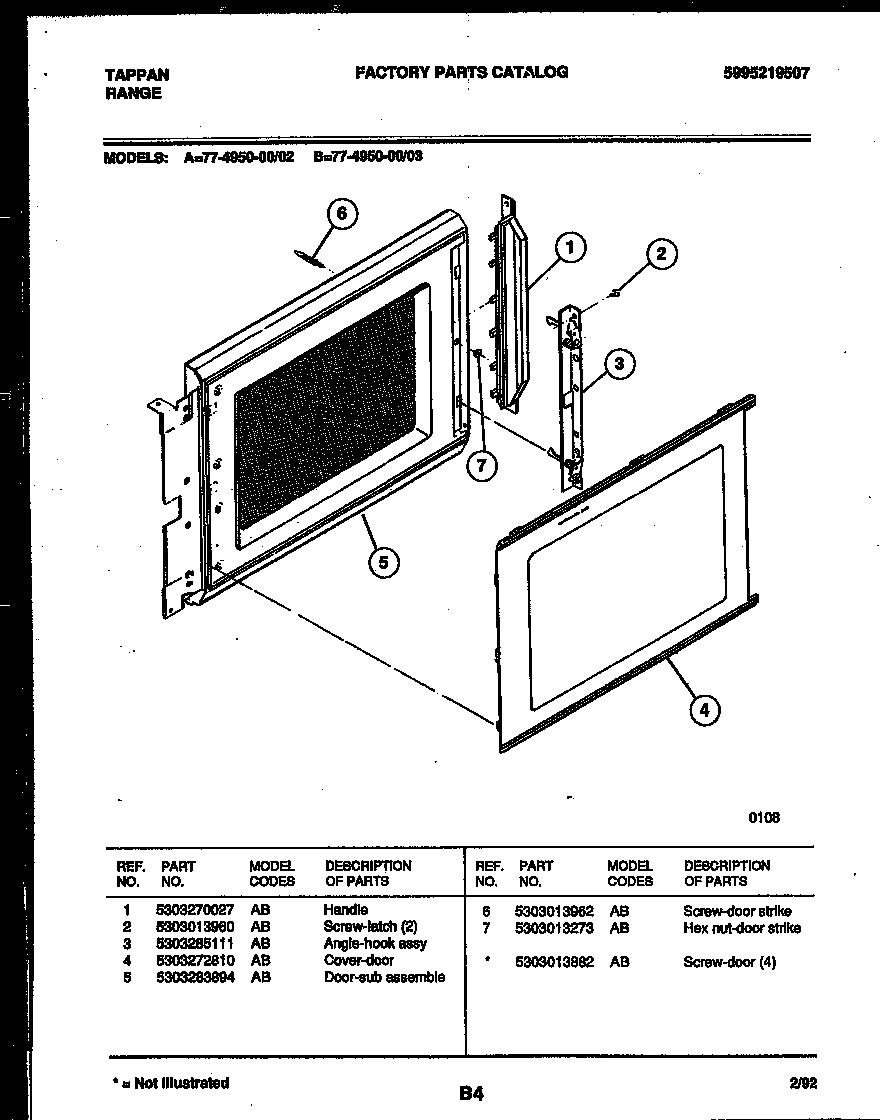

08 - UPPER OVEN DOOR PARTS

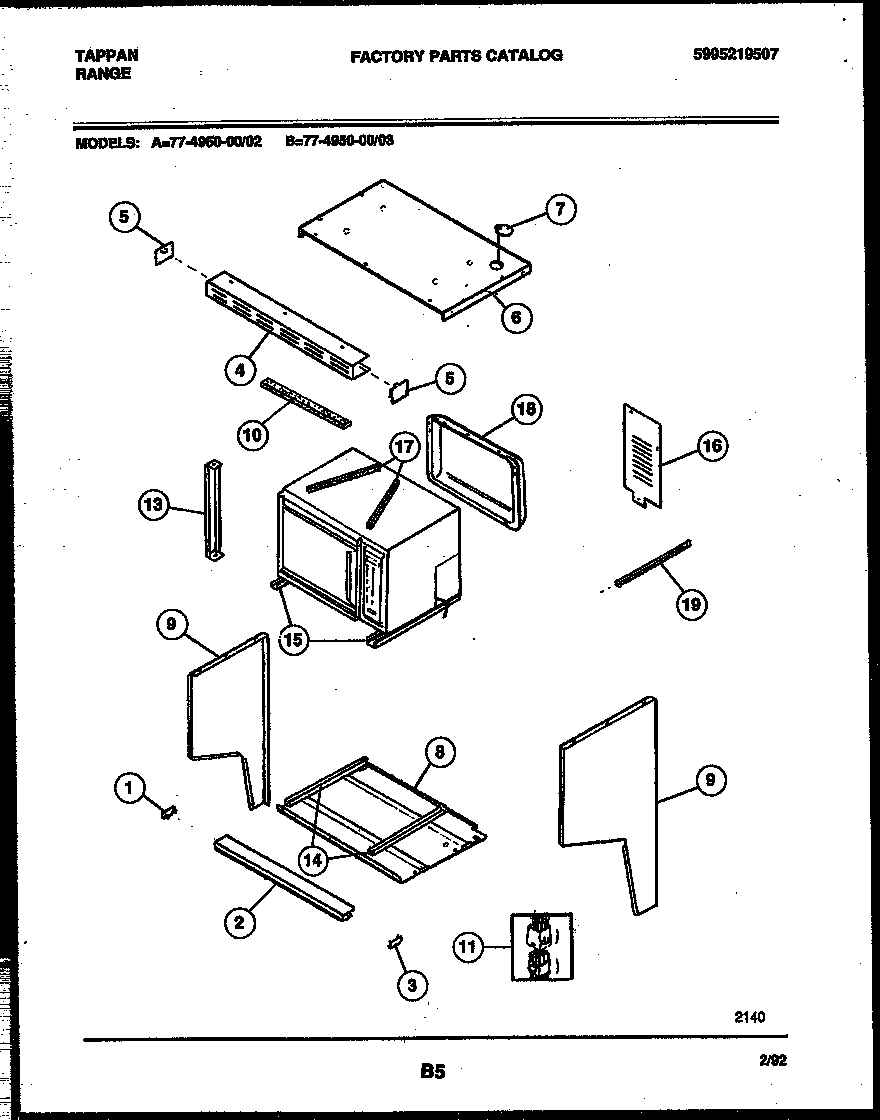

09 - UPPER BODY PARTS

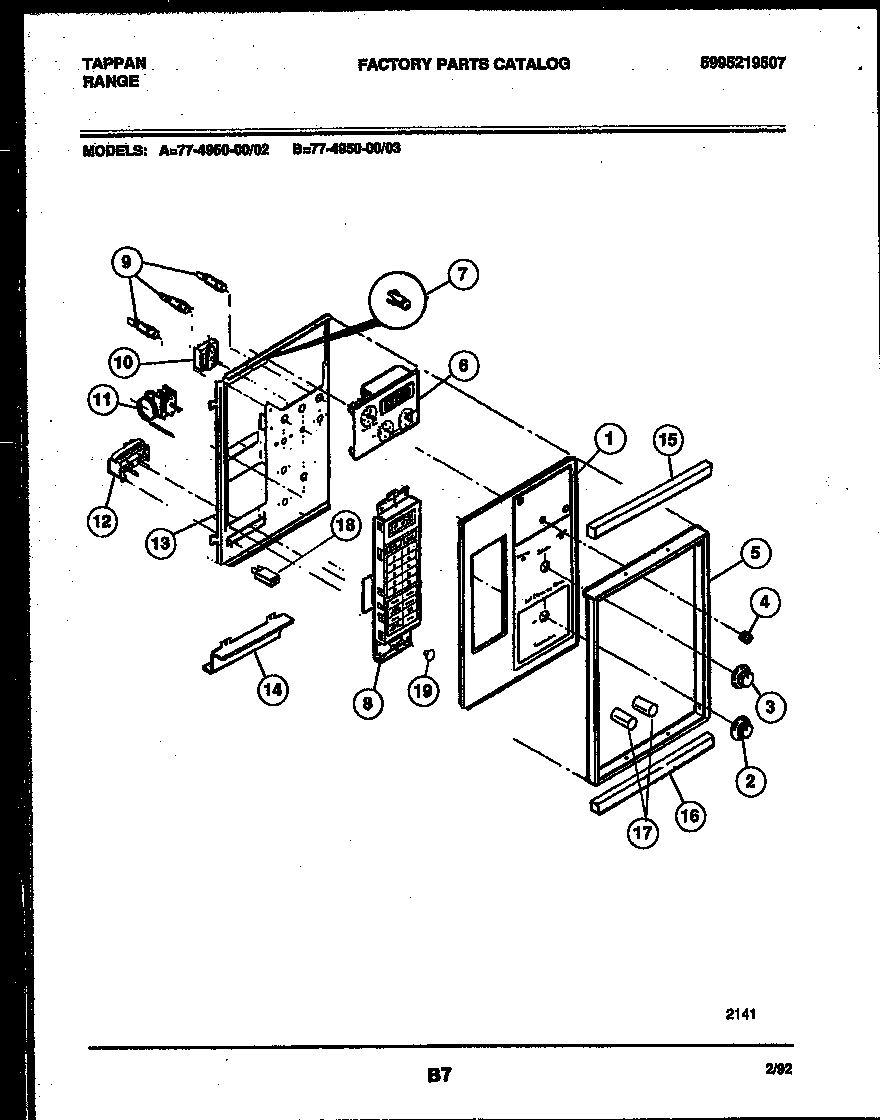

10 - CONTROL PANEL

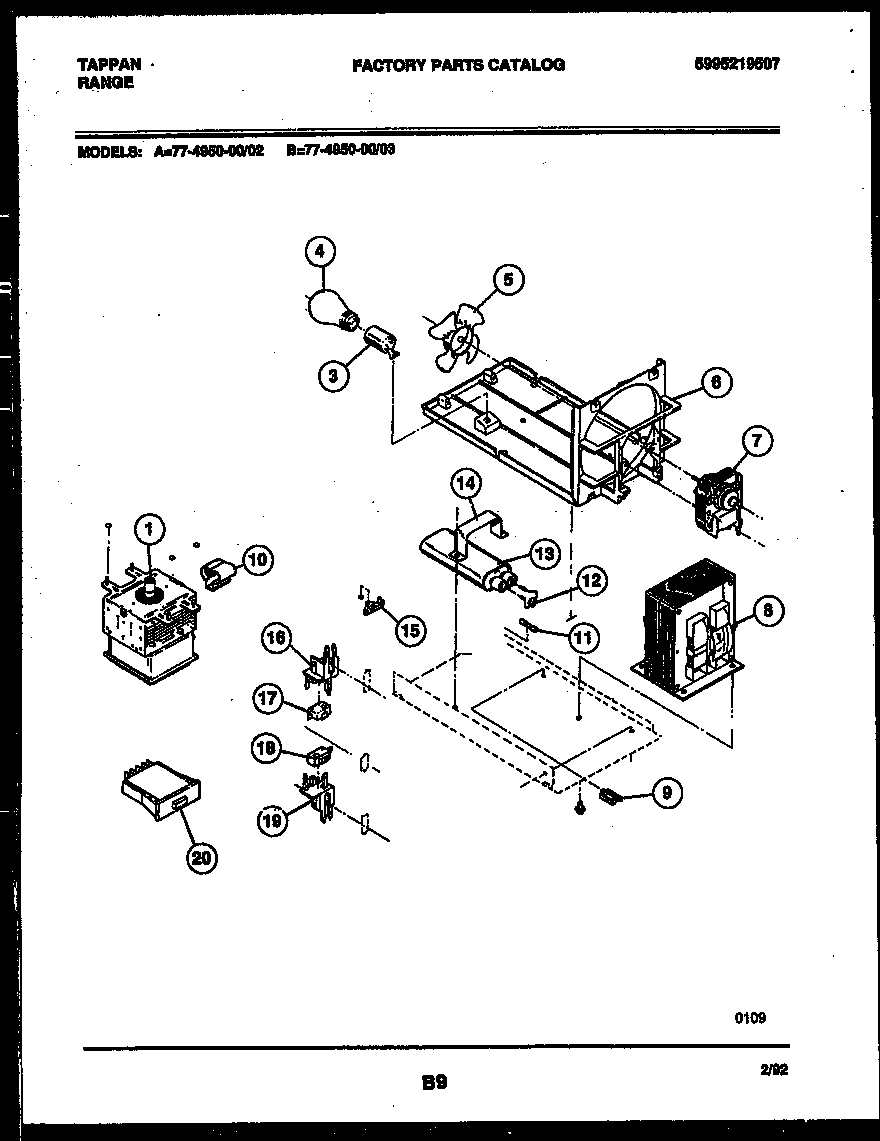

11 - POWER CONTROL

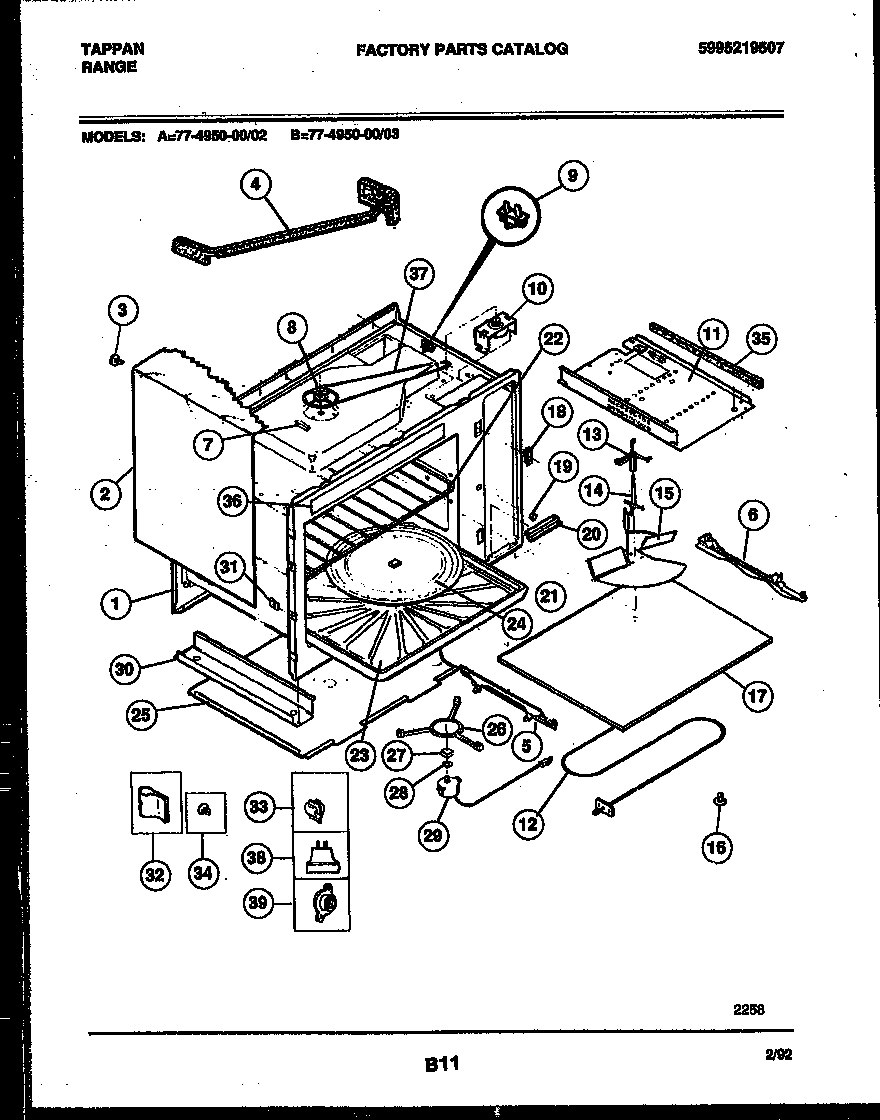

12 - WRAPPER AND BODY PARTS
Common parts from model Electrolux 77-4950-23-03 RANGE
*65847
WCI 19100250004 WCI 19100250004 Contact Us For Availability
*65849
SCREW-HANDLE WCI 5303281651 Contact Us For Availability
*65853
SCREW-DOOR (4) WCI 5303013882 Contact Us For Availability
*65860
WCI 5303206757 WCI 5303206757 Contact Us For Availability
*65861
WCI 3091254 WCI 3091254 Contact Us For Availability
*65861
HARNESS-TURNTABLE WCI 5303018857 Contact Us For Availability
*65861
WCI 5303270050 WCI 5303270050 Contact Us For Availability
*65861
WCI 5303270051 WCI 5303270051 Contact Us For Availability
*65862
WCI 191T175F197 WCI 191T175F197 Contact Us For Availability
*65862
WCI 5303270053 WCI 5303270053 Contact Us For Availability
1
SPACER, B/S (8) WCI 3014099 Contact Us For Availability
1
DRAWER, UTILITY WCI 3051133 Contact Us For Availability
1
WCI 5303269915 WCI 5303269915 Contact Us For Availability
1
WCI 5303270027 WCI 5303270027 Contact Us For Availability
1
WCI 5303269930 WCI 5303269930 Contact Us For Availability
1
WCI 316004000 WCI 316004000 Contact Us For Availability
1
WCI 5303206781 WCI 5303206781 Contact Us For Availability
2
REFLECTOR-LIGHT WCI 5303208612 Contact Us For Availability
2
SCREW-LATCH (2) WCI 5303013960 Contact Us For Availability
2
WCI 5303269927 WCI 5303269927 Contact Us For Availability
2
WCI 5303272676 WCI 5303272676 Contact Us For Availability
2
WCI 5303283895 WCI 5303283895 Contact Us For Availability
3
BULB-FLOUR WORK LIGHT WCI 3131275 Contact Us For Availability
3
BRKT HNGE-LH WCI 08067746 Contact Us For Availability
3
WCI 5303209512 WCI 5303209512 Contact Us For Availability
3
WCI 5303269545 WCI 5303269545 Contact Us For Availability
3
WCI 5303017810 WCI 5303017810 Contact Us For Availability
3
PNL. DRAWR.-ALMOND WCI 3131134 Contact Us For Availability
3
ANGLE-HOOK ASSY WCI 5303285111 Contact Us For Availability
3
WCI 5303269931 WCI 5303269931 Contact Us For Availability
3
WCI 5303272677 WCI 5303272677 Contact Us For Availability
3
SOCKET-LIGHT WCI 5303014070 Contact Us For Availability
3
SCREW-WRAPPER WCI 5303273263 Contact Us For Availability
3A
WCI 5303269543 WCI 5303269543 Contact Us For Availability
4
WCI 5303209517 WCI 5303209517 Contact Us For Availability
4
WCI 5303271658 WCI 5303271658 Contact Us For Availability
4
HANDLE WCI 5303280334 Contact Us For Availability
4
INSULATOR FLOUR LIGHT BRACKET WCI 3012947 Contact Us For Availability
4
WCI 5303272810 WCI 5303272810 Contact Us For Availability
4
WCI 5303269928 WCI 5303269928 Contact Us For Availability
4
KNOB CLOCK WCI 5303208334 Contact Us For Availability
4
WCI 5308037902 WCI 5308037902 Contact Us For Availability
4
SEAL - FOAM CUT TO SIZE WCI 5308037640 Contact Us For Availability
5
WCI 5303209511 WCI 5303209511 Contact Us For Availability
5
WCI 08067757 WCI 08067757 Contact Us For Availability
5
WCI 3131975 WCI 3131975 Contact Us For Availability
5
RECEPTACLE FLOUR LIGHT WCI 08010388 Contact Us For Availability
5
WCI 5303283894 WCI 5303283894 Contact Us For Availability
5
WCI 5303269932 WCI 5303269932 Contact Us For Availability
5
TRIM WCI 5303269976 Contact Us For Availability
5
WCI 5303203192 WCI 5303203192 Contact Us For Availability
5
SUPT-STIR GLASS LH WCI 5303272823 Contact Us For Availability
6
GLASS-FRONT VISULITE WCI 5303131132 Contact Us For Availability
6
WCI 3203082 WCI 3203082 Contact Us For Availability
6
FSTNR, SPACER (2) WCI 3131387 Contact Us For Availability
6
WCI 3051465 WCI 3051465 Contact Us For Availability
6
SCREW-DOOR STRIKE WCI 5303013962 Contact Us For Availability
6
WCI 5303269957 WCI 5303269957 Contact Us For Availability
6
WCI 5303285110 WCI 5303285110 Contact Us For Availability
6
DUCT-AIR (FAN) WCI 5303012194 Contact Us For Availability
6
SUPT-STIR GLASS RH WCI 5303272824 Contact Us For Availability
7
WCI 5303285070 WCI 5303285070 Contact Us For Availability
7
SHIELD-LWR. WALL WCI 3203549 Contact Us For Availability
7
HEX NUT -DOOR STRIKE WCI 5303013273 Contact Us For Availability
7
COVER-OUTLET WCI 08067732 Contact Us For Availability
7
FASTENER-CLOCK WCI 08011713 Contact Us For Availability
7
MOTOR-FAN WCI 5308037636 Contact Us For Availability
7
SPACER - WRAPPER WCI 5308014510 Contact Us For Availability
8
LINER WCI 5303209515 Contact Us For Availability
8
CVR.-LWR. ACCESS WCI 3203405 Contact Us For Availability
8
GUSSET M/W SUPT-LEFT WCI 5303269949 Contact Us For Availability
8
WCI 5303270071 WCI 5303270071 Contact Us For Availability
8
WCI 5303272811 WCI 5303272811 Contact Us For Availability
8
WCI 5308037626 WCI 5308037626 Contact Us For Availability
8
PULLEY W/BELT WCI 5303013647 Contact Us For Availability
8A
GUSSET M/W SUPT-RIGHT WCI 5303269950 Contact Us For Availability
9
COVER-FLUE WCI 3051368 Contact Us For Availability
9
GLASS-SPLASHER WCI 3200496 Contact Us For Availability
9
PANEL-SIDE UPPER RH ALMOND WCI 3051264 Contact Us For Availability
9
PANEL-SIDE UPPER LH ALMOND WCI 5303269989 Contact Us For Availability
9
INDICATOR LIGHT-BLUE WCI 3201726 Contact Us For Availability
9
INDICATOR LIGHT-BLACK WCI 3201727 Contact Us For Availability
9
INDICATOR LIGHT-RED WCI 3201728 Contact Us For Availability
9
FSTNR - WIRE CLIP (3) WCI 5308037677 Contact Us For Availability
9
FUSE-THERMAL-RED WCI 5303091280 Contact Us For Availability
10
WCI 5303211084 WCI 5303211084 Contact Us For Availability
10
WCI 5303272666 WCI 5303272666 Contact Us For Availability
10
WCI 5303271601 WCI 5303271601 Contact Us For Availability
10
WCI 3201732 WCI 3201732 Contact Us For Availability
10
INSULATOR WCI 08037647 Contact Us For Availability
10
MOTOR - PULLEY WCI 5303091482 Contact Us For Availability
11
WCI 5303203397 WCI 5303203397 Contact Us For Availability
11
WCI 5303209518 WCI 5303209518 Contact Us For Availability
11
WCI 5303051115 WCI 5303051115 Contact Us For Availability
11
WCI 08010551 WCI 08010551 Contact Us For Availability
11
WCI 5303272674 WCI 5303272674 Contact Us For Availability
11
WCI 5303200606 WCI 5303200606 Contact Us For Availability
11
WCI 5303270033 WCI 5303270033 Contact Us For Availability
12
CVR. HNG. CUTOUT (2) WCI 3131570 Contact Us For Availability
12
SCREW HANDLE WCI 5303212671 Contact Us For Availability
12
WCI 08067733 WCI 08067733 Contact Us For Availability
12
WCI 5303272803 WCI 5303272803 Contact Us For Availability
12
DIODE HIGH VOLTAGE WCI 5303091303 Contact Us For Availability
12
WCI 5303012207 WCI 5303012207 Contact Us For Availability
13
SHIELD-WOOL LWR WCI 3200825 Contact Us For Availability
13
FASTENER-PURSE LOCK WCI 5308008992 Contact Us For Availability
13
WCI 5303269929 WCI 5303269929 Contact Us For Availability
13
WCI 5303269960 WCI 5303269960 Contact Us For Availability
13
WCI 5308037624 WCI 5308037624 Contact Us For Availability
13
WCI 5303011826 WCI 5303011826 Contact Us For Availability
14
INSULATION-WOOL WCI 5303209514 Contact Us For Availability
14
RECPT STARTER WCI 5303282715 Contact Us For Availability
14
WCI 5303269936 WCI 5303269936 Contact Us For Availability
14
WCI 5303269959 WCI 5303269959 Contact Us For Availability
14
WCI 5303013771 WCI 5303013771 Contact Us For Availability
14
WCI 5303202875 WCI 5303202875 Contact Us For Availability
15
STARTER WCI 3206218 Contact Us For Availability
15
WCI 5303211085 WCI 5303211085 Contact Us For Availability
15
WCI 3203540 WCI 3203540 Contact Us For Availability
15
CHANNEL-MICRO SLIDE (2) WCI 5303269937 Contact Us For Availability
15
WCI 5303269974 WCI 5303269974 Contact Us For Availability
15
FAN-STIRRER WCI 5303274930 Contact Us For Availability
16
TRIM O/U SPLASHER SIDE-LEFT WCI 5303269815 Contact Us For Availability
16
WCI 5303272678 WCI 5303272678 Contact Us For Availability
16
WCI 5303269975 WCI 5303269975 Contact Us For Availability
16
RIVET (2) WCI 5303013807 Contact Us For Availability
16A
TRIM O/U SPLASHER SIDE-RIGHT WCI 08010549 Contact Us For Availability
17
WCI 5303013568 WCI 5303013568 Contact Us For Availability
17
TRIM-SPLASHER FILLER WCI 5303209039 Contact Us For Availability
17
DUCT-AIR FOAM (2) WCI 5303269947 Contact Us For Availability
17
WCI 5303091544 WCI 5303091544 Contact Us For Availability
17
COVER-STIRRER, GLASS WCI 5303012681 Contact Us For Availability
17A
WCI 5303269962 WCI 5303269962 Contact Us For Availability
17B
BUSHING-GLASS (NON-ILLUSTRATED) WCI 3204745 Contact Us For Availability
18
WCI 5303131356 WCI 5303131356 Contact Us For Availability
18
COVER-VENT BACK WCI 5303269986 Contact Us For Availability
18
INDICATOR LAMP WCI 5303201800 Contact Us For Availability
18
WCI 5303203636 WCI 5303203636 Contact Us For Availability
18
WCI 5303212767 WCI 5303212767 Contact Us For Availability
19
WCI 5303270097 WCI 5303270097 Contact Us For Availability
19
JEWEL IND LENS WCI 5308037703 Contact Us For Availability
19
BRKT - SWITCH LWR WCI 5303011556 Contact Us For Availability
19
WCI 5308037644 WCI 5308037644 Contact Us For Availability
20
SWITCH-MONITOR WCI 5303201602 Contact Us For Availability
20
GRND STRAP WCI 5303212739 Contact Us For Availability
20
BRACKET-CONTROL PANEL WCI 5303011555 Contact Us For Availability
21
CLIP-THERM BULB (2) WCI 08067754 Contact Us For Availability
21
PLUG-BUTTON (1) WCI 5303201365 Contact Us For Availability
22
WCI 5303206085 WCI 5303206085 Contact Us For Availability
23
WCI 3051367 WCI 3051367 Contact Us For Availability
23
GLASS TRAY WCI 5303011698 Contact Us For Availability
23A
ANGLE-FUSE MTG (NON-ILLUSTRATED) WCI 5308008973 Contact Us For Availability
23B
WCI 5303270100 WCI 5303270100 Contact Us For Availability
23C
WCI 5303270099 WCI 5303270099 Contact Us For Availability
23D
WCI 5303202458 WCI 5303202458 Contact Us For Availability
24
TRAY-ROUND WCI 5308037674 Contact Us For Availability
25
SHIELD - BOTTOM WCI 3014060 Contact Us For Availability
26
SUPPORT-ROLLERS WCI 5303091004 Contact Us For Availability
26
WCI 3051344 WCI 3051344 Contact Us For Availability
27
WCI 5303922044 WCI 5303922044 Contact Us For Availability
27
WIRE GLASS RETAINER WCI 3204585 Contact Us For Availability
27A
INSUL WRAP (NON-ILLUSTRATED) WCI 3200833 Contact Us For Availability
27B
INSUL-BACK (NON-ILLUSTRATED) WCI 3204582 Contact Us For Availability
27C
INSUL. TOP (NON-ILLUSTRATED) WCI 3131304 Contact Us For Availability
27D
SCREW-HNG MTG (6) (NON-ILLUSTRATED) WCI 5303212740 Contact Us For Availability
27G
SHIELD-TRIM SPLASHER (NON-ILLUSTRATED) WCI 3051299 Contact Us For Availability
27H
BRACKET MTG CABLE (NON-ILLUSTRATED) WCI 5303206618 Contact Us For Availability
27I
WCI 3015418 WCI 3015418 Contact Us For Availability
28
WCI 5303015361 WCI 5303015361 Contact Us For Availability
28
WASHER (PLACE UNDERNEATH - BETWEEN MOTOR & OV WCI 5303203152 Contact Us For Availability
29
WCI 5303131357 WCI 5303131357 Contact Us For Availability
29
WCI 5303922046 WCI 5303922046 Contact Us For Availability
30
WCI 3203218 WCI 3203218 Contact Us For Availability
30
WCI 5303011773 WCI 5303011773 Contact Us For Availability
30A
WCI 08013188 WCI 08013188 Contact Us For Availability
31
SHIELD-LATCH WCI 3051413 Contact Us For Availability
32
SHIELD BI MTG CATCH WCI 3131593 Contact Us For Availability
32
WCI 5303012322 WCI 5303012322 Contact Us For Availability
33
FSTNR., PUSH ON (3) WCI 08067776 Contact Us For Availability
33
SUPPORT RACK (8) WCI 5303014221 Contact Us For Availability
34
SW.-LATCHING WCI 3131672 Contact Us For Availability
34
PLUG-BUTTON TRAY (2) WCI 5308037665 Contact Us For Availability
34A
SHIELD-LIGHT (NON-ILLUSTRATED) WCI 5303011685 Contact Us For Availability
35
SEAL-FOAM CUT TO SIZE WCI 5303017864 Contact Us For Availability
36
LABEL-COOKING GUIDE WCI 5303271795 Contact Us For Availability
37
WCI 5303011495 WCI 5303011495 Contact Us For Availability
37A
WASHER-PULLEY WCI 5303014620 Contact Us For Availability
38
WCI 08067810 WCI 08067810 Contact Us For Availability
38
SWITCH-THERMO CUTOUT WCI 5303202107 Contact Us For Availability
39
RETAIN-CATALYST WCI 08010606 Contact Us For Availability
39
WCI 5308012055 WCI 5308012055 Contact Us For Availability
40
SWITCH, DOOR WCI 5303202622 Contact Us For Availability
41
BRKT-LITE SW WCI 5303131289 Contact Us For Availability
42
ROD LIGHT WCI 5303209316 Contact Us For Availability
45
SHIELD-HEAT LWR WCI 3200848 Contact Us For Availability
46
TRIM - VERT B/S (2) WCI 5303051326 Contact Us For Availability
47
WCI 5303269933 WCI 5303269933 Contact Us For Availability
48
WCI 5303269934 WCI 5303269934 Contact Us For Availability
48A
SHIELD-HEAT B/S (2) (NON-ILLUSTRATED) WCI 3200834 Contact Us For Availability
48B
FASTENER-EDGE MOUNT (2) (NON-ILLUSTRATED) WCI 3200846 Contact Us For Availability
48C
ANTI-TIP KIT (NON-ILLUSTRATED) WCI 3934056 Contact Us For Availability
49
WCI 3203582 WCI 3203582 Contact Us For Availability
50
TUBE-CORNER EXTN-LH WCI 5303269935 Contact Us For Availability
× ![]()
