Model Electrolux 76-4967-23-01 RANGE – Common Parts & Diagrams
02 - SPLASHER CONTROL

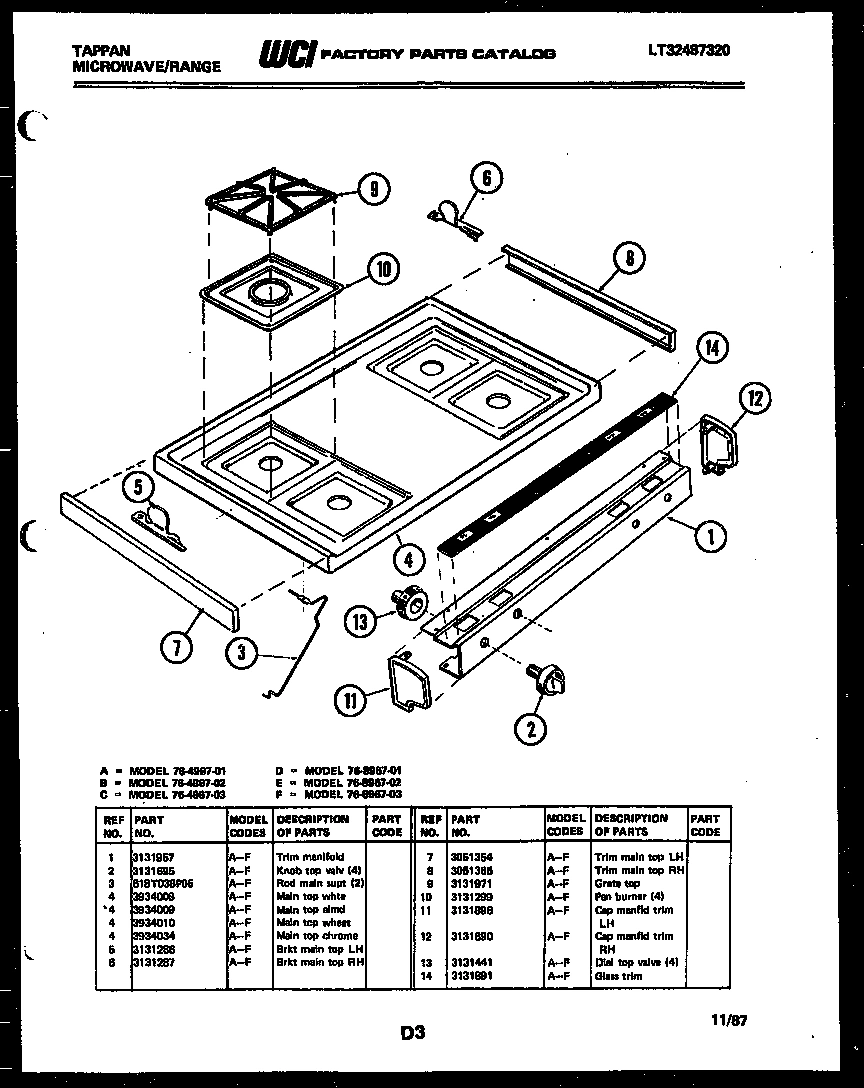

03 - COOKTOP PARTS

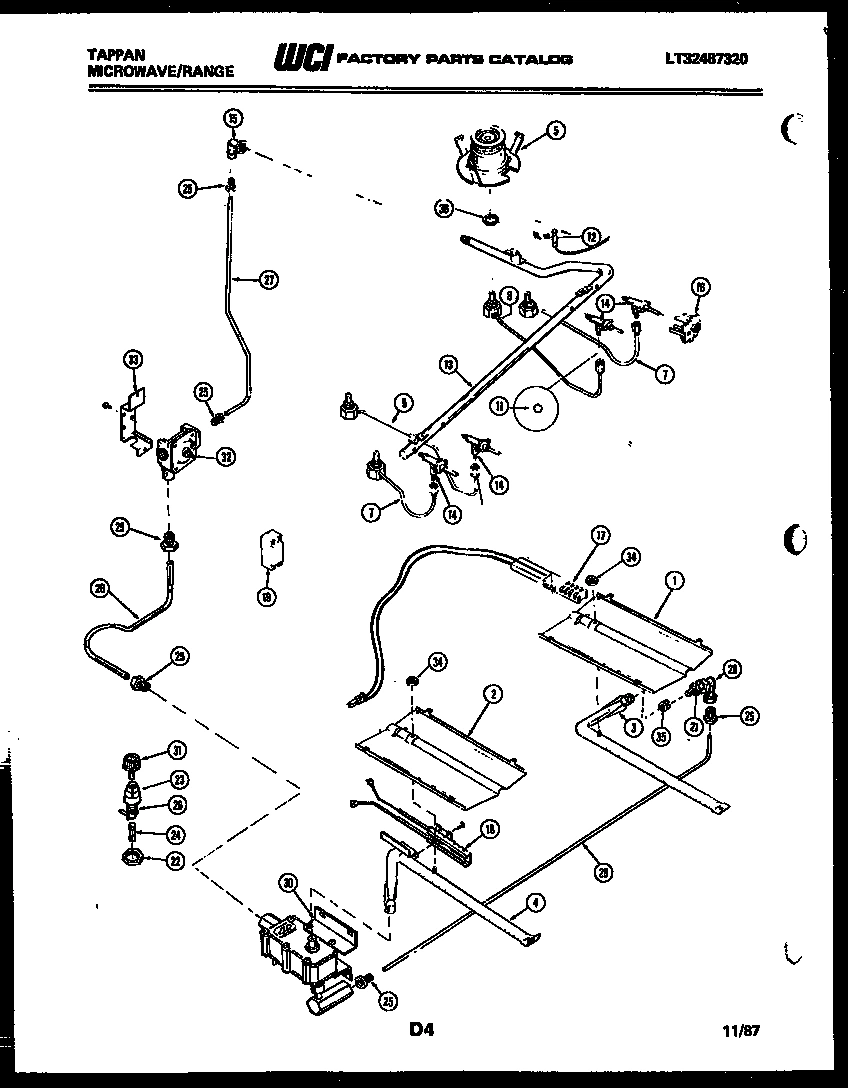

04 - BURNER, MANIFOLD AND GAS CONTROL

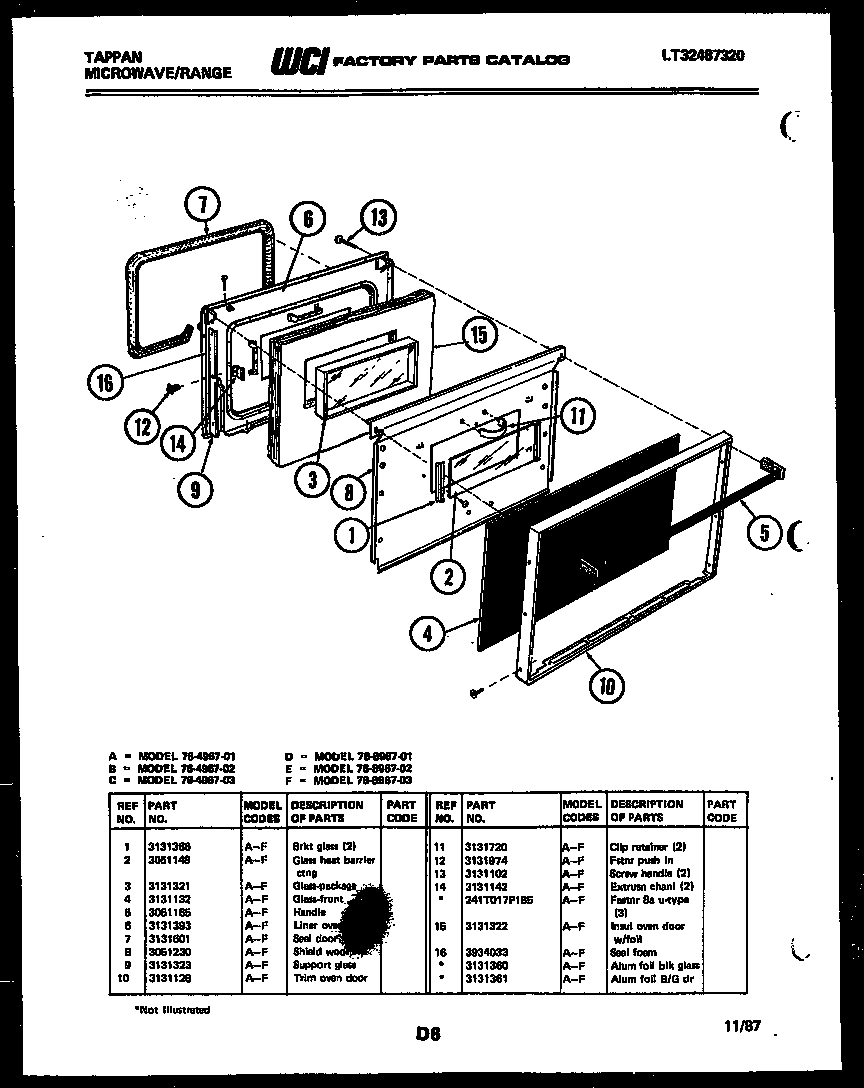

05 - LOWER OVEN DOOR PARTS

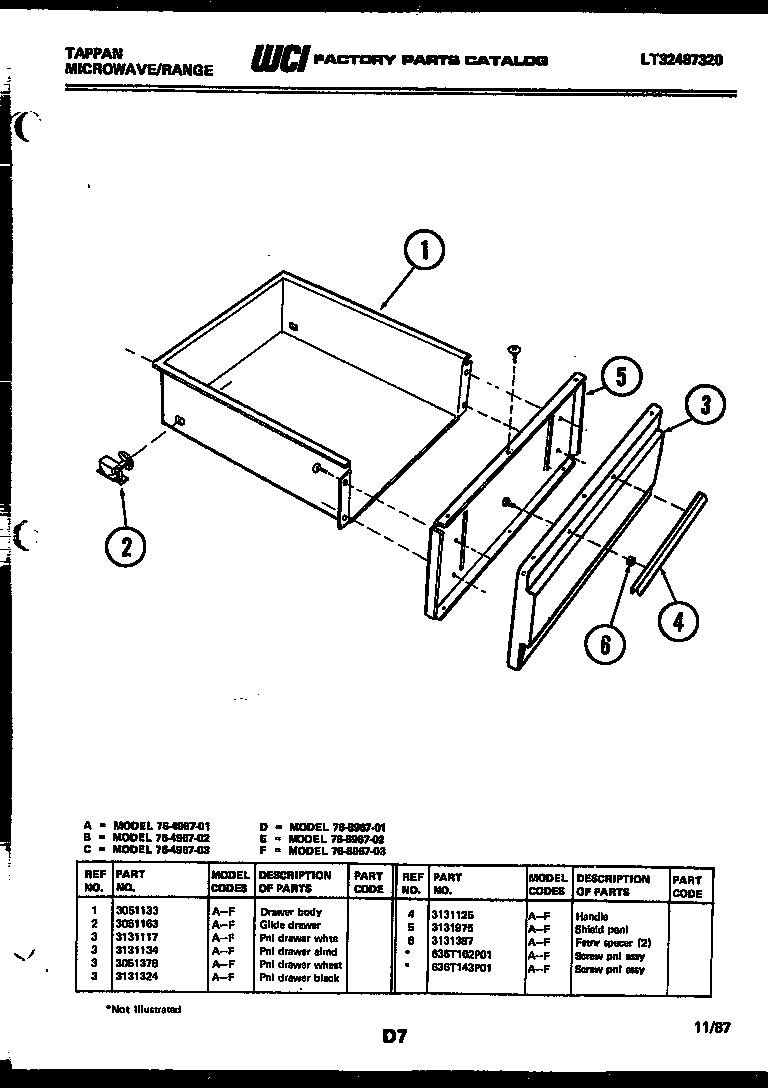

06 - DRAWER PARTS

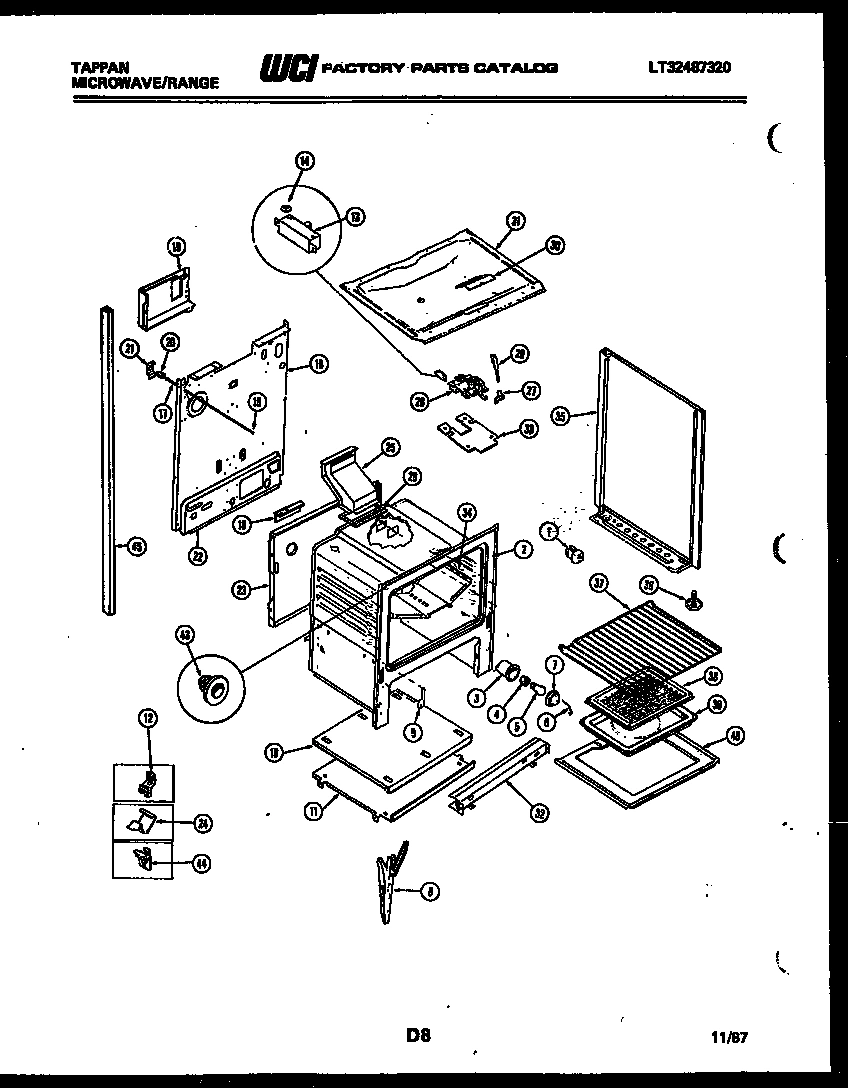

07 - LOWER BODY PARTS

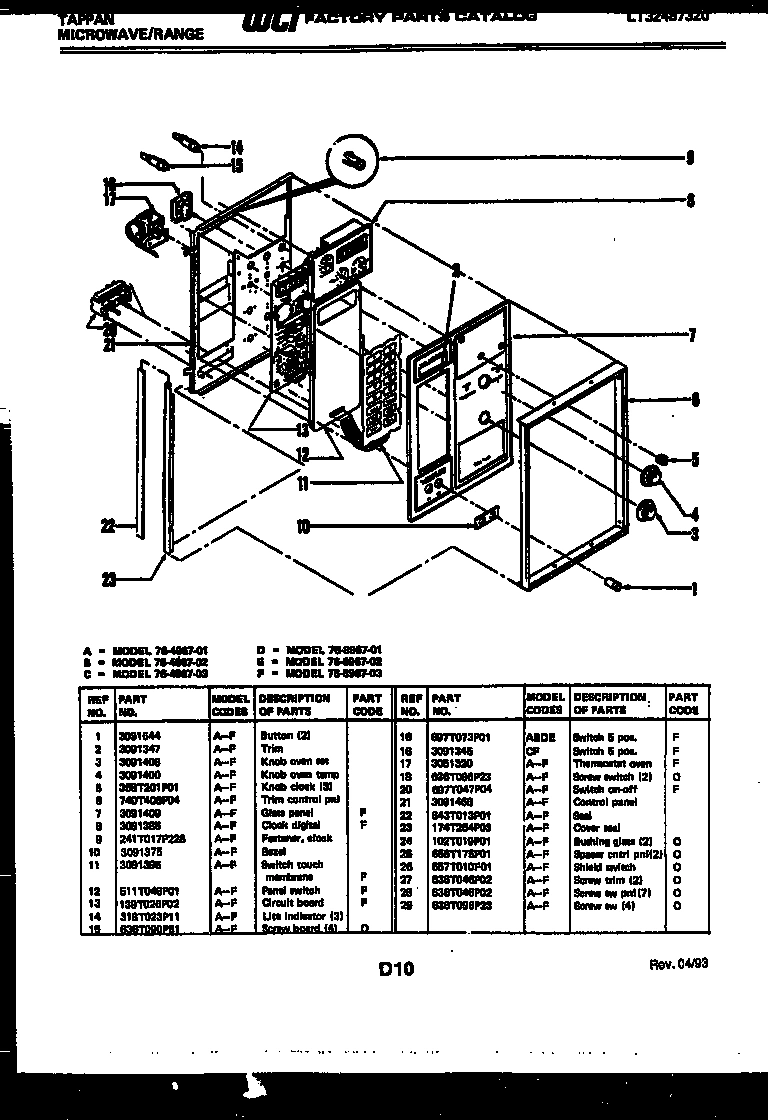

08 - CONTROL PANEL

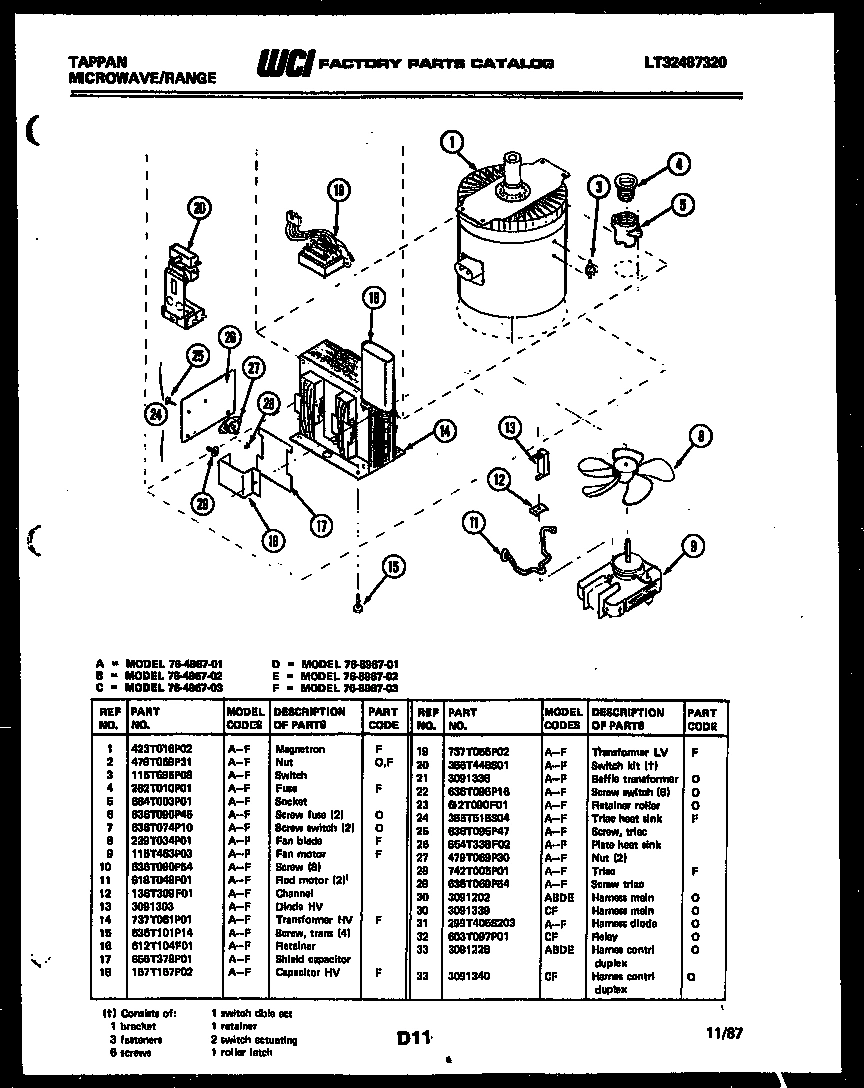

09 - POWER CONTROL

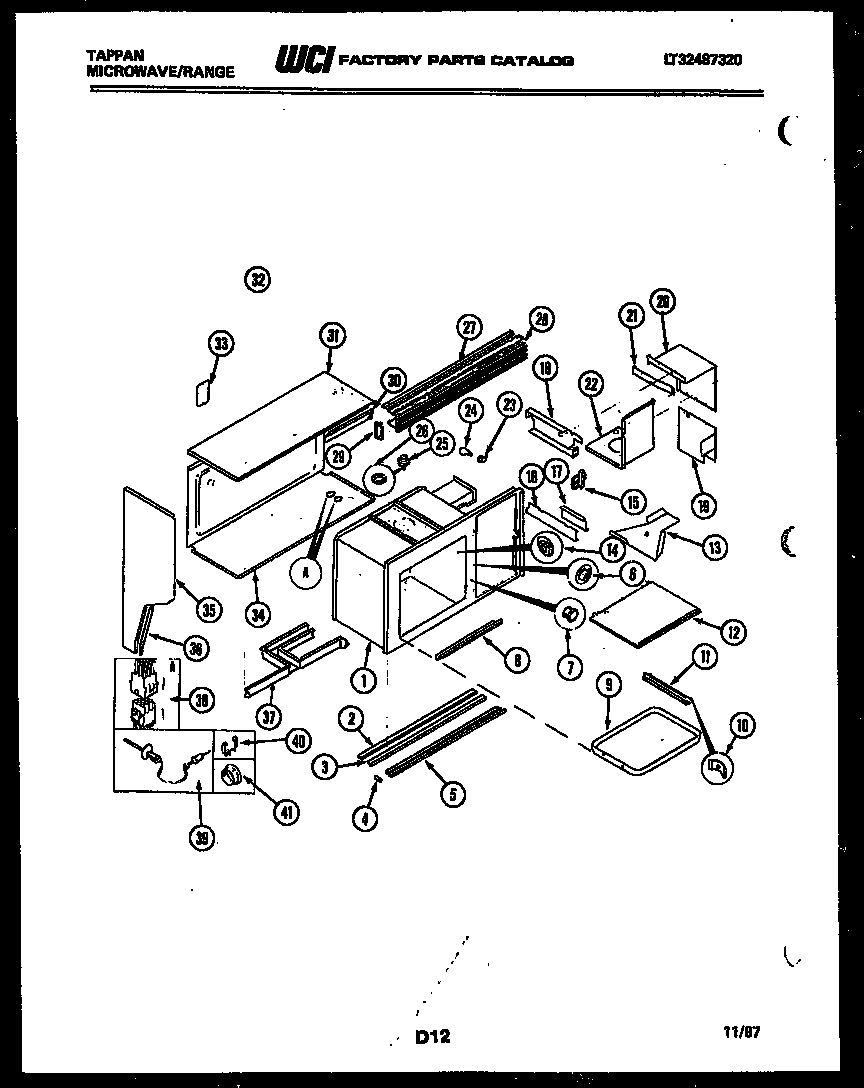

10 - UPPER BODY PARTS

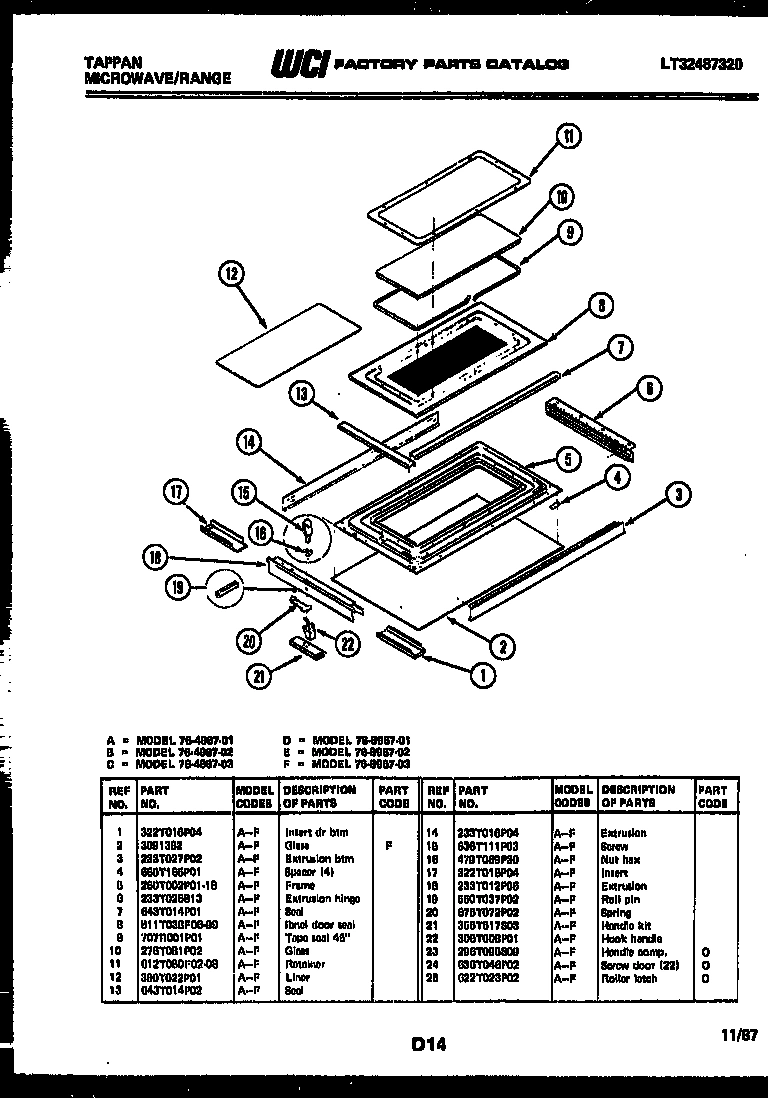

11 - TOP DOOR PARTS
Common parts from model Electrolux 76-4967-23-01 RANGE
*83670
SPACER, BAFFLE WCI 3131956 Contact Us For Availability
*83680
ALUM FOIL B/G DR WCI 3131361 Contact Us For Availability
*83686
SCREW PNL ASSY. WCI 636T162P01 Contact Us For Availability
1
WCI 3131957 WCI 3131957 Contact Us For Availability
1
WCI 3131283 WCI 3131283 Contact Us For Availability
1
BRKT GLASS (2) WCI 3131366 Contact Us For Availability
1
WCI 3051133 WCI 3051133 Contact Us For Availability
1
SPACER-BDYSDE (8) WCI 665T188P02 Contact Us For Availability
1
WCI 3091544 WCI 3091544 Contact Us For Availability
1
WCI 423T016P02 WCI 423T016P02 Contact Us For Availability
1
WCI 322T016P04 WCI 322T016P04 Contact Us For Availability
2
KNOB TOP VALV (4) WCI 3131695 No Longer Available
2
WCI 3131284 WCI 3131284 Contact Us For Availability
2
GLASS HEAT BARRIER CTNG WCI 3051148 Contact Us For Availability
2
WCI 3091347 WCI 3091347 Contact Us For Availability
2
NUT (NON-ILLUSTRATED) WCI 479T069P31 Contact Us For Availability
2
SEAL WCI 643T013P03 Contact Us For Availability
2
WCI 3091382 WCI 3091382 Contact Us For Availability
3
BULB FLUOR WRK LIT WCI 3131275 Contact Us For Availability
3
ROD MAIN SUPT (2) WCI 618T038P05 Contact Us For Availability
3
WCI 079T028P01 WCI 079T028P01 Contact Us For Availability
3
GLASS, PACKAGE WCI 3131321 Contact Us For Availability
3
PNL-DRAWER (ALMD) WCI 3131134 Contact Us For Availability
3
PNL DRAWER (BLACK) WCI 3131324 Contact Us For Availability
3
WCI 3131363 WCI 3131363 Contact Us For Availability
3
KNOB OVEN SET WCI 3091408 Contact Us For Availability
3
SWITCH WCI 115T695P08 Contact Us For Availability
3
COVER, SEAL WCI 174T188P02 Contact Us For Availability
3
EXTRUSION BTM. WCI 233T027P02 Contact Us For Availability
4
MAIN TOP ALMD WCI 3934009 Contact Us For Availability
4
WCI 3131290 WCI 3131290 Contact Us For Availability
4
WCI 3131132 WCI 3131132 Contact Us For Availability
4
WCI 3131125 WCI 3131125 Contact Us For Availability
4
KNOB OVEN TEMP WCI 3091400 Contact Us For Availability
4
FUSE WCI 262T010P01 Contact Us For Availability
4
WCI 123T082P01 WCI 123T082P01 Contact Us For Availability
4
SPACER (4) WCI 665T165P01 Contact Us For Availability
5
BRKT MAIN TOP LH WCI 3131286 Contact Us For Availability
5
WCI 079T032S02 WCI 079T032S02 Contact Us For Availability
5
WCI 3051165 WCI 3051165 Contact Us For Availability
5
SHIELD PANL. WCI 3131975 Contact Us For Availability
5
KNOB, CLOCK (3) WCI 358T201P01 Contact Us For Availability
5
SOCKET WCI 664T003P01 Contact Us For Availability
5
TRIM BTM WCI 740T408P03 Contact Us For Availability
5
FRAME WCI 260T002P01-18 Contact Us For Availability
6
BRKT MAIN TOP RH WCI 3131287 Contact Us For Availability
6
RETAINER IGNITER WCI 612T119F01 Contact Us For Availability
6
LINER OVEN ~ WCI 3131393 Contact Us For Availability
6
FSTNR, SPACER (2) WCI 3131387 Contact Us For Availability
6
WIRE-GLASS RETAINR WCI 3131104 Contact Us For Availability
6
TRIM CONTROL PNL WCI 740T406P04 Contact Us For Availability
6
WCI 636T090P45 WCI 636T090P45 Contact Us For Availability
6
MEDALLION DR STRIKE WCI 445T004P01 Contact Us For Availability
6
EXTRUSION HINGE WCI 233T026S13 Contact Us For Availability
7
WCI 046T003P03 WCI 046T003P03 Contact Us For Availability
7
WCI 3051354 WCI 3051354 Contact Us For Availability
7
BURNER TUBE FRNT RF/LF WCI 3131970 Contact Us For Availability
7
WCI 3131298 WCI 3131298 Contact Us For Availability
7
WCI 3091409 WCI 3091409 Contact Us For Availability
7
WCI 636T074P10 WCI 636T074P10 Contact Us For Availability
7
GROMMET DOOR WCI 287T003P08 Contact Us For Availability
7
SEAL WCI 643T014P01 Contact Us For Availability
7A
SCREW CHANL. MTG. (NON-ILLUSTRATED) WCI 3131143 Contact Us For Availability
8
GUSSET MWV SUPT LH WCI 3131653 Contact Us For Availability
8
GUSSET MWV SUPT RH WCI 3131654 Contact Us For Availability
8
WCI 3051355 WCI 3051355 Contact Us For Availability
8
WCI 079T033H02 WCI 079T033H02 Contact Us For Availability
8
WCI 3051230 WCI 3051230 Contact Us For Availability
8
WCI 3091385 WCI 3091385 Contact Us For Availability
8
FAN BLADE WCI 239T034P01 Contact Us For Availability
8
TRIM FRONT WCI 740T479P01 Contact Us For Availability
8
WCI 511T038F06-99 WCI 511T038F06-99 Contact Us For Availability
9
COVER HNG. CUTOUT (2) WCI 3131570 Contact Us For Availability
9
GLASS SPLASHR U/O WCI 277T164P25 Contact Us For Availability
9
GRATE TOP WCI 3131971 Contact Us For Availability
9
WCI 079T033H03 WCI 079T033H03 Contact Us For Availability
9
SUPPORT, GLASS WCI 3131323 Contact Us For Availability
9
FASTENER, CLOCK WCI 241T017P228 Contact Us For Availability
9
FAN MOTOR WCI 115T463P03 Contact Us For Availability
9
TRAY GLASS WCI 736T005P01 Contact Us For Availability
9
WCI 707R001P01 WCI 707R001P01 Contact Us For Availability
10
PNL SPLASHR UPPER WCI 513T073F21 Contact Us For Availability
10
WCI 3131299 WCI 3131299 Contact Us For Availability
10
WCI 3131128 WCI 3131128 Contact Us For Availability
10
WCI 3131951 WCI 3131951 Contact Us For Availability
10
WCI 3091375 WCI 3091375 Contact Us For Availability
10
SCREW (8) WCI 636T090P54 Contact Us For Availability
10
CLIP TRAY (4) WCI 241T017P219 Contact Us For Availability
10
WCI 276T081P02 WCI 276T081P02 Contact Us For Availability
11
WCI 3051115 WCI 3051115 Contact Us For Availability
11
CAP MANFLD TRIM LH WCI 3131896 Contact Us For Availability
11
WCI 247T074P01 WCI 247T074P01 Contact Us For Availability
11
CLIP, RETAINER (2) WCI 3131720 Contact Us For Availability
11
WCI 3131313 WCI 3131313 Contact Us For Availability
11
SWITCH TOUCH MEMBRANE WCI 3091395 Contact Us For Availability
11
ROD MOTOR (2) WCI 618T048P01 Contact Us For Availability
11
GLIDE, TRAY (2) WCI 280T053P01 Contact Us For Availability
11
WCI 612T080F02-08 WCI 612T080F02-08 Contact Us For Availability
11A
WCI 655T437F01 WCI 655T437F01 Contact Us For Availability
12
FSTNR CABLE CLAMP WCI 241T003P01 Contact Us For Availability
12
CAP MANFLD TRIM RH WCI 3131890 Contact Us For Availability
12
IGNITER TOP BURNER (4) WCI 316T034P02 Contact Us For Availability
12
FSTNR PUSH IN WCI 3131974 Contact Us For Availability
12
CLIP-THERMO BULB (2) WCI 3131295 Contact Us For Availability
12
PANEL SWITCH WCI 511T048P01 Contact Us For Availability
12
CHANNEL WCI 136T309F01 Contact Us For Availability
12
WCI 174T242P01 WCI 174T242P01 Contact Us For Availability
12
LINER WCI 380T022P01 Contact Us For Availability
13
FSTNR PURSE LOCK WCI 241T017P154 Contact Us For Availability
13
WCI 3131441 WCI 3131441 Contact Us For Availability
13
WCI 3131440 WCI 3131440 Contact Us For Availability
13
SCREW, HANDLE (2) WCI 3131102 Contact Us For Availability
13
WCI 3131672 WCI 3131672 Contact Us For Availability
13
WCI 139T026P02 WCI 139T026P02 Contact Us For Availability
13
DIODE - HV WCI 3091303 Contact Us For Availability
13
WCI 239T043S02 WCI 239T043S02 Contact Us For Availability
13
SEAL WCI 643T014P02 Contact Us For Availability
14
WCI 045T071P01 WCI 045T071P01 Contact Us For Availability
14
WCI 3131891 WCI 3131891 Contact Us For Availability
14
VALVE 3 POS. WCI 3131126 Contact Us For Availability
14
EXTRUSN-CHANL (2) WCI 3131142 Contact Us For Availability
14
FSTNR PUSH ON (3) WCI 241T001P01 Contact Us For Availability
14
LITE INDICATOR (3) WCI 318T023P11 Contact Us For Availability
14
TRANSFORMER HV WCI 737T061P01 Contact Us For Availability
14
WCI 479T084P01 WCI 479T084P01 Contact Us For Availability
14
EXTRUSION WCI 233T016P04 Contact Us For Availability
14A
FASTNR 8A U-TYPE (3) (NON-ILLUSTRATED) WCI 241T017P185 Contact Us For Availability
14A
STUD, SPACER (2) (NON-ILLUSTRATED) WCI 3051307 Contact Us For Availability
15
HARNESS O/U LITE SWITCH WCI 3131588 Contact Us For Availability
15
ELBOW 1/2 NP + 9/16 - 24 WCI 215T013P01 Contact Us For Availability
15
INSUL OVEN DOOR W/ FOIL WCI 3131322 Contact Us For Availability
15
COVER LIGHT ROD (1) WCI 174T329P01 Contact Us For Availability
15
WCI 636T090P51 WCI 636T090P51 Contact Us For Availability
15
SCREW, TRANS (4) WCI 636T101P14 Contact Us For Availability
15
RECEPTACLE WCI 597T035P01 Contact Us For Availability
15
SCREW WCI 636T111P03 Contact Us For Availability
15A
NUT COMPRESSN (4) (NON-ILLUSTRATED) WCI 3131148 Contact Us For Availability
15A
WCI 3131585 WCI 3131585 Contact Us For Availability
16
WCI 740T309F01 WCI 740T309F01 Contact Us For Availability
16
WCI 740T309F02 WCI 740T309F02 Contact Us For Availability
16
WCI 3934033 WCI 3934033 Contact Us For Availability
16
WCI 3131567 WCI 3131567 Contact Us For Availability
16
SWITCH 5 POS. WCI 697T073P01 Contact Us For Availability
16
RETAINER WCI 612T104F01 Contact Us For Availability
16
WCI 479T069P30 WCI 479T069P30 Contact Us For Availability
16
WCI 008T480P01 WCI 008T480P01 Contact Us For Availability
17
TRIM O/U SPL GL FILLER WCI 3051340 Contact Us For Availability
17
WCI 3051495 WCI 3051495 Contact Us For Availability
17
THERMOSTAT OVEN WCI 3051320 Contact Us For Availability
17
SHIELD CAPACITOR WCI 655T378P01 Contact Us For Availability
17
WCI 008T378F11 WCI 008T378F11 Contact Us For Availability
17
INSERT WCI 322T015P04 Contact Us For Availability
18
WASHER-SPRING (2) WCI 3131627 Contact Us For Availability
18
WCI 3131278 WCI 3131278 Contact Us For Availability
18
WCI 157T157P02 WCI 157T157P02 Contact Us For Availability
18
WCI 136T321F02-18 WCI 136T321F02-18 Contact Us For Availability
18
EXTRUSION WCI 233T012P06 Contact Us For Availability
19
ANGLE S/C STAT MTG WCI 3051348 Contact Us For Availability
19
CHANNL LITE SHIELD WCI 3131294 Contact Us For Availability
19
TRANSFORMER LV WCI 737T055P02 Contact Us For Availability
19
COVER DUCT EXT. WCI 174T267P01 Contact Us For Availability
19
ROLL PIN WCI 550T037P02 Contact Us For Availability
20
THERMO OVEN S/C WCI 722T071P01 Contact Us For Availability
20
WCI 455T008P02 WCI 455T008P02 Contact Us For Availability
20
WCI 695T128P04 WCI 695T128P04 Contact Us For Availability
20
SWITCH ON-OFF WCI 697T047P04 Contact Us For Availability
20
SWITCH KIT (CONSISTS OF: 1 BRACKET, 3 FASTENE WCI 355T448S01 Contact Us For Availability
20
COVER DUCT WCI 174T253S02 Contact Us For Availability
20
WCI 675T072P02 WCI 675T072P02 Contact Us For Availability
21
HEX NUT WCI 3131358 Contact Us For Availability
21
BRKT LIGHT SWITCH WCI 3131289 Contact Us For Availability
21
WCI 3091468 WCI 3091468 Contact Us For Availability
21
BAFFLE TRANSFORMER (NON-ILLUSTRATED) WCI 3091336 Contact Us For Availability
21
BRACKT WCI 072T731F01 Contact Us For Availability
21
HANDLE KIT WCI 355T517S03 Contact Us For Availability
22
WCI 3131309 WCI 3131309 Contact Us For Availability
22
WCI 3131590 WCI 3131590 Contact Us For Availability
22
SEAL WCI 643T013P01 Contact Us For Availability
22
WCI 636T095P16 WCI 636T095P16 Contact Us For Availability
22
DUCT BTM WCI 211T044F04 Contact Us For Availability
22
WCI 306T008P01 WCI 306T008P01 Contact Us For Availability
23
SEAL ``O``RING WCI 647T087P01 Contact Us For Availability
23
WCI 3131316 WCI 3131316 Contact Us For Availability
23
WCI 174T264P03 WCI 174T264P03 Contact Us For Availability
23
WCI 612T090F01 WCI 612T090F01 Contact Us For Availability
23
SOCKET WCI 3091197 Contact Us For Availability
23
WCI 296T095S09 WCI 296T095S09 Contact Us For Availability
24
FUSE WCI 3131297 Contact Us For Availability
24
CLIP, WIRE WCI 145T130P01 Contact Us For Availability
24
BUSHING GLASS (2) (NON-ILLUSTRATED) WCI 102T019P01 Contact Us For Availability
24
SCREW DOOR (22) (NON-ILLUSTRATED) WCI 636T046P02 Contact Us For Availability
24
TRIAC, HEAT SINK WCI 355T515S04 Contact Us For Availability
24
BULB WCI 374T024P01 Contact Us For Availability
25
WCI 3131261 WCI 3131261 Contact Us For Availability
25
WCI 3131931 WCI 3131931 Contact Us For Availability
25
SPACER CNTRL PNL (2) (NON-ILLUSTRATED) WCI 665T175P01 Contact Us For Availability
25
WCI 636T095P47 WCI 636T095P47 Contact Us For Availability
25
WCI 115T463P01 WCI 115T463P01 Contact Us For Availability
25
ROLLER LATCH (NON-ILLUSTRATED) WCI 622T023P02 Contact Us For Availability
26
WCI 3131359 WCI 3131359 Contact Us For Availability
26
SHIELD SWITCH (NON-ILLUSTRATED) WCI 657T010F01 Contact Us For Availability
26
WCI 554T338F02 WCI 554T338F02 Contact Us For Availability
26
WASHER WCI 789T061P01 Contact Us For Availability
26A
SHIELD LATCH (NON-ILLUSTRATED) WCI 657T018P01 Contact Us For Availability
26B
SET SCREW (NON-ILLUSTRATED) WCI 636T144P01 Contact Us For Availability
27
WCI 750T085H09 WCI 750T085H09 Contact Us For Availability
27
WCI 358T158S02 WCI 358T158S02 Contact Us For Availability
27
RETAINER TRIM WCI 3091366 Contact Us For Availability
28
WCI 3131109 WCI 3131109 Contact Us For Availability
28
WCI 368T027P04 WCI 368T027P04 Contact Us For Availability
28
WCI 742T005P01 WCI 742T005P01 Contact Us For Availability
28
WCI 740T454P02 WCI 740T454P02 Contact Us For Availability
29
WCI 3131364 WCI 3131364 Contact Us For Availability
29
WCI 3131357 WCI 3131357 Contact Us For Availability
29
WCI 636T069P54 WCI 636T069P54 Contact Us For Availability
29
CAP END LH WCI 123T081P05 Contact Us For Availability
29
CAP END RH WCI 123T081P06 Contact Us For Availability
30
WCI 3131101 WCI 3131101 Contact Us For Availability
30
WCI 3091202 WCI 3091202 Contact Us For Availability
30
WCI 3091212 WCI 3091212 Contact Us For Availability
30
WCI 3091344 WCI 3091344 Contact Us For Availability
30B
WASHER, BLACK (NON-ILLUSTRATED) WCI 3131737 Contact Us For Availability
31
CAP FUSE RECEPT WCI 3131292 Contact Us For Availability
31
WCI 095T030F02-86 WCI 095T030F02-86 Contact Us For Availability
31
HARNESS DIODE (NON-ILLUSTRATED) WCI 299T405S203 Contact Us For Availability
31
PANEL TOP WCI 3091373 Contact Us For Availability
32
SHIELD, MAIN FRONT WCI 3131311 Contact Us For Availability
32
WCI 174T204F01 WCI 174T204F01 Contact Us For Availability
33
WCI 3131314 WCI 3131314 Contact Us For Availability
33
WCI 3091228 WCI 3091228 Contact Us For Availability
33
COVER LIGHT WCI 3091338 Contact Us For Availability
34
WCI 3131315 WCI 3131315 Contact Us For Availability
34
WRAPPER WCI 3091346 Contact Us For Availability
35
SPUD NO 50 WCI 499T015P08 Contact Us For Availability
35
PNL BDYSIDE RH (BLACK) WCI 3131217 Contact Us For Availability
35
PNL BDYSIDE LH BLACK WCI 3131221 Contact Us For Availability
35
PNL BDYSIDE LH ALMD WCI 3131453 Contact Us For Availability
35
PNL BDYSIDE RH ALMD WCI 3131454 Contact Us For Availability
35
PANEL LH ALMD WCI 3051261 Contact Us For Availability
35
PANEL RH ALMD WCI 3051264 Contact Us For Availability
35
WCI 3131907 WCI 3131907 Contact Us For Availability
35
WCI 3131908 WCI 3131908 Contact Us For Availability
36
NUT SPECIAL WCI 479T069P40 Contact Us For Availability
36
SCREW - LEVELING (4) WCI 636M004P01 Contact Us For Availability
36
WCI 154T021P01 WCI 154T021P01 Contact Us For Availability
37
WCI 3131584 WCI 3131584 Contact Us For Availability
38
WCI 3131356 WCI 3131356 Contact Us For Availability
38
PLUG KIT WCI 355T442S02 Contact Us For Availability
39
PAN, BROILER WCI 539T010F01-86 Contact Us For Availability
39
WCI 115T563P03 WCI 115T563P03 Contact Us For Availability
40
WCI 058T036F03-86 WCI 058T036F03-86 Contact Us For Availability
40
WCI 241T017P153 WCI 241T017P153 Contact Us For Availability
41
BUSING WCI 102T028P01 Contact Us For Availability
42
LABEL COOK GUIDE WCI 560T786P01 Contact Us For Availability
43
BUTTN REMOTE LT. SW. WCI 102T044P02 Contact Us For Availability
43A
FSTNR-POWER CORD (NON-ILLUSTRATED) WCI 241T017P255 Contact Us For Availability
43B
INSUL WOOL BACK (NON-ILLUSTRATED) WCI 3131303 Contact Us For Availability
43C
INSUL WOOL TOP (NON-ILLUSTRATED) WCI 3131304 Contact Us For Availability
43D
INSUL.-TOUCH (NON-ILLUSTRATED) WCI 3131305 Contact Us For Availability
43E
WCI 655T434F01 WCI 655T434F01 Contact Us For Availability
45
WCI 3051723 WCI 3051723 Contact Us For Availability
45
WCI 3051724 WCI 3051724 Contact Us For Availability
× ![]()
