LG 75196 Parts List | Reliable Parts

103A

3650JA2113P LG Rear Handle Backorder LGE 3650JA2113P $7.08

View on Model

105A

5251JA3003B LG Drain Tube Assembly Backorder LGE 5251JA3003B $20.63

View on Model

113C

SPRING,W LGE 4970JJ3004A Contact Us For Availability

View on Model

143A

STOPPER FOR SERVICE FLASH LGE 4620JA3026A Contact Us For Availability

View on Model

145D

TRAY ASSEMBLY,FRESH ROOM LGE 3391JJ1030B Contact Us For Availability

View on Model

145E

COVER,TRAY LGE 3550JL1011B Contact Us For Availability

View on Model

146B

LINK LGE 4520JJ1004A Contact Us For Availability

View on Model

151A

TRAY ASSEMBLY,VEGETABLE LGE 3391JJ2014A Contact Us For Availability

View on Model

154A

COVER,T/V LGE 3550JL1017A Contact Us For Availability

View on Model

155J

KNOB,SHUTTER LGE 4940JJ2009B Contact Us For Availability

View on Model

160C

COVER ASSEMBLY,TRAY LGE 3551JJ2021A Contact Us For Availability

View on Model

161A

HOLDER,RAIL LGE 4930JJ1018A Contact Us For Availability

View on Model

161C

5218JJ2008A LG Slide Rail Backorder LGE 5218JJ2008A $48.80

View on Model

161C

RAIL,SLIDE LGE 5218JA2004B Contact Us For Availability

View on Model

161D

RAIL,SLIDE LGE 5218JA2004A Contact Us For Availability

View on Model

161D

RAIL,SLIDE LGE 5218JJ2008C Contact Us For Availability

View on Model

161E

GUIDE ASSEMBLY,RAIL RIGHT LGE 4975JJ2019D Contact Us For Availability

View on Model

161E

GUIDE ASSEMBLY,RAIL LGE 4975JJ2019B Contact Us For Availability

View on Model

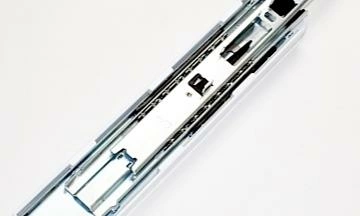

161F

4975JJ2019C LG Rail Guide Assembly Backorder LGE 4975JJ2019C $36.58

View on Model

161F

GUIDE ASSEMBLY,RAIL LGE 4975JJ2019A Contact Us For Availability

View on Model

162A

GUIDE ASSEMBLY,RAIL LGE 4975JJ2016A Contact Us For Availability

View on Model

162B

GUIDE ASSEMBLY,RAIL LGE 4975JJ2016B Contact Us For Availability

View on Model

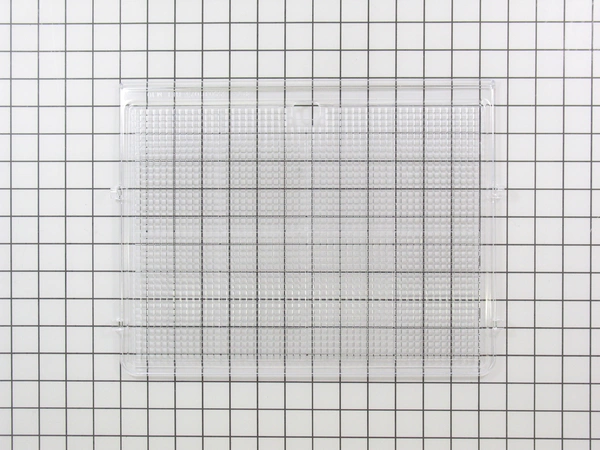

167B

3550JJ1073A LG Refrigerator Magic Room Cover Backorder LGE 3550JJ1073A $34.08

View on Model

177B

GUIDE,RAIL LGE 4974JA1127A Contact Us For Availability

View on Model

200A

DOOR ASSEMBLY,F LGE 3581JJ8053D Contact Us For Availability

View on Model

201A

5433JJ0050P LG Freezer Door Foam Assembly Backorder LGE 5433JJ0050P $419.86

View on Model

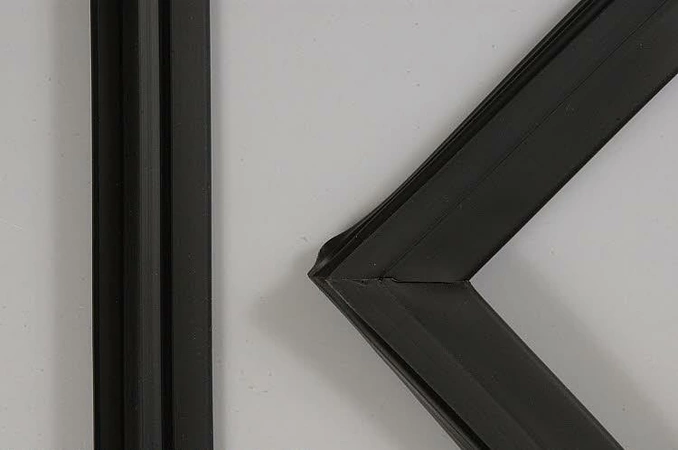

203A

MDS38201402 LG Door Gasket Backorder LGE MDS38201402 $18.26

View on Model

203A

MDS38201426 LG Refrigerator Door Gasket In Stock LGE MDS38201426 $68.53

View on Model

203A

GASKET ASSEMBLY,DOOR LGE 4987JA2008J Contact Us For Availability

View on Model

205B

5006JJ2013A LG Refrigerator Right Cap Cover Backorder LGE 5006JJ2013A $7.08

View on Model

205C

5006JJ2013B LG Refrigerator Left Cap Cover Backorder LGE 5006JJ2013B $7.08

View on Model

212D

HANDLE ASSEMBLY,F LGE 3651JJ2012G Contact Us For Availability

View on Model

212G

MARK LGE 3846JD2003A Contact Us For Availability

View on Model

230A

DOOR ASSEMBLY,R/R LGE 3581JJ8050D Contact Us For Availability

View on Model

230B

DOOR ASSEMBLY,R/L LGE 3581JJ8051D Contact Us For Availability

View on Model

231A

Door Foam Assembly,Refrigerator LGE 5433JJ0048H Contact Us For Availability

View on Model

231B

Door Foam Assembly,Refrigerator LGE 5433JJ0053G Contact Us For Availability

View on Model

233A

Gasket Assembly,Door LGE 4987JJ2002Q Contact Us For Availability

View on Model

233A

GASKET ASSEMBLY,DOOR LGE 4987JJ2002C Contact Us For Availability

View on Model

233B

GASKET ASSEMBLY,DOOR LGE 4987JJ2002D Contact Us For Availability

View on Model

233B

Gasket Assembly,Door LGE 4987JJ2002R Contact Us For Availability

View on Model

233C

COVER ASSEMBLY,FRONT LGE 3551JJ2030B Contact Us For Availability

View on Model

233D

COVER ASSEMBLY,FRONT LGE 3551JJ2030A Contact Us For Availability

View on Model

234A

CAM,SHAFT (right) LGE 4430JJ2004A Contact Us For Availability

View on Model

234B

CAM,SHAFT (left) LGE 4430JJ2004B Contact Us For Availability

View on Model

234C

HOLDER ASSEMBLY,GASKET LGE 4931JJ2002C Contact Us For Availability

View on Model

234D

HOLDER ASSEMBLY,GASKET LGE 4931JJ2002D Contact Us For Availability

View on Model

237A

GUIDE,BOTTLE LGE 4974JA2055A Contact Us For Availability

View on Model

241B

BASKET,DOOR LGE 5004JJ1057A Contact Us For Availability

View on Model

241C

BASKET ASSEMBLY,DOOR LGE 5005JJ2014A Contact Us For Availability

View on Model

241C

BASKET,WINDOW LGE 5004JL1006B Contact Us For Availability

View on Model

243A

STOPPER,DOOR LGE 4620JJ3006C Contact Us For Availability

View on Model

243B

4620JJ2009A LG Refrigerator Door Stopper In Stock LGE 4620JJ2009A $7.78

View on Model

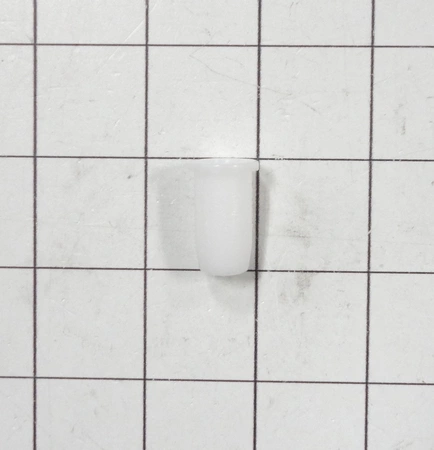

243C

J326-00012A LG Refrigerator Hinge Bushing Backorder LGE J326-00012A $7.08

View on Model

244A

HANDLE ASSEMBLY,R LGE 3651JJ2011K Contact Us For Availability

View on Model

244B

HANDLE ASSEMBLY,R LGE 3651JJ2011L Contact Us For Availability

View on Model

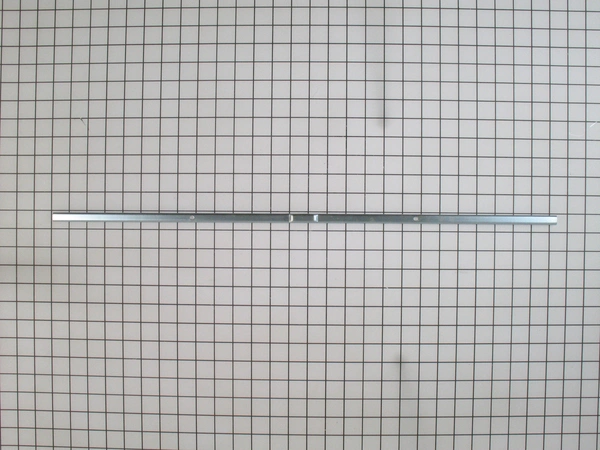

248H

4980JJ2014A LG Refrigerator Support Holder Backorder LGE 4980JJ2014A $23.13

View on Model

249A

CONNECTOR ASSEMBLY (MECH) LGE 5098JJ2002C Contact Us For Availability

View on Model

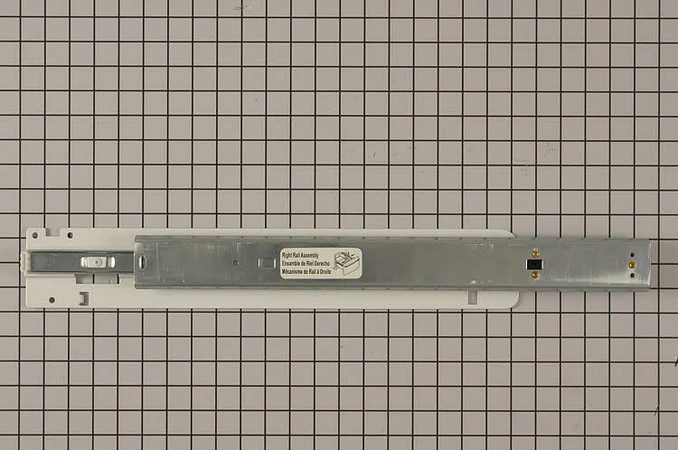

249B

5098JJ2002D LG Connector Assembly Backorder LGE 5098JJ2002D $221.99

View on Model

249B

CONNECTOR ASSEMBLY (MECH) LGE 5098JJ2002J Contact Us For Availability

View on Model

249B

CONNECTOR ASSEMBLY (MECH) LGE 5098JJ2002K Contact Us For Availability

View on Model

249C

HOLDER,RAIL LGE 4930JJ1017B Contact Us For Availability

View on Model

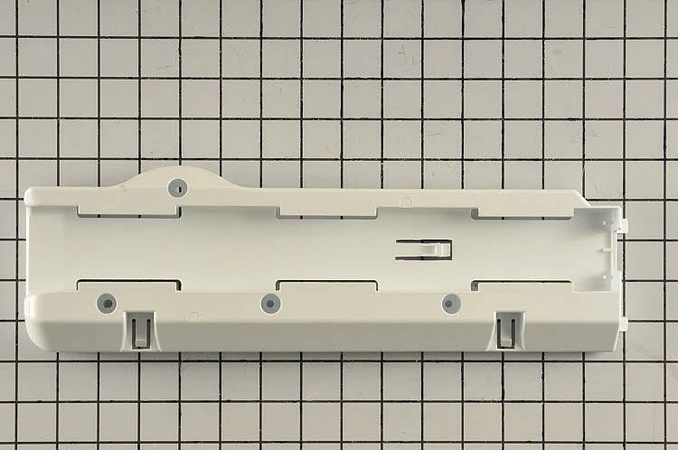

249D

4930JJ1017A LG Refrigerator Rail Holder Backorder LGE 4930JJ1017A $26.61

View on Model

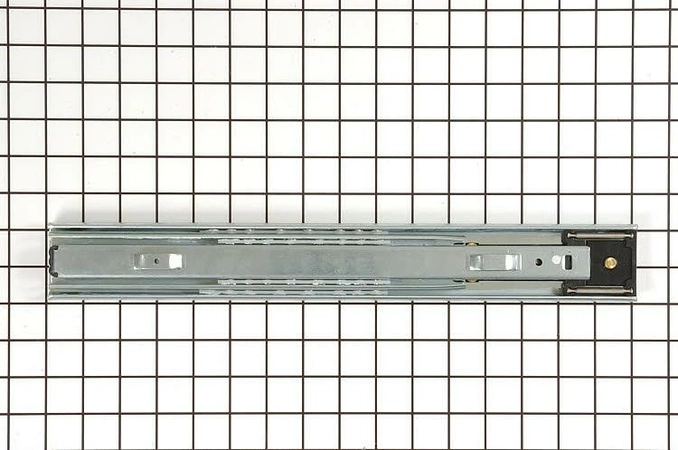

249E

5218JA1009A LG Right Slide Rail Backorder LGE 5218JA1009A $65.02

View on Model

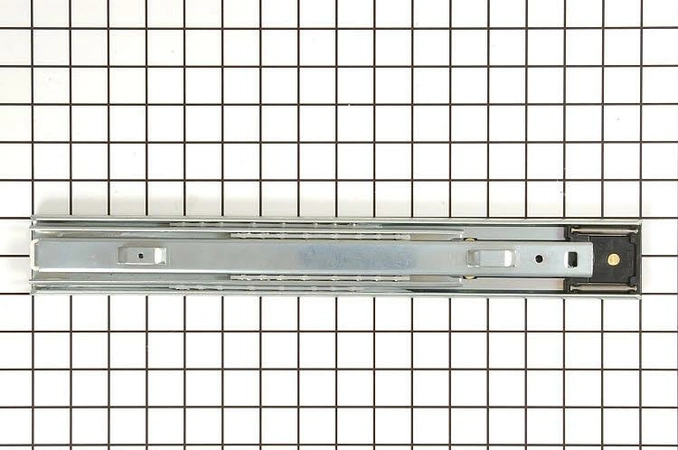

249F

5218JA1009B LG Slide Rail Backorder LGE 5218JA1009B $127.31

View on Model

249G

CONNECTOR ASSEMBLY (MECH) LGE 5098JA2001B Contact Us For Availability

View on Model

249H

CONNECTOR ASSEMBLY (MECH) LGE 5098JA2001A Contact Us For Availability

View on Model

250a

BAR LGE 4270JA3009H Contact Us For Availability

View on Model

262C

4350JA3005B LG Refrigerator Snap Retaining Ri In Stock LGE 4350JA3005B $7.78

View on Model

271A

AEH60614102 LG Upper Hinge Assembly Backorder LGE AEH60614102 $34.08

View on Model

271B

4510JA3004A LG Refrigerator Hinge Lever Backorder LGE 4510JA3004A $7.08

View on Model

271C

HINGE ASSEMBLY,U LGE 4775JJ2014A Contact Us For Availability

View on Model

276A

HOLDER,BUTTON LGE 4930JJ3016A Contact Us For Availability

View on Model

276B

BUTTON,LEVER LGE 5020JJ3001C Contact Us For Availability

View on Model

279A

Frame Assembly,Display LGE 3211JJ2001B Contact Us For Availability

View on Model

279B

COVER,DISPENSER LGE 3550JL1020B Contact Us For Availability

View on Model

279C

DECO,DRAIN LGE 3806JJ2053B Contact Us For Availability

View on Model

281C

BRACKET ASSEMBLY,DOOR LGE 4811JJ2015A Contact Us For Availability

View on Model

281D

3550JA2267B LG Hinge Cover Backorder LGE 3550JA2267B $7.08

View on Model

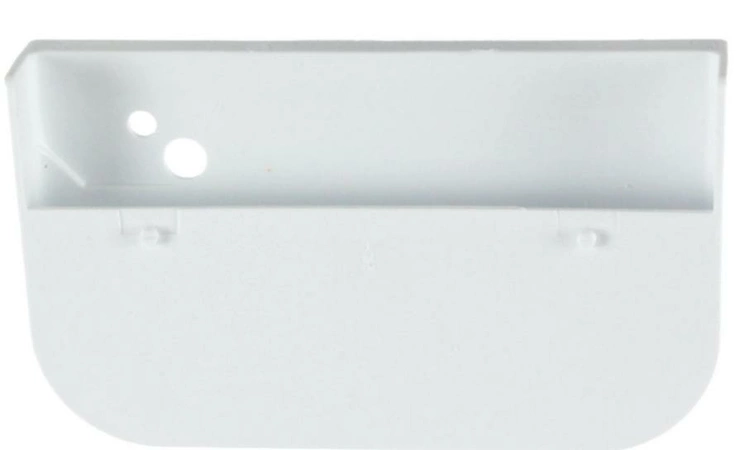

281E

3550JA2267A LG Hinge Cover Backorder LGE 3550JA2267A $7.08

View on Model

281F

3550JA2264A LG Hinge Cover Backorder LGE 3550JA2264A $7.08

View on Model

281G

5040JA3075A LG Damper Backorder LGE 5040JA3075A $11.24

View on Model

300A

TCA35931726 LG Compressor Set Assembly In Stock LGE TCA35931726 $279.05

View on Model

303B

6749C-0014E LG Refrigerator Compressor Start In Stock LGE 6749C-0014E $29.27

View on Model

303C

6750C-0005P LG Refrigerator Compressor Overlo In Stock LGE 6750C-0005P $26.61

View on Model

303C

O.L.P LGE 6750JA3001C Contact Us For Availability

View on Model

312B

COVER,FRONT LGE 3550JL1014A Contact Us For Availability

View on Model

313A

COVER ASSEMBLY,BACK-M/C LGE 3551JJ2018A Contact Us For Availability

View on Model

314A

4620JA3015A LG Refrigerator Compressor Stoppe Backorder LGE 4620JA3015A $7.08

View on Model

315C

4J04238A LG Common Pin Backorder LGE 4J04238A $7.08

View on Model

316A

5072JA3003F LG Refrigerator Damper Backorder LGE 5072JA3003F $7.08

View on Model

316B

5072JA3003B LG Damper Noise Backorder LGE 5072JA3003B $7.08

View on Model

317A

ADH73150210 LG Dryer Assembly In Stock LGE ADH73150210 $80.39

View on Model

318A

4930JA3034A LG Dryer Holder Backorder LGE 4930JA3034A $7.08

View on Model

328A

4J03020A LG Refrigerator Damper Pipe Backorder LGE 4J03020A $7.08

View on Model

329A

5901JA1021A LG Refrigerator Fan Blade In Stock LGE 5901JA1021A $12.37

View on Model

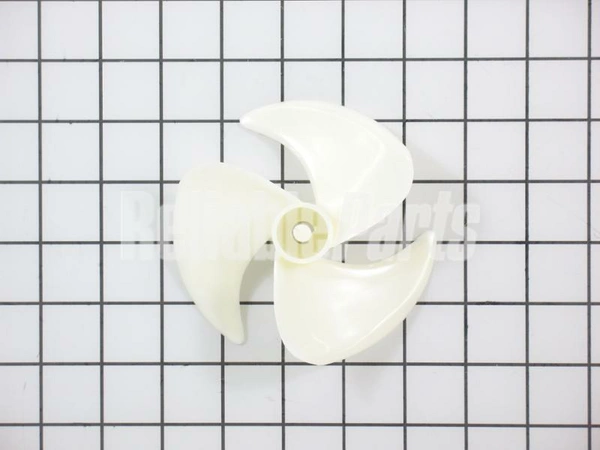

329C

5901JA1013A LG Refrigerator Fan Assembly Backorder LGE 5901JA1013A $11.24

View on Model

400A

6615JB2005H LG Refrigerator Defrost Sensor Co In Stock LGE 6615JB2005H $22.43

View on Model

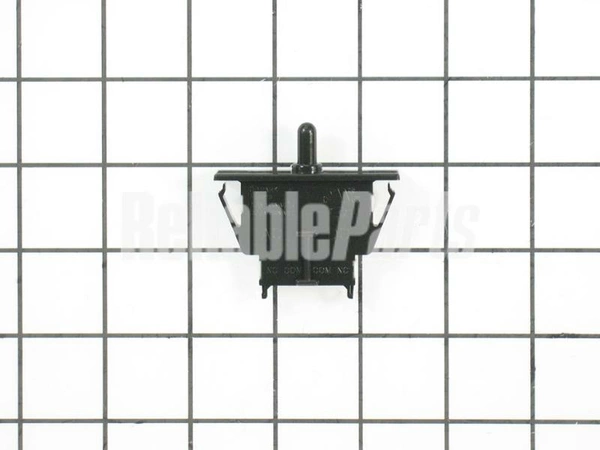

402A

6600JB3007E LG Refrigerator Push Button Switc In Stock LGE 6600JB3007E $20.63

View on Model

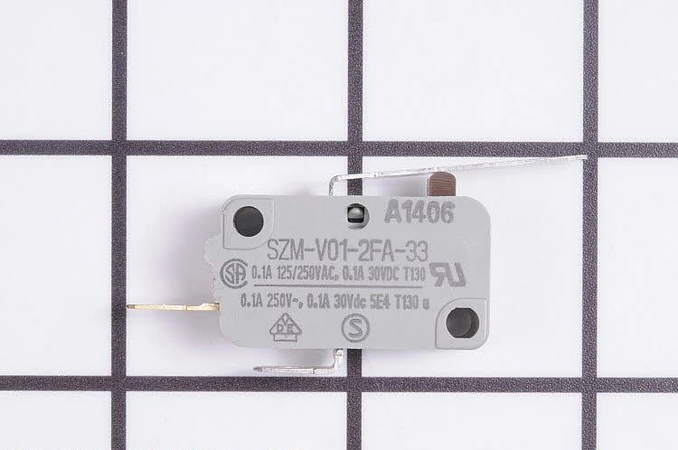

403A

6600JB3001B LG Switch Backorder LGE 6600JB3001B $6.47

View on Model

403A

6600JB3001C LG Refrigerator Micro Switch In Stock LGE 6600JB3001C $15.75

View on Model

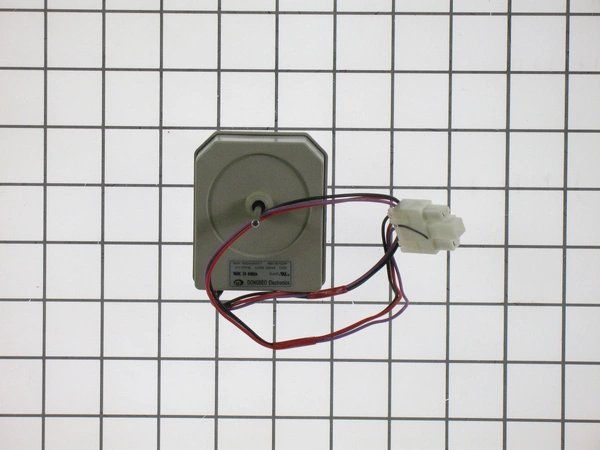

404A

EAU61644102 LG Refrigerator DC Motor Assembly In Stock LGE EAU61644102 $83.54

View on Model

405C

5040JA2009B LG Refrigerator Damper Support Mo Backorder LGE 5040JA2009B $7.08

View on Model

405F

5040JA2004B LG Refrigerator Motor Rubber Grom Backorder LGE 5040JA2004B $7.08

View on Model

406D

Holder Assembly,Gasket LGE 4931JA3006A Contact Us For Availability

View on Model

406E

LEVER,DISPENSER LGE 4510JA3014A Contact Us For Availability

View on Model

408A

5300JK1005D LG Refrigerator Freezer Defrost H Backorder LGE 5300JK1005D $102.25

View on Model

409B

LAMP,[INCANDESCENT] LGE 6912JB2004K Contact Us For Availability

View on Model

409D

3034JA1009A LG Refrigerator Lamp Cover Reflec Backorder LGE 3034JA1009A $20.63

View on Model

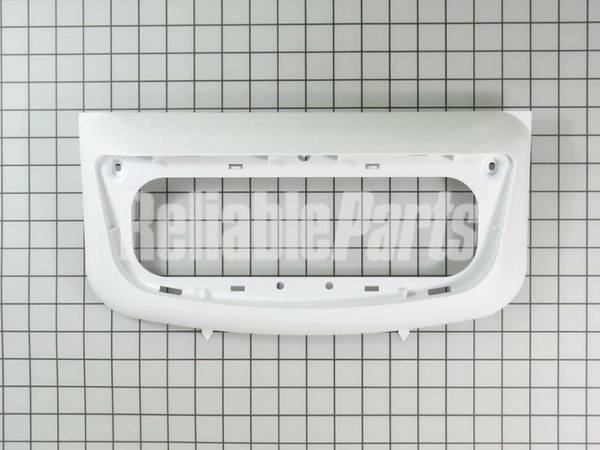

503D

3110JJ1014A LG Refrigerator Light Bulb Lens C In Stock LGE 3110JJ1014A $26.61

View on Model

602A

HOLDER,BRACKET LGE 4930JA3090A Contact Us For Availability

View on Model

603D

4930JA3091A LG Refrigerator Water Line Connec Backorder LGE 4930JA3091A $7.08

View on Model

607A

4931JA3005B LG Refrigerator Bracket Holder As Backorder LGE 4931JA3005B $7.08

View on Model

610A

3550JA2247A LG Refrigerator Sensor Cover Backorder LGE 3550JA2247A $7.08

View on Model

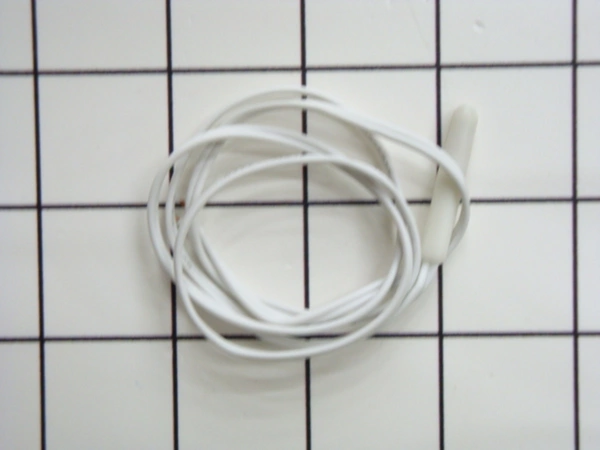

610B

6500JB2001L LG Refrigerator Temperature Senso Backorder LGE 6500JB2001L $26.61

View on Model

610C

6500JB2002X LG Refrigerator Temperature Senso Backorder LGE 6500JB2002X $22.69

View on Model

616A

TUBE,INJECT LGE 5210JJ3008C Contact Us For Availability

View on Model

616D

5210JA3005E LG Refrigerator PE Water Supply T In Stock LGE 5210JA3005E $15.02

View on Model

616F

MJU62070602 LG Refrigerator Plastic Water Tub In Stock LGE MJU62070602 $9.87

View on Model

616H

4932JA3002C LG Tube Connector In Stock LGE 4932JA3002C $16.85

View on Model

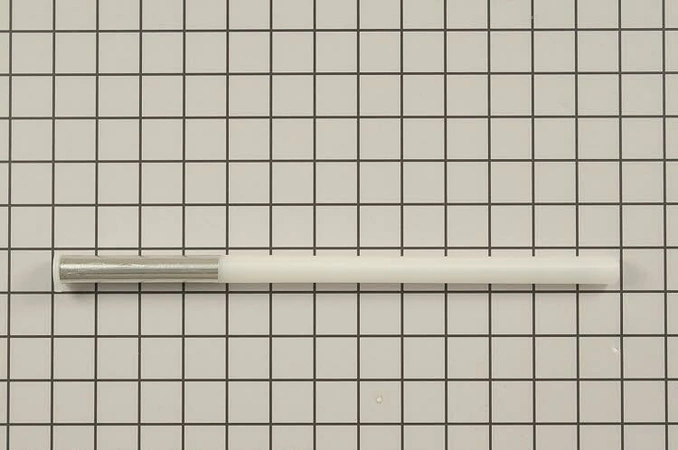

616K

5210JJ3007B LG Inject Tube Backorder LGE 5210JJ3007B $4.18

View on Model

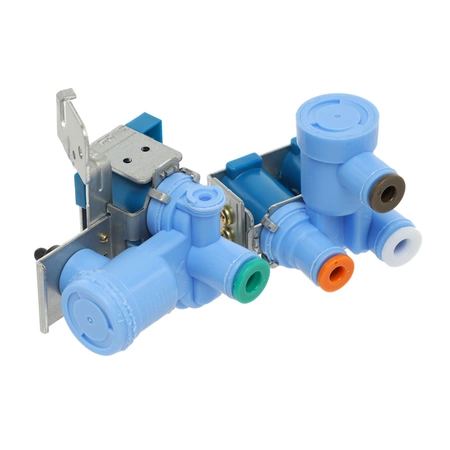

619C

5221JB2006K LG Refrigerator Water Inlet Valve In Stock LGE 5221JB2006K $139.50

View on Model

619D

6877JK2014B LG Assembly Harness Backorder LGE 6877JK2014B $23.13

View on Model

623A

4770JA3001A LG Refrigerator Band Backorder LGE 4770JA3001A $7.08

View on Model

623B

5006JJ2009A LG Cap Cover Backorder LGE 5006JJ2009A $7.08

View on Model

624A

5231JA2006F LG Refrigerator Water Filter Cart In Stock LGE 5231JA2006F $54.45

View on Model

624B

FILTER(MECH),HEAD LGE 5230JA2003A Contact Us For Availability

View on Model

627B

4930JA3054A LG Pipe Holder Backorder LGE 4930JA3054A $7.08

View on Model

B03

1STZJA3004F LG Customized Screw In Stock LGE 1STZJA3004F $7.54

View on Model

B05

4620JJ3007B LG Handle Stopper Backorder LGE 4620JJ3007B $7.08

View on Model

OM

MANUAL,OWNERS LGE 3828JL8027A Contact Us For Availability

View on Model

S03

4J01424B LG Customized Screw Backorder LGE 4J01424B $7.08

View on Model

S10

1SBZJA3004L LG Customized Screw Backorder LGE 1SBZJA3004L $7.08

View on Model

S25

SCREW,DRAWING LGE 1SZZJA3011D Contact Us For Availability

View on Model

S27

4J00415D LG Refrigerator Customized Screw Backorder LGE 4J00415D $7.08

View on Model

S34

SCREW,DRAWING LGE 1SZZJJ3011C Contact Us For Availability

View on Model

W1SZ

4000W4A003A LG Refrigerator Customized Screw Backorder LGE 4000W4A003A $6.53

View on Model

Model LG 75196 – Common Parts & Diagrams

Common parts from model LG 75196

Search result for :

Help

Customer Service

Company

Model LG 75196 – Common Parts & Diagrams

Common parts from model LG 75196

Search result for :

Be the First to Know

Help

Customer Service

Company
