Model Whirlpool 6896VVV ELECTRIC RANGE – Common Parts & Diagrams

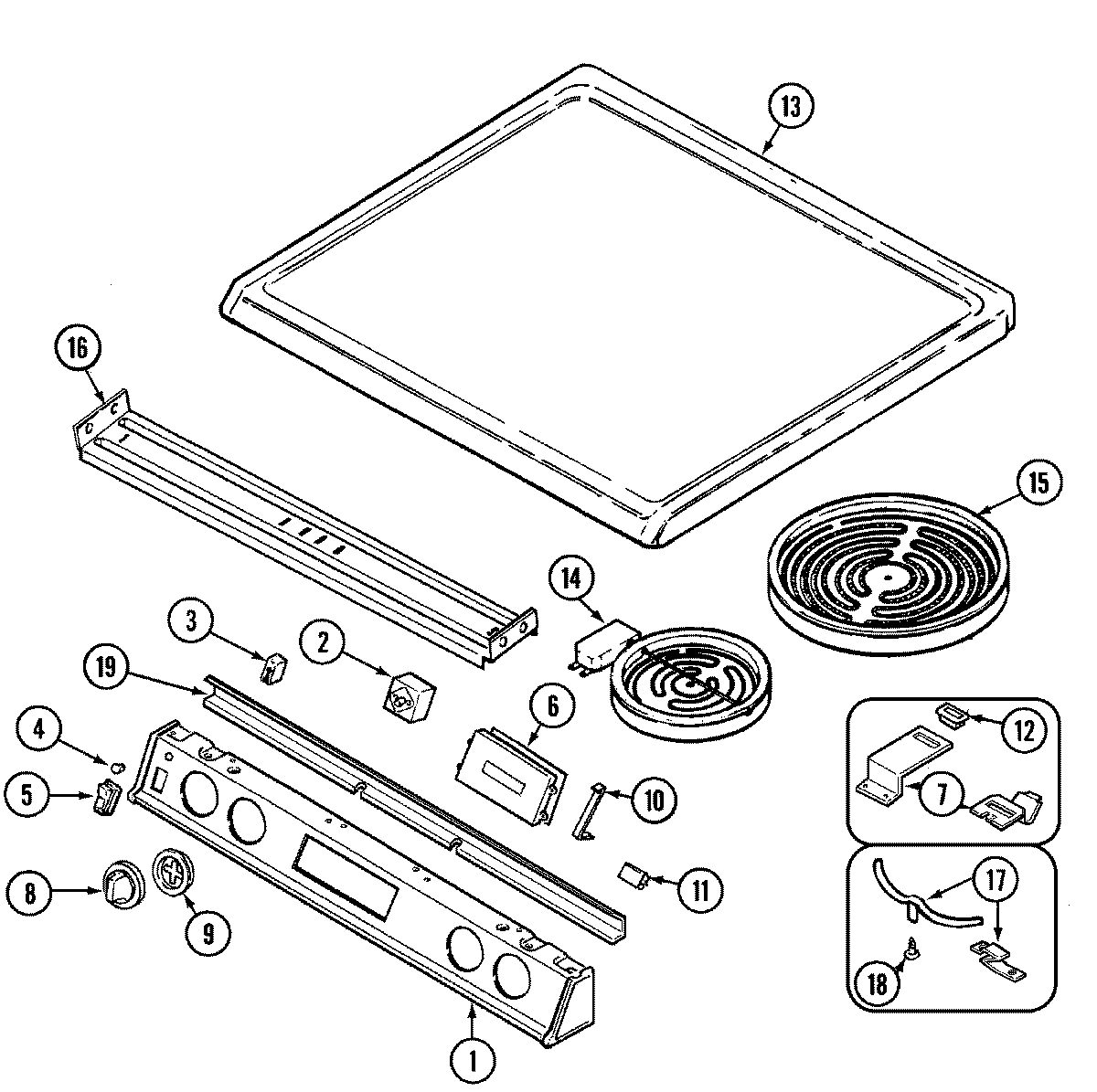

05 - TOP ASSEMBLY

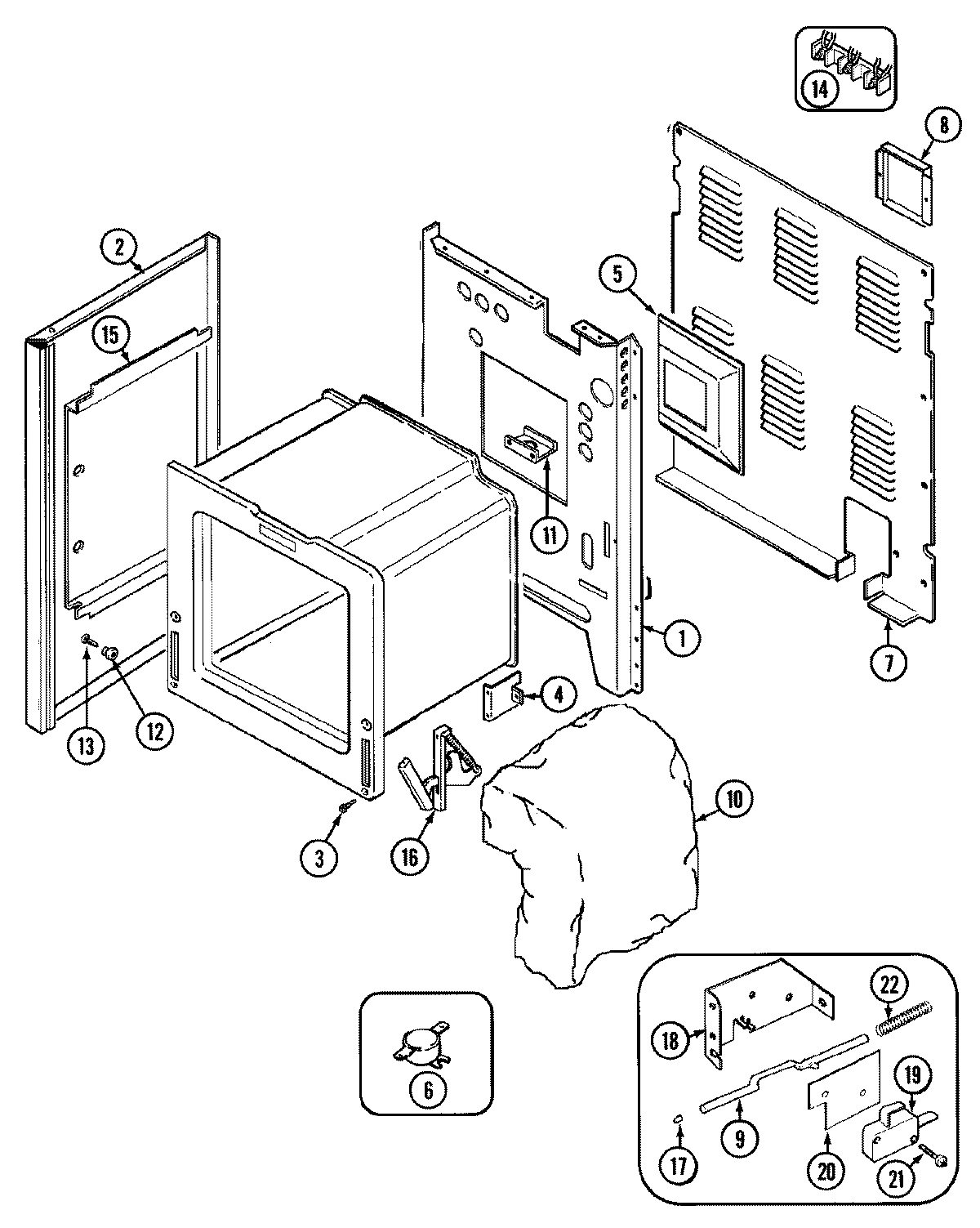

01 - BODY

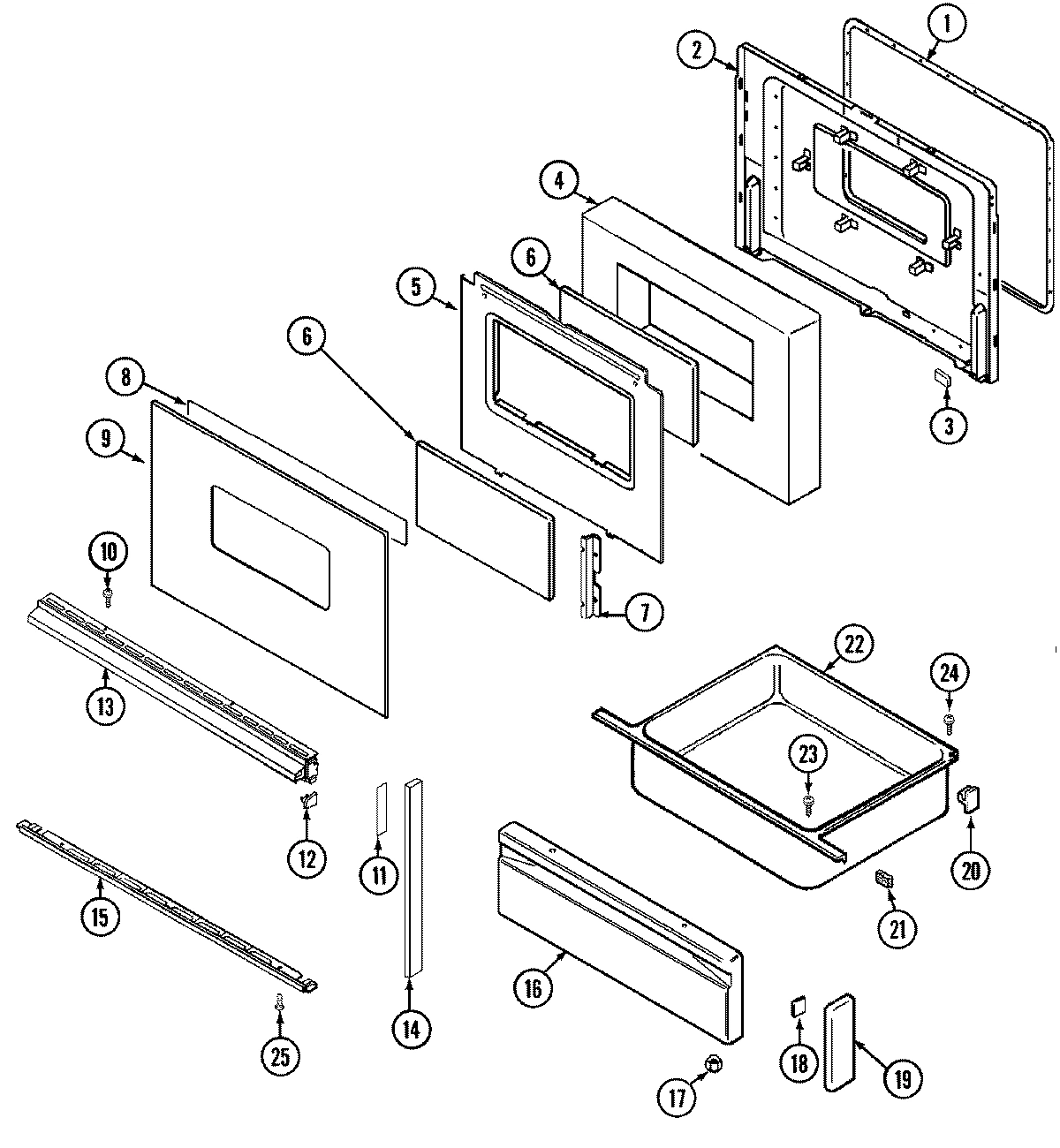

02 - DOOR/DRAWER

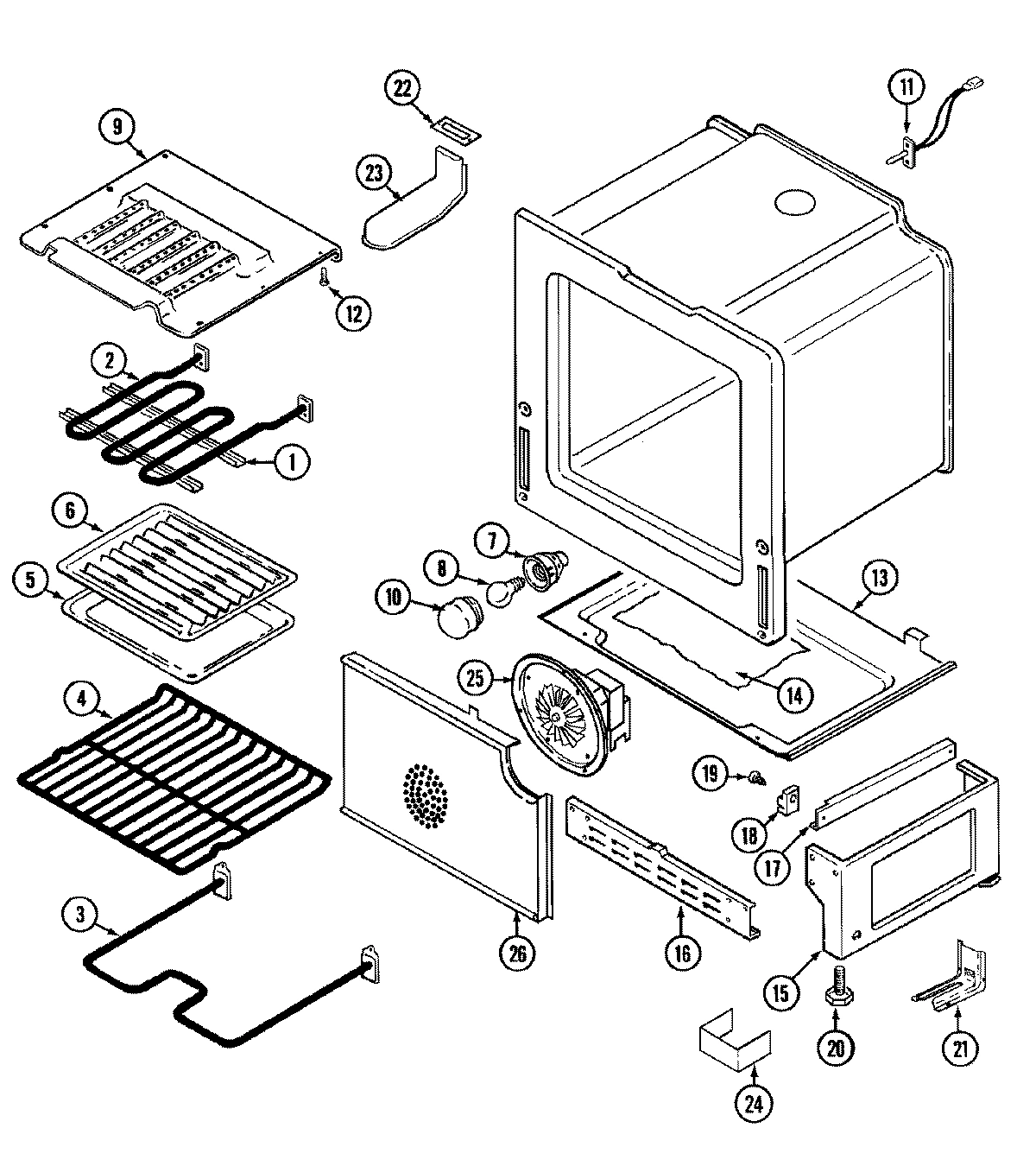

04 - OVEN/BASE

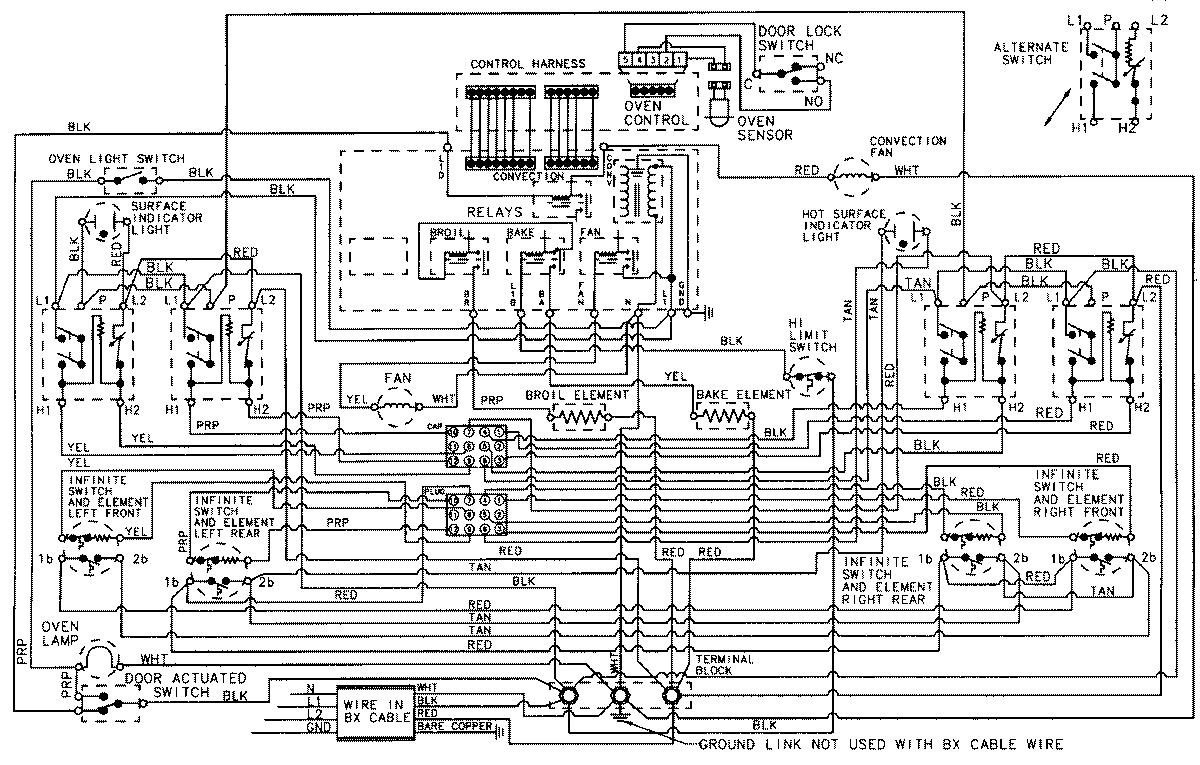

06 - WIRING INFORMATION

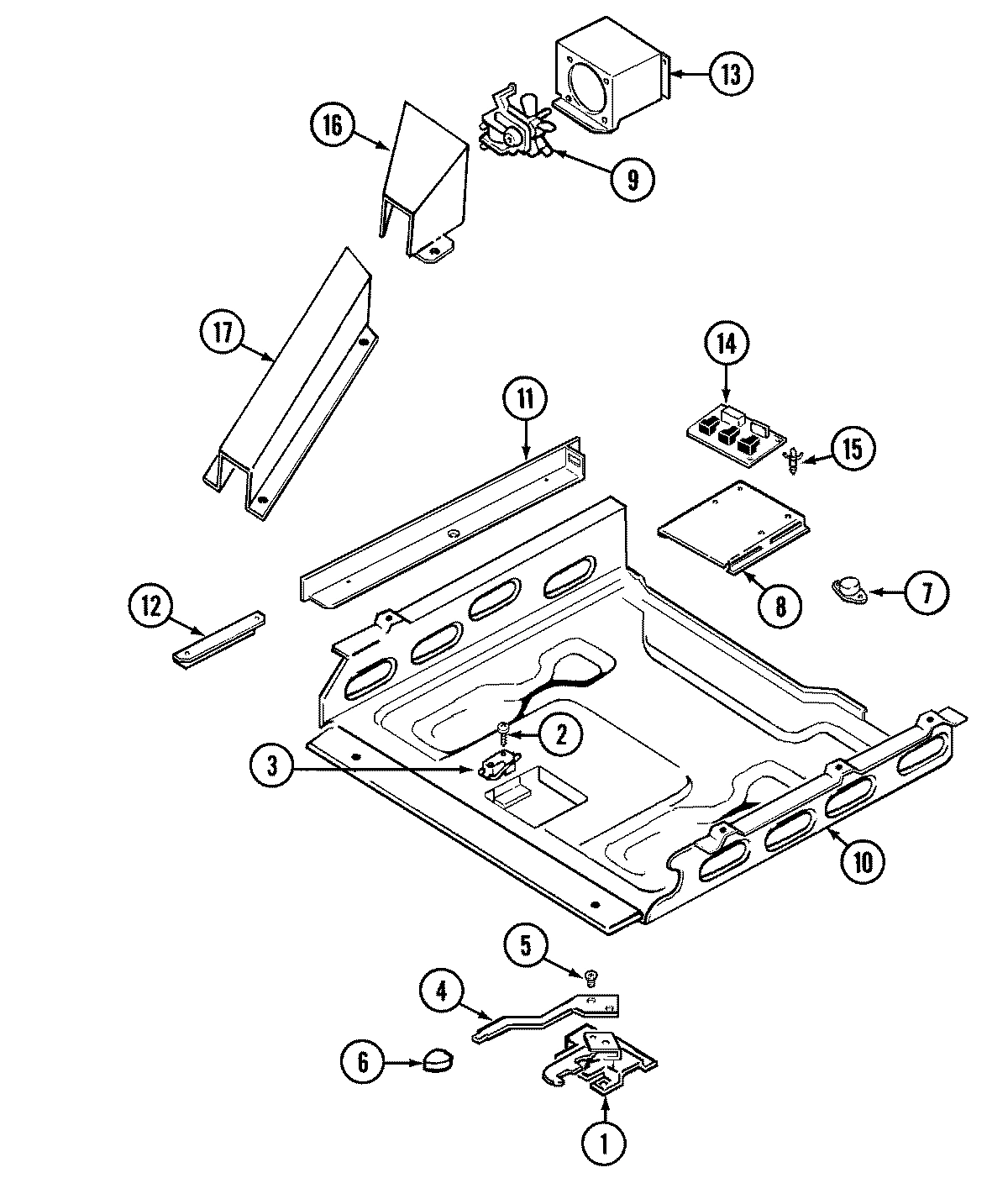

03 - INTERNAL CONTROLS
Common parts from model Whirlpool 6896VVV ELECTRIC RANGE
1
PANEL, CONTROL (WHT) WPL 7722P13560 Contact Us For Availability
1
SCREW WPL 7101P33760 Contact Us For Availability
1
BACK, MAIN WPL 74001873 Contact Us For Availability
1
GASKET, DOOR WPL 7201P04660 Contact Us For Availability
1
SUPPORT, BROIL ELEMENT WPL 3807F38745 Contact Us For Availability
1
SCREW WPL 7101P34560 Contact Us For Availability
1
INSULATION, LATCH ASSY. WPL 4804F02860 Contact Us For Availability
1
SCREW, BLACK WPL 7101P27060 Contact Us For Availability
1
SCREW W/WASHER (BLK) WPL 7101P28060 Contact Us For Availability
1
LATCH ASSY. WPL 74003032 Contact Us For Availability
1
LATCH ASSY. WPL 8002P02560 Contact Us For Availability
2
SCREW WPL 7101P30960 Contact Us For Availability
2
SWITCH, INFINITE (SML ELEMENT) WPL 7403P23860 Contact Us For Availability
2
SWITCH, INFINITE (LRG ELEMENT) WPL 7403P23960 Contact Us For Availability
2
PANEL, SIDE (LT-WHT) WPL 2618F10671 Contact Us For Availability
2
PANEL, SIDE (RT-WHT) WPL 2618F10771 Contact Us For Availability
2
LINING, DOOR WPL 2402W20919 Contact Us For Availability
2
SCREW WPL 7101P03160 Contact Us For Availability
3
LIGHT, INDICATOR WPL 7407P10260 Contact Us For Availability
3
SPACER, RUBBER WPL 8010P08560 Contact Us For Availability
3
SWITCH, DOOR LATCH WPL 74001708 Contact Us For Availability
4
LENS, INDICATOR LIGHT WPL 7730P01260 Contact Us For Availability
4
SUPPORT,OVEN REAR WPL 3807F40051 Contact Us For Availability
4
INSULATION, DOOR WPL 74001842 Contact Us For Availability
4
RACK, OVEN WPL 74001808 Contact Us For Availability
4
LEVER, LATCH (GRY) WPL 74002973 Contact Us For Availability
4
LEVER, LATCH WPL 8009P02860 Contact Us For Availability
5
SWITCH, ROCKER (WHT) WPL 7403P20060 Contact Us For Availability
5
RETAINER, INSUL. (BACK) WPL 74001801 Contact Us For Availability
5
SCREW WPL 7101P29060 Contact Us For Availability
5
BAFFLE, DOOR WPL 74001843 Contact Us For Availability
5
PAN, BROIL WPL Y3401F02019 Contact Us For Availability
5
SCREW, LEVER WPL 7101P23060 Contact Us For Availability
6
SCREW WPL 7101P34660 Contact Us For Availability
6
CLOCK (WHT) WPL 74002001 Contact Us For Availability
6
THERMOSTAT, SNAP ACTING WPL 7403P30760 Contact Us For Availability
6
GLASS, INNER WPL 74001841 Contact Us For Availability
6
INSERT, BROIL PAN WPL Y3413F01619 Contact Us For Availability
6
HANDLE, DOOR LATCH (WHT) WPL 7701P15360 Contact Us For Availability
7
BRACKET, INDICATOR LIGHT WPL 3801F31245 Contact Us For Availability
7
BRACKET, INDICATOR LIGHT WPL 74002978 Contact Us For Availability
7
NOT REQUIRED PART OR SEE NOTE WPL W10124350 Contact Us For Availability
7
COVER, WIRE WPL 4005F44751 Contact Us For Availability
7
RETAINER, GLASS WPL 74001844 Contact Us For Availability
7
RECEPTACLE, BULB WPL 74003125 Contact Us For Availability
7
RECEPTACLE, BULB WPL 7407P08860 Contact Us For Availability
7
CLIP, LATCH LEVER WPL 7112P11260 Contact Us For Availability
8
KNOB, SWITCH (WHT) WPL 7731P08160 Contact Us For Availability
8
COVER, ACCESS WPL 4005F42751 Contact Us For Availability
8
TAPE, FOIL (29 1/2``) WPL 8270P07860 Contact Us For Availability
8
BULB-OVEN WPL 7407P10360 Contact Us For Availability
8
COVER, DOOR LOCK WPL 4005F46651 Contact Us For Availability
9
BEZEL, KNOB (WHT) WPL 7740P02360 Contact Us For Availability
9
ROD, DOOR LIGHT SWITCH WPL 74001630 Contact Us For Availability
9
GLASS, DOOR (WHT) WPL 7902P32860 Contact Us For Availability
9
BAFFLE, BROIL WPL 3601F23747 Contact Us For Availability
9
FAN WPL 7427P01260 Contact Us For Availability
10
BRACKET, CLOCK WPL 3801F34951 Contact Us For Availability
10
INSULATION, WRAP WPL 4804F03660 Contact Us For Availability
10
INSULATION, BACK WPL 74001800 Contact Us For Availability
10
SCREW (1/2``-WHT) WPL 7101P37360 Contact Us For Availability
10
COVER, BULB WPL 7724P04760 Contact Us For Availability
10
BOX, BURNER WPL 4011F25080 Contact Us For Availability
11
CLIP, TOP LOCKING WPL 7112P08760 Contact Us For Availability
11
PLATE, CONDUIT TUBING WPL 3605F17451 Contact Us For Availability
11
TAPE, SEALING ROLL WPL 8270P04860 Contact Us For Availability
11
SENSOR, OVEN WPL 7430P01060 Contact Us For Availability
11
SHIELD, HEAT (LT) WPL 3604F21351 Contact Us For Availability
11
SHIELD, HEAT (RT) WPL 3604F21451 Contact Us For Availability
12
SCREW (8BX3/8-NI) WPL 7101P33860 Contact Us For Availability
12
LIGHT, SURFACE INDICATOR WPL 74003043 Contact Us For Availability
12
LIGHT, INDICATOR WPL 7407P09860 Contact Us For Availability
12
SPACER, SIDE PANEL WPL 8004P02460 Contact Us For Availability
12
END CAP, HANDLE (RT-WHT) WPL 74002738 Contact Us For Availability
12
END CAP, HANDLE (LT-WHT) WPL 74002739 Contact Us For Availability
12
END CAP (RT) WPL 7744P07560 Contact Us For Availability
12
END CAP (LT) WPL 7744P07660 Contact Us For Availability
12
BRACKET WPL 3801F32751 Contact Us For Availability
13
TOP ASSY. (BLK GLASS/WHT FRM) WPL 5706S05681 Contact Us For Availability
13
SCREW W/WASHER WPL 7101P12460 Contact Us For Availability
13
TOP ASSY. (WHT) WPL 74003022 Contact Us For Availability
13
HANDLE, DOOR (WHT) WPL 74001171 Contact Us For Availability
13
HANDLE, DOOR (WHT) WPL 7701P10560 Contact Us For Availability
13
RETAINER, INSULATION WPL 3804F11251 Contact Us For Availability
13
HOUSING, FAN WPL 4001F09851 Contact Us For Availability
14
LIMITER (6`` ELEMENT) WPL Y04000064 Contact Us For Availability
14
BLOCK, TERMINAL WPL 7401P03960 Contact Us For Availability
14
END CAP, DOOR (WHT) WPL 74002342 Contact Us For Availability
14
END CAP, DOOR (WHT) WPL 7744P06560 Contact Us For Availability
14
FOIL, INSULATION RETAINER WPL 8312P05860 Contact Us For Availability
14
BOARD, RELAY WPL 74001870 Contact Us For Availability
15
LIMITER (8``) WPL 74002652 Contact Us For Availability
15
LIMITER (8`` ELEMENT) WPL Y04000063 Contact Us For Availability
15
SCREW (10-24X5/16-NI) WPL 7101P28260 Contact Us For Availability
15
RETAINER, INSULATION (SIDE) WPL 3804F10351 Contact Us For Availability
15
TRIM, BOTTOM (WHT) WPL 7744P10360 Contact Us For Availability
15
PEDESTAL (SIDES) WPL 74001705 Contact Us For Availability
15
PEDESTAL, SIDE WPL 74003003 Contact Us For Availability
15
SUPPORT, RELAY BOARD WPL 8004P02060 Contact Us For Availability
15
SUPPORT, RELAY WPL 8004P03260 Contact Us For Availability
16
SUPPORT, ELEMENT WPL 3807F39045 Contact Us For Availability
16
HINGE WPL 7106P05660 Contact Us For Availability
16
PANEL, DRAWER (WHT) WPL 2416F03862 Contact Us For Availability
16
PEDESTAL, FRONT/REAR WPL 4020F00180 Contact Us For Availability
16
DUCT, AIR WPL 3818F05651 Contact Us For Availability
17
SUPPORT, ELEMENT WPL 74002976 Contact Us For Availability
17
SUPPORT, ELEMENT WPL 8004P01560 Contact Us For Availability
17
BUMPER, ROD WPL 74001631 Contact Us For Availability
17
NUT, LOCK WPL 7103P08560 Contact Us For Availability
17
RUNNER, DRAWER WPL 3406F02851 Contact Us For Availability
17
CHANNEL, AIR TOP WPL 3818F05351 Contact Us For Availability
17
CHANNEL, BOTTOM WPL 3818F05451 Contact Us For Availability
17
CHANNEL, AIR WPL 3818F05951 Contact Us For Availability
18
SCREW (6ABX38-ZN) WPL 7101P07760 Contact Us For Availability
18
SCREW (8ABX3/8-BLK) WPL 7101P34760 Contact Us For Availability
18
BRACKET, SWITCH ACTUATOR WPL 74001632 Contact Us For Availability
18
TAPE WPL 8270P09860 Contact Us For Availability
18
SUPPORT, DRAWER WPL 8004P03360 Contact Us For Availability
19
TRIM, SHIELD MANIFOLD PANEL WPL 74002647 Contact Us For Availability
19
SCREW (8ABX13/16-ZN) WPL 74001449 Contact Us For Availability
19
SWITCH WPL 74001802 Contact Us For Availability
19
END CAP, DRAWER (WHT) WPL 74002804 Contact Us For Availability
19
END CAP, DRAWER (WHT) WPL 7744P06760 Contact Us For Availability
20
HARNESS, SENSOR & LOCK WPL 5170P22860 Contact Us For Availability
20
HARNESS, COOKTOP TO SWITCH WPL 5175D07560 Contact Us For Availability
20
HARNESS, COOKTOP TO SWITCH WPL 5175D07660 Contact Us For Availability
20
HARNESS, CLOCK/RELAY WPL 74001583 Contact Us For Availability
20
HARNESS, CONTROL PANEL WPL 74002196 Contact Us For Availability
20
HARNESS, DOOR SWITCH (CONVECT) WPL 74002197 Contact Us For Availability
20
HARNESS, DOOR SWITCH (CONVECT) WPL 74002330 Contact Us For Availability
20
INSULATOR, SWITCH WPL 74001872 Contact Us For Availability
20
SUPPORT, DRAWER (REAR) WPL 8004P02660 Contact Us For Availability
20
LEG, LEVELING WPL 7101P31660 Contact Us For Availability
21
SCRAPER WPL 8312P00160 Contact Us For Availability
21
SCREW, SWITCH WPL 7101P33060 Contact Us For Availability
21
SEAL, DOOR PANEL WPL 7208P00960 Contact Us For Availability
21
BRACKET, ANTI-TIP WPL 3801F21851 Contact Us For Availability
21
SCREW WPL 7101P34460 Contact Us For Availability
22
SPRING, DOOR SWITCH WPL 74001629 Contact Us For Availability
22
WPL 74001994 WPL 74001994 Contact Us For Availability
22
DRAWER, STORAGE WPL 3405F01880 Contact Us For Availability
22
GASKET, VENT WPL 7201P06060 Contact Us For Availability
23
WPL 16000327 WPL 16000327 Contact Us For Availability
23
SCREW WPL 7101P07260 Contact Us For Availability
23
COVER, VENT WPL 4005F45351 Contact Us For Availability
23
BOX, VENT WPL 4006W11245 Contact Us For Availability
24
COVER, LEVELING LEG WPL 4005F42080 Contact Us For Availability
25
FAN ASSY. (CONVECTION) WPL 74001805 Contact Us For Availability
26
SCREW WPL 74001161 Contact Us For Availability
26
COVER, FAN ASSY. WPL 74001806 Contact Us For Availability
NI
WIRING INFORMATION WPL 15001709 Contact Us For Availability
× ![]()
