Model Whirlpool 665.45759691 30" Electric Drop-In Range (Kenmore 66545759691) – Common Parts & Diagrams

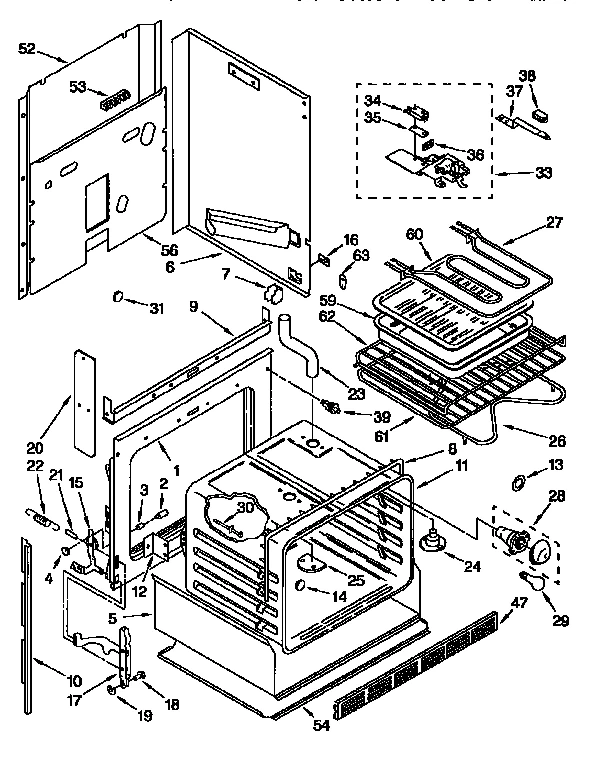

OVEN
All Parts

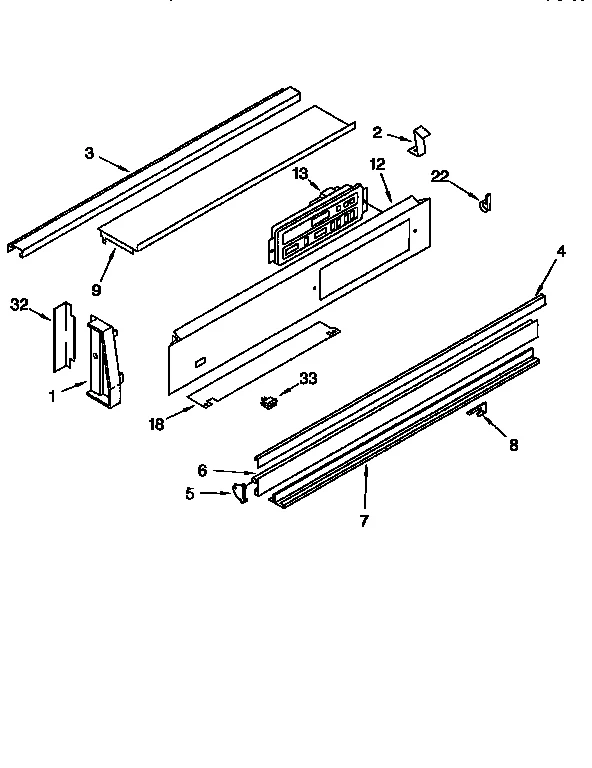

CONTROL PANEL

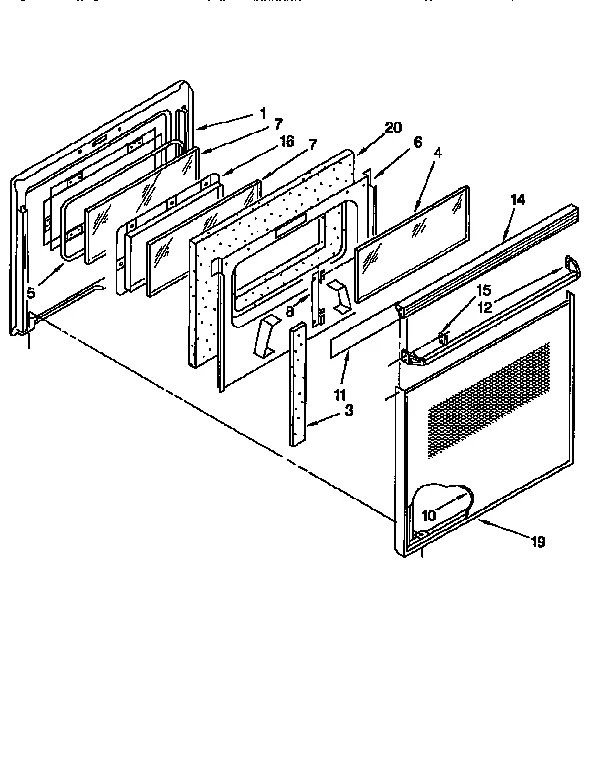

OVEN DOOR

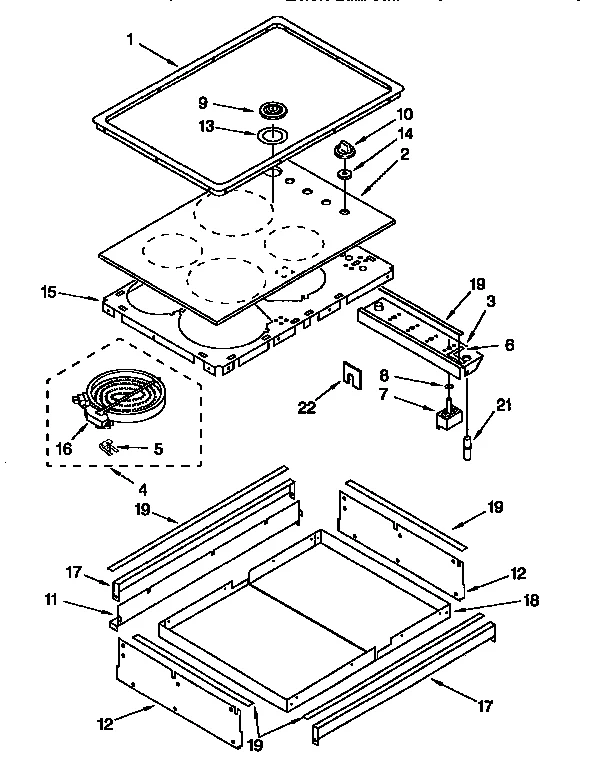

COOKTOP
Common parts from model Whirlpool 665.45759691 30" Electric Drop-In Range (Kenmore 66545759691)
1
END CAP, LEFT HAND WPL 3149748 Contact Us For Availability
1
Drive Liner WPL 3172218 Contact Us For Availability
1
Cooktop Trim Ring WPL 3187744 Contact Us For Availability
1A
END CAP RIGHT HAND WPL 3149749 Contact Us For Availability
2
Control Bracket WPL 3184395 Contact Us For Availability
2
Glass Cooktop WPL 3190046 Contact Us For Availability
2A
Screw WPL 98520 Contact Us For Availability
3
RAIL TOP WPL 3189224 Contact Us For Availability
3
Gaskt-dor WPL 3148441 Contact Us For Availability
3
BRACKET, SWITCH MOUNTING WPL 3190334 Contact Us For Availability
4
Trim Backguard WPL 3148620 Contact Us For Availability
4
Drive Glass WPL 3169202 Contact Us For Availability
4
ELEMENT, SURFACE 1400W LEFT REAR WPL 3189894 Contact Us For Availability
4A
Screw WPL 3185647 Contact Us For Availability
4A
ELEMENT, SURFACE 1700W RIGHT FRONT WPL 3189895 Contact Us For Availability
4B
ELEMENT, SURFACE 2100W RIGHT REAR WPL 3189896 Contact Us For Availability
4C
ELEMENT, SURFACE 2400 LEFT FRONT WPL 3189897 Contact Us For Availability
5
Gasket WPL 3148183 Contact Us For Availability
5
Door Trim WPL 3148698 Contact Us For Availability
5
Spring Locator WPL 3189165 Contact Us For Availability
5A
Door Trim WPL 3148697 Contact Us For Availability
6
Door Trim WPL 3149285 Contact Us For Availability
6
Retainer WPL 3148159 Contact Us For Availability
6
Cooktop Seal WPL 3185617 Contact Us For Availability
6A
Screw WPL 342043 Contact Us For Availability
6A
Screw WPL 4173601 Contact Us For Availability
7
Trim Backguard WPL 3148618 Contact Us For Availability
7
Infinite Switch WPL 4454535 Contact Us For Availability
7C
2200W/2600W LF WPL 4454537 No Longer Available
8
Shied-trim WPL 3149142 Contact Us For Availability
8
Retainer WPL 3188720 Contact Us For Availability
8
Seal WPL 309839 Contact Us For Availability
9
Heat Shield WPL 3188534 Contact Us For Availability
9
Vent Cover WPL 3182496 Contact Us For Availability
10
Range Burner Control Knob WPL 3150100 Contact Us For Availability
10
Door Glass WPL 3148185 Contact Us For Availability
11
Door Foil WPL 3188706 Contact Us For Availability
11
Rear Cover WPL 3188528 Contact Us For Availability
11A
Screw WPL 3148443 Contact Us For Availability
12
Control Panel WPL 3189089 Contact Us For Availability
12
Door Handle WPL 3149242 Contact Us For Availability
12
Mounting Plate WPL 3188527 Contact Us For Availability
13
Electronic Control WPL 3189091 Contact Us For Availability
13
SEAL, VENT TUBE WPL 3187523 Contact Us For Availability
14
Frame WPL 3148223 Contact Us For Availability
14
SEAL, SWITCH (4) WPL 31824335 Contact Us For Availability
15
Clip WPL 3148282 Contact Us For Availability
15
Drive Hinge WPL 3185662 Contact Us For Availability
15
Mounting Plate WPL 3190048 Contact Us For Availability
15A
Drive Hinge WPL 3185663 Contact Us For Availability
15A
Screw WPL 3149253 Contact Us For Availability
16
Oven Plate WPL 310659 Contact Us For Availability
16
Glass Frame WPL 3148234 Contact Us For Availability
16
Limiter WPL 3190253 Contact Us For Availability
16A
ELEMENT USE W/3189895 WPL 3190250 Contact Us For Availability
16B
Limiter WPL 3190252 Contact Us For Availability
16C
ELEMENT USE W/3189897 WPL 3190251 Contact Us For Availability
17
Drive Hinge WPL 3185664 Contact Us For Availability
17
Bracket Support WPL 3188526 Contact Us For Availability
17A
Screw WPL 4168863 Contact Us For Availability
18
SHIELD, CONTROL WPL 3183992 Contact Us For Availability
18
Heat Shield WPL 3187753 Contact Us For Availability
19
Ring WPL 307594 Contact Us For Availability
19
Door Frame WPL 3171530 Contact Us For Availability
19
SEAL, SILICONE SMALL WPL 3185589 Contact Us For Availability
19A
Screw WPL 309133 Contact Us For Availability
19A
SEAL, SILICONE LARGE WPL 3185590 Contact Us For Availability
19B
Screw WPL 3149333 Contact Us For Availability
20
Baffle WPL 311256 Contact Us For Availability
20
Insulation WPL 3147951 Contact Us For Availability
20A
Screw WPL 3148442 Contact Us For Availability
21
Indicator Light WPL 4454437 Contact Us For Availability
22
GROMMET, WIRE WAY WPL 3188533 Contact Us For Availability
22A
Screw WPL 4159456 Contact Us For Availability
23
Vent Tube WPL 3184323 Contact Us For Availability
24
Vent Tube WPL 3186684 Contact Us For Availability
25
Hole Cover WPL 310662 Contact Us For Availability
26A
Screw WPL 3150532 Contact Us For Availability
28A
Screw WPL 308043 Contact Us For Availability
30
Sensor WPL 3148440 Contact Us For Availability
31
Button Plug WPL 3185086 Contact Us For Availability
32
Trim End Cap WPL 3149900 Contact Us For Availability
33
Latch Assembly WPL 3183801 Contact Us For Availability
33
SWITCH, RACKER WPL 3182717 Contact Us For Availability
34
Safety Switch WPL 3178671 Contact Us For Availability
34A
Screw WPL 98106 Contact Us For Availability
35
Insulator Switch WPL 309245 Contact Us For Availability
36
Shield Trim WPL 313035 Contact Us For Availability
36A
Screw WPL 309258 Contact Us For Availability
37
Handle and Latch WPL 310825 Contact Us For Availability
37A
Screw WPL 3185414 Contact Us For Availability
38
Handle Knob WPL 3184039 Contact Us For Availability
38A
Screw WPL 3183294 Contact Us For Availability
39
Light Switch WPL 310345 Contact Us For Availability
47
BOTTOM GRILL WPL 3150349 Contact Us For Availability
52
Rear Cover WPL 3185960 Contact Us For Availability
54
Oven Plate WPL 3185945 Contact Us For Availability
56
Rear Cover WPL 3182052 Contact Us For Availability
61
Oven Rack WPL 3185641 Contact Us For Availability
62
Oven Rack WPL 3185640 Contact Us For Availability
63
Cover Plate WPL 3183005 Contact Us For Availability
NI
Foil WPL 241430 Contact Us For Availability
NI
Wire (Black) WPL 242820 Contact Us For Availability
NI
Wire (Blue) WPL 242821 Contact Us For Availability
NI
Wire (Green) WPL 242823 Contact Us For Availability
NI
Wire (Orange) WPL 242824 Contact Us For Availability
NI
Wire (White) WPL 242826 Contact Us For Availability
NI
Appliance Splicing Wire, 25-ft, 14-gauge (Yel WPL 242827 Contact Us For Availability
NI
Wire (Black) WPL 242828 Contact Us For Availability
NI
Wire (Red) WPL 242829 Contact Us For Availability
NI
Wire (Brown) WPL 242830 Contact Us For Availability
NI
Wire WPL 242831 Contact Us For Availability
NI
Wire (Yellow) WPL 242832 Contact Us For Availability
NI
Insulation WPL 3149328 Contact Us For Availability
NI
Wire Tie WPL 3179589 Contact Us For Availability
NI
INSULATION, VENT WPL 3188439 Contact Us For Availability
NI
Main Wire Harness WPL 3188443 Contact Us For Availability
NI
HARNESS, WIRE (INFINITE SWITCH) WPL 3188566 Contact Us For Availability
NI
Oven Insulation WPL 4454421 Contact Us For Availability
NI
HARNESS, WIRE (SURFACE UNIT) WPL 4454594 Contact Us For Availability
NI
Installation WPL LIT3189100 Contact Us For Availability
NI
Technical Sheet WPL LIT3190049 Contact Us For Availability
NI
Owner's Manual WPL LIT4454634 Contact Us For Availability
NI
Repair Parts List WPL LIT445472 Contact Us For Availability
× ![]()
