Model Whirlpool 629.42979790 Counter Unit (Kenmore 62942979790) – Common Parts & Diagrams
TOP ASSEMBLY

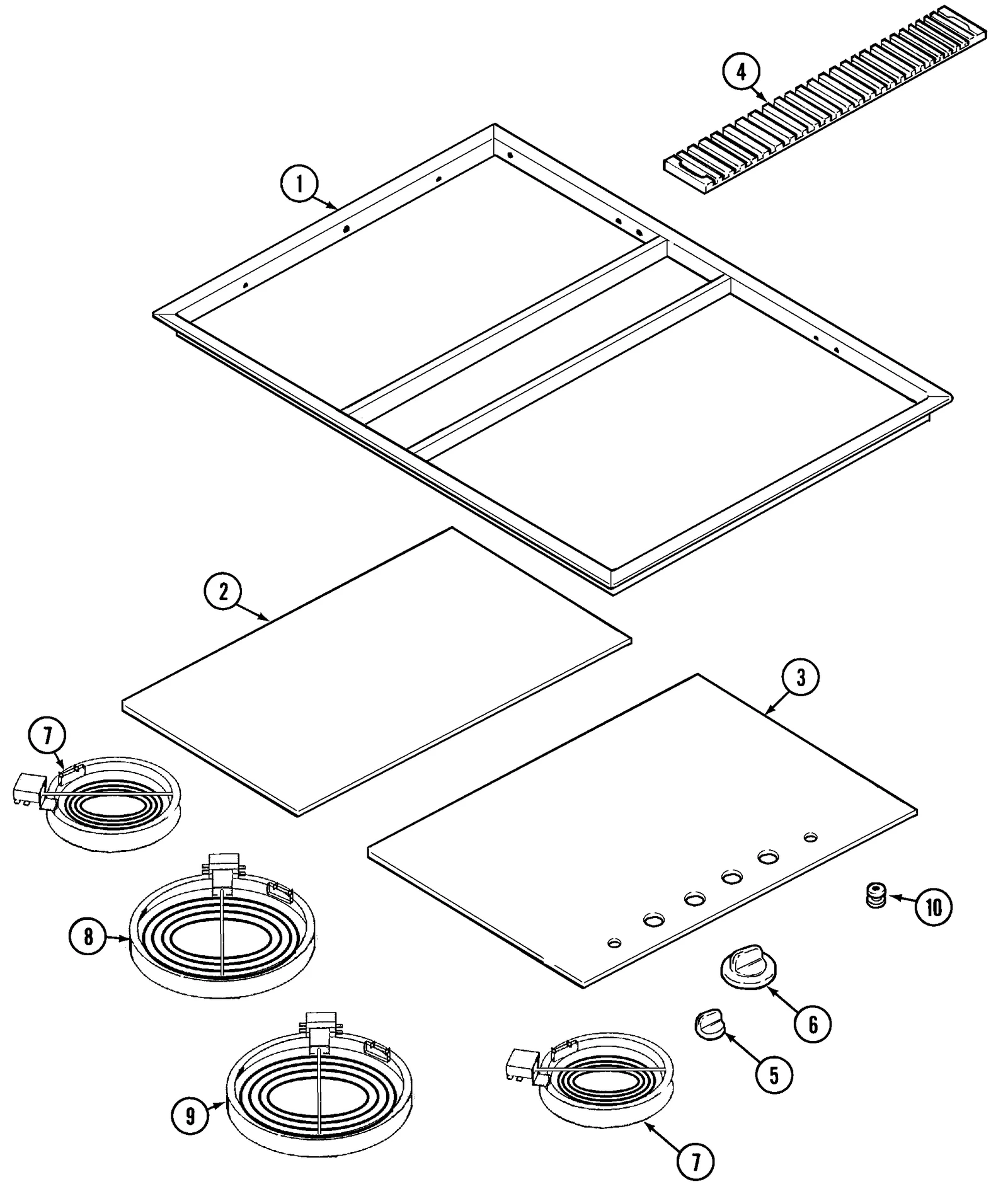

TOP ASSEMBLY (SERIES 13)

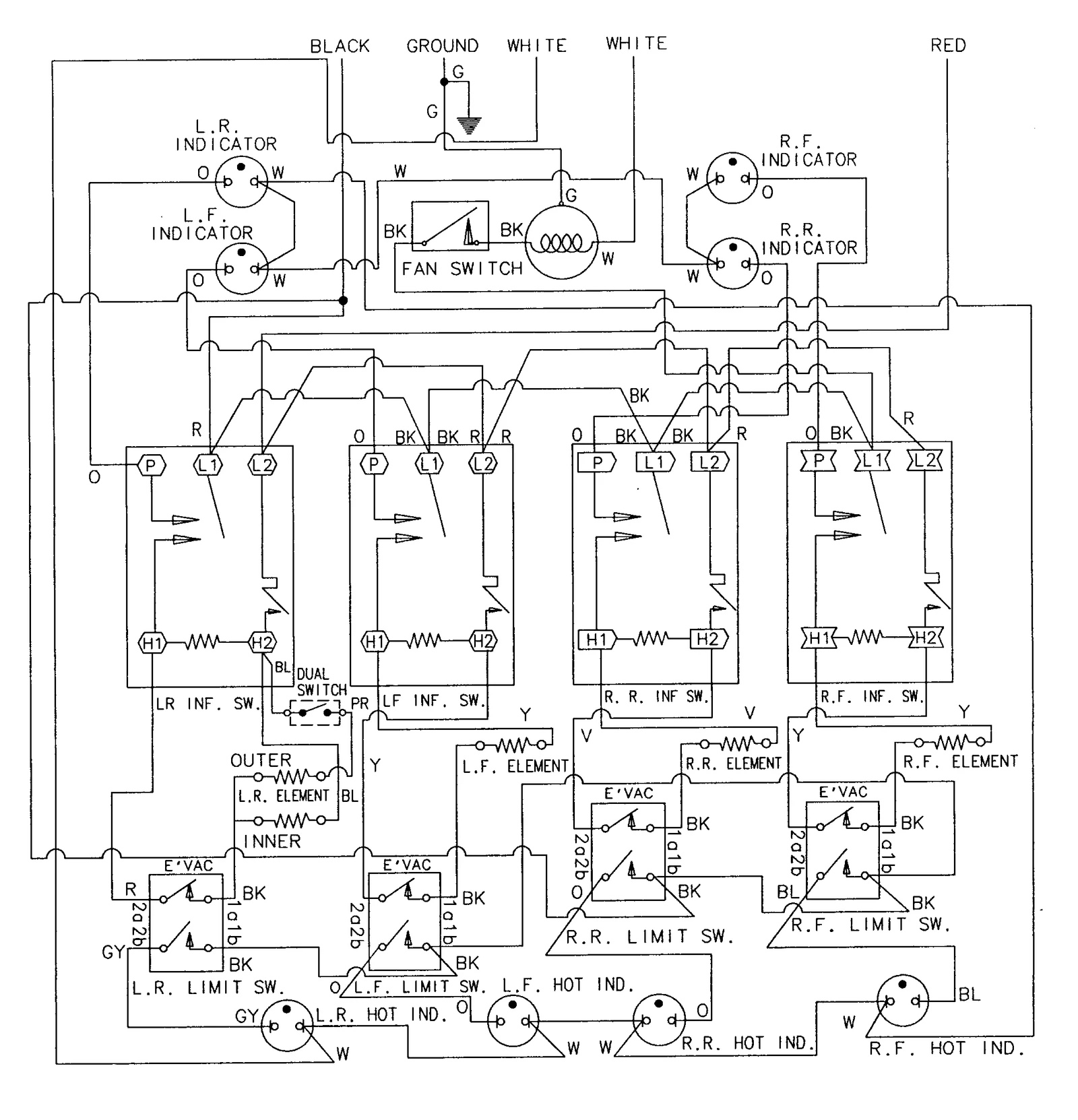

WIRING INFORMATION

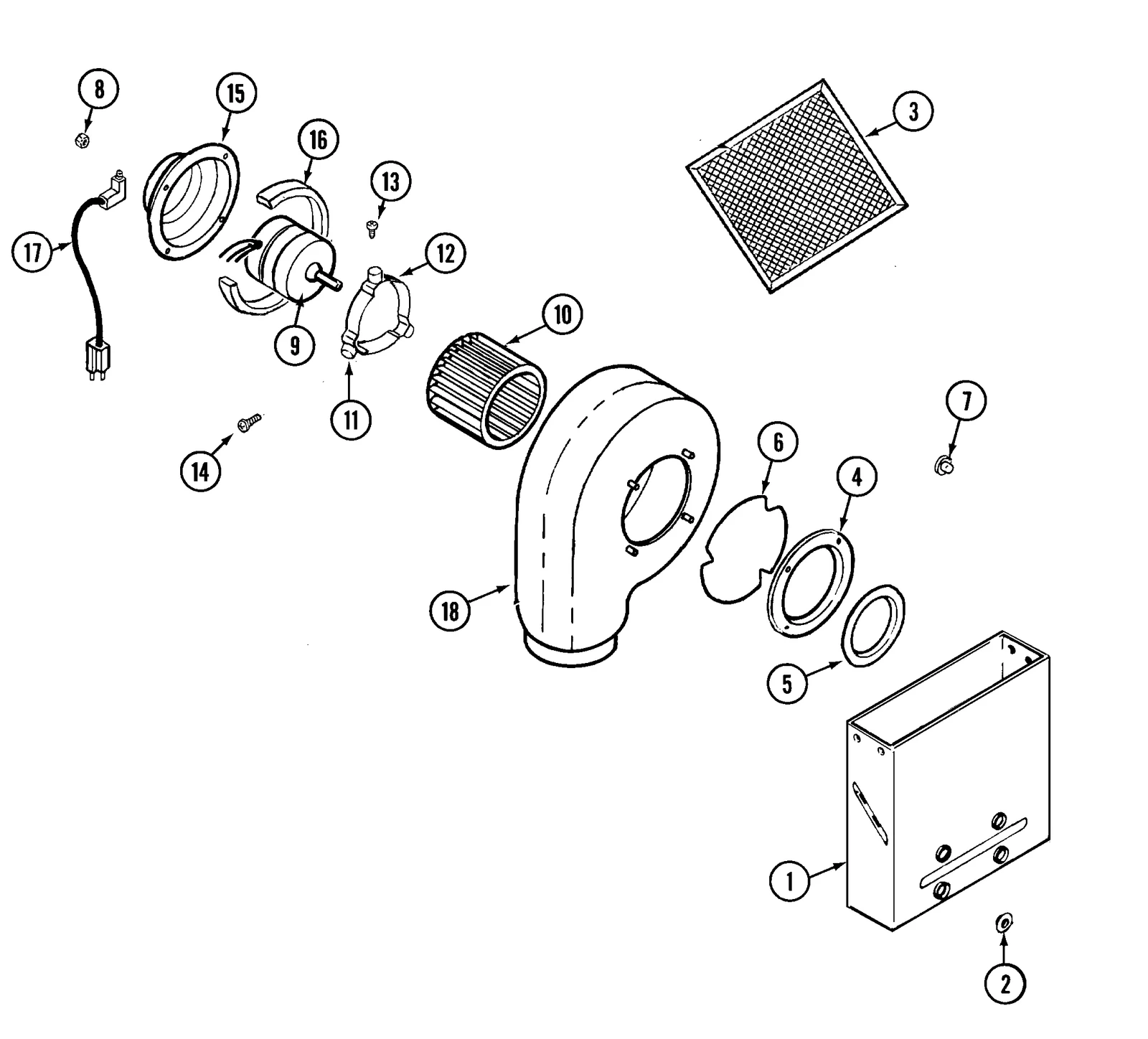

BLOWER ASSEMBLY-PLENUM
BODY

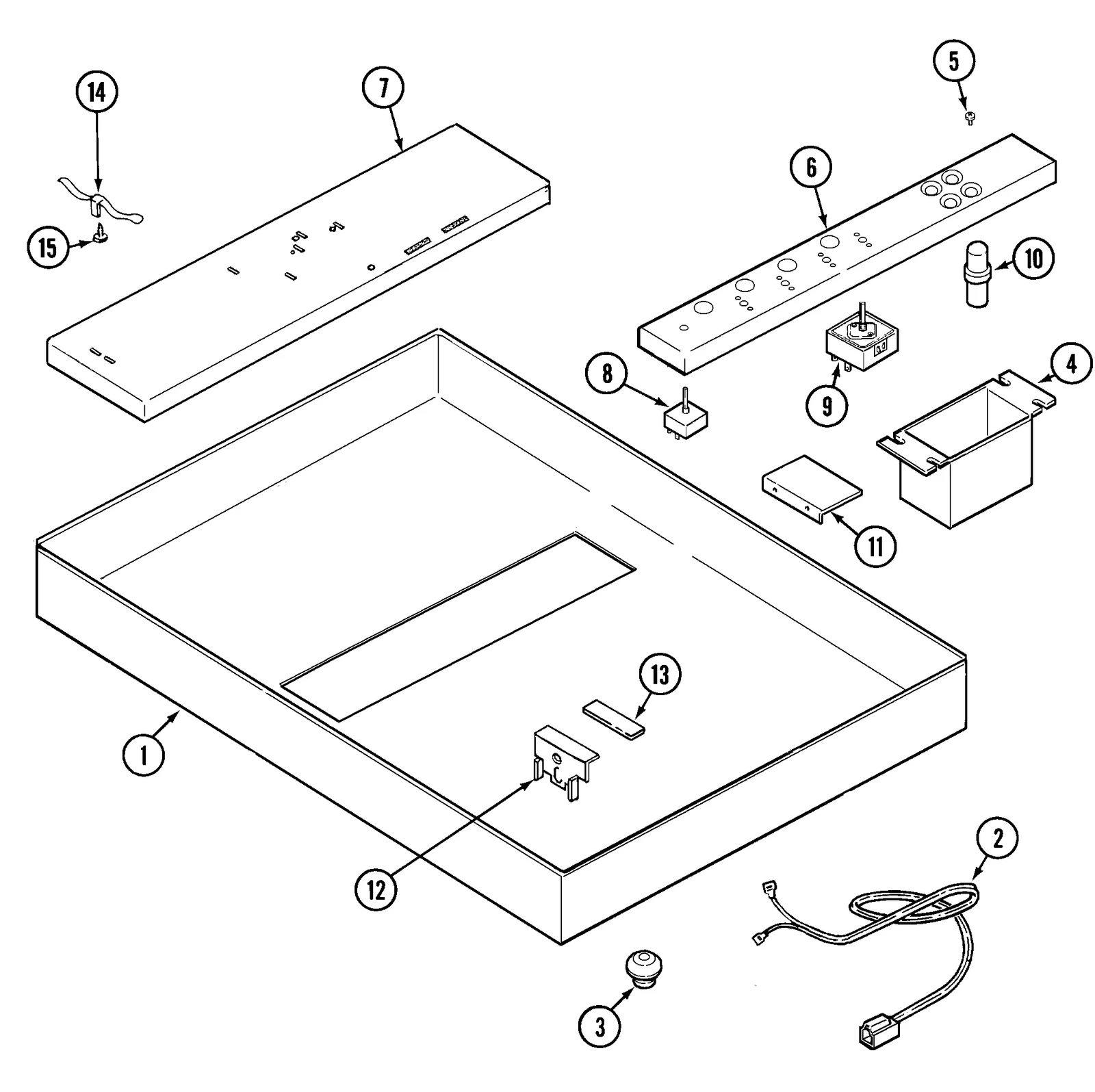

BODY (SERIES 16)
Common parts from model Whirlpool 629.42979790 Counter Unit (Kenmore 62942979790)
1
Plenum Assembly WPL 71001379 Contact Us For Availability
1
Burner Box WPL 71002256 Contact Us For Availability
1A
Frame WPL 71002212 Contact Us For Availability
1B
Frame WPL 71002250 Contact Us For Availability
2
Main Top WPL 71002761 Contact Us For Availability
2
Hole Plug WPL 706193 Contact Us For Availability
2
Cord Receptacle WPL 71002754 Contact Us For Availability
2
Cord Receptacle WPL 74005928 Contact Us For Availability
2A
Top, Main (l WPL 71002763 Contact Us For Availability
3
Top, Main (r WPL 71002760 Contact Us For Availability
3
Filter WPL 706012 Contact Us For Availability
3
Relief, Stra WPL 04100503 Contact Us For Availability
3A
Main Top WPL 71002762 Contact Us For Availability
4
Grill, Air ( WPL 706005 Contact Us For Availability
4
Inlet Ring WPL 704758 Contact Us For Availability
4
Junction Box WPL 706173 Contact Us For Availability
4A
Cooktop Downdraft Vent Grille WPL 71001673 Contact Us For Availability
4A
"T" FITTING (FLANGE) WPL N/P Contact Us For Availability
4B
Junction Cover WPL 706174 Contact Us For Availability
5
KNOB, FAN SWITCH is NLA for this MODEL per OE WPL NLA Contact Us For Availability
5
Restrictor Ring WPL 704761 Contact Us For Availability
5
Screw WPL 700502 Contact Us For Availability
5A
Knob Fan Switch WPL 71002629 Contact Us For Availability
6
Cooktop Burner Knob WPL 71002758 Contact Us For Availability
6
Retainer WPL 704762 Contact Us For Availability
6
Switch Plate WPL 71002756 Contact Us For Availability
6A
Infinite Knob WPL 71002759 Contact Us For Availability
7
Lock Nut Cap WPL 702889 Contact Us For Availability
7
Element Support WPL 71002259 Contact Us For Availability
7A
Limiter (6" WPL 04000064 Contact Us For Availability
8
Lock Nut WPL 707702 Contact Us For Availability
8
Cooktop Dual Element Selector Switch WPL 71002755 Contact Us For Availability
8A
Limiter (dua WPL 74002176 Contact Us For Availability
9
Cooktop Blower Motor WPL 71001304 Contact Us For Availability
9A
Limiter (8" WPL 04000063 Contact Us For Availability
10
Infinite Grommet WPL 706102 Contact Us For Availability
10
Blower Wheel WPL 707985 Contact Us For Availability
10
Indicator Light WPL 706125 Contact Us For Availability
10A
Grommet Fan WPL 706103 Contact Us For Availability
10A
Guard Blower WPL 71001534 Contact Us For Availability
11
Isolator WPL 708926 Contact Us For Availability
11
Filter Bracket WPL 71002260 Contact Us For Availability
12
Wiring Harness WPL 71002757 Contact Us For Availability
12
Band Motor WPL 707393 Contact Us For Availability
12
Glass Support WPL 71001108 Contact Us For Availability
13
Wire Pilot WPL 71001714 Contact Us For Availability
13
Magic Chef Range Screw WPL 707407 Contact Us For Availability
13
Pad, Glass S WPL 71001239 Contact Us For Availability
14
Wire (Yellow) WPL 04100424 Contact Us For Availability
14
Screw WPL 707402 Contact Us For Availability
14
Spring Element WPL 04100418 Contact Us For Availability
14A
Violet Wire WPL 04100425 Contact Us For Availability
14A
Nut WPL 707161 Contact Us For Availability
14B
Wire, Orange WPL 04100427 Contact Us For Availability
14C
Wire, Blue ( WPL 71001628 Contact Us For Availability
14D
Wire (Yellow) WPL 71002764 Contact Us For Availability
14E
Wire, Orange WPL 71002765 Contact Us For Availability
14F
Wire, Blue ( WPL 71002766 Contact Us For Availability
14G
Violet Wire WPL 71002767 Contact Us For Availability
14H
Wire, Gray ( WPL 71002768 Contact Us For Availability
15
Motor Cover WPL 704760 Contact Us For Availability
15
Screw WPL 708359 Contact Us For Availability
16
Foam, Uretha WPL 715957 Contact Us For Availability
17
Power Cord WPL 702733 Contact Us For Availability
18
Blower Scroll WPL 712008 Contact Us For Availability
× ![]()
