Model Whirlpool 5VEV188NASOO VERTICAL FREEZER – Common Parts & Diagrams

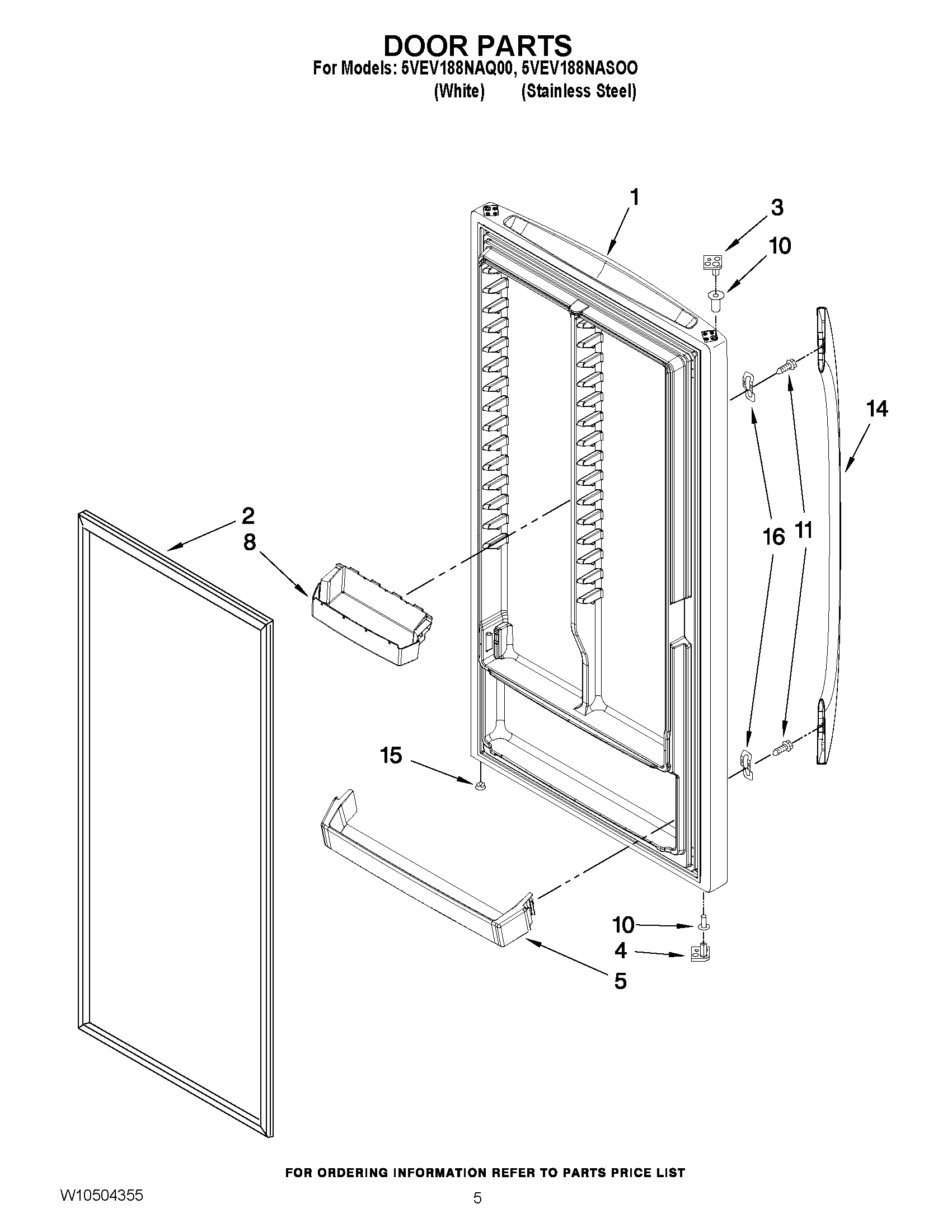

03 - DOOR PARTS
05 - OPTIONAL PARTS (NOT INCLUDED)

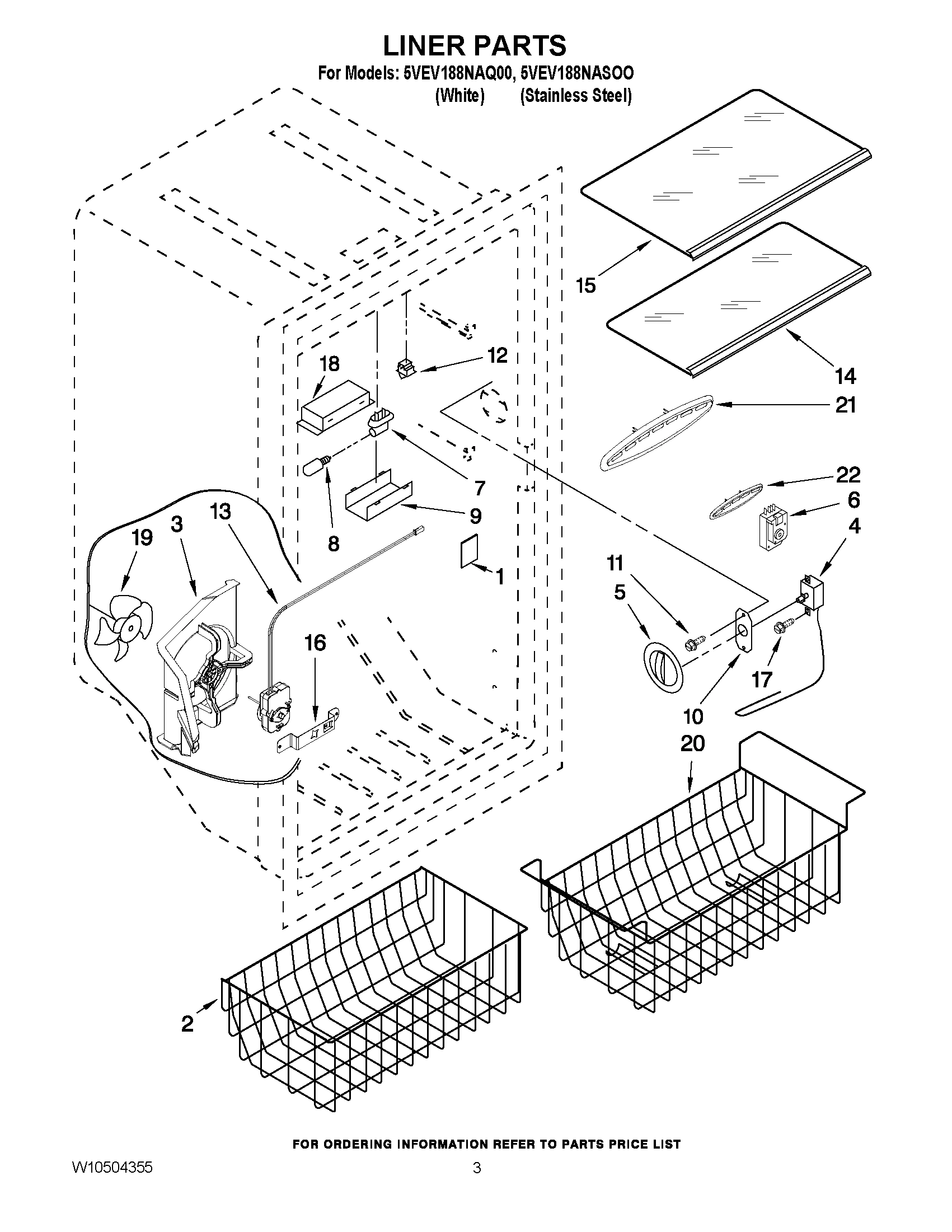

02 - LINER PARTS

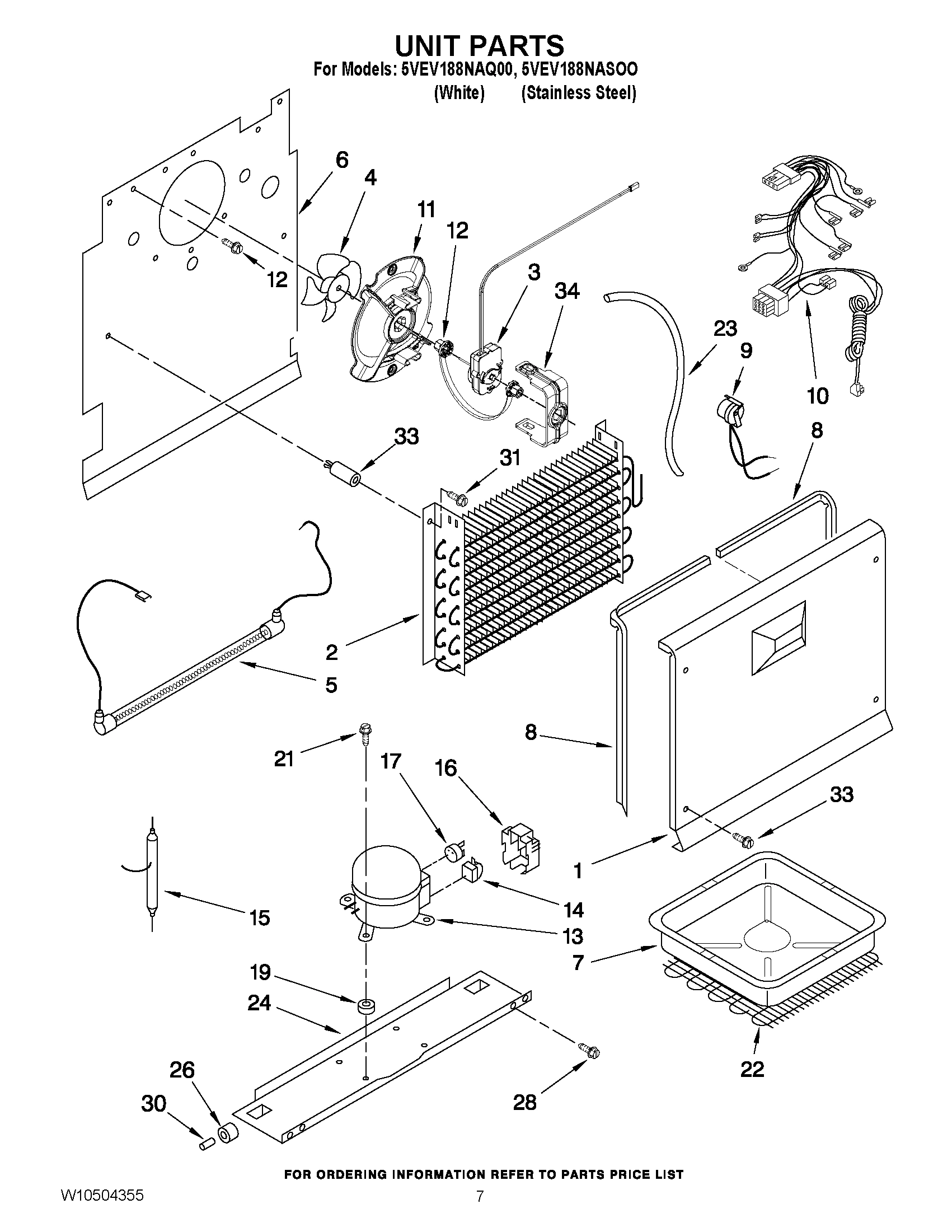

04 - UNIT PARTS

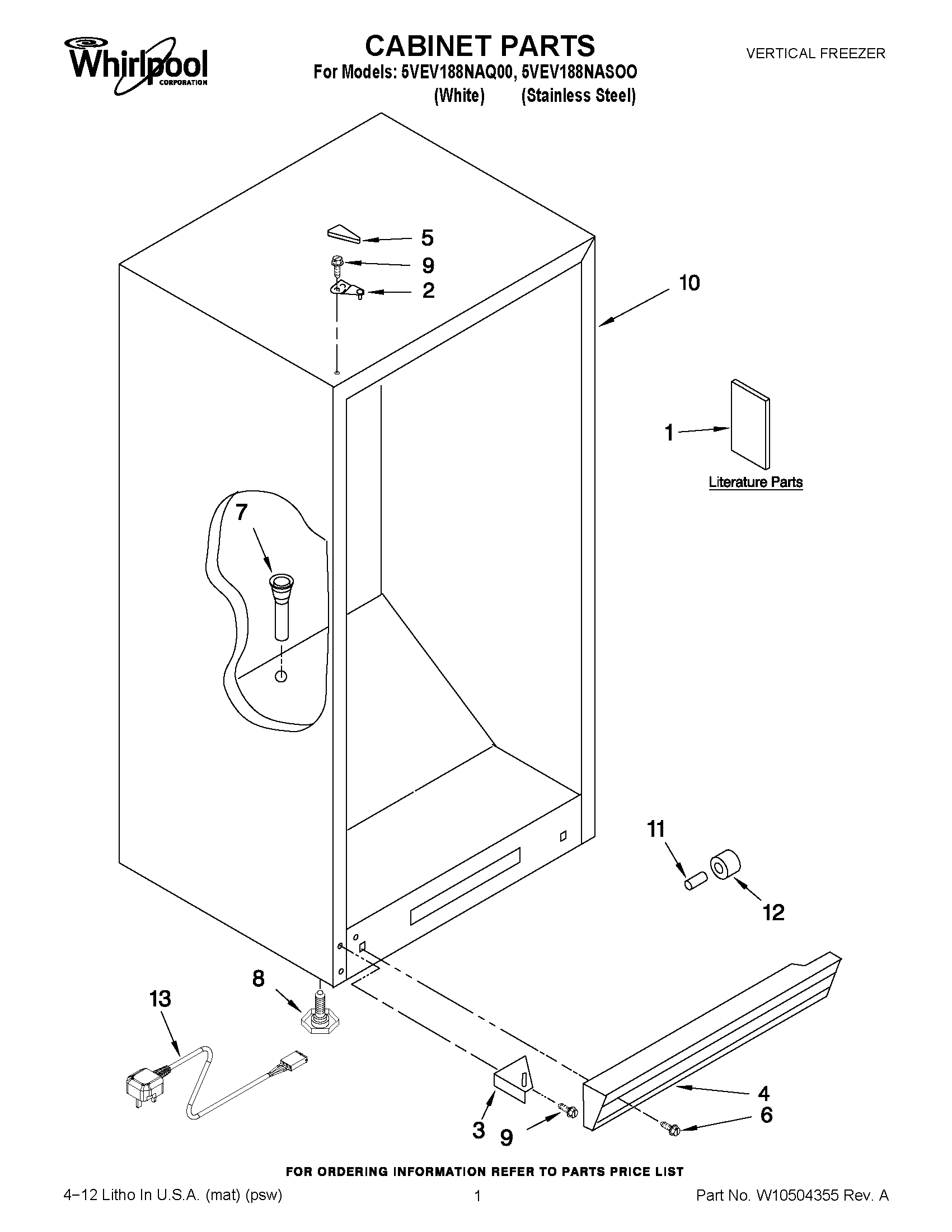

01 - CABINET PARTS
Common parts from model Whirlpool 5VEV188NASOO VERTICAL FREEZER
1
COVER, EVAPORATOR WPL W10452370 Contact Us For Availability
1
OWNERS MANUAL WPL W10443588 Contact Us For Availability
2
EVAPORATOR WPL W10455861 Contact Us For Availability
2
BASKET, MIDDLE WPL 482880001 Contact Us For Availability
2
TOP HINGE (WHITE) WPL 281016105 Contact Us For Availability
2
TOP HINGE (BLACK) WPL 281016107 Contact Us For Availability
3
SHROUD, CONDENSER MOTOR WPL 482690001 Contact Us For Availability
4
THERMOSTAT WPL 460186001 Contact Us For Availability
4
GRILLE (WHITE) WPL 460461005 Contact Us For Availability
4
GRILLE (BLACK) WPL 460461010 Contact Us For Availability
5
KNOB, THERMOSTAT WPL 481294004 Contact Us For Availability
5
HINGE COVER (WHITE) WPL 380838003 Contact Us For Availability
5
HINGE COVER (BLACK) WPL 380838007 Contact Us For Availability
6
TIMER, DEFROST WPL 381329001 Contact Us For Availability
6
SCREW WPL 324004107 Contact Us For Availability
7
DRAIN PAN WPL 482749001 Contact Us For Availability
7
GROMMET, DRAIN WPL 360696001 Contact Us For Availability
8
GASKET, COVER EVAPORATOR (RIGHT) WPL 360180001 Contact Us For Availability
8
GASKET, COVER EVAPORATOR (LEFT) WPL 360180002 Contact Us For Availability
8
LEG, LEVELLER (BLACK) WPL 382710001 Contact Us For Availability
9
SHIELD, LIGHT WPL 360197001 Contact Us For Availability
9
SCREW WPL 180271103 Contact Us For Availability
10
PLATE, THERMOSTAT WPL 181154 Contact Us For Availability
10
HARNESS, WIRING (WITH POWER CORD) WPL W10415853 Contact Us For Availability
10
CABINET (NOT A SERVICEABLE PART) WPL NP Contact Us For Availability
11
SCREW WPL 180283110 Contact Us For Availability
11
AXLE WPL 160316001 Contact Us For Availability
12
LIGHT, SWITCH WPL 232164001 Contact Us For Availability
12
ROLLER, FRONT WPL 360315001 Contact Us For Availability
13
MOTOR, CONDENSER WPL W10443762 Contact Us For Availability
14
SHELF, MIDDLE WPL 460209002 Contact Us For Availability
14
RELAY WPL 235154011 Contact Us For Availability
15
SHELF, TOP WPL 460207002 Contact Us For Availability
17
SCREW WPL 380732014 Contact Us For Availability
17
OVERLOAD WPL 234286027 Contact Us For Availability
18
BRACKET, LIGHT WPL 460201001 Contact Us For Availability
19
BLADE-FAN WPL 382692001 Contact Us For Availability
20
BASKET, LOWER WPL 460064002 Contact Us For Availability
21
DIFFUSER, AIR UPR WPL 482556002 Contact Us For Availability
21
SCREW, COMPRESSOR WPL 282082001 Contact Us For Availability
22
DIFFUSER, AIR LWR WPL 482573002 Contact Us For Availability
22
CONDENSER WPL 482683001 Contact Us For Availability
23
HEAT, EXCHANGER WPL W10474982 Contact Us For Availability
24
PAN, COMPRESSOR WPL W10470129 Contact Us For Availability
28
SCREW WPL 324838048 Contact Us For Availability
31
SCREW WPL 324004079 Contact Us For Availability
33
GROMMET WPL 180275101 Contact Us For Availability
34
CLIP, EVAP. MOTOR WPL 13058002 Contact Us For Availability
NI
TAPE, VINYL (3/4 X 108``) WPL 479502 Contact Us For Availability
NI
REFINISHING MATERIAL (ENAMEL, WHITE (1 QT. UN WPL 799344 Contact Us For Availability
× ![]()
