Model Whirlpool 596.77277790 22" Bottom-Mount Refrigerator (Kenmore 59677277790) – Common Parts & Diagrams
SHELVING ASSEMBLIES

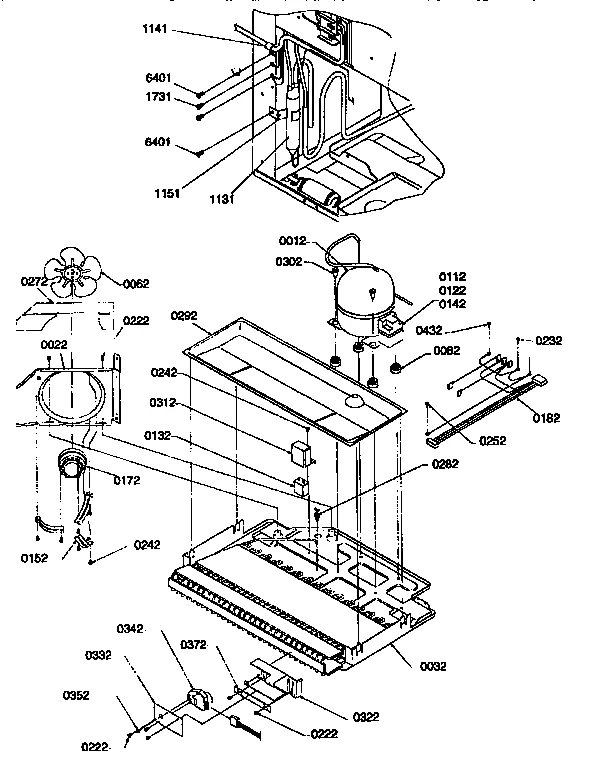

MACHINE COMPARTMENT ASSEMBLY

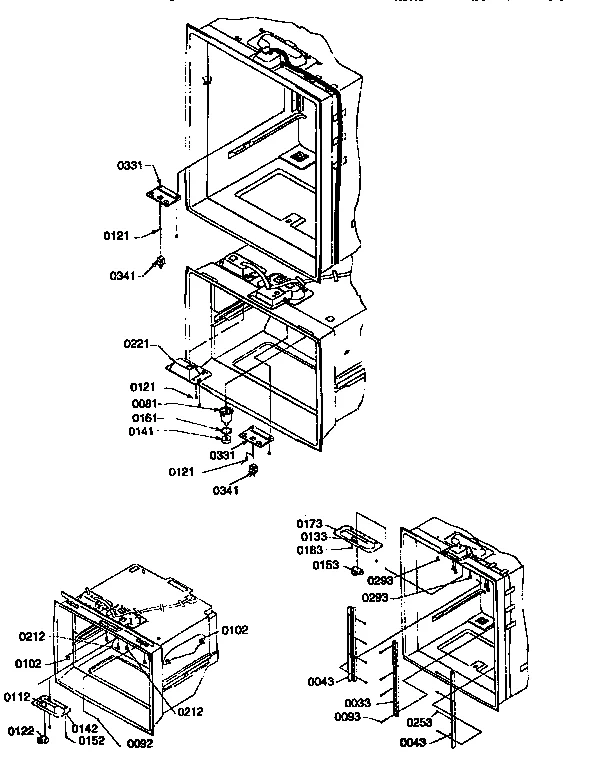

LIGHT SWITCHES AND DRAIN FUNNEL

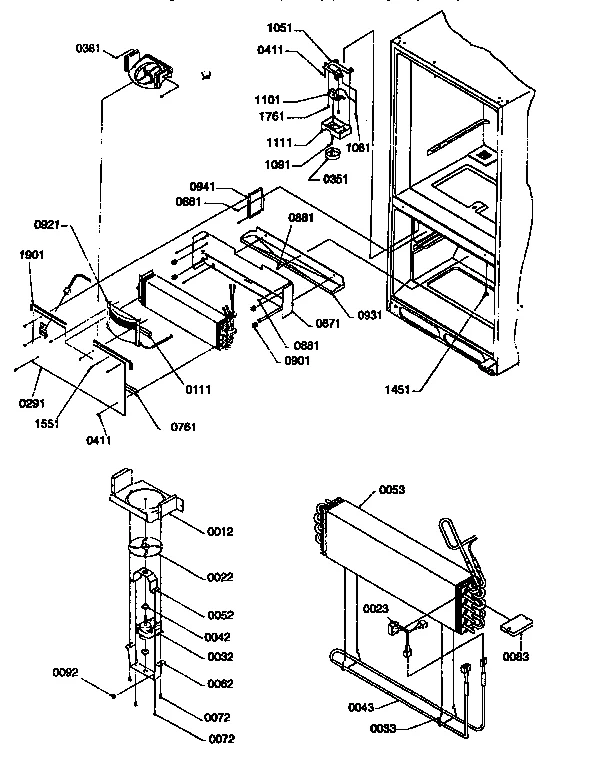

EVAPORATOR AND FREEZER CONTROL

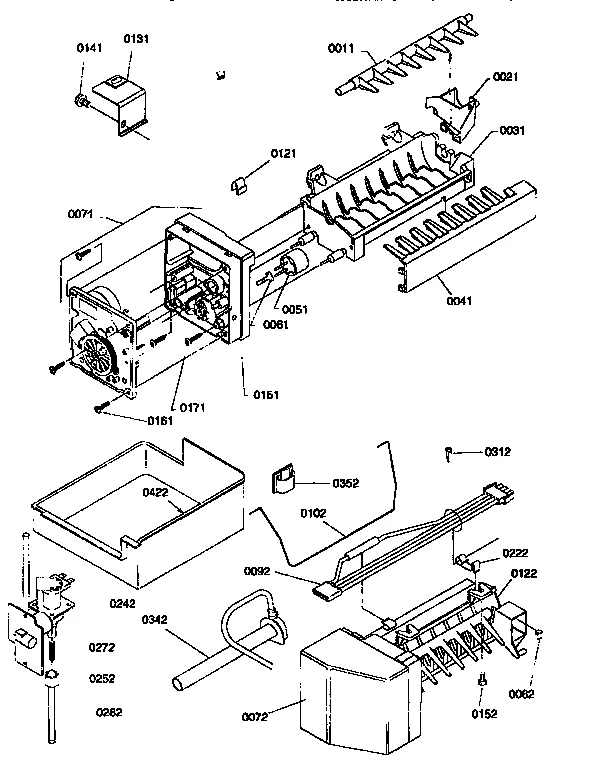

ICE MAKER ASSEMBLY AND PART

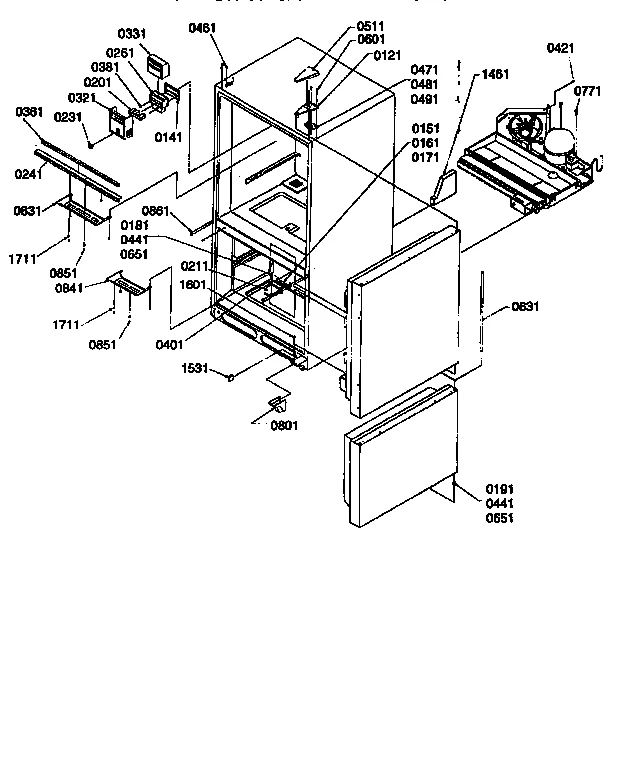

CONTROLS AND LIGHT COVERS

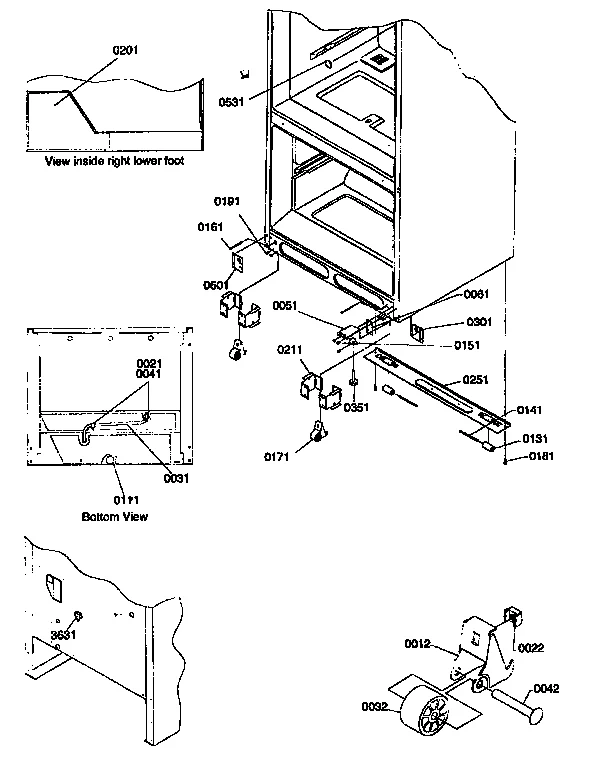

INSULATION AND ROLLER ASSEMBLY
All Parts

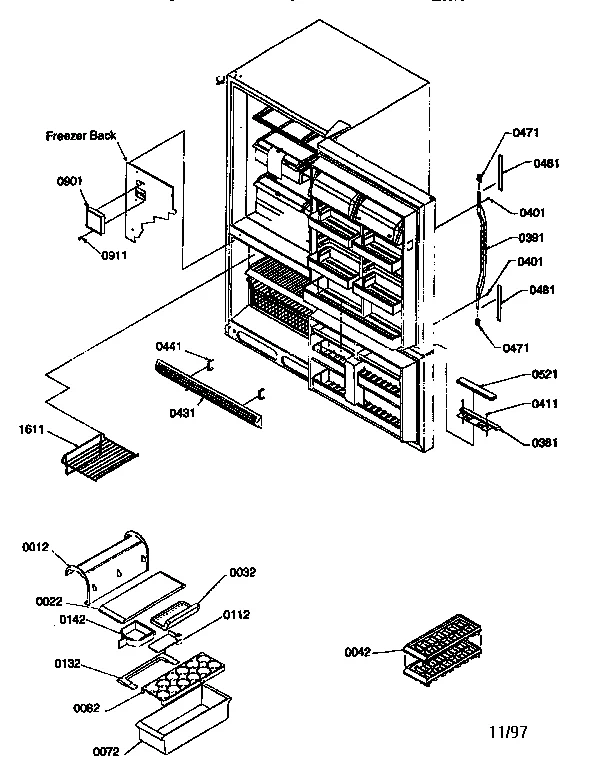

DOOR HANDLES AND ACCESSORIES

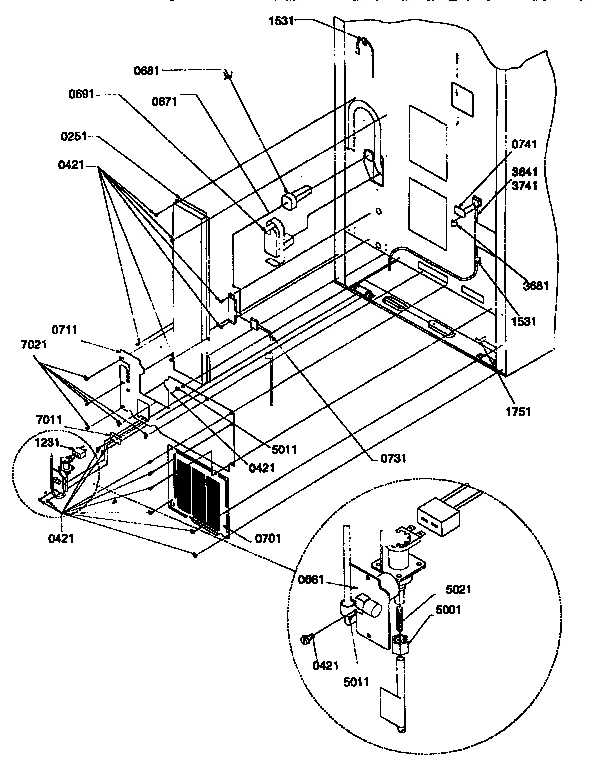

CABINET BACK

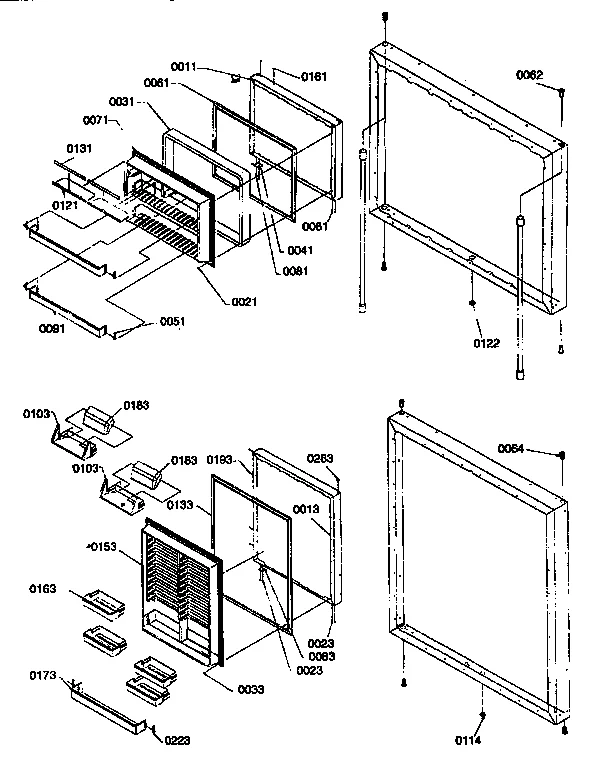

DOOR ASSEMBLIES
Common parts from model Whirlpool 596.77277790 22" Bottom-Mount Refrigerator (Kenmore 59677277790)
11
Refrigerator Freezer Door WPL 10537403L Contact Us For Availability
12
Refrigerator Shroud WPL 10619304 Contact Us For Availability
12
Refrigerator Bracket WPL 10514801 Contact Us For Availability
12
Refrigerator Rack WPL 10448902 Contact Us For Availability
13
Foam Asm WPL 12258303L Contact Us For Availability
21
Screw WPL M0219730 Contact Us For Availability
22
Refrigerator Fan Shroud WPL 10426910 Contact Us For Availability
22
Refrigerator Lid WPL 10436404 Contact Us For Availability
32
Pan Condenser WPL 10481210 Contact Us For Availability
32
Refrigerator Butter Tray WPL 10310901 Contact Us For Availability
33
Refrigerator Ladder WPL D7599002 Contact Us For Availability
41
Clamp WPL M0102303 Contact Us For Availability
41
Refrigerator Stop WPL 10447107 Contact Us For Availability
42
Refrigerator Rivet WPL M1205302 Contact Us For Availability
43
Extrusion Fr WPL 10450323 Contact Us For Availability
43
Refrigerator Ladder WPL D7599105 Contact Us For Availability
44
Refrigerator Glass Shelf WPL 12216703 Contact Us For Availability
51
Refrigerator Hinge WPL 10825302 Contact Us For Availability
51
Refrigerator Clip WPL 10202001 Contact Us For Availability
52
Refrigerator Bracket WPL 10492801 Contact Us For Availability
53
Refrigerator Sleeve WPL 10437304 Contact Us For Availability
53
Low-side WPL R0170059 Contact Us For Availability
54
Refrigerator Frame WPL 12120204 Contact Us For Availability
61
Refrigerator Glide WPL 12120404 Contact Us For Availability
61
Refrigerator Shim WPL 10447903 Contact Us For Availability
62
Refrigerator Fan Blade WPL B5742604 Contact Us For Availability
62
Refrigerator Bracket WPL 10492701 Contact Us For Availability
62
Clip WPL B5720301 Contact Us For Availability
63
Refrigerator Rail WPL 10681401 Contact Us For Availability
64
Refrigerator Glide WPL 12120302 Contact Us For Availability
64
Refrigerator Door Bushing WPL 10961001 Contact Us For Availability
71
Refrigerator Freezer Drive Liner WPL 10462201 Contact Us For Availability
72
Refrigerator Bin WPL 10423127 Contact Us For Availability
74
Refrigerator Glide WPL 10436819 Contact Us For Availability
82
Refrigerator Egg Tray WPL 10436504 Contact Us For Availability
83
Refrigerator Block WPL 10519101 Contact Us For Availability
91
Refrigerator Retainer WPL 10419009 Contact Us For Availability
92
Plug (White) WPL M0310701 Contact Us For Availability
92
Ground Clip WPL B5733302 Contact Us For Availability
93
Refrigerator Slide WPL 10588201 Contact Us For Availability
93
Refrigerator Screw WPL M0231426 Contact Us For Availability
94
Shelf Stop WPL 10875101 Contact Us For Availability
103
Band Control WPL 10513503 Contact Us For Availability
103
Dairy Shelf WPL 10182702 Contact Us For Availability
111
Refrigerator Gasket WPL B5759611 Contact Us For Availability
112
Refrigerator Overload WPL 10377015 Contact Us For Availability
112
Refrigerator Snugger WPL 10467501 Contact Us For Availability
113
Refrigerator Glide WPL 10485501 Contact Us For Availability
114
Refrigerator Plug WPL M0310338 Contact Us For Availability
121
Refrigerator Hinge WPL 12077305 Contact Us For Availability
121
Refrigerator Shelf WPL 10513601 Contact Us For Availability
122
Refrigerator Socket WPL C8973405 Contact Us For Availability
123
Refrigerator Glide WPL 10485601 Contact Us For Availability
131
Refrigerator Roller WPL 10450701 Contact Us For Availability
131
Refrigerator Bracket WPL B8391802 Contact Us For Availability
131
Refrigerator Extrusion WPL 10304107 Contact Us For Availability
132
Refrigerator Retainer WPL 10468001 Contact Us For Availability
133
Refrigerator Meat Pan WPL 10417013 Contact Us For Availability
141
Refrigerator Damper Gasket WPL B8345401 Contact Us For Availability
141
Refrigerator Axle WPL 10450901 Contact Us For Availability
142
Refrigerator Terminal Cover WPL 10757301 Contact Us For Availability
142
Refrigerator Housing WPL D7760102 Contact Us For Availability
142
Refrigerator Hugger WPL 10441101 Contact Us For Availability
143
Refrigerator Glass WPL 12216702 Contact Us For Availability
151
Refrigerator Shim WPL 10562204 Contact Us For Availability
152
Refrigerator Bracket WPL 10582501 Contact Us For Availability
153
Refrigerator Socket WPL 12156201 Contact Us For Availability
153
Refrigerator Drive Liner WPL 10462101 Contact Us For Availability
161
Refrigerator Screw WPL R0186041 Contact Us For Availability
161
Refrigerator Shim WPL 10562205 Contact Us For Availability
161
Refrigerator Plug WPL M0310730 Contact Us For Availability
161
Refrigerator Screw WPL M0204338 Contact Us For Availability
163
Refrigerator Door Shelf WPL 10183012 Contact Us For Availability
171
Refrigerator Screw WPL R0186040 Contact Us For Availability
171
Refrigerator Shim WPL 10562206 Contact Us For Availability
171
Refrigerator Roller Bracket WPL 10476101 Contact Us For Availability
173
Refrigerator Roller WPL 10481001 Contact Us For Availability
173
Housing-re WPL D7716409 Contact Us For Availability
173
Refrigerator Door Shelf WPL 10183115 Contact Us For Availability
181
Refrigerator Screw WPL M0260242 Contact Us For Availability
182
Refrigerator Harness WPL 10949301 Contact Us For Availability
183
Refrigerator Dairy Door WPL 10422608 Contact Us For Availability
201
Refrigerator Insert Control WPL C8902601 Contact Us For Availability
201
Refrigerator Insulation WPL 10663001 Contact Us For Availability
203
Refrigerator Extrusion WPL 10502501 Contact Us For Availability
211
Refrigerator Hinge WPL 10433511 Contact Us For Availability
211
Refrigerator Housing WPL 10427204 Contact Us For Availability
212
Refrigerator Grommet Screw WPL M0581001 Contact Us For Availability
213
Refrigerator Grommet WPL 10501901 Contact Us For Availability
221
Refrigerator Housing WPL 10649702 Contact Us For Availability
222
Refrigerator Clamp WPL 10526701 Contact Us For Availability
223
Refrigerator Tunnel WPL 10486401 Contact Us For Availability
231
Knob, White WPL D7795826 Contact Us For Availability
241
Refrigerator Light Shield WPL D7288117 Contact Us For Availability
242
Refrigerator Screw WPL M0223803 Contact Us For Availability
243
Refrigerator Foam Gasket WPL A3189356 Contact Us For Availability
251
Refrigerator Cabinet WPL 10427112 Contact Us For Availability
251
Refrigerator Cover WPL 10502303 Contact Us For Availability
253
Refrigerator Slide Spacer WPL 12019302 Contact Us For Availability
261
Refrigerator Damper Control WPL D7547409 Contact Us For Availability
263
Refrigerator Plug WPL 10686402 Contact Us For Availability
272
Refrigerator Gasket WPL 10442702 Contact Us For Availability
281
Refrigerator Freezer Basket WPL 10513401 Contact Us For Availability
282
Refrigerator Clip WPL B5667304 Contact Us For Availability
282
Refrigerator Tube WPL B5705325 Contact Us For Availability
291
Refrigerator Cover WPL 10485406 Contact Us For Availability
292
Refrigerator Drain Pan WPL 10427402 Contact Us For Availability
301
Refrigerator Plate WPL 10567205 Contact Us For Availability
312
Refrigerator Shield WPL 10266402 Contact Us For Availability
321
Refrigerator Cover WPL D7687525 Contact Us For Availability
322
Refrigerator Bracket WPL 10503201 Contact Us For Availability
331
Refrigerator Cover WPL D7297603 Contact Us For Availability
331
Insulation Damper WPL D7687701 Contact Us For Availability
332
Refrigerator Cover WPL 10503101 Contact Us For Availability
351
Refrigerator Knob WPL D7689905 Contact Us For Availability
352
Refrigerator Screw WPL M0218118 Contact Us For Availability
361
Gasket WPL A3030328 Contact Us For Availability
372
Washer WPL 10542701 Contact Us For Availability
381
Handle-l F WPL 12285402 Contact Us For Availability
391
Refrigerator Handle WPL 12272802 Contact Us For Availability
421
Refrigerator Screw WPL M0227217 Contact Us For Availability
431
Refrigerator Grille WPL 10474805 Contact Us For Availability
441
Clip Grill WPL 10551502 Contact Us For Availability
461
Refrigerator Plug (Almond) WPL M0310716 Contact Us For Availability
471
Refrigerator Shim WPL 10451301 Contact Us For Availability
471
Refrigerator Trim WPL 12273401 Contact Us For Availability
481
Refrigerator Shim WPL 10451302 Contact Us For Availability
481
Refrigerator Trim WPL 12273508 Contact Us For Availability
491
Refrigerator Shim WPL 10451303 Contact Us For Availability
511
Refrigerator Hinge Cover WPL 10444806 Contact Us For Availability
521
Refrigerator Plug WPL B8362504 Contact Us For Availability
521
Refrigerator Cap WPL 12285502 Contact Us For Availability
531
Refrigerator Plug WPL M0310342 Contact Us For Availability
542
Refrigerator Crisper Pan WPL 10432008 Contact Us For Availability
601
Refrigerator Plate WPL 10567206 Contact Us For Availability
631
Refrigerator Support WPL 10391302 Contact Us For Availability
651
Refrigerator Shim WPL M0274058 Contact Us For Availability
681
Refrigerator Grommet WPL 10699301 Contact Us For Availability
691
Refrigerator Plug WPL 10428001 Contact Us For Availability
701
Refrigerator Cover WPL 12039806 Contact Us For Availability
711
Refrigerator Back WPL 12041828 Contact Us For Availability
731
Refrigerator Power Cord WPL 10916502 Contact Us For Availability
761
Refrigerator Gasket WPL A3189320 Contact Us For Availability
771
Refrigerator Compressor Mounting Screw WPL M0221523 Contact Us For Availability
801
Refrigerator Hinge Cover WPL 10462705 Contact Us For Availability
831
Refrigerator Cover WPL 10493202 Contact Us For Availability
841
Cover-fz L WPL 10493302 Contact Us For Availability
851
Refrigerator Screw WPL M0238846 Contact Us For Availability
871
Evaporator Shield WPL 10427716 Contact Us For Availability
901
Refrigerator Clip WPL 10623002 Contact Us For Availability
911
Refrigerator Handle WPL 10508503 Contact Us For Availability
921
Refrigerator Grille WPL 10502401 Contact Us For Availability
931
Refrigerator Drip Tray WPL 10486102 Contact Us For Availability
941
Refrigerator Duct WPL 10638601 Contact Us For Availability
1051
Refrigerator Bracket WPL 10649801 Contact Us For Availability
1081
Screw WPL M0253916 Contact Us For Availability
1091
Refrigerator Screw WPL M0216531 Contact Us For Availability
1111
Refrigerator Cover WPL D7878818 Contact Us For Availability
1141
Speed Clamp WPL M0103904 Contact Us For Availability
1151
Refrigerator Clip WPL 10547001 Contact Us For Availability
1201
Refrigerator Shelf Wire WPL 12288501 Contact Us For Availability
1231
Refrigerator Harness WPL 10525901 Contact Us For Availability
1302
Refrigerator Frame WPL 10485901 Contact Us For Availability
1312
Refrigerator Frame WPL 10485902 Contact Us For Availability
1322
Refrigerator Glass WPL 12216701 Contact Us For Availability
1332
Refrigerator Band WPL 10514002 Contact Us For Availability
1342
Refrigerator Trim WPL 10530322 Contact Us For Availability
1352
Refrigerator Trim WPL 10530323 Contact Us For Availability
1372
Refrigerator Slide WPL 10797501 Contact Us For Availability
1451
Refrigerator Button Plug WPL M0310308 Contact Us For Availability
1461
Refrigerator Insulation WPL 10663002 Contact Us For Availability
1551
Refrigerator Plug WPL M0310305 Contact Us For Availability
1611
Ice Rack WPL 10972002 Contact Us For Availability
1711
Washer WPL M0270538 Contact Us For Availability
1731
Refrigerator Screw WPL M0232317 Contact Us For Availability
1751
Refrigerator Clip WPL B5720303 Contact Us For Availability
1901
Refrigerator Gasket WPL A3030353 Contact Us For Availability
5011
Refrigerator Tube Clamp WPL M0108001 Contact Us For Availability
5021
Spring WPL A1055101 Contact Us For Availability
7011
Refrigerator Water Valve WPL 12047201 Contact Us For Availability
7021
Refrigerator Screw WPL M0219704 Contact Us For Availability
NI
Refrigerator Button Plug WPL M0311301 Contact Us For Availability
NI
Refrigerator Parts List WPL 10075012 Contact Us For Availability
NI
Refrigerator Technical Sheet WPL 10096811 Contact Us For Availability
NI
Refrigerator Installation Instructions WPL 10527010 Contact Us For Availability
NI
Refrigerator Label WPL 10549601 Contact Us For Availability
NI
Icemaker Lab WPL 10834701 Contact Us For Availability
NI
Refrigerator Owner's Manual WPL 10937011 Contact Us For Availability
NI
Refrigerator Installation Instructions WPL 12123305 Contact Us For Availability
NI
Labelwarrant WPL A3036901 Contact Us For Availability
NI
Plug WPL A3124301 Contact Us For Availability
× ![]()
Login and Registration Form
