Model Whirlpool 596.70002001 20" Bottom-Mount Refrigerator (Kenmore 59670002001) – Common Parts & Diagrams
MACHINE COMPARTMENT

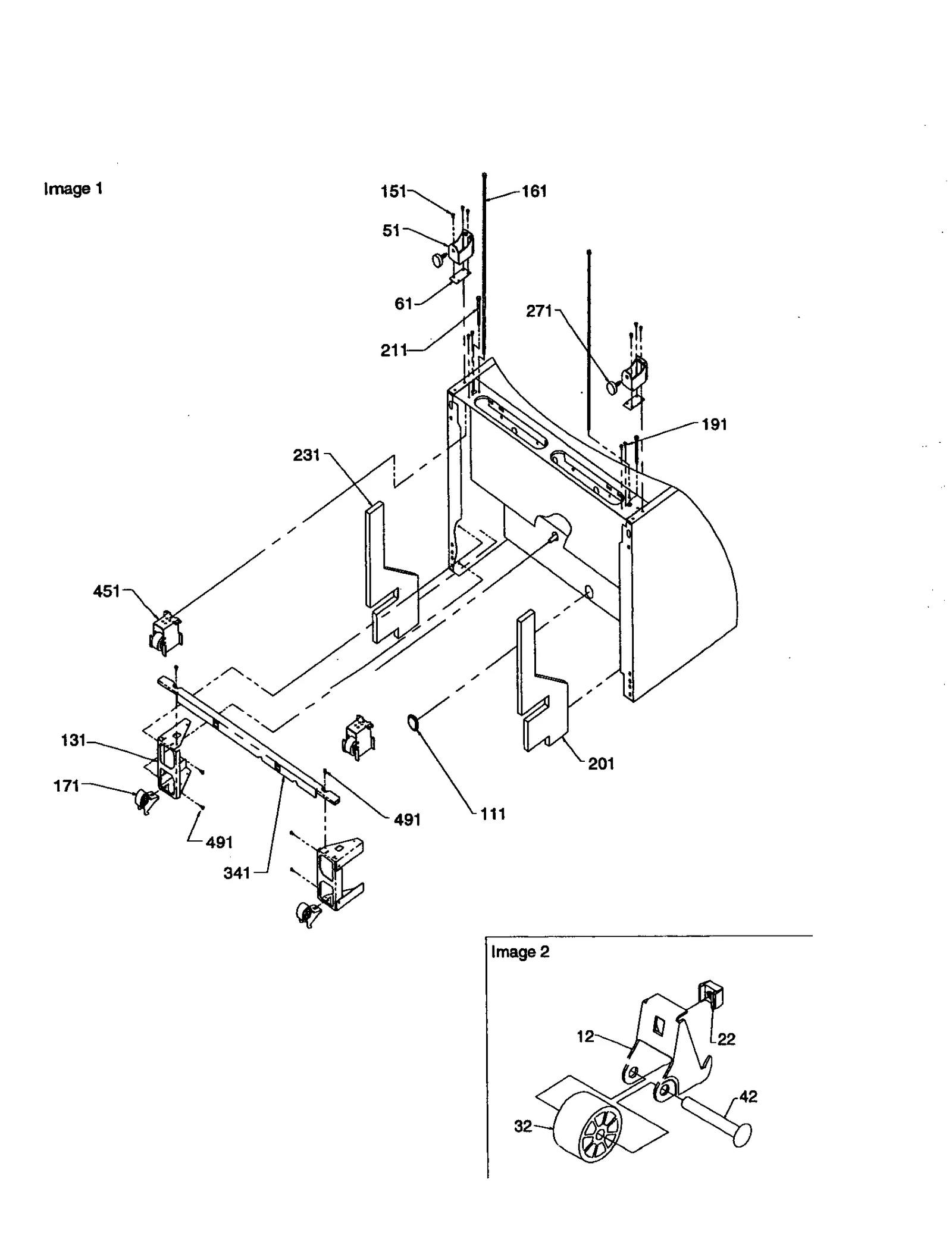

BOTTOM HINGES AND ROLLERS

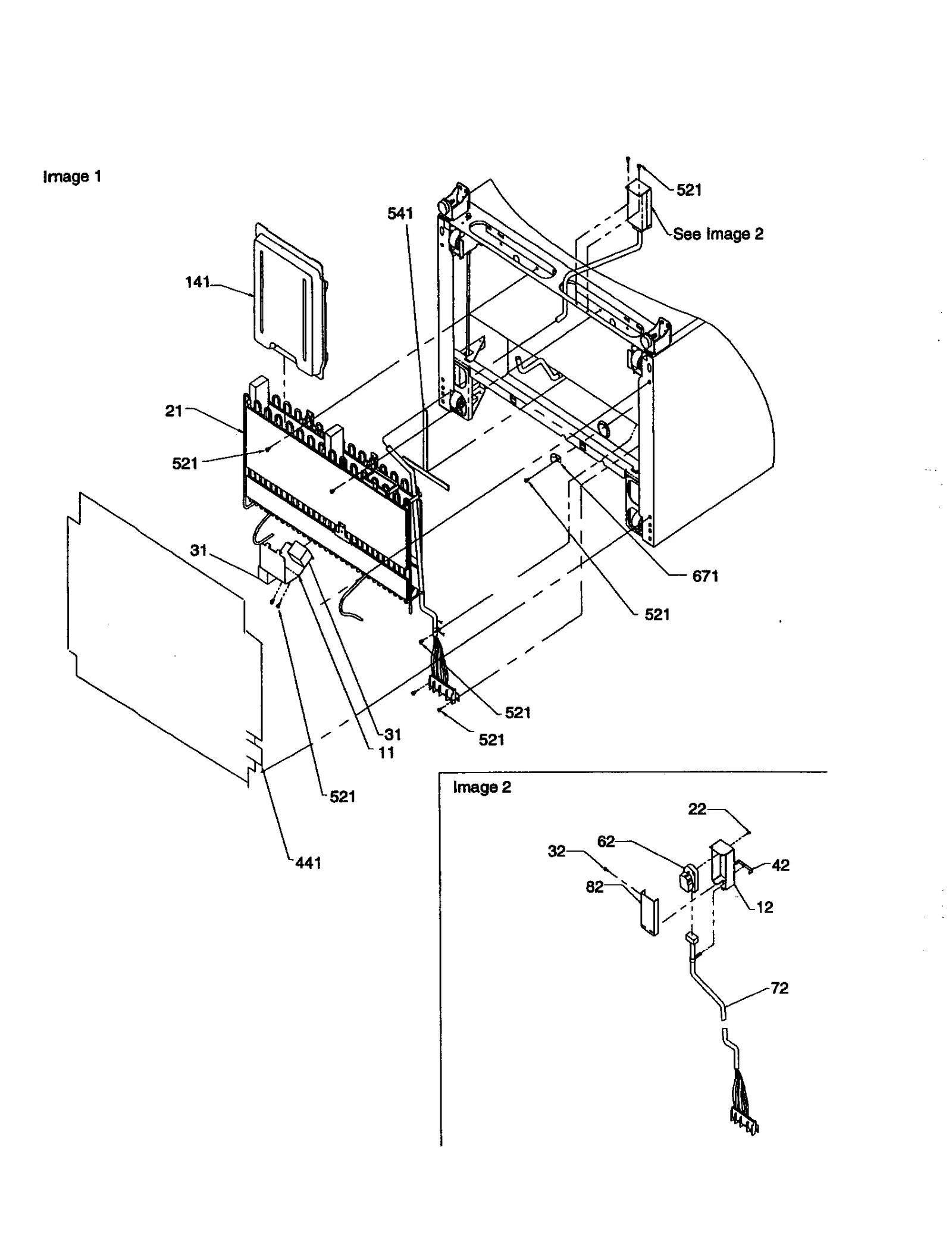

CONDENSER ASSEMBLY

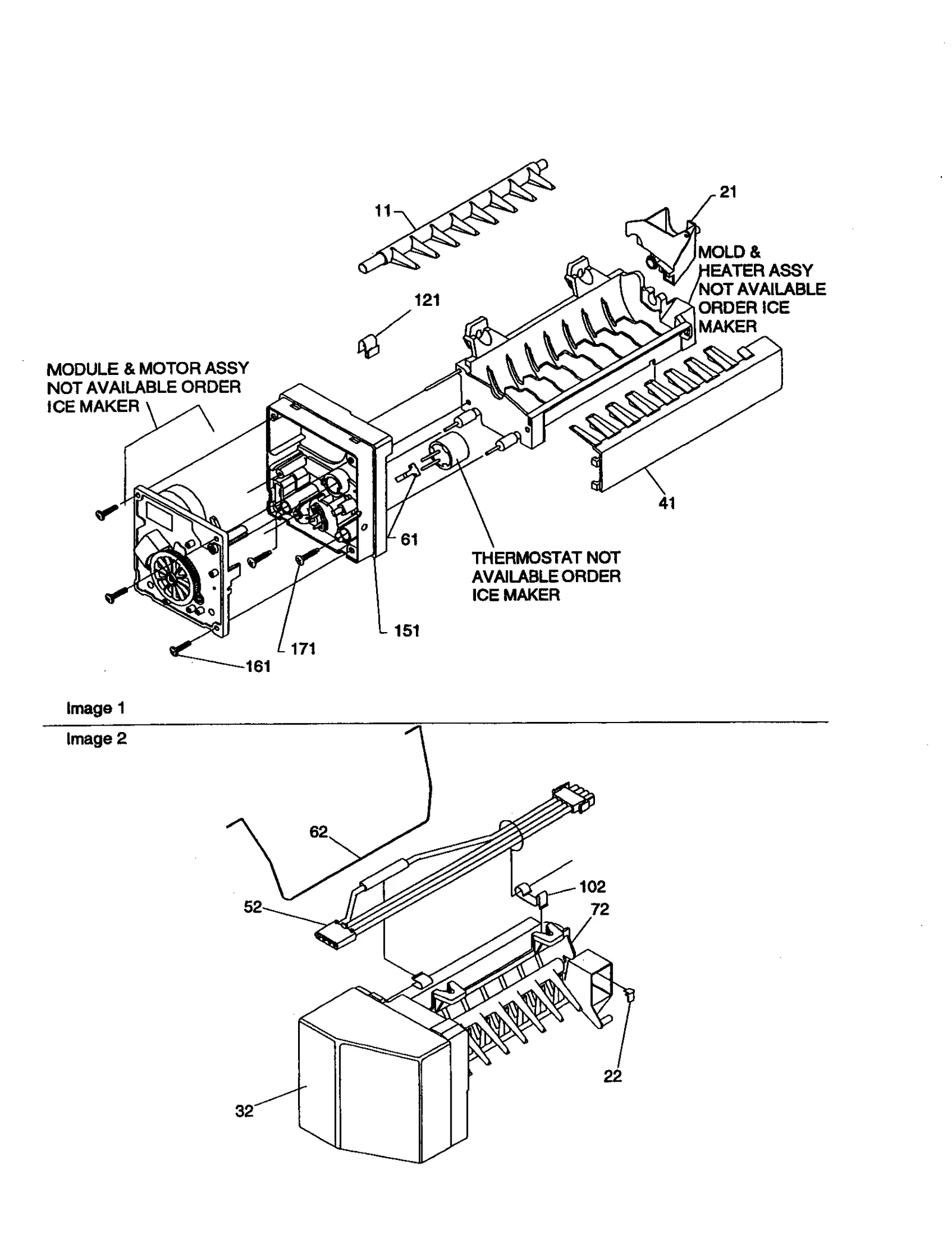

ICE MAKER ASSEMBLY

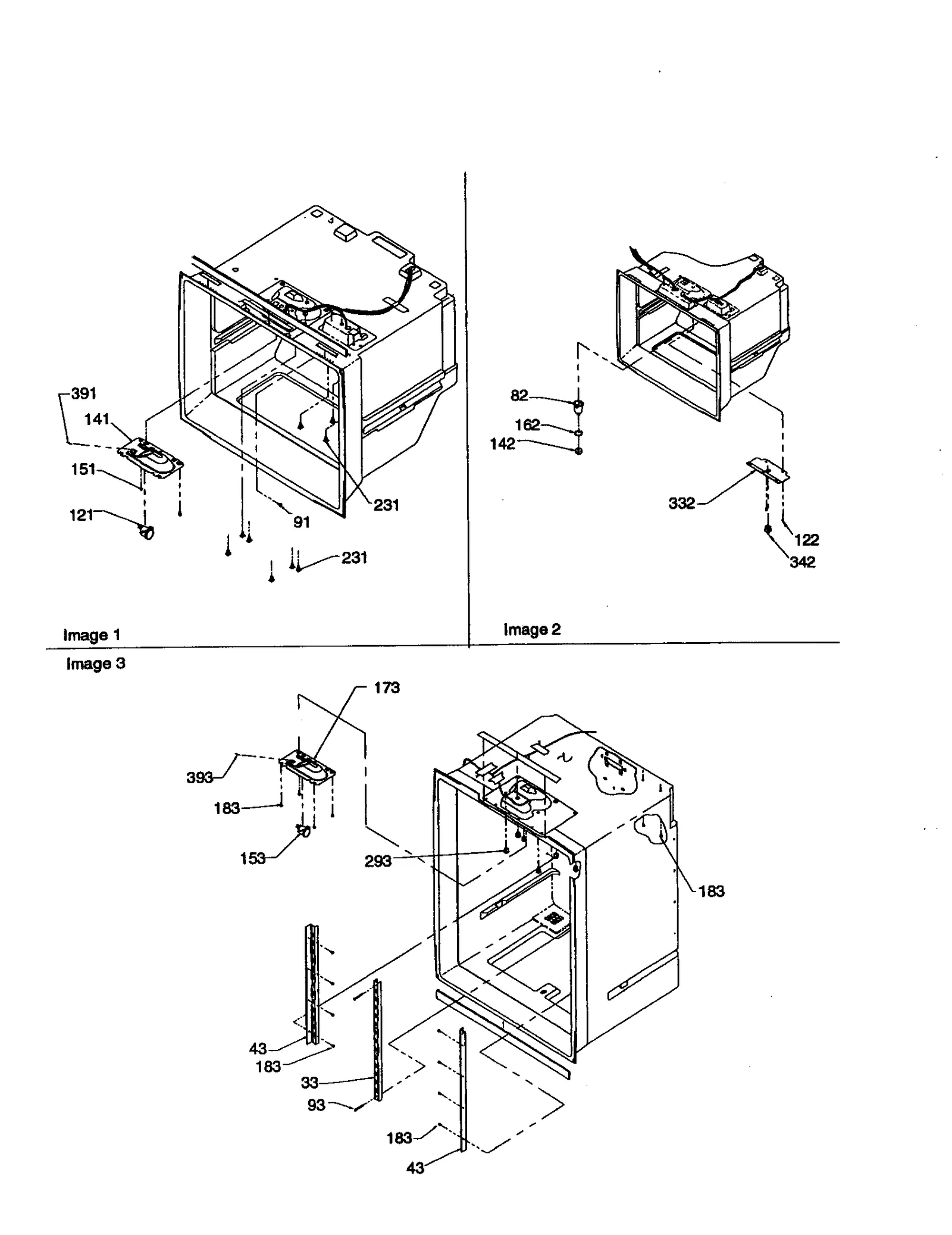

SHELF LADDERS AND LIGHT ASSEMBLY

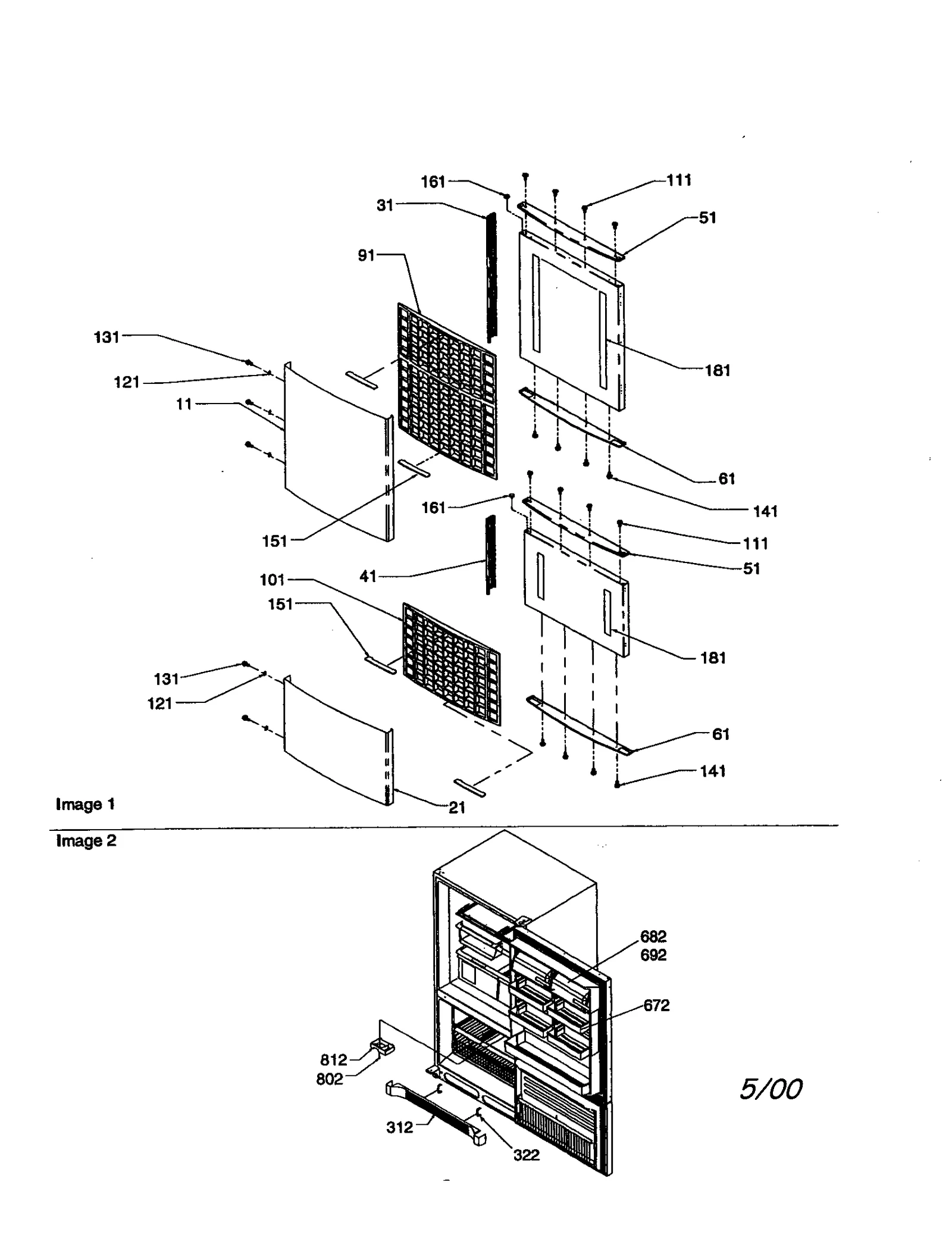

DOOR PANEL AND GRILLE

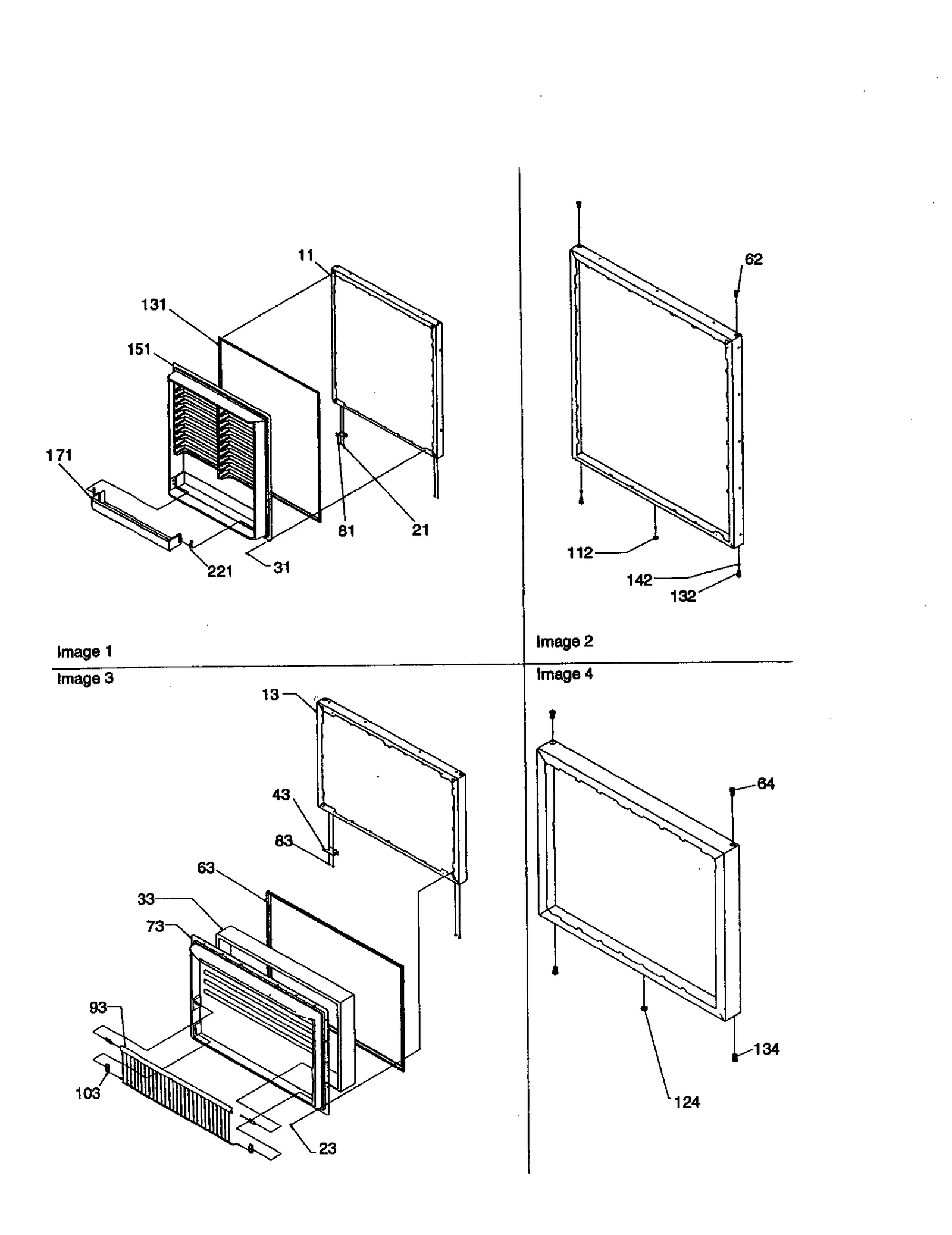

DOOR ASSEMBLY

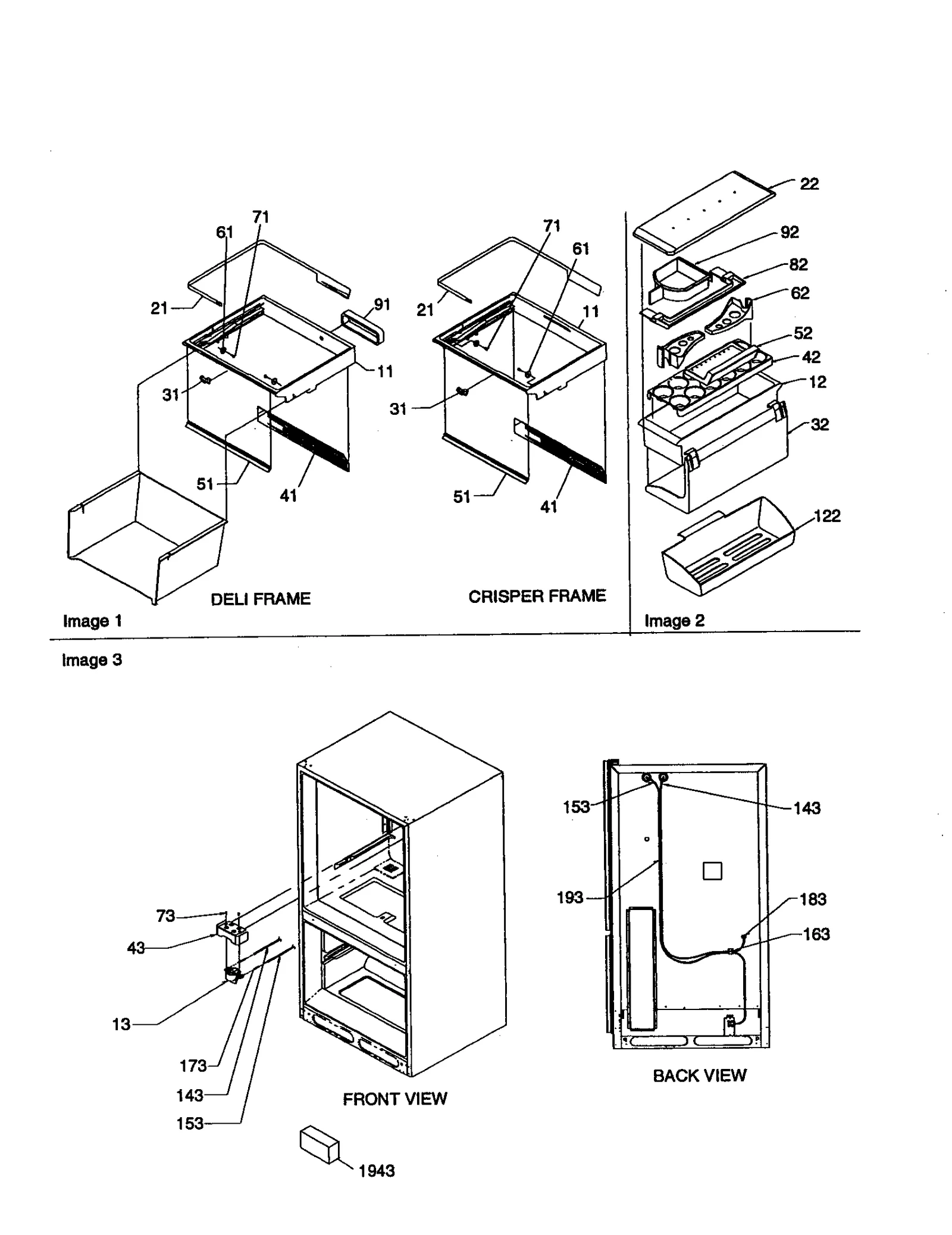

CRIPSER, DELI FRAME/WATER FITER

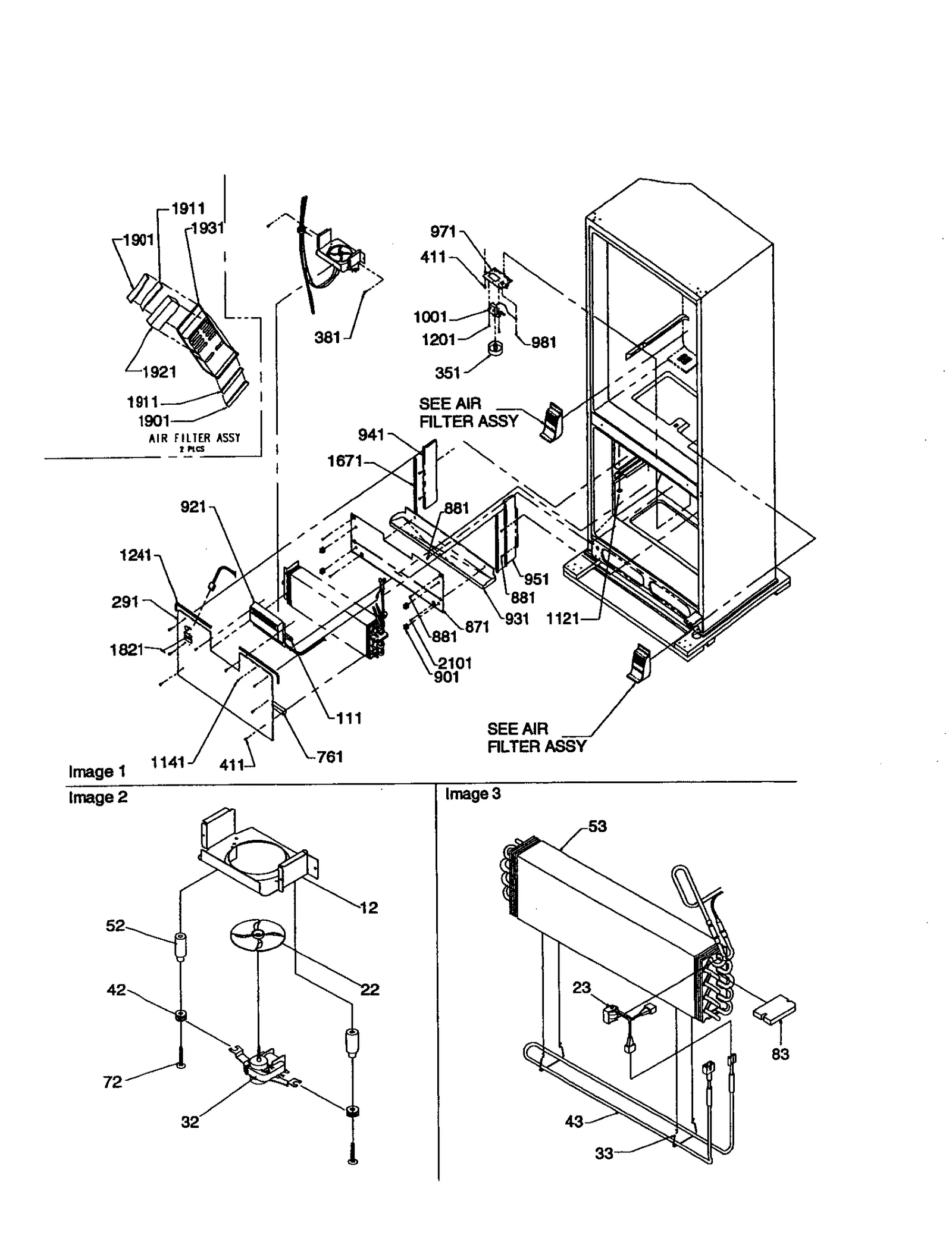

EVAPORATOR AREA

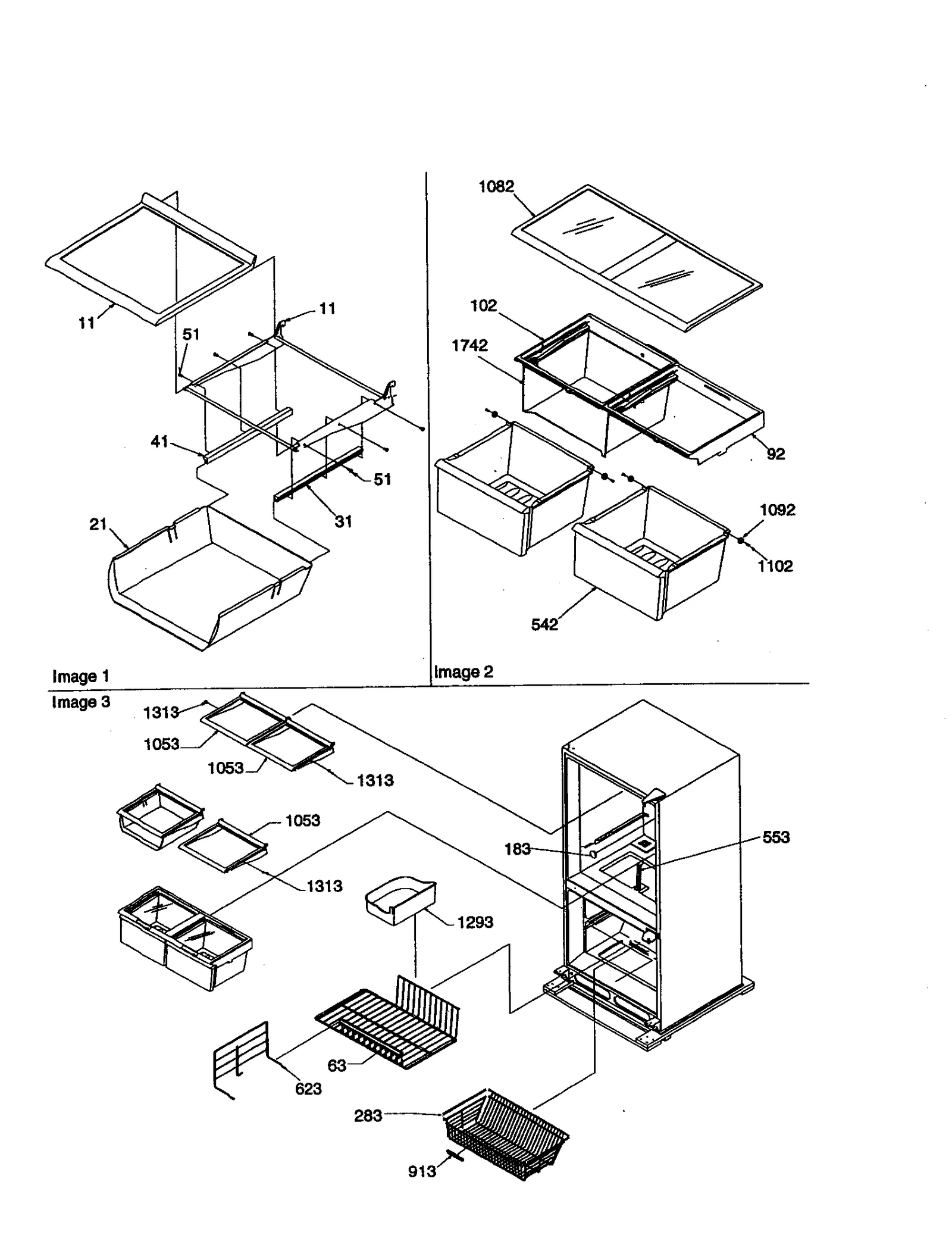

SHELVING

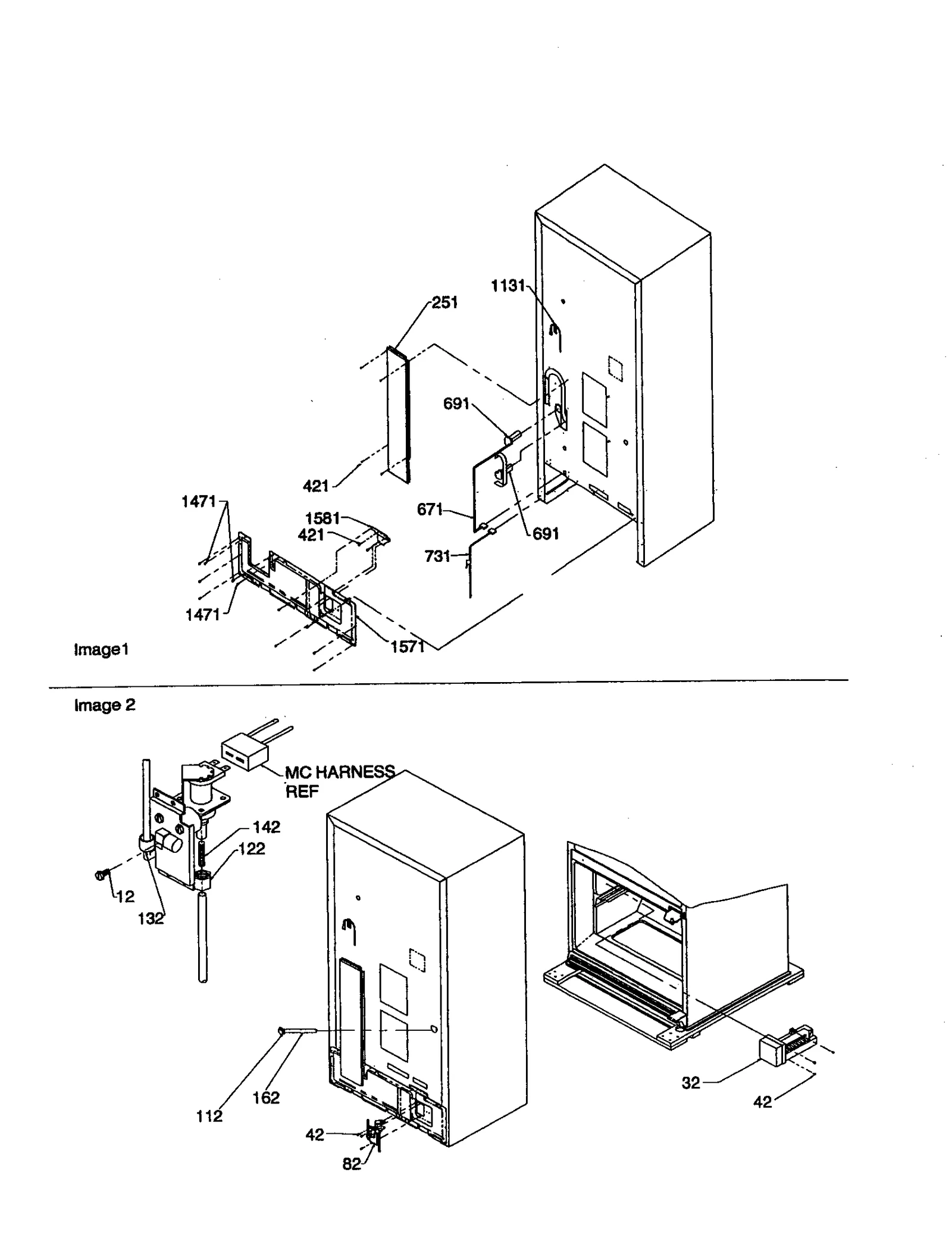

CABINET BACK/WATER VALVE ASSEMBLY

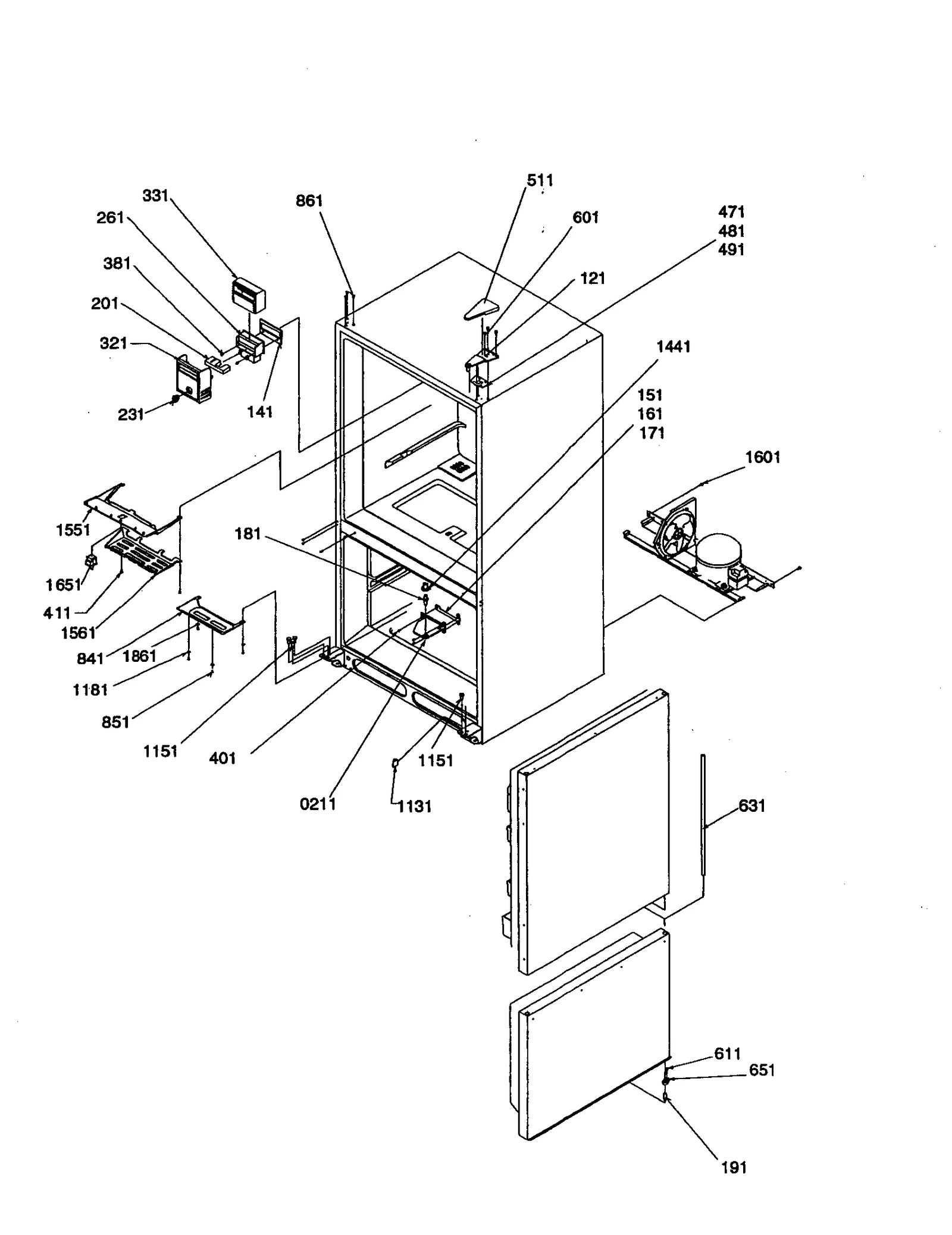

CONTROL, HINGES AND SHIELDS
All Parts
Common parts from model Whirlpool 596.70002001 20" Bottom-Mount Refrigerator (Kenmore 59670002001)
11
Refrigerator Coil WPL 12088605 Contact Us For Availability
11
Refrigerator Door Outer Panel WPL 12481107 Contact Us For Availability
11
Refrigerator Foam WPL 12082505C Contact Us For Availability
11
Refrigerator Crisper Frame WPL 12031902 Contact Us For Availability
11
Refrigerator Shelf WPL 12024802 Contact Us For Availability
11A
Out Door Panel WPL 12481102 Contact Us For Availability
11A
Refrigerator Door WPL 12082505E Contact Us For Availability
11A
Refrigerator Frame WPL 12031901 Contact Us For Availability
11B
Stainless Steel Door Panel WPL 12481103 Contact Us For Availability
11B
Refrigerator Door Foam WPL 12082505G Contact Us For Availability
11C
Refrigerator Pan WPL 12481101 Contact Us For Availability
11C
Refrigerator Door WPL 12082505W Contact Us For Availability
12
Refrigerator Bracket WPL 10514801 Contact Us For Availability
12
Refrigerator Bracket WPL 12482203 Contact Us For Availability
12
Refrigerator Bin WPL 10423127 Contact Us For Availability
12
EVAP FAN SHROUD-E CT (P1325001WC) WPL 10619308 Contact Us For Availability
13
Refrigerator Door Foam WPL 12081705C Contact Us For Availability
13A
Refrigerator Freezer Door WPL 12081705E Contact Us For Availability
13B
Refrigerator Door Foam WPL 12081705G Contact Us For Availability
13C
Refrigerator Freezer Door WPL 12081705W Contact Us For Availability
21
Refrigerator Condenser WPL 12443603 Contact Us For Availability
21
Fs Cntour Pn WPL 12481108 Contact Us For Availability
21
Band Crisper WPL 12059502 Contact Us For Availability
21
Refrigerator Tray WPL 12046001 Contact Us For Availability
21A
Pnl/e Cont. WPL 12481105 Contact Us For Availability
21A
Band-ref D WPL 12059501 Contact Us For Availability
21B
Fz Pan-ss WPL 12481106 Contact Us For Availability
21C
Refrigerator Pan WPL 12481104 Contact Us For Availability
22
Refrigerator Screw WPL M0216705 Contact Us For Availability
22
Refrigerator Clip WPL B5720302 Contact Us For Availability
22
Refrigerator Lid WPL 10436404 Contact Us For Availability
23
Screw WPL M0219730 Contact Us For Availability
31
Refrigerator Gasket WPL A3030363 Contact Us For Availability
31
Refrigerator Door Handle WPL 12500701C Contact Us For Availability
31
Refrigerator Slide WPL 12051201 Contact Us For Availability
31
Glide Part WPL 12046101 Contact Us For Availability
31A
Refrigerator Door Handle WPL 12500701B Contact Us For Availability
31B
Refrigerator Door Handle WPL 12500701E Contact Us For Availability
31C
Refrigerator Handle WPL 12500701G Contact Us For Availability
31D
Refrigerator Door Handle WPL 12500701W Contact Us For Availability
32
Refrigerator Rack WPL 10448902 Contact Us For Availability
33
Refrigerator Ladder WPL 12435801 Contact Us For Availability
41
Refrigerator Door Handle WPL 12500702B Contact Us For Availability
41
Insert-ban WPL 12050801 Contact Us For Availability
41
Glide Part WPL 12046102 Contact Us For Availability
41A
Dz Dr Hndl WPL 12500702C Contact Us For Availability
41C
Refrigerator Freezer Handle WPL 12500702E Contact Us For Availability
41D
Refrigerator Door Handle WPL 12500702W Contact Us For Availability
42
Refrigerator Rivet WPL M1205302 Contact Us For Availability
42
Refrigerator Gasket WPL A3189336 Contact Us For Availability
42
Refrigerator Egg Tray WPL 10436504 Contact Us For Availability
42
Refrigerator Grommet WPL 12442501 Contact Us For Availability
43
Refrigerator Ladder WPL 12435701 Contact Us For Availability
43
Refrigerator Door Stop WPL 12051015 Contact Us For Availability
43
Refrigerator Cover WPL 12445402 Contact Us For Availability
43
Refrigerator Evaporator Heater WPL 10991104 Contact Us For Availability
43A
Stop-e Lw WPL 12051009 Contact Us For Availability
43B
Refrigerator Door Stop WPL 12051013 Contact Us For Availability
51
Refrigerator Freezer Door Cap WPL 12481304 Contact Us For Availability
51
Crisper Seal WPL 10968802 Contact Us For Availability
51A
Refrigerator Hinge WPL 12050707 Contact Us For Availability
51A
Top Dr Cap B WPL 12481302 Contact Us For Availability
51B
Refrigerator Hinge WPL 12050706 Contact Us For Availability
51B
Refrigerator Door Cap WPL 12481303 Contact Us For Availability
51C
Cap-w Dr Key WPL 12481301 Contact Us For Availability
52
Refrigerator Butter Tray WPL 10310901 Contact Us For Availability
52
Refrigerator Post WPL 12442401 Contact Us For Availability
53
Low Side WPL R0170047 Contact Us For Availability
61
Refrigerator Shim WPL 10447903 Contact Us For Availability
61
Bisqie Cap WPL 12481404 Contact Us For Availability
61A
Cap-e Btm Dr WPL 12481402 Contact Us For Availability
61B
Refrigerator Cap WPL 12481403 Contact Us For Availability
61C
Refrigerator Cap WPL 12481401 Contact Us For Availability
62
Bushing Do WPL 10961002 Contact Us For Availability
62
Refrigerator Snugger WPL 12103905 Contact Us For Availability
62A
Refrigerator Door Bushing WPL 10961001 Contact Us For Availability
63
Refrigerator Freezer Shelf WPL 12204705 Contact Us For Availability
63A
Refrigerator Door Gasket WPL 12529005 Contact Us For Availability
64
Refrigerator Bushing (Black) WPL C8964402 Contact Us For Availability
72
Harness, Mac WPL 12509501 Contact Us For Availability
72
Refrigerator Screw WPL M0219711 Contact Us For Availability
73
Refrigerator Inner Panel WPL 12031501 Contact Us For Availability
82
Refrigerator Enclosure WPL 12482101 Contact Us For Availability
82
Refrigerator Retainer WPL 10468004 Contact Us For Availability
83
Block Evaporator WPL 12141901 Contact Us For Availability
91
Refrigerator Spacer WPL 12500402 Contact Us For Availability
91
Seal-ref D WPL 12079801 Contact Us For Availability
92
Refrigerator Hugger WPL 10441102 Contact Us For Availability
92
Refrigerator Crisper Frame WPL 12079906Q Contact Us For Availability
93
Refrigerator Screw WPL M0231426 Contact Us For Availability
93
Retainer-p WPL 12051601 Contact Us For Availability
101
Refrigerator Spacer WPL 12500401 Contact Us For Availability
102
Refrigerator Clamp WPL 10526701 Contact Us For Availability
102
Refrigerator Frame WPL 12079905Q Contact Us For Availability
103
Glide-fz D WPL 12051501 Contact Us For Availability
111
SCREW-B SM (P1321305WE) WPL M02294544 Contact Us For Availability
111
Refrigerator Gasket WPL B5759611 Contact Us For Availability
111A
Refrigerator Screw WPL M0229557 Contact Us For Availability
111C
Refrigerator Screw WPL M0229531 Contact Us For Availability
112
Refrigerator Plug Button (Black) WPL M0310336 Contact Us For Availability
121
Refrigerator Socket WPL D7714408 Contact Us For Availability
121
Refrigerator Clip WPL 12315101 Contact Us For Availability
121
Refrigerator Hinge WPL 12077317 Contact Us For Availability
122
Crisper Tray WPL 12045801 Contact Us For Availability
131
Refrigerator Bracket WPL 12039102 Contact Us For Availability
131
GASKET-B REF DR (P1321305WE, P1321305WG) WPL 12529006 Contact Us For Availability
131A
GASKET-W REF DR (P1321305WC, P1321305WW) WPL 12529004 Contact Us For Availability
132
Refrigerator Bushing WPL 12028602 Contact Us For Availability
132A
Bushing-w WPL 12028601 Contact Us For Availability
134
Refrigerator Door WPL 12050104 Contact Us For Availability
134A
Closure-w WPL 12050103 Contact Us For Availability
141
Refrigerator Pan WPL 12045303 Contact Us For Availability
141
Refrigerator Housing WPL 12427502 Contact Us For Availability
141
Refrigerator Damper Gasket WPL B8345401 Contact Us For Availability
142
Bus Filter WPL 10252903 Contact Us For Availability
142
Spring WPL A1055101 Contact Us For Availability
143
Refrigerator Water Line WPL 12319003 Contact Us For Availability
151
Refrigerator Support WPL 12510101 Contact Us For Availability
151
Refrigerator Inner Panel WPL 12031401 Contact Us For Availability
151
Refrigerator Shim WPL 10562201 Contact Us For Availability
153
Refrigerator Water Line WPL 12319002 Contact Us For Availability
161
Refrigerator Screw WPL 10093308 Contact Us For Availability
161
Refrigerator Screw WPL R0186041 Contact Us For Availability
161
Refrigerator Plug WPL 12098905 Contact Us For Availability
161
Refrigerator Shim WPL 10562202 Contact Us For Availability
161A
Plug-e Tri WPL 12098904 Contact Us For Availability
161B
Refrigerator Plug WPL 12098901 Contact Us For Availability
161C
Plug-w Tri WPL 12098902 Contact Us For Availability
163
Refrigerator Clip WPL M0104102 Contact Us For Availability
171
Refrigerator Roller WPL 10476101Q Contact Us For Availability
171
Refrigerator Screw WPL R0186040 Contact Us For Availability
171
Refrigerator Retainer WPL 10609807 Contact Us For Availability
171
Refrigerator Shim WPL 10562203 Contact Us For Availability
181
Refrigerator Tape WPL R0195044 Contact Us For Availability
181
Refrigerator Pin WPL 10351002 Contact Us For Availability
183
Refrigerator Plug WPL M0310342 Contact Us For Availability
191
Refrigerator Hinge Pin WPL 10561602 Contact Us For Availability
193
Refrigerator Cover WPL 12505202 Contact Us For Availability
201
Insul-r Fo WPL 10987526 Contact Us For Availability
201
Refrigerator Insert Control WPL C8902601 Contact Us For Availability
211
Refrigerator Screw WPL M0204336 Contact Us For Availability
211
Refrigerator Hinge WPL 12446512 Contact Us For Availability
211A
Refrigerator Hinge WPL 12446511 Contact Us For Availability
221
Refrigerator Clip WPL 10202001 Contact Us For Availability
231
Insul-l Fo WPL 10987525 Contact Us For Availability
231
Refrigerator Grommet Screw WPL M0581001 Contact Us For Availability
231
Knob, White WPL D7795826 Contact Us For Availability
242
Refrigerator Screw WPL M0223816 Contact Us For Availability
251
Refrigerator Cover WPL 12050903 Contact Us For Availability
261
Refrigerator Damper Control WPL R0161050 Contact Us For Availability
262
Refrigerator Frame WPL 12152901 Contact Us For Availability
283
Refrigerator Freezer Basket WPL 12433801 Contact Us For Availability
291
EVAP COVER-PNT WPL 12032204 Contact Us For Availability
302
Refrigerator Compressor Mounting Screw WPL M0221523 Contact Us For Availability
312
Refrigerator Toe Grille WPL 12045105 Contact Us For Availability
312A
Grille-e/t WPL 12045103 Contact Us For Availability
312B
Refrigerator Toe Grille WPL 12045104 Contact Us For Availability
312C
Grille-w/t WPL 12045101 Contact Us For Availability
321
Refrigerator Cover WPL 12045402 Contact Us For Availability
322
Clip Grill WPL 10551502 Contact Us For Availability
331
Insulation Damper WPL 12060101 Contact Us For Availability
332
Cover-fz L WPL 12056101 Contact Us For Availability
341
Complete Rail WPL 12038901 Contact Us For Availability
351
Refrigerator Knob WPL D7689905 Contact Us For Availability
391
Ground Clip WPL B5733302 Contact Us For Availability
421
Refrigerator Screw WPL M0227217 Contact Us For Availability
422
Refrigerator Strap WPL 12468101 Contact Us For Availability
441
Refrigerator Cover WPL 12098203 Contact Us For Availability
451
Refrigerator Roller Bracket WPL 12452601Q Contact Us For Availability
471
Refrigerator Hinge Shim WPL 10448504 Contact Us For Availability
481
Refrigerator Hinge Shim WPL 10448505 Contact Us For Availability
491
Shimto Hinge WPL 10448506 Contact Us For Availability
511
Refrigerator Hinge Cover WPL 12076305 Contact Us For Availability
511A
Refrigerator Hinge Cover WPL 12076301 Contact Us For Availability
511B
Refrigerator Hinge Cover WPL 12076304 Contact Us For Availability
511C
W Hinge Cov WPL 12076302 Contact Us For Availability
541
Refrigerator Gasket WPL B5759642 Contact Us For Availability
542
Refrigerator Crisper Pan WPL 12032003 Contact Us For Availability
623
Refrigerator Divider WPL D7806002 Contact Us For Availability
631
Refrigerator Support WPL 10391302 Contact Us For Availability
651
Closure WPL 12113302 Contact Us For Availability
651A
Door Close WPL 12113301 Contact Us For Availability
671
Refrigerator Clamp WPL M0102305 Contact Us For Availability
671
HARNESS-CONTRL WPL 12484602 Contact Us For Availability
672
Refrigerator Door Shelf WPL 10420008 Contact Us For Availability
682
Refrigerator Dairy Door WPL 12163301 Contact Us For Availability
691
Plug-tunne WPL 12060601 Contact Us For Availability
692
Refrigerator Shelf WPL 12163202 Contact Us For Availability
731
CORD-POWER WPL 12036301 Contact Us For Availability
761
Refrigerator Gasket WPL A3189320 Contact Us For Availability
802
Refrigerator Screw WPL M0216531 Contact Us For Availability
812
Refrigerator Cover WPL D7878824 Contact Us For Availability
841
Cover-fz L WPL 10493302 Contact Us For Availability
851
Refrigerator Screw WPL M0238846 Contact Us For Availability
861
Refrigerator Button Plug WPL M0310738 Contact Us For Availability
861A
Refrigerator Plug WPL M0310731 Contact Us For Availability
871
Refrigerator Shield WPL 12032404 Contact Us For Availability
901
Refrigerator Clip WPL 10623002 Contact Us For Availability
913
Refrigerator Handle WPL 10508511 Contact Us For Availability
921
Refrigerator Grille WPL 10502401 Contact Us For Availability
931
Refrigerator Drip Tray WPL 12031804 Contact Us For Availability
941
Dam-rtn Ai WPL 12059702 Contact Us For Availability
951
Dam-rtn Ai WPL 12059701 Contact Us For Availability
971
Refrigerator Bracket WPL 12271401 Contact Us For Availability
981
Screw WPL M0253916 Contact Us For Availability
1031
Speed Clamp WPL M0103904 Contact Us For Availability
1041
Clip-drier WPL 10547002 Contact Us For Availability
1053
Refrigerator Shelf Glide WPL 12024801 Contact Us For Availability
1082
Refrigerator Crisper Shelf WPL 12024903 Contact Us For Availability
1092
Refrigerator Roller WPL 10481001 Contact Us For Availability
1121
Refrigerator Button Plug WPL M0310308 Contact Us For Availability
1141
Refrigerator Plug WPL M0310305 Contact Us For Availability
1151
Refrigerator Button Plug WPL M0311703 Contact Us For Availability
1151A
Plug-w But WPL M0311701 Contact Us For Availability
1181
Washer WPL M0270538 Contact Us For Availability
1241
Refrigerator Gasket WPL A3030353 Contact Us For Availability
1293
Refrigerator Pan WPL 12045503 Contact Us For Availability
1313
Shelf Stop WPL 10875101 Contact Us For Availability
1441
Closur Blk WPL 12028502 Contact Us For Availability
1441A
Refrigerator Closure WPL 12028501 Contact Us For Availability
1471
Refrigerator Screw WPL M0219704 Contact Us For Availability
1551
Refrigerator Shield WPL 12056201 Contact Us For Availability
1561
Refrigerator Cover WPL 12056301 Contact Us For Availability
1571
Refrigerator Back WPL 12180003 Contact Us For Availability
1581
Refrigerator Water Valve Bracket WPL 12088401 Contact Us For Availability
1601
Refrigerator Screw WPL M0211357 Contact Us For Availability
1611
Refrigerator Clamp WPL M0102325 Contact Us For Availability
1621
Clip-mc Bo WPL 12088901 Contact Us For Availability
1671
Refrigerator Air Gasket WPL B8386604 Contact Us For Availability
1742
Sleeve-mk WPL 12045201 Contact Us For Availability
1821
Refrigerator Gasket WPL 12169701 Contact Us For Availability
1861
Washer WPL M0270508 Contact Us For Availability
1901
Velcro WPL 12467001 Contact Us For Availability
1911
Velcro WPL 12467002 Contact Us For Availability
1921
Refrigerator Air Filter WPL 12488101 Contact Us For Availability
1931
COVER-AIR FILTER (QTY 2) WPL 21481701 Contact Us For Availability
1943
Refrigerator Filter WPL 12527302 Contact Us For Availability
NI
Refrigerator Parts Manual WPL 10075048 Contact Us For Availability
NI
SHEET-TECH DATA WPL 10096843 Contact Us For Availability
NI
Refrigerator Owner's Manual WPL 10937034 Contact Us For Availability
NI
Instl-manl WPL 12123317 Contact Us For Availability
NI
Refrigerator Tunnel WPL 12481801 Contact Us For Availability
NI
Refrigerator Nameplate WPL 12489401 Contact Us For Availability
NI
Refrigerator Template WPL 12494902 Contact Us For Availability
NI
Refrigerator Nameplate WPL 12515601 Contact Us For Availability
NI
Refrigerator Nameplate WPL 12515602 Contact Us For Availability
× ![]()
Login and Registration Form
