Model Whirlpool 5892VVV ELECTRIC RANGE – Common Parts & Diagrams
04 - INTERNAL CONTROLS

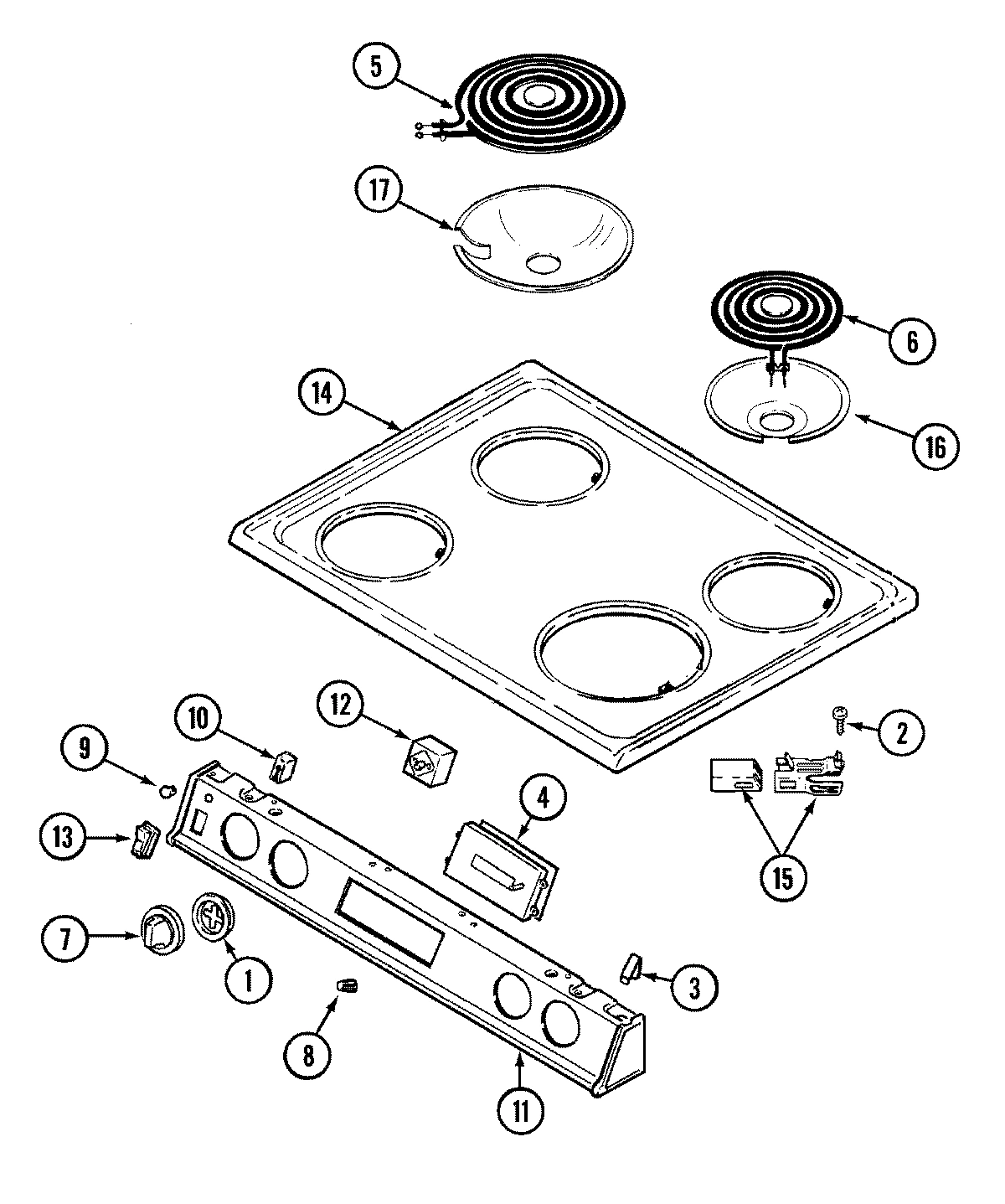

06 - TOP ASSEMBLY

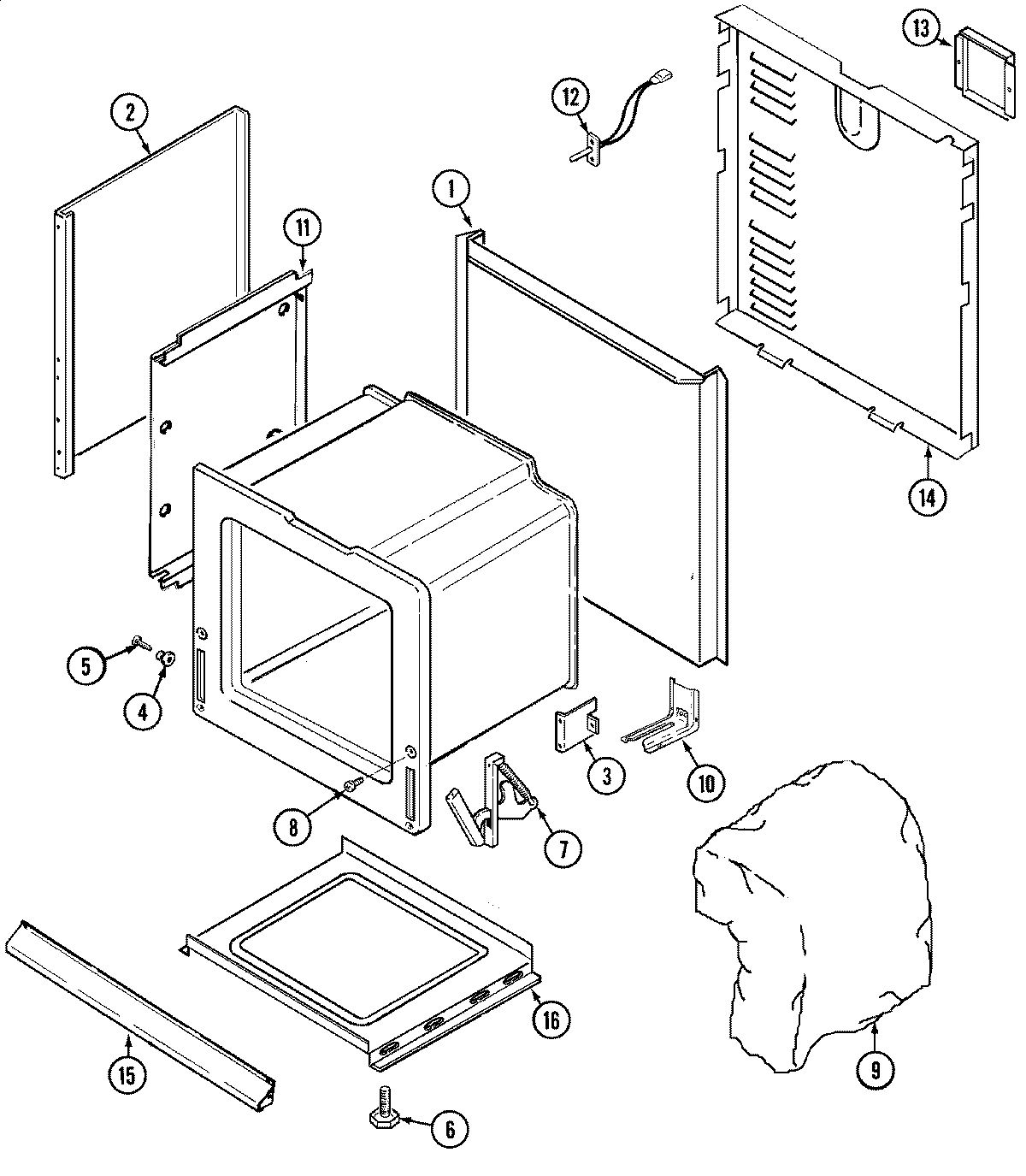

01 - BODY

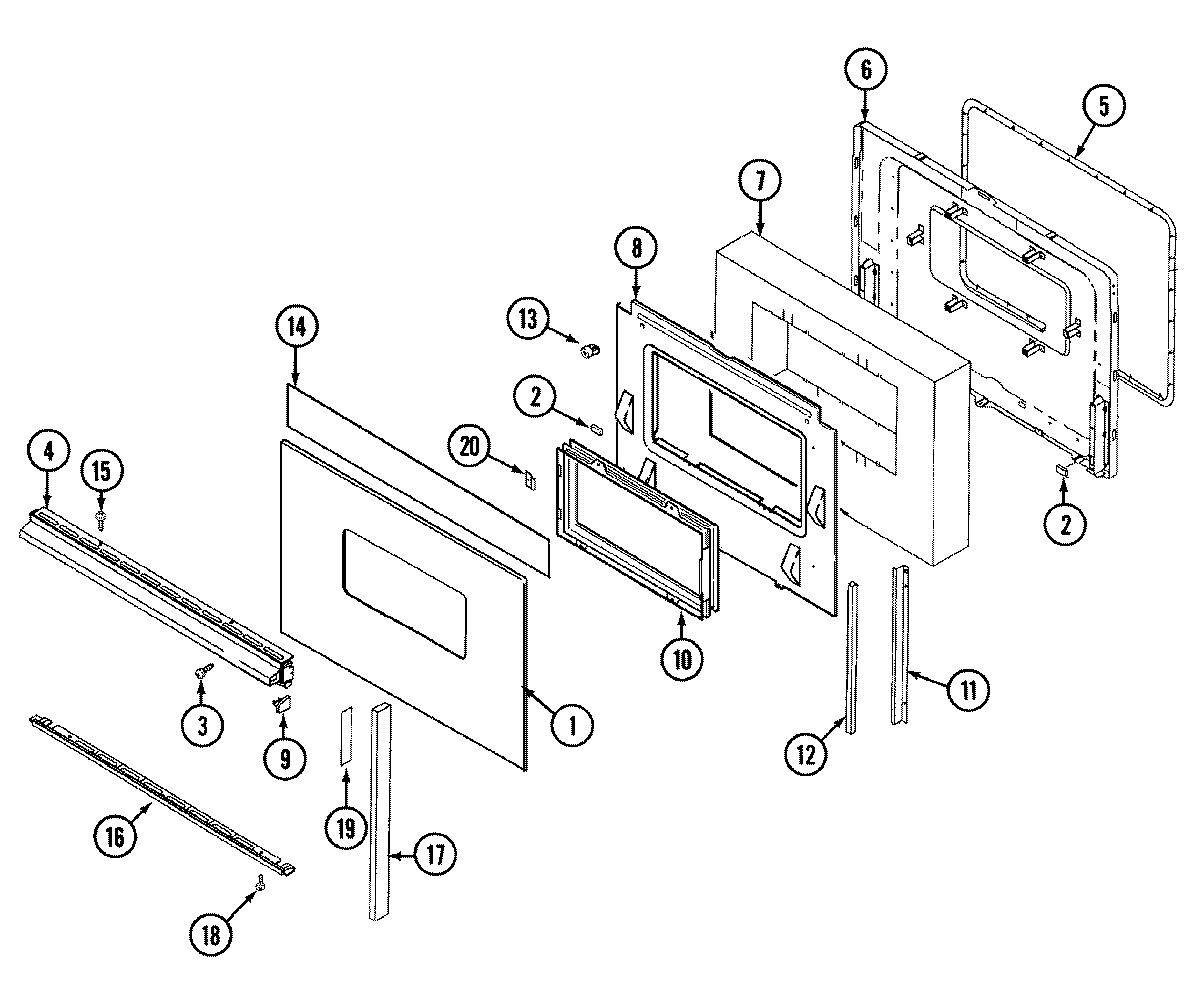

02 - DOOR

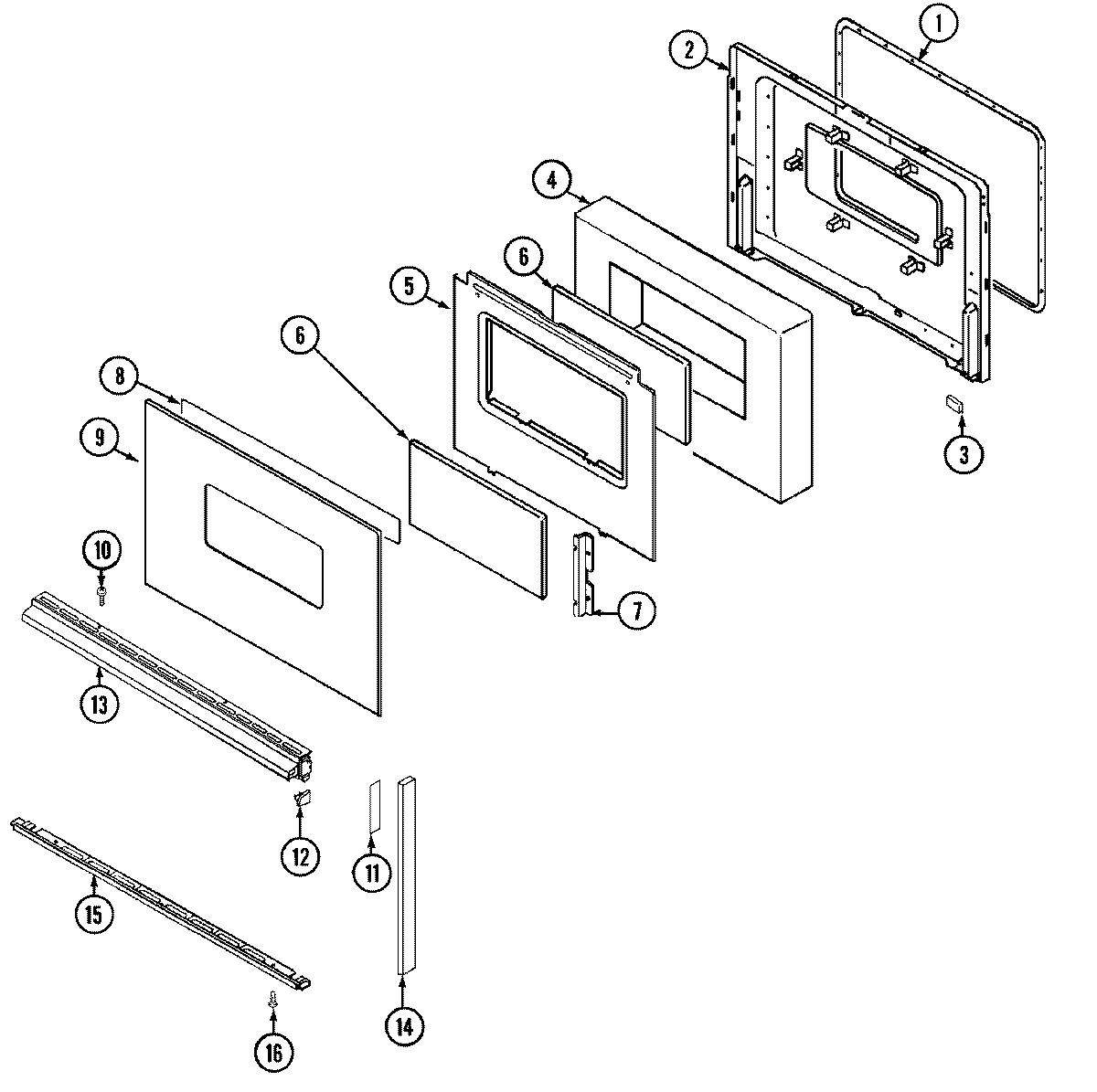

03 - DOOR (SER. PRE. 12)

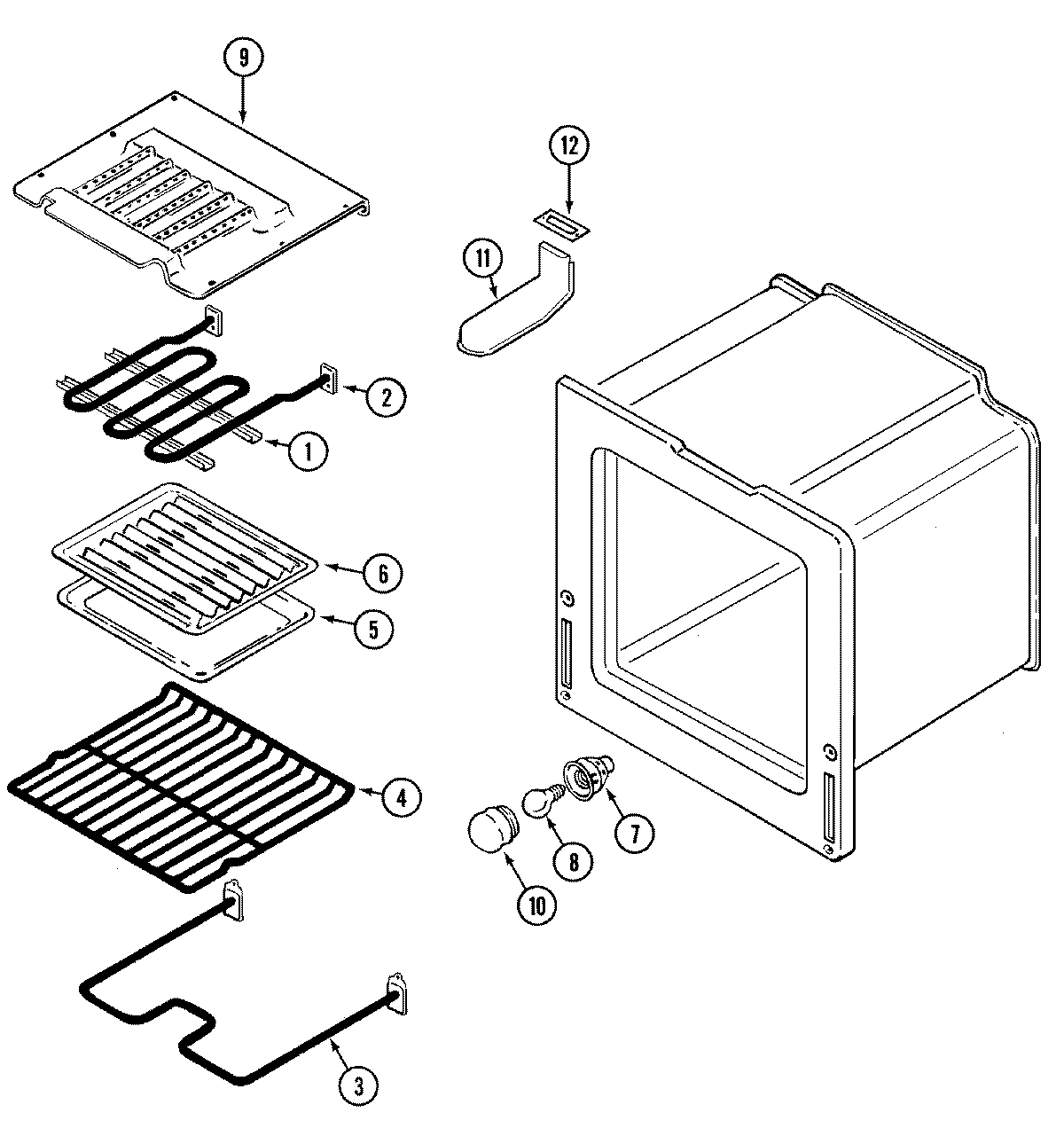

05 - OVEN

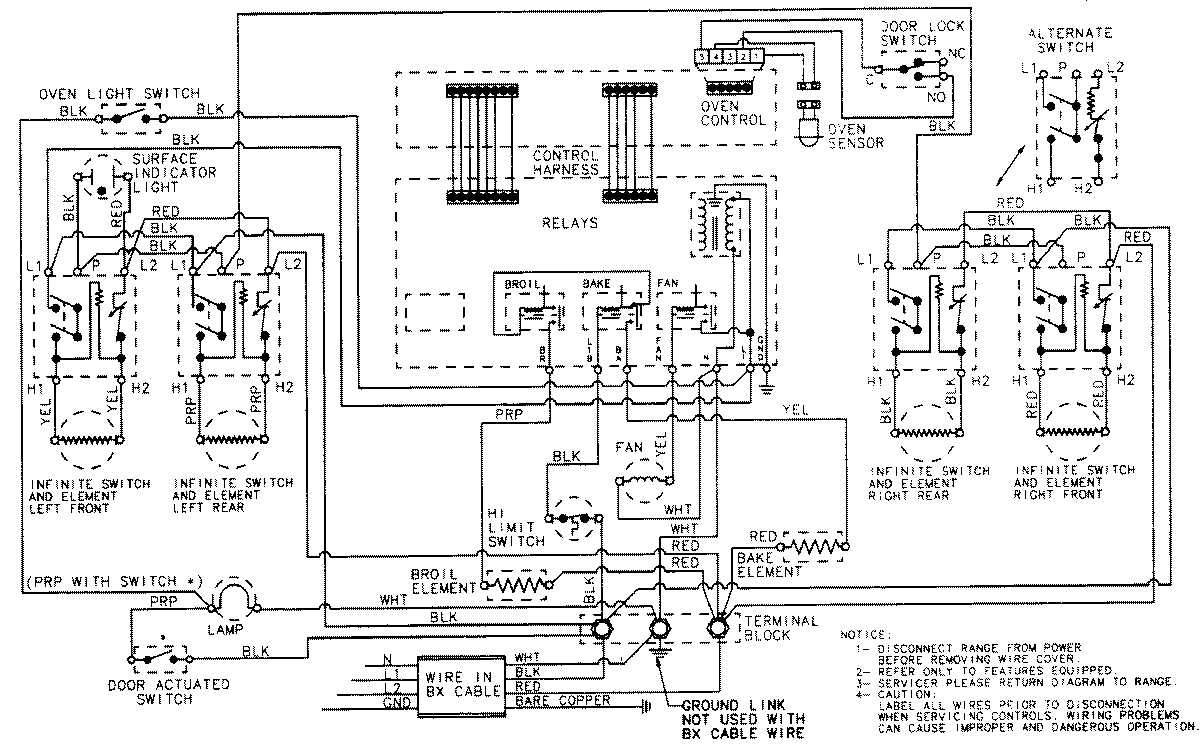

07 - WIRING INFORMATION
Common parts from model Whirlpool 5892VVV ELECTRIC RANGE
1
SHIELD INSULATION, CATCH WPL 3604F15945 Contact Us For Availability
1
INSULATION, LATCH ASSY. WPL 4804F02860 Contact Us For Availability
1
SCREW, BLACK WPL 7101P27060 Contact Us For Availability
1
SCREW W/WASHER (BLK) WPL 7101P28060 Contact Us For Availability
1
LATCH ASSY. WPL 74003032 Contact Us For Availability
1
LATCH ASSY. WPL 8002P02560 Contact Us For Availability
1
BEZEL, KNOB (WHT) WPL 7740P02360 Contact Us For Availability
1
SCREW WPL 7101P33760 Contact Us For Availability
1
BACK, MAIN WPL 74001579 Contact Us For Availability
1
GASKET, DOOR WPL 7201P04660 Contact Us For Availability
1
SUPPORT, BROIL ELEMENT WPL 3807F38745 Contact Us For Availability
1
SCREW WPL 7101P34560 Contact Us For Availability
2
SHIELD, WIRE WPL 3604F19951 Contact Us For Availability
2
STRAP, TUBE WPL 8019P00360 Contact Us For Availability
2
SCREW WPL 7101P34960 Contact Us For Availability
2
PANEL, SIDE (RT-WHT) WPL 2618F10871 Contact Us For Availability
2
PANEL, SIDE (LT-WHT) WPL 2618F10971 Contact Us For Availability
2
PANEL, SIDE (RT-WHT) WPL 74002953 Contact Us For Availability
2
PANEL, SIDE (LT-WHT) WPL 74002955 Contact Us For Availability
2
LINING, DOOR WPL 2402W20919 Contact Us For Availability
2
LINING, DOOR WPL 74003244 Contact Us For Availability
2
ELEMENT, BROIL WPL 7406P06560 Contact Us For Availability
3
SCREW WPL 7101P03160 Contact Us For Availability
3
SWITCH, DOOR LATCH WPL 7403P36360 Contact Us For Availability
3
CLIP, TOP LOCKING WPL 7112P08760 Contact Us For Availability
3
SUPPORT,OVEN REAR WPL 3807F40051 Contact Us For Availability
3
SPACER, RUBBER WPL 8010P08560 Contact Us For Availability
3
SCREW, No.10 X .5 TYA WPL 7101P27460 Contact Us For Availability
4
LEVER, LATCH (GRY) WPL 74002973 Contact Us For Availability
4
LEVER, LATCH WPL 8009P02860 Contact Us For Availability
4
SCREW WPL 7101P34660 Contact Us For Availability
4
BRACKET, CLOCK WPL 74003191 Contact Us For Availability
4
CLOCK (WHT) WPL 7601P27960 Contact Us For Availability
4
SPACER, SIDE PANEL WPL 8004P02460 Contact Us For Availability
4
INSULATION, DOOR WPL 74001842 Contact Us For Availability
4
RACK, OVEN WPL 7801P04760 Contact Us For Availability
5
SCREW, LEVER WPL 7101P23060 Contact Us For Availability
5
BOLT WPL 7116P00360 Contact Us For Availability
5
ELEMENT (8``) WPL 7406P08060 Contact Us For Availability
5
ELEMENT (8``) WPL 7406P08860 Contact Us For Availability
5
BAFFLE, DOOR WPL 74001843 Contact Us For Availability
5
PAN, BROIL WPL Y3401F02019 Contact Us For Availability
6
HANDLE, DOOR LATCH (WHT) WPL 7701P13360 Contact Us For Availability
6
ELEMENT (6``) WPL 7406P08160 Contact Us For Availability
6
ELEMENT (6``) WPL 7406P08760 Contact Us For Availability
6
LEG, LEVELING WPL 74001311 Contact Us For Availability
6
GLASS, INNER WPL 74001841 Contact Us For Availability
6
INSERT, BROIL PAN WPL Y3413F01619 Contact Us For Availability
7
NOT REQUIRED PART OR SEE NOTE WPL W10124350 Contact Us For Availability
7
CLIP, LATCH LEVER WPL 7112P11260 Contact Us For Availability
7
KNOB, SWITCH (WHT) WPL 7731P08160 Contact Us For Availability
7
HINGE WPL 7106P05660 Contact Us For Availability
7
INSULATION, DOOR WPL 7002P15560 Contact Us For Availability
7
RETAINER, GLASS WPL 74001844 Contact Us For Availability
7
RECEPTACLE, BULB WPL 74003125 Contact Us For Availability
7
RECEPTACLE, BULB WPL 7407P08860 Contact Us For Availability
8
COVER, DOOR LOCK WPL 4005F46651 Contact Us For Availability
8
KNOB, CLOCK (WHT) WPL 7711P49360 Contact Us For Availability
8
SCREW (10-24X5/16-NI) WPL 7101P28260 Contact Us For Availability
8
BAFFLE, DOOR WPL 3601F23647 Contact Us For Availability
8
TAPE, FOIL (3`` WIDE) WPL 8270P09060 Contact Us For Availability
8
BULB-OVEN WPL 7407P10360 Contact Us For Availability
9
FAN WPL 7427P01260 Contact Us For Availability
9
LENS, INDICATOR LIGHT WPL 7730P01260 Contact Us For Availability
9
INSULATION, WRAP WPL 4804F03660 Contact Us For Availability
9
INSULATION, BACK WPL 74001800 Contact Us For Availability
9
GLASS, DOOR (WHT) WPL 7902P32860 Contact Us For Availability
9
GLASS, OUTER (WHT) WPL 74003395 Contact Us For Availability
9
BAFFLE, BROIL WPL 3601F23747 Contact Us For Availability
10
BOX, BURNER WPL 4011F22380 Contact Us For Availability
10
BOX, BURNER WPL 74002685 Contact Us For Availability
10
LIGHT, INDICATOR WPL 7407P10260 Contact Us For Availability
10
BRACKET, ANTI-TIP WPL 3801F21851 Contact Us For Availability
10
SCREW WPL 7101P34460 Contact Us For Availability
10
WINDOW ASY. WPL 7907P02160 Contact Us For Availability
10
SCREW (1/2``-WHT) WPL 7101P37360 Contact Us For Availability
10
COVER, BULB WPL 7724P04760 Contact Us For Availability
11
SHIELD, HEAT (LT) WPL 3604F21351 Contact Us For Availability
11
SHIELD, HEAT (RT) WPL 3604F21451 Contact Us For Availability
11
SCREW (8BX3/8-NI) WPL 7101P33860 Contact Us For Availability
11
PANEL, CONTROL (WHT)----NA WPL 74003009 Contact Us For Availability
11
PANEL, CONTROL (WHT) WPL 7722P13560 Contact Us For Availability
11
RETAINER, INSULATION (SIDE) WPL 3804F10751 Contact Us For Availability
11
SCREW WPL 7101P29060 Contact Us For Availability
11
CHANNEL, AIR WPL 3818F05280 Contact Us For Availability
11
TAPE, END CAP WPL 8270P09360 Contact Us For Availability
11
COVER, VENT WPL 4005F45351 Contact Us For Availability
11
BOX, VENT WPL 4006W11245 Contact Us For Availability
12
BRACKET WPL 3801F32751 Contact Us For Availability
12
SCREW WPL 7101P30960 Contact Us For Availability
12
SWITCH, INFINITE (SML ELEMENT) WPL 7403P23860 Contact Us For Availability
12
SWITCH, INFINITE (LRG ELEMENT) WPL 7403P23960 Contact Us For Availability
12
SENSOR, OVEN WPL 7430P01060 Contact Us For Availability
12
END CAP (RT) WPL 7744P07560 Contact Us For Availability
12
END CAP (LT) WPL 7744P07660 Contact Us For Availability
12
SEAL WPL 7208P00260 Contact Us For Availability
12
END CAP, HANDLE (RT-WHT) WPL 74002738 Contact Us For Availability
12
END CAP, HANDLE (LT-WHT) WPL 74002739 Contact Us For Availability
12
GASKET, VENT WPL 7201P06060 Contact Us For Availability
13
HOUSING, FAN WPL 4001F09851 Contact Us For Availability
13
SWITCH, ROCKER (WHT) WPL 7403P20060 Contact Us For Availability
13
COVER, ACCESS WPL 4005F41351 Contact Us For Availability
13
BLOCK, TERMINAL WPL 7401P03960 Contact Us For Availability
13
HANDLE, DOOR (WHT) WPL 7701P10560 Contact Us For Availability
13
NUT, NYLON WPL 7103P04560 Contact Us For Availability
13
HANDLE, DOOR (WHT) WPL 74001171 Contact Us For Availability
13
HANDLE, DOOR (WHT) WPL 74003396 Contact Us For Availability
14
BOARD, RELAY WPL 7428P02160 Contact Us For Availability
14
SCREW W/WASHER WPL 7101P12460 Contact Us For Availability
14
TOP ASSY. (WHT) WPL 74001248 Contact Us For Availability
14
COVER, WIRE WPL 4005F41151 Contact Us For Availability
14
END CAP, DOOR (WHT) WPL 7744P06560 Contact Us For Availability
14
END CAP, DOOR (WHT) WPL 74002342 Contact Us For Availability
14
END CAP, DOOR (WHT) WPL 74003398 Contact Us For Availability
15
SUPPORT, RELAY BOARD WPL 8004P02060 Contact Us For Availability
15
SUPPORT, RELAY WPL 8004P03260 Contact Us For Availability
15
SHIELD, LOWER VENT (WHT) WPL 3604W15571 Contact Us For Availability
15
SCREW, GROUND (GRN) WPL 7101P02760 Contact Us For Availability
15
SCREW (1/2``) WPL 7101P04060 Contact Us For Availability
15
SCREW (WHT) WPL 7101P30860 Contact Us For Availability
15
TRIM, BOTTOM (WHT) WPL 7744P10360 Contact Us For Availability
15
TRIM, DOOR (BTM-WHT)----NA WPL 74003397 Contact Us For Availability
16
DUCT, AIR WPL 3818F05651 Contact Us For Availability
16
BOWL, DRIP (6``-CHR) WPL 7725P04860 Contact Us For Availability
16
BOTTOM, MAIN WPL 4011F17651 Contact Us For Availability
17
CHANNEL, AIR TOP WPL 3818F05351 Contact Us For Availability
17
CHANNEL, BOTTOM WPL 3818F05451 Contact Us For Availability
17
CHANNEL, AIR WPL 3818F05951 Contact Us For Availability
17
BOWL, DRIP (8``-CHR) WPL 7725P04760 Contact Us For Availability
18
THERMOSTAT, SNAP ACTING WPL 7403P30760 Contact Us For Availability
18
HARNESS, SENSOR & LOCK WPL 5170P22860 Contact Us For Availability
18
HARNESS, CLOCK/RELAY WPL 74001583 Contact Us For Availability
18
HARNESS, WIRE CONTROL/TOP WPL 74001589 Contact Us For Availability
18
HARNESS, CONTROL PANEL----NA WPL 74001671 Contact Us For Availability
19
CLAMP, WIRE WPL 7111P02060 Contact Us For Availability
19
INSERT, INSTR SHEET (CLOCK) WPL 8113P02660 Contact Us For Availability
19
MANUAL, USE & CARE WPL 8113P06860 Contact Us For Availability
19
TAPE, SEALING ROLL WPL 8270P04860 Contact Us For Availability
20
GUIDE, QUICK REF. - MAGIC CHEF WPL 16000329 Contact Us For Availability
20
SCREW (8ABX13/16-ZN) WPL 74001449 Contact Us For Availability
20
CLAMP, WINDOW ASSY. WPL 3805F00234 Contact Us For Availability
NI
WIRING INFORMATION WPL 15001375 Contact Us For Availability
× ![]()
