Model Electrolux 587.17259202 Dishwasher (Kenmore 58717259202) – Common Parts & Diagrams
TUB

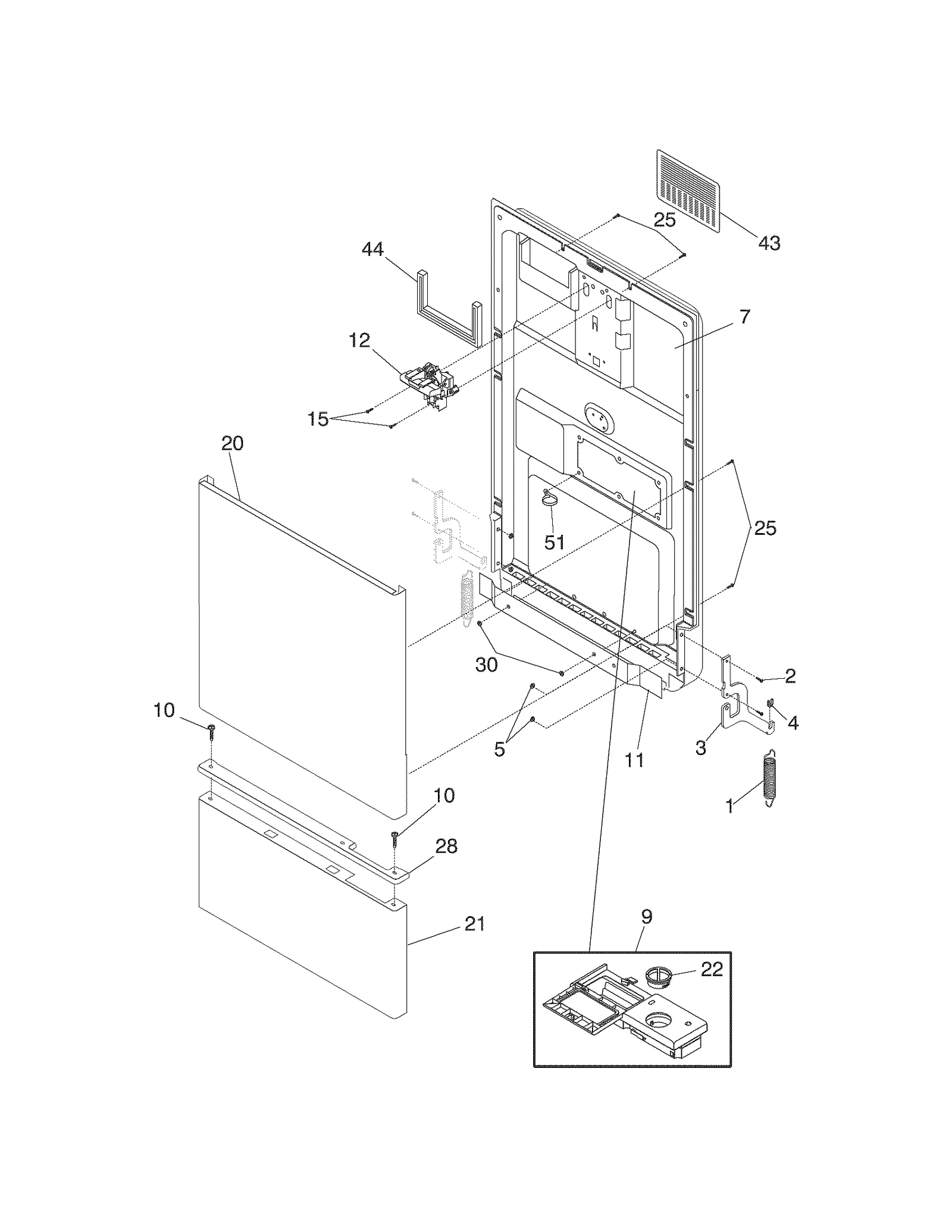

DOOR

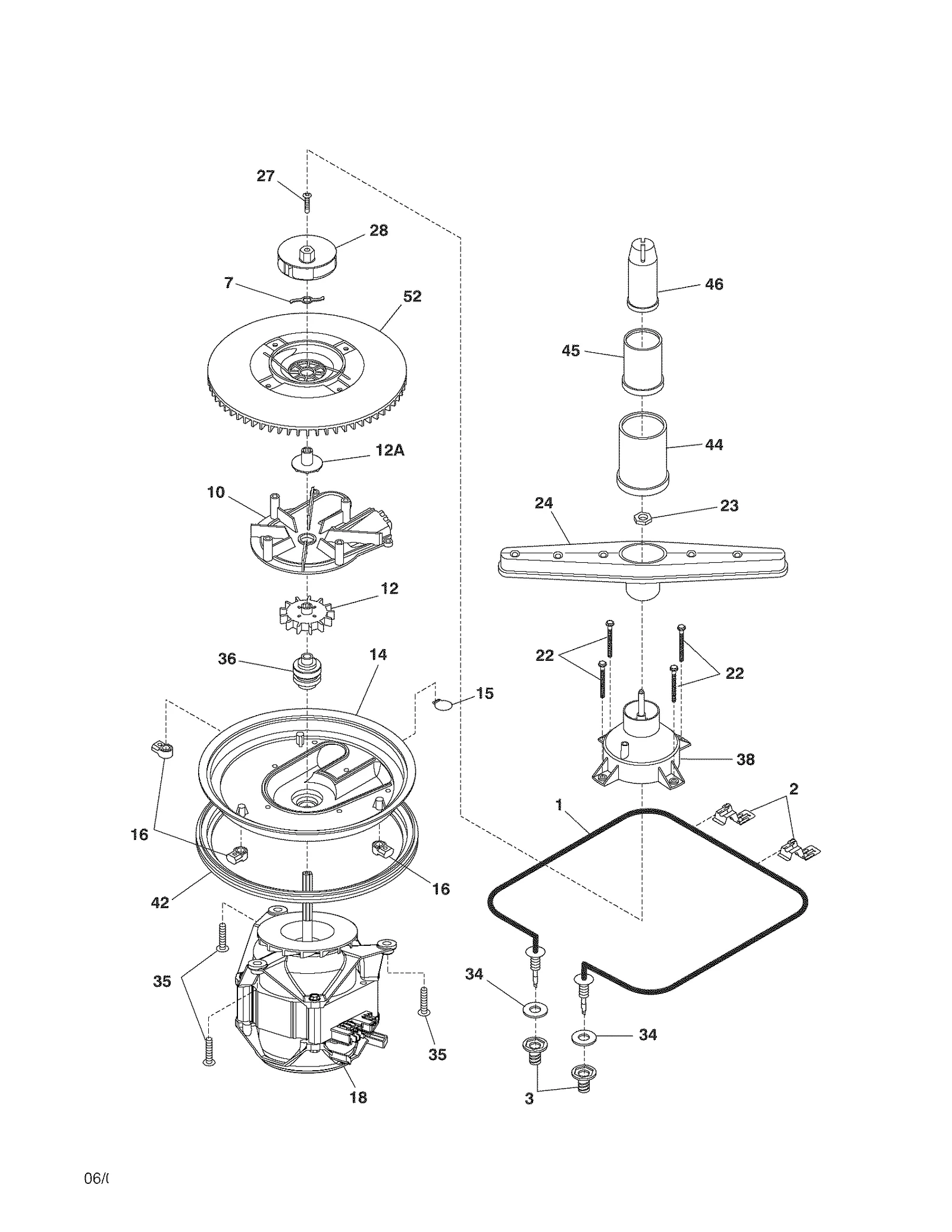

MOTOR & PUMP

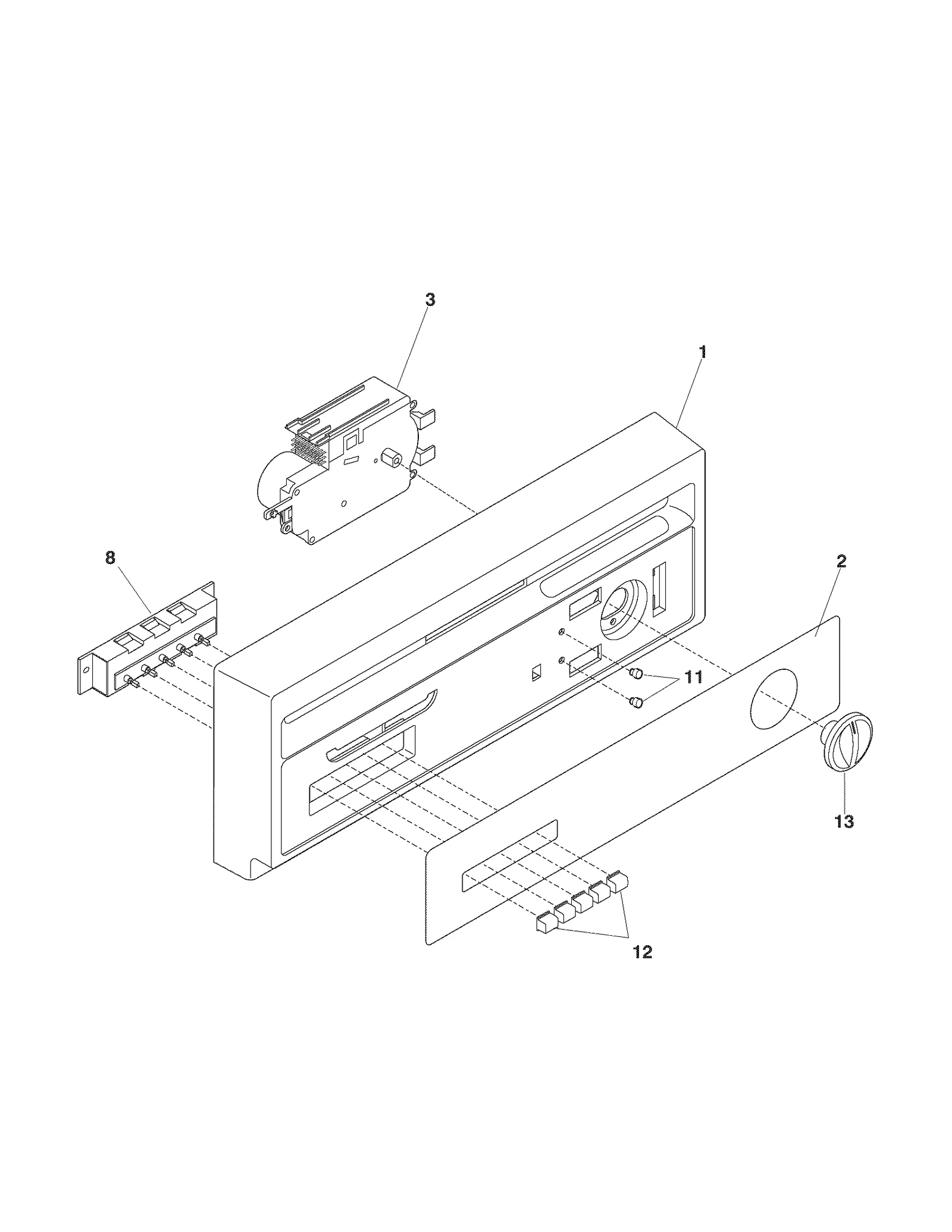

CONTROL PANEL
RACKS

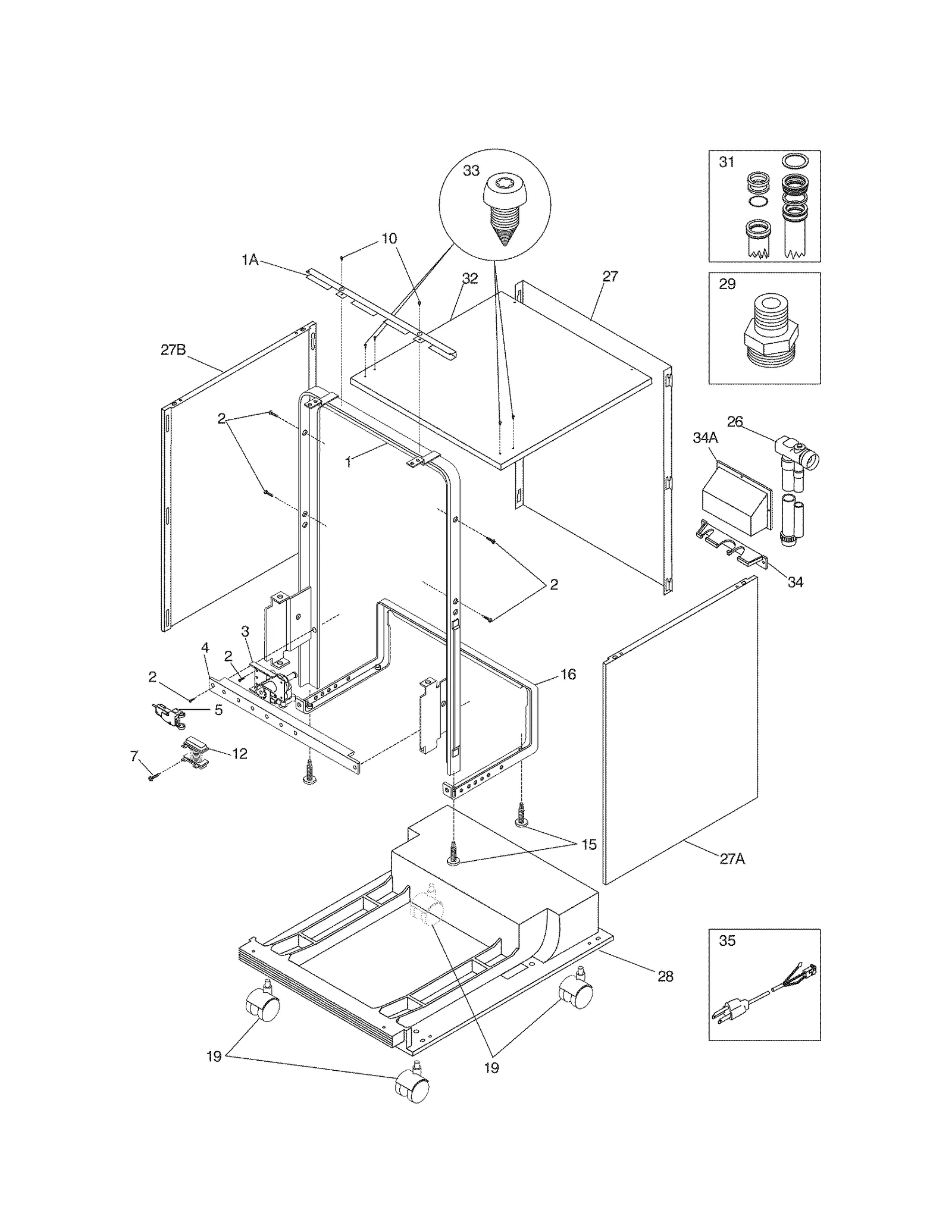

FRAME
Common parts from model Electrolux 587.17259202 Dishwasher (Kenmore 58717259202)
1
Dishwasher Heating Element WCI 154220901 Contact Us For Availability
1
Frame WCI 154218801 Contact Us For Availability
1A
Bracket WCI 154236102 Contact Us For Availability
2
Dishwasher Screw WCI 154200601 Contact Us For Availability
2
Dishwasher Heating Element Support Bracket WCI 154479601 Contact Us For Availability
3
Dishwasher Door Hinge WCI 5303270031 Contact Us For Availability
3
Dishwasher Timer WCI 154432301 Contact Us For Availability
4
Brace WCI 154219101 Contact Us For Availability
7
Dishwasher Chopper Blade WCI 154365101 Contact Us For Availability
7
Dishwasher Door Inner Panel Assembly WCI 154352201 Contact Us For Availability
7
Screw WCI 5300804672 Contact Us For Availability
8
Switch WCI 154470101 Contact Us For Availability
10
Dishwasher Screw WCI 154200602 Contact Us For Availability
10
Dishwasher Circulation Pump Volute Cover WCI 154365302 Contact Us For Availability
11
Dishwasher Door Baffle WCI 154221101 Contact Us For Availability
11
Dishwasher Cup Shelf WCI 154436101 Contact Us For Availability
12
Button-switc WCI 154236501 Contact Us For Availability
12
Dishwasher Motor Start Relay WCI 154380001 Contact Us For Availability
12A
Dishwasher Circulation Pump Motor Water Sling WCI 154365501 Contact Us For Availability
13
Dishwasher Timer Knob WCI 154236401 Contact Us For Availability
13
Dishwasher Timer Knob WCI 154239504 Contact Us For Availability
14
Dishwasher Pump Base WCI 154364802 Contact Us For Availability
15
Dishwasher Leveling Leg WCI 154419301 Contact Us For Availability
15
Dishwasher Check Valve WCI 154367701 Contact Us For Availability
16
Rear Frame WCI 154292701 Contact Us For Availability
19
Dishwasher Caster Wheel WCI 154280201 Contact Us For Availability
20
Dishwasher Door Outer Panel WCI 154416103 Contact Us For Availability
23
Dishwasher Spray Arm Nut WCI 154234301 Contact Us For Availability
24
Dishwasher Spray Arm WCI 154219201 Contact Us For Availability
26
Dishwasher Hose and Coupler Assembly WCI 154187106 Contact Us For Availability
27
Wrapper WCI 154229602 Contact Us For Availability
27A
Panel WCI 154229702 Contact Us For Availability
27B
Wrapper WCI 154229701 Contact Us For Availability
28
Dishwasher Circulation Impeller WCI 154370601 Contact Us For Availability
28
Base WCI 154242402 Contact Us For Availability
29
Dishwasher Valve Adapter WCI 154242501 Contact Us For Availability
31
Adapter WCI 5303304813 Contact Us For Availability
32
Top WCI 154405802 Contact Us For Availability
33
Screw WCI 154241701 Contact Us For Availability
34
Dishwasher Heating Element Washer WCI 154064901 Contact Us For Availability
34
Container WCI 154249701 Contact Us For Availability
34A
Screw WCI 154025901 Contact Us For Availability
34A
Container WCI 154249801 Contact Us For Availability
35
Cord WCI 154253001 Contact Us For Availability
36
Dishwasher Pump Impeller Seal WCI 154387601 No Longer Available
42
Dishwasher Drain Pump Seal WCI 154365601 Contact Us For Availability
44
Dishwasher Spray Tower, Lower WCI 154122502 Contact Us For Availability
44
Dishwasher Door Vent Gasket WCI 154221001 Contact Us For Availability
45
Dishwasher Spray Tower, Center WCI 154122601 Contact Us For Availability
51
Dishwasher Wire Clamp WCI 154320301 Contact Us For Availability
52
Pump Cover WCI 154365201 Contact Us For Availability
NI
Dishwasher Thermostat WCI 154227808 Contact Us For Availability
NI
Dishwasher Screw WCI 5304428306 Contact Us For Availability
NI
White-Westinghouse Dishwasher Door Hinge WCI 5303298513 Contact Us For Availability
NI
Clip WCI 154243201 Contact Us For Availability
NI
Clip WCI 154257901 Contact Us For Availability
× ![]()
