Model Kenmore 587.15292201A DISHWASHER – Common Parts &amp; Diagrams

*

154406801 Frigidaire Dishwasher Anchor Kit (A Backorder WCI 154406801 $82.64

*

154641601 Frigidaire Dishwasher Insulation Backorder WCI 154641601 $4.78

*

154647101 Frigidaire Dishwasher Pin Hinge Backorder WCI 154647101 $11.09

*

154686401 Frigidaire Dishwasher Bearing Backorder WCI 154686401 $8.31

*

5304520581 Frigidaire Dishwasher Insulation Backorder WCI 5304520581 $44.35

*

808690701 Frigidaire Dishwasher Screw Backorder WCI 808690701 $2.76

*

Cabinet Seal Kit WCI 154528701 Contact Us For Availability

*#

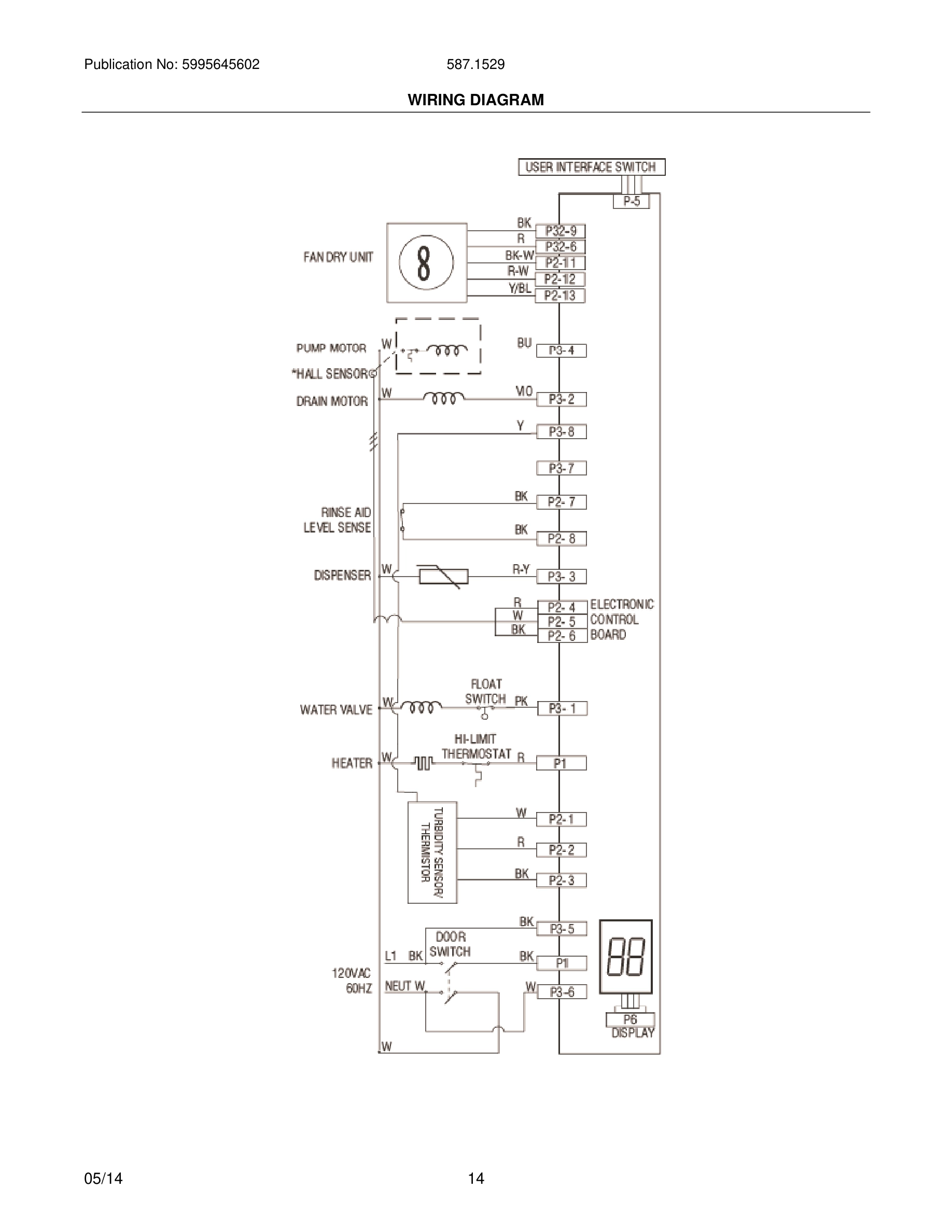

154870101 Frigidaire Dishwasher Harness Backorder WCI 154870101 $108.15

1

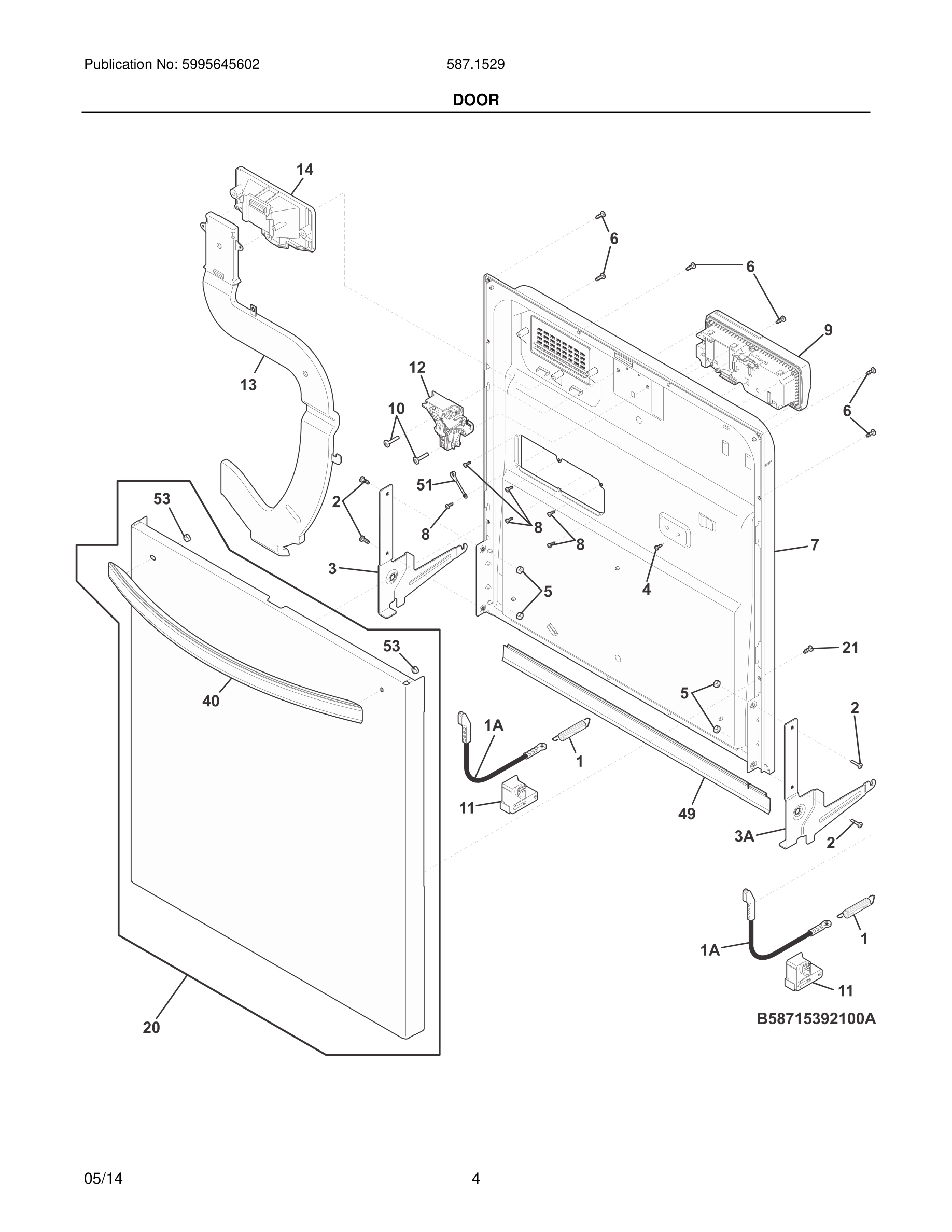

154579101 Frigidaire Dishwasher Door Spring In Stock WCI 154579101 $46.44

1

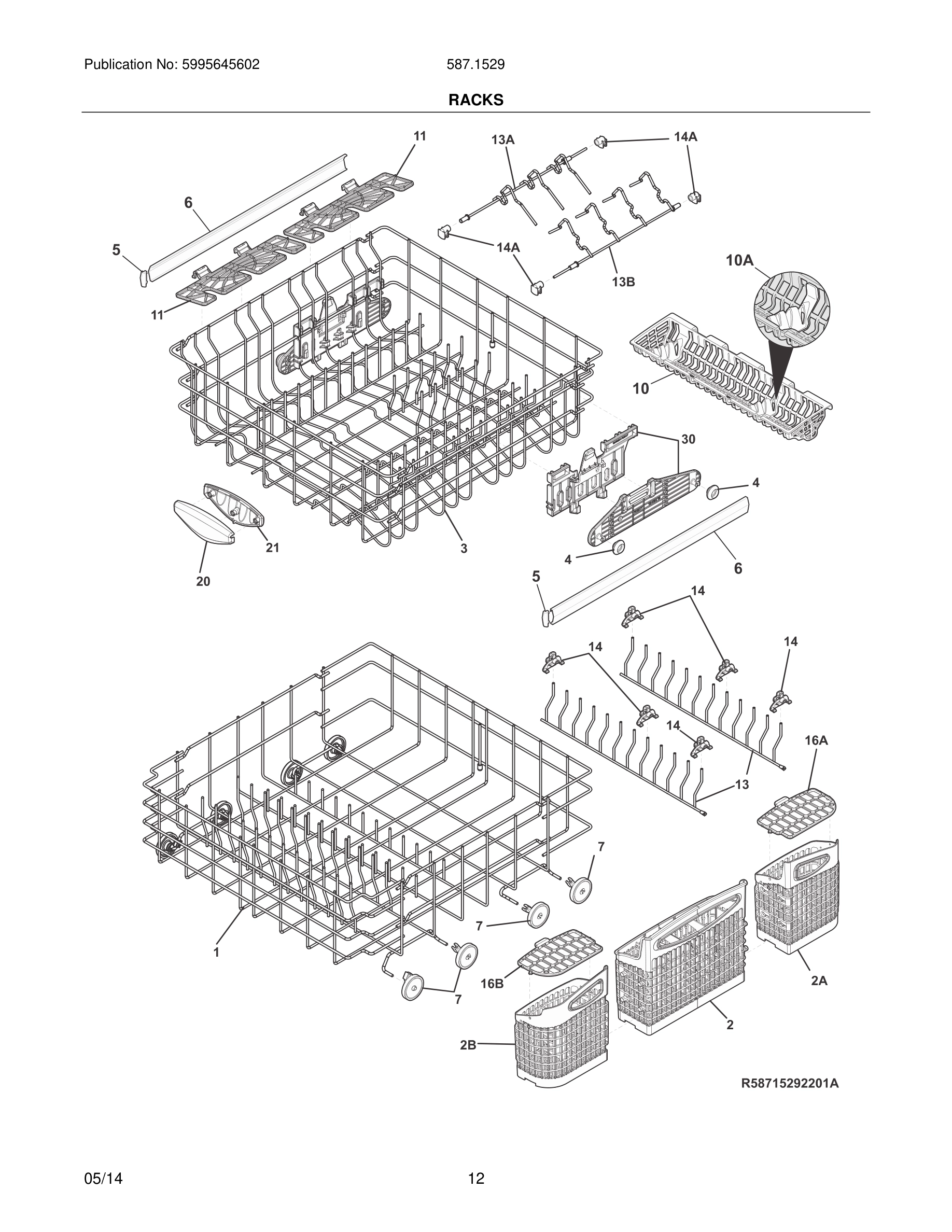

5304532969 Frigidaire Rack Assembly In Stock WCI 5304532969 $112.88

1#

154825001 Frigidaire Dishwasher Round Heater In Stock WCI 154825001 $68.86

1#

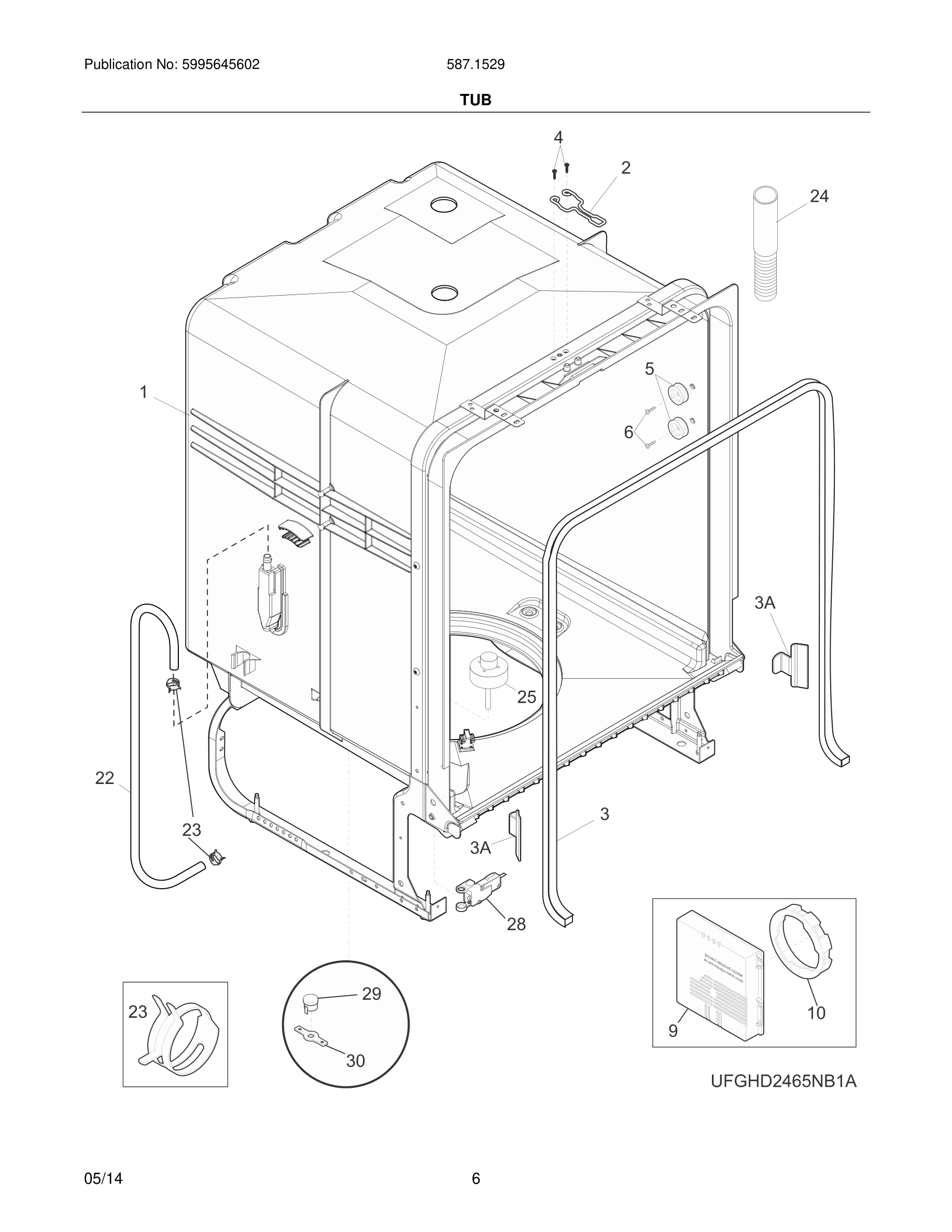

Tub assy, w/frame parts, grey, & vent hole WCI 154729502 Contact Us For Availability

1*

154106202 Frigidaire Dishwasher Heater Nut In Stock WCI 154106202 $12.28

1*

154289801 Frigidaire Dishwasher Shield Backorder WCI 154289801 $6.09

1A

154756401 Frigidaire Hinge Cable In Stock WCI 154756401 $7.54

2

154093301 Frigidaire Dishwasher ARM Assembly In Stock WCI 154093301 $1.65

2

154465101 Frigidaire Dishwasher Heating Eleme Backorder WCI 154465101 $8.87

2

5304532796 Frigidaire Dishwasher Strike In Stock WCI 5304532796 $17.01

3#

154827601 Frigidaire Dishwasher Tub Gasket In Stock WCI 154827601 $24.97

3#

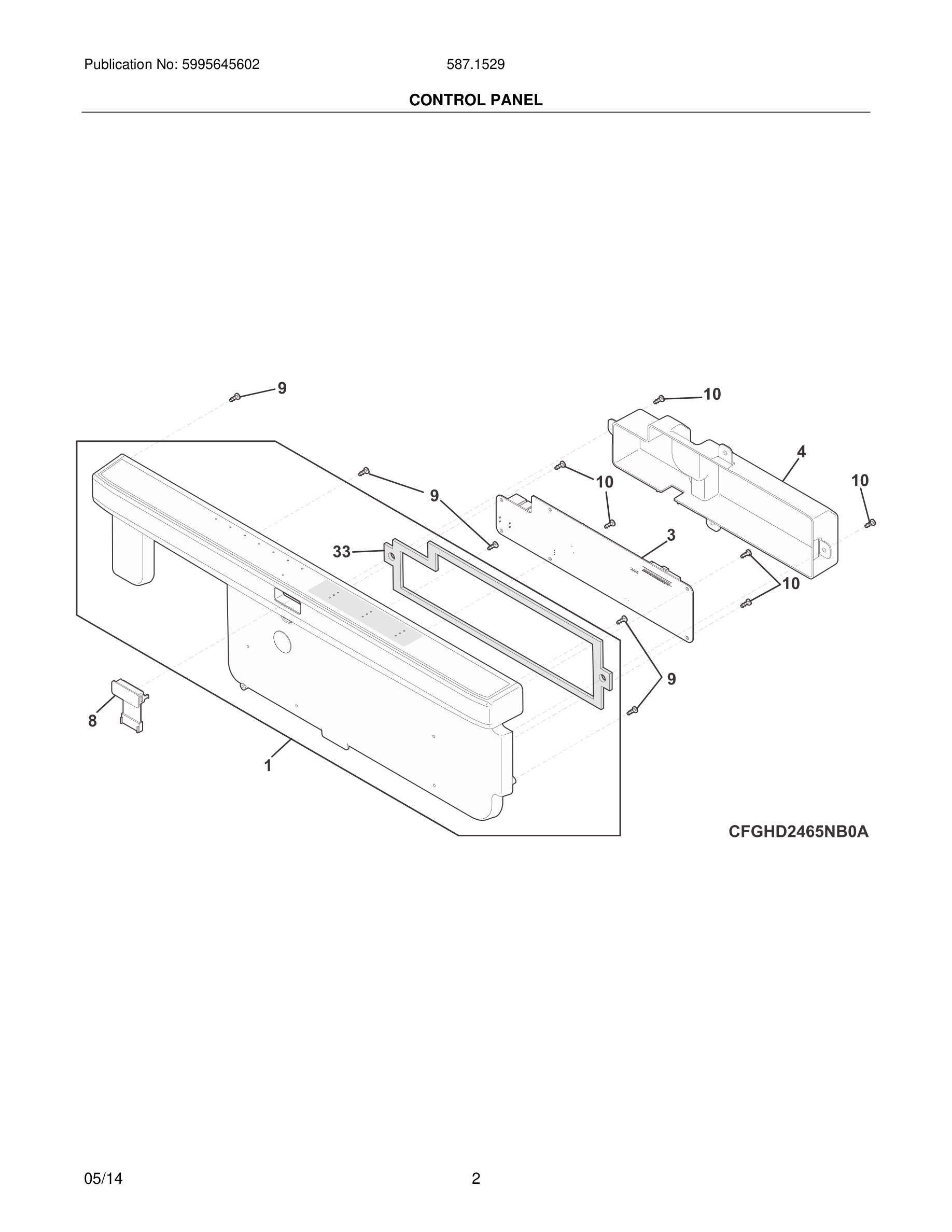

5304514670 Frigidaire Dishwasher Main Control In Stock WCI 5304514670 $160.29

3#

807047901 Frigidaire Dishwasher Inlet Water V In Stock WCI 807047901 $46.54

3A

5304513274 Frigidaire Dishwasher Counterbalan In Stock WCI 5304513274 $53.22

4

5304508587 Frigidaire Dishwasher Brace Backorder WCI 5304508587 $22.19

4

5304535381 Frigidaire Dishwasher Dishrack Whe In Stock WCI 5304535381 $6.59

4

Cover, control WCI 154718801 Contact Us For Availability

5

5304506510 Frigidaire Dishrack Slide Rail Sto In Stock WCI 5304506510 $11.31

5

5304506916 Frigidaire Dishwasher Assembly-Rol In Stock WCI 5304506916 $23.64

6

154597801 Frigidaire Dishwasher Upper Rack Sl In Stock WCI 154597801 $4.01

6

5303943103 Frigidaire Dishwasher P-1 Screw Ki In Stock WCI 5303943103 $13.86

7

5304532229 Frigidaire Dishwasher Lower Rack W In Stock WCI 5304532229 $10.40

7

Liner, door assembly, grey, complete WCI 154743503 Contact Us For Availability

8

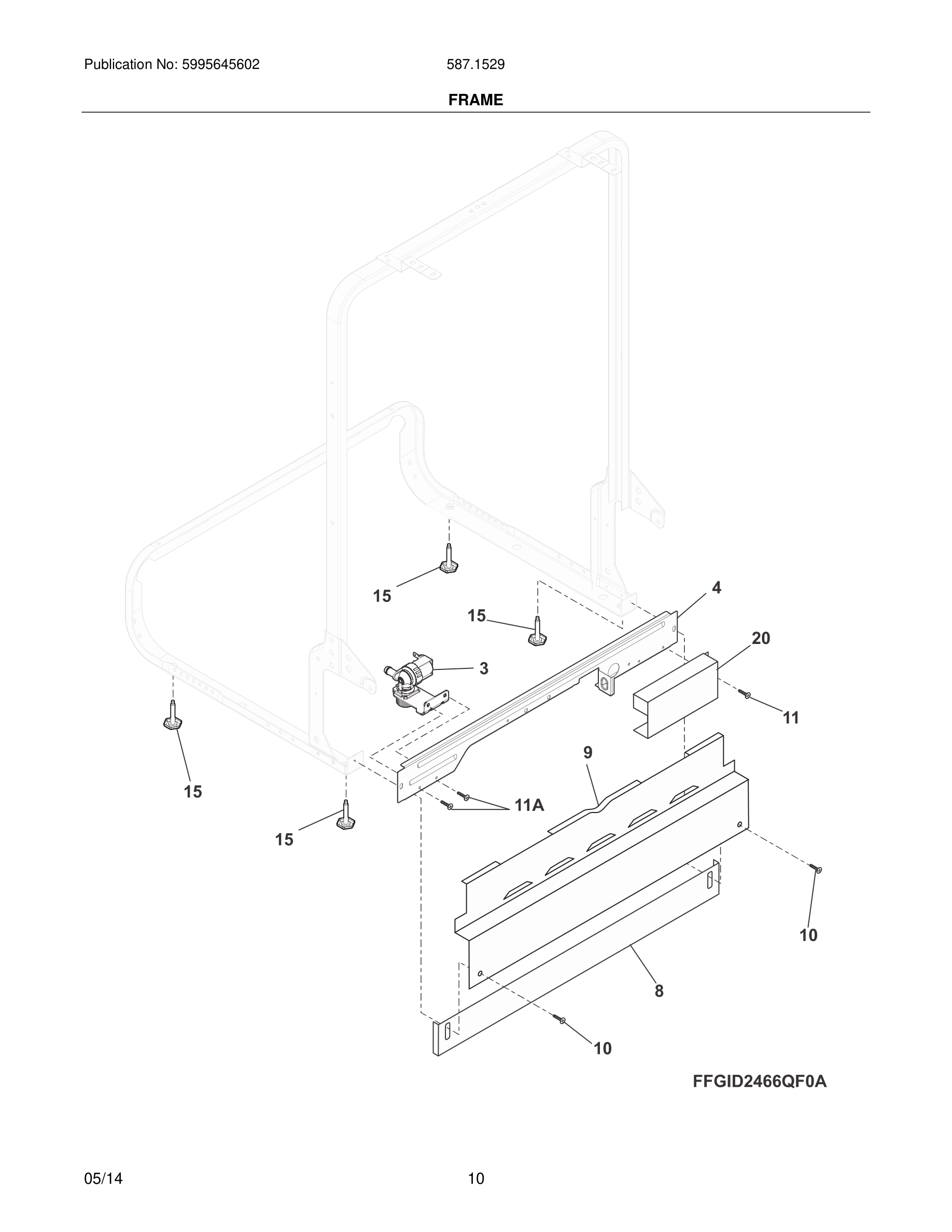

154745501 Frigidaire Dishwasher Toekick Plate In Stock WCI 154745501 $16.64

8

154745503 Frigidaire Dishwasher Toe Panel In Stock WCI 154745503 $22.72

8#

Display Assembly WCI 154734601 Contact Us For Availability

9

154783101 Frigidaire Dishwasher Screw Backorder WCI 154783101 $5.52

9

5304501482 Frigidaire Dishwasher Kick Plate A In Stock WCI 5304501482 $39.94

9

5304501484 Frigidaire Dishwasher Assembly Toe In Stock WCI 5304501484 $37.44

9#

5304506521 Frigidaire Dishwasher Dispenser In Stock WCI 5304506521 $75.96

9#

5304523304 Frigidaire Dishwasher Blower Vent In Stock WCI 5304523304 $117.96

9*

154691601 Frigidaire Dishwasher Cover Assembl Backorder WCI 154691601 $9.94

154103702 Frigidaire Dishwasher Screw Backorder WCI 154103702 $10.53

154294701 Frigidaire Dishwasher Screw Backorder WCI 154294701 $7.18

154371301 Frigidaire Dishwasher Screw Backorder WCI 154371301 $9.96

154562904 Frigidaire Bezel Backorder WCI 154562904 $5.28

154724001 Frigidaire Lower Arm Support In Stock WCI 154724001 $7.74

154754801 Frigidaire Dishwasher Screw In Stock WCI 154754801 $1.59

154200701 Frigidaire Dishwasher Screw Backorder WCI 154200701 $10.53

154579201 Frigidaire Dishwasher Pulley In Stock WCI 154579201 $37.15

154579202 Frigidaire Dishwasher Pulley In Stock WCI 154579202 $37.17

5304532945 Frigidaire Cup Shelf Backorder WCI 5304532945 $5.66

11A

808326801 Frigidaire Dishwasher Screw Backorder WCI 808326801 $2,263.98

12#

5304525218 Frigidaire Door Latch Assembly In Stock WCI 5304525218 $31.48

13

FOLD DOWN FENCE W CLIPS,LOWER In Stock WCI 14005493802 $11.48

13

154246801 Frigidaire Dishwasher Primary Gaske Backorder WCI 154246801 $38.83

13

Duct Assembly, vent, w/tape WCI 154755801 No Longer Available

13A

154740304 Frigidaire Dishwasher Fold-Down Tin In Stock WCI 154740304 $25.52

13B

5304532950 Frigidaire Multifence In Stock WCI 5304532950 $15.46

14

154723801 Frigidaire Dishwasher SUMP Assembly In Stock WCI 154723801 $45.86

14

Vent assy, dry, w/gaskets WCI 154784401 Contact Us For Availability

14*

Screw, dry duct, (3) WCI 154793401 Contact Us For Availability

14A

5304506508 Frigidaire Bracket Support Backorder WCI 5304506508 $4.39

15

5304506540 Frigidaire Dishwasher Leg Assembly In Stock WCI 5304506540 $8.31

16

154246502 Frigidaire Dishwasher Bracket In Stock WCI 154246502 $31.58

16*

154754901 Frigidaire Dishwasher Screw In Stock WCI 154754901 $3.31

20

154758501 Frigidaire Power Cord Cover In Stock WCI 154758501 $15.51

20*

5304538695 Frigidaire Door Insulation Backorder WCI 5304538695 $1.81

21

154754701 Frigidaire Dishwasher Screw Backorder WCI 154754701 $2.76

21

5304504913 Frigidaire Dishwasher Handle Backorder WCI 5304504913 $10.53

22

5300809968 Frigidaire Dishwasher P-1 Washer Backorder WCI 5300809968 $33.28

22

5304523457 Frigidaire Inlet Hose In Stock WCI 5304523457 $19.87

23

5304538466 Frigidaire Hose Clamp Backorder WCI 5304538466 $1.81

24

807117001 Frigidaire Dishwasher Drain Hose In Stock WCI 807117001 $36.95

24A

A01986801 Frigidaire Upper Rack Assembly In Stock WCI A01986801 $125.63

24B

5304506516 Frigidaire Dishwasher Upper Spray In Stock WCI 5304506516 $17.73

25#

5304532207 Frigidaire Float In Stock WCI 5304532207 $5.28

28#

154773201 Frigidaire Dishwasher Switch Assemb In Stock WCI 154773201 $51.87

29#

5304525221 Frigidaire Dishwasher Thermostat In Stock WCI 5304525221 $12.11

30

154241101 Frigidaire Dishwasher Retainer Backorder WCI 154241101 $2.76

30*

154297701 Frigidaire Dishwasher Screw Backorder WCI 154297701 $10.53

32

5304507087 Frigidaire Dishwasher Tube In Stock WCI 5304507087 $50.67

32*

154491101 Frigidaire Dishwasher Screw Backorder WCI 154491101 $2.76

32A

154406401 Frigidaire Delivery Tube Gasket In Stock WCI 154406401 $5.45

33

154478901 Frigidaire Dishwasher Gasket Backorder WCI 154478901 $48.27

49

809006501 Frigidaire Bottom Seal/Gasket Door In Stock WCI 809006501 $20.51

51

Clamp, drip loop, wire WCI 154320301 Contact Us For Availability

53

154425001 Frigidaire Dishwasher Nut Backorder WCI 154425001 $7.77

55

5304534830 Frigidaire Dishwasher Bracket In Stock WCI 5304534830 $11.32

55*

154779601 Frigidaire Dishwasher Screw Backorder WCI 154779601 $1.06

58

154246402 Frigidaire Dishwasher P-1 Ball Asse Backorder WCI 154246402 $43.81

59

154246901 Frigidaire Dishwasher Rear O-Ring f In Stock WCI 154246901 $52.81

59A

154247001 Frigidaire Dishwasher Pump Gasket S In Stock WCI 154247001 $52.81

60*

154741501 Frigidaire Dishwasher Screw Backorder WCI 154741501 $10.53

60*

807048001 Frigidaire Dishwasher Check Valve In Stock WCI 807048001 $14.88

61

5304506517 Frigidaire Dishwasher Grommet Asse In Stock WCI 5304506517 $12.18

62

5304532235 Frigidaire Support Assembly In Stock WCI 5304532235 $5.59

63

5304532205 Frigidaire Base Assembly In Stock WCI 5304532205 $10.50

65

154283005 Frigidaire Dishwasher Filter Assemb Backorder WCI 154283005 $198.01

66

5304532206 Frigidaire Trap In Stock WCI 5304532206 $5.87

70#

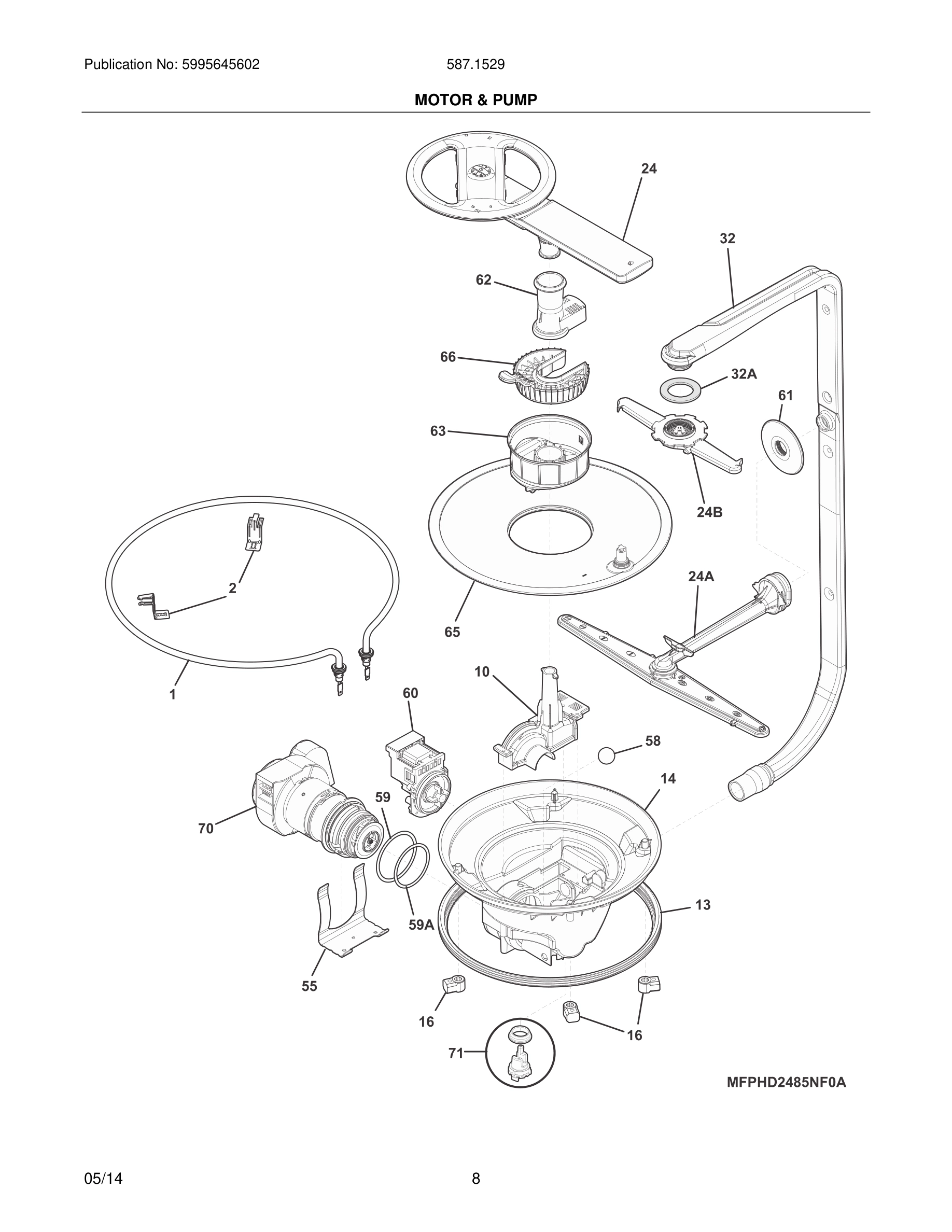

154853801 Frigidaire Motor and Pump Assembly In Stock WCI 154853801 $265.19

71#

154762601 Frigidaire Dishwasher Turbidity Sen Backorder WCI 154762601 $57.53
