Model Whirlpool 54F-5TKXW GAS WALL OVEN – Common Parts & Diagrams

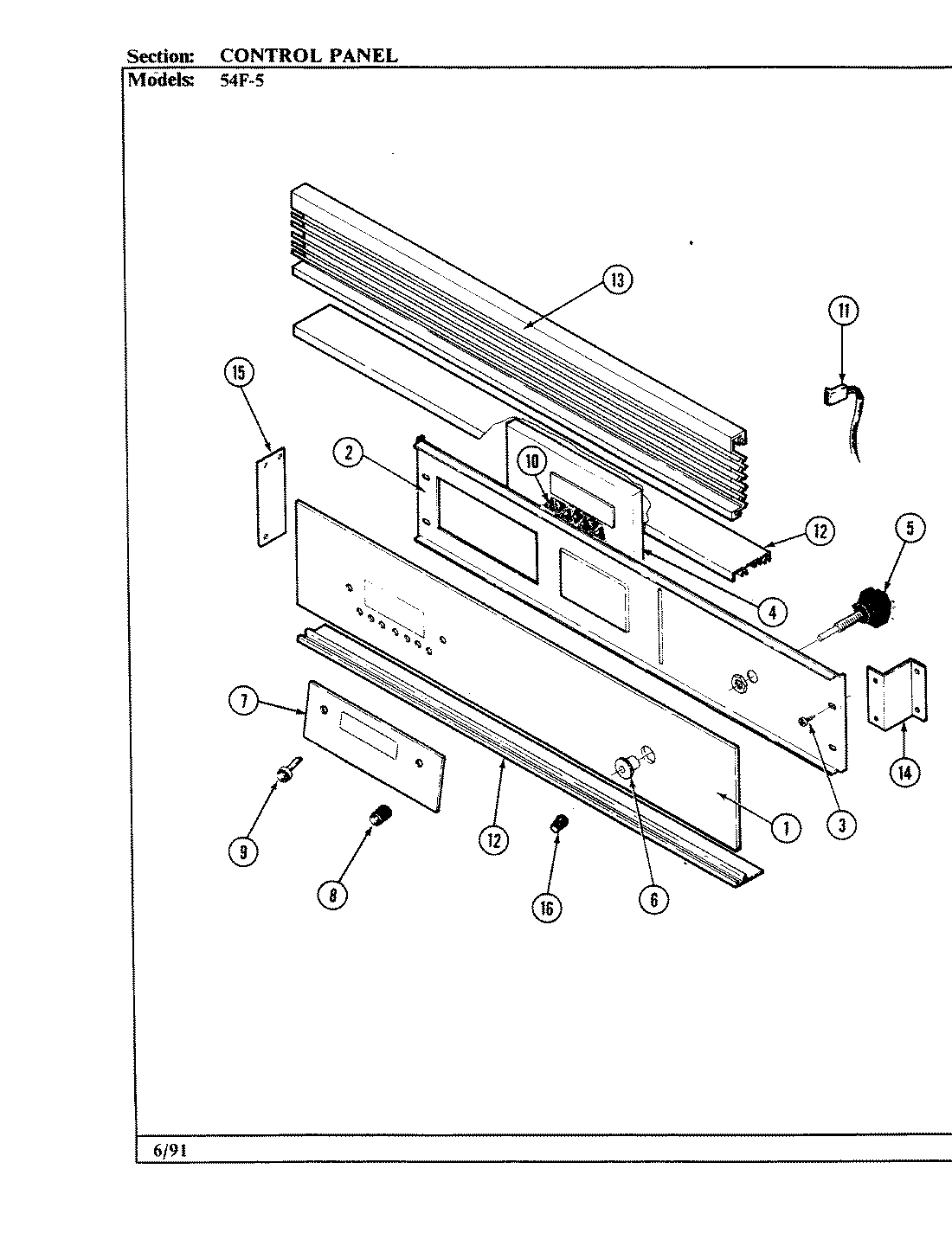

02 - CONTROL PANEL (54F-5TKXW)

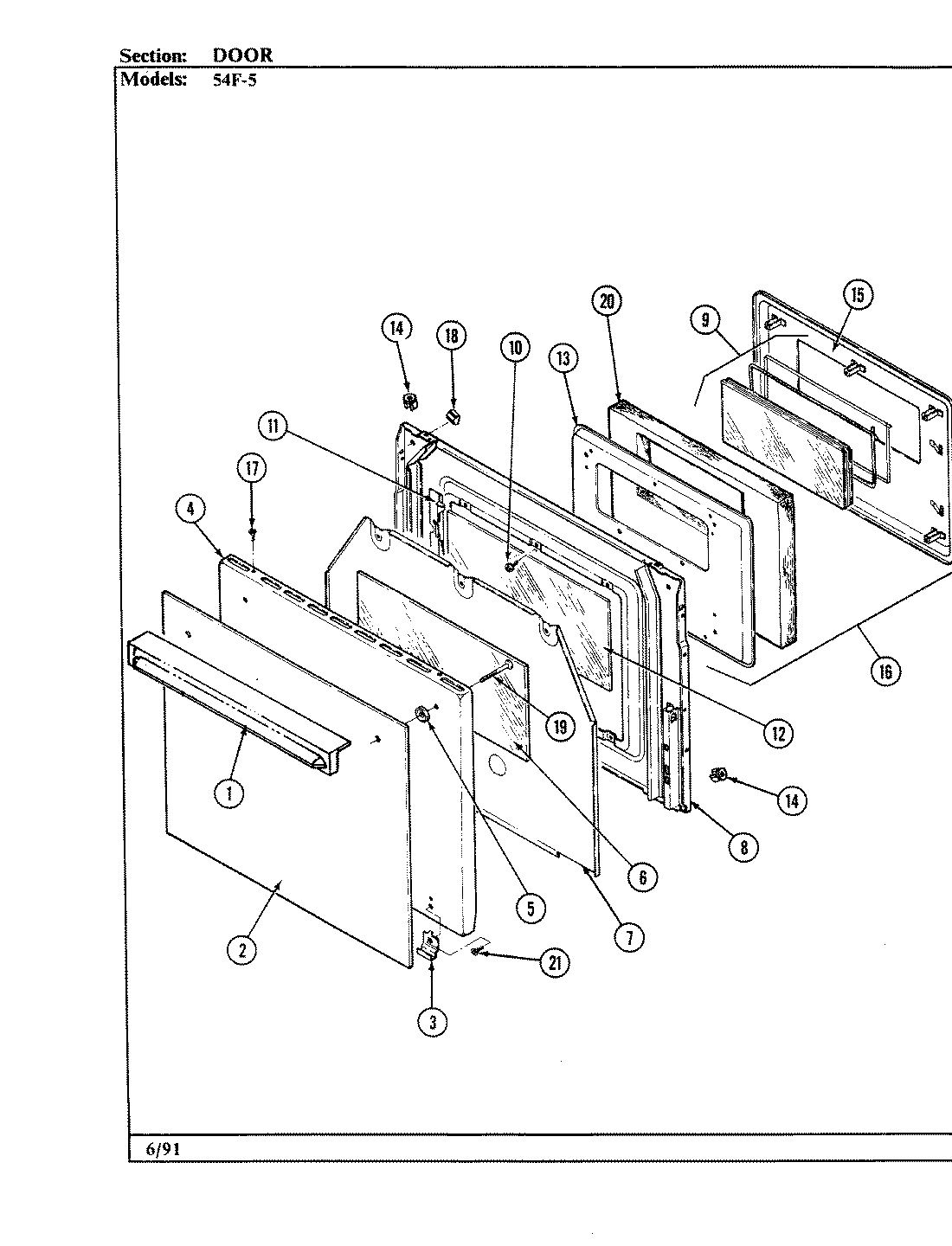

03 - DOOR (54F-5TKXW)

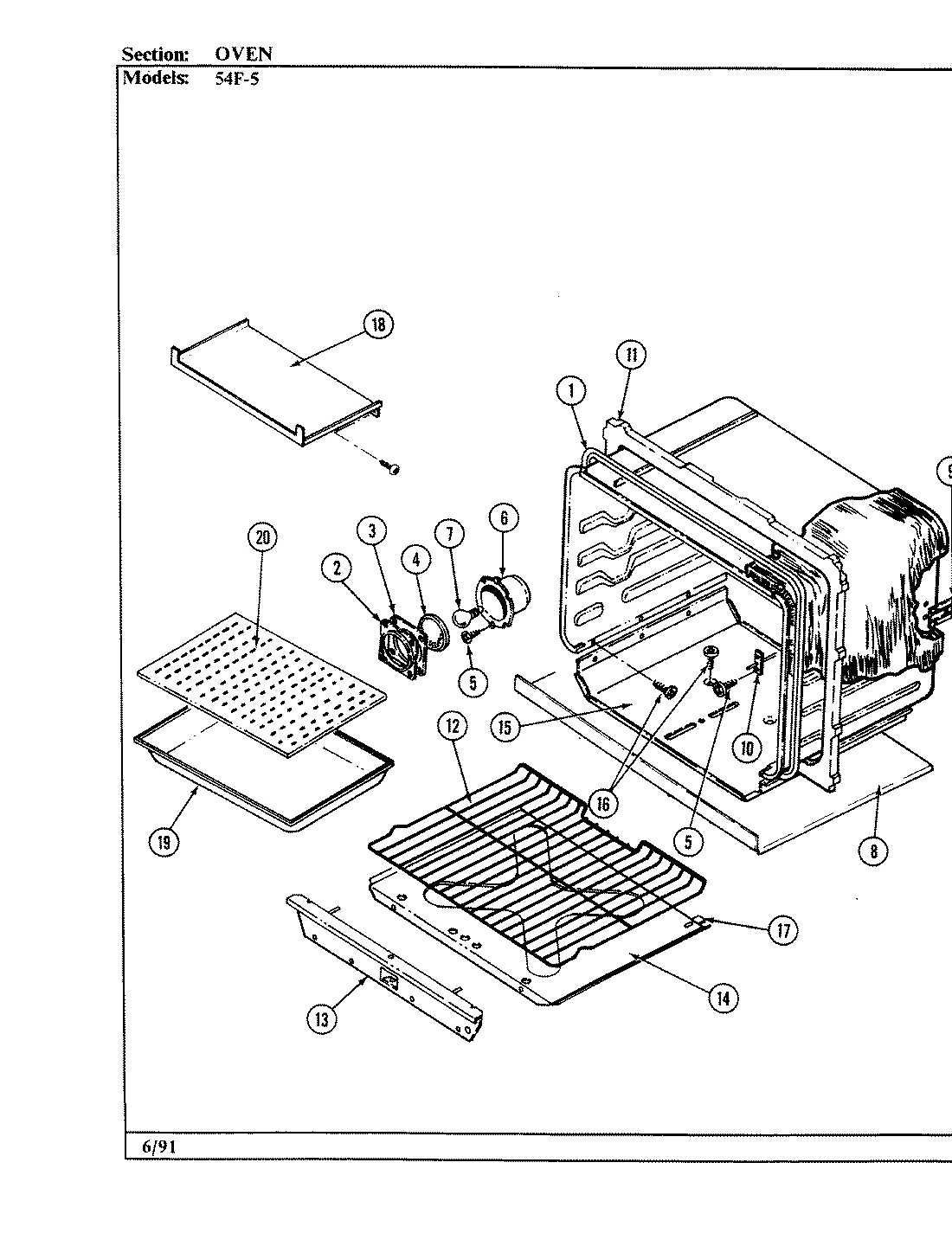

06 - OVEN (54F-5TKXW)

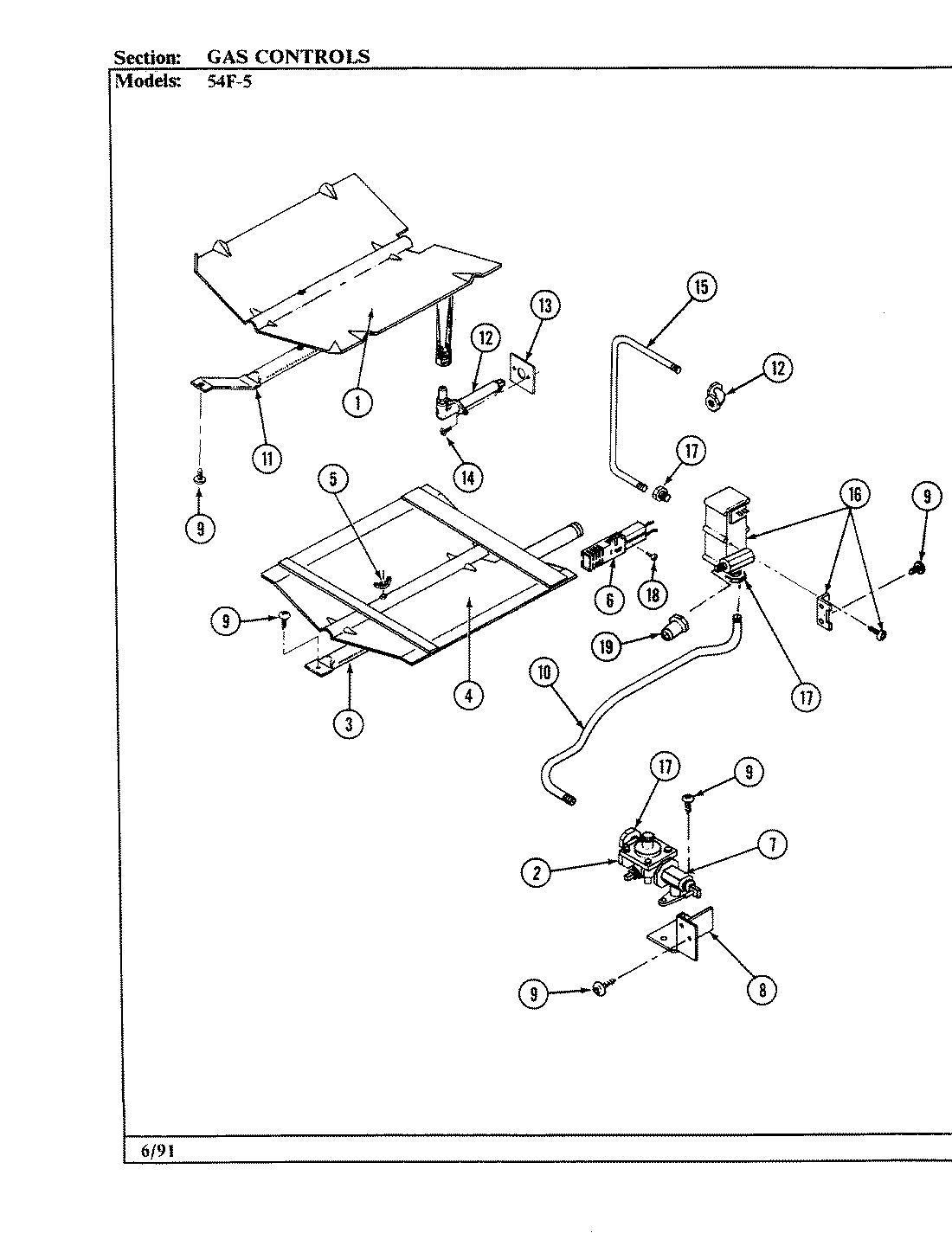

04 - GAS CONTROLS (54F-5TKXW)

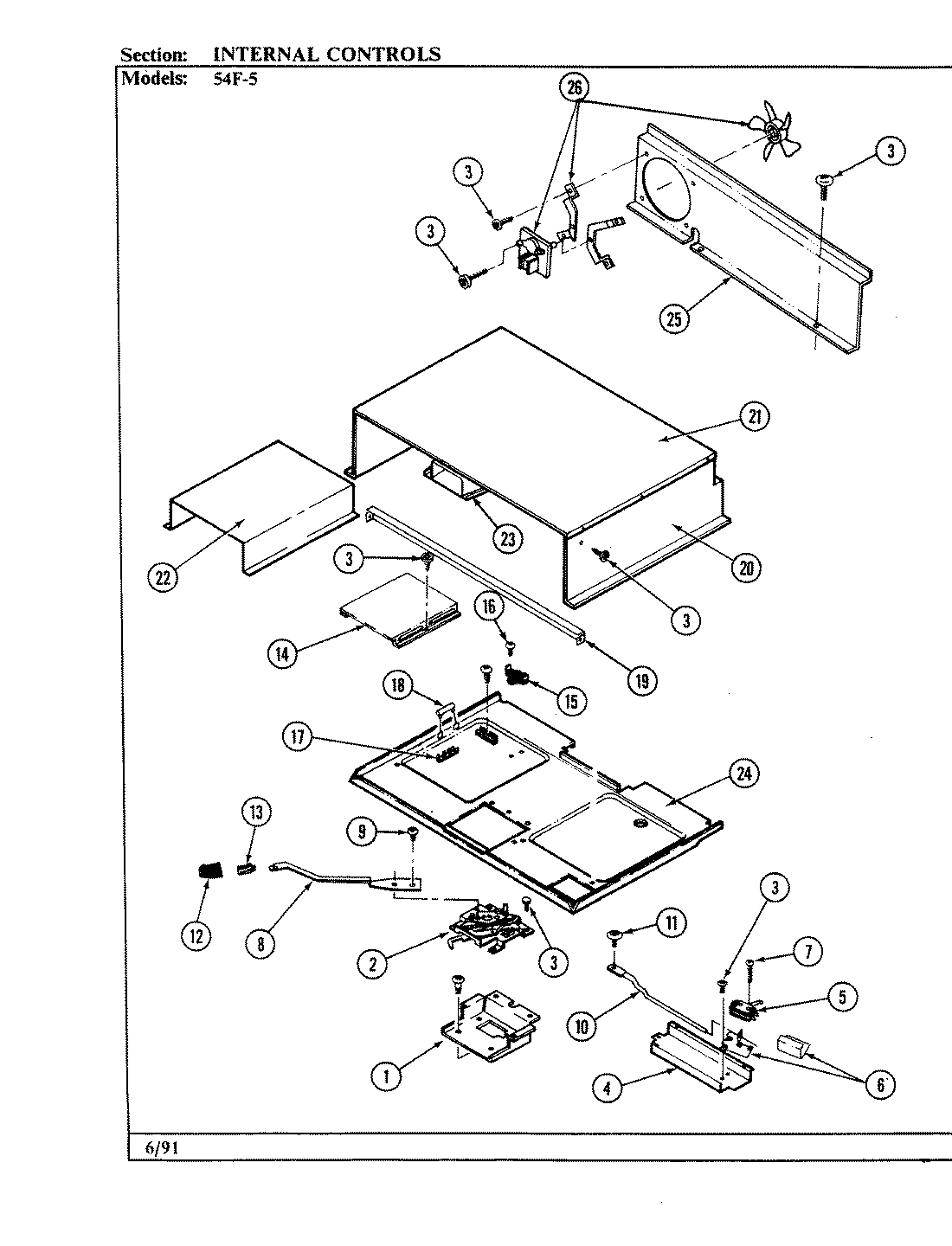

05 - INTERNAL CONTROLS (54F-5TKXW)

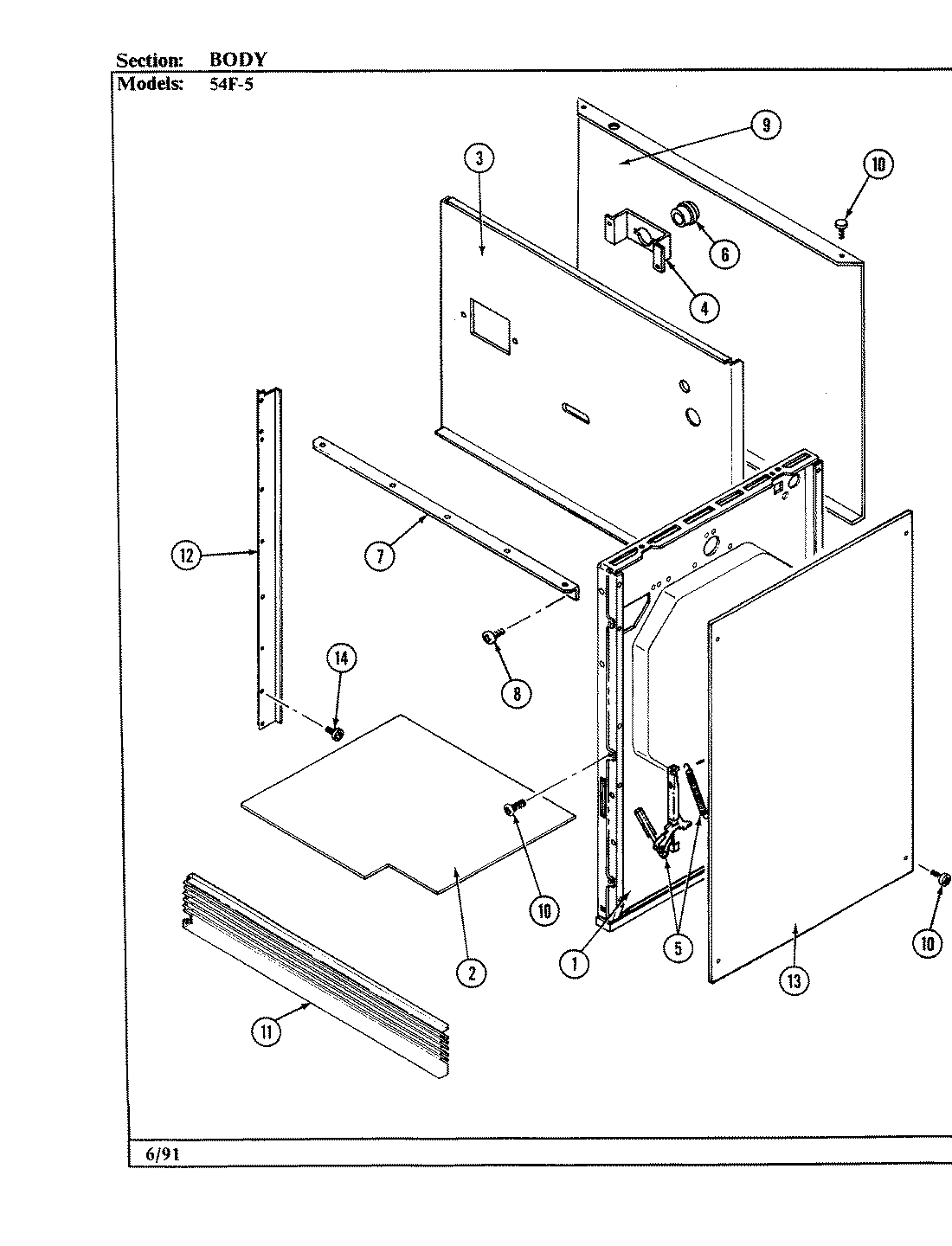

01 - BODY (54F-5TKXW)
Common parts from model Whirlpool 54F-5TKXW GAS WALL OVEN
1
GLASS, CONTROL (XW) WPL 7912P05160 Contact Us For Availability
1
HANDLE DOOR WPL 7701P09360 Contact Us For Availability
1
GASKET, OVEN WPL 7201P03660 Contact Us For Availability
1
BAFFLE, OVEN BURNER WPL 3601F18145 Contact Us For Availability
1
SUPPORT, CATCH ASSY. WPL 3807F40845 Contact Us For Availability
1
LINING ASSY INNER SIDE WPL 4009W08280 Contact Us For Availability
1
SCREW, HINGE WPL 7101P01760 Contact Us For Availability
1
NUT, SNAP (ROUND-BLK) WPL 7103P04160 Contact Us For Availability
2
PLATE, MTG SWITCH WPL 3605F17380 Contact Us For Availability
2
GLASS DOOR WPL 7902P35460 Contact Us For Availability
2
RETAINER, LAMP GUARD WPL 3804F01245 Contact Us For Availability
2
REGULATOR PRESSURE WPL 7510P03660 Contact Us For Availability
2
CATCH, DOOR LOCK WPL 8002P02160 Contact Us For Availability
2
SHIELD FLOOR WPL 3604F15545 Contact Us For Availability
3
CLIP, GLASS RETAINER (BLK) WPL 3819F01070 Contact Us For Availability
3
TAPE, RETAINER CLIP WPL 8270P01060 Contact Us For Availability
3
GASKET, LAMP RETAINER WPL 7201P01560 Contact Us For Availability
3
BURNER BAKE WPL 7505P17460 Contact Us For Availability
3
BACK, MAIN WPL 4002F15580 Contact Us For Availability
4
CLOCK, ELECTRONIC WPL 7601P17660 Contact Us For Availability
4
PANEL, DOOR ASSY WPL 2401W10170 Contact Us For Availability
4
GASKET, HOUSING WPL 7201P01460 Contact Us For Availability
4
GLASS, LAMP GUARD WPL 7902P05760 Contact Us For Availability
4
BAFFLE, BAKE BURNER WPL 3601W19015 Contact Us For Availability
4
BAFFLE WPL 3601W19019 Contact Us For Availability
4
CHANNEL, SWITCH WPL 3818F02745 Contact Us For Availability
4
BRACKET WPL 3801F02451 Contact Us For Availability
5
SWITCH, LIGHT WPL 7403P01960 Contact Us For Availability
5
SPACER, GLASS WPL 8010P01660 Contact Us For Availability
5
NUT, WING WPL 7103P03060 Contact Us For Availability
5
INSULATION, SWITCH (UPPER) WPL 7003P01960 Contact Us For Availability
5
INSULATION, SWITCH WPL 7003P03960 Contact Us For Availability
5
SWITCH----NA WPL 7403P07760 Contact Us For Availability
5
HINGE (INCL. SPRING) WPL 7106P02460 Contact Us For Availability
5
HINGE, DOOR WPL 7106P03160 Contact Us For Availability
6
SLEEVE, SWITCH WPL 7214P00160 Contact Us For Availability
6
GLASS, CLEAR WPL 7902P13560 Contact Us For Availability
6
SCREW, METAL GROUNDING WPL 7101P28760 Contact Us For Availability
6
HOUSING, LAMP WPL 4001F02023 Contact Us For Availability
6
COVER IGNITOR WIRE WPL 4005F36345 Contact Us For Availability
6
IGNITER, OVEN WPL 7432P06760 Contact Us For Availability
6
SUPPORT, LOCK SWITCH WPL 3807F19345 Contact Us For Availability
6
RECEPTACLE, LAMP WPL 7408P00260 Contact Us For Availability
7
SCREW WPL 7118P00460 Contact Us For Availability
7
TRIM, BEZEL WPL 7740P01660 Contact Us For Availability
7
BAFFLE WPL 3601F20651 Contact Us For Availability
7
BULB, OVEN WPL 7407P02660 Contact Us For Availability
7
VALVE, SHUT OFF WPL 7501P04160 Contact Us For Availability
7
SCREW WPL 7101P03160 Contact Us For Availability
7
FRONT,BURNER BOX BOTTOM WPL 4012F01880 Contact Us For Availability
8
KNOB, CLOCK (BLK) WPL 7711P17260 Contact Us For Availability
8
LINING DOOR WPL 2402W18619 Contact Us For Availability
8
LABEL (CLEANING INST.) WPL 8114P27460 Contact Us For Availability
8
SCREW (ZINC) WPL 7101P04160 Contact Us For Availability
8
SUPPORT BAFFLE WPL 3807F38645 Contact Us For Availability
8
BRACKET, REGULATOR WPL 3801F21745 Contact Us For Availability
8
LEVER, DOOR LOCK WPL 8009P00960 Contact Us For Availability
8
LEVER, DOOR LOCK WPL 8009P01860 Contact Us For Availability
9
KNOB, CLOCK (BUTTON-BLK) WPL 7711P17160 Contact Us For Availability
9
WINDOW PAK ASSY. WPL 5700A09160 Contact Us For Availability
9
CLIP, RETAINER WPL 7112P05160 Contact Us For Availability
9
SUPPORT, OVEN REAR WPL 3807F20545 Contact Us For Availability
9
SCREW WPL 7101P01860 Contact Us For Availability
9
COVER BACK WPL 4005F33351 Contact Us For Availability
10
BUTTON, CONTROL SET WPL 7711P46160 Contact Us For Availability
10
SCREW WPL 7101P06160 Contact Us For Availability
10
CLOCK WPL 7601P06160 Contact Us For Availability
10
PROBE, OVEN SENSOR WPL 7430P00960 Contact Us For Availability
10
TUBING REGULATOR WPL 3414F09244 Contact Us For Availability
10
LINK, SWITCH WPL 7807P00460 Contact Us For Availability
10
LINK, DOOR LOCK WPL 7807P01260 Contact Us For Availability
10
CORD, POWER WPL 7402P04260 Contact Us For Availability
10
BUSHING, SNAP WPL 8007P00360 Contact Us For Availability
11
WIRE HARNESS WPL 5170P09460 Contact Us For Availability
11
RETAINER, GLASS WPL 3804F05180 Contact Us For Availability
11
NOT REQUIRED PART OR SEE NOTE WPL W10124350 Contact Us For Availability
11
BURNER ASSY BROIL WPL 3403A01645 Contact Us For Availability
11
BURNER, BROIL WPL 3403D02845 Contact Us For Availability
11
SHIELD INSULATION, CATCH WPL 3604F15945 Contact Us For Availability
11
BOLT WPL 7116P00360 Contact Us For Availability
11
EXTRUSION, BOTTOM WPL 7756P05060 Contact Us For Availability
12
TRIM, CONTROL (BTM) WPL 7756P04360 Contact Us For Availability
12
GLASS, INNER WPL 7902P09760 Contact Us For Availability
12
RACK, OVEN WPL 7801P03160 Contact Us For Availability
12
FITTING, BROIL BURNER WPL 7507P07560 Contact Us For Availability
12
HANDLE, LATCH (BLK) WPL 7701P08860 Contact Us For Availability
12
EXTRUSION SIDE LEFT WPL 7706P28260 Contact Us For Availability
12
EXTRUSION SIDE RIGHT WPL 7706P28360 Contact Us For Availability
13
EXTRUSION (TOP) WPL 7756P04460 Contact Us For Availability
13
EXTRUSION TOP WPL 7756P05160 Contact Us For Availability
13
PAD, INNER WPL 2410F01651 Contact Us For Availability
13
BAFFLE, OVN FRONT WPL 3601W12515 Contact Us For Availability
13
INSULATION, BAFFLE WPL 7002P00960 Contact Us For Availability
13
SCREW W/WASHER WPL 7101P12460 Contact Us For Availability
13
PLATE, FITTING WPL 3605F01945 Contact Us For Availability
13
CLIP, LATCH HANDLE WPL 7112P00360 Contact Us For Availability
13
SHIELD, HEAT WPL 3604F16645 Contact Us For Availability
13
SHIELD SIDE WPL 3604F18045 Contact Us For Availability
14
SUPPORT SWTICH MTG WPL 3807F39780 Contact Us For Availability
14
NUT, SNAP WPL 7103P11460 Contact Us For Availability
14
BOTTOM, OVEN WPL 2205W02115 Contact Us For Availability
14
COVER, CATCH ASSY. WPL 4005F13780 Contact Us For Availability
14
BACK BROILER SECTION WPL 4002F12245 Contact Us For Availability
14
STRIP, BOTTOM (BLK) WPL 4005F35470 Contact Us For Availability
14
SCREW (1/2``) WPL 7101P04060 Contact Us For Availability
15
TRIM, END CAP WPL 7726P02360 Contact Us For Availability
15
TRIM, END CAP WPL 7726P02860 Contact Us For Availability
15
PAD, DOOR WPL 2410W04115 Contact Us For Availability
15
PAD, DOOR WPL 2410W04119 Contact Us For Availability
15
HOUSING, BAKE BURNER WPL 4001F06045 Contact Us For Availability
15
TUBING, BROIL BURNER WPL 3414F09344 Contact Us For Availability
15
THERMOSTAT, SNAP ACTING WPL 7403P22760 Contact Us For Availability
15
MANUAL, USE & CARE WPL 8112P05760 Contact Us For Availability
16
SCREW (6ABX38-ZN) WPL 7101P07760 Contact Us For Availability
16
KNOB, LIGHT SWITCH WPL 7711P00860 Contact Us For Availability
16
HANDLE, LIGHT SWITCH WPL 7711P42160 Contact Us For Availability
16
PAD, ASSY. WPL 2410A04115 Contact Us For Availability
16
PAD, ASSY. WPL 2410A04119 Contact Us For Availability
16
VALVE, OVEN WPL 7501P08560 Contact Us For Availability
17
SCREW (BLK) WPL 7101P27660 Contact Us For Availability
17
RETAINER WPL 3804F01050 Contact Us For Availability
17
RIVET, OV BOT RET WPL 7107P00660 Contact Us For Availability
17
NUT, LOXIT (3/8``) WPL 1555251 Contact Us For Availability
17
HOUSING MIXER PIN WPL 4001F05445 Contact Us For Availability
17
COVER MIXER PIN WPL 4005F37745 Contact Us For Availability
17
SHIELD, TERMINAL WPL 3604F14980 Contact Us For Availability
17
SCREW WPL 7101P07960 Contact Us For Availability
17
BLOCK, TERMINAL WPL 7401P01560 Contact Us For Availability
18
BUMPER, DOOR (SQUARE) WPL 8003P00960 Contact Us For Availability
18
BAFFLE, BAKE & BROIL WPL 3601W13045 Contact Us For Availability
18
SCREW WPL 7101P27360 Contact Us For Availability
18
CLIP, BAFFLE WPL 7112P05060 Contact Us For Availability
18
SCREW (10-24X5/16-NI) WPL 7101P28260 Contact Us For Availability
18
FAN, RESISTOR ASY WPL 7413A00260 Contact Us For Availability
19
SCREW WPL 7101P01260 Contact Us For Availability
19
SCREW, COUNTERWEIGHT WPL 7101P12760 Contact Us For Availability
19
NUT WPL 7103P03460 Contact Us For Availability
19
PAN, BROIL WPL 3401F00423 Contact Us For Availability
19
PAN, BROIL WPL Y3401F02019 Contact Us For Availability
19
HOOD ORIFICE No.56 WPL 7509P01360 Contact Us For Availability
19
SUPPORT DUCT WPL 3807F40745 Contact Us For Availability
20
INSULATION DOOR PAD WPL 4804F00660 Contact Us For Availability
20
INSERT, BROIL PAN WPL 3413F00223 Contact Us For Availability
20
INSERT, BROIL PAN WPL Y3413F01619 Contact Us For Availability
20
COVER SIDE RIGHT WPL 4005F34351 Contact Us For Availability
20
COVER, SIDE LEFT WPL 4005F34451 Contact Us For Availability
21
SEAL, DOOR PANEL WPL 7208P00960 Contact Us For Availability
21
COVER TOP WPL 4005F34151 Contact Us For Availability
22
SHIELD AIR WPL 3604F16745 Contact Us For Availability
23
RISER, DUCT ASSY WPL 4006D10045 Contact Us For Availability
23
DUCT ASSY. WPL 4006D10145 Contact Us For Availability
23
GASKET, FLUE TOP WPL 7201P04860 Contact Us For Availability
24
SCREW, No.10 X .5 TYA WPL 7101P27460 Contact Us For Availability
24
BRACKET, BURNER BOX WPL 3801F09345 Contact Us For Availability
24
BOTTOM WPL 4011F18880 Contact Us For Availability
25
HOUSING, FAN WPL 4001F07445 Contact Us For Availability
26
FAN ASSY. WPL 7427P01060 Contact Us For Availability
× ![]()
