Model Whirlpool 4KUDA220T5 DISHWASHER – Common Parts &amp; Diagrams

350930 Whirlpool White Spray Paint In Stock WPL 350930 $14.72

350942 Whirlpool Spray Paint Backorder WPL 350942 $50.73

350956 Whirlpool Spray Assembly In Stock WPL 350956 $17.07

675679 Whirlpool Dishwasher White Tip Tines In Stock WPL 675679 $14.14

72017 Whirlpool Appliance Touch-Up Paint Whit In Stock WPL 72017 $4.79

72110 Whirlpool Dryer Touch-Up Paint, Golden In Stock WPL 72110 $10.38

72113 Whirlpool Touch-Up Paint Backorder WPL 72113 $11.02

799344 Whirlpool Refrigerator Paint Backorder WPL 799344 $146.78

W10841140 Whirlpool Dishwasher Adhesive In Stock WPL W10841140 $10.00

WP72107 Whirlpool Touchup In Stock WPL WP72107 $6.60

Golden Harvest WPL 261890 Contact Us For Availability

Golden Harvest (Uncut) WPL 261891 Contact Us For Availability

Toast WPL 285365 Contact Us For Availability

Paint, Spray (13 Oz.) (Platinum) WPL 285366 Contact Us For Availability

Enamal, Toast (1 Qt. Uncut) WPL 285367 Contact Us For Availability

Platinum (Uncut) WPL 285368 Contact Us For Availability

Leveler (Thinner) WPL 350941 Contact Us For Availability

Insulation Kit (Kit Includes Tub, Kickboard, WPL 4171179 Contact Us For Availability

WPL 72112 WPL 72112 Contact Us For Availability

WPL 978883 WPL 978883 Contact Us For Availability

WPL LIT9740129 WPL LIT9740129 Contact Us For Availability

WPL LIT9740132 WPL LIT9740132 Contact Us For Availability

WPL LIT9740137 WPL LIT9740137 Contact Us For Availability

1

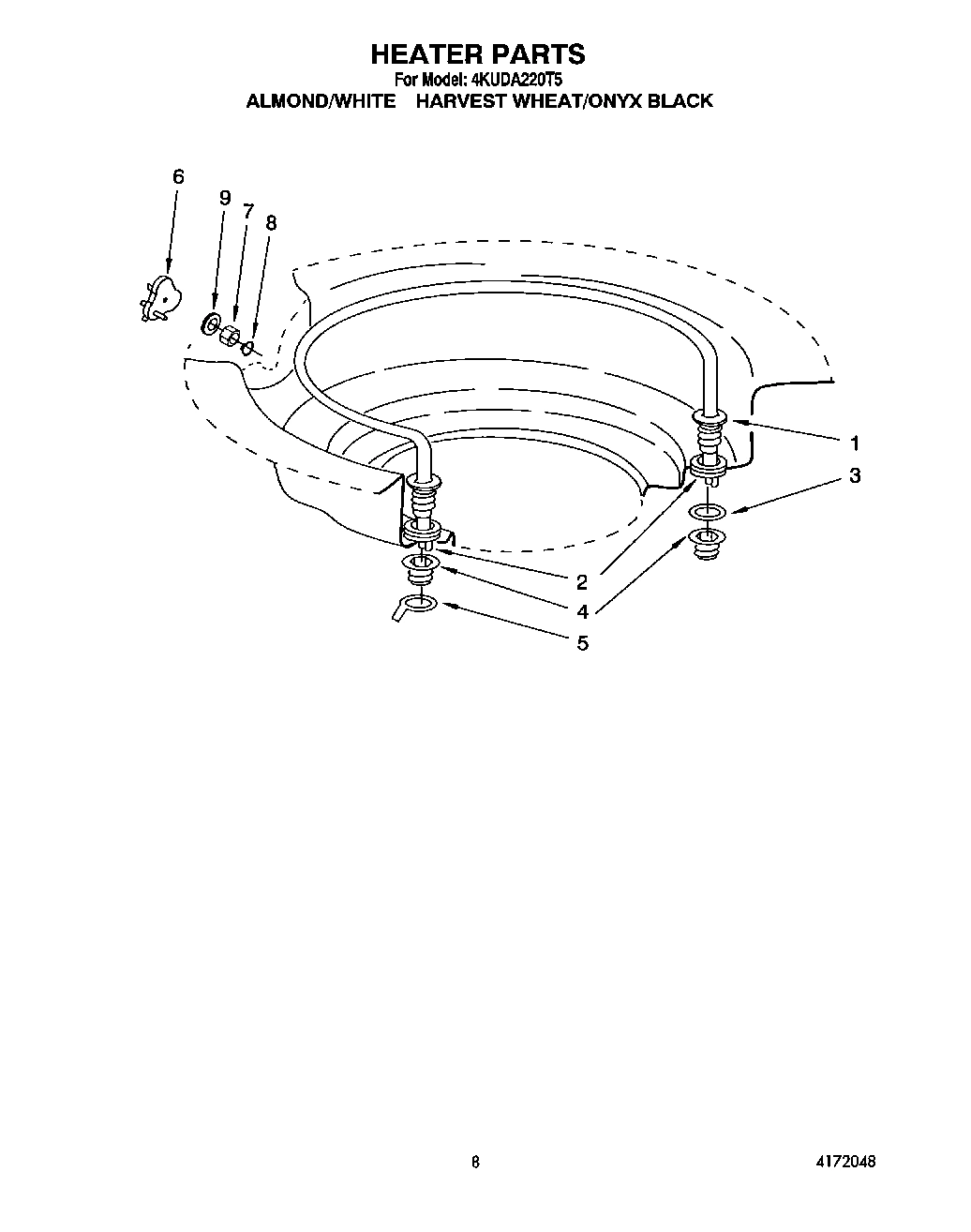

Element, Heater (Alt.) WPL 4163524 Contact Us For Availability

1

Element, Heater (Alt.) WPL 4171154 Contact Us For Availability

1

Element, Heater WPL 9740417 Contact Us For Availability

1

Tube & Connector Assembly WPL 4162664 Contact Us For Availability

1

Timer WPL 4171245 Contact Us For Availability

1

Washer WPL 4162892 Contact Us For Availability

1

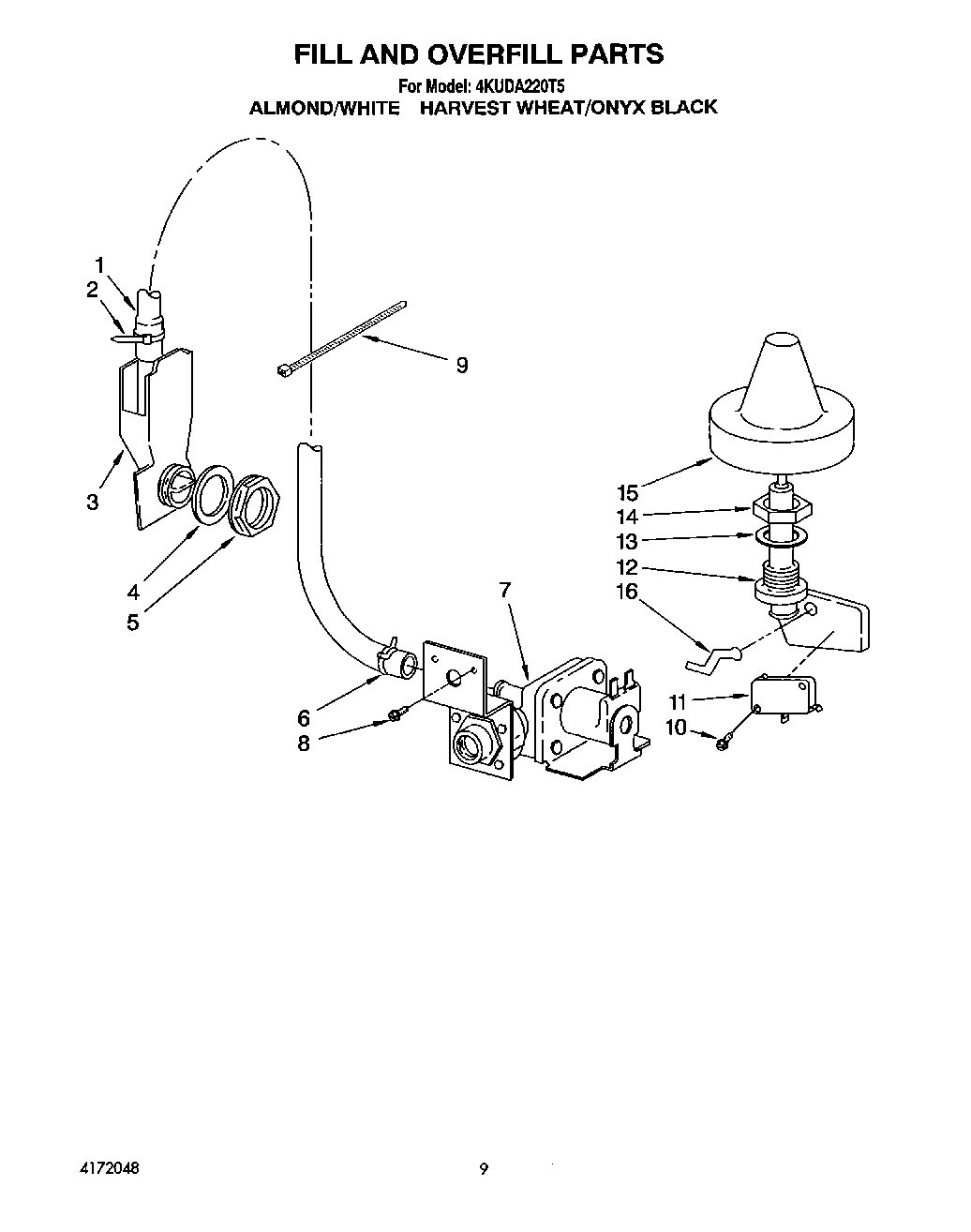

Hose, Flexible (Fill Valve to Air Gap) WPL 4163236 Contact Us For Availability

1

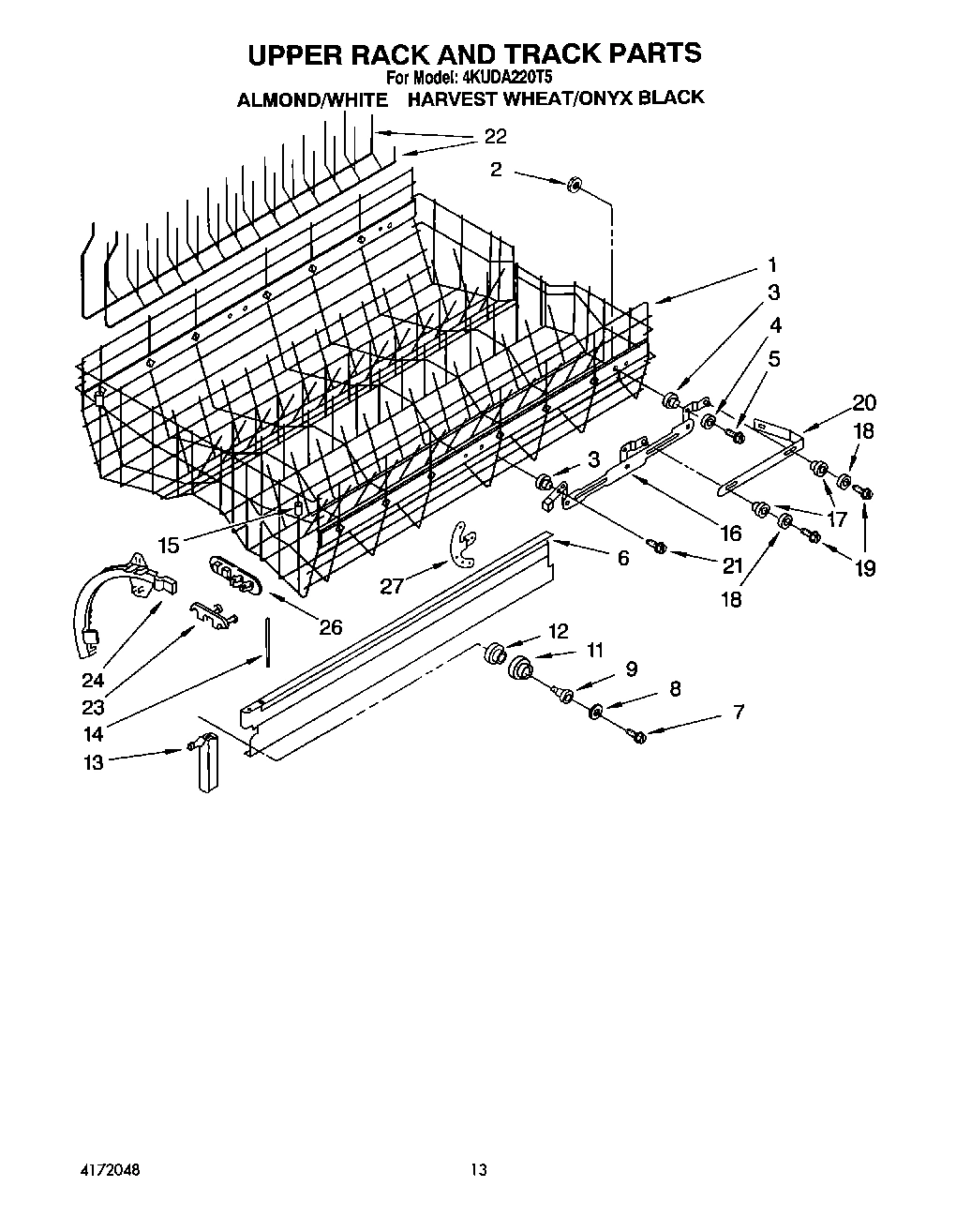

Upper Rack Assembly (Includes Items 2, 3, 4, WPL 4171557 Contact Us For Availability

1

Cover, Wiring Harness WPL 4161659 Contact Us For Availability

1

Screw WPL 4162215 Contact Us For Availability

1

Cover, Air Inlet WPL 9740633 Contact Us For Availability

1

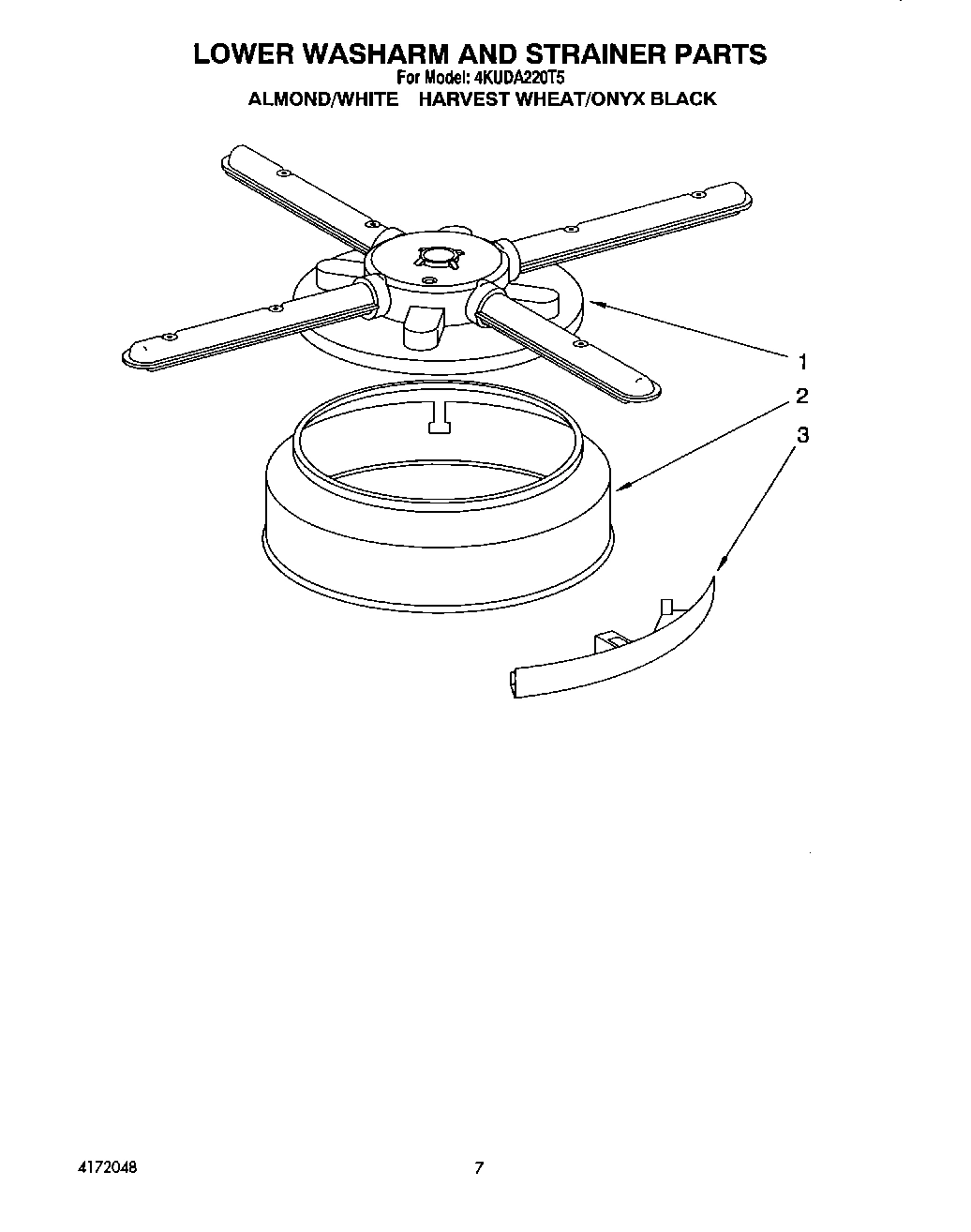

Wash Arm Assembly WPL 4162925 Contact Us For Availability

2

W11233072 Whirlpool Screw In Stock WPL W11233072 $10.90

2

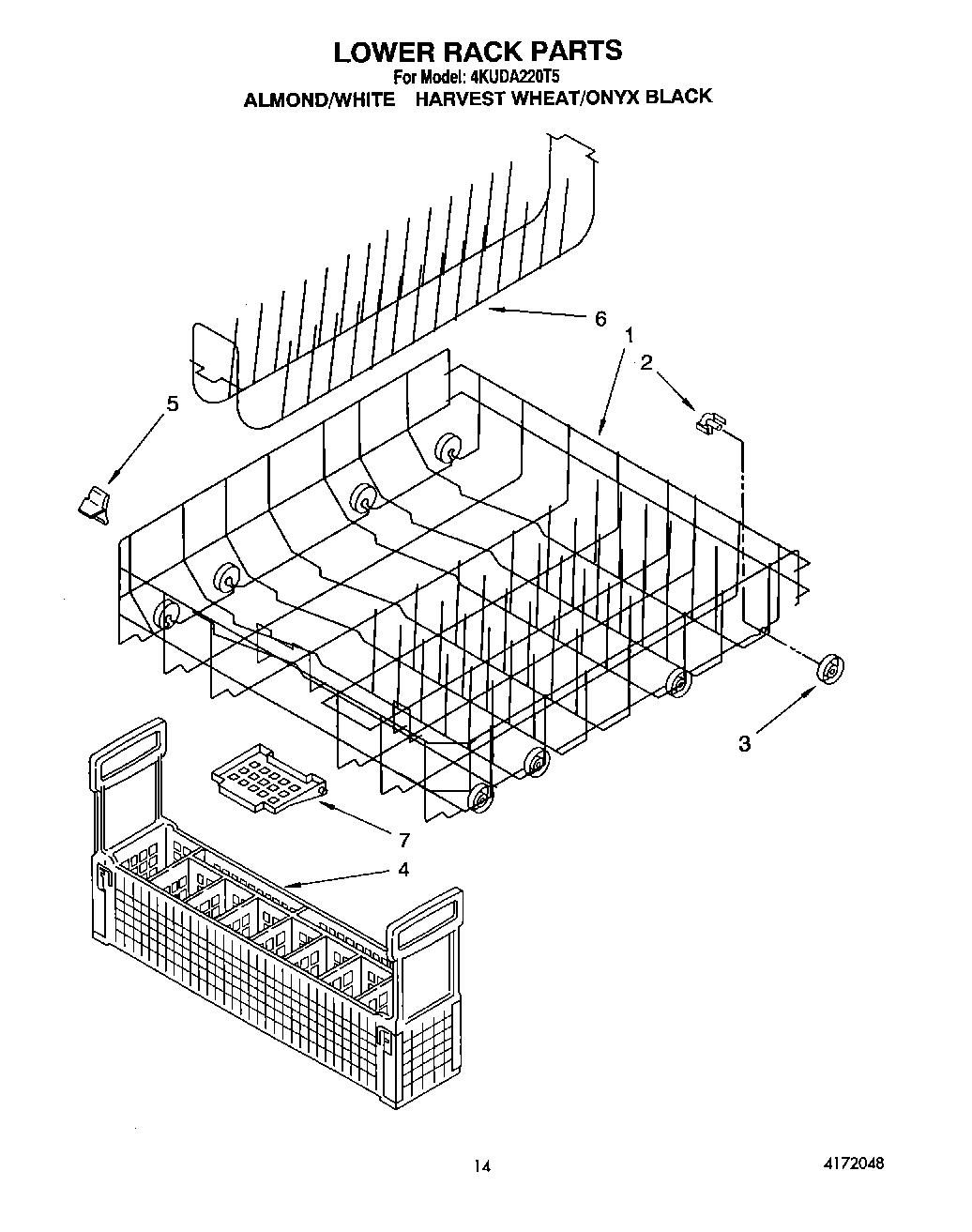

Axle, Lower Rack WPL 4162321 Contact Us For Availability

2

Grommet, Heater Element WPL 4162520 Contact Us For Availability

2

Connector, Vertical Conduit WPL 9740763 Contact Us For Availability

2

Board, Light WPL 4171380 Contact Us For Availability

2

Clamp, Hose WPL 4162103 Contact Us For Availability

2

Nut, Roller WPL 4161226 Contact Us For Availability

2

Washer WPL 4159513 Contact Us For Availability

2

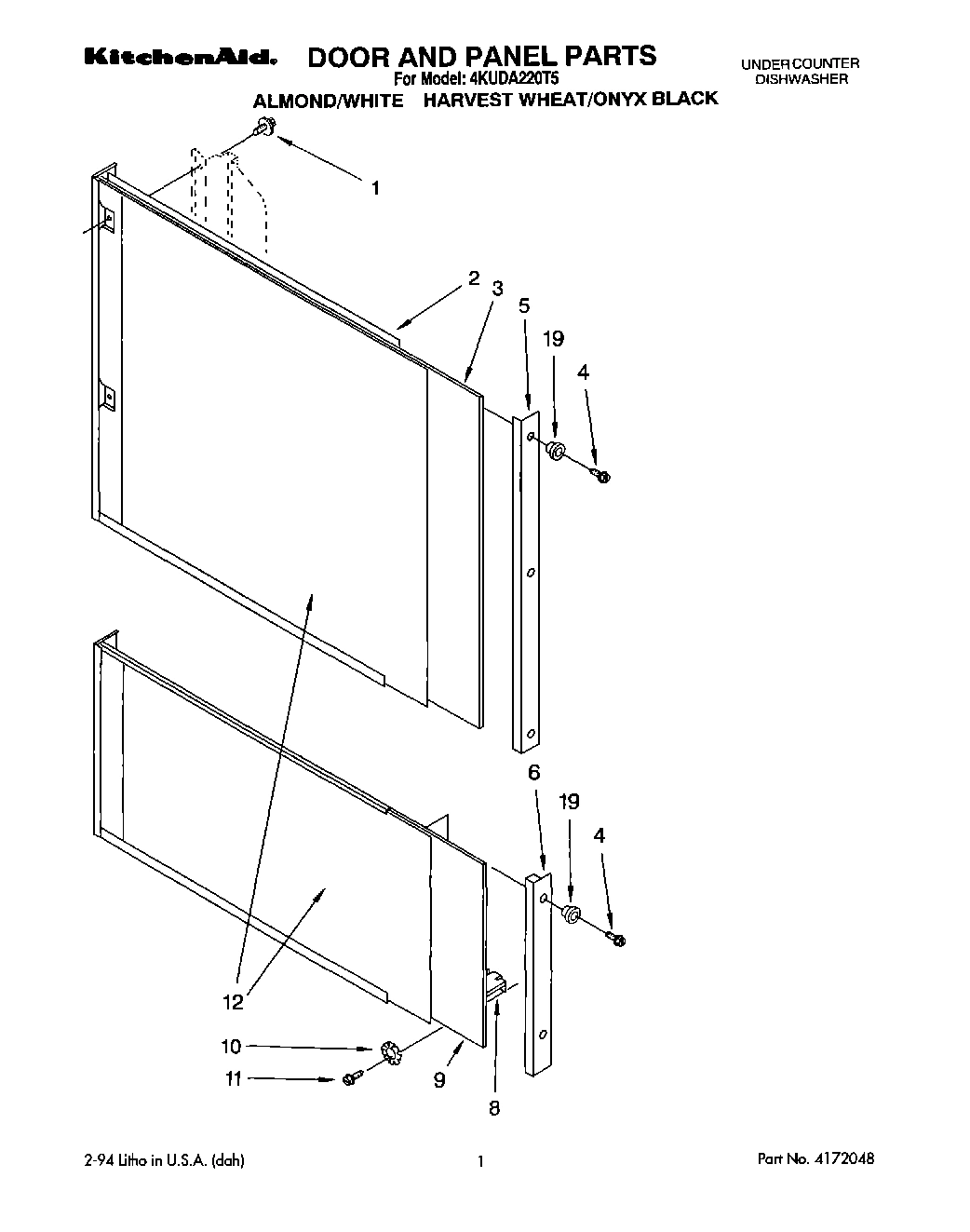

Upper Mounting Panel Assembly WPL 4171420 Contact Us For Availability

2

Float, Check Valve WPL 4161590 Contact Us For Availability

2

Strainer (Fine) WPL 4162927 Contact Us For Availability

3

WP4162322 Whirlpool Dishwasher Roller In Stock WPL WP4162322 $3.46

3

WP693304 Whirlpool Screw Backorder WPL WP693304 $3.22

3

Door Seal Assembly (Includes Item 4) WPL 4161631 Contact Us For Availability

3

Washer, Heater Element WPL 4159600 Contact Us For Availability

3

Conduit, Vertical WPL 4162655 Contact Us For Availability

3

Light Cover WPL 4171236 Contact Us For Availability

3

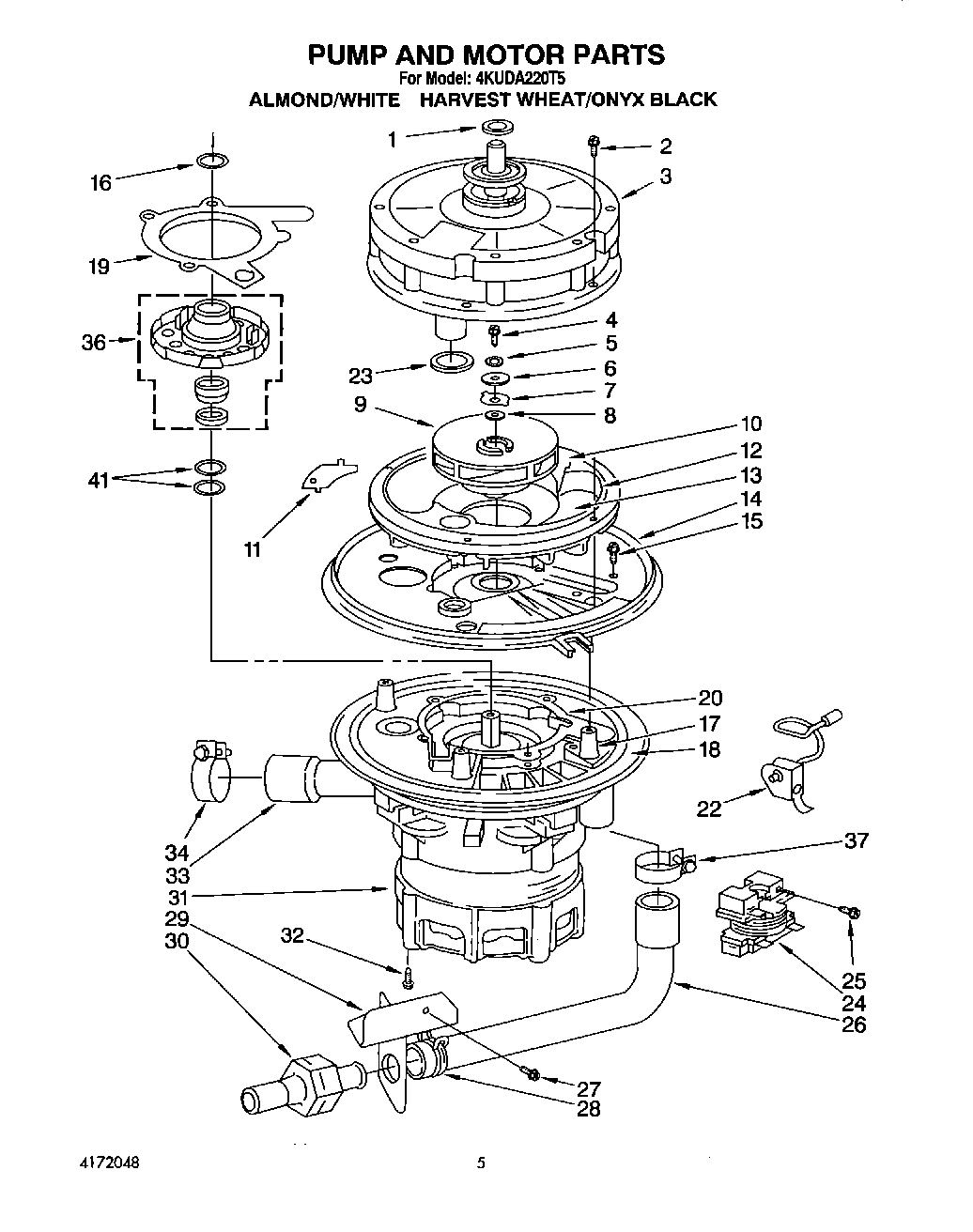

Wash Pump Top (Includes Items 1 & 23) WPL 4163521 Contact Us For Availability

3

Air Gap, Fill Assembly (Includes Items 1 & 2) WPL 9740394 Contact Us For Availability

3

Bearing & Spacer, Rack Roller WPL 4171288 Contact Us For Availability

3

Filler (Upper Panel) WPL 4171421 Contact Us For Availability

3

Vent Tube WPL 9740634 Contact Us For Availability

3

Strainer (Coarse) WPL 4171195 Contact Us For Availability

4

Nut, Heater Element WPL 4162518 Contact Us For Availability

4

Retainer, Conduit WPL 4162609 Contact Us For Availability

4

Screw, Drive (2) WPL 4159432 Contact Us For Availability

4

Screw, 10-32 WPL 4162918 Contact Us For Availability

4

Washer WPL 4162452 Contact Us For Availability

4

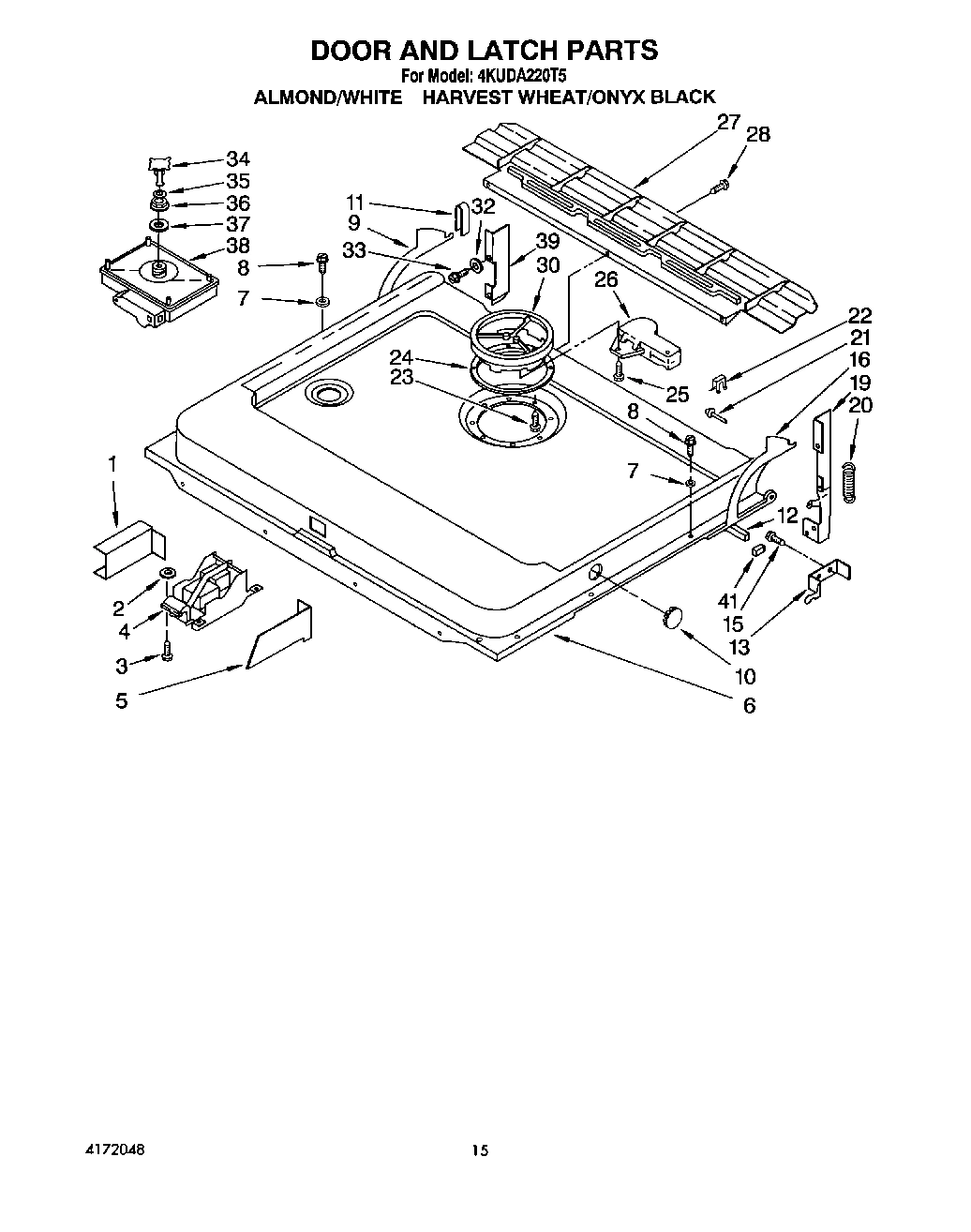

Latch Mechanism Assembly WPL 9740841 Contact Us For Availability

4

Screw, 6 X 1/4 WPL 4159439 Contact Us For Availability

4

Seal WPL 9740635 Contact Us For Availability

5

Terminal, Ground WPL 4163306 Contact Us For Availability

5

Retainer, Manifold WPL 4162500 Contact Us For Availability

5

Spring, Switch WPL 4171272 Contact Us For Availability

5

Lock Washer WPL 4159500 Contact Us For Availability

5

Insulation, Switch WPL 4162145 Contact Us For Availability

5

Side Trim (Upper Panel) WPL 4171395 Contact Us For Availability

5

Retainer, Vent Tube WPL 9740632 Contact Us For Availability

6

Thermostat WPL 4171092 Contact Us For Availability

6

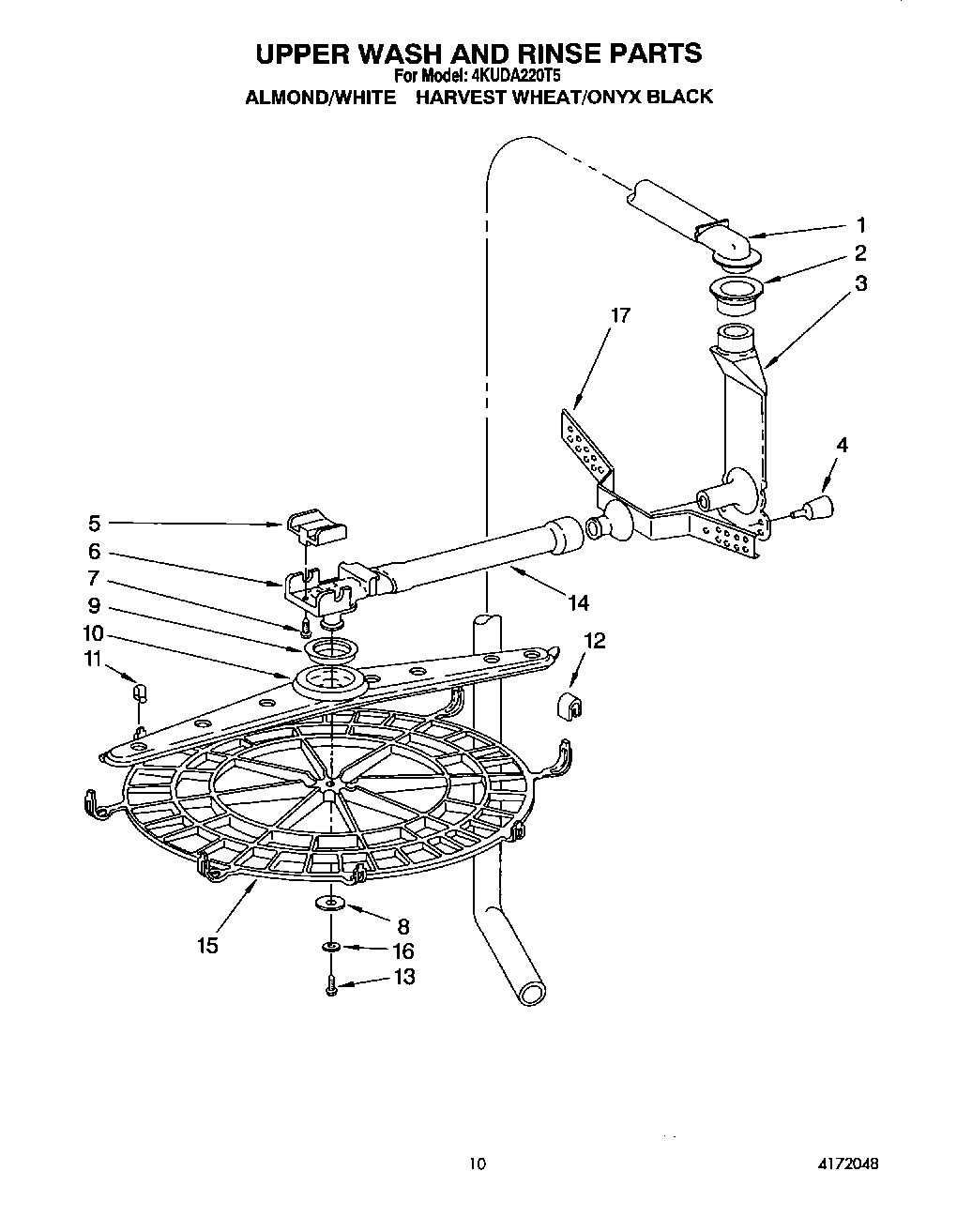

Manifold, Upper Arm WPL 4162466 Contact Us For Availability

6

Barrier, Timer WPL 4171158 Contact Us For Availability

6

Washer, Spring (Impeller) WPL 4160297 Contact Us For Availability

6

Clamp, Hose WPL 4161507 Contact Us For Availability

6

Track, Rack WPL 4162442 Contact Us For Availability

6

Inner Door Assembly WPL 4171275 Contact Us For Availability

6

Side Trim (Lower Panel) WPL 4162686 Contact Us For Availability

6

Dryer Housing WPL 9740638 Contact Us For Availability

7

WP4171000 Whirlpool Dishwasher Inlet Valve In Stock WPL WP4171000 $100.30

7

Nut, Heat Sensing WPL 4161640 Contact Us For Availability

7

Insulator, Door Switch WPL 9740119 Contact Us For Availability

7

Washer, Impeller WPL 4162917 Contact Us For Availability

7

Screw, 10-16 X 3/8 WPL 4159466 Contact Us For Availability

7

Bracket, Housing Support WPL 4162703 Contact Us For Availability

8

``O`` Ring WPL 4159822 Contact Us For Availability

8

Bearing, Arm (Bottom) WPL 4162625 Contact Us For Availability

8

Switch, Pushbutton WPL 4171250 Contact Us For Availability

8

``O`` Ring WPL 4159826 Contact Us For Availability

8

Gasket, Rack Stud WPL 4162943 Contact Us For Availability

8

Screw, 10-32 x 5/16 WPL 4159275 Contact Us For Availability

8

Lower Mounting Panel Assembly WPL 4162737 Contact Us For Availability

8

Screw, WPL 4159442 Contact Us For Availability

9

Bracket, L.H. Door Stop WPL 4161592 Contact Us For Availability

9

Gasket WPL 4161644 Contact Us For Availability

9

Bearing, Arm (Top) WPL 4162491 Contact Us For Availability

9

Guide, Cancel Spring WPL 4171253 Contact Us For Availability

9

Wash Impeller Assembly WPL 4162921 Contact Us For Availability

9

Strap (Flexible Connector to Tank) WPL 4162935 Contact Us For Availability

9

Stud, Rack Roller WPL 4162945 Contact Us For Availability

9

Filler (Lower Panel) WPL 4162734 Contact Us For Availability

9

Screw (2) WPL 9740664 Contact Us For Availability

W11596033 Whirlpool Microwave Screw Backorder WPL W11596033 $9.88

Lock Washer WPL 4159494 Contact Us For Availability

Wash/Rinse Arm Assembly WPL 4162468 Contact Us For Availability

Plate, Air Inlet Cover WPL 4162952 Contact Us For Availability

Screw, 4-40 X 3/4 WPL 4159424 Contact Us For Availability

Plug Button WPL 9740847 Contact Us For Availability

Screw WPL 4159178 Contact Us For Availability

WP9743413 Whirlpool Dishwasher Switch Backorder WPL WP9743413 $16.85

Bearing, Door Stop Insert (2) WPL 4160355 Contact Us For Availability

Clip, Wash Arm Guard (4) WPL 4162501 Contact Us For Availability

Bracket, Program Switch WPL 4171255 Contact Us For Availability

Gasket, Cover Plate WPL 4162953 Contact Us For Availability

Roller, Rack Track WPL 4162944 Contact Us For Availability

Screw WPL 4159421 Contact Us For Availability

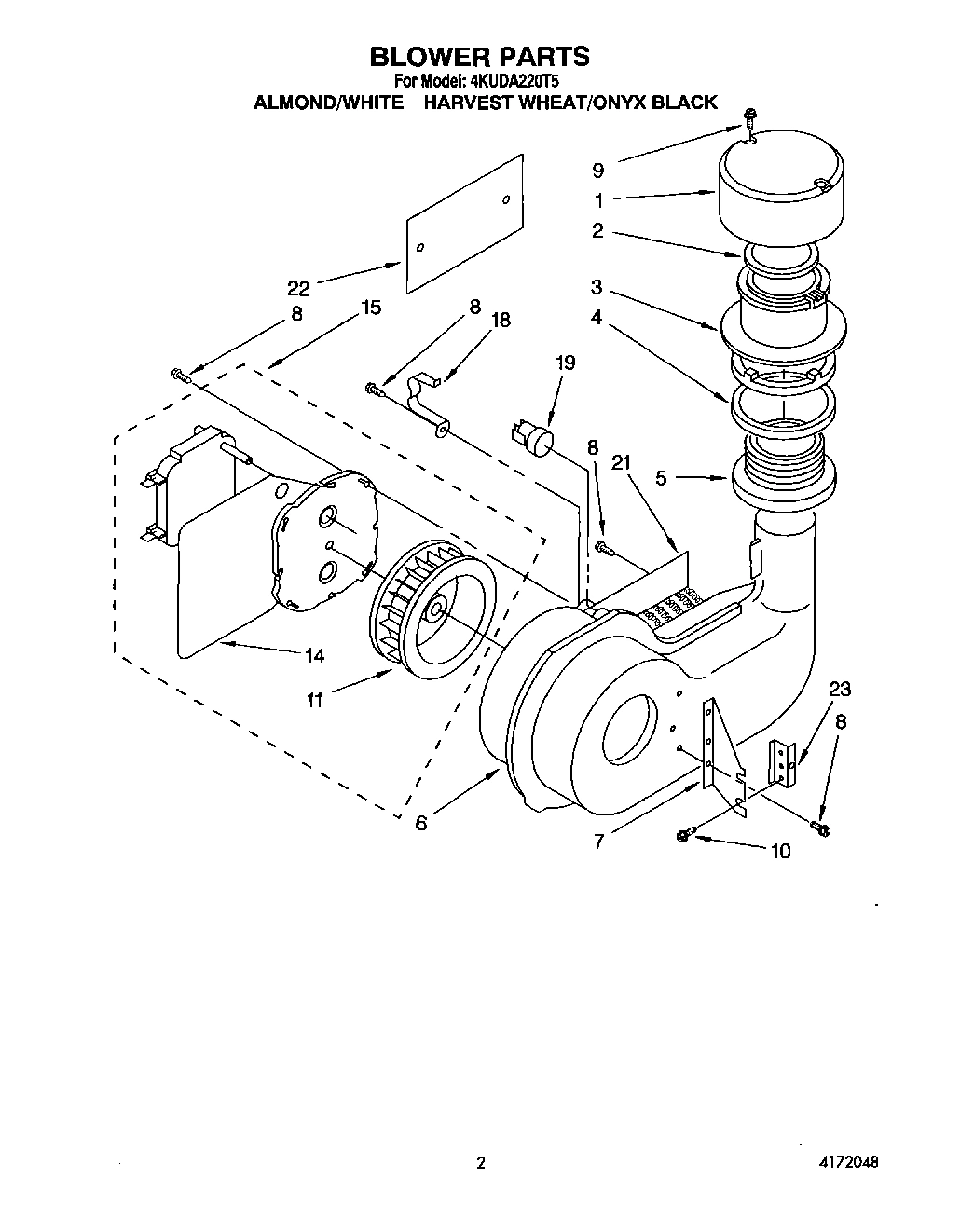

Wheel, Blower WPL 4162741 Contact Us For Availability

W10207863 Whirlpool Dishwasher Switch Backorder WPL W10207863 $66.86

Panel Insert Kits (Stainless Steal (Optional) WPL 4171198 Contact Us For Availability

Clip, Wash Arm Guard (4) WPL 4171224 Contact Us For Availability

Spring, Interlock WPL 4171256 Contact Us For Availability

Lower Pump Housing (Includes Items 13 & 23) WPL 4162929 Contact Us For Availability

Bushing, Rack Roller WPL 4162946 Contact Us For Availability

Vapor Barrier, Inner Door (Includes Item No. WPL 4162949 Contact Us For Availability

Panel Insert Kits (Almond/White) WPL 4171200 Contact Us For Availability

Panel Insert Kits (Harvest Gold/ Onyx Black) WPL 4171201 Contact Us For Availability

WP8531743 Whirlpool Dishwasher Float Switch B In Stock WPL WP8531743 $24.20

Screw WPL 4161737 Contact Us For Availability

Switch, Interlock WPL 4163602 Contact Us For Availability

Seal, Wash Pump Ring WPL 4162919 Contact Us For Availability

Bumper, Rack Track WPL 4162084 Contact Us For Availability

Bracket, Spring Mounting (L.H.) WPL 4161957 Contact Us For Availability

Bracket, Spring Mounting (R.H.) WPL 4161958 Contact Us For Availability

Tube (Manifold to Receiver) WPL 4161617 Contact Us For Availability

Bracket, Program Switch WPL 4171400 Contact Us For Availability

Fine Strainer WPL 4162933 Contact Us For Availability

Nut, Standpipe WPL 4161596 Contact Us For Availability

Stud, Bumper Retaining WPL 4160423 Contact Us For Availability

Cover, Dryer Motor WPL 4162443 Contact Us For Availability

WP3390631 Whirlpool Screw Backorder WPL WP3390631 $3.46

Guard, Arm WPL 4162469 Contact Us For Availability

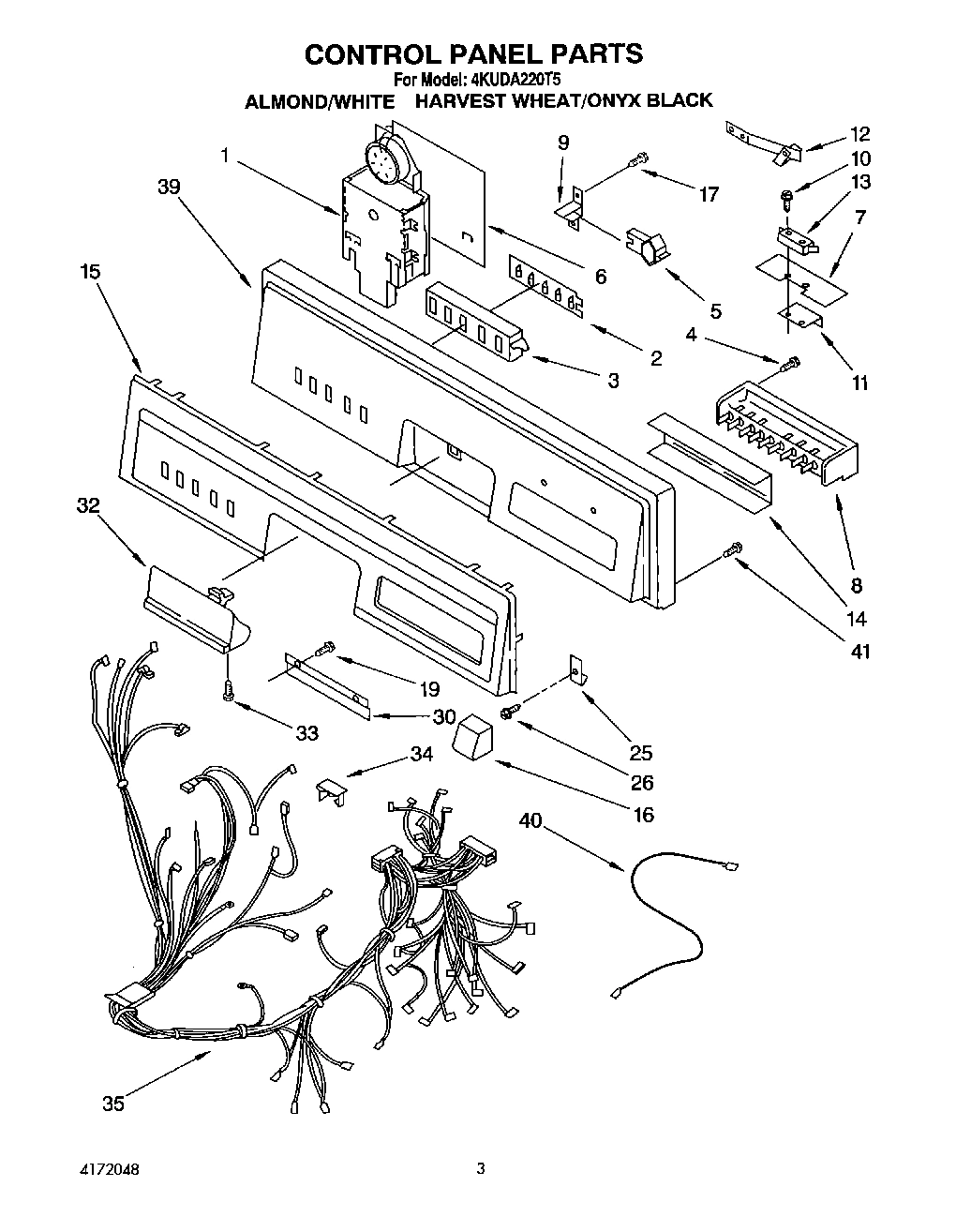

Insert, Control Panel (Black) WPL 4171325 Contact Us For Availability

Float & Retainer Assembly WPL 4171216 Contact Us For Availability

Bumper, Upper Rack WPL 4162048 Contact Us For Availability

Blower Motor Assembly WPL 4162742 Contact Us For Availability

Bracket, R.H. Door Stop WPL 4161594 Contact Us For Availability

Washer WPL 4162624 Contact Us For Availability

Pushbutton (8) WPL 4171254 Contact Us For Availability

``O`` Ring WPL 4159827 Contact Us For Availability

Lever, Overflow Switch WPL 4171116 Contact Us For Availability

Track, Adjustable (R.H.) WPL 4171289 Contact Us For Availability

Track, Adjustable (L.H.) WPL 4171290 Contact Us For Availability

WP488921 Whirlpool Refrigerator Screw Backorder WPL WP488921 $3.22

Arm, Receiver WPL 4161581 Contact Us For Availability

Motor Mounting Plate (Includes Items 18 & 20) WPL 4162932 Contact Us For Availability

Roller, Upper Rack Track WPL 9741324 Contact Us For Availability

18

Gasket, Motor Mounting Plate WPL 4161497 Contact Us For Availability

18

Washer WPL 4159593 Contact Us For Availability

18

Clip, Thermoprotector WPL 4162990 Contact Us For Availability

Bracket, R.H. Hinge WPL 4161587 Contact Us For Availability

Screw, 8 x 5/16 WPL 4159364 Contact Us For Availability

Screw, 8-32 x 1/2 WPL 4159299 Contact Us For Availability

Drain Pump Top Assembly WPL 9740950 Contact Us For Availability

Screw, 8-32 X 1/4 (4) WPL 4159283 Contact Us For Availability

Grommet, Panel (10) WPL 4162735 Contact Us For Availability

Thermostat WPL 4171164 Contact Us For Availability

WP4171383 Whirlpool Dishwasher Spring Backorder WPL WP4171383 $15.41

Gasket, Drain Pump WPL 4163050 Contact Us For Availability

Lift, Receiver (R.H.) WPL 4171293 Contact Us For Availability

Lift, Receiver (L.H.) WPL 4171294 Contact Us For Availability

Screw, 10 X 5/8 WPL 4159428 Contact Us For Availability

Pin, Hinge WPL 4161563 Contact Us For Availability

Heater, Open (Alt.) WPL 4171159 Contact Us For Availability

Heater, Open (Alt.) WPL 4171160 Contact Us For Availability

Heater, Open (Alt.) WPL 4171161 Contact Us For Availability

Heater, Open WPL 9740629 Contact Us For Availability

Motor Clamp Assembly WPL 4161986 Contact Us For Availability

Partition WPL 4171548 Contact Us For Availability

Clip, Hinge Pin Retaining WPL 4161585 Contact Us For Availability

Access Cover WPL 4163186 Contact Us For Availability

Clip, Partition (6) WPL 4160480 Contact Us For Availability

Gasket, Venturi WPL 4162916 Contact Us For Availability

Screw WPL 9740851 Contact Us For Availability

Bracket, Blower Mounting WPL 9740631 Contact Us For Availability

Start Relay Kit (Includes Item 25) WPL 9740418 Contact Us For Availability

Quadrant, Divider (R.H.) WPL 4171549 Contact Us For Availability

Quadrant, Divider (L.H.) WPL 4171550 Contact Us For Availability

Gasket, Detergent Dispenser WPL 4161619 Contact Us For Availability

25

Foot, Leveling WPL 4162911 Contact Us For Availability

25

Clip, Grounding (Front Panel) WPL 4162043 Contact Us For Availability

25

Screw, 8-18 x 1-1/4 WPL 4159403 Contact Us For Availability

26

WP4162568 Whirlpool Bi-metal Thermostat Backorder WPL WP4162568 $38.99

26

Tube - Flexible (Drain) WPL 4163151 Contact Us For Availability

26

Clip, Wash Arm Guard WPL 4171551 Contact Us For Availability

Baffle, Lower WPL 4161295 Contact Us For Availability

Screw, 10-32 X 3/8 WPL 4159372 Contact Us For Availability

Rackstop (R.H.) WPL 4171291 Contact Us For Availability

Rackstop (L.H.) WPL 4171292 Contact Us For Availability

28

Clamp, Hose (.937`` Dia.) WPL 371499 Contact Us For Availability

28

Enclosure, Elec. Supply WPL 4161369 Contact Us For Availability

29

Panel, Bottom WPL 9740042 Contact Us For Availability

29

Bracket, Check Valve WPL 4171311 Contact Us For Availability

Trim, Tank (R.H.) WPL 4171304 Contact Us For Availability

Trim, Tank (L.H.) WPL 4171305 Contact Us For Availability

Trim, Tank (Screw) WPL 9741233 Contact Us For Availability

Bracket, Door Panel WPL 4171364 Contact Us For Availability

Check Valve Assembly WPL 4162920 Contact Us For Availability

Detergent Dispenser & Gasket Assembly (115 V. WPL 9740318 Contact Us For Availability

31

Panel, Side (L.H.) WPL 9740040 Contact Us For Availability

31

Panel, Side (R.H.) WPL 9740041 Contact Us For Availability

31

Motor, Seal & Gasket Kit) (Includes Items 18, WPL 9740949 Contact Us For Availability

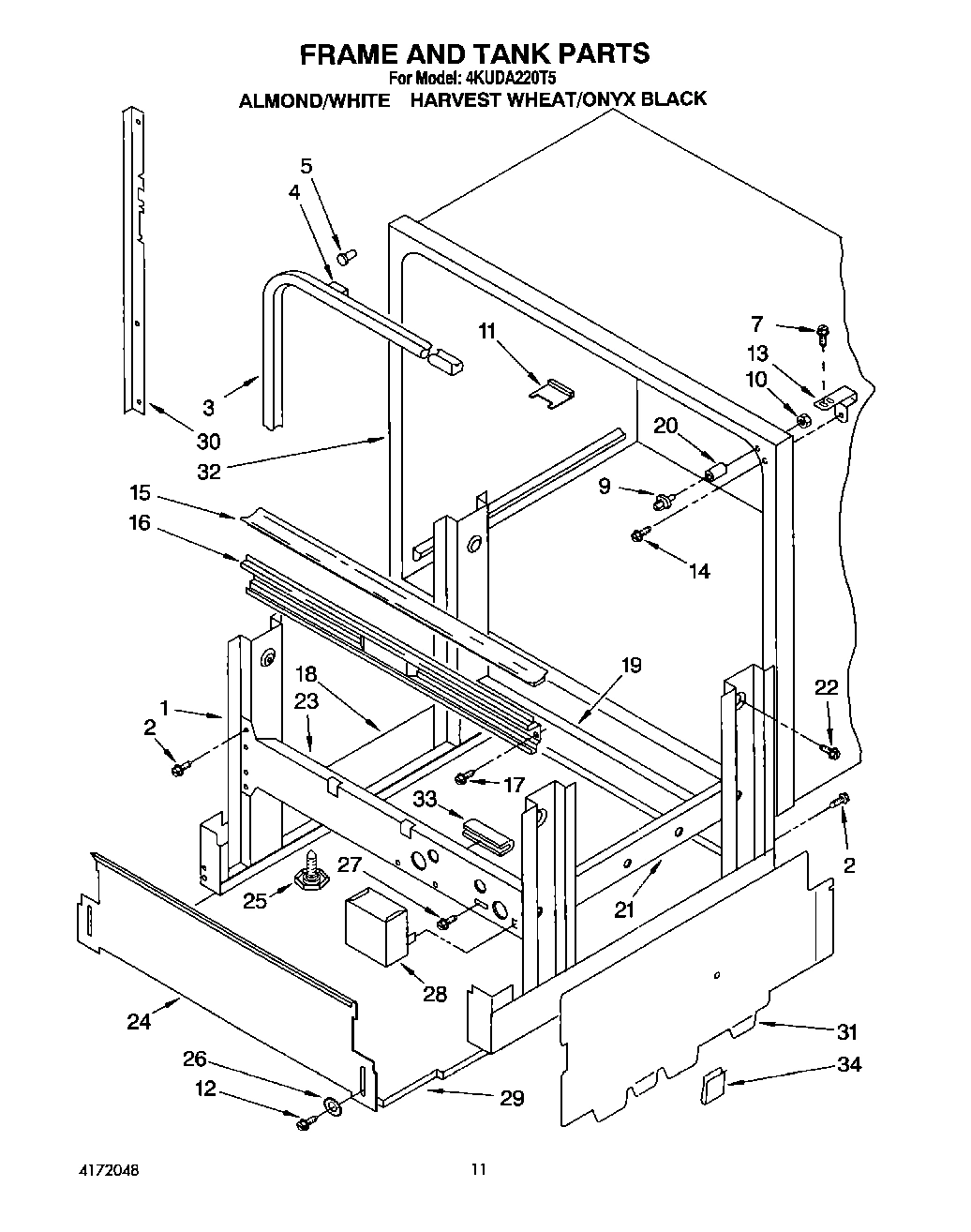

Tank (Serviced Complete with Frame) WPL 9741213 Contact Us For Availability

Handle, Latch WPL 4171270 Contact Us For Availability

Screw, 1/4-20 x 1 WPL 4159235 Contact Us For Availability

Washer (Rubber) WPL 4159594 Contact Us For Availability

Protector, Edge WPL 4171215 Contact Us For Availability

Screw, 10-32 x 5/8 WPL 4159225 Contact Us For Availability

Connector, Overhead WPL 4161605 Contact Us For Availability

Screw, 10-32 X 1/2 WPL 4162151 Contact Us For Availability

Fill Hole Plug Assembly (Includes Item 35) WPL 4171221 Contact Us For Availability

Clip, Speed (8) WPL 9740033 Contact Us For Availability

Clip, Harness Guide WPL 4163372 Contact Us For Availability

Clamp, Hose (1.468`` Dia.) WPL 4162031 Contact Us For Availability

35

Screw, 8-18 X 3/8 WPL 4159349 Contact Us For Availability

35

Wiring Harness (Main) WPL 9740828 Contact Us For Availability

35

Washer, Fill Hole Plug WPL 4162496 Contact Us For Availability

36

Cutter Kit (Includes Shaft Seal Kit) WPL 4163042 Contact Us For Availability

36

Nut, Rinse Agent Dispenser WPL 4171300 Contact Us For Availability

37

3363365 Whirlpool Clamp Backorder WPL 3363365 $7.41

37

Gasket, Rinse Agent Dispenser WPL 4161545 Contact Us For Availability

38

Rinse Agent Dispensing Valve WPL 9741234 Contact Us For Availability

39

Bracket, L.H. Hinge WPL 4161589 Contact Us For Availability

39

Pushnut, Membrane WPL 4163538 Contact Us For Availability

39

Control Panel (Includes Item 15) WPL 9740225 Contact Us For Availability

40

Lead, Program Switch WPL 4171351 Contact Us For Availability

41

Shim Washer Kit WPL 4163634 Contact Us For Availability

41

Vapor Barrier, Corner (2) WPL 4162950 Contact Us For Availability
