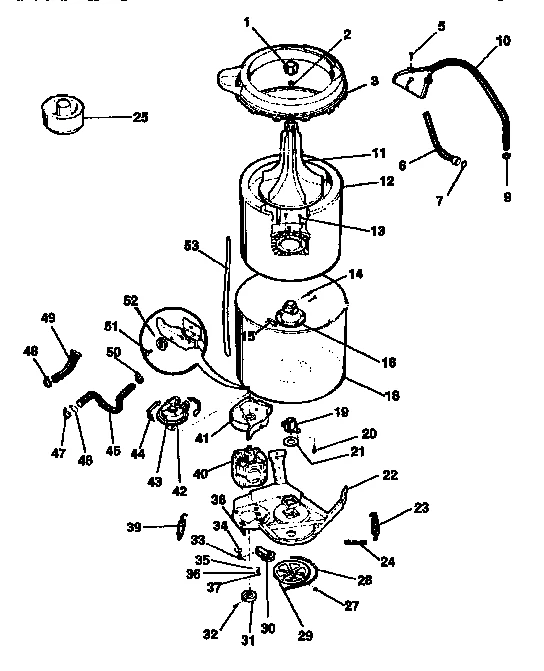

Model Electrolux 417.99395110 Laundry Center (Kenmore 41799395110) – Common Parts &amp; Diagrams

1

Sears Canada Laundry Center Washer Agitator C WCI 3204395 Contact Us For Availability

1

Washer Agitator Bolt WCI 131206800 Contact Us For Availability

1

Dryer Control WCI 5303306280 Contact Us For Availability

1

Screw WCI 5303211089 Contact Us For Availability

2

Washer Agitator Cap Seal WCI 3204396 Contact Us For Availability

2

Jumper Wire WCI 131062205 Contact Us For Availability

3

Electronic Harness WCI 131189200 Contact Us For Availability

4

131362400 Frigidaire Fastener In Stock WCI 131362400 $6.81

4

5303161307 Frigidaire Dryer Seal Assembly In Stock WCI 5303161307 $12.13

4

5304489657 Frigidaire Bar Hinge Kit Backorder WCI 5304489657 $61.41

4

Trim WCI 5303272056 Contact Us For Availability

5

5303281019 Frigidaire Ball Assembly Backorder WCI 5303281019 $12.06

5

Snap Ring WCI 5303161223 Contact Us For Availability

5

Grommet Hinge WCI 3204362 Contact Us For Availability

6

5303212872 Frigidaire Lid Assembly Backorder WCI 5303212872 $255.66

6

5303281020 Frigidaire Ball Clip In Stock WCI 5303281020 $12.59

6

5304521121 Frigidaire Duct Backorder WCI 5304521121 $86.09

6

Harness WCI 5303272057 Contact Us For Availability

6

Screw WCI 131346600 Contact Us For Availability

6A

Lid (Almond) WCI 5303212873 Contact Us For Availability

7

3204490 Frigidaire Seal Backorder WCI 3204490 $10.49

7

5303161296 Frigidaire Washer Inlet Hose (1 Pi Backorder WCI 5303161296 $1,678.32

7

Plug WCI 5303161224 Contact Us For Availability

8

Screw WCI 3205245 Contact Us For Availability

8

Electronic Control WCI 5303300360 Contact Us For Availability

8

Screw WCI 08002804 Contact Us For Availability

9

131390000 Frigidaire Door Catch-Strike Backorder WCI 131390000 $40.06

9

Washer Gear Case Housing Seal WCI 5308015778 Contact Us For Availability

9

Screw WCI 3205253 Contact Us For Availability

10

5304485558 Frigidaire Blower Housing Assembly In Stock WCI 5304485558 $104.99

10

Gear WCI 5308011268 Contact Us For Availability

11

3204368 Frigidaire Strike Screw Backorder WCI 3204368 $9.44

11

Washer Agitator WCI 3204401 Contact Us For Availability

11

Rod WCI 5303161169 Contact Us For Availability

12

131476300 Frigidaire Dryer Blower Wheel In Stock WCI 131476300 $34.13

12

134075500 Frigidaire Lid Bumper Backorder WCI 134075500 $12.59

12

Gear WCI 5308015496 Contact Us For Availability

13

137546400 Frigidaire Screw 5/16-18 x 0.625 In Stock WCI 137546400 $22.16

13

Shaft WCI 5308014905 Contact Us For Availability

14

131205400 Frigidaire Screw Backorder WCI 131205400 $9.44

14

Washer WCI 5303161226 Contact Us For Availability

15

Dryer Heat Duct and Drum Housing WCI 5303207394 Contact Us For Availability

15

Control Thermostat WCI 131073400 Contact Us For Availability

16

134178901 Frigidaire Screw Backorder WCI 134178901 $11.01

16

Lower Housing WCI 131362000 Contact Us For Availability

17

3204254 Frigidaire Baffle Assembly Backorder WCI 3204254 $95.54

17

Housing WCI 5303271179 Contact Us For Availability

17

Bracket WCI 131299001 Contact Us For Availability

18

Washer Cabinet Panel Guide Pin WCI 131346400 Contact Us For Availability

18

Control Panel WCI 131219000 Contact Us For Availability

18

Washer WCI 5308002475 Contact Us For Availability

131168200 Frigidaire Dryer Screw In Stock WCI 131168200 $12.18

131243700 Frigidaire Screw In Stock WCI 131243700 $2.46

3204405 Frigidaire Outer Tub Spin Bearing In Stock WCI 3204405 $72.44

Cradle Pan WCI 3204311 Contact Us For Availability

20

3204374 Frigidaire Pin In Stock WCI 3204374 $58.26

20

3205150 Frigidaire Tub Bearing Screw Backorder WCI 3205150 $2.61

20

End Cap WCI 5303209671 Contact Us For Availability

5308002401 Frigidaire Washer Primary Backorder WCI 5308002401 $11.60

SCREW, CRADLE TO PAN WCI 32851077 Contact Us For Availability

Transmission Oil WCI 131375001 Contact Us For Availability

Capacitor WCI 5308014903 Contact Us For Availability

22

Clutch Coil WCI 131375100 Contact Us For Availability

22

Bracket WCI 5303161252 Contact Us For Availability

Laundry Center Washer Drain Hose WCI 131210200 Contact Us For Availability

Idler Arm WCI 131131501 Contact Us For Availability

Electronic Harness WCI 131189100 Contact Us For Availability

Gear WCI 5303161175 Contact Us For Availability

24

Laundry Center Washer Horizontal Spring WCI 131373900 Contact Us For Availability

24

Retainer WCI 5303204987 Contact Us For Availability

24

Shaft WCI 5308015507 Contact Us For Availability

25

134503600 Frigidaire Dryer Belt In Stock WCI 134503600 $7.75

25

Check Valve WCI 3204375 Contact Us For Availability

25

Housing WCI 5303206931 Contact Us For Availability

26

Electrolux Washer Tub Seal Assembly WCI 5303279394 Contact Us For Availability

26

Support Block WCI 5303212870 Contact Us For Availability

26

Clamp WCI 131127616 Contact Us For Availability

27

Dryer Motor Clamp WCI 5303212834 Contact Us For Availability

27

Washer WCI 5303161232 Contact Us For Availability

28

Motor-rev W/ WCI 131309100 Contact Us For Availability

28

Coupler WCI 3204376 Contact Us For Availability

29

Washer Harness WCI 131162900 Contact Us For Availability

31

Washer Drive Pulley WCI 3204423 Contact Us For Availability

31

Cord WCI 5303207402 Contact Us For Availability

31

End Cap WCI 5303210650 Contact Us For Availability

32

Laundry Center Washer Motor Pulley Pin WCI 3204424 Contact Us For Availability

32

Clip WCI 3204357 Contact Us For Availability

134156200 Frigidaire Screw Assembly In Stock WCI 134156200 $11.01

134190200 Frigidaire Washer Water Valve In Stock WCI 134190200 $87.92

Washer Idler Spring WCI 3204425 Contact Us For Availability

Laundry Center Washer Gear Case Water Slinger WCI 5303272073 Contact Us For Availability

34

131205500 Frigidaire Screw Backorder WCI 131205500 $9.96

34

Shield WCI 131112011 Contact Us For Availability

35

3161433 Frigidaire Retainer Backorder WCI 3161433 $13.64

35

Washer Snubber Ring WCI 5308002385 Contact Us For Availability

35

Nut WCI 5308014350 Contact Us For Availability

36

Laundry Center Washer WCI 5303261031 Contact Us For Availability

36

Washer Shipping Block WCI 3204380 Contact Us For Availability

37

Electrolux Laundry Center Washer WCI 5303161306 Contact Us For Availability

37

Screw WCI 131102900 Contact Us For Availability

38

Elbow WCI 3204320 Contact Us For Availability

38

Base WCI 5303300247 Contact Us For Availability

39

131205100 Frigidaire Screw In Stock WCI 131205100 $10.49

39

134548800 Frigidaire Washer Leg Levelling In Stock WCI 134548800 $12.18

40

131202300 Frigidaire Screw Backorder WCI 131202300 $9.96

40

Cushion WCI 5303004083 Contact Us For Availability

41

131302800 Frigidaire Drum Vane Screw In Stock WCI 131302800 $8.52

42

Washer Front Panel (White) WCI 131104303 Contact Us For Availability

42

Bracket WCI 5303306278 Contact Us For Availability

42A

Panel/almond WCI 5303931754 Contact Us For Availability

43

131346401 Frigidaire Pin Backorder WCI 131346401 $12.06

43

Screw WCI 3204325 Contact Us For Availability

44

137551901 Frigidaire Gasket Backorder WCI 137551901 $28.91

44

3204326 Frigidaire Bracket Assembly Backorder WCI 3204326 $32.01

45

Hose WCI 3204454 Contact Us For Availability

46

Body-white WCI 131207100 Contact Us For Availability

46A

Laundry Center Dryer Door Handle (Almond) WCI 131063601 Contact Us For Availability

46A

Body WCI 5303931758 Contact Us For Availability

47

Bracket-r.h. WCI 131106701 Contact Us For Availability

47A

Bracket-l.h. WCI 131091001 Contact Us For Availability

48

137455500 Frigidaire Lower Pan Assembly Backorder WCI 137455500 $128.67

49

5303207102 Frigidaire Door Strike Backorder WCI 5303207102 $14.69

49

Washer Tub-to-Pump Hose WCI 3204458 Contact Us For Availability

49

Washer Water-Level Pressure Switch WCI 5303293375 Contact Us For Availability

50

134535300 Frigidaire Insulator Backorder WCI 134535300 $44.61

50

Safety Cover WCI 3204329 Contact Us For Availability

50

Switch WCI 3205646 Contact Us For Availability

51

Bracket WCI 5303306138 Contact Us For Availability

52

Rivet WCI 08002420 Contact Us For Availability

53

5304488479 Frigidaire Washer Hose Clamp In Stock WCI 5304488479 $12.66

53

Panel (White) WCI 5303212874 Contact Us For Availability

53A

Panel (Almond) WCI 5303212875 Contact Us For Availability

54

Washer Bleach Dispenser WCI 3204394 Contact Us For Availability

54

Electronic Harness WCI 131218800 Contact Us For Availability

55

134890500 Frigidaire Spring Backorder WCI 134890500 $14.69

55

Dryer Drying Rack WCI 131155200 Contact Us For Availability

56

131422200 Frigidaire P-1 Self Level Leg Pad In Stock WCI 131422200 $41.99

61

Bracket WCI 5303207404 Contact Us For Availability

62

131243800 Frigidaire Screw Backorder WCI 131243800 $7.57

64

Pipe WCI 5303207405 Contact Us For Availability

67

Valve WCI 5303207407 Contact Us For Availability

68

Tube WCI 5362791200 Contact Us For Availability

69

Hex Nut WCI 08015194 Contact Us For Availability

70

5303207409 Frigidaire Dryer Gas Primary Valve In Stock WCI 5303207409 $321.29

71

5303931775 Frigidaire Dryer Coil Kit In Stock WCI 5303931775 $25.28

73

5303207410 Frigidaire Orifice Backorder WCI 5303207410 $59.31

74

5303937186 Frigidaire Dryer Flat Igniter Asse Backorder WCI 5303937186 $59.70

75

5300809968 Frigidaire Dishwasher P-1 Washer Backorder WCI 5300809968 $31.49

76

131420300 Frigidaire Screw Backorder WCI 131420300 $9.96

77

Burner WCI 5303207412 Contact Us For Availability

79

5303281135 Frigidaire Gas Dryer Flame Sensor In Stock WCI 5303281135 $28.60

80

131712405 Frigidaire Tube Backorder WCI 131712405 $25.19

85

Shield WCI 5303212889 Contact Us For Availability

218515401 Frigidaire Refrigerator Clip Backorder WCI 218515401 $13.11

5303321319 Frigidaire Refrigerator White Touc In Stock WCI 5303321319 $9.96

5308027429 Frigidaire Dryer High Temperature In Stock WCI 5308027429 $40.16

PCK3100 Frigidaire Conversion Kit Backorder WCI PCK3100 $37.74

Laundry Center Washer Suspension Spring Adjus WCI 5303212877 Contact Us For Availability

Siphon Assembly WCI 076660-000 Contact Us For Availability

Warming Label WCI 131127400 Contact Us For Availability

Energy Label WCI 131190800 Contact Us For Availability

Operating Instructions WCI 131219200 Contact Us For Availability

Use and Care Guide WCI 131219300 Contact Us For Availability

Wiring Diagram WCI 131219600 Contact Us For Availability

Caution Label WCI 131381400 Contact Us For Availability

Bearing WCI 3204473 Contact Us For Availability

Label WCI 5303207429 Contact Us For Availability

Label WCI 5303207430 Contact Us For Availability

Installation Instructions WCI 5303212892 Contact Us For Availability

Receptacle WCI 5303272164 Contact Us For Availability

Label WCI 5303300289 Contact Us For Availability

Label WCI 5303300290 Contact Us For Availability

Operating Instructions WCI 5303300362 Contact Us For Availability

Label WCI 5303306282 Contact Us For Availability

Switch Motor WCI 5303306283 Contact Us For Availability

Orifice WCI 5303937054 Contact Us For Availability

Compound WCI 5308006576 Contact Us For Availability

Parts Catalog WCI 5995257788 Contact Us For Availability

Touch Paint WCI 5303305325 Contact Us For Availability
