Model Electrolux 417.99390800 Laundry Center (Kenmore 41799390800) – Common Parts & Diagrams
WASHER-TUBS, HOSES, MOTOR
TRANSMISSION

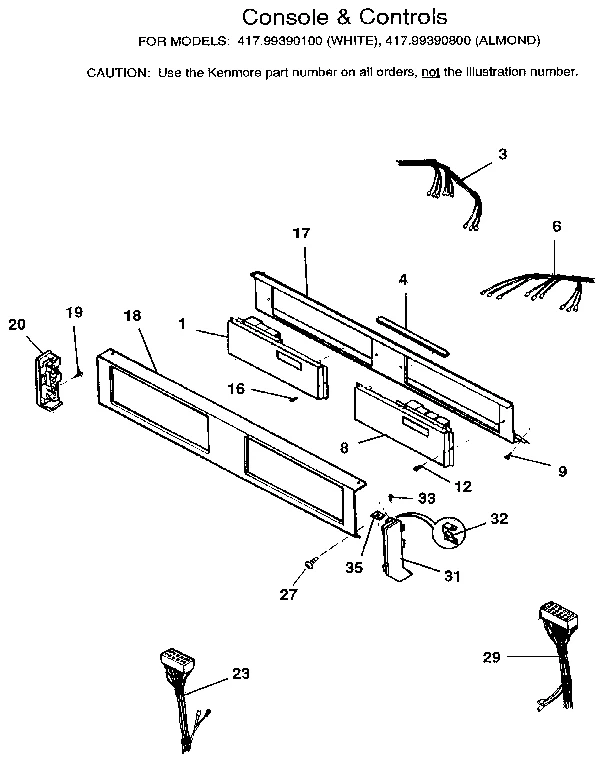

CONSOLE & CONTROLS

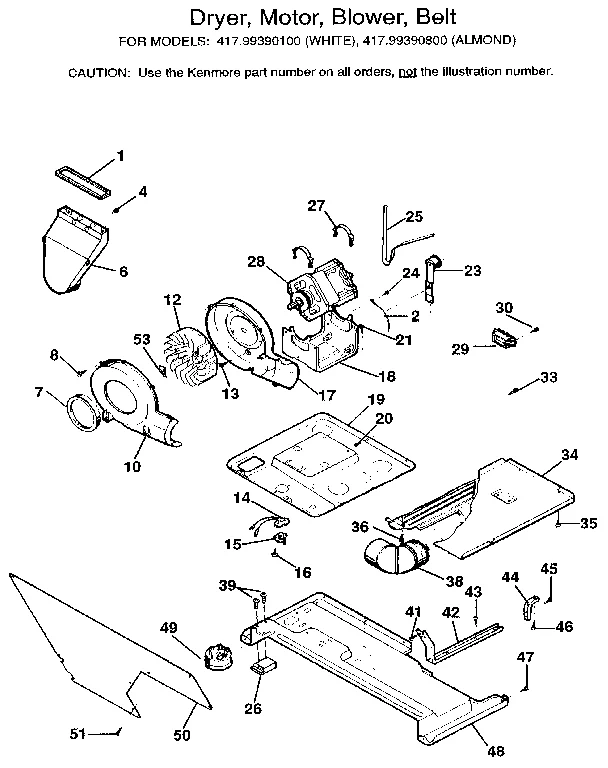

DRYER, MOTOR, BLOWER, BELT

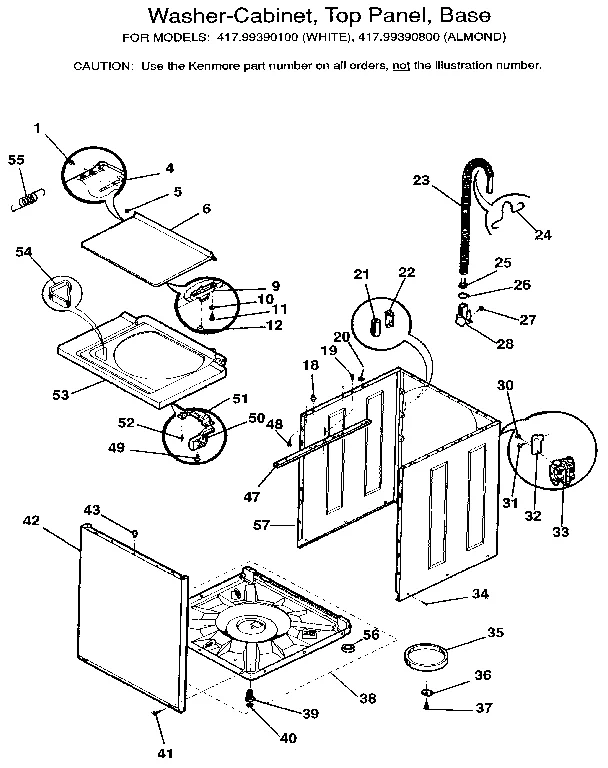

WASHER-CABINET, TOP PANEL, BASE
All Parts

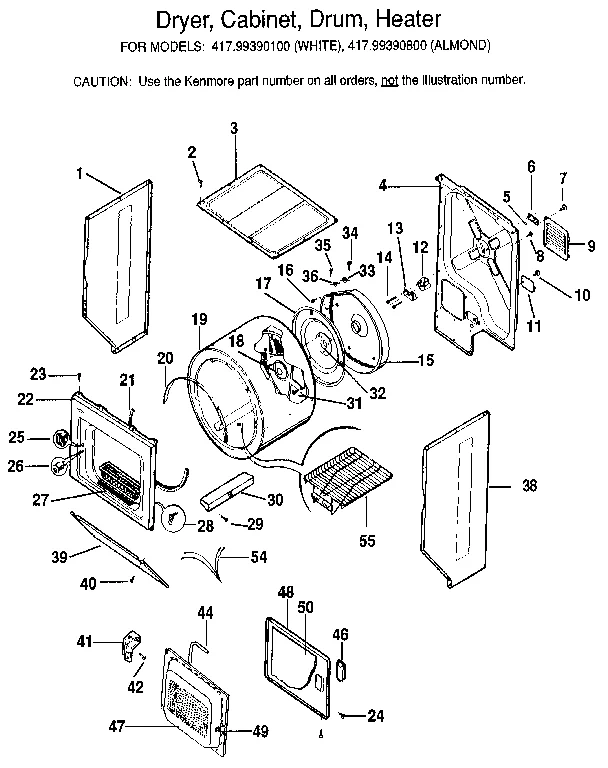

DRYER, CABINET, DRUM, HEATER
Common parts from model Electrolux 417.99390800 Laundry Center (Kenmore 41799390800)
1
Sears Canada Laundry Center Washer Agitator C WCI 3204395 Contact Us For Availability
1
Washer Screw WCI 3204461 Contact Us For Availability
1
Electronic Control WCI 5303300359 Contact Us For Availability
1
Washer Seal WCI 131151200 Contact Us For Availability
1
ACCES PANEL, DRYER WCI N/P Contact Us For Availability
1
Screw WCI 5303211089 Contact Us For Availability
1A
Panel-side L WCI 131084700 Contact Us For Availability
1B
Panel-side L WCI 131084701 Contact Us For Availability
2
Washer Agitator Cap Seal WCI 3204396 Contact Us For Availability
2
Jumper Wire WCI 131062205 Contact Us For Availability
2
Screw WCI 08011280 Contact Us For Availability
3
Dryer Harness WCI 131175100 Contact Us For Availability
4
Screw WCI 131088600 Contact Us For Availability
4
Trim WCI 5303272056 Contact Us For Availability
4
Panel WCI 5303283283 Contact Us For Availability
5
Snap Ring WCI 5303161223 Contact Us For Availability
5
Grommet Hinge WCI 3204362 Contact Us For Availability
6
Harness WCI 5303272057 Contact Us For Availability
6B
Lid (Almond) WCI 5303212873 Contact Us For Availability
8
Screw WCI 3205245 Contact Us For Availability
8
Electronic Control WCI 5303300360 Contact Us For Availability
9
Washer Gear Case Housing Seal WCI 5308015778 Contact Us For Availability
9
Access Panel WCI 3204249 Contact Us For Availability
10
Washer WCI 5308002408 Contact Us For Availability
11
Washer Agitator WCI 3204401 Contact Us For Availability
11
Washer Cover WCI 3204250 Contact Us For Availability
14
Washer WCI 5303161226 Contact Us For Availability
14
Heater WCI 5303206879 Contact Us For Availability
15
Control Thermostat WCI 131073400 Contact Us For Availability
17
Bracket WCI 5303272061 Contact Us For Availability
17
Housing WCI 5303271179 Contact Us For Availability
18
Control Panel WCI 131219000 Contact Us For Availability
18
Locating Pin WCI 3204373 Contact Us For Availability
18
Screw WCI 5303205255 Contact Us For Availability
19
Cradle Pan WCI 3204311 Contact Us For Availability
19
Screw WCI 5308057419 Contact Us For Availability
20
End Cap WCI 5303209671 Contact Us For Availability
21
Screw WCI 3281077 Contact Us For Availability
22
Spring WCI 5303161174 Contact Us For Availability
22
Bracket WCI 5303161252 Contact Us For Availability
22A
Front Panel (White) WCI 131150702 Contact Us For Availability
22B
Panel (Almond) WCI 131150703 Contact Us For Availability
23
Dryer Harness WCI 131175000 Contact Us For Availability
23
Idler Arm WCI 131131501 Contact Us For Availability
23
Hose WCI 3205414 Contact Us For Availability
24
Retainer WCI 5303204987 Contact Us For Availability
24
Screw WCI 5303161187 Contact Us For Availability
25
Check Valve WCI 3204375 Contact Us For Availability
26
Electrolux Washer Tub Seal Assembly WCI 5303279394 Contact Us For Availability
26
Support Block WCI 5303212870 Contact Us For Availability
26
Clamp WCI 131127616 Contact Us For Availability
26
Dryer Door Switch WCI 5308001614 Contact Us For Availability
27
Washer Screw WCI 5303270023 Contact Us For Availability
27
Dryer Motor Clamp WCI 5303212834 Contact Us For Availability
27
Washer WCI 5303161232 Contact Us For Availability
28
Dryer Cabinet Clip WCI 5303281074 Contact Us For Availability
28
Housing WCI 5308950058 Contact Us For Availability
28
Motor with Pulley WCI 131198500 Contact Us For Availability
28
Coupler WCI 3204376 Contact Us For Availability
29
Sleeve WCI 5303161182 Contact Us For Availability
29
Washer Harness WCI 131162900 Contact Us For Availability
30
Washer WCI 5308057430 Contact Us For Availability
30
Screw WCI 5308015309 Contact Us For Availability
30
Screw WCI 131122100 Contact Us For Availability
31
Washer Drive Pulley WCI 3204423 Contact Us For Availability
31
Ring WCI 5308015536 Contact Us For Availability
31
End Cap WCI 5303210650 Contact Us For Availability
31
Screw WCI 5303207393 Contact Us For Availability
32
Laundry Center Washer Motor Pulley Pin WCI 3204424 Contact Us For Availability
32
Spacer WCI 5303207426 Contact Us For Availability
32
Clip WCI 3204357 Contact Us For Availability
32
Bracket WCI 3204378 Contact Us For Availability
33
Washer Idler Spring WCI 3204425 Contact Us For Availability
33
Laundry Center Washer Gear Case Water Slinger WCI 5303272073 Contact Us For Availability
33
Screw WCI 08010789 Contact Us For Availability
33
Thermostat WCI 5303272046 Contact Us For Availability
34
Cushion WCI 5377009100 Contact Us For Availability
34
Shield WCI 131112001 Contact Us For Availability
35
Washer Snubber Ring WCI 5308002385 Contact Us For Availability
35
Nut WCI 5308014350 Contact Us For Availability
35
Screw WCI 08010804 Contact Us For Availability
36
Laundry Center Washer WCI 5303261031 Contact Us For Availability
36
Washer Shipping Block WCI 3204380 Contact Us For Availability
37
Electrolux Laundry Center Washer WCI 5303161306 Contact Us For Availability
37
Screw WCI 131102900 Contact Us For Availability
38
Elbow WCI 3204320 Contact Us For Availability
38
Base WCI 5303300247 Contact Us For Availability
38A
Panel-side W WCI 131084800 Contact Us For Availability
38B
Panel-side R WCI 131084801 Contact Us For Availability
39B
Panel-servic WCI 131084403 Contact Us For Availability
40
Cushion WCI 5303004083 Contact Us For Availability
41A
Dryer Door Upper Hinge WCI 3204275 Contact Us For Availability
41B
Lower Hinge WCI 3204276 Contact Us For Availability
42
Bracket WCI 3204324 Contact Us For Availability
42A
Washer Front Panel (White) WCI 131104303 Contact Us For Availability
42B
Panel (Almond) WCI 131104305 Contact Us For Availability
43
Screw WCI 3204325 Contact Us For Availability
43
Pin WCI 131150000 Contact Us For Availability
45
Hose WCI 3204454 Contact Us For Availability
46A
Handle-white WCI 131063600 Contact Us For Availability
46B
Laundry Center Dryer Door Handle (Almond) WCI 131063601 Contact Us For Availability
47A
Bracket-r.h. WCI 131106701 Contact Us For Availability
47A
Door-inner W WCI 5303300245 Contact Us For Availability
47B
Bracket-l.h. WCI 131091001 Contact Us For Availability
47B
Door-inner-a WCI 5303300246 Contact Us For Availability
48
Screw WCI 08001578 Contact Us For Availability
48A
Outer Door (White) WCI 3204284 Contact Us For Availability
48B
Outer Door (Almond) WCI 3204285 Contact Us For Availability
49
Washer Water-Level Pressure Switch WCI 5303293375 Contact Us For Availability
49
Screw WCI 5303206864 Contact Us For Availability
50
Safety Cover WCI 3204329 Contact Us For Availability
50
Switch WCI 3205646 Contact Us For Availability
51
Bracket WCI 3204391 Contact Us For Availability
52
Rivet WCI 08002420 Contact Us For Availability
53A
Panel (White) WCI 5303212874 Contact Us For Availability
53B
Panel (Almond) WCI 5303212875 Contact Us For Availability
54
Washer Bleach Dispenser WCI 3204394 Contact Us For Availability
54
Electronic Harness WCI 131218800 Contact Us For Availability
55
Dryer Drying Rack WCI 131155200 Contact Us For Availability
57A
Body-whte WCI 131062110 Contact Us For Availability
57B
Body-almond WCI 131062112 Contact Us For Availability
NI
Laundry Center Washer Suspension Spring Adjus WCI 5303212877 Contact Us For Availability
NI
Siphon Assembly WCI 076660-000 Contact Us For Availability
NI
Shipping Label WCI 131100900 Contact Us For Availability
NI
Warming Label WCI 131155000 Contact Us For Availability
NI
Energy Label WCI 131190800 Contact Us For Availability
NI
Service Data Sheet WCI 131219100 Contact Us For Availability
NI
Operating Instructions WCI 131219200 Contact Us For Availability
NI
Use and Care Guide WCI 131219300 Contact Us For Availability
NI
Installation WCI 131229300 Contact Us For Availability
NI
Bearing WCI 3204473 Contact Us For Availability
NI
Label WCI 3205252 Contact Us For Availability
NI
HARD CARD WCI 530300362 Contact Us For Availability
NI
Almond WCI 5303017866 Contact Us For Availability
NI
Shim WCI 5303161222 Contact Us For Availability
NI
Label WCI 5303209401 Contact Us For Availability
NI
Label WCI 5303300289 Contact Us For Availability
NI
Label WCI 5303300290 Contact Us For Availability
NI
Label WCI 5303300291 Contact Us For Availability
NI
Compound WCI 5308006576 Contact Us For Availability
NI
Parts Catalog WCI 5995241238 Contact Us For Availability
× ![]()
