Model Kenmore 417.27182700 WASHER – Common Parts & Diagrams

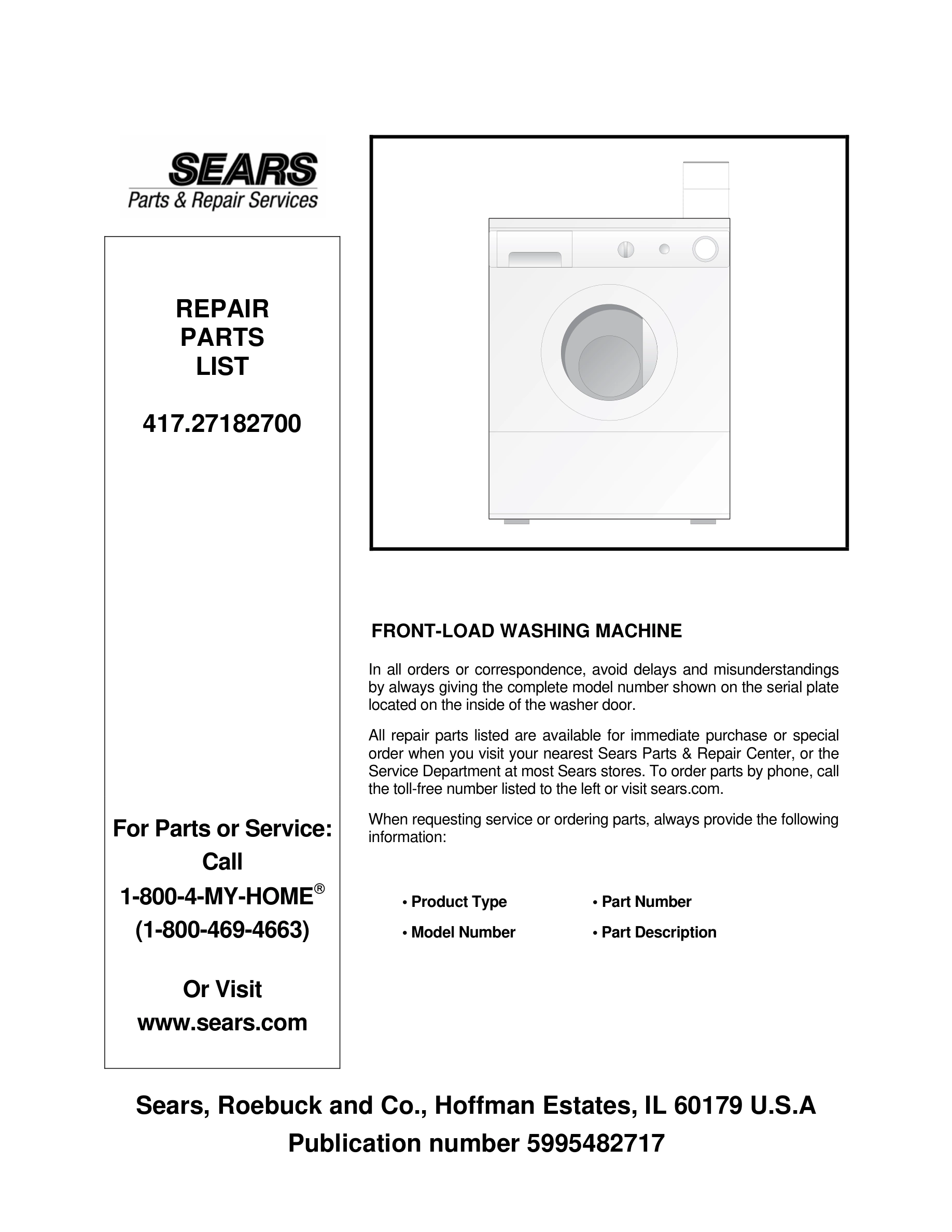

01 - COVER

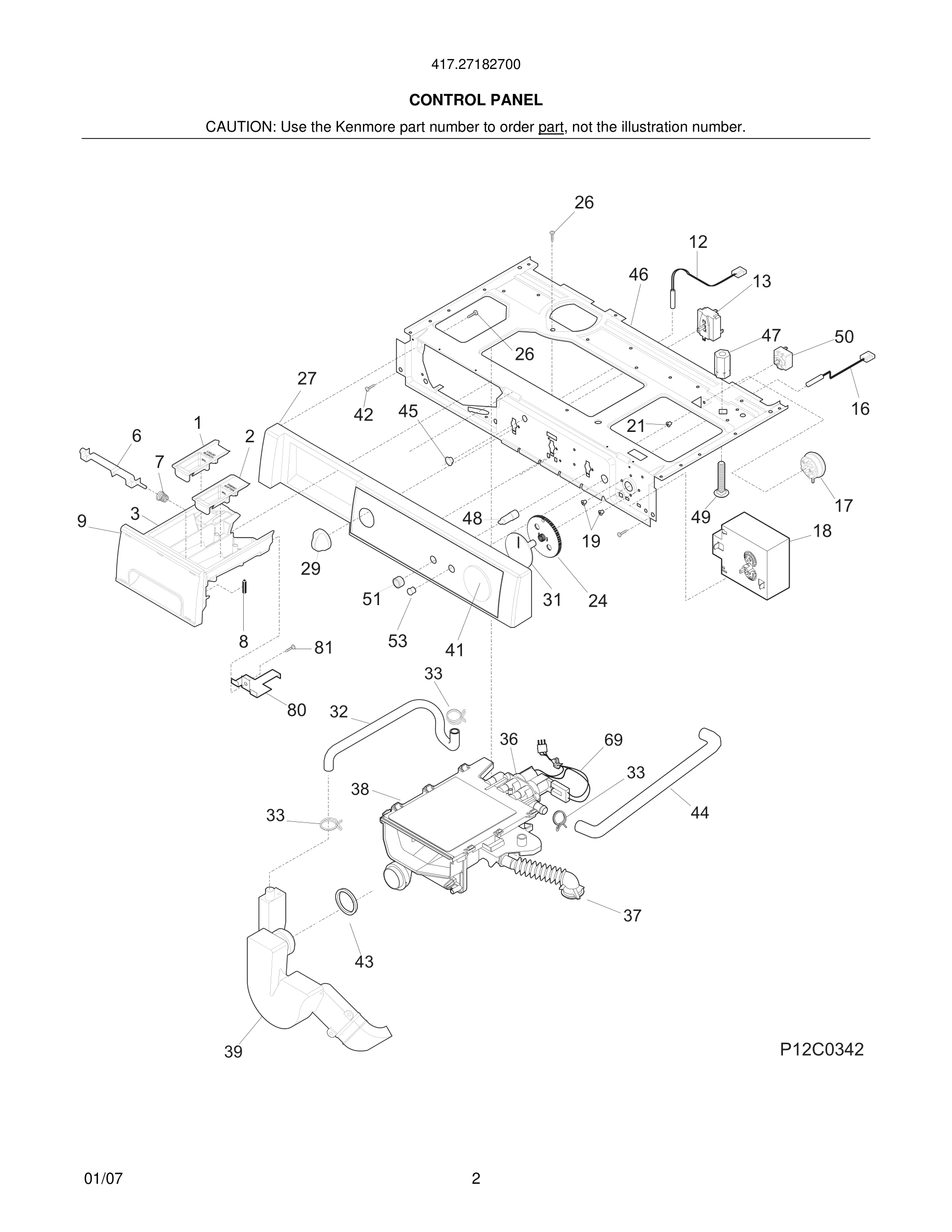

03 - CONTROL PANEL

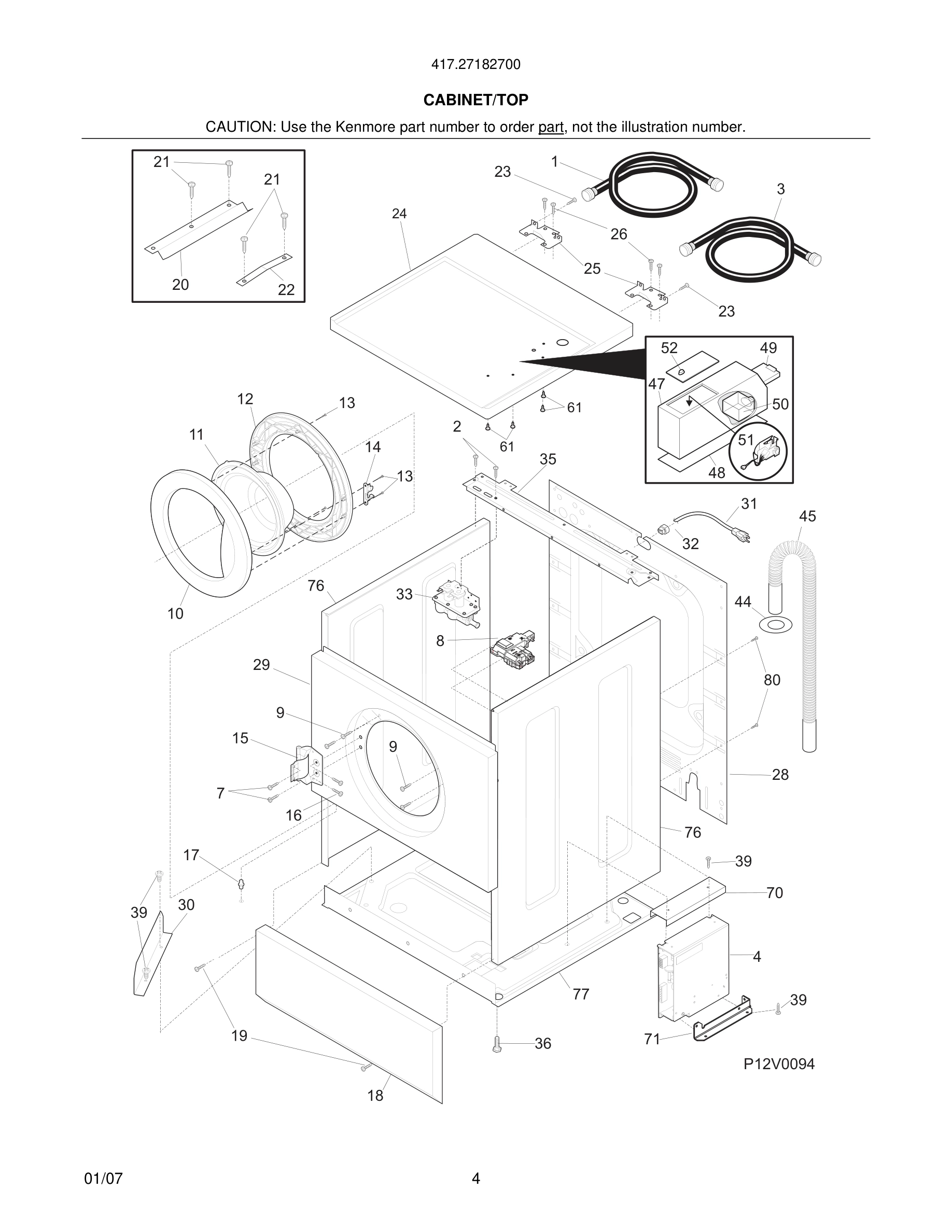

05 - CABINET / TOP

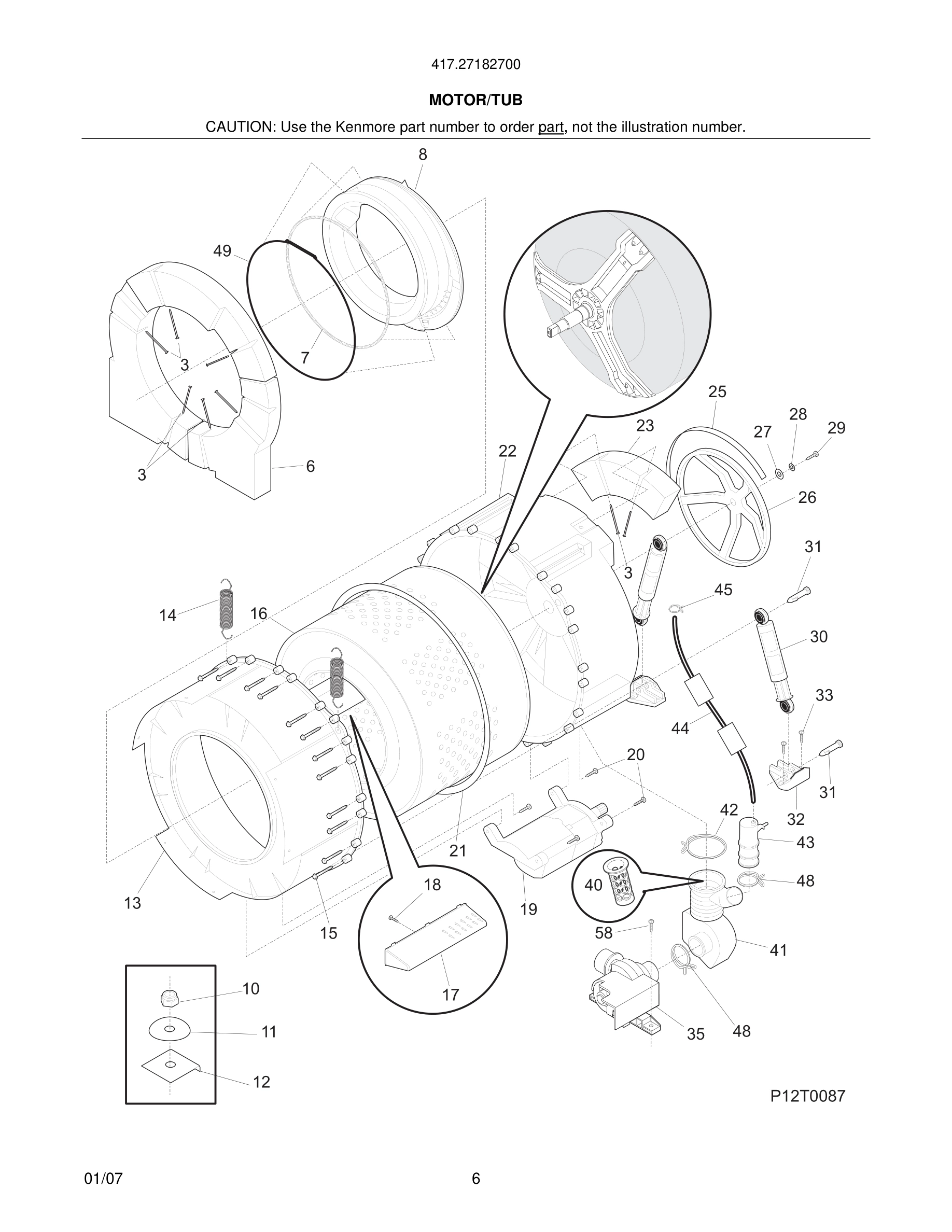

07 - MOTOR/TUB

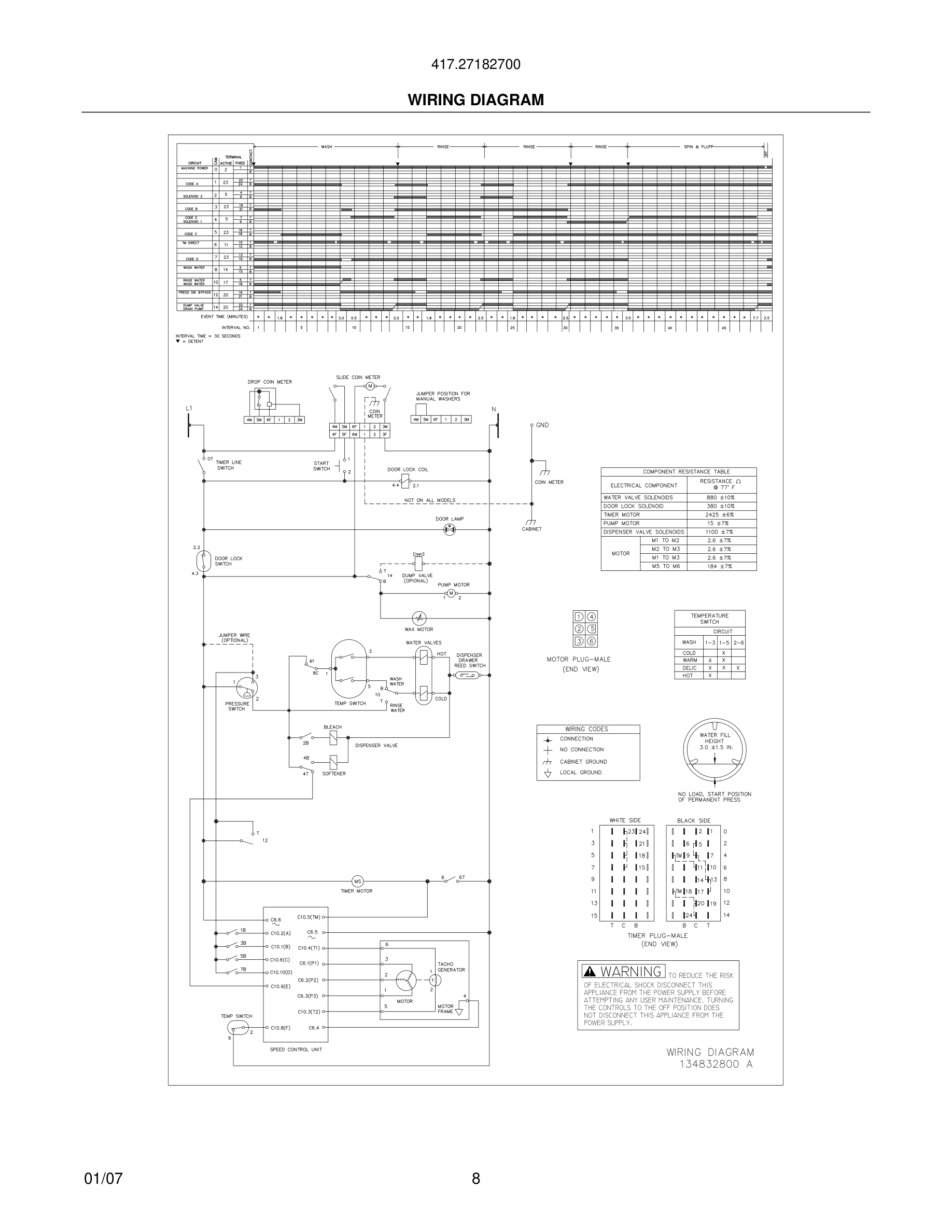

08 - WIRING DIAGRAM

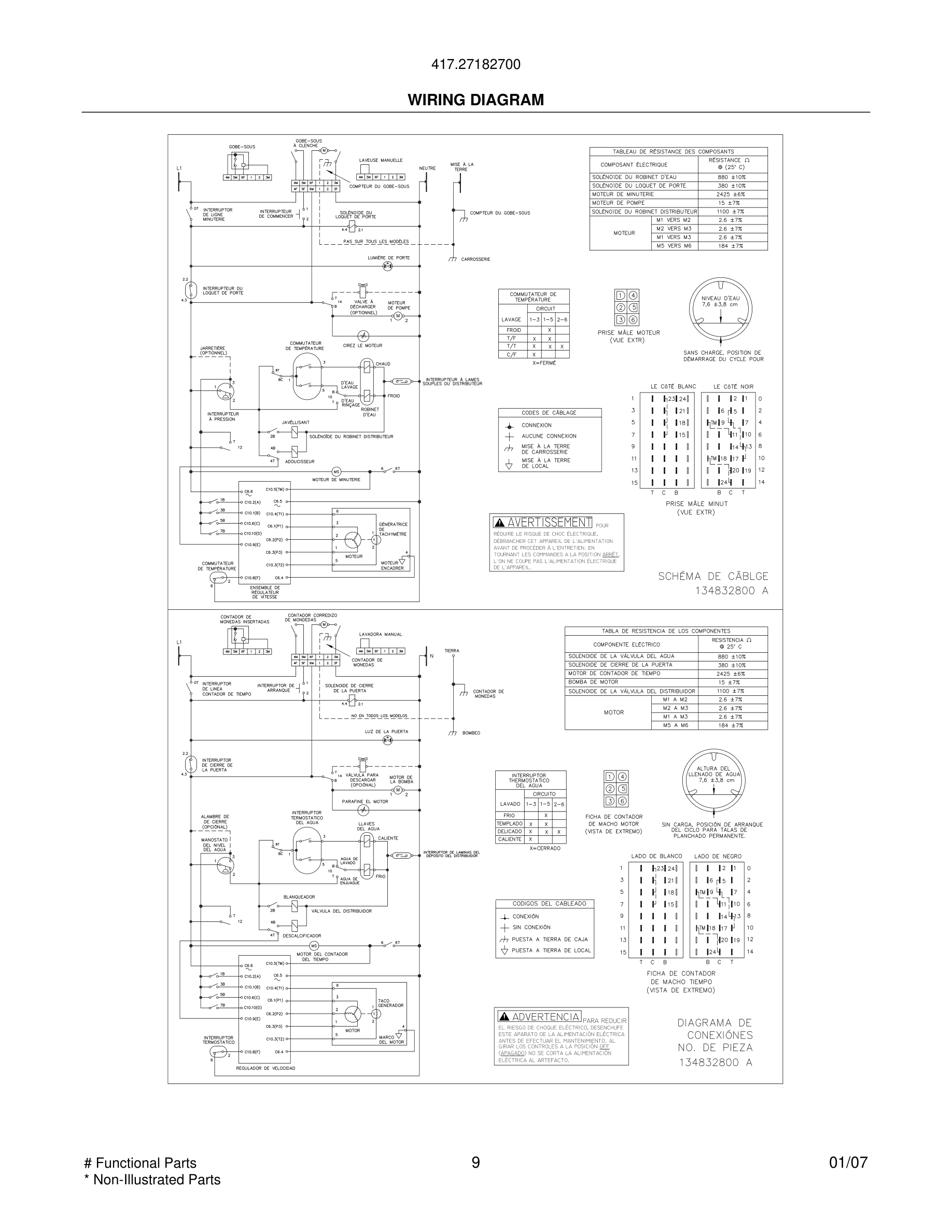

09 - WIRING DIAGRAM
Common parts from model Kenmore 417.27182700 WASHER
*
Shipping Brace Kit WCI 5303937142 No Longer Available
1
Cover, bleach WCI 131272100 Contact Us For Availability
2
Cover, softener WCI 131272000 Contact Us For Availability
3
Drawer, dispenser WCI 131271910 Contact Us For Availability
3
Bolt, carriage, 1/4-20 x 4.00 WCI 131793302 Contact Us For Availability
4#
Controller Assy, speed, w/base & shield WCI 134149220 Contact Us For Availability
6
Latch, disp drawer hdl WCI 131374500 Contact Us For Availability
6
Counterweight, one piece WCI 131975300 Contact Us For Availability
7
Spring, boot retainer WCI 131277300 Contact Us For Availability
7
Spring WCI 131427500 Contact Us For Availability
8
Magnet WCI 131373800 Contact Us For Availability
9
Handle, dispenser WCI 131689600 Contact Us For Availability
10
Frame, outer door, white WCI 131278700 Contact Us For Availability
11
Panel, door glass WCI 131278800 Contact Us For Availability
12#
Switch, reed WCI 131505902 Contact Us For Availability
13
Screw, flat head, 10-16 x 0.600, quadrex WCI 134227100 Contact Us For Availability
13#
Switch, water temp, 4 posn rotary WCI 134603400 Contact Us For Availability
16
Lamp, status light WCI 131724700 Contact Us For Availability
17
Pin, panel locator WCI 131346400 Contact Us For Availability
17#
Switch, pressure, water optimizer WCI 134438301 Contact Us For Availability
18
Panel, service, white, front WCI 131279300 Contact Us For Availability
20
Bracket, top panel mtg., front WCI 131460900 Contact Us For Availability
21
O-ring, tub WCI 134146100 No Longer Available
22
Retainer, spring steel WCI 131279500 No Longer Available
23
Counterweight, drum rear WCI 134125900 Contact Us For Availability
24
Panel, white, top, coin-op WCI 134086852 Contact Us For Availability
25
Bracket, top panel mtg. WCI 131668200 Contact Us For Availability
26#
Pulley, drum drive, large, rear WCI 131883400 Contact Us For Availability
27
Washer, 0.41 x 1.50, 0.12 thick WCI 131304400 Contact Us For Availability
27
Console, frame/trim assy WCI 131691029 Contact Us For Availability
28
Washer, lock, 3/8 WCI 131304500 Contact Us For Availability
29
Knob, rotary, white WCI 131264500 Contact Us For Availability
29
Screw, pulley mtg., m10 x 0.92, metric WCI 131303700 Contact Us For Availability
31
Dial, timer indicator WCI 134549200 Contact Us For Availability
32
Bracket, shock mtg. WCI 131268100 Contact Us For Availability
32
Hose, siphon/valve WCI 131786100 Contact Us For Availability
38
Dispenser Assy WCI 131803710 Contact Us For Availability
39
Siphon WCI 131863300 Contact Us For Availability
43
Gasket, seal WCI 131749200 Contact Us For Availability
43
Chamber, air WCI 131277500 Contact Us For Availability
44
Hose, dispenser WCI 131786000 Contact Us For Availability
46
Panel, control mtg., wing bend WCI 134191412 Contact Us For Availability
48
Extension, switch shaft, push-to-start WCI 131686000 Contact Us For Availability
48
Gasket, meter housing WCI 134028000 Contact Us For Availability
50
Coin Box, with 2 keys WCI 5304458423 Contact Us For Availability
51
Button, push/start, white WCI 131970200 Contact Us For Availability
51#
Start Mechanism, washer WCI 5304458426 No Longer Available
52*#
Key, lock, service door WCI 5304458428 Contact Us For Availability
53
Lens, status light, clear WCI 131724800 Contact Us For Availability
× ![]()
