Model Whirlpool 3XARG458GD01 REFRIGERATOR – Common Parts & Diagrams
11 - ICEMAKER, LIT/OPTIONAL

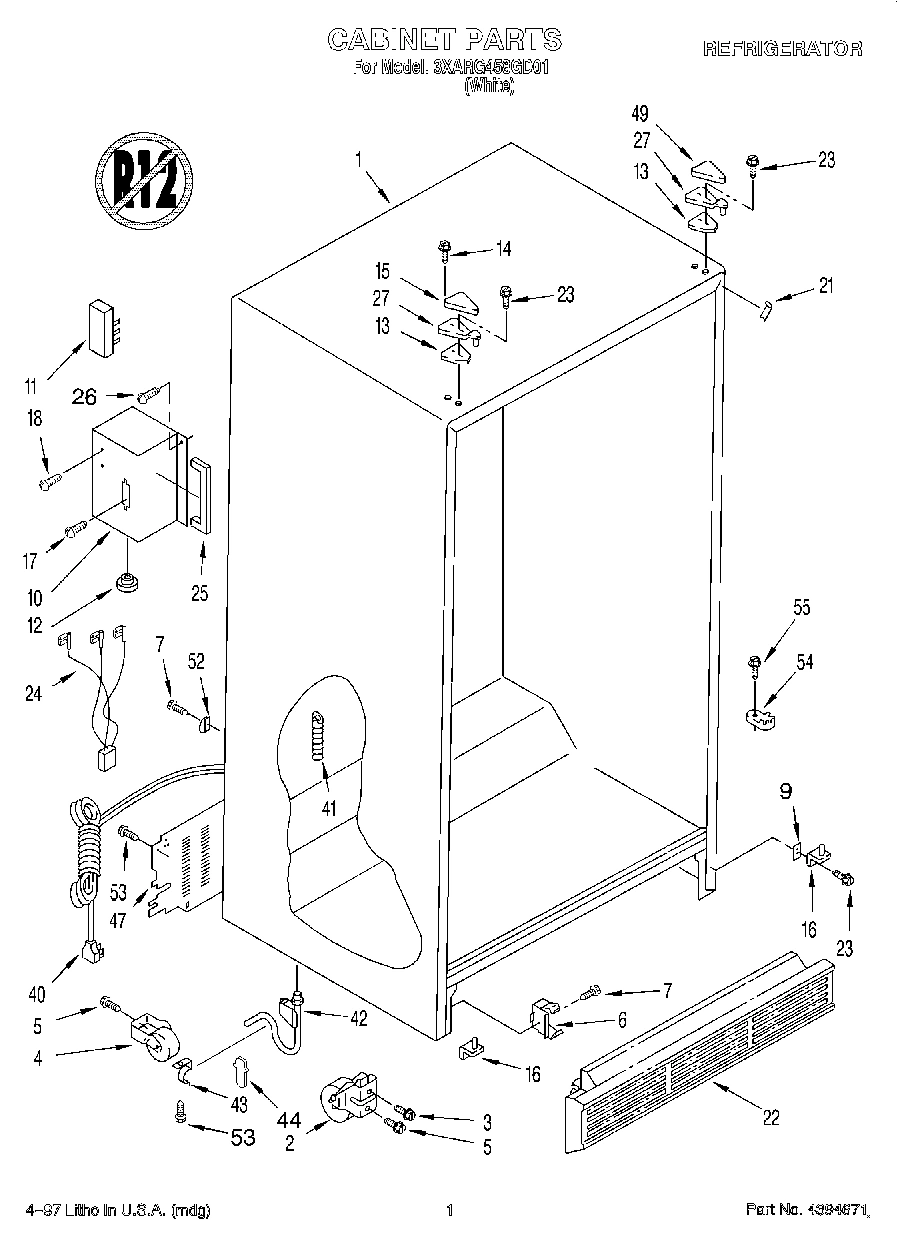

01 - CABINET

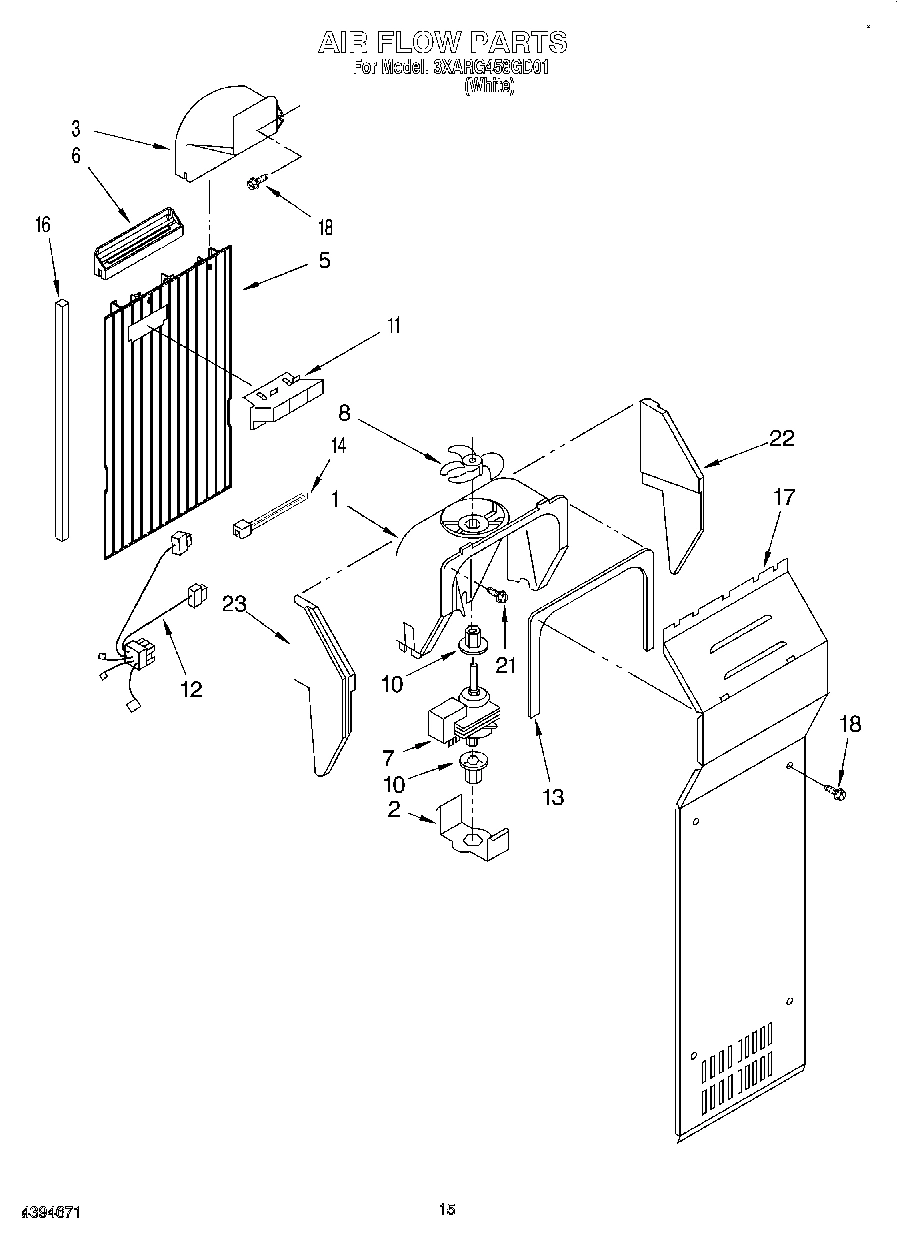

08 - AIRFLOW

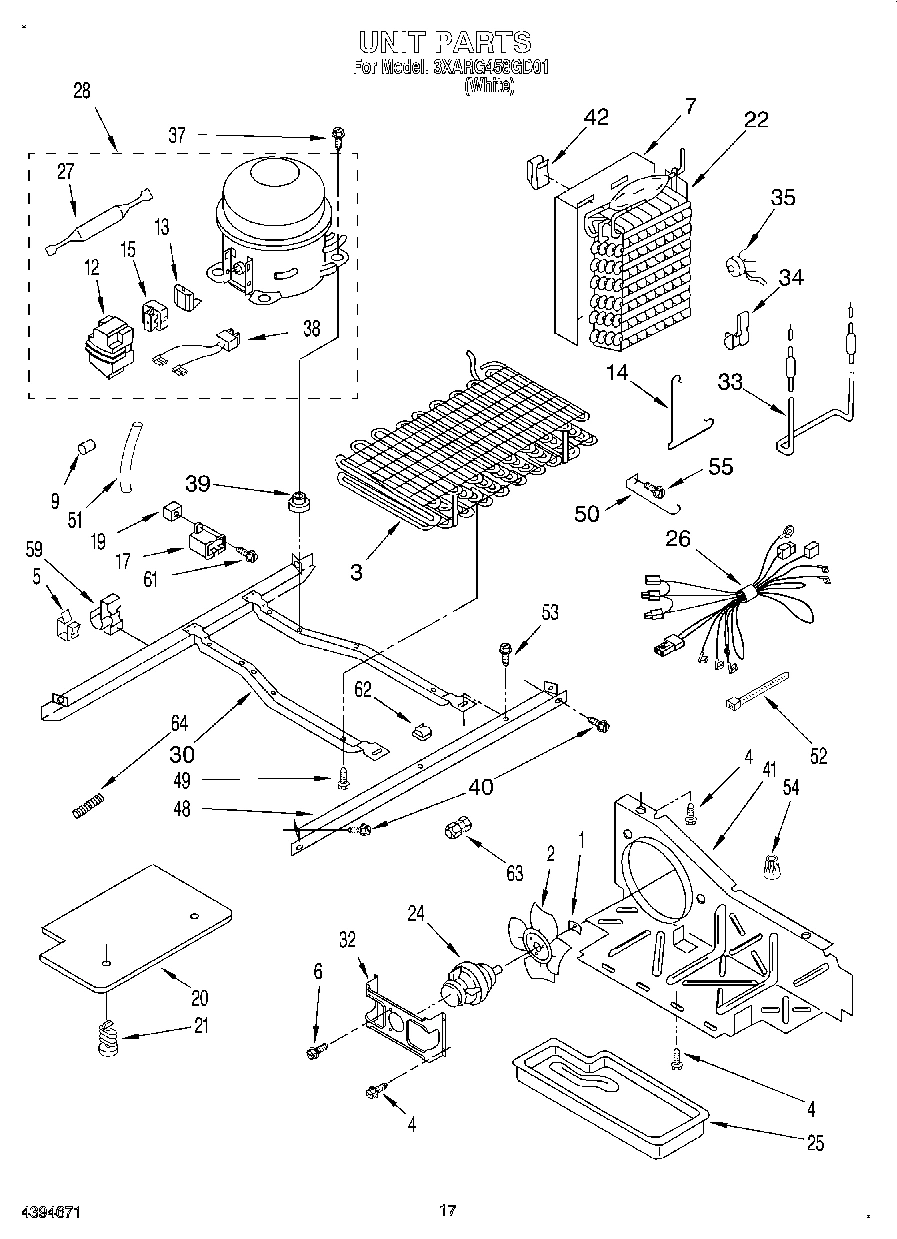

10 - UNIT

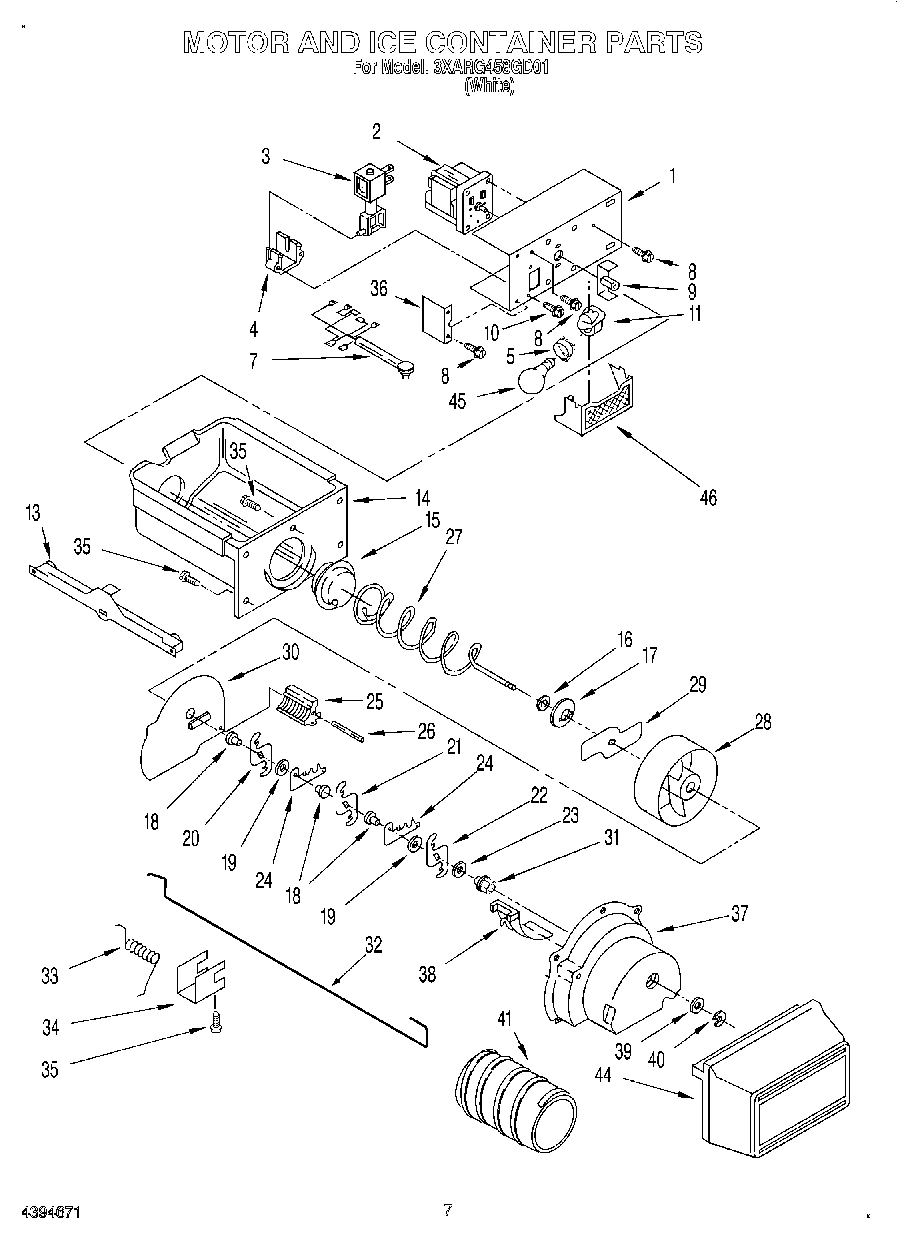

04 - MOTOR AND ICE CONTAINER

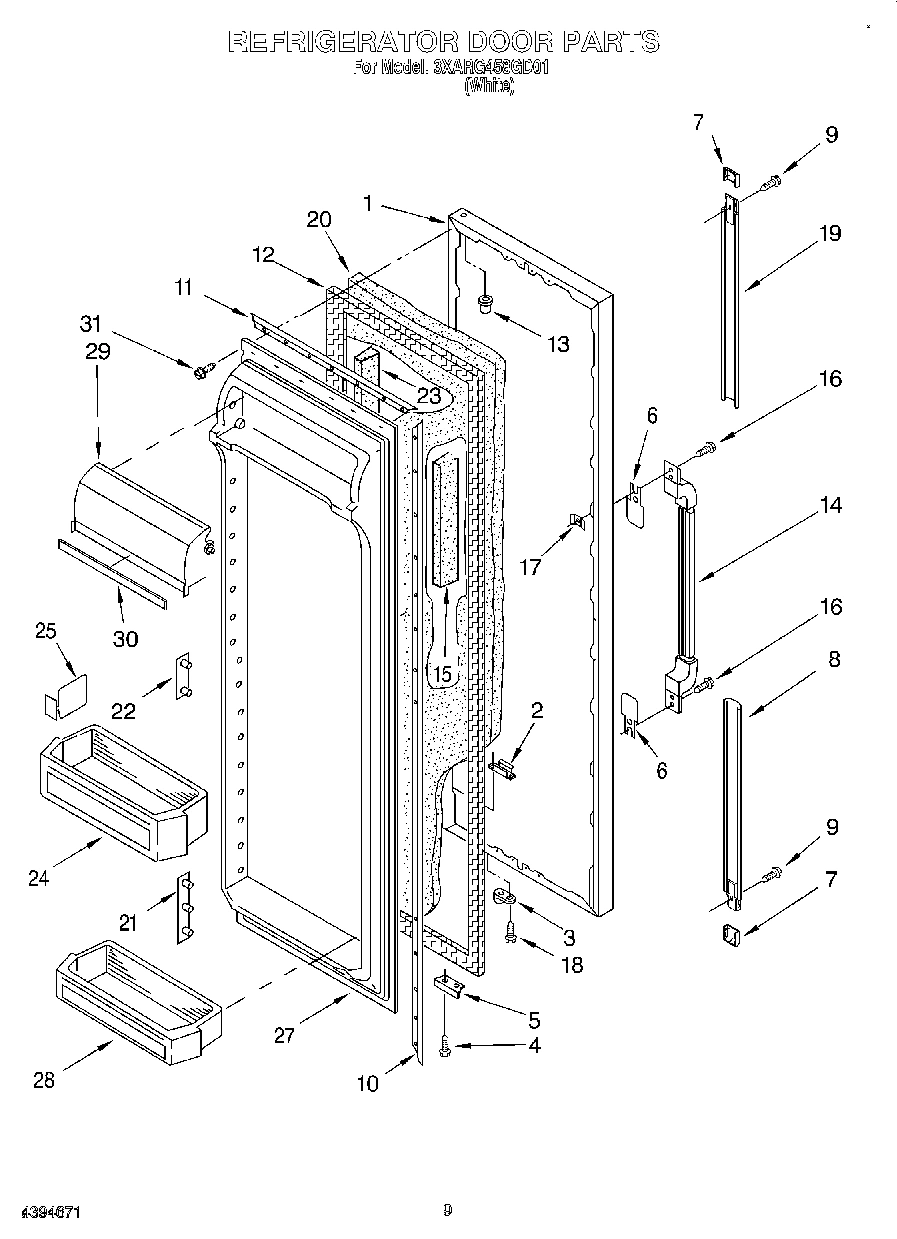

05 - REFRIGERATOR DOOR

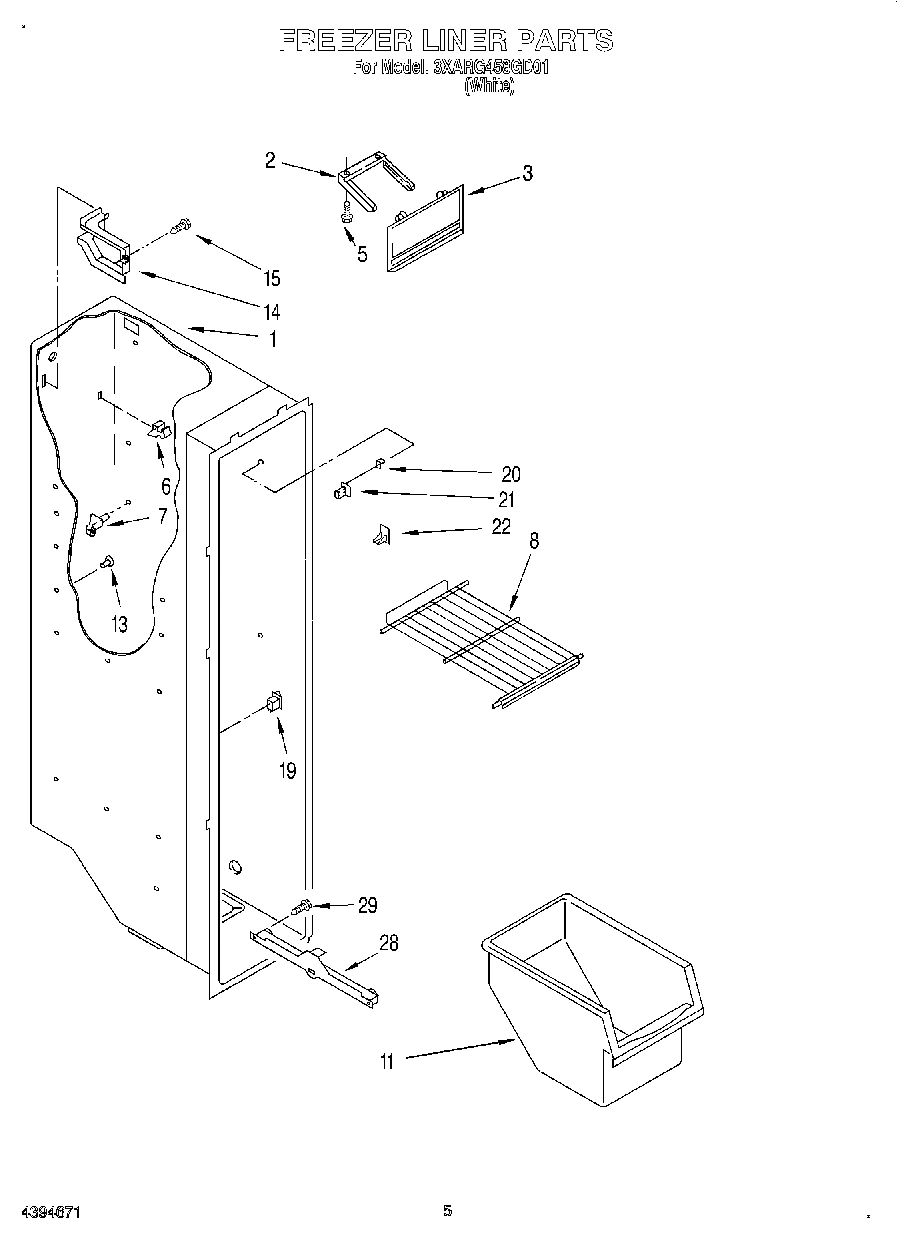

03 - FREEZER LINER

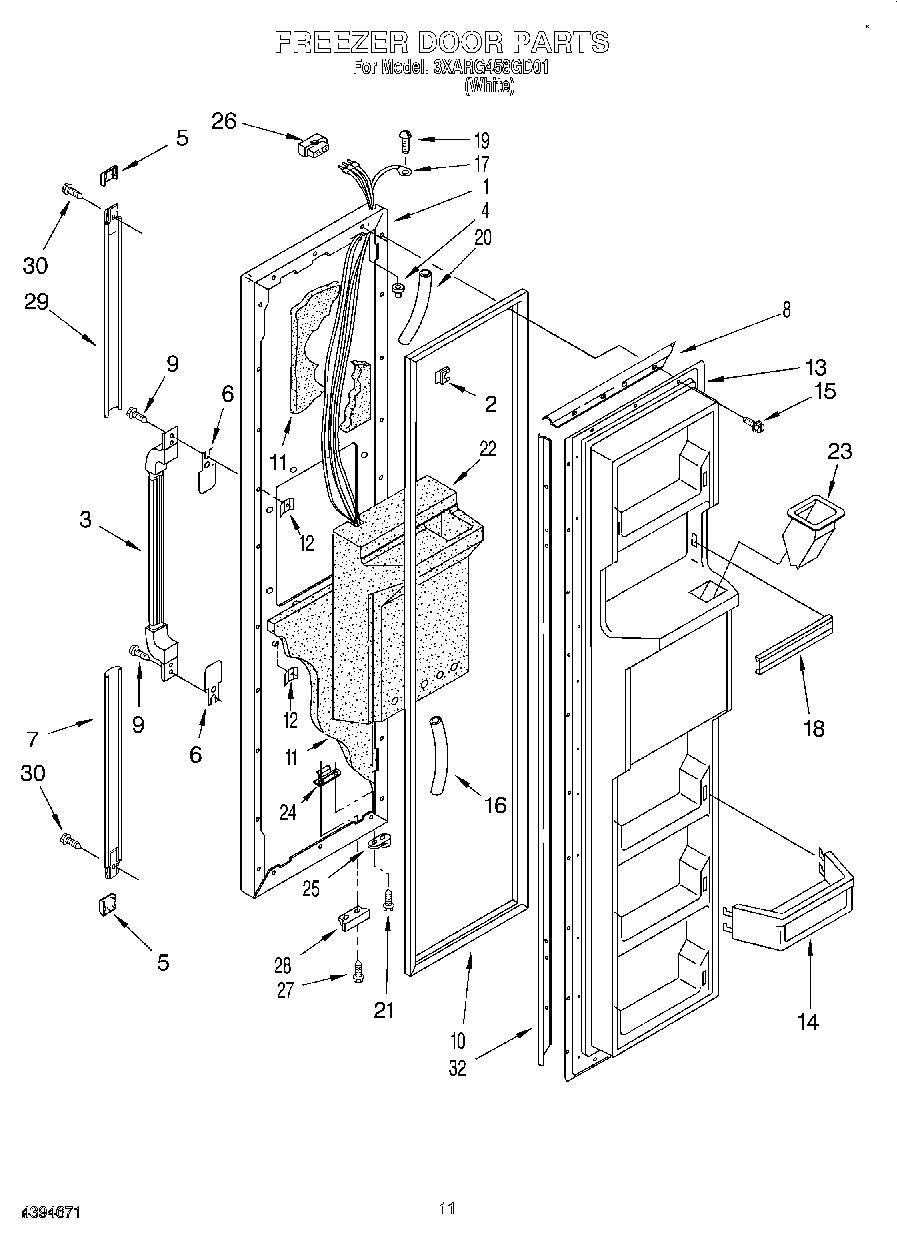

06 - FREEZER DOOR

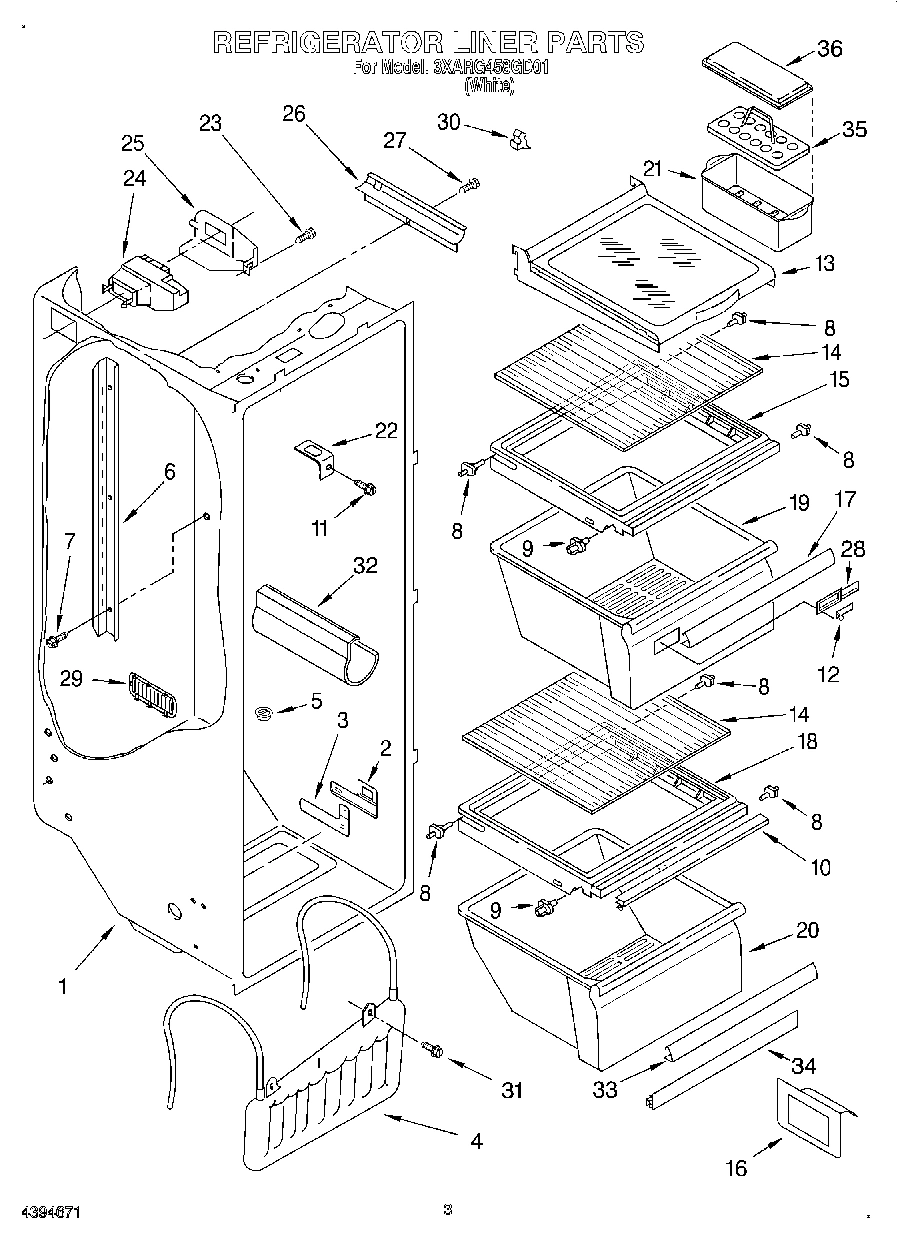

02 - REFRIGERATOR LINER

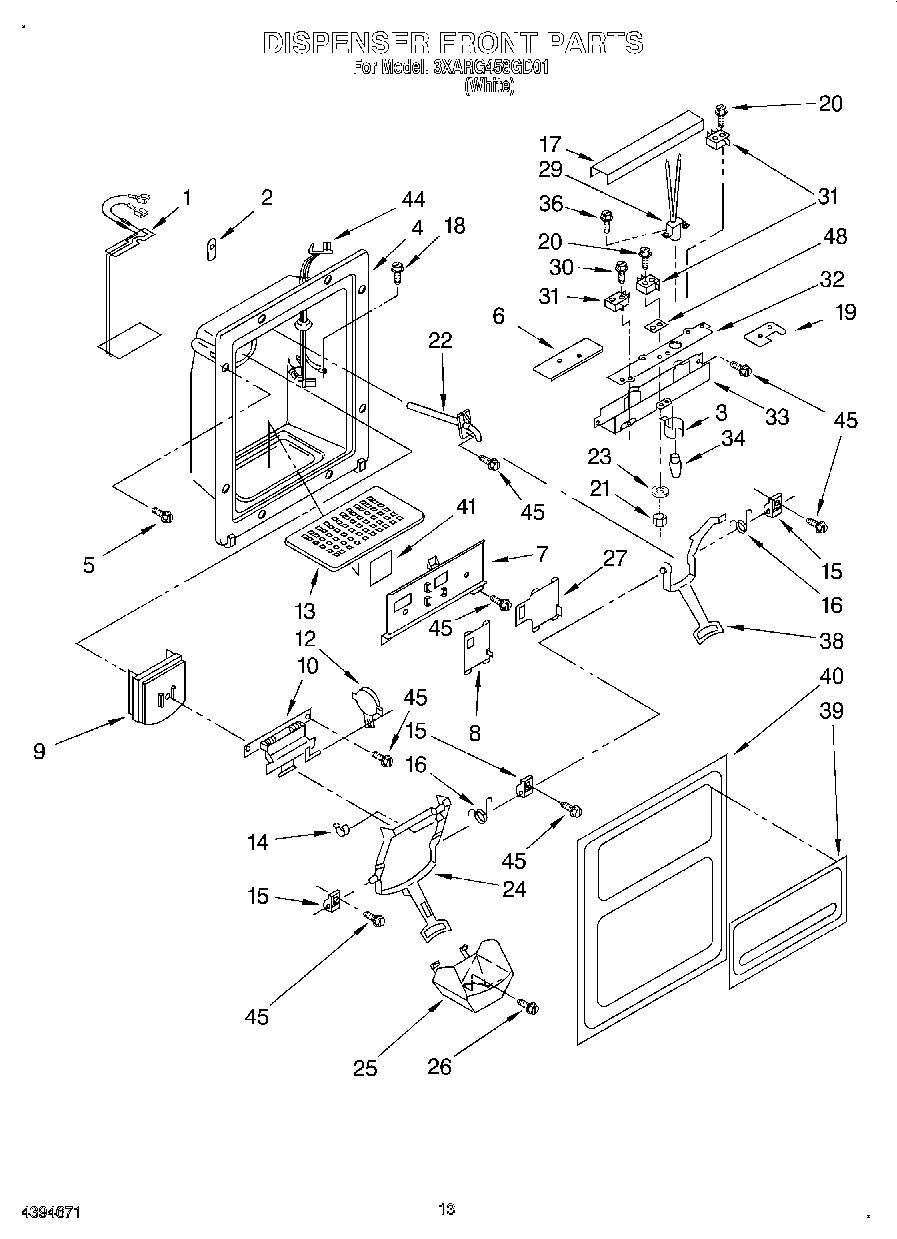

07 - DISPENSER FRONT

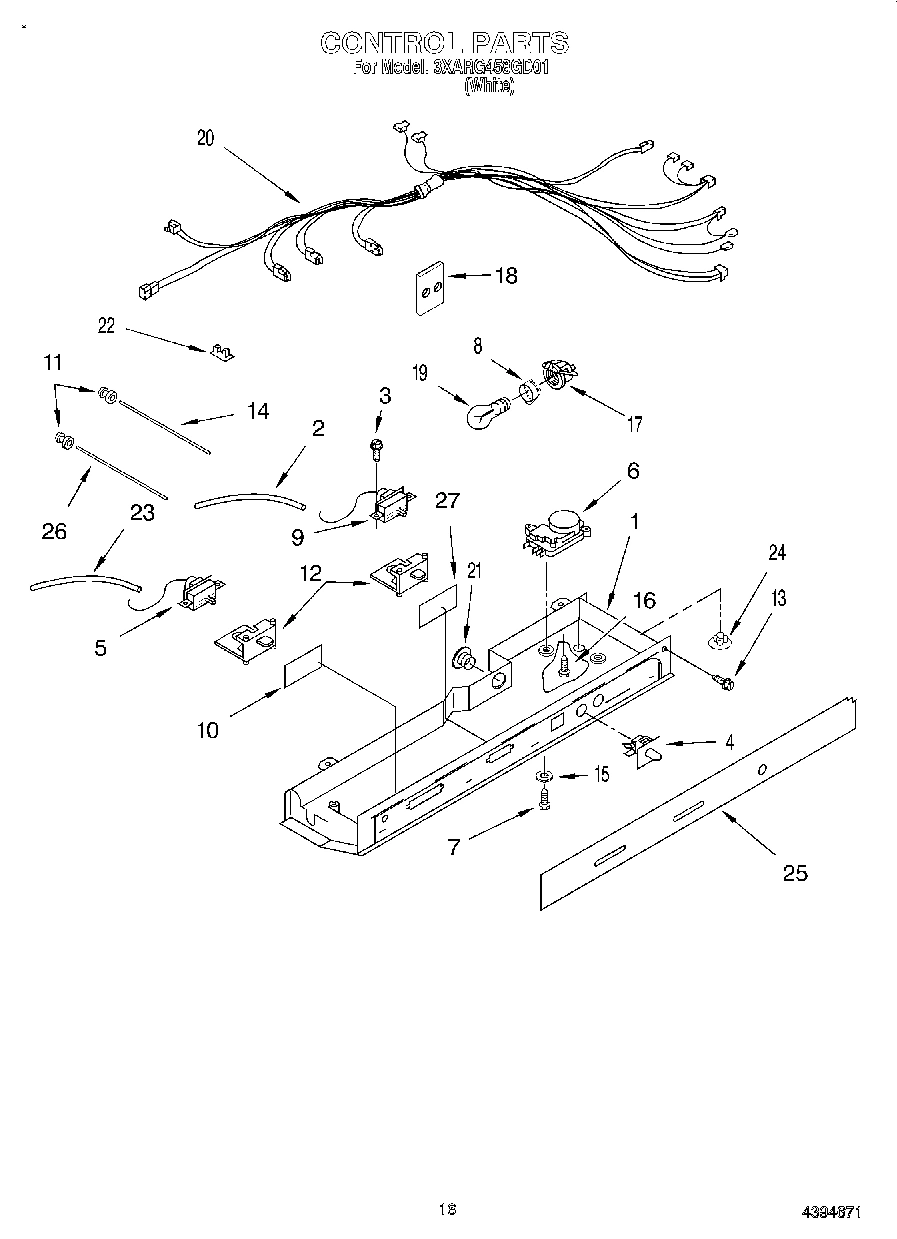

09 - CONTROL
Common parts from model Whirlpool 3XARG458GD01 REFRIGERATOR
WPL 1117510 WPL 1117510 Contact Us For Availability
1
Refrigerator Door Panel (Also Order Item 20) WPL 2194995W Contact Us For Availability
1
Liner (Not A Serviceable Part) WPL ARI12695A9 Contact Us For Availability
1
Freezer Door Panel (Also Order Item 11) WPL 2194998W Contact Us For Availability
1
Liner (Not A Serviceable Part) WPL ARI12694A2 Contact Us For Availability
1
Heater, Dispenser WPL 2181930 Contact Us For Availability
2
RETAINER, FAN MOTOR WPL 2155590 Contact Us For Availability
2
Fan, Blade WPL 1108179 Contact Us For Availability
2
Slide, Ice Door WPL 1115380 Contact Us For Availability
2
Clip WPL 2197720 Contact Us For Availability
2
Grommet WPL 987048 Contact Us For Availability
3
SLIDE MEAT PAN CONTROL WPL 2182757 Contact Us For Availability
3
Handle WPL 2194759W Contact Us For Availability
3
Shroud WPL 2166858 Contact Us For Availability
4
Cap, Hinge Sleeve WPL 939886 Contact Us For Availability
4
Housing, Dispenser WPL 1124715 Contact Us For Availability
5
Bracket, Door Stop WPL 2195950 Contact Us For Availability
5
End Cap WPL 2174006 Contact Us For Availability
6
Shim WPL 2179399 Contact Us For Availability
6
Shelf Ladder (2) WPL 2181796 Contact Us For Availability
6
Guard, Switch WPL 2175226 Contact Us For Availability
7
Extension, Bottom WPL 2194766W Contact Us For Availability
7
Frame, Slides WPL 2152717 Contact Us For Availability
8
Shelf (1) WPL 2174269 Contact Us For Availability
8
Shelf (2) WPL 2174270 Contact Us For Availability
8
Retainer, Gasket WPL 1117767 Contact Us For Availability
8
Slide, Cube/Crush Switch WPL 2152720 Contact Us For Availability
9
Door, Ice WPL 2147168 Contact Us For Availability
10
Door Mechanism Assembly (Includes Item 9) WPL 2147167 Contact Us For Availability
10
Valve, Solenoid WPL 2175056 Contact Us For Availability
10
Gasket, Front WPL 2174442 Contact Us For Availability
11
Gasket Retainer, Top & Bottom WPL 1118301 Contact Us For Availability
11
Bin, Freezer WPL 2171707 Contact Us For Availability
11
Grommet, Light Bar WPL 2172906 Contact Us For Availability
13
Grommet (4) WPL 2176134 Contact Us For Availability
13
Cap, Hinge Sleeve WPL 509929 Contact Us For Availability
13
Panel, Interior Door WPL 1126179 Contact Us For Availability
13
Shelf, Glass (3) WPL 2174057 Contact Us For Availability
13
Grille, Overflow WPL 1126120 Contact Us For Availability
14
Light Bar (RC) WPL 2179920 Contact Us For Availability
14
Clip, Defrost Heater WPL 2161324 Contact Us For Availability
14
Cover, Wiring WPL 2155572 Contact Us For Availability
14
Trim, Door Shelf (4) WPL 2189738 Contact Us For Availability
14
Clip, Bearing (2) WPL 987917 Contact Us For Availability
15
Hinge Cover WPL 1129262 Contact Us For Availability
15
Door Dike, Handle Side WPL 1119055 Contact Us For Availability
15
Bearing, Lever (3) WPL 983697 Contact Us For Availability
15
Washer WPL 486632 Contact Us For Availability
16
Spring, Lever (2) WPL 983696 Contact Us For Availability
16
Tube, Water Line WPL 2147080 Contact Us For Availability
17
Screw Anchor WPL 941242 Contact Us For Availability
17
Harness, Door WPL 2181908 Contact Us For Availability
17
Shield, Wiring WPL 2147165 Contact Us For Availability
19
Guard, Switch WPL 2175227 Contact Us For Availability
20
Foam Insulation (Required When Replacing Exte WPL 876029 Contact Us For Availability
20
Unit Cover, Bottom WPL 2182057 Contact Us For Availability
20
Stud WPL 946355 Contact Us For Availability
20
Tube, Door Wiring WPL 2194838 Contact Us For Availability
20
Screw (6) WPL 488362 Contact Us For Availability
20
Control Box Harness WPL 2183734 Contact Us For Availability
21
Pin Plate WPL 1116986 Contact Us For Availability
21
Stud, R.S. Front WPL 946356 Contact Us For Availability
21
Nut (4) WPL 489476 Contact Us For Availability
22
Pin Plate WPL 1118048 Contact Us For Availability
22
Stud, L.S. Rear WPL 1106982 Contact Us For Availability
22
Insulation, Dispenser WPL 2149014 Contact Us For Availability
22
CLIP, WIRING WPL 1115375 Contact Us For Availability
23
Door Dike, Hinge Side WPL 1115379 Contact Us For Availability
23
Chute, Ice WPL 1119036 Contact Us For Availability
23
Washer (4) WPL 486734 Contact Us For Availability
24
Lever, Ice Dispenser WPL 2177144 Contact Us For Availability
24
Tap, Plate WPL 2155335 Contact Us For Availability
24
Door Bin, Deep (2) WPL 2177882 Contact Us For Availability
24
Hole Plug WPL 2166844 Contact Us For Availability
25
Guide, Ice WPL 1124730 Contact Us For Availability
25
Divider, Bin WPL 2195498 Contact Us For Availability
25
Escutcheon, Control Box WPL 2175179 Contact Us For Availability
26
Cover, Conduit WPL 2150330 Contact Us For Availability
26
Screw WPL 488892 Contact Us For Availability
26
Light Bar (FC) WPL 2179921 Contact Us For Availability
27
Interior Door Panel (Also Order Item No.15) WPL 1129278 Contact Us For Availability
27
Slide, Light Switch WPL 2152726 Contact Us For Availability
27
Window WPL 2172941 Contact Us For Availability
28
Door Bin (2) WPL 2177883 Contact Us For Availability
28
Slide, Ice Container (Left Side) WPL 1115383 Contact Us For Availability
29
Extension, Top WPL 2194764W Contact Us For Availability
29
Compartment Door WPL 2148289 Contact Us For Availability
29
Louver WPL 2182147 Contact Us For Availability
29
Lamp Holder WPL 2166862 Contact Us For Availability
30
Trim, Door Compartment WPL 2162896 Contact Us For Availability
30
Screw WPL 488361 Contact Us For Availability
31
Screw WPL 488280 Contact Us For Availability
32
Control Arm WPL 2169938 Contact Us For Availability
32
Retainer, Gasket WPL 1117766 Contact Us For Availability
32
Insulator, Control Bracket WPL 2147164 Contact Us For Availability
33
Bracket, Control WPL 2147163 Contact Us For Availability
34
Extension WPL 2179561 Contact Us For Availability
34
Bulb, Light WPL 989331 Contact Us For Availability
36
Cover WPL 2169935 Contact Us For Availability
38
Lever, Water Dispenser WPL 2177149 Contact Us For Availability
39
Plaque, Front Cover WPL 2175023 Contact Us For Availability
40
Front Cover, Housing (Includes Item 39) WPL 2175130 Contact Us For Availability
41
Heat Shield, Frame WPL 2147172 Contact Us For Availability
42
TAPE, VINYL (3/4 X 108``) WPL 479502 Contact Us For Availability
42
WPL 799344 WPL 799344 Contact Us For Availability
44
Front Cover, Ice Container WPL 2171709 Contact Us For Availability
44
Wiring Harness, Door WPL 2147166 Contact Us For Availability
48
Spacer WPL 625834 Contact Us For Availability
64
VALVE, ACCESS (5/8``) WPL 978029 Contact Us For Availability
× ![]()
